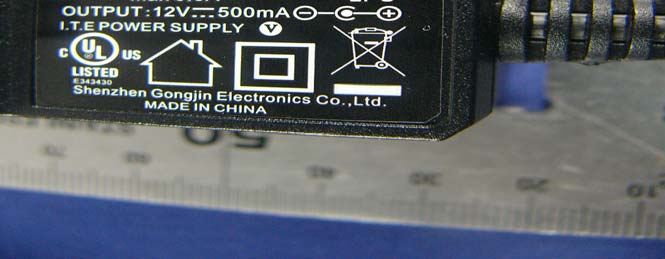

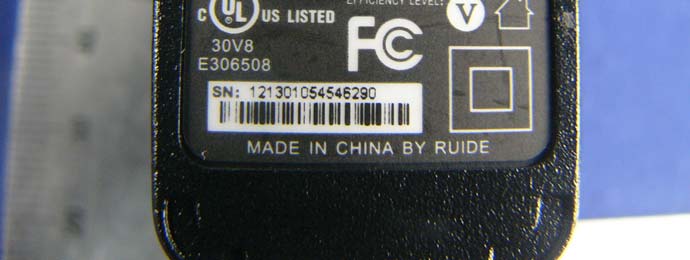

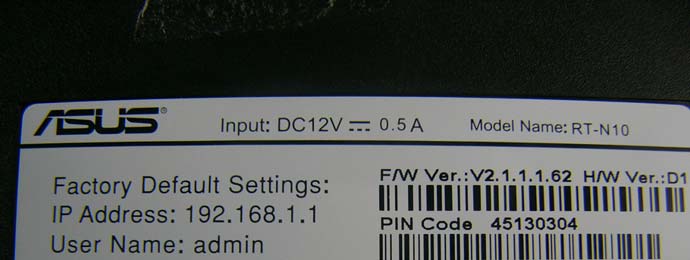

Report No.: C130318Z03-RP1 Page 1/5 External Photos of EUT Report No.: C130318Z03-RP1 Page 2/5 Report No.: C130318Z03-RP1 Page 3/5 Report No.: C130318Z03-RP1 Page 4/5 Adapter 1# Report No.: C130318Z03-RP1 Page 5/5 Adapter 2#

1 2 3 4 A B C D 56 1 2 3 4 56 A B C D DATE: ASUS RT-N10P_CA 1. 黑色印刷，无边框,R1.5 2.材料: 50# 亮白PET,不过光膜,过UV油墨,背胶 NOTES(技术要求）: (Material:,no film,UV coated,adhesive)50# bright white PET (Black printing,no frame,) R1.5 1:1 盒底标贴 XXXX N/A CHECK DRAW PDE 608000018340 A0 Editor Description Remark Date 130402 钟丹群 金岳本 刘燕 3. .原材料及后处理工艺均能满足我司《环保技术标准》要求 (Raw materials and the corresponding post processing should meet requirements defined in the T&W Environmental Protection Technical Standards) 0 -0.2 0 - 0 . 2 Y: 年份 2010 年第一码为 " A " , 依此类推 2011=> B, 2012=> C ...... 2029 => Z. ( 其中I,O,P,Q,U,V 不用) 再回到数字2030=> 0, ...., 2039=> 9 M ：月份 1代表月，月月月~91~9A:10, B:11, C:12 XXXXXX: 000001 - 999999(按生产流水号) BARCODE: CODE 128 69.5 mm 3 0 . 5 m m 来料方式:卷装 编号规则: YMIADRXXXXXX IADR: 固定 MAC 位数及内容由客户提供 PIN Code 位数及内容由客户提供 F/W Ver.:Vx.x.x.x为虚指，位数及内容以客户提供的版本信息为准 1.以下内容由供应商印刷： 2. 以下内容由工厂在供应商印刷的基础上打印： MAC XXXXXXXXXXXX PIN Code XXXXXXXXXXXX F/W Ver.:Vx.x.x.x H/W Ver.:A1 SN YMIADRXXXXXX FCC ID:MSQ-RTN10P

Report No.: C130318Z03-RP1 Page 1/2 Internal Photos of EUT Report No.: C130318Z03-RP1 Page 2/2

Compliance Certification Services Inc. Report No: C130318Z03-RP1_MPE FCC ID: MSQ-RTN10P Date of Issue: April 12, 2013 1 RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(b)(4) and §1.1307(b)(1) of this chapter. EUT Specification EUT Wireless-N Router Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 23.49dBm (223.36mW) Antenna gain (Max) 5.00dBi (Numeric gain:3.16) Evaluation applied MPE Evaluation SAR Evaluation Note: 1. The maximum output power is 23.49dBm (223.36mW) at 2437MHz (with 3.16 numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULT No non-compliance noted. Compliance Certification Services Inc. Report No: C130318Z03-RP1_MPE FCC ID: MSQ-RTN10P Date of Issue: April 12, 2013 2 Calculation Given d GP E ×× = 30 & 3770 2 E S= Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Equation 1 Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm 2 Maximum Permissible Exposure EUT Output Power=223.36mW Numeric antenna gain=3.16 Substituting the MPE safe distance using d=20 cm into Equation 1 : Yields The power density S = 30 × 223.36 × 3.16/ (3770 × 400) cm 2 =1.404 × 10 -2 mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW / cm 2 even if the calculation indicates that the power density would be larger.)

Report No.: C130318Z03-RP1 FCC ID: MSQ-RTN10P Page 1 / 91 FCC 47 CFR PART 15 SUBPART C for Wireless-N Router Model: RT-N10P Brand: ASUS Test Report Number: C130318Z03-RP1 Issued Date: April 12, 2013 Issued for ASUSTeK Computer Inc 4F, No.150, Li-Te Rd., Peitou, Taipei 112, Taiwan Issued by: Compliance Certification Services (Shenzhen) Inc. No.10-1 Mingkeda Logistics park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test results in the report only apply to the tested sample. Report No.: C130318Z03-RP1 FCC ID: MSQ-RTN10P Page 2 / 91 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 C130318Z03-RP1 Initial Issue ALL Sunny Wang Report No.: C130318Z03-RP1 FCC ID: MSQ-RTN10P Page 3 / 91 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION..................................................................................................4 2 TEST RESULT SUMMARY............................................................................................5 3 EUT DESCRIPTION.......................................................................................................6 4 TEST METHODOLOGY.................................................................................................7 4.1. DESCRIPTION OF TEST MODES ......................................................................................7 5 SETUP OF EQUIPMENT UNDER TEST........................................................................8 5.1. DESCRIPTION OF SUPPORT UNITS.................................................................................8 5.2. CONFIGURATION OF SYSTEM UNDER TEST .................................................................8 6 FACILITIES AND ACCREDITATIONS ..........................................................................9 6.1. FACILITIES..........................................................................................................................9 6.2. ACCREDITATIONS .............................................................................................................9 6.3. MEASUREMENT UNCERTAINTY.......................................................................................9 7 FCC PART 15.247 REQUIREMENTS..........................................................................10 7.1. POWER LINE CONDUCTED EMISSIONS MEASUREMENT...........................................10 7.2. SPURIOUS EMISSIONS MEASUREMENT.......................................................................14 7.3. 6dB BANDWIDTH MEASUREMENT.................................................................................50 7.4. PEAK OUTPUT POWER ...................................................................................................58 7.5. BAND EDGES MEASUREMENT.......................................................................................66 7.6. PEAK POWER SPECTRAL DENSITY MEASUREMENT..................................................84 Report No.: C130318Z03-RP1 FCC ID: MSQ-RTN10P Page 4 / 91 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product Wireless-N Router Model RT-N10P Brand ASUS Tested March 18~April 12, 2013 Applicant ASUSTeK Computer Inc 4F, No.150, Li-Te Rd., Peitou, Taipei 112, Taiwan Manufacturer Shenzhen Gongjin Electronics Co., Ltd. B116, B118, A211-A213, B201-B213, A311-A313, B411-413, BF08-09 Nanshan Medical Instrument Industry Park, 1019# Nanhai Road, Nanshan District, Shenzhen, Guangdong, 518067, P.R.China Factory1. Shenzhen Gongjin Electronics Co.,Ltd. No 2&3 Buildings, Mingwei Factory Area, Songgang Road West, No. A Building, 1#Songgang Road Songgang Sub-District, Shenzhen, Guangdong, 518105, P.R.China 2. TAICANG T&W Electronics Co., Ltd. Jiangnan Road 89, Ludu Town, Taicang, Jiangsu, 215412, P.R. China APPLICABLE STANDARDS StandardTest TypeStandardTest Type 15.207(a) Power Line Conducted Emissions 15.247(d) 15.209(a) � Spurious Emissions � Conducted Measurement � Radiated Emissions 15.247(a)(2) 6dB Bandwidth Measurement 15.247(b)(3) 15.247(b)(4) Peak Power Measurement 15.247(d) Band Edges Measurement 15.247(e) Peak Power Spectral Density We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by:Reviewed by: Tom Gan Supervisor of EMC Dept. Compliance Certification Service Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: C130318Z03-RP1 FCC ID: MSQ-RTN10P Page 5 / 91 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 TEST RESULT SUMMARY APPLICABLE STANDARDS StandardTest Type ResultRemark 15.247(a)(2) 6dB Bandwidth Measurement Pass Meet the requirement of limit. 15.247(b)(3) 15.247(b)(4) Peak Power Measurement Pass Meet the requirement of limit. 15.247(d) Band Edges Measurement Pass Meet…

Text truncated - open the document above for the full version.

Report No.: C130318Z03-RP1 FCC ID: MSQ-RTN10P Page 46 / 91 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Operation Mode: TX / IEEE 802.11n HT20 MHz/ CH High Test Date: March 28, 2013 Temperature: 24°C Tested by: Leevin Li Humidity: 52% RH Polarity: Ver. / Hor. Frequency (MHz) Reading (dBuV) Correction Factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Pole (V/H) Remark 3295.0000 52.03 -4.05 47.98 74.00 -26.02 V Peak 4428.3333 45.23 -0.77 44.46 74.00 -29.54 V Peak 4910.0000 45.27 0.91 46.18 74.00 -27.82 V Peak 5816.6667 44.35 2.81 47.16 74.00 -26.84 V Peak 6496.6667 44.63 4.53 49.16 74.00 -24.84 V Peak 7120.0000 44.24 6.96 51.20 74.00 -22.80 V Peak 3295.0000 47.91 -4.05 43.86 74.00 -30.14 H Peak 4201.6667 45.75 -1.57 44.18 74.00 -29.82 H Peak 4938.3333 44.99 1.04 46.03 74.00 -27.97 H Peak 5363.3333 44.59 1.53 46.12 74.00 -27.88 H Peak 5930.0000 43.85 2.98 46.83 74.00 -27.17 H Peak 6865.0000 44.15 5.72 49.87 74.00 -24.13 H Peak REMARKS: 1. Measuring frequencies from 1 GHz to the 10th harmonic of highest fundamental frequency. 2. Radiated emissions measured in frequency above 1000MHz were made with an instrument using peak/average detector mode. 3. Average test would be performed if the peak result were greater than the average limit or as required by the applicant. 4. Data of measurement within this frequency range shown “ --- ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured. 5. Measurements above show only up to 6 maximum emissions noted, or would be lesser, with “ N/A ” remark, if no specific emissions from the EUT are recorded (ie: margin>20dB from the applicable limit) and considered that's already beyond the background noise floor. 6. Margin (dB) = Remark result (dBuV/m) – Average limit (dBuV/m). Report No.: C130318Z03-RP1 FCC ID: MSQ-RTN10P Page 47 / 91 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Operation Mode: TX / IEEE 802.11n HT40 MHz / CH LowTest Date: March 28, 2013 Temperature: 24°C Tested by: Leevin Li Humidity: 52% RH Polarity: Ver. / Hor. Frequency (MHz) Reading (dBuV) Correction Factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Pole (V/H) Remark 3238.3333 54.68 -4.07 50.61 74.00 -23.39 V Peak 4003.3333 46.41 -2.51 43.90 74.00 -30.10 V Peak 4485.0000 45.75 -0.67 45.08 74.00 -28.92 V Peak 5080.0000 44.24 1.41 45.65 74.00 -28.35 V Peak 5873.3333 43.95 2.89 46.84 74.00 -27.16 V Peak 6496.6667 45.02 4.53 49.55 74.00 -24.45 V Peak 3238.3333 50.15 -4.07 46.08 74.00 -27.92 H Peak 4400.0000 45.11-0.82 44.29 74.00 -29.71 H Peak 4938.3333 45.35 1.04 46.39 74.00 -27.61 H Peak 5618.3333 44.79 2.01 46.80 74.00 -27.20 H Peak 6156.6667 45.18 3.55 48.73 74.00 -25.27 H Peak 6921.6667 44.96 5.95 50.91 74.00 -23.09 H Peak REMARKS: 1. Measuring frequencies from 1 GHz to the 10th harmonic of highest fundamental frequency. 2. Radiated emissions measured in frequency above 1000MHz were made with an instrument using peak/average detector mode. 3. Average test would be performed if the peak result were greater than the average limit or as required by the applicant. 4. Data of measurement within this frequency range shown “ --- ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured. 5. Measurements above show only up to 6 maximum emissions noted, or would be lesser, with “ N/A ” remark, if no specific emissions from the EUT are recorded (ie: margin>20dB from the applicable limit) and considered that's already beyond the background noise floor. 6. Margin (dB) = Remark result (dBuV/m) – Average limit (dBuV/m). Report No.: C130318Z03-RP1 FCC ID: MSQ-RTN10P Page 48 / 91 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Operation Mode: TX / IEEE 802.11n HT40 MHz / CH Mid Test Date: March 28, 2013 Temperature: 24°C Tested by: Leevin Li Humidity: 52% RH Polarity: Ver. / Hor. Frequency (MHz) Reading (dBuV) Correction Factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Pole (V/H) Remark 3238.3333 53.24 -4.07 49.17 74.00 -24.83 V Peak 4598.3333 45.14 -0.46 44.68 74.00 -29.32 V Peak 5108.3333 44.86 1.44 46.30 74.00 -27.70 V Peak 5845.0000 43.72 2.85 46.57 74.00 -27.43 V Peak 6496.6667 43.59 4.53 48.12 74.00 -25.88 V Peak 6921.6667 44.85 5.95 50.80 74.00 -23.20 V Peak 3238.3333 50.51 -4.07 46.44 74.00 -27.56 H Peak 4286.6667 44.80 -1.25 43.55 74.00 -30.45 H Peak 5051.6667 44.70 1.38 46.08 74.00 -27.92 H Peak 5760.0000 44.48 2.61 47.09 74.00 -26.91 H Peak 6156.6667 43.70 3.55 47.25 74.00 -26.75 H Peak 6950.0000 44.49 6.09 50.58 74.00 -23.42 H Peak REMARKS: 1. Measuring frequencies from 1 GHz to the 10th harmonic of highest fundamental frequency. 2. Radiated emissions measured in frequency above 1000MHz were made with an instrument using peak/average detector mode. 3. Average test would be performed if the peak result were greater than the average limit or as required by the applicant. 4. Data of measurement within this frequency range shown “ --- ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured. 5. Measurements above show only up to 6 maximum emissions noted, or would be lesser, with “ N/A ” remark, if no specific emissions from the EUT are recorded (ie: margin>20dB from the applicable limit) and considered that's already beyond the background noise floor. 6. Margin (dB) = Remark result (dBuV/m) – Average limit (dBuV/m). Report No.: C130318Z03-RP1 FCC ID: MSQ-RTN10P Page 49 / 91 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Operation Mode: TX / IEEE 802.11n HT40 …

Text truncated - open the document above for the full version.

Report No.: C130318Z03-RP1 FCC ID: MSQ-RTN10P Page 1/2 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: C130318Z03-RP1 FCC ID: MSQ-RTN10P Page 2/2 . RADIATED EMISSION TEST Below 1GHz Above 1GHz
