MSQ-RTN12CASUS Wireless Super SpeedN Router

ASUSTeK Computer Inc
ASUS Wireless Super SpeedN Router - FCC ID MSQ-RTN12C - ASUSTeK Computer Inc
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Dec 15, 2011
Application Purpose
Original Equipment
Date of Application
Dec 15, 2011
Equipment Note
ASUS Wireless Super SpeedN Router
Frequency Range
2422.00000000 - 2452.00000000
Company
ASUSTeK Computer Inc
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

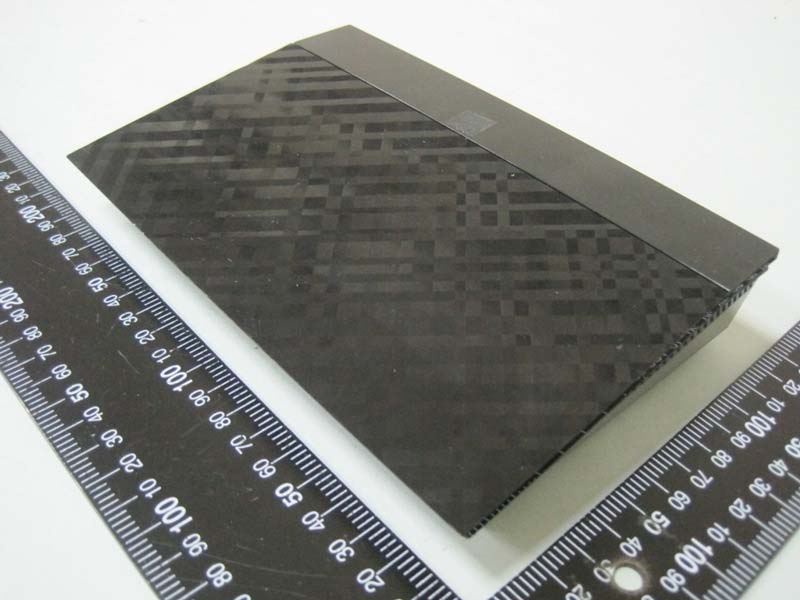

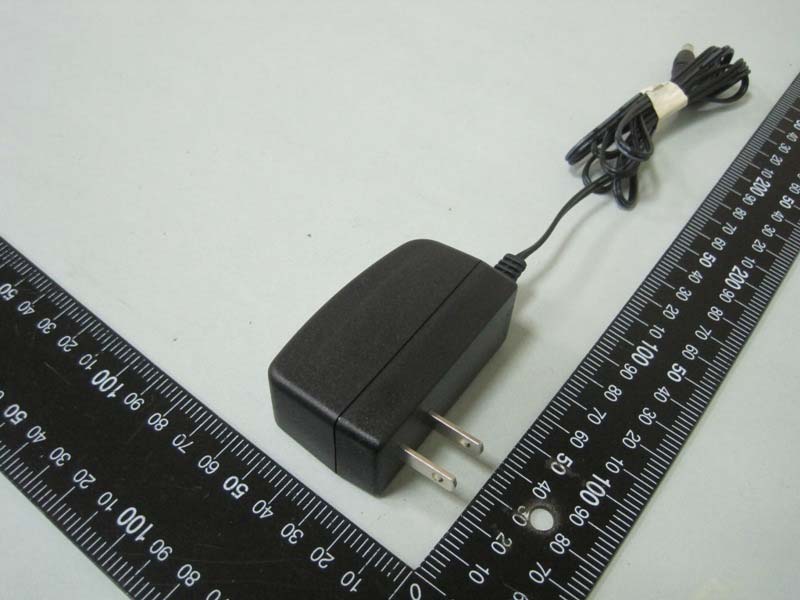

External Photos

↗

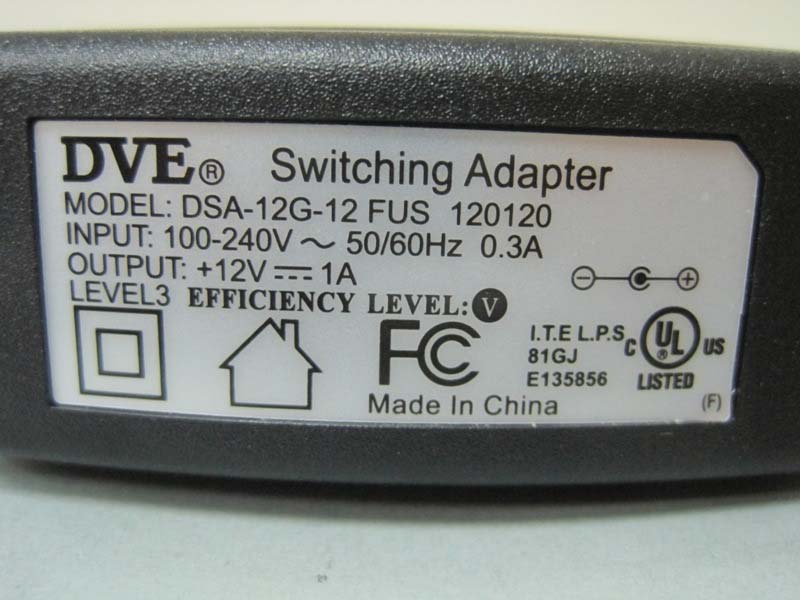

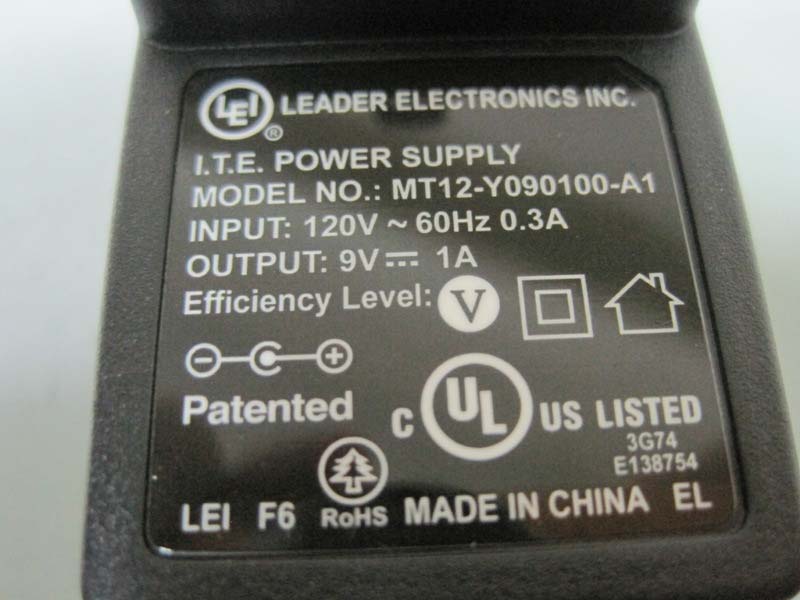

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

® ! Setting up a Home Network - Router Mode 1. Choose the Router mode. 4. Setup is completed. RT-N12,RT-N12 C1 SuperSpeed N Router FCC Compliance C-Tick Mark CE ROUTER AP REPEATER RT-N12,RT-N12 C1 12RT-N Supe r Spe ed W ireless N Ro uter Router Repeater AP ASUS Recycling/Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components, as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for the detailed recycling information in different regions. 2. Connect your devices. 繁體中文 NOTE: Before you proceed, unplug and disconnect the wires/cables from your existing modem setup. After two minutes, replug and reconnect the wires/cables for your network environment. 1. 選擇路由器模式。 2. 連接裝置。 注意: 您開始操作之前,請先拔掉數據機上連接的所有纜線。兩分鐘後再重新連 接。在 3. 開啟網頁瀏覽器並按照快速網際網路設定(QIS)的步驟操作。 注意:開啟網頁瀏覽器後,若 QIS 頁面沒有出現,請嘗試關閉網頁瀏 覽器的 Proxy 設定。 4. 設定完成。 REACH Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm 簡体中文 1. 選擇路由器模式。 2. 連接設備。 注意: 您開始操作之前,請先拔掉調制解調器上連接的所有線纜。兩分鐘後再重新 連接。在 3. 開啟網頁瀏覽器並按照快速互聯網設置(QIS)的步驟操作。 注意:開啟網頁瀏覽器後,若 QIS 頁面沒有出現,請嘗試關閉網頁瀏 覽器的代理設置。 4. 設置完成。 AP REPEATER RT-N12,RT-N12 C1 Quick Start Guide NOTE: For more details on the features of the wireless router, refer to the user manual included in the Utility CD. ROUTER Bahasa Indonesia Modem 1. Pilih mode Router. 2. Sambungkan perangkat. CATATAN: Sebelum melanjutkan, lepas dan putuskan sambungan kabel dari pemasangan modem yang ada. Setelah dua menit, pasang dan sambungkan kembali kabel untuk lingkungan jaringan. 3. Aktifkan browser Web, kemudian ikuti langkah-langkah Quick Internet Setup (QIS). CATATAN: Jika halaman Web QIS tidak muncul di layar setelah Anda mengaktifkan browser Web, nonaktifkan pengaturan proxy di browser Web. 4. Konfigurasi selesai. Client 3. Launch the web browser and follow the Quick Internet Setup (QIS) steps. Bahasa Malaysia 1. Pilih mod Penghala. 2. Sambungkan peranti anda. NOTA: Sebelum anda meneruskan, cabut plag dan tanggalkan wayar/kabel dari persediaan modem anda yang sedia ada. Selepas dua minit, pasang semula plag dan sambung semula wayar/kabel untuk persekitaran rangkaian anda. 3. Lancarkan penyemak imbas web dan ikut langkah-langkah Persediaan Internet Pantas (QIS). NOTA: Jika halaman web QIS tidak muncul selepas melancarkan penyemak imbas web, nyahdayakan tetapan proksi pada penyemak imbas web. 4. Persediaan selesai. Manufacturer: ASUSTeK Computer Inc. Tel: Address: +886-2-2894-3447 No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN HARKORT STR. 21-23, 40880 RATINGEN, GERMANY +90 212 3311000 AYAZAGA MAH. KEMERBURGAZ CAD. NO.10 AYAZAGA/ISTANBUL +90 212 3567070 CEMAL SURURI CD. HALIM MERIC IS MERKEZI No: 15/C D:5-6 34394 MECIDIYEKOY/ ISTANBUL ไทย PPPoE 1. เลือกโหมด Router (เราเตอร์) 2. เชืÉอมต่ออุปกรณ์ของคุณ หมายเหตุ: ◌่อนทีÉคุณจะดําเนินการ ให้ถอดปลัËก และตัดการเชืÉอมต่อสายไฟ/สายเคเบิลต่างๆ จากโมเด็มทีÉมีอยู่ของคุณออกเสียก่อน หลังจากสองนาที ก ให้เสียบปลัËก และเชืÉอมต่อสายไฟ/สายเคเบิลต่างๆ สําหรับสภาพแวดล้อมเครือข่ายของคุณใหม่ 3. เปิดเว็บเบราเซอร์ และทําตามขัÊนตอน การตัÊงค่าอินเตอร์เน็ตด่วน (QIS) หมายเหตุ: ถ้าเว็บเพจ QIS ไม่ปรากฏขึÊนหลังจากการเปิดเว็บเบราเซอร์ ให้ปิดการทํางานการตัÊงค่าพร็อกซีÉบนเว็บเบราเซอร์ 4. การตัÊงค่าเสร็จสมบูรณ์ Authorised representative in Europe: Authorised distributors in Turkey: ASUS Computer GmbH Address: Türkçe BOGAZICI BIL GISAYAR SAN. VE TIC. A.S. Tel: Address: DHCP 1. Yönlendirici modunu seçin. 2. Aygıtlarınızı bağlayın. NOT: Devam etmeden önce, kabloları/telleri mevcut modem kurulumunuzdan çıkarın ve bağlantılarını kesin. İki dakika sonra ağ ortamınız için kabloları/telleri yeniden takın ve bağlantısını yeniden sağlayın. 3. Web tarayıcınızı açın ve Quick Internet Setup (Hızlı İnternet Kurulumu) (QIS) adımlarını izleyin. NOT: Eğer QIS web sayfası web tarayıcısını başlattıktan sonra görünmezse, proxy ayarlarını web tarayıcısında engelleyin. 4. Kurulum tamamlanır. CIZGI Elektronik San. Tic. Ltd. Sti. Tel: Address: EEE Yönetmeliğine Uygundur. NOTE: If the QIS web page does not appear after launching the web browser, disable the proxy settings on the web browser. A6980 / First Edition / Nov. 2011 A6980_RT-N12-C1_QSG_Asian(OK).in1 1 10.11.2011 10:09:18 Uhr Extending Your Wireless Network!- Repeater Mode 1. Choose the Repeater mode. 4. Setup is completed. C1 ! 1. Choose the AP mode. ! Extending Your Wired Network - AP Mode 繁體中文 1. 選擇基地台(AP)模式。 2. 連接裝置。 3. 開啟 Device Discovery 應用程式並進行安全設定。 注意:欲開啟 Device Discovery 程式,點選 開始 > 程式集 > ASUS Utility > RT-N12B1 Wireless Router > Device Discovery。 4. 設定完成。 簡体中文 1. 選擇 AP 模式。 2. 連接設備。 3. 開啟 Device Discovery 應用程序並進行安全設置。 C C ROUTER AP ROUTER AP REPEATER C 注意:若要開啟 Device Discovery 程序,點擊【開始】>【所有程序】 >【ASUS Utility】>【RT-N12B1 Wireless Router】>【Device Discovery】。 4. 設置完成。 C REPEATER RT-N12,RT-N12 C1 Router Repeater AP RT-N12,RT-N12 C1 Router Repeater AP Bahasa Indonesia 1. Pilih mode AP. 2. Sambungkan perangkat. 3. Aktifkan utilitas Device Discovery (Pemulihan Perangkat), kemudian konfigurasikan pengaturan keamanan. CATATAN: Untuk mengaktifkan Penelusuran Perangkat, klik Mulai > Program > Utilitas ASUS > Router Nirkabel RT-N12B1 > Penelusuran Perangkat. 4. Konfigurasi selesai. Bahasa Malaysia 2. Connect your devices. 繁體中文 1. 選擇中繼器模式。 2. 連接裝置。 3. 開啟網頁瀏覽器,從清單中選擇一個無線網路,接著點選 連線(Connect)。 注意:開啟網頁瀏覽器後,若 QIS 頁面沒有出現,請嘗試關閉網頁瀏 覽器的 Proxy 設定。 4. 設定完成。 2. Connect your devices. 1. Pilih mod AP. 2. Sambungkan peranti anda. 3. Lancarkan utiliti Penemuan Peranti dan konfigurasikan seting keselamatan. NOTA: Untuk melancarkan Penemuan Peranti, klik Mula > Atur Cara > Utiliti ASUS > Penghala Wayarles RT-N12B1 > Penemuan Peranti. 4. Persediaan selesai. ไทย RT-N12,RT-N12 C1 ROUTER AP REPEATER 簡体中文 Modem 1. 選擇中繼器模…

Text truncated - open the document above for the full version.

External Photos

Report No.:FR1N0822 SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 24, 2011 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT Report No.:FR1N0822 SPORTON International Inc. PAGE NUMBER : A2 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 24, 2011 FAX : 886-2-2696-2255 Report No.:FR1N0822 SPORTON International Inc. PAGE NUMBER : A3 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 24, 2011 FAX : 886-2-2696-2255 Report No.:FR1N0822 SPORTON International Inc. PAGE NUMBER : A4 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 24, 2011 FAX : 886-2-2696-2255 Report No.:FR1N0822 SPORTON International Inc. PAGE NUMBER : A5 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 24, 2011 FAX : 886-2-2696-2255 Report No.:FR1N0822 SPORTON International Inc. PAGE NUMBER : A6 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 24, 2011 FAX : 886-2-2696-2255 Report No.:FR1N0822 SPORTON International Inc. PAGE NUMBER : A7 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 24, 2011 FAX : 886-2-2696-2255

ID Label/Location Info

Moddel No.: RT‐‐N12 C1 Labbel size:34.3 3∓0.15mm**69.5∓0.15mm Mo ddel No.: RT‐‐N12 La bbel size:34.33∓0.15mm* *69.5∓0.15mm

Internal Photos

Report No.:FR1N0822 SPORTON International Inc. PAGE NUMBER : A1 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 24, 2011 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT Report No.:FR1N0822 SPORTON International Inc. PAGE NUMBER : A2 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 24, 2011 FAX : 886-2-2696-2255 Report No.:FR1N0822 SPORTON International Inc. PAGE NUMBER : A3 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 24, 2011 FAX : 886-2-2696-2255 Report No.:FR1N0822 SPORTON International Inc. PAGE NUMBER : A4 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 24, 2011 FAX : 886-2-2696-2255 Report No.:FR1N0822 SPORTON International Inc. PAGE NUMBER : A5 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 24, 2011 FAX : 886-2-2696-2255 Report No.:FR1N0822 SPORTON International Inc. PAGE NUMBER : A6 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 24, 2011 FAX : 886-2-2696-2255 Report No.:FR1N0822 SPORTON International Inc. PAGE NUMBER : A7 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 24, 2011 FAX : 886-2-2696-2255 Report No.:FR1N0822 SPORTON International Inc. PAGE NUMBER : A8 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 24, 2011 FAX : 886-2-2696-2255 Report No.:FR1N0822 SPORTON International Inc. PAGE NUMBER : A9 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 24, 2011 FAX : 886-2-2696-2255 Report No.:FR1N0822 SPORTON International Inc. PAGE NUMBER : A10 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 24, 2011 FAX : 886-2-2696-2255

RF Exposure Info

Report No.: FR1N0822 FCC ID: MSQ-RTN12C Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR1N0822 FCC ID: MSQ-RTN12C Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Average RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR1N0822 FCC ID: MSQ-RTN12C Page No. : C3 of C3 1.3. Calculated Result and Limit For 2.4GHz Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11b/g (1TX) : 17.31 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5 3.1623 17.3100 53.8270 0.033881 1 Complies For 2.4GHz Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11g (2TX) : 21.33 dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8.01 6.3246 21.3300 135.8313 0.170994 1 Complies Note: Directional Antenna Gain = Test Antenna Gain + 10 log (Antenna quantity) For 2.4GHz Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11n MCS0 20 MHz : 19.47 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.00 3.1623 19.4704 88.5198 0.055717 1 Complies

Test Report

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company ASUS Tek Computer Inc. Applicant Address No.15 Li-Te Rd., Peitou, Taipei 112, Taiwan. FCC ID MSQ-RTN12C Product Name ASUS Wireless Super SpeedN Router Brand Name ASUS Model Name RT-N12, RT-N12 C1 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Nov. 18, 2011 Final Test Date Nov. 23, 2011 Submission Type Multiple Listing Multiple Listing Please refer to section 3.7 Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR1N0822 Report Format Version: 01 Page No. : iof ii FCC ID: MSQ-RTN12C Issued Date : Nov. 25, 2011 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................8 3.7. Table for Multiple Listing......................................................................................................................................................................8 3.8. Table for Supporting Units ...................................................................................................................................................................8 3.9. Table for Parameters of Test Software Setting .....................................................................................................................................9 3.10. Test Configurations ...........................................................................................................................................................................10 4. TEST RESULT ................................................................................................................................................... 13 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................13 4.2. Peak Output Power Measurement ....................................................................................................................................................19 4.3. Average Output Power Measurement ..............................................................................................................................................22 4.4. Power Spectral Density Measurement ..............................................................................................................................................25 4.5. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................32 4.6. Radiated Emissions Measurement ....................................................................................................................................................38 4.7. Band Edge Emissions Measurement .................................................................................................................................................61 4.8. Antenna Requirements .....................................................................................................................................................................72 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 73 6. TEST LOCATION.............................................................................................................................................. 75 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 76 APPENDIX A. PHOTOGRAPHS OF EUT...........................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: FR1N0822 FCC ID: MSQ-RTN12C Page No. : 1 of 8 Appendix B. Test Photos Report No.: FR1N0822 FCC ID: MSQ-RTN12C Page No. : 2 of 8 1. Photographs of Conducted Emissions Test Configuration Test Mode : Mode 1 FRONT VIEW REAR VIEW Report No.: FR1N0822 FCC ID: MSQ-RTN12C Page No. : 3 of 8 SIDE VIEW Report No.: FR1N0822 FCC ID: MSQ-RTN12C Page No. : 4 of 8 Test Mode : Mode 2 FRONT VIEW REAR VIEW Report No.: FR1N0822 FCC ID: MSQ-RTN12C Page No. : 5 of 8 SIDE VIEW Report No.: FR1N0822 FCC ID: MSQ-RTN12C Page No. : 6 of 8 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz Test Mode : Mode 1 / Mode 3 FRONT VIEW REAR VIEW Report No.: FR1N0822 FCC ID: MSQ-RTN12C Page No. : 7 of 8 Test Configuration: 30MHz~1GHz Test Mode : Mode 1 / Mode 3 FRONT VIEW REAR VIEW Report No.: FR1N0822 FCC ID: MSQ-RTN12C Page No. : 8 of 8 Test Configuration: Above 1GHz Test Mode : Mode 2 FRONT VIEW REAR VIEW

Contact Information

Applicant

Jackson Yen(Associate Vice President)
[email protected]+886-2-28943447Fax: +886-2-28987364

Test Firm

Sporton International Inc.Alex Chen
[email protected]886-3-327-3456Fax: 886-3-327-0973

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz339.00 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is the maximum combined conducted peak output power as indicated in the filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 2T2R Spatial Multiplexing MIMO configuration as described in this filing. When operating in 802.11n, 40 MHz mode, the operating frequency segment is limited to 2422 to 2452 MHz
