MSQ-RTN12DWireless-N Router

DoC We, (legal entity within the US, such as importer or manufacturer) Company Name: ASUSTeK Computer Inc Address: 4F, No. 150, Li-Te Rd. Postal/Zip: 112 City: Peitou, Taipei State/Province: Country: Ta i w a n Contact Person: Mr. Ms. Name: Jackson Yen Function: Associate Vice President Email: Web: Phone: 886-2-2894-3447 Fax: 886-2-2898-7364 declare for the equipment identified by: Product Description Wireless-N Router Type or Model(s) RT-N12 Tradename or Brand(s) ASUS that: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired op- eration. The following documents are subject to this declaration: Test Firm or Laboratory: Test Report Number: Date of issue: Compliance Certification Services Inc. Linkuo Laboratory T121112L02-D November 13, 2012 ASUSTeK Computer Inc

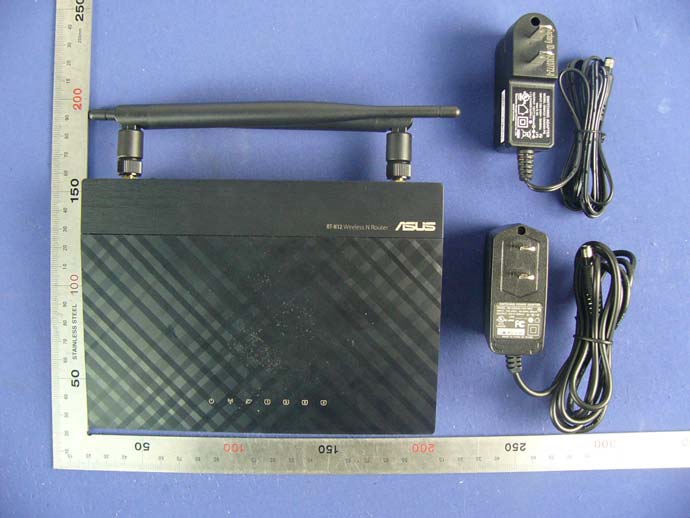

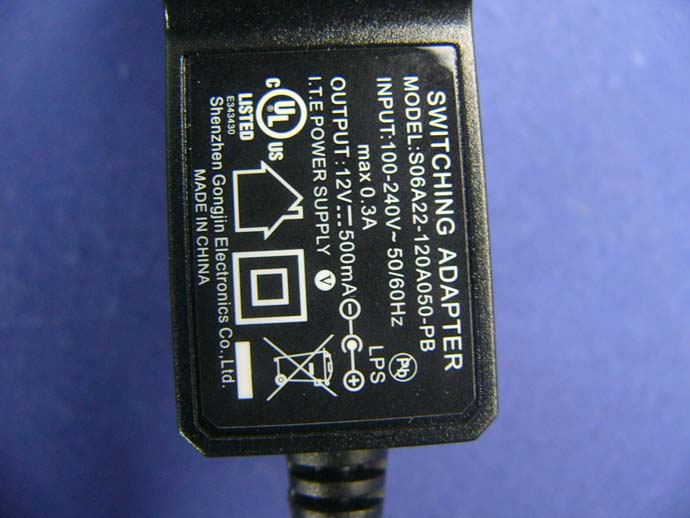

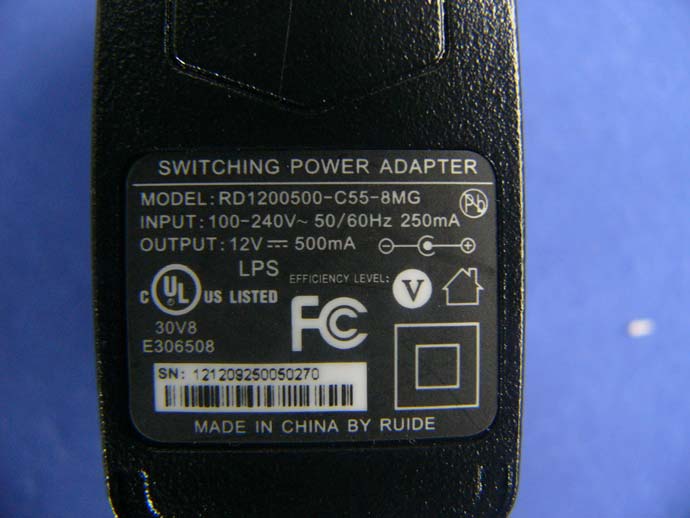

Report No.: C121026Z01 Page 1/5 Report No.: C121026Z01 Page 2/5 Report No.: C121026Z01 Page 3/5 Report No.: C121026Z01 Page 4/5 Report No.: C121026Z01 Page 5/5 Adapter 1: S06A22-120A050-PB Adapter 2: RD1200500-C55-8MG

Label Location

XXXXXXXXXXXX YMITDQXXXXXX 1 2 3 4 A B C D 56 1 2 3 4 56 A B C D DATE: ASUS RT-N12 D1 (TW) 1. 黑色印刷，无边框,R1.5 2.材料: 50#PET,过UV油墨,背胶 NOTES(技术要求）: (Material:,UV coated,adhesive)50#PET (Black printing,no frame,) R1.5 1:1 盒底标贴 XXXX N/A CHECK DRAW PDE 608000015255 A0 Editor Description Remark Date 121022 钟丹群 蒋先晓 刘欢 0 -0.2 0 - 0 . 2 Y: 年份 2010 年第一码为 " A " , 依此类推 2011=> B, 2012=> C ...... 2029 => Z. ( 其中I,O,P,Q,U,V 不用) 再回到数字2030=> 0, ...., 2039=> 9 M ：月份 1代表月，月月月~91~9A:10, B:11, C:12 XXXXXX: 000001 - 999999 BARCODE: CODE 128 MAC由客户提供 PIN Code由客户提供 F/W Ver.:由客户提供 69.5 mm 3 0 . 5 m m 来料方式:卷装 编号规则: YMITDQXXXXXX ITDQ 固定: FCC ID:MSQ-RTN12D CCAF11LP1880T8 3. .原材料及后处理工艺均能满足我司《环保技术标准》要求 (Raw materials and the corresponding post processing should meet requirements defined in the T&W Environmental Protection Technical Standards) XXXXXXXXXXXX F/W Ver.:Vx.x.x.xH/W Ver.:D1 FCC ID:MSQ-RTN12D CCAF11LP1880T8

Report No.: C121026Z01-RP1 Page 1/3 Report No.: C121026Z01-RP1 Page 2/3 Report No.: C121026Z01-RP1 Page 3/3

Compliance Certification Services Inc. Report No: C121026Z01-RP1_MPE FCC ID: MSQ-RTN12D Date of Issue: November 25, 2012 1 RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(b)(4) and §1.1307(b)(1) of this chapter. EUT Specification EUT Wireless-N Router Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 18.69dBm (73.96mW) Antenna gain (Max) 5.00dBi (Numeric gain:3.16) Evaluation applied MPE Evaluation SAR Evaluation Note: 1. The maximum output power is 18.69dBm (73.96mW) at 2437MHz (with 3.16 numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULT No non-compliance noted. Compliance Certification Services Inc. Report No: C121026Z01-RP1_MPE FCC ID: MSQ-RTN12D Date of Issue: November 25, 2012 2 Calculation Given d GP E ×× = 30 & 3770 2 E S= Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Equation 1 Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm 2 Maximum Permissible Exposure EUT Output Power=73.96mW Numeric antenna gain=3.16 Substituting the MPE safe distance using d=20 cm into Equation 1 : Yields The power density S = 30 × 73.96 × 3.16/ (3770 × 400) cm 2 =4.600X 10 -4 mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW / cm 2 even if the calculation indicates that the power density would be larger.)

Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 1 / 123 FCC 47 CFR PART 15 SUBPART C for Wireless-N Router Model: RT-N12 Brand: ASUS Test Report Number: C121026Z01-RP1 Issued Date: November 25, 2012 Issued for ASUSTeK COMPUTER INC. 4F, No. 150, Li-Te Rd. Peitou, Taipei 112,Taiwan Issued by: Compliance Certification Services (Shenzhen) Inc. No.10-1 Mingkeda Logistics park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test results in the report only apply to the tested sample. Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 2 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 C121026Z01-RP1 Initial Issue ALL Amay Tang Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 3 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION..................................................................................................4 2 TEST RESULT SUMMARY............................................................................................5 3 EUT DESCRIPTION.......................................................................................................6 4 TEST METHODOLOGY.................................................................................................7 4.1. DESCRIPTION OF TEST MODES ......................................................................................7 5 SETUP OF EQUIPMENT UNDER TEST........................................................................8 5.1. DESCRIPTION OF SUPPORT UNITS.................................................................................8 5.2. CONFIGURATION OF SYSTEM UNDER TEST .................................................................8 6 FACILITIES AND ACCREDITATIONS ..........................................................................9 6.1. FACILITIES..........................................................................................................................9 6.2. ACCREDITATIONS .............................................................................................................9 6.3. MEASUREMENT UNCERTAINTY.......................................................................................9 7 FCC PART 15.247 REQUIREMENTS..........................................................................10 7.1. POWER LINE CONDUCTED EMISSIONS MEASUREMENT...........................................10 7.2. SPURIOUS EMISSIONS MEASUREMENT.......................................................................15 7.3. 6dB BANDWIDTH MEASUREMENT.................................................................................59 7.4. PEAK OUTPUT POWER ...................................................................................................71 7.5. BAND EDGES MEASUREMENT:......................................................................................73 7.6. PEAK POWER SPECTRAL DENSITY MEASUREMENT................................................112 Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 4 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product Wireless-N Router Model RT-N12 Brand ASUS Tested October 26~November 24, 2012 Applicant ASUSTeK COMPUTER INC. 4F, No. 150, Li-Te Rd. Peitou, Taipei 112,Taiwan Manufacturer Shenzhen Gongjin Electronics Co., Ltd B116, B118, A211-A213, B201-B213, A311-A313, B411-413, BF08-09 Nanshan Medical Instrument Industry Park, 1019# Nanhai Road, Nanshan District,Shenzhen, Guangdong, 518067,P.R.China Factory #1 Shenzhen Gongjin Electrics Co., Ltd. No2&3 Buildings, Mingwei Factory Area, Songgang Road West,No. A Building, 1#Songgang Road Songgang Sub-Disrtrict,Shenzhen,Guangdong,518105,P.R.China Factory #2 TAICANG T&W ELECTRONICS CO., LTD Jiangnan Road 89, Ludu Town, Taicang, Jiangsu, 215412, P.R. China APPLICABLE STANDARDS StandardTest TypeStandardTest Type 15.207(a) Power Line Conducted Emissions 15.247(d) 15.209(a) � Spurious Emissions � Conducted Measurement � Radiated Emissions 15.247(a)(2) 6dB Bandwidth Measurement 15.247(b)(3) 15.247(b)(4) Peak Power Measurement 15.247(d) Band Edges Measurement 15.247(e) Peak Power Spectral Density We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by:Reviewed by: Tom Gan Supervisor of EMC Dept. Compliance Certification Service Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 5 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 TEST RESULT SUMMARY APPLICABLE STANDARDS StandardTest Type ResultRemark 15.247(a)(2) 6dB Bandwidth Measurement Pass Meet the requirement of limit. 15.247(b)(3) 15.247(b)(4) Peak Power Measurement Pass Meet the requirement of limit. 15.247(d) Band Edges Measurement P…

Text truncated - open the document above for the full version.

Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 61 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Test mode: IEEE 802.11n HT40 MHz (Antenna 1) Channel Frequency (MHz) Bandwidth (kHz) Limit (kHz) Test Result Low 2422 36397 PASS Mid 2437 36374 PASS High 2452 35726 >500 PASS Test mode: IEEE 802.11n HT40 MHz (Combine with antenna 1 and antenna 2) Channel Frequency (MHz) Bandwidth (kHz) Limit (kHz) Test Result Low 2422 36046 PASS Mid 2437 36392 PASS High 2452 36490 >500 PASS Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 62 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Test Plot IEEE 802.11b (Antenna 1)mode 6dB Bandwidth (CH Low) 6dB Bandwidth (CH Mid) Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 63 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6dB Bandwidth (CH High) IEEE 802.11g (Antenna 1) mode 6dB Bandwidth (CH Low) Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 64 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6dB Bandwidth (CH Mid) 6dB Bandwidth (CH High) Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 65 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11n HT20 MHz (Antenna 1)mode 6dB Bandwidth (CH Low) 6dB Bandwidth (CH Mid) Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 66 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6dB Bandwidth (CH High) IEEE 802.11n HT20 MHz (Combine with antenna 1 and antenna 2)mode 6dB Bandwidth (CH Low) Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 67 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6dB Bandwidth (CH Mid) 6dB Bandwidth (CH High) Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 68 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11n HT40 MHz (Combine with antenna 1 and antenna 2) mode 6dB Bandwidth (CH Low) 6dB Bandwidth (CH Mid) Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 69 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6dB Bandwidth (CH High) IEEE 802.11n HT40 MHz (Antenna 1) mode 6dB Bandwidth (CH Low) Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 70 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6dB Bandwidth (CH Mid) 6dB Bandwidth (CH High) Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 71 / 123 This report shall not be reproduced except infull, without the written approvalof ComplianceCertification Services. 7.4. PEAK OUTPUT POWER 7.4.1. LIMITS The maximum peak output power of the intentional radiator shall not exceed the following: 1. According to §15.247(b)(3), for systems using digital modulation in the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz: 1 Watt. 2. According to §15.247(b)(4), the conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6 dBi. Except as shown in paragraph (c) of this section, if transmitting antennas of directional gain greater than 6 dBi are used, the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1), (b)(2), and (b)(3) of this section, as appropriate, by the amount in dB that the directional gain of the antenna exceeds 6 dBi. 7.4.2. TEST INSTRUMENTS Name of Equipment Manufacturer Model Serial Number Last Calibration Calibration Due Spectrum Analyzer Agilent E4446A US44300399 03/19/201203/19/2013 7.4.3. TEST PROCEDURES (please refer to measurement standard) 1. This procedure provides an integrated measurement alternative when the maximum available RBW < EBW. 2. Set the RBW = 1 MHz. 3. Set the VBW = 3 MHz. 4. Set the span to a value that is 5-30 % greater than the EBW. 5. Detector = peak. 6. Sweep time = auto couple. 7. Trace mode = max hold. 8. Allow trace to fully stabilize. 9. Use the spectrum analyzer’s integrated band power measurement function with band limits set equal to the EBW band edges(for some analyzers, this may require a manual overrideto ensure use of peak detector). If the spectrum analyzer does not have a band power function, sum the spectrum levels (in linear power units) at 1 MHz intervals extending across the EBW of the spectrum. Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 72 / 123 This report shall not be reproduced except infull, without the written approvalof ComplianceCertification Services. 7.4.4. TEST SETUP 7.4.5. TEST RESULTS No non-compliance noted Test Data Test mode: IEEE 802.11b (Antenna 1) Channel Frequency (MHz) Output Power (dBm) Output Power (W) Limit (W) Result Low241216.610.04581PASS Mid243717.690.05875PASS High246216.720.04699PASS 1 Test mode: IEEE 802.11g (Antenna 1) Test mode: IEEE 802.11n HT20 MHz (Antenna 1) Test mode: IEEE 802.11n HT20 MHz (Combine with antenna 1 and antenna 2) Chain 0 Chain 1 Low241210.6510.6613.670.02326PASS Mid243715.6915.6618.690.07388PASS High24629.5510.5113.070.02026PASS Channel 1 Output Power (W) Limit (W) Result Frequency (MHz) Output Power (dBm) Output Power Total(dBm) EUT Spectrum Analyzer Channel Frequency (MHz) Output Power (dBm) Output Power (W) Limit (W) Result Low241211.580.01439PASS Mid243715.550.03589PASS High246211.540.01426PASS 1 Channel Frequency (MHz) Output Power (dBm) Output Power (W) Limit (W) Result Low241210.610.01151PASS Mid243715.650.03673PASS High246210.670.01167PASS 1 Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 73 /…

Text truncated - open the document above for the full version.

Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 91 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 92 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11g (Antenna 1)mode Band Edges (CH Low) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 93 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 94 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Band Edges (CH High) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 95 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 96 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11n HT20 MHz (Antenna 1) mode Band Edges (CH Low) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 97 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 98 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Band Edges (CH High) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 99 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 100 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11n HT20 MHz (Combine with antenna 1 and antenna 2) mode Band Edges (CH Low) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 101 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 102 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Band Edges (CH High) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 103 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 104 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11n HT40 MHz (Antenna 1) mode Band Edges (CH Low) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 105 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 106 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Band Edges (CH High) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 107 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 108 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11n HT40 MHz (Combine with antenna 1 and antenna 2) mode Band Edges (CH Low) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 109 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 110 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Band Edges (CH High) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C121026Z01-RP1 FCC ID: MSQ-RTN12D Page 111 / 123 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C121026Z01-RP1 FCC ID: MSQ-R…

Text truncated - open the document above for the full version.

Report No.: C121026Z01-RP1 Page 1 / 2 FCC ID: MSQRTN12 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: C121026Z01-RP FCC ID: MSQRTN12 Page 2/2 . RADIATED EMISSION TEST Below 1GHz Above 1GHz
