MSQ-RTN12D1Wireless-N Router

ASUSTeK Computer Inc 4F, No. 150, Li-Te Rd. Peitou, Taipei Ta i w a n FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name ASUSTeK Computer Inc Addresss 4F, No. 150, Li-Te Rd. City Peitou, Taipei Country Ta i w a n request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: MSQ - RTN12D1 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) Operational Description Block Diagrams Schematics Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant.

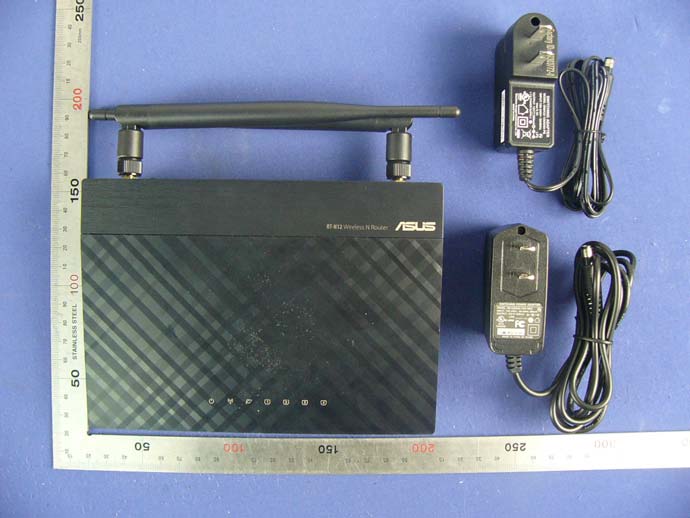

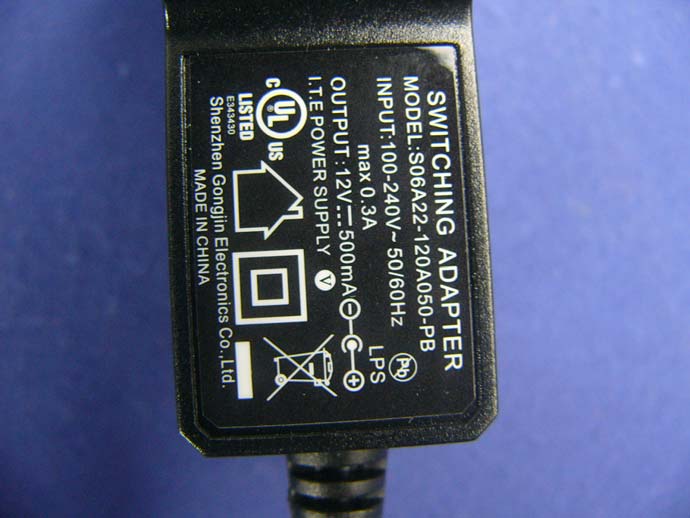

Reference No.: C121026Z01-RP1 Report No.: C130916Z01-RP1 Page 1/5 External Photos of EUT Reference No.: C121026Z01-RP1 Report No.: C130916Z01-RP1 Page 2/5 Reference No.: C121026Z01-RP1 Report No.: C130916Z01-RP1 Page 3/5 Reference No.: C121026Z01-RP1 Report No.: C130916Z01-RP1 Page 4/5 Reference No.: C121026Z01-RP1 Report No.: C130916Z01-RP1 Page 5/5 Adapter 1: S06A22-120A050-PB Adapter 2: RD1200500-C55-8MG

Label Location

1 2 3 4 A B C D 56 1 2 3 4 56 A B C D DATE: ASUS RT-N12 D1 US 1. 黑色印刷，无边框,R1.5 2.材料: 50# 亮白PET,不过光膜,过UV油墨,背胶 NOTES(技术要求）: (Material:,no film,UV coated,adhesive)50# bright white PET (Black printing,no frame,R1.5) 1:1 盒底标贴 XXXX N/A CHECK DRAW PDE 608000017091xx A0 Editor Description Remark Date 140102 赵雅楠 王永刚 N/A 0 -0.2 0 - 0 . 2 Y: 年份 2010 年第一码为 " A " , 依此类推 2011=> B, 2012=> C ...... 2029 => Z. ( 其中I,O,P,Q,U,V 不用) 再回到数字2030=> 0, ...., 2039=> 9 M ：月份 1~9代表1~9月，A:10月, B:11月, C:12月 XXXXXX: 000001 - 999999 BARCODE: CODE 128 MAC由客户提供 PIN Code由客户提供 F/W Ver.:由客户提供 69.5 mm 3 0 . 5 m m 来料方式:卷装 编号规则: YMIADQXXXXXX IADQ: 固定 3. 原材料及后处理工艺均能满足我司《环保技术标准》要求. (Raw materials and the corresponding post processing should meet requirements defined in the T&W Environmental Protection Technical Standards) XXXXXXXXXXXX YMIADQXXXXXX XXXXXXXXXXXX F/W Ver.:Vx.x.x.xH/W Ver.:D1 FCC ID:MSQ-RTN12D1 CCAE13LP0020T1 FCC ID:MSQ-RTN12D1 CCAE13LP0020T1

Reference No.: C121026Z01-RP1 Report No.: C130916Z01-RP1 Page 1/3 Internal Photos of EUT Reference No.: C121026Z01-RP1 Report No.: C130916Z01-RP1 Page 2/3 Reference No.: C121026Z01-RP1 Report No.: C130916Z01-RP1 Page 3/3

Compliance Certification Services Inc. Report No: C130916Z01-RP1_MPE FCC ID: MSQ-RTN12D1 Date of Issue: October 8, 2013 1 RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(b)(4) and §1.1307(b)(1) of this chapter. EUT Specification EUT Wireless-N Router Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 26.06dBm (403.91mW) Antenna gain (Max) 5.00dBi (Numeric gain:3.16) Evaluation applied MPE Evaluation SAR Evaluation Note: 1. The maximum output power is 26.06dBm (403.91mW) at 2437MHz (with 3.16 numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULT No non-compliance noted. Compliance Certification Services Inc. Report No: C130916Z01-RP1_MPE FCC ID: MSQ-RTN12D1 Date of Issue: October 8, 2013 2 Calculation Given 2 4d GP S Π × = Equation 1 Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm 2 Maximum Permissible Exposure EUT Output Power=403.91mW Numeric antenna gain=3.16 Substituting the MPE safe distance using d=20 cm into Equation 1 : Yields The power density S = 403.91 × 3.16 / (4∏ × 400) cm 2 =0.2541mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW / cm 2 even if the calculation indicates that the power density would be larger.)

Reference No.: C121026Z01-RP1 Report No.: C130916Z01-RP1 FCC ID: MSQ-RTN12D1 Page 1 / 97 FCC 47 CFR PART 15 SUBPART C for Wireless-N Router Model: RT-N12 Brand: ASUS Test Report Number: C130916Z01-RP1 Issued Date: October 8, 2013 Issued for ASUSTeK COMPUTER INC. 4F, No. 150, Li-Te Rd. Peitou, Taipei 112,Taiwan Issued by: Compliance Certification Services (Shenzhen) Inc. No.10-1 Mingkeda Logistics park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test results in the report only apply to the tested sample. Reference No.: C121026Z01-RP1 Report No.: C130916Z01-RP1 FCC ID: MSQ-RTN12D1 Page 2 / 97 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 C121026Z01-RP1 Initial Issue ALL Amay Tang 01 C130916Z01-RP1 Update ALL Sabrina Wang Rev.01: (C130916Z01-RP1) Note: 1. The applicant company updated the power rating of the EUT. After the reassessment, all items were retested, except the Power line Conducted Emissions and the radiated emissions of below 1GHz. 2. The other information, please refer to the Report No.: C121026Z01-RP1 and this report. Reference No.: C121026Z01-RP1 Report No.: C130916Z01-RP1 FCC ID: MSQ-RTN12D1 Page 3 / 97 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION.................................................................................................. 4 2 TEST RESULT SUMMARY............................................................................................ 5 3 EUT DESCRIPTION ....................................................................................................... 6 4 TEST METHODOLOGY ................................................................................................. 7 4.1. DESCRIPTION OF TEST MODES ...................................................................................... 7 5 SETUP OF EQUIPMENT UNDER TEST........................................................................ 8 5.1. DESCRIPTION OF SUPPORT UNITS................................................................................. 8 5.2. CONFIGURATION OF SYSTEM UNDER TEST ................................................................. 8 6 FACILITIES AND ACCREDITATIONS .......................................................................... 9 6.1. FACILITIES .......................................................................................................................... 9 6.2. ACCREDITATIONS ............................................................................................................. 9 6.3. MEASUREMENT UNCERTAINTY..................................................................................... 10 7 FCC PART 15.247 REQUIREMENTS.......................................................................... 11 7.1. POWER LINE CONDUCTED EMISSIONS MEASUREMENT........................................... 11 7.2. SPURIOUS EMISSIONS MEASUREMENT....................................................................... 16 7.3. 6dB BANDWIDTH MEASUREMENT ................................................................................. 54 7.4. PEAK OUTPUT POWER ................................................................................................... 64 7.5. BAND EDGES MEASUREMENT:...................................................................................... 68 7.6. PEAK POWER SPECTRAL DENSITY MEASUREMENT.................................................. 87 Reference No.: C121026Z01-RP1 Report No.: C130916Z01-RP1 FCC ID: MSQ-RTN12D1 Page 4 / 97 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product Wireless-N Router Model RT-N12 Brand ASUS Tested October 26~November 24, 2012 & September 16~October 8, 2013 Applicant ASUSTeK COMPUTER INC. 4F, No. 150, Li-Te Rd. Peitou, Taipei 112,Taiwan Manufacturer Shenzhen Gongjin Electronics Co., Ltd B116, B118, A211-A213, B201-B213, A311-A313, B411-413, BF08-09 Nanshan Medical Instrument Industry Park, 1019# Nanhai Road, Nanshan District,Shenzhen, Guangdong, 518067,P.R.China Factory #1 Shenzhen Gongjin Electrics Co., Ltd. No2&3 Buildings, Mingwei Factory Area, Songgang Road West,No. A Building, 1#Songgang Road Songgang Sub-Disrtrict,Shenzhen,Guangdong,518105,P.R.China Factory #2 TAICANG T&W ELECTRONICS CO., LTD Jiangnan Road 89, Ludu Town, Taicang, Jiangsu, 215412, P.R. China APPLICABLE STANDARDS Standard Test Type Standard Test Type 15.207(a) Power Line Conducted Emissions 15.247(d) 15.209(a) z Spurious Emissions z Conducted Measurement z Radiated Emissions 15.247(a)(2) 6dB Bandwidth Measurement 15.247(b)(3) 15.247(b)(4) Peak Power Measurement 15.247(d) Band Edges Measurement 15.247(e) Peak Power Spectral Density We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Tom Gan Supervisor of EMC Dept. Compliance Certification S…

Text truncated - open the document above for the full version.

Reference No.: C121026Z01-RP1 Report No.: C130904Z03-RP1 FCC ID: MSQ-RTN12D1 Page 1/2 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Reference No.: C121026Z01-RP1 Report No.: C130904Z03-RP1 FCC ID: MSQ-RTN12D1 Page 2/2 RADIATED EMISSION TEST Below 1GHz Above 1GHz
