This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance." RF exposure warning

Report No. 12B298R-RF-US-Exp Page: 1 of 4 RF Exposure Evaluation Declaration Product Name ：Wireless-N300 Cloud Router Model No. ：RT-N14U FCC ID. ：MSQ-RTN14U Applicant : ASUSTeK COMPUTER INC. Address : 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt : 2012/11/19 Date of Declaration : 2013/04/22 Report No. : 12B298R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 12B298R-RF-US-Exp Page: 2 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 12B298R-RF-US-Exp Page: 3 of 4 1.3. Test Result of RF Exposure Evaluation Product Wireless-N300 Cloud Router Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain The maximum Gain measured in fully anechoic chamber are 2.85dBi (1.93) and 2.96dBi(1.98) in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 75.1623 0.02886 6 2437 72.7780 0.02794 11 2462 91.8333 0.03526 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 122.4616 0.04702 6 2437 429.5364 0.16492 11 2462 94.4061 0.03625 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 12B298R-RF-US-Exp Page: 4 of 4 Product Wireless-N300 Cloud Router Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain The maximum Gain measured in fully anechoic chamber are 2.85dBi (1.93) and 2.96dBi(1.98) in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) ANT 0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 202.7692 0.07987 6 2437 922.5714 0.36341 11 2462 187.9317 0.07403 IEEE 802.11n (40MHz) ANT 0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 145.8814 0.05746 6 2437 847.2274 0.33373 9 2452 169.0441 0.05314 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) Equipment: Wireless-N300 Cloud Router Trademark(s) and Model(s): RT-N14U Manufacturer: FCC ID in case other parts of this equipment are subject to certification: MSQ-RTN14U This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number:Issue date: 12B298R-RFUSP37V02 2013/4/11 The following manufacturer/importer/entity (located in the USA) is responsible for this declaration: Company name: ASUSTeK COMPUTER INC. Name/Title (legal representative): Jackson Yen Address: 4F, No.150, Li-Te Rd., Peitou, Taipei , Taiwan, R.O.C. Phone: 886-2-2894-3447 ext 3106 Fax: 886-2-2898-7364 E-mail: [email protected] Date: 2013/04/17 Signature: ASUSTeK COMPUTER INC. 4F, No.150, Li-Te Rd., Peitou, Taipei , Taiwan

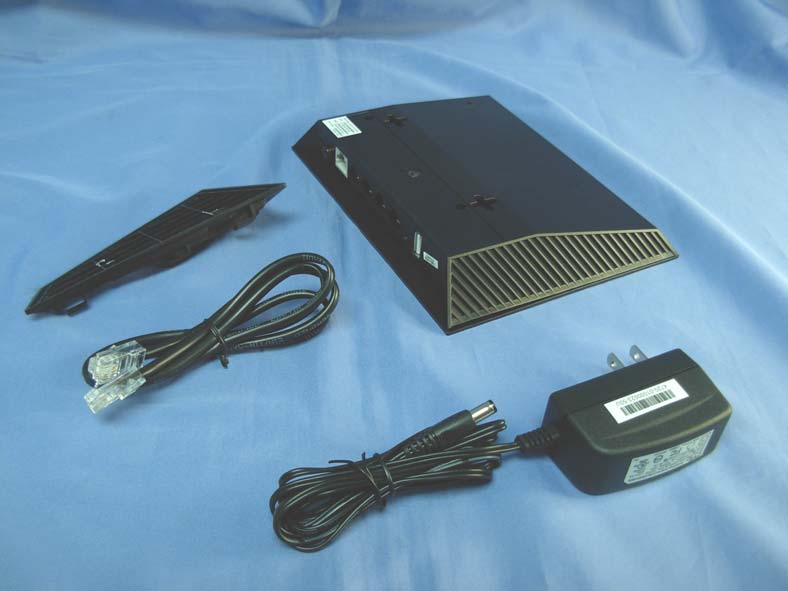

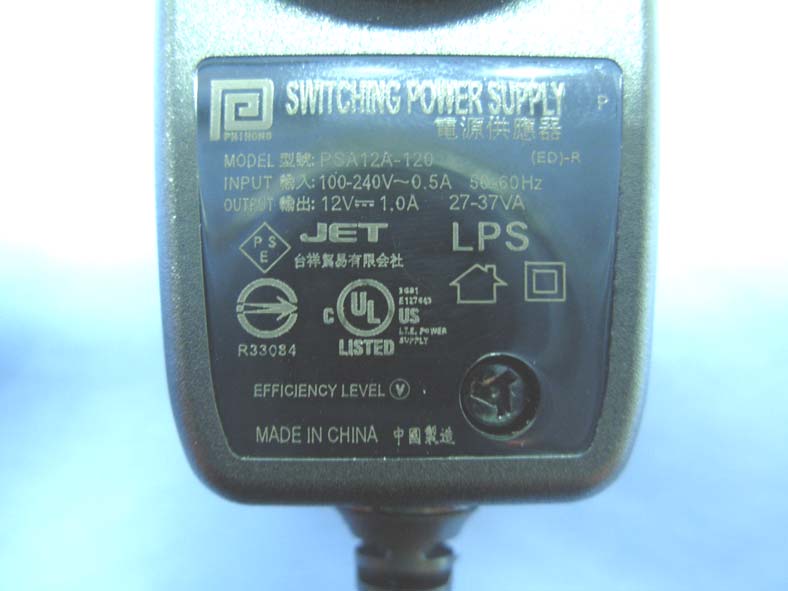

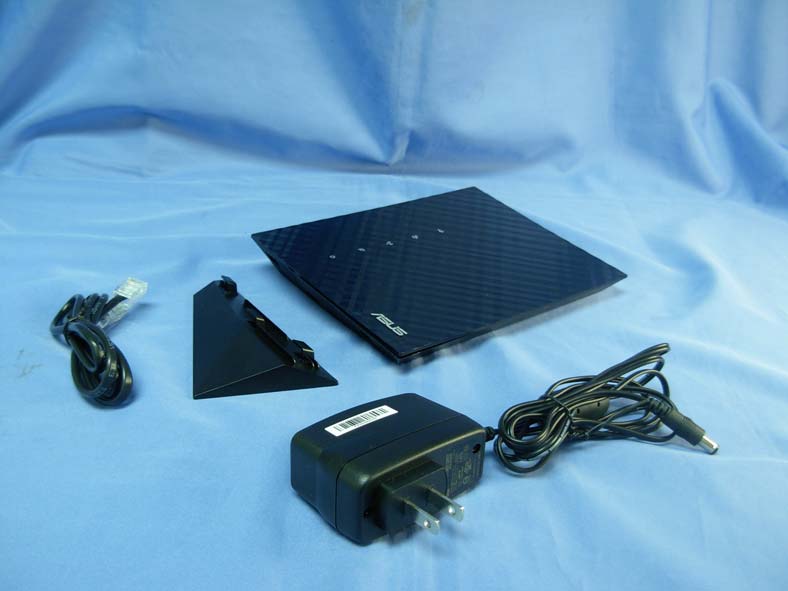

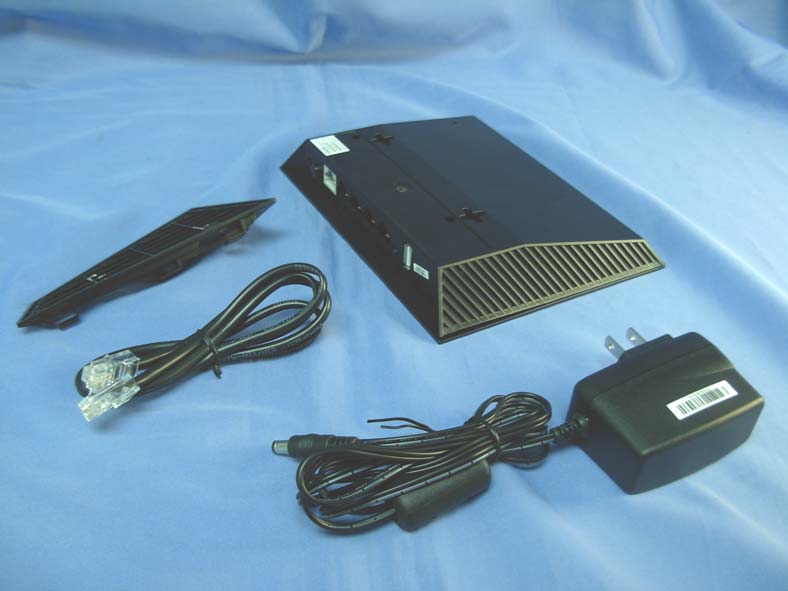

Report No： 12B298R-RFUSP42V01 Page: 201 of 208 Attachement EUT Photograph (1) EUT Photo (Power Adapter: DVE, DSA-12PFA-09 FUS 120100) (2) EUT Photo Report No： 12B298R-RFUSP42V01 Page: 202 of 208 (3) EUT Photo Report No： 12B298R-RFUSP42V01 Page: 203 of 208 (4) EUT Photo (Power Adapter: PHIHONG, PSA12A-120) (5) EUT Photo Report No： 12B298R-RFUSP42V01 Page: 204 of 208 (6) EUT Photo

R0.1(四個角都R0.1) measurement: mm 30.2 144.2 Mylar厚度0.178mm 透明單色背印黑底灰字 顏色Pantone cool grey 9C 尺寸公差-0.2mm RT- N14U RTN14U Model: RT- N14U Factory default setting SSID:ASUS IP Address: 192.168.1.1 User name: admin Password: admin ASUS Wireless-N300 Cloud Router ME06 XXXXXXXXXXXX CMIIT ID: 預留將來放NCC及CMIIT 空位 貼紙22X15mm ASUSTek Computer Inc Input: DC12V 1A Made in China

ASUSTeK COMPUTER INC. No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. FCC ID.: MSQ-RTN14U FCC ID AND DoC Label

Report No： 12B298R-RFUSP42V01 Page: 205 of 208 (7) EUT Photo (8) EUT Photo Report No： 12B298R-RFUSP42V01 Page: 206 of 208 (9) EUT Photo (10) EUT Photo Report No： 12B298R-RFUSP42V01 Page: 207 of 208 (11) EUT Photo Report No： 12B298R-RFUSP42V01 Page: 208 of 208 (12) EUT Photo

Report No： 12B298R-RFUSP42V01 Page: 1 of 208 FCC Test Report Product Name ：Wireless-N300 Cloud Router Model No. ：RT-N14U FCC ID. ：MSQ-RTN14U Applicant： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt：2012/11/19 Issued Date ：2013/04/22 Report No. ：12B298R-RFUSP42V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 12B298R-RFUSP42V01 Page: 2 of 208 Test Report Certification Issued Date : 2013/04/22 Report No. : 12B298R-RFUSP42V01 Product Name ： Wireless-N300 Cloud Router Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Manufacturer ： ASUSTeK COMPUTER INC. Model No. ： RT-N14U FCC ID. ： MSQ-RTN14U EUT Test Voltage : AC 100-240V, 50-60Hz Trade Name ： ASUS Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2012 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Engineering Adm. Specialist) Reviewed By : ( Sabrina Tsai / Assistant Engineer ) Approved By : ( Roy Wang / Manager ) Report No： 12B298R-RFUSP42V01 Page: 3 of 208 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 1313 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No： 12B298R-RFUSP42V01 Page: 4 of 208 TABLE OF CONTENTS Description Page 1. General Information.............................................................................................................. 6 1.1. EUT Description ............................................................................................................. 6 1.2. Operational Description ................................................................................................ 10 1.3. Test Mode ..................................................................................................................... 11 1.4. Tested System Details .................................................................................................. 12 1.5. Configuration of tested System .................................................................................... 13 1.6. EUT Exercise Software ................................................................................................ 13 1.7. Test Facility...................................................................................................................14 2. Conducted Emission .......................................................................................................... 15 2.1. Test Equipment............................................................................................................. 15 2.2. Test Setup .................................................................................................................... 15 2.3. Limits ............................................................................................................................ 16 2.4. Test Procedure ............................................................................................................. 16 2.5. Test Specification.......................................................................................................... 16 2.6. Uncertainty ................................................................................................................... 16 2.7. Test Result....................................................................................................................17 2.8. Test Photo .................................................................................................................... 21 3. Peak Power Output ............................................................................................................ 23 3.1. Test Equipment............................................................................................................. 23 3.2. Test Setup .................................................................................................................... 23 3.3. Test procedures ............................................................................................................ 23 3.4. Limits ............................................................................................................................ 23 3.5. Test Specification.......................................................................................................... 23 3.6. Uncertainty ................................................................................................................... 23 3.7. Test Result....................................................................................................................24 4. Rad…

Text truncated - open the document above for the full version.

Report No： 12B298R-RFUSP42V01 Page: 121 of 208 2412MHz (30MHz-25GHz)-802.11b 2462MHz (30MHz-25GHz) -802.11b Report No： 12B298R-RFUSP42V01 Page: 122 of 208 2412MHz (30MHz-25GHz)-802.11g 2462MHz (30MHz-25GHz) -802.11g Report No： 12B298R-RFUSP42V01 Page: 123 of 208 2412MHz (30MHz-25GHz)-802.11n(20MHz)-ANT 0 2462MHz (30MHz-25GHz) -802.11n(20MHz)-ANT 0 Report No： 12B298R-RFUSP42V01 Page: 124 of 208 2412MHz (30MHz-25GHz)-802.11n(20MHz)-ANT 1 2462MHz (30MHz-25GHz) -802.11n(20MHz)-ANT 1 Report No： 12B298R-RFUSP42V01 Page: 125 of 208 2422MHz (30MHz-25GHz)-802.11n(40MHz)-ANT 0 2452MHz (30MHz-25GHz) -802.11n(40MHz)-ANT 0 Report No： 12B298R-RFUSP42V01 Page: 126 of 208 2422MHz (30MHz-25GHz)-802.11n(40MHz)-ANT 1 2452MHz (30MHz-25GHz) -802.11n(40MHz)-ANT 1 Report No： 12B298R-RFUSP42V01 Page: 127 of 208 6. Radiated Emission Band Edge 6.1. Test Equipment The following test equipments are used during the test: Radiated Emission Band Edge / CB1 Instrument Manufacturer Model No. Serial No Next Cal. Date Double Ridged Guide Horn Antenna Schwarzback BBHA 9120 D743 2014/02/17 Spectrum Analyzer Agilent E4440A MY46187335 2014/01/27 k Type Cable Huber Suhner Sucoflex 102 25623/2 2014/02/21 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 6.2. Test Setup Report No： 12B298R-RFUSP42V01 Page: 128 of 208 6.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. 6.4. Test Procedure The EUT was setup according to ANSI C63.4: 2009 and tested according to DTS test procedure of Jan. 2012 KDB558074 for compliance to FCC 47CFR 15.247 requirements. The EUT and its simulators are placed on a turn table which is 0.8 meter above ground. The turn table can rotate 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna can move up and down between 1 meter and 4 meters to find out the maximum emission level. Both horizontal and vertical polarization of the antenna are set on measurement. In order to find the maximum emission, all of the interface cables must be manipulated according to ANSI C63.4: 2009 on radiated measurement. 6.5. Test Specification According to FCC Part 15 Subpart C Paragraph 15.247: 2012 6.6. Uncertainty The measurement uncertainty ± 3.9 dB above 1GHz Report No： 12B298R-RFUSP42V01 Page: 129 of 208 6.7. Test Result Radiated is defined as Site : CB1 Time : 2013/04/08 - 13:05 Limit : FCC_SpartC_15.209_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : AC 120V/60Hz EUT : Wireless-N300 Cloud Router Note : 802.11b 2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 29.779 29.24659.025-14.975 74.000 PEAK 2 2390.000 30.578 30.54761.125-12.875 74.000 PEAK 3 * 2413.000 30.808 76.172106.98032.980 74.000 PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 12B298R-RFUSP42V01 Page: 130 of 208 Site : CB1 Time : 2013/04/08 - 13:12 Limit : FCC_SpartC_15.209_03M_AV Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : AC 120V/60Hz EUT : Wireless-N300 Cloud Router Note : 802.11b 2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 29.779 16.91846.697-7.303 54.000 AVERAGE 2 2390.000 30.578 18.03148.609-5.391 54.000 AVERAGE 3 * 2414.750 30.825 73.392104.21750.217 54.000 AVERAGE Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 12B298R-RFUSP42V01 Page: 131 of 208 Site : CB1 Time : 2013/04/08 - 14:00 Limit : FCC_SpartC_15.209_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - VERTICAL Power : AC 120V/60Hz EUT : Wireless-N300 Cloud Router Note : 802.11b 2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 29.779 29.05458.833-15.167 74.000 PEAK 2 2390.000 30.578 30.05860.636-13.364 74.000 PEAK 3 * 2413.000 30.808 76.359107.16733.167 74.000 PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 12B298R-RFUSP42V01 Page: 132 of 208 Site : CB1 Time : 2013/04/08 - 14:09 Limit : FCC_SpartC_15.209_03M_AV Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - VERTICAL Power : AC 120V/60Hz EUT : Wireless-N300 Cloud Router Note : 802.11b 2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 29.779 17.18046.959-7.041 54.000 AVERAGE 2 2390.000 30.578 18.33148.909-5.091 54.000 AVERAGE 3 * 2414.250 30.820 73.570104.39050.390 54.000 AVERAGE Note…

Text truncated - open the document above for the full version.

Report No： 12B298R-RFUSP42V01 Page: 180 of 208 8. Power Density 8.1. Test Equipment The following test equipment is used during the test: Power Density / SR7 Instrument Manufacturer Model No. Serial No Next Cal. Date EXA Signal Analyzer Agilent N9010A-EXA US47140172 2013/07/31 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 8.2. Test Setup IEEE 802.11 b / g / a / n ( 20M / 40M ) MODE 8.3. Limits The peak power spectral density conducted from the intentional radiated to the antenna shall not be greater than +8dBm in any 3kHz band during any time interval of continuous transmission. 8.4. Test Procedures The EUT was setup according to ANSI C63.4: 2009; tested according to DTS test procedure of Jan. 2012 KDB558074 for compliance to FCC 47CFR 15.247 requirements. Set RBW= 100 kHz, Set VBW= 300 kHz, Sweep time=Auto, Set detector=Peak detector 8.5. Test Specification According to FCC Part 15 Subpart C Paragraph 15.247: 2012 8.6. Uncertainty The measurement uncertainty is defined as ±1.27dB. SMA Connecter EUT Spectrum Analyzer RF Cable Report No： 12B298R-RFUSP42V01 Page: 181 of 208 8.7. Test Result Product Wireless-N300 Cloud Router Test Item Power Density Test Mode Mode 1: Transmit (DSA-12PFA-09) Date of Test 2013/04/09 Test Site SR7 IEEE 802.11b Channel No. Frequency (MHz) Reading Level (dBm) Measure Level (dBm) Limit (dBm) Result 1 2412 5.162 -10.038 ≦8 Pass 6 2437 5.109 -10.091 ≦8 Pass 11 2462 5.671 -9.529 ≦8 Pass Note: Measure Level = Reading level + BWCF = Reading level -15.2 dB Bandwidth correction factor (BWCF) = 10log (3 kHz/100kHz) Channel 1 Report No： 12B298R-RFUSP42V01 Page: 182 of 208 Channel 6 Report No： 12B298R-RFUSP42V01 Page: 183 of 208 Channel 11 Report No： 12B298R-RFUSP42V01 Page: 184 of 208 Product Wireless-N300 Cloud Router Test Item Power Density Test Mode Mode 1: Transmit (DSA-12PFA-09) Date of Test 2013/04/09 Test Site SR7 IEEE 802.11g Channel No. Frequency (MHz) Reading Level (dBm) Measurement (dBm) Limit (dBm) Result 1 2412 -0.513 -15.713 ≦8 Pass 6 2437 4.801 -10.399 ≦8 Pass 11 2462 -1.592 -16.792 ≦8 Pass Note: Measure Level = Reading level + BWCF = Reading level -15.2 dB Bandwidth correction factor (BWCF) = 10log (3 kHz/100kHz) Channel 1 Report No： 12B298R-RFUSP42V01 Page: 185 of 208 Channel 6 Report No： 12B298R-RFUSP42V01 Page: 186 of 208 Channel 11 Report No： 12B298R-RFUSP42V01 Page: 187 of 208 Product Wireless-N300 Cloud Router Test Item Power Density Test Mode Mode 1: Transmit (DSA-12PFA-09) Date of Test 2013/04/09 Test Site SR7 IEEE802.11n_20MHz_(ANT 0) Channel No. Frequency (MHz) Reading Level (dBm) Measure Level (dBm) Limit (dBm) Result 1 2412 -1.752 -16.952 ≦8 Pass 6 2437 4.807 -10.393 ≦8 Pass 11 2462 -1.878 -17.078 ≦8 Pass Note: Measure Level = Reading level + BWCF = Reading level -15.2 dB Bandwidth correction factor (BWCF) = 10log (3 kHz/100kHz) Channel 1 Report No： 12B298R-RFUSP42V01 Page: 188 of 208 Channel 6 Report No： 12B298R-RFUSP42V01 Page: 189 of 208 Channel 11 Report No： 12B298R-RFUSP42V01 Page: 190 of 208 Product Wireless-N300 Cloud Router Test Item Power Density Test Mode Mode 1: Transmit (DSA-12PFA-09) Date of Test 2013/04/09 Test Site SR7 IEEE802.11n_20MHz_(ANT 1) Channel No. Frequency (MHz) Reading Level (dBm) Measurement (dBm) Limit (dBm) Result 1 2412 -0.566 -15.766 ≦8 Pass 6 2437 6.060 -9.140 ≦8 Pass 11 2462 -0.912 -16.112 ≦8 Pass Note: Measure Level = Reading level + BWCF = Reading level -15.2 dB Bandwidth correction factor (BWCF) = 10log (3 kHz/100kHz) Channel 1 Report No： 12B298R-RFUSP42V01 Page: 191 of 208 Channel 6 Report No： 12B298R-RFUSP42V01 Page: 192 of 208 Channel 11 Report No： 12B298R-RFUSP42V01 Page: 193 of 208 Product Wireless-N300 Cloud Router Test Item Power Density Test Mode Mode 1: Transmit (DSA-12PFA-09) Date of Test 2013/04/09 Test Site SR7 IEEE802.11n 20MHz (ANT 0+1) Channel No. Frequency (MHz) Measure Level (dBm) Limit (dBm) Result 1 2412 -13.31 ≦8 Pass 6 2437 -6.71 ≦8 Pass 11 2462 -13.56 ≦8 Pass Report No： 12B298R-RFUSP42V01 Page: 194 of 208 Product Wireless-N300 Cloud Router Test Item Power Density Test Mode Mode 1: Transmit (DSA-12PFA-09) Date of Test 2013/04/09 Test Site SR7 IEEE 802.11n_40MHz (ANT 0) Channel No. Frequency (MHz) Reading Level (dBm) Measurement (dBm) Limit (dBm) Result 3 2422 -5.738 -20.938 ≦8 Pass 6 2437 3.189 -12.011 ≦8 Pass 9 2452 -11.482 -26.682 ≦8 Pass Note: Measure Level = Reading level + BWCF = Reading level -15.2 dB Bandwidth correction factor (BWCF) = 10log (3 kHz/100kHz) Channel 3 Report No： 12B298R-RFUSP42V01 Page: 195 of 208 Channel 6 Report No： 12B298R-RFUSP42V01 Page: 196 of 208 Channel 9 Report No： 12B298R-RFUSP42V01 Page: 197 of 208 Product Wireless-N300 Cloud Router Test Item Power Density Test Mode Mode 1: Transmit (DSA-12PFA-09) Date of Test 2013/04/09 Test Site SR7 IEEE 802.11n_40MHz (ANT 1) Channel No. Frequency (MHz) Reading Level (dBm) Measure Level (dBm) Limit (dBm) Result 3 2422 -4.661 -19.861 ≦8 Pass 6 2437 2.151 -13.049 ≦8 Pass 9 2452 -10.894 -26.094 ≦8 Pass Note: Measure Level = Reading level + BWCF = Reading level -15.2 dB Bandwidth correction factor (BWCF) = 10log (3 kHz/100kHz) Channel 3 Report No： 12B298R-RFUSP42V01 Page: 198 of 208 Channel 6 Report No： 12B298R-RFUSP42V01 Page: 199 of 208 Channel 9 Report No： 12B298R-RFUSP42V01 Page: 200 of 208 Product Wireless-N300 Cloud Router Test Item Power Density Test Mode Mode 1: Transmit (DSA-12PFA-09) Date of Test 2013/04/09 Test Site SR7 IEEE802.11n 40MHz(ANT 0+1) Channel No. Frequency (MHz) Measure Level (dBm) Limit (dBm) Result 3 2422 -17.36 ≦8 Pass 6 2437 -9.49 ≦8 Pass 9 2452 -23.37 ≦8 Pass

Report No： 12B298R-RFUSP42V01 Page: 21 of 208 2.8. Test Photo Test Mode ： Mode 1: Transmit (DSA-12PFA-09) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit (DSA-12PFA-09) Description： Back View of Conducted Emission Test Setup Report No： 12B298R-RFUSP42V01 Page: 22 of 208 Test Mode ： Mode2:Transmit (PSA12A-120) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode2:Transmit (PSA12A-120) Description： Back View of Conducted Emission Test Setup Report No： 12B298R-RFUSP42V01 Page: 104 of 208 4.8. Test Photo Test Mode ： Mode 1: Transmit (DSA-12PFA-09) Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit (DSA-12PFA-09) Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 12B298R-RFUSP42V01 Page: 105 of 208 Test Mode ： Mode 2:Transmit (PSA12A-120) Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 2:Transmit (PSA12A-120) Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 12B298R-RFUSP42V01 Page: 106 of 208 Test Mode ： Mode 1: Transmit (DSA-12PFA-09) Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit (DSA-12PFA-09) Description： Back View of Radiated Emission Test Setup (Horn)
