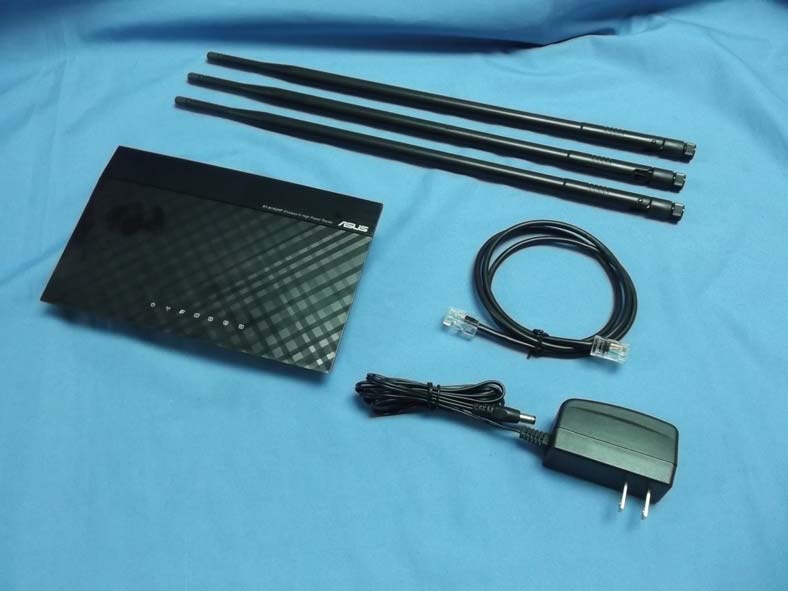

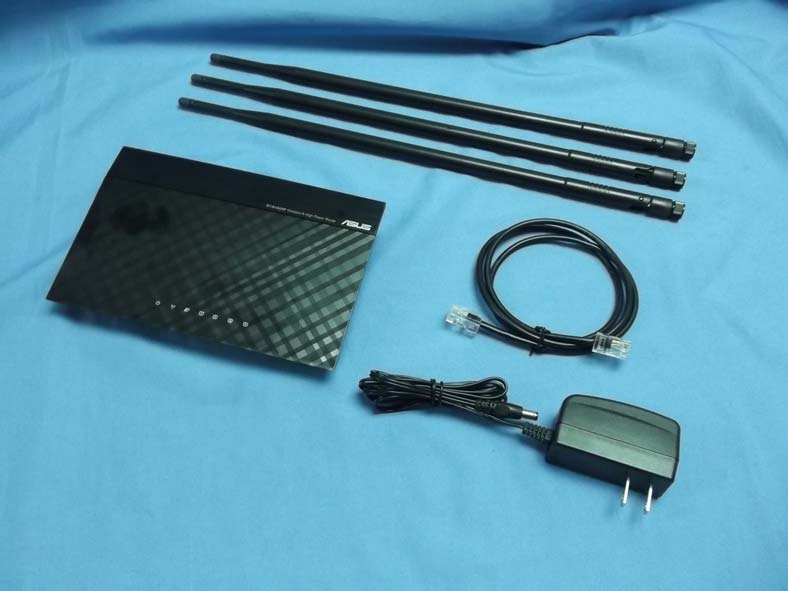

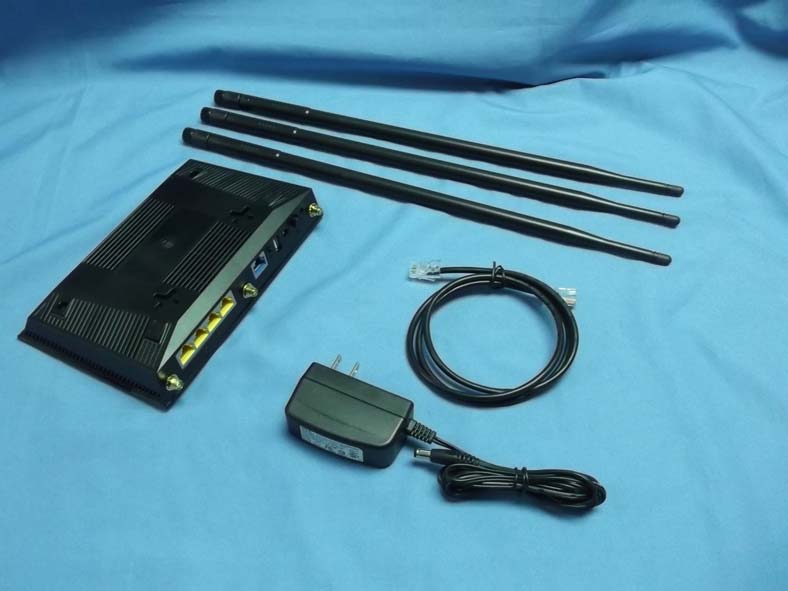

Report No：137366R-RFUSP42V01 Page: 372 of 381 Attachement EUT Photograph (1) EUT Photo (ANT: MAG. LAYERS , EDA-3913-2G4R2-A1 , 6.81 dBi) (2) EUT Photo Report No：137366R-RFUSP42V01 Page: 373 of 381 (3) EUT Photo (ANT: Invax System , AN2400-5924RS , 7 dBi) (4) EUT Photo

ASUSTeK COMPUTER INC. No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. FCC ID.: MSQ-RTN14UHP FCC ID AND DoC Label

34.5mm 69.5mm R0.55 FCC ID:MSQ-RTN14UHP ASUSTek Computer Inc. Factory Default Settings: SSID: ASUS IP Address: 192.168.1.1 User Name admin Password: admin This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada. ME06 D33005 CCAH13LP2210T4 Model/RT-N14UHP High Power Router/AP/Range Extender/ RT-N14UHP DC 12V 1A Input Made in China

Report No：137366R-RFUSP42V01 Page: 374 of 381 (5) EUT Photo (6) EUT Photo Report No：137366R-RFUSP42V01 Page: 375 of 381 (7) EUT Photo (8) EUT Photo Report No：137366R-RFUSP42V01 Page: 376 of 381 (9) EUT Photo (10) EUT Photo Report No：137366R-RFUSP42V01 Page: 377 of 381 (11) EUT Photo (12) EUT Photo Report No：137366R-RFUSP42V01 Page: 378 of 381 (13) EUT Photo (14) EUT Photo (MB) Report No：137366R-RFUSP42V01 Page: 379 of 381 (15) EUT Photo (ANT: MAG. LAYERS , EDA-3913-2G4R2-A1 , 6.81 dBi) (16) EUT Photo Report No：137366R-RFUSP42V01 Page: 380 of 381 (17) EUT Photo (18) EUT Photo (ANT: Invax System , AN2400-5924RS , 7 dBi) Report No：137366R-RFUSP42V01 Page: 381 of 381 (19) EUT Photo (20) EUT Photo

Report No. 137366R-RF-US-Exp Page: 1 of 7 RF Exposure Evaluation declaration Product Name ： RT-N14UHP High Power Router/AP/Range Extender Model No. ： RT-N14UHP FCC ID. ： MSQ-RTN14UHP Applicant : ASUSTeK COMPUTER INC. Address : 4F, No. 150, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. Date of Receipt : 2013/07/17 Date of Declaration : 2013/11/22 Report No. : 137366R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 137366R-RF-US-Exp Page: 2 of 7 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 137366R-RF-US-Exp Page: 3 of 7 1.3. Test Result of RF Exposure Evaluation Product RT-N14UHP High Power Router/AP/Range Extender Test Mode Transmit(CDD Mode) Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 6.81dBi or 4.80 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b Ant0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 305.4921 0.29172 6 2437 90.5733 0.08649 11 2462 122.7439 0.11721 IEEE 802.11g Ant0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 64.8634 0.06194 6 2437 66.8344 0.06382 11 2462 29.9916 0.02864 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 137366R-RF-US-Exp Page: 4 of 7 Product RT-N14UHP High Power Router/AP/Range Extender Test Mode Transmit(CDD Mode) Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 6.81dBi or 4.80 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) ANT 0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 49.8884 0.04764 6 2437 42.5598 0.04064 11 2462 42.2669 0.04036 IEEE 802.11n (40MHz) ANT 0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 22.0293 0.02104 6 2437 57.1479 0.05457 9 2452 16.2181 0.01549 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 137366R-RF-US-Exp Page: 5 of 7 Product RT-N14UHP High Power Router/AP/Range Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 6.81dBi or 4.80 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b Ant0 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 138.9953 0.13273 6 2437 108.6426 0.10375 11 2462 57.2796 0.05470 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 137366R-RF-US-Exp Page: 6 of 7 Product RT-N14UHP High Power Router/AP/Range Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 6.81dBi or 4.80 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11g Ant0 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 77.6247 0.07413 6 2437 137.7209 0.13151 11 2462 63.0957 0.06025 IEEE 802.11g ANT 1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 61.5177 0.05874 6 2437 161.0646 0.15381 11 2462 48.1948 0.04602 Report No. 137366R-RF-US-Exp Page: 7 of 7 Product RT-N14UHP High Power Router/AP/Range Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 6.81dBi or 4.80 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) ANT 0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 84.7227 0.08090 6 2437 389.9420 0.37237 11 2462 75.6833 0.07227 IEEE 802.11n (40MHz) ANT 0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 37.3250 0.03564 6 2437 405.5085 0.38723 9 2452 17.7011 0.01690 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission…

Text truncated - open the document above for the full version.

Report No：137366R-RFUSP42V01 Page: 1 of 381 FCC Test Report Product Name ： RT-N14UHP High Power Router/AP/Range Extender Model No. ： RT-N14UHP FCC ID. ： MSQ-RTN14UHP Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt：2013/07/17 Issued Date ：2013/11/22 Report No. ：137366R-RFUSP42V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：137366R-RFUSP42V01 Page: 2 of 381 Test Report Certification Issued Date : 2013/11/22 Report No. : 137366R-RFUSP42V01 Product Name ： RT-N14UHP High Power Router/AP/Range Extender Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer ： ASUSTeK COMPUTER INC. Model No. ： RT-N14UHP FCC ID. ： MSQ-RTN14UHP EUT Voltage : AC 100-240V, 50-60Hz Trade Name ： ASUS Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2012 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Demi Chang / Engineering Adm. Specialist ) Reviewed By : (JuBo Shen / Engineer) Approved By : ( Roy Wang / Manager ) Report No：137366R-RFUSP42V01 Page: 3 of 381 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 1313 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No：137366R-RFUSP42V01 Page: 4 of 381 TABLE OF CONTENTS Description Page 1. General Information........................................................................................................ 6 1.1. EUT Description ............................................................................................................. 6 1.2. Operational Description ................................................................................................ 10 1.3. Test Mode ..................................................................................................................... 11 1.4. Tested System Details .................................................................................................. 12 1.5. Configuration of tested System .................................................................................... 13 1.6. EUT Exercise Software ................................................................................................ 13 1.7. Test Facility...................................................................................................................14 2. Conducted Emission .................................................................................................... 15 2.1. Test Equipment............................................................................................................. 15 2.2. Test Setup .................................................................................................................... 15 2.3. Limits ............................................................................................................................ 16 2.4. Test Procedure ............................................................................................................. 16 2.5. Test Specification.......................................................................................................... 16 2.6. Uncertainty ................................................................................................................... 16 2.7. Test Result....................................................................................................................17 2.8. Test Photo .................................................................................................................... 19 3. Peak Power Output ...................................................................................................... 20 3.1. Test Equipment............................................................................................................. 20 3.2. Test Setup .................................................................................................................... 20 3.3. Test procedures ............................................................................................................ 20 3.4. Limits ............................................................................................................................ 20 3.5. Test Specification.......................................................................................................... 20 3.6. Uncertainty ................................................................................................................... 20 3.7. Test Result....................................................................................................…

Text truncated - open the document above for the full version.

Report No：137366R-RFUSP42V01 Page: 208 of 381 6. Radiated Emission Band Edge 6.1. Test Equipment The following test equipments are used during the test: Radiated Emission Band Edge / CB1 Instrument Manufacturer Model No. Serial No Next Cal. Date Double Ridged Guide Horn Antenna Schwarzback BBHA 9120 D743 2014/02/17 Spectrum Analyzer Agilent E4440A MY46187335 2014/01/27 k Type Cable Huber Suhner Sucoflex 102 25623/2 2014/02/21 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 6.2. Test Setup Report No：137366R-RFUSP42V01 Page: 209 of 381 6.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. 6.4. Test Procedure The EUT was setup according to ANSI C63.4: 2009 and tested according to DTS test procedure of KDB558074 for compliance to FCC 47CFR 15.247 requirements. The EUT and its simulators are placed on a turn table which is 0.8 meter above ground. The turn table can rotate 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna can move up and down between 1 meter and 4 meters to find out the maximum emission level. Both horizontal and vertical polarization of the antenna are set on measurement. In order to find the maximum emission, all of the interface cables must be manipulated according to ANSI C63.4: 2009 on radiated measurement. 6.5. Test Specification According to FCC Part 15 Subpart C Paragraph 15.247: 2012 6.6. Uncertainty The measurement uncertainty ± 3.9 dB above 1GHz Report No：137366R-RFUSP42V01 Page: 210 of 381 6.7. Test Result Radiated is defined as Site : CB1 Time : 2013/10/28 - 16:49 Limit : FCC_SpartC_15.209_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : AC 120V/60Hz EUT : RT-N14UHP High Power Router/AP/Range Extender Note : Mode 1: Transmit(CDD Mode) _Bandedge_802.11b_2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 30.059 23.88253.941-20.059 74.000 PEAK 2 * 2388.513 30.873 29.26860.141-13.859 74.000 PEAK 3 2390.000 30.888 27.84158.729-15.271 74.000 PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No：137366R-RFUSP42V01 Page: 211 of 381 Site : CB1 Time : 2013/10/28 - 16:50 Limit : FCC_SpartC_15.209_03M_AV Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : AC 120V/60Hz EUT : RT-N14UHP High Power Router/AP/Range Extender Note : Mode 1: Transmit(CDD Mode) _Bandedge_802.11b_2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 30.059 11.95142.010-11.990 54.000 AVERAGE 2 2388.513 30.873 15.40546.278-7.722 54.000 AVERAGE 3 * 2390.000 30.888 15.53646.424-7.576 54.000 AVERAGE Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No：137366R-RFUSP42V01 Page: 212 of 381 Site : CB1 Time : 2013/10/28 - 17:04 Limit : FCC_SpartC_15.209_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - VERTICAL Power : AC 120V/60Hz EUT : RT-N14UHP High Power Router/AP/Range Extender Note : Mode 1: Transmit(CDD Mode) _Bandedge_802.11b_2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 30.059 27.15657.215-16.785 74.000 PEAK 2 * 2385.437 30.841 34.08564.926-9.074 74.000 PEAK 3 2390.000 30.888 32.46763.355-10.645 74.000 PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No：137366R-RFUSP42V01 Page: 213 of 381 Site : CB1 Time : 2013/10/28 - 17:05 Limit : FCC_SpartC_15.209_03M_AV Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - VERTICAL Power : AC 120V/60Hz EUT : RT-N14UHP High Power Router/AP/Range Extender Note : Mode 1: Transmit(CDD Mode) _Bandedge_802.11b_2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 30.059 15.46845.527-8.473 54.000 AVERAGE 2 2388.040 30.868 20.21451.082-2.918 54.000 AVERAGE 3 * 2390.000 30.888 20.47551.363-2.637 54.000 AVERAGE Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No：137366R-RFUSP42V01 Page: 214 of 381 Site : CB1 Time : 2013/10/28 - 17:08 Limit : FCC_SpartC_15.20…

Text truncated - open the document above for the full version.

Report No：137366R-RFUSP42V01 Page: 19 of 381 2.8. Test Photo Test Mode ： Mode 1: Transmit(CDD Mode) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit(CDD Mode) Description： Back View of Conducted Emission Test Setup Report No：137366R-RFUSP42V01 Page: 157 of 381 4.8. Test Photo Test Mode ： Mode 1: Transmit(CDD Mode) Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit(CDD Mode) Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No：137366R-RFUSP42V01 Page: 158 of 381 Test Mode ： Mode 1: Transmit(CDD Mode) Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit(CDD Mode) Description： Back View of Radiated Emission Test Setup (Horn) Report No：137366R-RFUSP42V01 Page: 159 of 381 Test Mode ： Mode 2: Transmit Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 2: Transmit Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No：137366R-RFUSP42V01 Page: 160 of 381 Test Mode ： Mode 2: Transmit Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 2: Transmit Description： Back View of Radiated Emission Test Setup (Horn)
