MSQ-RTN18URT-N18U 2.4GHz 600Mbps High Power Router

ASUSTeK Computer Inc

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jul 02, 2014
Application Purpose: Original Equipment
Date of Application: Jul 02, 2014
Equipment Note: RT-N18U 2.4GHz 600Mbps High Power Router
Frequency Range: 2412.00000000 - 2462.00000000
Company: ASUSTeK Computer Inc
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1. Connect your devices. EC Declaration of Conformity We, the undersigned, Manufacturer: ASUSTeK COMPUTER INC. Address, City: 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN Country: TAIWAN Authorized representative in Europe: ASUS COMPUTER GmbH Address, City: HARKORT STR. 21-23, 40880 RATINGEN Country: GERMANY declare the following apparatus: Product name : RT-N18U Wireless-N600 High Power Router Model name : RT-N18U conform with the essential requirements of the following directives: 2004/108/EC-EMC Directive EN 55022:2011 EN 61000-3-2:2006+A2:2009 EN 55013:2001+A1:2003+A2:2006 EN 55024:2010 EN 61000-3-3:2008 EN 55020:2007+A11:2011 1999/5/EC-R &TTE Directive EN 300 328 V1.7.1(2006-10) EN 300 440-1 V1.6.1(2010-08) EN 300 440-2 V1.4.1(2010-08) EN 301 511 V9.0.2(2003-03) EN 301 908-1 V5.2.1(2011-05) EN 301 908-2 V5.2.1(2011-07) EN 301 893 V1.6.1(2011-11) EN 302 544-2 V1.1.1(2009-01) EN 302 623 V1.1.1(2009-01) EN 300 330-1 V1.7.1(2010-02) EN 300 330-2 V1.5.1(2010-02) EN 50360:2001 EN 62479:2010 EN 301 489-1 V1.9.2(2011-09) EN 301 489-3 V1.4.1(2002-08) EN 301 489-4 V1.4.1(2009-05) EN 301 489-7 V1.3.1(2005-11) EN 301 489-9 V1.4.1(2007-11) EN 301 489-17 V2.2.1(2012-09) EN 301 489-24 V1.5.1(2010-09) EN 302 326-2 V1.2.2(2007-06) EN 302 326-3 V1.3.1(2007-09) EN 301 357-2 V1.4.1(2008-11) EN 50385:2002 EN 62311:2008 2006/95/EC-LVD Directive EN 60950-1 / A11:2009 EN 60950-1 / A12:2011 EN 60065:2002 / A2:2010 EN 60065:2002 / A12:2011 2009/125/EC-ErP Directive Regulation (EC) No. 1275/2008 Regulation (EC) No. 642/2009 Regulation (EC) No. 278/2009 2011/65/EU-RoHS Directive Ver. 121001 CE marking Declaration Date: March 31,2014 Year to begin affixing CE marking:2014 Position : CEO Name : Jerry Shen Si gnature : __________ (EC conformity marking) Client Modem RT-N18U Français 1. Connectez les périphériques. 2. Lancez votre navigateur Web puis suivez les étapes du gestionnaire de rapide d’Internet en ligne (QIS).. 3. La est terminée.. Deutsch 1. Schließen Sie Ihre Geräte an. 2. Starten sie einen Web-Browser und folgen sie den Internet-Schnelleinstellungsschritten (QIS). 3. Die Einrichtung ist fertig. Italiano 1. Collegare le periferiche. 2. Avviare il browser web e seguire la procedura QIS (Quick Internet Setup). 3. La è stata completata.. 2. (QIS). Português do Brasil 1. Conecte seus dispositivos. 2. Lance o navegador da web e siga os passos do Quick Internet Setup (QIS). 3. A instalação foi concluída. 2. Q uick Internet Setup (QIS) Česky 1. Připojte zařízení. 2. Spusťte webový prohlížeč a postupujte podle kroků Rychlého nastavení Internetu (QIS). 3. Instalace je dokončena. Dansk 1. Tilslut enhederne. 2. Start webbrowseren og følg quick-internetopsætning (QIS) trinene. 3. Opsætning fuldført. Nederlands 1. Sluit uw apparaten aan. 2. Start de webbrowser en volg de QIS-stappen (Quick Internet Setup (snelle internetinstelling)). 3. De instelling is voltooid. Eesti 1. Ühendage seadmed. 2. Käivitage veebibrauser ja järgige viisardi Quick Internet Setup (Interneti-ühenduse kiirhäälestus (QIS)) samme. 3. Häälestus on lõpule viidud. Suomi 1. Kytke laitteet. 2. Käynnistä verkkoselain ja noudata QIS-asennuksen vaiheita. 3. Asennus on valmis. Ελληνικά 1. Συνδέστε τις συσκευές σας. 2. Εκκινήστε το πρόγραμμα πλοήγησης στο διαδίκτυο και ακολουθήστε τα βήματα της Γρήγορης Εγκατάστασης Internet (QIS). 3. Η εγκατάσταση έχει ολοκληρωθεί. Magyar 1. Csatlakoztassa az eszközöket. 2. Indítsa el a webböngészőt, és kövesse a gyors internetes beállítás (QIS) lépéseit. 3. A beállítás befejeződött. Bahasa Indonesia 1. Sambungkan perangkat. 2. Aktifkan browser Web, kemudian ikuti langkah-langkah Quick Internet Setup (QIS). selesai. Latviski 1. Savienojiet savas ierīces. 2. Palaidiet tīmekļa pārlūku un izpildiet Quick Internet Setup (Ātrās interneta palaišanas) (QIS) soļus. 3. Iestatīšana ir pabeigta. Lietuvių 1. Prijunkite prietaisus. 2. Paleiskite interneto naršyklę ir vadovaukitės greitos internetinės sąrankos (QIS) nuorodomis. 3. Sąranka baigta. Bahasa Malaysia 1. Sambungkan peranti anda. 2. Lancarkan penyemak imbas web dan ikut langkah-langkah Persediaan Internet Pantas (QIS). 3. Persediaan selesai. Norsk 1. Koble til enhetene dine. 2. Start nettleseren og følg trinnene til Quick Internet Setup (QIS) (Rask oppsett av Internett). 3. Oppsettet er ferdig. Polski 1. Podłącz swoje urządzenia. 2. Uruchom przeglądarkę internetową i postępuj zgodnie z poleceniami Szybkiej Internetu (QIS). została zakończona. Português 1. Ligue os dispositivos. 2. Abra o browser da web e siga as instruções para rápida da Internet. 3. A assim concluída. Română 1. Conectaţi dispozitivele dvs. 2. Lansaţi browser-ul web şi urmaţi paşii de Conectare Rapidă la Internet (QIS). 3. Conectarea este Slovensky 1. Pripojte svoje zariadenia. 2. Spustite internetový prehliadač a postupujte podľa krokov Stručného návodu pre nastavenie internetu (QIS). 3. Nastavenie je dokončené. Español 1. Conecte sus dispositivos. 2. Abra su explorador web y siga los pasos indicados por la función Quick Internet Setup rápida de Internet. 3. Ha la Svenska 1. Anslut dina enheter. 2. Öppna webbläsaren och följ stegen i QIS (snabb Internet-inställning). 3. Inställningen slutförd. ไทย ณุคงอข์ณรกปุออ่ตมอ่ืชเ .1 2. ์รอซเารบเบ็วเดิปเ นอตน้ัขมาตําทะลแ นว่ดต็นเ์รอตเนิอา่คง้ัตราก (QIS) 3. ณรูบมสจ็รสเา่คง้ัตราก Türkçe 1. Aygıtlarınızı bağlayın. 2. Web tarayıcınızı açın ve Quick Internet Setup (Hızlı İnternet Kurulumu) (QIS) adımlarını izleyin. 3. Kurulum tamamlanır. 2. (QIS). 3. 1. 2. 3. 1. 2. QIS 3. Quick Start Guide RT-N18U 2.4GHz 600Mbps High Power Router NOTE: Note: For more details and advanced configuration instructions, please visit www.asus.com the ASUS website www.asus.com for the user manual. E8493 / First Edition / July 2013 ® ! Setting up a Home Network 2. Launch the web browser and follow the Quick Internet Setup (QIS) steps. 3. Setup is completed. 150200164400MAS R01 NCC Warning REACH Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals)…

Text truncated - open the document above for the full version.

Cover Letter(s)

Report No：1430470R-RFUSP28V00 Page: 1 of 554 FCC Test Report Product Name ： RT-N18U 2.4GHz 600Mbps High Power Router Model No. ： RT-N18U FCC ID. ： MSQ-RTN18U Applicant： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt：2014/03/24 Issued Date ：2014/05/02 Report No. ：1430470R-RFUSP28V00 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：1430470R-RFUSP28V00 Page: 2 of 554 Test Report Certification Issued Date : 2014/05/02 Report No. : 1430470R-RFUSP28V00 Product Name ： RT-N18U 2.4GHz 600Mbps High Power Router Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Manufacturer ： Arcadyan Technology Corporationtion Model No. ： RT-N18U FCC ID. ： MSQ-RTN18U EUT Test Voltage : AC 100-240V, 50/60Hz Trade Name ： ASUS Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2013 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Fonbo Fang / Engineering Adm. Assistant ) Reviewed By : ( JuBo Shen / Engineer ) Approved By : ( Roy Wang / Director ) Report No：1430470R-RFUSP28V00 Page: 3 of 554 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 1313 NCC, Certificate No : NCC-RCB-07 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No：1430470R-RFUSP28V00 Page: 4 of 554 TABLE OF CONTENTS Description Page 1. General Information........................................................................................................ 6 1.1. EUT Description ............................................................................................................. 6 1.2. Test Mode ..................................................................................................................... 12 1.3. Tested System Details .................................................................................................. 13 1.4. Configuration of tested System .................................................................................... 13 1.5. EUT Exercise Software ................................................................................................ 14 1.6. Test Facility...................................................................................................................15 2. Conducted Emission .................................................................................................... 16 2.1. Test Equipment............................................................................................................. 16 2.2. Test Setup .................................................................................................................... 16 2.3. Limits ............................................................................................................................ 17 2.4. Test Procedure ............................................................................................................. 17 2.5. Test Specification.......................................................................................................... 17 2.6. Uncertainty ................................................................................................................... 17 2.7. Test Result....................................................................................................................18 2.8. Test Photo .................................................................................................................... 26 3. Peak Power Output ...................................................................................................... 30 3.1. Test Equipment............................................................................................................. 30 3.2. Test Setup .................................................................................................................... 30 3.3. Test procedures ............................................................................................................ 30 3.4. Limits ............................................................................................................................ 30 3.5. Test Specification.......................................................................................................... 30 3.6. Uncertainty ................................................................................................................... 30 3.7. Test Result....................................................................................................................31 4. Radiated Emission ................................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

Report No：1430470R-RFUSP28V00 Page: 151 of 554 Site : CB1 Time : 2014/03/20 - 19:00 Limit : FCC_SpartC_15.247_H_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - VERTICAL Power : AC 120V/60Hz EUT : RT-N18U 2.4GHz 600Mbps High Power Router Note : Mode2: Transmit_Beamforming Mode(Adapter:CWT,CAP018121)_802.11g_2462MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 4924.000 -0.373 45.23044.857-29.143 74.000 PEAK 2 * 7386.000 5.770 47.63053.400-20.600 74.000 PEAK 3 9848.000 10.521 40.25050.771-23.229 74.000 PEAK 4 12310.000 11.001 39.71050.711-23.289 74.000 PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. 7. The Emission above 18GHz were not included is because their levels are too low. Report No：1430470R-RFUSP28V00 Page: 152 of 554 Site : CB1 Time : 2014/03/20 - 19:01 Limit : FCC_SpartC_15.247_H_03M_AV Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - VERTICAL Power : AC 120V/60Hz EUT : RT-N18U 2.4GHz 600Mbps High Power Router Note : Mode2: Transmit_Beamforming Mode(Adapter:CWT,CAP018121)_802.11g_2462MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 * 7386.000 5.770 28.33034.100-19.900 54.000 AVERAGE Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. 7. The Emission above 18GHz were not included is because their levels are too low. Report No：1430470R-RFUSP28V00 Page: 153 of 554 Site : CB1 Time : 2014/04/29 - 20:37 Limit : FCC_SpartC_15.247_H_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : AC 120V/60Hz EUT : RT-N18U 2.4GHz 600Mbps High Power Router Note : Mode2: Transmit_Beamforming Mode(Adapter:CWT,CAP018121)_802.11n 20MHz_2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 1640.150 -8.693 46.98038.287-35.713 74.000 PEAK 2 4833.720 -0.592 39.75039.157-34.843 74.000 PEAK 3 7240.340 5.455 39.11044.565-29.435 74.000 PEAK 4 9650.030 9.239 39.36048.599-25.401 74.000 PEAK 5 * 12059.220 11.115 38.22049.336-24.664 74.000 PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. 7. The Emission above 18GHz were not included is because their levels are too low. Report No：1430470R-RFUSP28V00 Page: 154 of 554 Site : CB1 Time : 2014/04/29 - 20:37 Limit : FCC_SpartC_15.247_H_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - VERTICAL Power : AC 120V/60Hz EUT : RT-N18U 2.4GHz 600Mbps High Power Router Note : Mode2: Transmit_Beamforming Mode(Adapter:CWT,CAP018121)_802.11n 20MHz_2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 4818.950 -0.629 45.39044.761-29.239 74.000 PEAK 2 7226.400 5.425 40.33045.754-28.246 74.000 PEAK 3 9671.725 9.379 39.66049.039-24.961 74.000 PEAK 4 * 12062.325 11.115 38.92050.034-23.966 74.000 PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. 7. The Emission above 18GHz were not included is because their levels are too low. Report No：1430470R-RFUSP28V00 Page: 155 of 554 Site : CB1 Time : 2014/04/29 - 21:05 Limit : FCC_SpartC_15.247_H_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : AC 120V/60Hz EUT : RT-N18U 2.4GHz 600Mbps High Power Router Note : Mode2: Transmit_Beamforming Mode(Adapter:CWT,CAP018121)_802.11n 20MHz_2437MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 1631.800 -8.719 46.00037.281-36.719 74.000 PEAK 2 4874.225 -0.493 45.33044.836-29.164 74.000 PEAK 3 * 7306.650 5.598 48.06053.658-20.342 74.000 PEAK 4 9735.575 9.792 38.93048.723-25.277 74.000 PEAK 5 12169.900 11.065 38.69049.755-24.245 74.000 PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. 7. The Emission above 18GHz were not included is because their levels are too low. Report No：1430470R-RFUSP28V00 Page: 156 of 554 Site : CB1 Time : 2014/04/30 - 20:54 Limit : FCC_SpartC_15.247_H_03M_AV Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Pow…

Text truncated - open the document above for the full version.

Cover Letter(s)

Report No：1430470R-RFUSP28V00 Page: 251 of 554 2437MHz (30MHz-1GHz)-802.11g (ANT 1) 2437MHz (1GHz-5GHz) -802.11g (ANT 1) Report No：1430470R-RFUSP28V00 Page: 252 of 554 2437MHz (5GHz-9GHz) -802.11g (ANT 1) 2437MHz (9GHz-13GHz) -802.11g (ANT 1) Report No：1430470R-RFUSP28V00 Page: 253 of 554 2437MHz (13GHz-17GHz) -802.11g (ANT 1) 2437MHz (17GHz-21GHz) -802.11g (ANT 1) Report No：1430470R-RFUSP28V00 Page: 254 of 554 2437MHz (21GHz-25GHz) -802.11g (ANT 1) Report No：1430470R-RFUSP28V00 Page: 255 of 554 2462MHz (30MHz-1GHz)-802.11g (ANT 1) 2462MHz (1GHz-5GHz) -802.11g (ANT 1) Report No：1430470R-RFUSP28V00 Page: 256 of 554 2462MHz (5GHz-9GHz) -802.11g (ANT 1) 2462MHz (9GHz-13GHz) -802.11g (ANT 1) Report No：1430470R-RFUSP28V00 Page: 257 of 554 2462MHz (13GHz-17GHz) -802.11g (ANT 1) 2462MHz (17GHz-21GHz) -802.11g (ANT 1) Report No：1430470R-RFUSP28V00 Page: 258 of 554 2462MHz (21GHz-25GHz) -802.11g (ANT 1) Report No：1430470R-RFUSP28V00 Page: 259 of 554 2412MHz (30MHz-1GHz)-802.11g (ANT 2) 2412MHz (1GHz-5GHz) -802.11g (ANT 2) Report No：1430470R-RFUSP28V00 Page: 260 of 554 2412MHz (5GHz-9GHz) -802.11g (ANT 2) 2412MHz (9GHz-13GHz) -802.11g (ANT 2) Report No：1430470R-RFUSP28V00 Page: 261 of 554 2412MHz (13GHz-17GHz) -802.11g (ANT 2) 2412MHz (17GHz-21GHz) -802.11g (ANT 2) Report No：1430470R-RFUSP28V00 Page: 262 of 554 2412MHz (21GHz-25GHz) -802.11g (ANT 2) Report No：1430470R-RFUSP28V00 Page: 263 of 554 2437MHz (30MHz-1GHz)-802.11g (ANT 2) 2437MHz (1GHz-5GHz) -802.11g (ANT 2) Report No：1430470R-RFUSP28V00 Page: 264 of 554 2437MHz (5GHz-9GHz) -802.11g (ANT 2) 2437MHz (9GHz-13GHz) -802.11g (ANT 2) Report No：1430470R-RFUSP28V00 Page: 265 of 554 2437MHz (13GHz-17GHz) -802.11g (ANT 2) 2437MHz (17GHz-21GHz) -802.11g (ANT 2) Report No：1430470R-RFUSP28V00 Page: 266 of 554 2437MHz (21GHz-25GHz) -802.11g (ANT 2) Report No：1430470R-RFUSP28V00 Page: 267 of 554 2462MHz (30MHz-1GHz)-802.11g (ANT 2) 2462MHz (1GHz-5GHz) -802.11g (ANT 2) Report No：1430470R-RFUSP28V00 Page: 268 of 554 2462MHz (5GHz-9GHz) -802.11g (ANT 2) 2462MHz (9GHz-13GHz) -802.11g (ANT 2) Report No：1430470R-RFUSP28V00 Page: 269 of 554 2462MHz (13GHz-17GHz) -802.11g (ANT 2) 2462MHz (17GHz-21GHz) -802.11g (ANT 2) Report No：1430470R-RFUSP28V00 Page: 270 of 554 2462MHz (21GHz-25GHz) -802.11g (ANT 2) Report No：1430470R-RFUSP28V00 Page: 271 of 554 2412MHz (30MHz-1GHz)- 802.11n (20MHz) (ANT 0) 2412MHz (1GHz-5GHz) -802.11n (20MHz) (ANT 0) Report No：1430470R-RFUSP28V00 Page: 272 of 554 2412MHz (5GHz-9GHz) -802.11n (20MHz) (ANT 0) 2412MHz (9GHz-13GHz) -802.11n (20MHz) (ANT 0) Report No：1430470R-RFUSP28V00 Page: 273 of 554 2412MHz (13GHz-17GHz) -802.11n (20MHz) (ANT 0) 2412MHz (17GHz-21GHz) -802.11n (20MHz) (ANT 0) Report No：1430470R-RFUSP28V00 Page: 274 of 554 2412MHz (21GHz-25GHz) -802.11n (20MHz) (ANT 0) Report No：1430470R-RFUSP28V00 Page: 275 of 554 2437MHz (30MHz-1GHz)- 802.11n (20MHz) (ANT 0) 2437MHz (1GHz-5GHz) -802.11n (20MHz) (ANT 0) Report No：1430470R-RFUSP28V00 Page: 276 of 554 2437MHz (5GHz-9GHz) -802.11n (20MHz) (ANT 0) 2437MHz (9GHz-13GHz) -802.11n (20MHz) (ANT 0) Report No：1430470R-RFUSP28V00 Page: 277 of 554 2437MHz (13GHz-17GHz) -802.11n (20MHz) (ANT 0) 2437MHz (17GHz-21GHz) -802.11n (20MHz) (ANT 0) Report No：1430470R-RFUSP28V00 Page: 278 of 554 2437MHz (21GHz-25GHz) -802.11n (20MHz) (ANT 0) Report No：1430470R-RFUSP28V00 Page: 279 of 554 2462MHz (30MHz-1GHz)- 802.11n (20MHz) (ANT 0) 2462MHz (1GHz-5GHz) -802.11n (20MHz) (ANT 0) Report No：1430470R-RFUSP28V00 Page: 280 of 554 2462MHz (5GHz-9GHz) -802.11n (20MHz) (ANT 0) 2462MHz (9GHz-13GHz) -802.11n (20MHz) (ANT 0) Report No：1430470R-RFUSP28V00 Page: 281 of 554 2462MHz (13GHz-17GHz) -802.11n (20MHz) (ANT 0) 2462MHz (17GHz-21GHz) -802.11n (20MHz) (ANT 0) Report No：1430470R-RFUSP28V00 Page: 282 of 554 2462MHz (21GHz-25GHz) -802.11n (20MHz) (ANT 0) Report No：1430470R-RFUSP28V00 Page: 283 of 554 2412MHz (30MHz-1GHz)- 802.11n (20MHz) (ANT 1) 2412MHz (1GHz-5GHz) -802.11n (20MHz) (ANT 1) Report No：1430470R-RFUSP28V00 Page: 284 of 554 2412MHz (5GHz-9GHz) -802.11n (20MHz) (ANT 1) 2412MHz (9GHz-13GHz) -802.11n (20MHz) (ANT 1) Report No：1430470R-RFUSP28V00 Page: 285 of 554 2412MHz (13GHz-17GHz) -802.11n (20MHz) (ANT 1) 2412MHz (17GHz-21GHz) -802.11n (20MHz) (ANT 1) Report No：1430470R-RFUSP28V00 Page: 286 of 554 2412MHz (21GHz-25GHz) -802.11n (20MHz) (ANT 1) Report No：1430470R-RFUSP28V00 Page: 287 of 554 2437MHz (30MHz-1GHz)- 802.11n (20MHz) (ANT 1) 2437MHz (1GHz-5GHz) -802.11n (20MHz) (ANT 1) Report No：1430470R-RFUSP28V00 Page: 288 of 554 2437MHz (5GHz-9GHz) -802.11n (20MHz) (ANT 1) 2437MHz (9GHz-13GHz) -802.11n (20MHz) (ANT 1) Report No：1430470R-RFUSP28V00 Page: 289 of 554 2437MHz (13GHz-17GHz) -802.11n (20MHz) (ANT 1) 2437MHz (17GHz-21GHz) -802.11n (20MHz) (ANT 1) Report No：1430470R-RFUSP28V00 Page: 290 of 554 2437MHz (21GHz-25GHz) -802.11n (20MHz) (ANT 1) Report No：1430470R-RFUSP28V00 Page: 291 of 554 2462MHz (30MHz-1GHz)- 802.11n (20MHz) (ANT 1) 2462MHz (1GHz-5GHz) -802.11n (20MHz) (ANT 1) Report No：1430470R-RFUSP28V00 Page: 292 of 554 2462MHz (5GHz-9GHz) -802.11n (20MHz) (ANT 1) 2462MHz (9GHz-13GHz) -802.11n (20MHz) (ANT 1) Report No：1430470R-RFUSP28V00 Page: 293 of 554 2462MHz (13GHz-17GHz) -802.11n (20MHz) (ANT 1) 2462MHz (17GHz-21GHz) -802.11n (20MHz) (ANT 1) Report No：1430470R-RFUSP28V00 Page: 294 of 554 2462MHz (21GHz-25GHz) -802.11n (20MHz) (ANT 1) Report No：1430470R-RFUSP28V00 Page: 295 of 554 2412MHz (30MHz-1GHz)- 802.11n (20MHz) (ANT 2) 2412MHz (1GHz-5GHz) -802.11n (20MHz) (ANT 2) Report No：1430470R-RFUSP28V00 Page: 296 of 554 2412MHz (5GHz-9GHz) -802.11n (20MHz) (ANT 2) 2412MHz (9GHz-13GHz) -802.11n (20MHz) (ANT 2) Report No：1430470R-RFUSP28V00 Page: 297 of 554 2412MHz (13GHz-17GHz) -802.11n (20MHz) (ANT 2) 2412MHz (17GHz-21GHz) -802.11n (20MHz) (ANT 2) Report No：1430470R-RFUSP28V00 Page: 298 of 554 2412MHz (21GHz-25GHz) -802.11n (20MHz) (ANT 2) Report No：1430470R-RFUSP28V00 Page: 299 of 554 2437MHz (30MHz-1GHz)- 802.11n (20MHz) (ANT 2) 2437MHz (1GHz-5GHz) -802.11n (20MHz) (ANT 2) Report No：14304…

Text truncated - open the document above for the full version.

External Photos

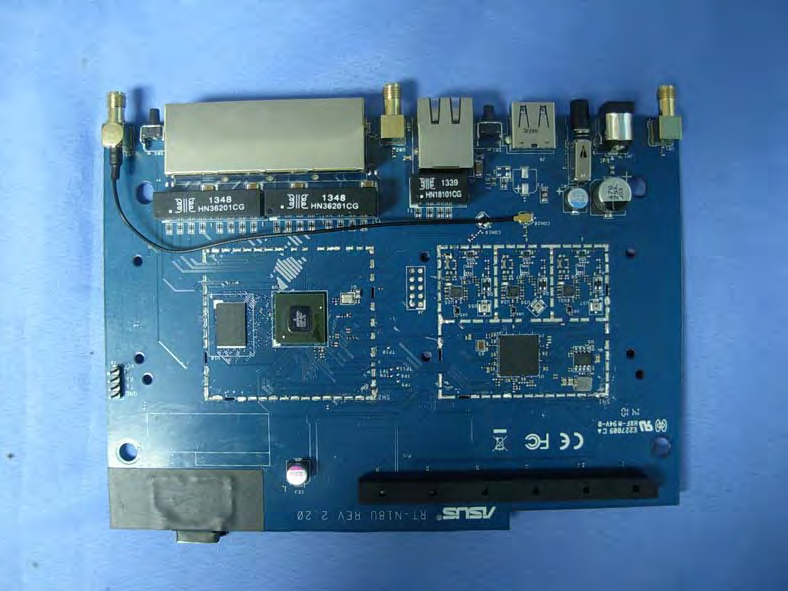

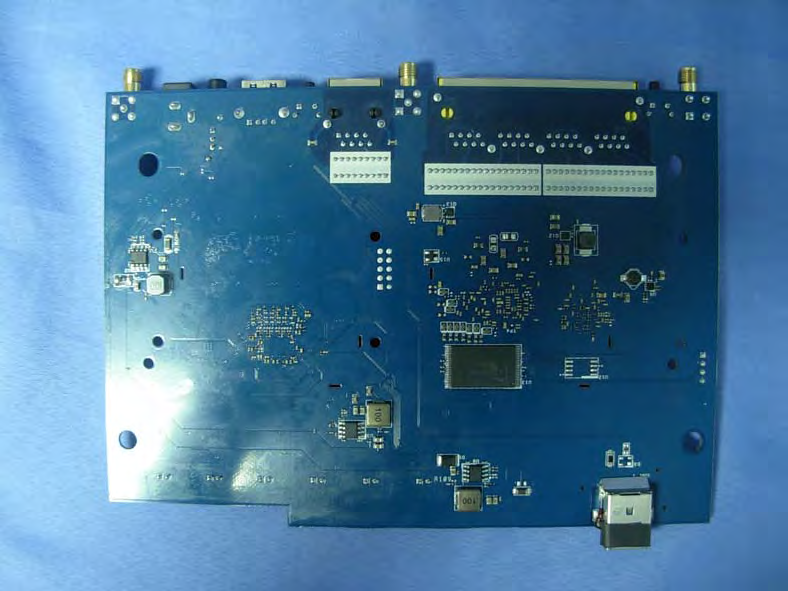

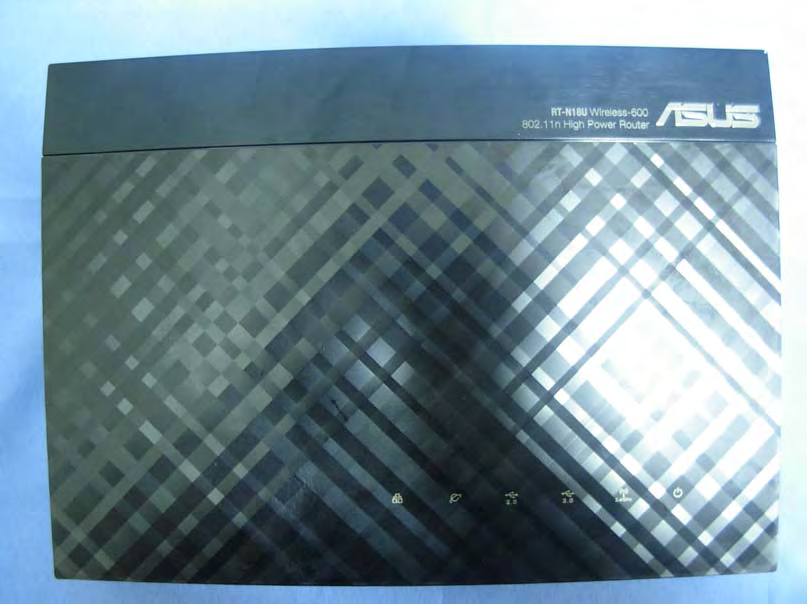

Report No：1430470R-RFUSP28V00 Page: 476 of 554 Attachement EUT Photograph (1) EUT Photo (Adapter: CWT,CAP018121; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A2, 2dBi, LAN Cable: Shielded) (2) EUT Photo Report No：1430470R-RFUSP28V00 Page: 477 of 554 (3) EUT Photo (Adapter:CWT,CAP018121; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A2, 2dBi, LAN Cable: Shielded) (4) EUT Photo (Antenna : MAG.LAYERS, EDA-1410-2G4R2-A2, 2dBi) Report No：1430470R-RFUSP28V00 Page: 478 of 554 (5) EUT Photo (Adapter:CWT,CAP018121) Report No：1430470R-RFUSP28V00 Page: 479 of 554 (6) EUT Photo (Adapter:CWT,CAP018121; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A4,Iron, 2dBi, LAN Cable: Shielded) (7) EUT Photo Report No：1430470R-RFUSP28V00 Page: 480 of 554 (8) EUT Photo(Adapter:CWT,CAP018121 ; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A4 ,Iron, 2dBi, LAN Cable: Shielded) (9) EUT Photo(Antenna: MAG.LAYERS, EDA-1410-2G4R2-A4,Iron, 2dBi) Report No：1430470R-RFUSP28V00 Page: 481 of 554 (10) EUT Photo (Adapter:CWT,CAP018121) Report No：1430470R-RFUSP28V00 Page: 482 of 554 (11) EUT Photo(Adapter:ITE,MU18-2120125-A1; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A2, 2dBi, LAN Cable: Shielded) (12) EUT Photo Report No：1430470R-RFUSP28V00 Page: 483 of 554 (13) EUT Photo(Adapter:ITE,MU18-2120125-A1; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A2, 2dBi, LAN Cable: Shielded) (14) EUT Photo(Antenna : MAG.LAYERS, EDA-1410-2G4R2-A2, 2dBi) Report No：1430470R-RFUSP28V00 Page: 484 of 554 (15) EUT Photo(Adapter:ITE,MU18-2120125-A1) Report No：1430470R-RFUSP28V00 Page: 485 of 554 (16) EUT Photo(Adapter:ITE,MU18-2120125-A1 ; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A4 ,Iron, 2dBi, LAN Cable: Shielded) (17) EUT Photo Report No：1430470R-RFUSP28V00 Page: 486 of 554 (18) EUT Photo(Adapter:ITE,MU18-2120125-A1 ; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A4 ,Iron, 2dBi, LAN Cable: Shielded) (19) EUT Photo(Antenna : MAG.LAYERS, EDA-1410-2G4R2-A4 ,Iron, 2dBi) Report No：1430470R-RFUSP28V00 Page: 487 of 554 (20) EUT Photo(Adapter:ITE,MU18-2120125-A1) Report No：1430470R-RFUSP28V00 Page: 488 of 554 (21) EUT Photo(Adapter:ITE,MU18-R120150-A1; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A2, 2dBi, LAN Cable: Shielded) (22) EUT Photo Report No：1430470R-RFUSP28V00 Page: 489 of 554 (23) EUT Photo(Adapter:ITE,MU18-R120150-A1; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A2, 2dBi, LAN Cable: Shielded) (24) EUT Photo(Antenna : MAG.LAYERS, EDA-1410-2G4R2-A2, 2dBi) Report No：1430470R-RFUSP28V00 Page: 490 of 554 (25) EUT Photo(Adapter:ITE,MU18-R120150-A1) Report No：1430470R-RFUSP28V00 Page: 491 of 554 (26) EUT Photo(Adapter:ITE,MU18-R120150-A1; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A4 ,Iron, 2dBi, LAN Cable: Shielded) (27) EUT Photo Report No：1430470R-RFUSP28V00 Page: 492 of 554 (28) EUT Photo(Adapter:ITE,MU18-R120150-A1; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A4 ,Iron, 2dBi, LAN Cable: Shielded) (29) EUT Photo( Antenna : MAG.LAYERS, EDA-1410-2G4R2-A4 ,Iron, 2dBi) Report No：1430470R-RFUSP28V00 Page: 493 of 554 (30) EUT Photo(Adapter:ITE,MU18-R120150-A1) Report No：1430470R-RFUSP28V00 Page: 494 of 554 (31) EUT Photo (Adapter: CWT,CAP018121; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A2, 2dBi, LAN Cable: Non-Shielded) (32) EUT Photo Report No：1430470R-RFUSP28V00 Page: 495 of 554 (33) EUT Photo (Adapter:CWT,CAP018121; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A2, 2dBi, LAN Cable: Non-Shielded) (34) EUT Photo (Antenna : MAG.LAYERS, EDA-1410-2G4R2-A2, 2dBi) Report No：1430470R-RFUSP28V00 Page: 496 of 554 (35) EUT Photo (Adapter:CWT,CAP018121) Report No：1430470R-RFUSP28V00 Page: 497 of 554 (36) EUT Photo (Adapter:CWT,CAP018121; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A4,Iron, 2dBi, LAN Cable: Non-Shielded) (37) EUT Photo Report No：1430470R-RFUSP28V00 Page: 498 of 554 (38) EUT Photo(Adapter:CWT,CAP018121 ; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A4 ,Iron, 2dBi, LAN Cable: Non-Shielded) (39) EUT Photo(Antenna: MAG.LAYERS, EDA-1410-2G4R2-A4,Iron, 2dBi) Report No：1430470R-RFUSP28V00 Page: 499 of 554 (40) EUT Photo (Adapter:CWT,CAP018121) Report No：1430470R-RFUSP28V00 Page: 500 of 554 (41) EUT Photo(Adapter:ITE,MU18-2120125-A1; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A2, 2dBi, LAN Cable: Non-Shielded) (42) EUT Photo Report No：1430470R-RFUSP28V00 Page: 501 of 554 (43) EUT Photo(Adapter:ITE,MU18-2120125-A1; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A2, 2dBi, LAN Cable: Non-Shielded) (44) EUT Photo(Antenna : MAG.LAYERS, EDA-1410-2G4R2-A2, 2dBi) Report No：1430470R-RFUSP28V00 Page: 502 of 554 (45) EUT Photo(Adapter:ITE,MU18-2120125-A1) Report No：1430470R-RFUSP28V00 Page: 503 of 554 (46) EUT Photo(Adapter:ITE,MU18-2120125-A1 ; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A4 ,Iron, 2dBi, LAN Cable: Non-Shielded) (47) EUT Photo Report No：1430470R-RFUSP28V00 Page: 504 of 554 (48) EUT Photo(Adapter:ITE,MU18-2120125-A1 ; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A4 ,Iron, 2dBi, LAN Cable: Non-Shielded) (49) EUT Photo(Antenna : MAG.LAYERS, EDA-1410-2G4R2-A4 ,Iron, 2dBi) Report No：1430470R-RFUSP28V00 Page: 505 of 554 (50) EUT Photo(Adapter:ITE,MU18-2120125-A1) Report No：1430470R-RFUSP28V00 Page: 506 of 554 (51) EUT Photo(Adapter:ITE,MU18-R120150-A1; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A2, 2dBi, LAN Cable: Non-Shielded) (52) EUT Photo Report No：1430470R-RFUSP28V00 Page: 507 of 554 (53) EUT Photo(Adapter:ITE,MU18-R120150-A1; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A2, 2dBi, LAN Cable: Non-Shielded) (54) EUT Photo(Antenna : MAG.LAYERS, EDA-1410-2G4R2-A2, 2dBi) Report No：1430470R-RFUSP28V00 Page: 508 of 554 (55) EUT Photo(Adapter:ITE,MU18-R120150-A1) Report No：1430470R-RFUSP28V00 Page: 509 of 554 (56) EUT Photo(Adapter:ITE,MU18-R120150-A1; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A4 ,Iron, 2dBi, LAN Cable: Non-Shielded) (57) EUT Photo Report No：1430470R-RFUSP28V00 Page: 510 of 554 (58) EUT Photo(Adapter:ITE,MU18-R120150-A1; Antenna : MAG.LAYERS, EDA-1410-2G4R2-A4 ,Iron, 2dBi, LAN Cable: Non-Shielded) (59) EUT Photo( Antenna : MAG.LAYERS, EDA-1410-2G4R2-A4 ,Iron, 2dBi) Report No：1430470R-RFUSP28V00 Page: 511 of 554 (60) EUT Photo(Adapter:ITE,MU18-R120150-A1) Report No：1430470R-RFUSP28V00 Page: 512 of 554 (…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Jackson Yen(Associate Vice President)

[email protected]+886-2-28943447Fax: +886-2-28987364

Technical Contact

QuieTek CorporationNeil Yeh

886-3-592-8858

Taiwan

Non-Technical Contact

QuieTek CorporationNeil Yeh

886-3-592-8858

Test Firm

DEKRA TESTING AND CERTIFICATION CO., LTD.Warren Lin

[email protected]+886-3-582-8001Fax: +886-3-582-8958

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	826.00 mW

Confidentiality

Long Term

Grant Notes

Power output listed is conducted. The antenna(s) used for this transmitter as listed in this filiing must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20/40 MHz bandwidth modes.
