RT-N65U Dual-band Wireless-N750 Gigabit Router The ultra-thin and stylish RT-N65U features a 2.4GHz and 5GHz dual bands for an unmatched concurrent wireless HD streaming; SMB server, UPnP AV server, and FTP server for 24/7 file sharing; a capability to handle 300,000 sessions; and the ASUS Green Network Technology, which provides up to 70% power- saving solution. User Guide 2 E7376 First Edition April 2012 Copyright © 2012 ASUSTeK Computer Inc. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. (“ASUS”). Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. 3 Table of contents 1 A quick look Package contents ........................................................................................5 Your wireless router ....................................................................................5 Mounting placement .................................................................................7 2 Creating your network Positioning your router..............................................................................8 What you need .............................................................................................9 Setting up your wireless router ............................................................10 Wired connection ...............................................................................10 Wireless connection ..........................................................................11 Before you proceed ...................................................................................12 A. Disable the proxy server, if enabled. ..................................12 B. Set the TCP/IP settings to automatically obtain an IP address. ........................................................................... ............14 C. Disable the dial-up connection, if enabled. ....................15 3 Configuring via the web GUI Logging into the web GUI ......................................................................16 Setting up the Internet connection ....................................................17 Quick Internet Setup (QIS) with auto-detection .....................17 Setting up the wireless security settings ..........................................21 Managing your network clients ...........................................................23 Monitoring your USB device ..................................................................24 Creating your Guest Network ...............................................................26 Using the Traffic Manager .......................................................................27 Managing QoS (Quality of Service) Bandwidth .......................27 Monitoring Traffic ..............................................................................28 Using the USB Extension ........................................................................28 Using AiDisk for Files Sharing ........................................................29 Using the Servers Center service ..................................................32 4 Table of contents Using the Network Place (Samba) Share service ....................33 Using the FTP Share service............................................................34 Using the Miscellaneous setting ...................................................36 Configuring the Advanced settings ....................................................37 Setting up the DHCP Server ...........................................................37 Upgrading the firmware ..................................................................39 Restoring/Saving/Uploading settings ........................................40 Setting up your network printer ..........................................................41 4 Using the utilities Device Discovery .......................................................................................45 Firmware Restoration ...............................................................................46 5 Troubleshooting Troubleshooting ........................................................................................48 ASUS DDNS Service ..................................................................................51 Frequently Asked Questions (FAQs) ............................…
Text truncated - open the document above for the full version.
4 5 Troubleshooting NOTE: If you encounter problems that are not mentioned in this chapter, contact the ASUS Technical Support. Troubleshooting I cannot access a web browser for configuring the router. • Delete the cookies and files in your web browser. To do this, follow these steps: 1. Launch your web browser, then click Tools > Internet Options... 2. Under Temporary Internet files, click Delete Cookies... and Delete Files... NOTE: The commands for deleting cookies and files vary with the web browser. • Disable the proxy server settings, cancel the dial-up connection, and set the TCP/IP settings to obtain IP addresses automatically. For more details, refer to the section Before you proceed in this user manual. The client cannot establish a wireless connection with the router. Out of Range: • Put the router closer to the wireless client. • Try to change the channel settings. Authentication: • Use wired connection to connect to the router. • Check the wireless security settings. • Press the Reset button at the rear panel for more than five seconds. 4 Cannot find the router: • Press the Reset button at the rear panel for more than five seconds. • Check the setting in the wireless adapter such as SSID and encryption settings. Cannot access the Internet via wireless LAN adapter. • Move the router closer to the wireless client. • Check whether the wireless adapter is connected to the correct wireless router. • Check whether the wireless channel in use conforms to the channels available in your country/area. • Check the encryption settings. • Check if the ADSL or Cable connection is correct. • Retry using another Ethernet cable. Internet is not accessible. • Check the status indicators on the ADSL modem and the wireless router. • Check if the WAN LED on the wireless router is ON. If the LED is not ON, change the cable and try again. When ADSL Modem “Link” light is ON (not blinking), this means Internet Access is possible. • Restart your computer. • Refer to the Quick Start Guide of the wireless router and re- configure the settings. • Check if the WAN LED on the wireless router is ON. • Check the wireless encryption settings. • Check if the computer can get the IP address (via both wired network and wireless network). • Ensure that your web browser is configured to use the local LAN, and is not configured to use a proxy server. 50 If the ADSL “LINK” light blinks continuously or stays off, Internet access is not possible - the Router is unable to establish a connection with the ADSL network. • Ensure that all your cables are all properly connected . • Disconnect the power cord from the ADSL or cable modem, wait a few minutes, then reconnect the cord. • If the ADSL light continues to blink or stays OFF, contact your ADSL service provider. Network name or encryption keys are forgotten. • Try setting up the wired connection and configuring the wireless encryption again. • Press the Reset button at the rear panel of the wireless router for more than five seconds. How to restore the system to its default settings? • Press the Reset button at the rear panel of the wireless router for more than five seconds. • Refer to the section Restoring/Saving/Uploading settings in Chapter 3 of this user manual. The following are the factory default settings: User Name: admin Password: admin Enable DHCP: Yes (if WAN cable is plugged in) IP address: 12.16.1.1 Domain Name: (Blank) Subnet Mask: 255.255.255.0 DNS Server 1: 12.16.1.1 DNS Server 2: (Blank) SSID: ASUS 51 ASUS DDNS Service RT-N65U supports the ASUS DDNS service. When exchanging devices at the service center, if you have registered the ASUS DDNS service and want to keep the original domain name, data transfer is a must. Visit your local service center for more information. NOTES: • If there is no activity in the domain - such as reconfiguring the router or accessing the registered domain name - within 0 days, the system automatically deletes the registered information. • If you encounter any problem or difficulty in using your device, contact the service center. Frequently Asked Questions (FAQs) 1. Will the registered information be lost or registered by others? If you have not updated the registered information in 0 days, the system automatically deletes the registered information and the domain name may be registered by others. 2. I did not register the ASUS DDNS for the router I bought six months ago. Can I still register it? Yes, you can still register the ASUS DDNS service for your router. The DDNS service is embedded in your router, so you can register the ASUS DDNS service anytime. Before registering, click Query to check if the hostname has been registered or not. If not, the system registers the hostname automatically. 52 3. I have registered a domain name before and it has been working well until my friends told me that they could not access my domain name. Check the following: 1. The internet is working well. 2. The DNS server is working well. 3. The last time you updated the domain name. If there are still problems in accessing your domain name, contact the service center. 4. Can I register two domain names to separately access my http and ftp servers? No, you cannot. You can only register one domain name for one router. Use port mapping to implement security in the network. 5. After restarting the router, why is it that I see different WAN IPs in MS DOS and in the router configuration page? This is normal. The interval time between the ISP DNS server and ASUS DDNS results in different WAN IPs in MS DOS and in the router configuration page. Different ISPs may have different interval time for IP updating. 6. Is the ASUS DDNS service free, or is it just a trial version? The ASUS DDNS service is a free and embedded service in some ASUS routers. Check your ASUS router if it supports the ASUS DDNS service. 53 Appendices Notices ASUS Recycling/Takeback Services ASUS recycling and takeback programs come from our commitment to the highest stan…
Text truncated - open the document above for the full version.
FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: ASUSTeK COMPUTER INC. Address : No.15, Li-Te Rd., Peitou, City: Taipei, Country: Taiwan To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: MSQ-RTN65U Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: In order to ensure sensitive business information remains confidential until the actual marketing of the device. Planned Release Date STC: 180 days (notes 2, 3, 4, 5) Date: 2012/5/28 Name and signature of applicant: Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period
ASUSTeK COMPUTER INC. No.15, Li-Te Rd., Peitou, Taipei , Taiwan Attestation for FCC Declaration of Conformity FCC ID: MSQ-RTN65U Data: May 25, 2012 Please be notified that we, the undersigned, ASUSTeK COMPUTER INC. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 125201R-RFUSP37V02. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely,

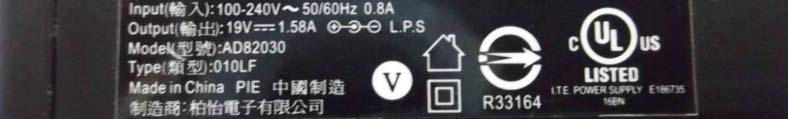

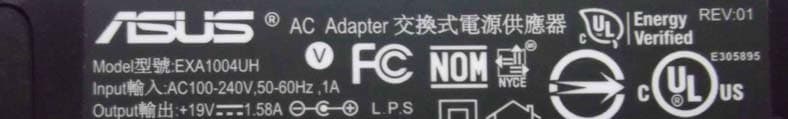

Report No:116286R-RFUSP46V01 Page: 158 of 172 Attachement EUT Photograph (1) EUT Photo (Power Adapter: ASUS, AD82030) (2) EUT Photo Report No:116286R-RFUSP46V01 Page: 159 of 172 (3) EUT Photo Report No:116286R-RFUSP46V01 Page: 160 of 172 (4) EUT Photo (Power Adapter: ASUS, EXA1004UH) (5) EUT Photo Report No:116286R-RFUSP46V01 Page: 161 of 172 (6) EUT Photo
R0.1(四個角都R0.1) measurement: mm 21.14 132.23 虛線標示貼Bar code範圍 不需印出來 Mylar厚度0.178mm 透明單色背印黑底灰字 顏色Pantone cool grey 9C 尺寸公差-0.15mm 4.3mm 5.4mm 5.4mm 5.4mm 7mm 9mm 17mm 4.5mm 1mm 1mm Label
ASUSTeK COMPUTER INC. No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. FCC ID.: MSQ-RTN65U FCC ID AND DoC Label

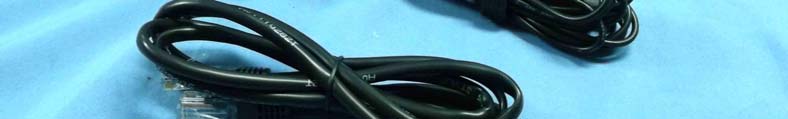

Report No:116286R-RFUSP46V01 Page: 162 of 172 (7) EUT Photo (DG36003 G) (8) EUT Photo Report No:116286R-RFUSP46V01 Page: 163 of 172 (9) EUT Photo (10) EUT Photo Report No:116286R-RFUSP46V01 Page: 164 of 172 (11) EUT Photo (12) EUT Photo Report No:116286R-RFUSP46V01 Page: 165 of 172 (13) EUT Photo Report No:116286R-RFUSP46V01 Page: 166 of 172 (14) EUT Photo (MB) Report No:116286R-RFUSP46V01 Page: 167 of 172 (15) EUT Photo (ANT) (16) EUT Photo (HG3674CG) Report No:116286R-RFUSP46V01 Page: 168 of 172 (17) EUT Photo (18) EUT Photo Report No:116286R-RFUSP46V01 Page: 169 of 172 (19) EUT Photo (20) EUT Photo Report No:116286R-RFUSP46V01 Page: 170 of 172 (21) EUT Photo (22) EUT Photo Report No:116286R-RFUSP46V01 Page: 171 of 172 (23) EUT Photo (MB) Report No:116286R-RFUSP46V01 Page: 172 of 172 (24) EUT Photo (ANT)
Report No. 124335R-A-RF-US-Exp Page: 1 of 7 RF Exposure Evaluation declaration Product Name : RT-N65U Dual-band Wireless-N750 Gigabit Router Model No. : RT-N65U FCC ID. : MSQ-RTN65U Applicant : ASUSTeK COMPUTER INC. Address : No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. Date of Receipt : 2012/04/16 Date of Declaration : 2012/05/23 Report No. : 124335R-A-RF-US-Exp Report Version : V0.1-Draft The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 124335R-A-RF-US-Exp Page: 2 of 7 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78% RH. Report No. 124335R-A-RF-US-Exp Page: 3 of 7 1.3. Test Result of RF Exposure Evaluation Product RT-N65U Dual-band Wireless-N750 Gigabit Router Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4.74dBi or 2.98 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 221.31 0.1312 6 2437 233.88 0.1387 11 2462 225.42 0.1336 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 58.48 0.0347 6 2437 52.24 0.0310 11 2462 48.87 0.0290 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 124335R-A-RF-US-Exp Page: 4 of 7 Product RT-N65U Dual-band Wireless-N750 Gigabit Router Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4.74dBi or 2.98 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) ANT 0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 148.59 0.0881 6 2437 144.54 0.0857 11 2462 138.36 0.0820 IEEE 802.11n (40MHz) ANT 0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 130.62 0.0774 6 2437 130.32 0.0773 9 2452 126.18 0.0748 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 124335R-A-RF-US-Exp Page: 5 of 7 Product RT-N65U Dual-band Wireless-N750 Gigabit Router Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 5.59dBi or 3.62 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 13.65 0.0098 40 5220 11.56 0.0083 44 5240 11.80 0.0085 IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 170.61 0.1229 153 5785 176.20 0.1269 165 5825 143.88 0.1036 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 124335R-A-RF-US-Exp Page: 6 of 7 Product RT-N65U Dual-band Wireless-N750 Gigabit Router Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 5.59dBi or 3.62 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(20MHz) ANT 0+1+2 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 48.64 0.0350 40 5220 47.75 0.0344 44 5240 47.86 0.0345 IEEE 802.11 n(20MHz) ANT 0+1+2 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 543.25 0.3912 153 5785 494.31 0.3560 165 5825 517.61 0.3728 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 124335R-A-RF-US-Exp Page: 7 of 7 Product RT-N65U Dual-band Wireless-N750 Gigabit Router Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 5.59dBi or 3.62 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(40MHz) ANT 0+1+2 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 38 5190 49.55 0.0357 46 5230 48.19 0.0347 IEEE 802.11 n(40MHz) ANT 0+1+2 WLAN Func…
Text truncated - open the document above for the full version.
Report No:116286R-RFUSP46V01 Page: 1 of 172 Test Report Product Name : Dual-band Wireless-N750 Gigabit Router Model No. : RT-N65U FCC ID. : MSQ-RTN65U Applicant : ASUSTeK COMPUTER INC. Address : No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. Date of Receipt:2012/04/16 Issued Date :2012/05/23 Report No. :124335R-RFUSP46V01 Report Version :V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No:116286R-RFUSP46V01 Page: 2 of 172 Test Report Certification Issued Date : 2012/05/23 Report No. : 124335R-RFUSP46V01 Product Name : Dual-band Wireless-N750 Gigabit Router Applicant : ASUSTeK COMPUTER INC. Address : No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. Manufacturer : Askey Technology (Jiang Su) LTD. Model No. : RT-N65U FCC ID. : MSQ-RTN65U EUT Voltage : AC 100-240V, 50-60Hz Trade Name : ASUS Applicable Standard : FCC CFR Title 47 Part 15 Subpart E Section 15.407: 2011 ANSI C63.4: 2009 Test Result : Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : (Demi Chang / Engineering Adm. Specialist) Reviewed By : (Chris Liu / Assistant Engineer) Approved By : ( Roy Wang / Manager ) Report No:116286R-RFUSP46V01 Page: 3 of 172 TABLE OF CONTENTS Description Page 1. General Information...................................................................................................................... 5 1.1. EUT D ESCRIPTION........................................................................................................................ 5 1.2. O PERATIONAL DESCRIPTION........................................................................................................ 10 1.3. T EST MODE................................................................................................................................11 1.4. T ESTED SYSTEM DETAILS............................................................................................................ 12 1.5. C ONFIGURATION OF TESTED SYSTEM........................................................................................... 13 1.6. EUT E XERCISE SOFTWARE......................................................................................................... 13 1.7. T EST FACILITY............................................................................................................................ 14 2. Conducted Emission .................................................................................................................. 16 2.1. T EST EQUIPMENT........................................................................................................................ 16 2.2. T EST SETUP...............................................................................................................................16 2.3. L IMITS........................................................................................................................................ 17 2.4. T EST PROCEDURE...................................................................................................................... 17 2.5. T EST SPECIFICATION................................................................................................................... 17 2.6. U NCERTAINTY............................................................................................................................. 17 2.7. T EST RESULT.............................................................................................................................. 18 2.8. T EST PHOTO...............................................................................................................................26 3. 99% & 26dB Bandwidth .............................................................................................................. 28 3.1. T EST EQUIPMENT........................................................................................................................ 28 3.2. T EST SETUP...............................................................................................................................28 3.3. L IMITS........................................................................................................................................ 28 3.4. T EST PROCEDURE...................................................................................................................... 28 3.5. U NCERTAINTY............................................................................................................................. 28 3.6. T EST RESULT.............................................................................................................................. 29 4. Peak Transmit Output................................................................................................................. 43 4.1. T EST EQUIPMENT........................................................................................................................ 43 4.2. T EST SETUP...............................................................................................................................43 4.3. L IMITS........................................................................................................................................ 44 4.4. T EST PROCEDURE...................................................................................................................... 44 4.5. U NCERTAINTY............................................................................................................................. 44 4.6. T EST RESULT.............................................................................................................................. 45 5. Peak Power Spectrum Density .............................................................................…
Text truncated - open the document above for the full version.
Report No:116286R-RFUSP46V01 Page: 65 of 172 Product Dual-band Wireless-N750 Gigabit Router Test Item Peak Power Spectral Density Test Mode Mode 1: Transmit_(Adapter: AD82030) Date of Test 2012/05/21 Test Site SR7 IEEE 802.11n_20M(ANT 0) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 36 5180 -1.271 ≦4 Pass 44 5220 -0.422 ≦4 Pass 48 5240 -0.822 ≦4 Pass Peak Power Spectral Density – Channel 36 Report No:116286R-RFUSP46V01 Page: 66 of 172 Peak Power Spectral Density – Channel 44 Peak Power Spectral Density – Channel 48 Report No:116286R-RFUSP46V01 Page: 67 of 172 Product Dual-band Wireless-N750 Gigabit Router Test Item Peak Power Spectral Density Test Mode Mode 1: Transmit_(Adapter: AD82030) Date of Test 2012/05/21 Test Site SR7 IEEE 802.11n_20M(ANT 1) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 36 5180 -1.030 ≦4 Pass 44 5220 -1.754 ≦4 Pass 48 5240 -0.823 ≦4 Pass Peak Power Spectral Density – Channel 36 Report No:116286R-RFUSP46V01 Page: 68 of 172 Peak Power Spectral Density – Channel 44 Peak Power Spectral Density – Channel 48 Report No:116286R-RFUSP46V01 Page: 69 of 172 Product Dual-band Wireless-N750 Gigabit Router Test Item Peak Power Spectral Density Test Mode Mode 1: Transmit_(Adapter: AD82030) Date of Test 2012/05/21 Test Site SR7 IEEE 802.11n_20M(ANT 2) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 36 5180 -0.565 ≦4 Pass 44 5220 -0.752 ≦4 Pass 48 5240 -0.733 ≦4 Pass Peak Power Spectral Density – Channel 36 Report No:116286R-RFUSP46V01 Page: 70 of 172 Peak Power Spectral Density – Channel 44 Peak Power Spectral Density – Channel 48 Report No:116286R-RFUSP46V01 Pa…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 2 | 15E | 5.19 GHz - 5.23 GHz | 50.00 mW |
