MSQ-T90CHIASUS Tablet

ASUS Tablet ASUS Mobile Dock E-Manual First Edition December 2014 E9980 2 ASUS Tablet and ASUS Mobile Dock E-Manual COPYRIGHT INFORMATION No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 2014 ASUSTeK COMPUTER INC. All Rights Reserved. LIMITATION OF LIABILITY Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product. ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement. This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible. UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY. SERVICE AND SUPPORT Visit our multi-language web site at http://support.asus.com ASUS Tablet and ASUS Mobile Dock E-Manual 3 Table of Contents About this manual .....................................................................................................7 Conventions used in this manual .............................................................................8 Icons ....................................................................................................................................8 Typography .......................................................................................................................8 Safety precautions .....................................................................................................9 Using your ASUS Tablet and ASUS Mobile Dock .................................................9 Caring for your ASUS Tablet and ASUS Mobile Dock .........................................10 Proper disposal ................................................................................................................11 Chapter 1: Hardware Setup ASUS Tablet ..................................................................................................................14 Front View ..........................................................................................................................14 Back view ...........................................................................................................................15 Top View .............................................................................................................................16 Left side ..............................................................................................................................18 Right side ...........................................................................................................................19 ASUS Mobile Dock features ...................................................................................20 Top view .............................................................................................................................20 Left view .............................................................................................................................23 Chapter 2: Using your ASUS Tablet and ASUS Mobile Dock Getting started ...........................................................................................................26 ASUS Tablet .......................................................................................................................26 ASUS Mobile Dock ..........................................................................................................30 Using your ASUS Tablet with the ASUS Mobile Dock ........................................31 Gestures for the touch screen panel ...................................................................32 Using touch screen panel gestures ...…

Text truncated - open the document above for the full version.

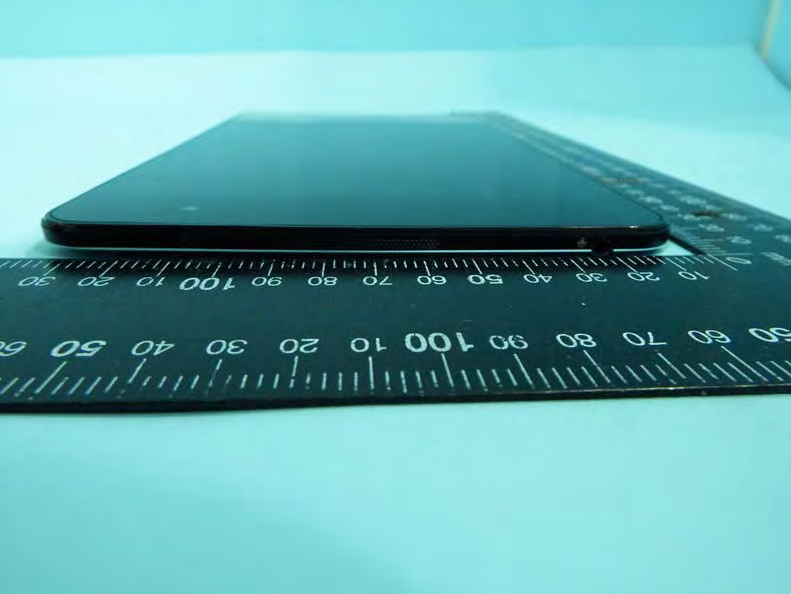

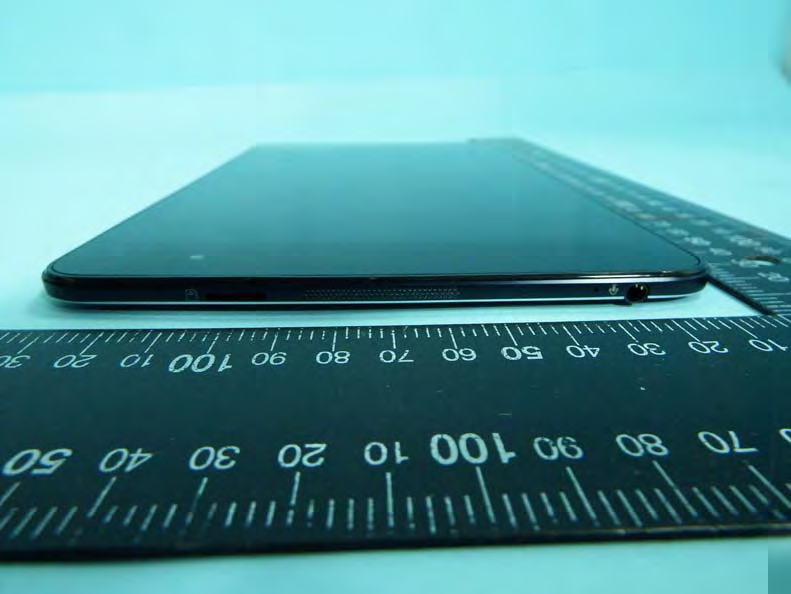

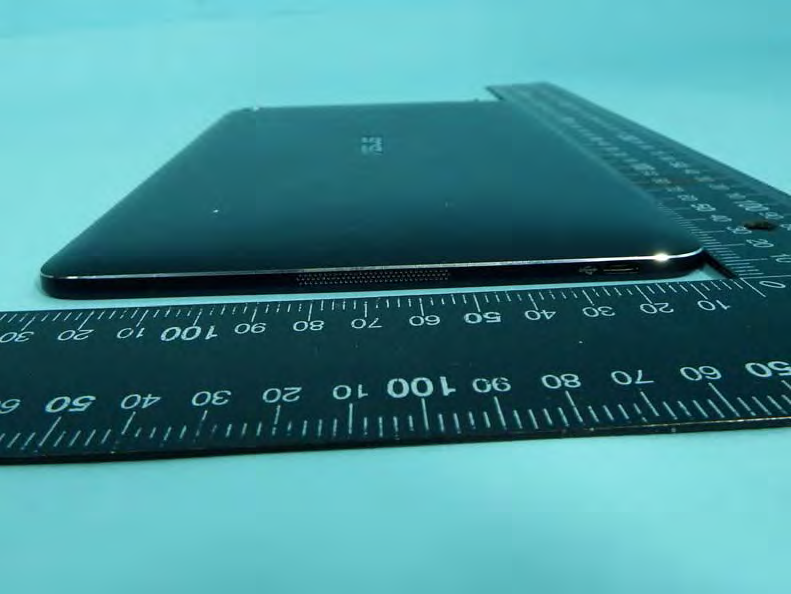

Report No. : EP4O0836 SPORTON International Inc. Page Number : A1 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 APPENDIX A. Photographs of EUT Report No. : EP4O0836 SPORTON International Inc. Page Number : A2 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4O0836 SPORTON International Inc. Page Number : A3 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4O0836 SPORTON International Inc. Page Number : A4 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

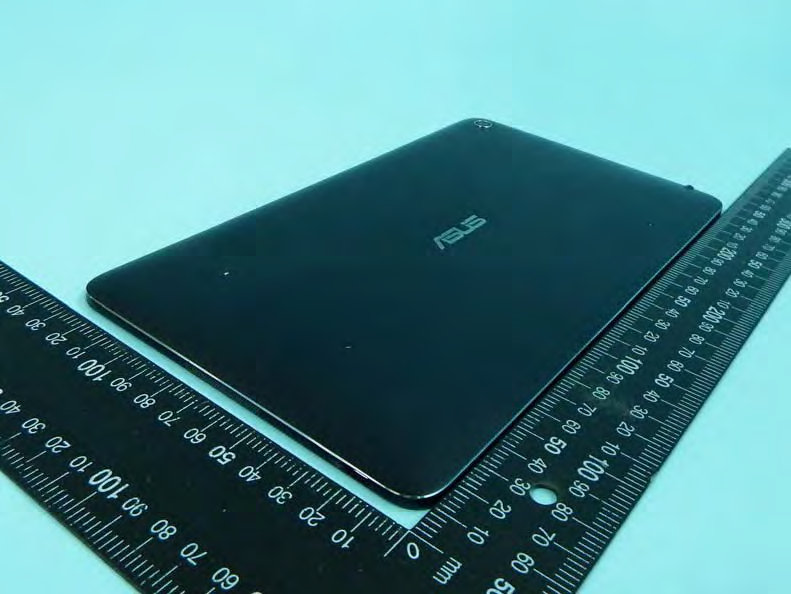

Back of the EUT Label Location

Report No. : EP4O0836 SPORTON International Inc. Page Number : A5 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SKU. 2 Report No. : EP4O0836 SPORTON International Inc. Page Number : A6 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4O0836 SPORTON International Inc. Page Number : A7 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Battery Li‐Polymer Battery Pack / C11P1417 Report No. : EP4O0836 SPORTON International Inc. Page Number : A8 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4O0836 SPORTON International Inc. Page Number : A9 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 USB Board P/N T90CHI SUB /REV 1.0 Report No. : EP4O0836 SPORTON International Inc. Page Number : A10 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4O0836 SPORTON International Inc. Page Number : A11 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4O0836 SPORTON International Inc. Page Number : A12 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Rear Camera 5M CHICONY/CJAE54220 003870LH Report No. : EP4O0836 SPORTON International Inc. Page Number : A13 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Front Camera 2M CHICONY/ CCFD21220003873LH Report No. : EP4O0836 SPORTON International Inc. Page Number : A14 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4O0836 SPORTON International Inc. Page Number : A15 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4O0836 SPORTON International Inc. Page Number : A16 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4O0836 SPORTON International Inc. Page Number : A17 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4O0836 SPORTON International Inc. Page Number : A18 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 eMMC SAMSUNG /64G Memory HYNIX / H9CCNNNBPTALBR‐N TD Report No. : EP4O0836 SPORTON International Inc. Page Number : A19 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 WIFI/BT BROADCOM/ BCM43340 Report No. : EP4O0836 SPORTON International Inc. Page Number : A20 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4O0836 SPORTON International Inc. Page Number : A21 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4O0836 SPORTON International Inc. Page Number : A22 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4O0836 SPORTON International Inc. Page Number : A23 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4O0836 SPORTON International Inc. Page Number : A24 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Antenna Report No. : EP4O0836 SPORTON International Inc. Page Number : A25 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Front Camera 2M AZWAVE/AM‐2F031 SKU. 1 Report No. : EP4O0836 SPORTON International Inc. Page Number : A26 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 eMMC SANDISK/ 32G Report No. : EP4O0836 SPORTON International Inc. Page Number : A27 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Memory SAMSUNG / 128G LCD INNOLUX/P089DCA Report No. : EP4O0836 SPORTON International Inc. Page Number : A28 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Antenna Report No. : EP4O0836 SPORTON International Inc. Page Number : A29 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4O0836 SPORTON International Inc. Page Number : A30 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4O0836 SPORTON International Inc. Page Number : A31 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4O0836 SPORTON International Inc. Page Number : A32 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Adapter / ASUS / CHICONY/ W12-010N3A Report No. : EP4O0836 SPORTON International Inc. Page Number : A33 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4O0836 SPORTON International Inc. Page Number : A34 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Adapter / ASUS / Vendor: PI/ AD897320 USB Cable 1 / ASAP / L65U2009-CS-B Report No. : EP4O0836 SPORTON International Inc. Page Number : A35 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 USB Cable 2 / DAVID / AA781000 Report No. : EP4O0836 SPORTON International Inc. Page Number : A36 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 USB Cable 3 / FOXCONN / V01A0815 Report No. : EP4O0836 SPORTON International Inc. Page Number : A37 of A37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

SPORTON INTERNATIONAL INC. Page Number : 1 of 70 TEL : 886-3-327-3456 Report Issued Date : Jan. 07, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHI Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4O0836A FCC RF Test Report APPLICANT : ASUSTeK COMPUTER INC. EQUIPMENT : ASUS Tablet BRAND NAME : ASUS MODEL NAME : T90 Chi FCC ID : MSQ-T90CHI STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DSS) Spread Spectrum Transmitter The product was received on Oct. 08, 2014 and testing was completed on Dec. 18, 2014. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 70 TEL : 886-3-327-3456 Report Issued Date : Jan. 07, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHI Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4O0836A TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Product Feature of Equipment Under Test ........................................................................................ 5 1.4 Product Specification subjective to this standard .............................................................................. 5 1.5 Modification of EUT ........................................................................................................................... 6 1.6 Testing Location ................................................................................................................................ 6 1.7 Applicable Standards ......................................................................................................................... 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 Descriptions of Test Mode ................................................................................................................. 8 2.2 Test Mode .......................................................................................................................................... 9 2.3 Connection Diagram of Test System ............................................................................................... 10 2.4 Support Unit used in test configuration and system ........................................................................ 11 2.5 EUT Operation Test Setup .............................................................................................................. 11 2.6 Measurement Results Explanation Example ................................................................................... 11 3 TEST RESULT .......................................................................................................................................... 12 3.1 Number of Channel Measurement .................................................................................................. 12 3.2 Hopping Channel Separation Measurement ................................................................................... 14 3.3 Dwell Time Measurement ................................................................................................................ 21 3.4 20dB and 99% Bandwidth Measurement ........................................................................................ 24 3.5 Peak Output Power Measurement .................................................................................................. 37 3.6 Conducted Band Edges Measurement............................................................................................ 39 3.7 Conducted Spurious Emission Measurement ................................................................................. 46 3.8 Radiated Band Edges and Spurious Emission Measurement ........................................................ 56 3.9 AC Conducted Emission Measurement........................................................................................... 62 3.10 Antenna Requirements .................................................................................................................... 68 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 69 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 70 APPENDIX A. TEST RESULT OF RADIATED TEST RESULTS APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 70 TEL : 886-3-327-3456 Report Issued Date : Jan. 07, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHI Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4O0836A REVISION HI…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : A1 of A6 TEL : 886-3-327-3456 Report Issued Date : Jan. 07, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHI Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4O0836A Appendix A. Radiated Spurious Emission Test Engineer : Eric Shih, Stan Hsieh and Derreck Chen Temperature : 20~22°C Relative Humidity : 46~48% 15C 2.4GHz 2400~2483.5MHz BT (Band Edge @ 3m) BT Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) BT CH00 2402MHz 2349.39 41.85 -32.15 74 42.85 27.1 5.95 34.05 168 207 P H 2349.39 17.06 -36.94 54 - - - - - - A H * 2402.17 95.11 - - 95.91 27.23 6.01 34.04 168 207 P H * 2402.17 70.32 - - - - - - - - A H H H 2344.71 42.28 -31.72 74 43.28 27.1 5.95 34.05 113 182 P V 2344.71 17.49 -36.51 54 - - - - - - A V * 2401.91 95.9 - - 96.7 27.23 6.01 34.04 113 182 P V * 2401.91 71.11 - - - - - - - - A V V V BT CH 39 2441MHz 2336.22 41.54 -32.46 74 42.55 27.1 5.95 34.06 123 178 P H 2336.22 16.75 -37.25 54 - - - - - - A H * 2441.29 96.93 - - 97.54 27.37 6.04 34.02 123 178 P H * 2441.29 72.14 - - - - - - - - A H 2492.02 42.14 -31.86 74 42.55 27.5 6.09 34 123 178 P H 2492.02 17.35 -36.65 54 - - - - - - A H 2341.16 41.96 -32.04 74 42.96 27.1 5.95 34.05 108 181 P V 2341.16 17.17 -36.83 54 - - - - - - A V * 2441.1 98.16 - - 98.77 27.37 6.04 34.02 108 181 P V * 2441.1 73.37 - - - - - - - - A V 2488.98 41.61 -32.39 74 42.03 27.5 6.09 34.01 108 181 P V * 2488.98 16.82 - - - - - - - - A V SPORTON INTERNATIONAL INC. Page Number : A2 of A6 TEL : 886-3-327-3456 Report Issued Date : Jan. 07, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHI Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4O0836A BT Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) BT CH 78 2480MHz * 2480.19 97.66 - - 98.14 27.46 6.07 34.01 137 183 P H * 2480.19 72.87 - - - - - - - - A H 2484.6 44.13 -29.87 74 44.59 27.46 6.09 34.01 137 183 P H 2484.6 19.34 -34.66 54 - - - - - - A H H H * 2480.12 97.22 - - 97.7 27.46 6.07 34.01 125 171 P V * 2480.12 72.43 - - - - - - - - A V 2484.88 44.89 -29.11 74 45.35 27.46 6.09 34.01 125 171 P V 2484.88 20.1 -33.9 54 - - - - - - A V V V Remark 1. No other spurious found. 2. All results are PASS against Peak and Average limit line. SPORTON INTERNATIONAL INC. Page Number : A3 of A6 TEL : 886-3-327-3456 Report Issued Date : Jan. 07, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHI Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4O0836A 15C 2.4GHz 2400~2483.5MHz BT (Harmonic @ 3m) BT Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) BT CH 00 2402MHz 4804 32.89 -41.11 74 51.58 31.3 8.65 58.64 100 0 P H 4804 8.1 -45.9 54 - - - - - - A H H H 4804 35.41 -38.59 74 54.1 31.3 8.65 58.64 100 0 P V 4804 10.62 -43.38 54 - - - - - - A V V V BT CH 39 2441MHz 4882 32.98 -41.02 74 51.35 31.41 8.74 58.52 100 0 P H 4882 8.19 -45.81 54 - - - - - - A H 7323 37.1 -36.9 74 48.53 36.32 10.44 58.19 100 0 P H 7323 12.31 -41.69 54 - - - - - - A H 4882 35.19 -38.81 74 53.56 31.41 8.74 58.52 100 0 P V 4882 10.4 -43.6 54 - - - - - - A V 7323 37.3 -36.7 74 48.73 36.32 10.44 58.19 100 0 P V 7323 12.51 -41.49 54 - - - - - - A V BT CH 78 2480MHz 4960 33.9 -40.1 74 51.89 31.54 8.83 58.36 100 0 P H 4960 9.11 -44.89 54 - - - - - - A H 7440 36.87 -37.13 74 48.17 36.59 10.52 58.41 100 0 P H 7440 12.08 -41.92 54 - - - - - - A H 4960 35.01 -38.99 74 53 31.54 8.83 58.36 100 0 P V 4960 10.22 -43.78 54 - - - - - - A V 7440 37.17 -36.83 74 48.47 36.59 10.52 58.41 100 0 P V 7440 12.38 -41.62 54 - - - - - - A V Remark 1. No other spurious found. 2. All results are PASS against Peak and Average limit line. SPORTON INTERNATIONAL INC. Page Number : A4 of A6 TEL : 886-3-327-3456 Report Issued Date : Jan. 07, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHI Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4O0836A 15C Emission below 1GHz 2.4GHz BT (LF) BT Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) (dBμV) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) 2.4GHz BT LF 49.17 20.08 -19.92 40 42.85 7.99 1.04 31.8 P H 93.99 27.19 -16.31 43.5 48.49 9.2 1.28 31.78 P H 159.06 27.32 -16.18 43.5 48 9.64 1.46 31.78 123 99 P H 367.9 21.65 -24.35 46 36.34 14.78 2.32 31.79 P H 590.5 27.48 -18.52 46 38.12 18.5 2.89 32.03 P H 820.1 26.16 -19.84 46 34.48 20.1 3.4 31.82 P H H H H H H H 48.9 31.5 -8.5 40 54.17 8.09 1.04 31.8 147 66 P V 95.34 22.25 -21.25 43.5 43.35 9.4 1.28 31.78 P V 210.9 13.86 -29.64 43.5 35.56 8.29 1.79 31.78 P V 477.1 19.05 -26.95 46 31.24 17.11 2.57 31.87 P V 571.6 27.53 -18.47 46 38.14 18.5 2.89 32 P V 820.1 28.38 -17.62 46 36.7 20.1 3.4 31.82 P V V V V V V V Remark 1. No other spurious found. 2. All results are PASS against limit line. SPORTON INTERNATIONAL INC. Page Number : A5 of A6 TEL : 886-3-327-3456 Report Issued Date : Jan. 07, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHI Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4O0836A Note symbol * Fundamental Frequency which can be ignored. However, the level of any unwanted emissions shall not exceed the level of the fundamental frequency per 15.209(c). ! Test result is over limit line. P/A Peak or Average H/V Horizontal or Vertical SPORTON INTERNATIONAL INC. Page Number : A6 of …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : B1 of B2 TEL : 886-3-327-3456 Report Issued Date : Jan. 07, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHI Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4O0836A Appendix B. Setup Photographs <Conducted Emission> SPORTON INTERNATIONAL INC. Page Number : B2 of B2 TEL : 886-3-327-3456 Report Issued Date : Jan. 07, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHI Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4O0836A <Radiated Emission> Z Plane LF HF
