MSQ-T90CHIDOCKASUS Mobile Dock

ASUS Tablet ASUS Mobile Dock E-Manual First Edition December 2014 E9980 2 ASUS Tablet and ASUS Mobile Dock E-Manual COPYRIGHT INFORMATION No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 2014 ASUSTeK COMPUTER INC. All Rights Reserved. LIMITATION OF LIABILITY Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product. ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement. This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible. UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY. SERVICE AND SUPPORT Visit our multi-language web site at http://support.asus.com ASUS Tablet and ASUS Mobile Dock E-Manual 3 Table of Contents About this manual .....................................................................................................7 Conventions used in this manual .............................................................................8 Icons ....................................................................................................................................8 Typography .......................................................................................................................8 Safety precautions .....................................................................................................9 Using your ASUS Tablet and ASUS Mobile Dock .................................................9 Caring for your ASUS Tablet and ASUS Mobile Dock .........................................10 Proper disposal ................................................................................................................11 Chapter 1: Hardware Setup ASUS Tablet ..................................................................................................................14 Front View ..........................................................................................................................14 Back view ...........................................................................................................................15 Top View .............................................................................................................................16 Left side ..............................................................................................................................18 Right side ...........................................................................................................................19 ASUS Mobile Dock features ...................................................................................20 Top view .............................................................................................................................20 Left view .............................................................................................................................23 Chapter 2: Using your ASUS Tablet and ASUS Mobile Dock Getting started ...........................................................................................................26 ASUS Tablet .......................................................................................................................26 ASUS Mobile Dock ..........................................................................................................30 Using your ASUS Tablet with the ASUS Mobile Dock ........................................31 Gestures for the touch screen panel ...................................................................32 Using touch screen panel gestures ...…

Text truncated - open the document above for the full version.

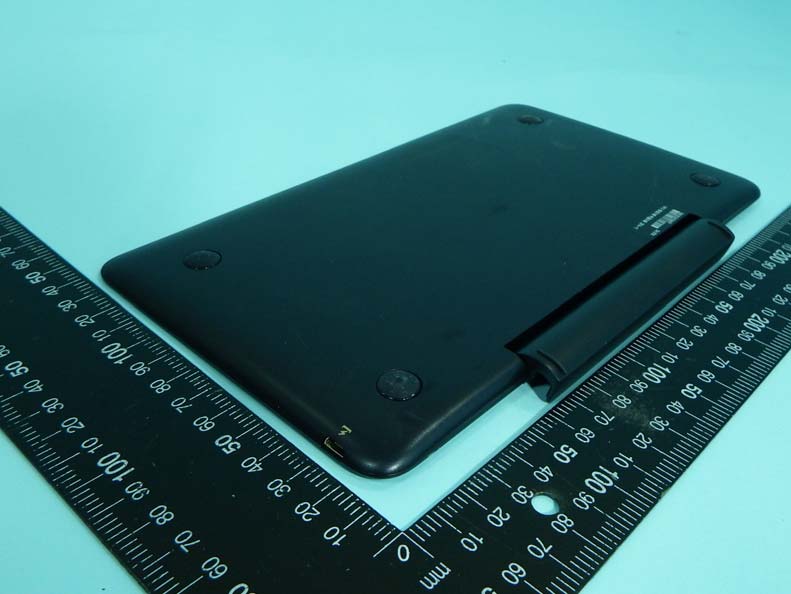

Report No. : EP4N2528 SPORTON International Inc. Page Number : A1 of A16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 APPENDIX A. Photographs of EUT Report No. : EP4N2528 SPORTON International Inc. Page Number : A2 of A16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

Back of the EUT Label Location

Report No. : EP4N2528 SPORTON International Inc. Page Number : A3 of A16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4N2528 SPORTON International Inc. Page Number : A4 of A16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4N2528 SPORTON International Inc. Page Number : A5 of A16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4N2528 SPORTON International Inc. Page Number : A6 of A16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4N2528 SPORTON International Inc. Page Number : A7 of A16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4N2528 SPORTON International Inc. Page Number : A8 of A16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4N2528 SPORTON International Inc. Page Number : A9 of A16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4N2528 SPORTON International Inc. Page Number : A10 of A16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4N2528 SPORTON International Inc. Page Number : A11 of A16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4N2528 SPORTON International Inc. Page Number : A12 of A16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4N2528 SPORTON International Inc. Page Number : A13 of A16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 ASAP L65U2009-CS-B Report No. : EP4N2528 SPORTON International Inc. Page Number : A14 of A16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 DAVID AA781000 Report No. : EP4N2528 SPORTON International Inc. Page Number : A15 of A16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FOXCONN CUBB04M-AS0D0-EF Report No. : EP4N2528 SPORTON International Inc. Page Number : A16 of A16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

SPORTON INTERNATIONAL INC. Page Number : 1 of 4 TEL : 886-3-327-3456 Report Issued Date : Dec. 31, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHIDOCK RF Exposure Evaluation Report Report No. : FA4N2528 RF Exposure Evaluation Report APPLICANT : ASUSTeK COMPUTER INC. EQUIPMENT : ASUS Mobile Dock BRAND NAME : ASUS MODEL NAME : T90 Chi Mobile Dock FCC ID : MSQ-T90CHIDOCK STANDARD : 47 CFR Part 2.1093 FCC KDB 447498 D01 v05r02 We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1093, and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 4 TEL : 886-3-327-3456 Report Issued Date : Dec. 31, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHIDOCK RF Exposure Evaluation Report Report No. : FA4N2528 Table of Contents 1. Administration Data ........................................................................................................................... 3 2. General Information ........................................................................................................................... 3 2.1 Description of Device Under Test (DUT) ........................................................................................... 3 3. Maximum RF output power among production units ......................................................................... 4 4. RF Exposure Evaluation .................................................................................................................... 4 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA4N2528 Rev. 01 Initial issue of report Dec. 31, 2014 SPORTON INTERNATIONAL INC. Page Number : 3 of 4 TEL : 886-3-327-3456 Report Issued Date : Dec. 31, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHIDOCK RF Exposure Evaluation Report Report No. : FA4N2528 1. Administration Data Testing Laboratory Test Site SPORTON INTERNATIONAL INC. Test Site Location No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. TEL: +886-3-327-3456 FAX: +886-3-328-4978 Applicant Company Name ASUSTeK COMPUTER INC. Address 4F, No. 150, LI-TE RD., PEITOU, TAIPEI, TAIWAN Manufacturer Company Name ASUSTeK COMPUTER INC. Address 4F, No. 150, LI-TE RD., PEITOU, TAIPEI, TAIWAN 2. General Information 2.1 Description of Device Under Test (DUT) Product Feature & Specification DUT Type ASUS Mobile Dock Brand Name ASUS Model Name T90 Chi Mobile Dock FCC ID MSQ-T90CHIDOCK Wireless Technology and Frequency Range Bluetooth: 2402 MHz ~ 2480 MHz Mode •Bluetooth v3.0+EDR Antenna Type PIFA Antenna DUT Stage Identical Prototype Remark: 1. The above DUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. SPORTON INTERNATIONAL INC. Page Number : 4 of 4 TEL : 886-3-327-3456 Report Issued Date : Dec. 31, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHIDOCK RF Exposure Evaluation Report Report No. : FA4N2528 3. Maximum RF output power among production units Band / Mode Average Power (dBm) v3.0+EDR Bluetooth 2.0 4. RF Exposure Evaluation Bluetooth Max Power (dBm) mW Separation Distance (mm) Frequency (GHz) Exclusion Thresholds 2.0 2.00 < 5 2.48 0.63 Note: 1. Per KDB 447498 D01v05r02, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Conclusion: Per KDB 447498 D01v05r02, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.63 which is <= 3, SAR testing is not required.

SPORTON INTERNATIONAL INC. Page Number : 1 of 45 TEL : 886-3-327-3456 Report Issued Date : Dec. 31, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHIDOCK Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4N2528 FCC RF Test Report APPLICANT : ASUSTeK COMPUTER INC. EQUIPMENT : ASUS Mobile Dock BRAND NAME : ASUS MODEL NAME : T90 Chi Mobile Dock FCC ID : MSQ-T90CHIDOCK STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DSS) Spread Spectrum Transmitter The product was received on Nov. 25, 2014 and testing was completed on Dec. 16, 2014. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 45 TEL : 886-3-327-3456 Report Issued Date : Dec. 31, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHIDOCK Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4N2528 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Product Feature of Equipment Under Test ........................................................................................ 5 1.4 Product Specification subjective to this standard .............................................................................. 5 1.5 Modification of EUT ........................................................................................................................... 5 1.6 Testing Location ................................................................................................................................ 6 1.7 Applicable Standards ......................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 Descriptions of Test Mode ................................................................................................................. 7 2.2 Test Mode .......................................................................................................................................... 8 2.3 Connection Diagram of Test System ................................................................................................. 9 2.4 Support Unit used in test configuration and system ........................................................................ 10 2.5 EUT Operation Test Setup .............................................................................................................. 10 2.6 Measurement Results Explanation Example ................................................................................... 10 3 TEST RESULT .......................................................................................................................................... 11 3.1 Number of Channel Measurement .................................................................................................. 11 3.2 Hopping Channel Separation Measurement ................................................................................... 13 3.3 Dwell Time Measurement ................................................................................................................ 16 3.4 20dB and 99% Bandwidth Measurement ........................................................................................ 19 3.5 Peak Output Power Measurement .................................................................................................. 24 3.6 Conducted Band Edges Measurement............................................................................................ 26 3.7 Conducted Spurious Emission Measurement ................................................................................. 29 3.8 Radiated Band Edges and Spurious Emission Measurement ........................................................ 33 3.9 AC Conducted Emission Measurement........................................................................................... 39 3.10 Antenna Requirements .................................................................................................................... 43 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 44 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 45 APPENDIX A. TEST RESULT OF RADIATED TEST RESULTS APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 45 TEL : 886-3-327-3456 Report Issued Date : Dec. 31, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHIDOCK Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Re…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : A1 of A6 TEL : 886-3-327-3456 Report Issued Date : Dec. 31, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHIDOCK Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4N2528 Appendix A. Radiated Spurious Emission Test Engineer : Stan Hsieh Temperature : 21~23°C Relative Humidity : 46~48% 15C 2.4GHz 2400~2483.5MHz BT (Band Edge @ 3m) BT Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) BT CH00 2402MHz 2389.3 48.34 -25.66 74 49.14 27.23 6.01 34.04 243 206 P H 2389.3 23.58 -30.42 54 - - - - - - A H * 2402.3 96.25 - - 97.05 27.23 6.01 34.04 243 206 P H * 2402.3 71.49 - - - - - - - - A H H H 2389.82 44.76 -29.24 74 45.56 27.23 6.01 34.04 150 174 P V 2389.82 20 -34 54 - - - - - - A V * 2401.91 93.46 - - 94.26 27.23 6.01 34.04 150 174 P V * 2401.91 68.7 - - - - - - - - A V V V BT CH 39 2441MHz 2358.64 43.28 -30.72 74 44.24 27.14 5.95 34.05 264 208 P H 2358.64 18.52 -35.48 54 - - - - - - A H * 2440.91 97.8 - - 98.41 27.37 6.04 34.02 264 208 P H * 2440.91 73.04 - - - - - - - - A H 2484.04 42.91 -31.09 74 43.37 27.46 6.09 34.01 264 208 P H 2484.04 18.15 -35.85 54 - - - - - - A H 2375.55 43.62 -30.38 74 44.46 27.19 6.01 34.04 159 86 P V 2375.55 18.86 -35.14 54 - - - - - - A V * 2440.91 94.65 - - 95.26 27.37 6.04 34.02 159 86 P V * 2440.91 69.89 - - - - - - - - A V 2488.22 42.56 -31.44 74 42.98 27.5 6.09 34.01 159 86 P V 2488.22 17.8 -36.2 54 - - - - - - A V SPORTON INTERNATIONAL INC. Page Number : A2 of A6 TEL : 886-3-327-3456 Report Issued Date : Dec. 31, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHIDOCK Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4N2528 BT Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) BT CH 78 2480MHz * 2480.26 100.28 - - 100.76 27.46 6.07 34.01 255 208 P H * 2480.26 75.52 - - - - - - - - A H 2483.5 58.28 -15.72 74 58.74 27.46 6.09 34.01 255 208 P H 2483.5 33.52 -20.48 54 - - - - - - A H H H * 2480.26 98.01 - - 98.49 27.46 6.07 34.01 178 274 P V * 2480.26 73.25 - - - - - - - - A V 2483.62 56.81 -17.19 74 57.27 27.46 6.09 34.01 178 274 P V 2483.62 32.05 -21.95 54 - - - - - - A V V V Remark 1. No other spurious found. 2. All results are PASS against Peak and Average limit line. SPORTON INTERNATIONAL INC. Page Number : A3 of A6 TEL : 886-3-327-3456 Report Issued Date : Dec. 31, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHIDOCK Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4N2528 15C 2.4GHz 2400~2483.5MHz BT (Harmonic @ 3m) BT Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) BT CH 00 2402MHz 4806 33.4 -40.6 74 52.09 31.3 8.65 58.64 100 0 P H 4806 8.64 -45.36 54 - - - - - - A H H H 4806 34.04 -39.96 74 52.73 31.3 8.65 58.64 100 0 P V 4806 9.28 -44.72 54 - - - - - - A V V V BT CH 39 2441MHz 4884 33.38 -40.62 74 51.75 31.41 8.74 58.52 100 0 P H 4884 8.62 -45.38 54 - - - - - - A H 7320 39.38 -34.62 74 50.86 36.32 10.39 58.19 100 0 P H 7320 14.62 -39.38 54 - - - - - - A H 4884 32.99 -41.01 74 51.36 31.41 8.74 58.52 100 0 P V 4884 8.23 -45.77 54 - - - - - - A V 7320 40.22 -33.78 74 51.7 36.32 10.39 58.19 100 0 P V 7320 15.46 -38.54 54 - - - - - - A V BT CH 78 2480MHz 4962 33.58 -40.42 74 51.57 31.54 8.83 58.36 100 0 P H 4962 8.82 -45.18 54 - - - - - - A H 7440 41.52 -32.48 74 52.82 36.59 10.52 58.41 100 0 P H 7440 16.76 -37.24 54 - - - - - - A H 4962 31.86 -42.14 74 49.85 31.54 8.83 58.36 100 0 P V 4962 7.1 -46.9 54 - - - - - - A V 7440 40.77 -33.23 74 52.07 36.59 10.52 58.41 100 0 P V 7440 16.01 -37.99 54 - - - - - - A V Remark 1. No other spurious found. 2. All results are PASS against Peak and Average limit line. SPORTON INTERNATIONAL INC. Page Number : A4 of A6 TEL : 886-3-327-3456 Report Issued Date : Dec. 31, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHIDOCK Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4N2528 15C Emission below 1GHz 2.4GHz BT (LF) BT Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) (dBμV) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) 2.4GHz BT LF 44.85 19.18 -20.82 40 40.35 9.97 0.67 31.81 142 33 P H 162.03 12.2 -31.3 43.5 33.12 9.4 1.46 31.78 P H 292.17 14.25 -31.75 46 31.11 12.79 2.11 31.76 P H 311.2 14.71 -31.29 46 30.95 13.41 2.11 31.76 P H 594 20.88 -25.12 46 31.56 18.46 2.89 32.03 P H 701.8 22.43 -23.57 46 32.39 18.94 3.14 32.04 P H H H H H H H 49.71 17.69 -22.31 40 40.65 7.8 1.04 31.8 100 99 P V 128.82 15.38 -28.12 43.5 34.12 11.58 1.46 31.78 P V 257.61 13.97 -32.03 46 31.04 12.76 1.94 31.77 P V 318.9 15.37 -30.63 46 31.54 13.49 2.11 31.77 P V 637.4 20.87 -25.13 46 30.88 19.07 2.96 32.04 P V 987.4 22.95 -31.05 54 29.46 20.45 3.78 30.74 P V V V V V V V Remark 1. No other spurious found. 2. All results are PASS against limit line. SPORTON INTERNATIONAL INC. Page Number : A5 of A6 TEL : 886-3-327-3456 Report Issued Date : Dec. 31, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHIDOCK Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4N2528 Note symbol * Fundamental Frequency which can be ignored. However, the level of any unwanted emissions shall not exceed the level of the fundamental frequency per 15.209(c). ! Test result is over limit line. P/A Peak or Average H/V Horizontal or Vertical SPORTON INTERNATIONAL INC. Page Nu…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : B1 of B2 TEL : 886-3-327-3456 Report Issued Date : Dec. 31, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHIDOCK Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4N2528 Appendix B. Setup Photographs <Conducted Emission> SPORTON INTERNATIONAL INC. Page Number : B2 of B2 TEL : 886-3-327-3456 Report Issued Date : Dec. 31, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-T90CHIDOCK Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4N2528 <Radiated Emission> LF HF
