Quick Start Guide USB-AC55, USB-AC55R Dual-band Wireless-AC1300 USB Adapter NA8759 / First Edition / November 2013 Insert the support CD into the optical drive. Insérez le CD de support dans votre lecteur optique. .acitpó dadinu al ne etropos ed DC le etresnI Français Adaptateur bi-bande USB-AC55 x1 Socle USB 3.0 x1 CD de support x1 Carte de garantie x1 Guide de démarrage rapidex1 Español Adaptador USB-AC55 de ASUS x1 Base USB 3.0 x1 CD de soporte x1 Tarjeta de garantía x1 Guía de inicio rápido x1 STEP 2. Setting up a Home Network English ASUS USB-AC55 Adapter x1 Extension USB Cradle x1 Support CD x1 Warranty card x1 Quick Start Guide x1 1 . Follow the onscreen instructions to complete the installation. Suivez les instructions apparaissant à l’écran pour compléter l’installation. Siga las instrucciones que aparezcan en la pantalla para completar la instalación. 2. 1. 2. 3. Package Contents STEP 1. Driver Installation Set up USB-AC55 using the ASUS utility. Configurez l’adaptateur USB-AC55 par le biais de l’utilitaire ASUS. Configure su USB-AC55 mediante la utilidad de ASUS. Select a wireless network and click Connect. Sélectionnez un réseau sans fil et cliquez sur le bouton Connexion. Seleccione una red inalámbrica y haga clic en el botón Connect (Conectar). Enter the network password. Entrez le mot de passe du réseau sans fil. Escriba la contraseña de red. Setup complete. Configuration terminée. Configuración completada. 5300-00005886-50U Networks Global Hotline Information RegionCountryHotline NumberService Hours Europe Cyprus800-92491 09:00-13:00 ; 14:00-18:00 Mon-Fri France0033-17094940009:00-18:00 Mon-Fri Germany 0049-1805010920 09:00-18:00 Mon-Fri 10:00-17:00 Mon-Fri 0049-1805010923 ( component support ) 0049-2102959911 (Fax) Hungary0036-1505456109:00-17:30 Mon-Fri Italy199-400089 09:00-13:00 ; 14:00-18:00 Mon-Fri Greece00800-44142044 09:00-13:00 ; 14:00-18:00 Mon-Fri Austria0043-82024051309:00-18:00 Mon-Fri Netherlands/ Luxembourg 0031-59157029009:00-17:00 Mon-Fri Belgium0032-7815023109:00-17:00 Mon-Fri Norway0047-2316-268209:00-18:00 Mon-Fri Sweden0046-85876940709:00-18:00 Mon-Fri Finland00358-96937969010:00-19:00 Mon-Fri Denmark0045-3832294309:00-18:00 Mon-Fri Poland0048-22571804008:30-17:30 Mon-Fri Spain0034-90288968809:00-18:00 Mon-Fri Portugal00351-70750031009:00-18:00 Mon-Fri Slovak Republic00421-23216262108:00-17:00 Mon-Fri Czech Republic00420-59676688808:00-17:00 Mon-Fri Switzerland-German0041-84811101009:00-18:00 Mon-Fri Switzerland-French0041-84811101409:00-18:00 Mon-Fri Switzerland-Italian0041-84811101209:00-18:00 Mon-Fri United Kingdom0044-844800834009:00-17:00 Mon-Fri Ireland0035-3189071991809:00-17:00 Mon-Fri Russia and CIS008-800-100-ASUS09:00-18:00 Mon-Fri Ukraine0038-044545772709:00-18:00 Mon-Fri RegionCountryHotline NumbersService Hours Asia-Pacific Australia1300-27878809:00-18:00 Mon-Fri New Zealand0800-27878809:00-18:00 Mon-Fri Japan 0800-1232787 09:00-18:00 Mon-Fri 09:00-17:00 Sat-Sun 0081-473905630 ( Non-Toll Free ) 09:00-18:00 Mon-Fri 09:00-17:00 Sat-Sun Korea0082-21566686809:30-17:00 Mon-Fri Thailand0066-2401171709:00-18:00 Mon-Fri 1800-8525201 Singapore0065-6415791711:00-19:00 Mon-Fri 0065-6720383511:00-19:00 Mon-Fri (Repair Status Only)11:00-13:00 Sat Malaysia0060-32053507710:00-19:00 Mon-Fri Philippine1800-1855016309:00-18:00 Mon-Fri India 1800-2090365 09:00-18:00 Mon-Sat India(WL/NW)09:00-21:00 Mon-Sun Indonesia0062-212949500009:30-17:00 Mon-Fri 500128 (Local Only)9:30 – 12:00 Sat Vietnam1900-555581 08:00-12:00 13:30-17:30 Mon-Sat Hong Kong00852-3582477010:00-19:00 Mon-Sat Americas USA 1-812-282-2787 8:30-12:00 EST Mon-Fri Canada9:00-18:00 EST Sat-Sun Mexico001-800836784708:00-20:00 CST Mon-Fri 08:00-15:00 CST Sat Middle East + Africa Egypt800-278734909:00-18:00 Sun-Thu Saudi Arabia800-121278709:00-18:00 Sat-Wed UAE00971-4295894109:00-18:00 Sun-Thu Turkey0090-216524300009:00-18:00 Mon-Fri South Africa0861-27877208:00-17:00 Mon-Fri Israel*6557/00972-3914280008:00-17:00 Sun-Thu *9770/00972-3559855508:30-17:30 Sun-Thu Balkan Countries Romania0040-21330178609:00-18:30 Mon-Fri Bosnia Herzegovina 00387-3377316309:00-17:00 Mon-Fri Bulgaria00359-7001441109:30-18:30 Mon-Fri 00359-2988917009:30-18:00 Mon-Fri Croatia00385-1640111109:00-17:00 Mon-Fri Montenegro00382-2060825109:00-17:00 Mon-Fri Serbia00381-11207067709:00-17:00 Mon-Fri Slovenia00368-59045400 08:00-16:00 Mon-Fri 00368-59045401 Estonia00372-667179609:00-18:00 Mon-Fri Latvia00371-6740883809:00-18:00 Mon-Fri Lithuania-Kaunas00370-3732900009:00-18:00 Mon-Fri Lithuania-Vilnius00370-52210116009:00-18:00 Mon-Fri Networks Global Hotline Information Networks Global Hotline Information NOTES: • UK support E-mail [email protected] • For more information, visit the ASUS support site at http://support.asus.com Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the foll owing two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect…

Text truncated - open the document above for the full version.

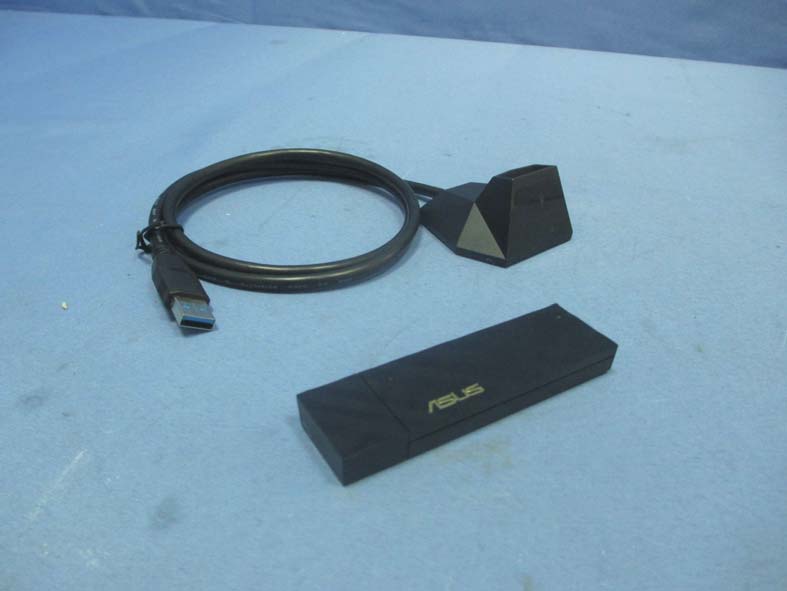

Report No： 1470347R-RFUSP27V00 Page: 303 of 308 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo Report No： 1470347R-RFUSP27V00 Page: 304 of 308 (3) EUT Photo

ASUSTeK Computer Inc 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan FCC ID.: MSQ-USBAC55 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Dual-band Wireless-AC1300 USB Adapter Model No.: USB-AC55 , USB-AC55R FCC ID : MSQ-USBAC55 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: ASUS Model number.: USB-AC55 , USB-AC55R

Report No： 1470347R-RFUSP27V00 Page: 305 of 308 (4) EUT Photo (5) EUT Photo Report No： 1470347R-RFUSP27V00 Page: 306 of 308 (6) EUT Photo (7) EUT Photo Report No： 1470347R-RFUSP27V00 Page: 307 of 308 (8) EUT Photo (9) EUT Photo Report No： 1470347R-RFUSP27V00 Page: 308 of 308 (10) EUT Photo (ANT) (11) EUT Photo (MB)

Report No：1470347R-SAUSP28V00 Page: 1 of 27 FCC SAR Test Report Product Name ： Dual-band Wireless-AC1300 USB Adapter Model No. ： USB-AC55 , USB-AC55R Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt ：2014/07/14 Issued Date ：2014/08/19 Report No. ：1470347R-SAUSP28V00 Report Version ：V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No：1470347R-SAUSP28V00 Page: 2 of 27 Test Report Issued Date: 2014/08/19 Report No.: 1470347R-SAUSP28V00 Product Name ： Dual-band Wireless-AC1300 USB Adapter Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Manufacturer ： ASUSTeK COMPUTER INC. Model No. ： USB-AC55 , USB-AC55R Trade Name ： ASUS FCC ID ： MSQ-USBAC55 Applicable Standard： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Measurement procedures ： KDB447498 D01 v05r02 KDB 248227 D01 v01r02 KDB 616217 D04 V01r01 KDB 865664 D01 V01r01 Test Result ： Max. SAR Measurement (1g) 802.11b/g(2.4GHz): 1.10 W/kg 802.11a(5 GHz): 1.07 W/kg Application Type ： Certification Documented By ： ( Adm. Specialist / Anny Chou ) Tested By ： (Engineer / Wen Lee) Approved By ： ( Director / Vincent Lin ) Report No：1470347R-SAUSP28V00 Page: 3 of 27 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 4 1.1EUT Description ............................................................................................................. 4 1.2Antenna List .................................................................................................................... 4 1.3Maximum output power and tolerance allowed for production units ............................. 5 1.4 Test Environment ...........................................................................................................6 2. SAR Measurement System .................................................................. 7 2.1 DASY5 System Description .......................................................................................... 7 2.1.1 Applications ................................................................................................................ 8 2.1.2 Area Scans................................................................................................................... 8 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 8 2.2 DASY5 E-Field Probe ................................................................................................... 9 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 10 2.5 Robot ............................................................................................................................ 11 2.6 Light Beam Unit........................................................................................................... 11 2.7 Device Holder ..............................................................................................................12 2.8 SAM Twin Phantom .................................................................................................... 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 15 4. SAR Measurement Procedure ........................................................... 16 4.1 SAR System Check ...................................................................................................... 16 4.1.1 Dipoles ...................................................................................................................... 16 4.1.2 System Check Result ................................................................................................ 16 4.2 SAR Measurement Procedure ...................................................................................... 18 5. SAR Exposure Limits ......................................................................... 19 6. Test Equipment List............................................................................ 20 7. Measurement Uncertainty .................................................................. 21 8. Conducted Power Measurement ....................................................... 22 9. Test Results......................................................................................... 23 9.1 SAR Test Results Summary ......................................................................................... 23 10. SAR measurement variability ............................................................ 26 Appendix ............................................................................................................................ 27 Appendix A. SAR System Check Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data A…

Text truncated - open the document above for the full version.

Report No： 1470347R-RFUSP27V00 Page: 200 of 308 Site : CB1 Time : 2014/06/20 - 13:42 Limit : FCC_SpartC_15.247_H_03M_AV Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : DC 5V (Power by Notebook PC) EUT : Dual-band Wireless-AC1300 USB Adapter Note : Mode 1: Transmit (CDD Mode)_802.11g_2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 28.880 12.22741.108-12.892 54.000 AVERAGE 2 2389.300 29.973 20.65050.623-3.377 54.000 AVERAGE 3 2390.000 29.982 22.18052.163-1.837 54.000 AVERAGE 4 * 2411.000 30.272 63.01093.28239.282 54.000 AVERAGE 5 2483.500 30.972 12.40243.374-10.626 54.000 AVERAGE 6 2499.000 30.925 12.44443.368-10.632 54.000 AVERAGE 7 2500.000 30.921 12.41843.339-10.661 54.000 AVERAGE Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 1MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 1470347R-RFUSP27V00 Page: 201 of 308 Site : CB1 Time : 2014/06/20 - 13:46 Limit : FCC_SpartC_15.247_H_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - VERTICAL Power : DC 5V (Power by Notebook PC) EUT : Dual-band Wireless-AC1300 USB Adapter Note : Mode 1: Transmit (CDD Mode)_802.11g_2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 28.880 23.33752.218-21.782 74.000 PEAK 2 2389.500 29.976 30.62460.600-13.400 74.000 PEAK 3 2390.000 29.982 31.04161.024-12.976 74.000 PEAK 4 * 2409.700 30.254 68.76799.02125.021 74.000 PEAK 5 2483.500 30.972 23.75754.729-19.271 74.000 PEAK 6 2485.400 30.966 25.42056.387-17.613 74.000 PEAK 7 2500.000 30.921 23.69254.613-19.387 74.000 PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 1MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 1470347R-RFUSP27V00 Page: 202 of 308 Site : CB1 Time : 2014/06/20 - 13:46 Limit : FCC_SpartC_15.247_H_03M_AV Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - VERTICAL Power : DC 5V (Power by Notebook PC) EUT : Dual-band Wireless-AC1300 USB Adapter Note : Mode 1: Transmit (CDD Mode)_802.11g_2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 28.880 12.14641.027-12.973 54.000 AVERAGE 2 2389.800 29.980 15.85345.833-8.167 54.000 AVERAGE 3 2390.000 29.982 15.93145.914-8.086 54.000 AVERAGE 4 * 2410.900 30.271 58.55288.82234.822 54.000 AVERAGE 5 2483.500 30.972 12.40243.374-10.626 54.000 AVERAGE 6 2484.200 30.970 12.39643.366-10.634 54.000 AVERAGE 7 2500.000 30.921 12.33943.260-10.740 54.000 AVERAGE Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 1MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 1470347R-RFUSP27V00 Page: 203 of 308 Site : CB1 Time : 2014/06/15 - 11:37 Limit : FCC_SpartC_15.247_H_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : DC 5V (Power by Notebook PC) EUT : Dual-band Wireless-AC1300 USB Adapter Note : Mode 1: Transmit (CDD Mode)_802.11g_2462MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 30.059 23.34453.403-20.597 74.000 PEAK 2 2368.500 30.665 26.13056.795-17.205 74.000 PEAK 3 2390.000 30.888 23.40854.296-19.704 74.000 PEAK 4 * 2460.400 31.971 70.990102.96128.961 74.000 PEAK 5 2483.500 31.858 34.18766.045-7.955 74.000 PEAK 6 2483.800 31.861 35.27067.131-6.869 74.000 PEAK 7 2500.000 31.988 23.91255.901-18.099 74.000 PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 1MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 1470347R-RFUSP27V00 Page: 204 of 308 Site : CB1 Time : 2014/06/15 - 11:38 Limit : FCC_SpartC_15.247_H_03M_AV Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : DC 5V (Power by Notebook PC) EUT : Dual-band Wireless-AC1300 USB Adapter Note : Mode 1: Transmit (CDD Mode)_802.11g_2462MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 30.059 12.00342.062-11.938 54.000 AVERAGE 2 2389.500 30.883 12.74243.625-10.375 54.000 AVERAGE 3 2390.000 30.888 12.72243.610-10.390 54.000 AVERAGE 4 * 2461.000 31.624 61.04792.67238.672 54.000 AVERAGE 5 2483.500 31.858 18.03649.894-4.106 54.000 AVERAGE 6 2483.900 31.862 17.45849.320-4.680 54.000 AVERAGE 7 2500.000 31.988 12.50144.490-9.510 54.000 AVERAGE Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 1MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. …

Text truncated - open the document above for the full version.

Report No： 1470347R-RFUSP27V00 Page: 1 of 308 FCC Test Report Product Name ： Dual-band Wireless-AC1300 USB Adapter Model No. ： USB-AC55 , USB-AC55R FCC ID. ： MSQ-USBAC55 Applicant： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt：2014/06/15 Issued Date ：2014/10/22 Report No. ：1470347R-RFUSP27V00 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 1470347R-RFUSP27V00 Page: 2 of 308 Test Report Certification Issued Date : 2014/10/22 Report No. : 1470347R-RFUSP27V00 Product Name ： Dual-band Wireless-AC1300 USB Adapter Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Manufacturer ： ASUSTeK COMPUTER INC. Model No. ： USB-AC55 , USB-AC55R FCC ID. ： MSQ-USBAC55 EUT Voltage : DC 5V (Power by Notebook PC) Trade Name ： ASUS Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2013 ANSI C63.10 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Fonbo Fang / Engineering Adm. Assistant ) Reviewed By : ( Ken Huang / Assistant Engineer ) Approved By : ( Roy Wang / Director) Report No： 1470347R-RFUSP27V00 Page: 3 of 308 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 3204 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No： 1470347R-RFUSP27V00 Page: 4 of 308 TABLE OF CONTENTS Description Page 1. General Information........................................................................................................ 7 1.1. EUT Description ............................................................................................................. 7 1.2. Test Mode ..................................................................................................................... 11 1.3. Tested System Details .................................................................................................. 12 1.4. Configuration of tested System .................................................................................... 13 1.5. EUT Exercise Software ................................................................................................ 13 1.6. Test Facility...................................................................................................................14 2. Conducted Emission .................................................................................................... 15 2.1. Test Equipment............................................................................................................. 15 2.2. Test Setup .................................................................................................................... 15 2.3. Limits ............................................................................................................................ 16 2.4. Test Procedure ............................................................................................................. 16 2.5. Test Specification.......................................................................................................... 16 2.6. Uncertainty ................................................................................................................... 16 2.7. Test Result....................................................................................................................17 2.8. Test Photo .................................................................................................................... 19 3. Peak Power Output ...................................................................................................... 20 3.1. Test Equipment............................................................................................................. 20 3.2. Test Setup .................................................................................................................... 20 3.3. Test procedures ............................................................................................................ 20 3.4. Limits ............................................................................................................................ 20 3.5. Test Specification.......................................................................................................... 20 3.6. Uncertainty ................................................................................................................... 20 3.7. Test Result....................................................................................................................21 4. Radiated Emission ..............................................................................…

Text truncated - open the document above for the full version.

Report No： 1470347R-RFUSP27V00 Page: 19 of 309 2.8. Test Photo Test Mode ： Mode 2: Transmit (MIMO Mode) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 2: Transmit (MIMO Mode) Description： Back View of Conducted Emission Test Setup Report No： 1470347R-RFUSP27V00 Page: 111 of 309 4.8. Test Photo Test Mode ： Mode 1: Transmit (CDD Mode) Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit (CDD Mode) Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 1470347R-RFUSP27V00 Page: 112 of 309 Test Mode ： Mode 2: Transmit (MIMO Mode) Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 2: Transmit (MIMO Mode) Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 1470347R-RFUSP27V00 Page: 113 of 309 Test Mode ： Mode 1: Transmit (CDD Mode) Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit (CDD Mode) Description： Back View of Radiated Emission Test Setup (Horn) Report No： 1470347R-RFUSP27V00 Page: 114 of 309 Test Mode ： Mode 2: Transmit (MIMO Mode) Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 2: Transmit (MIMO Mode) Description： Back View of Radiated Emission Test Setup (Horn)

Report NoǺ1470347R-SAUSP28V00 Page: 1 of 9 Appendix C. Test Setup Photographs & EUT Photographs Test Setup Photographs EUT Tip  EUT Front Touch Touch Report NoǺ1470347R-SAUSP28V00 Page: 2 of 9 EUT Back EUT Left-Side Touch Touch Report NoǺ1470347R-SAUSP28V00 Page: 3 of 9 EUT Right-Side EUT Back (NB Mode) Touch Touch Report NoǺ1470347R-SAUSP28V00 Page: 4 of 9 EUT Right-Side (NB Mode) Depth of the liquid in the phantom-Zoom In Note: The positions used in the measurements were according to IEEE 1528-2003. Touch
