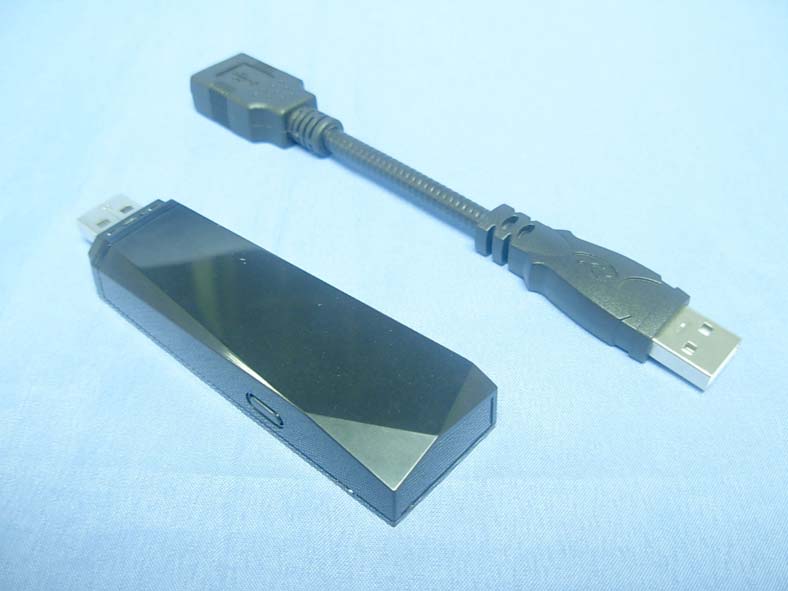

Report No： 115250R-RFUSP42V01 Page: 270 of 275 (3) EUT Photo (4) EUT Photo Report No： 115250R-RFUSP42V01 Page: 271 of 275 (5) EUT Photo (6) EUT Photo Report No： 115250R-RFUSP42V01 Page: 272 of 275 (7) EUT Photo Report No： 115250R-RFUSP42V01 Page: 273 of 275 (8) EUT Photo Report No： 115250R-RFUSP42V01 Page: 274 of 275 (9) EUT Photo Report No： 115250R-RFUSP42V01 Page: 275 of 275 (10) EUT Photo (ANT)

Report No：115250R-HPUSP10V01 Page: 1 of 31 SAR Test Report Product Name ：Dual-band Wireless USB Adapter Model No. ：USB-N53 Applicant ： ASUSTeK COMPUTER INC. Address ： No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. Date of Receipt ：2011/05/11 Issued Date ：2011/09/14 Report No. ：115250R-HPUSP10V01 Report Version ：V2.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Report No：115250R-HPUSP10V01 Page: 2 of 31 Test Report Certification Issued Date: 2011/06/24 Report No.:115250R-HPUSP10V01 Product Name ： Dual-band Wireless USB Adapter Applicant ： ASUSTeK COMPUTER INC. Address ： No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. Manufacturer ： Askey Technology(Jiangsu)LTD. Model No. ： USB-N53 Trade Name ： ASUS FCC ID. ： MSQ-USBN53 Applicable Standard ： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Measurement procedures ： KDB 447498 D02 , KDB 248227,KDB 865664 Test Result ： Max. SAR Measurement (1g) 802.11b(2.4GHz): 1.08 W/kg 802.11a(5 GHz): 0.191 W/kg Application Type Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Documented By ： (Adm. Assistant / April Chen ) Tested By ： (Engineer / Eric Kao) Approved By ： (Manager / Vincent Lin) Report No：115250R-HPUSP10V01 Page: 3 of 31 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Antenna List ................................................................................................................... 5 1.3 Test Environment ...........................................................................................................6 2. SAR Measurement System .................................................................. 7 2.1 DASY5 System Description .......................................................................................... 7 2.1.1 Applications ................................................................................................................ 8 2.1.2 Area Scans................................................................................................................... 8 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 8 2.2 DASY5 E-Field Probe ................................................................................................... 9 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 10 2.5 Robot ............................................................................................................................ 11 2.6 Light Beam Unit........................................................................................................... 11 2.7 Device Holder ..............................................................................................................12 2.8 SAM Twin Phantom .................................................................................................... 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 15 4. SAR Measurement Procedure ........................................................... 16 4.1 SAR System Validation................................................................................................ 16 4.1.1 Validation Dipoles..................................................................................................... 16 4.1.2 Validation Result ....................................................................................................... 16 4.2 Arrangement Assessment Setup ................................................................................... 18 4.2.1 Test Positions of Device Relative to Head................................................................ 18 4.2.1.1 Definition of the “Cheek” Position ........................................................................ 18 4.2.1.2 Definition of the “Tilted” Position......................................................................... 20 4.2.2 Test Positions for body-worn.................................................................................... 20 4.3 SAR Measurement Procedure ...................................................................................... 21 5. SAR Exposure Limits ......................................................................... 22 6. Test Equipment List............................................................................ 23 Report No：115250R-HPUSP10V01 Page: 4 of 31 7. Measurement Uncertainty .................................................................. 26 8. Conducted Power Measurement ....................................................... 27 9. Test Results......................................................................................... 29 9.1 SAR Test Results Summary ......................................................................................... 29 Appendix ...................…

Text truncated - open the document above for the full version.

Appendix D. Probe Calibration Data Object: EX3DV4- SN 3698

Report No： 115250R-RFUSP42V01 Page: 1 of 275 Test Report Product Name ： Dual-band Wireless USB Adapter Model No. ： USB-N53 FCC ID. ： MSQ-USBN53 Applicant ： ASUSTeK COMPUTER INC. Address ： No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. Date of Receipt：2011/05/11 Issued Date ：2011/06/29 Report No. ：115250R-RFUSP42V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 115250R-RFUSP42V01 Page: 2 of 275 Test Report Certification Issued Date : 2011/06/29 Report No. : 115250R-RFUSP42V01 Product Name ： Dual-band Wireless USB Adapter Applicant ： ASUSTeK COMPUTER INC. Address ： No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. Manufacturer ： Askey Technology (Jiangsu) LTD. Model No. ： USB-N53 FCC ID. ： MSQ-USBN53 EUT Voltage : DC 5V (Power by PC) Trade Name ： ASUS Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247:2010 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : (Sandy Chuang / Adm. Specialist) Reviewed By : ( Ben Huang / Engineer ) Approved By : ( Roy Wang / Manager ) Report No： 115250R-RFUSP42V01 Page: 3 of 275 TABLE OF CONTENTS Description Page 1. General Information.............................................................................................................. 5 1.1. EUT Description ............................................................................................................. 5 1.2. Operational Description .................................................................................................. 9 1.3. Test Mode ..................................................................................................................... 10 1.4. Tested System Details .................................................................................................. 11 1.5. Configuration of tested System .................................................................................... 12 1.6. EUT Exercise Software ................................................................................................ 12 1.7. Test Facility...................................................................................................................13 2. Conducted Emission .......................................................................................................... 15 2.1. Test Equipment............................................................................................................. 15 2.2. Test Setup .................................................................................................................... 15 2.3. Limits ............................................................................................................................ 16 2.4. Test Procedure ............................................................................................................. 16 2.5. Test Specification.......................................................................................................... 16 2.6. Uncertainty ................................................................................................................... 16 2.7. Test Result....................................................................................................................17 2.8. Test Photo .................................................................................................................... 21 3. Peak Power Output ............................................................................................................ 22 3.1. Test Equipment............................................................................................................. 22 3.2. Test Setup .................................................................................................................... 22 3.3. Test procedures ............................................................................................................ 22 3.4. Limits ............................................................................................................................ 22 3.5. Test Specification.......................................................................................................... 22 3.6. Uncertainty ................................................................................................................... 22 3.7. Test Result....................................................................................................................23 4. Radiated Emission ............................................................................................................. 38 4.1. Test Equipment............................................................................................................. 38 4.2. Test Setup .................................................................................................................... 38 4.3. Limits ............................................................................................................................ 39 4.4. Test Procedure ............................................................................................................. 39 4.5. Test Specification.......................................................................................................... 39 4.6. Uncertainty ................................................................................................................... 39 4.7. Test Result....................................................................................................................40 4.8. Test Photo .................................................................................................................... 97 Report No： 115250R-RFUSP42V01 Page: 4 of 275 5.…

Text truncated - open the document above for the full version.

Report No：115250R-HPUSP10V01 Page: 1 of 5 Appendix C. Test Setup Photographs & EUT Photographs Test Setup Photographs EUT Front EUT Back Distance 5mm Distance 5mm Report No：115250R-HPUSP10V01 Page: 2 of 5 EUT L-Side EUT R-Side Distance 5mm Distance 5mm Report No：115250R-HPUSP10V01 Page: 3 of 5 EUT Back (With Notebook(MFR: Dell ; M/N: M65)) EUT Left-Side (With Notebook(MFR: IBM ;M/N: T400)) Note: The positions used in the measurements were according to IEEE 1528-2003. Distance 5mm Distance 5mm Report No：115250R-HPUSP10V01 Page: 4 of 5 EUT Photographs Report No：115250R-HPUSP10V01 Page: 5 of 5

Report No： 115250R-RFUSP42V01 Page: 21 of 275 2.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit Description： Back View of Conducted Emission Test Setup Report No： 115250R-RFUSP42V01 Page: 97 of 275 4.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 115250R-RFUSP42V01 Page: 98 of 275 Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Horn)
