MSQ-USBN66Dual-band Wireless-N Adapter

User Manual USB-N66 Dual-band Wireless-N AdapterWireless-N Adapter (For 802.11a/b/g/n Wireless Networks) ® Copyright © 2012 ASUSTeK Computer Inc. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. (“ASUS”). Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. E7253 First Edition March 2012 Table of contents 1. Introduction ......................................................................... 4 Package contents ............................................................................................... 4 System requirements ........................................................................................ 4 Hardware ............................................................................................................... 4 A quick look ....................................................................................................4 Mounting options .........................................................................................5 Operating and storage environment .....................................................5 Status indicator ................................................................................................... 5 2. Installing the USB-N66 driver and utilities........................ 6 3. Configuring USB-N66 using ASUS utility .......................... 7 Connecting to a wireless network manually ............................................ 7 Connecting to a wireless network using WPS .......................................... 8 Soft AP mode (Windows® XP/Vista/7) ......................................................... 10 4. Software information ........................................................ 12 ASUS WLAN Control Center ............................................................................ 12 ASUS WLAN Adapter Setting Utility ............................................................. 12 ASUS WLAN Adapter Setting Utility .......................................................12 Survey ...............................................................................................................13 Configuration- Basic ....................................................................................14 Configuration - Encryption ........................................................................15 Configuration - Advanced .........................................................................16 5. Configuring USB-N66 using Windows ® WZC service ....... 17 6. Troubleshooting ................................................................ 18 7. Glossary.............................................................................. 20 Notices ...................................................................................... 30 USB-N66 WLAN Adapter User Manual 4 ASUS WLAN adapter 1. Introduction System requirements Before using the USB-N66 WLAN Adapter, check if your system meets the following requirements: NOTE: If any of the above items is damaged or missing, contact your retailer immediately. ASUS USB-N66 x1 Warranty card x1 Quick Start Guide x1 USB cable x1 Support CD x1 Package contents • Windows ® XP/ Vista/7• USB 2.0 portUSB 2.0 port • 512MB system memory or larger512MB system memory or larger• Optical disk driveOptical disk drive A quick look 2 3 1 4 5 6 1) High/Standard Power Switch (slide the switch to the left or to the right to use standard power or high power) 2) USB port 3) LED indicator 4) Air vents 5) Mounting hole 6) WPS button USB-N66 WLAN Adapter User Manual 5 ASUS WLAN adapter LEDStatusDescription Link HighThe USB-N66 has connected to a wireless network successfully. LowThe USB-N66 is not connected.USB-N66 is not connected. is not connected. BlinkingWPS function is enabled. Wait for about two minutes for WPS function to establish the connection. Enabling the WPS (for Windows ® OS only) To enable the WPS feature, you may either press the WPS button on the USB- N66 or select Use the WPS button in the USB-N66’s web interface. Status indicator Mounting options Out of the box, the ASUS USB-N66 is designed to sit on a raised flat surface like a file cabinet or book shelf. The unit may also be converted for mounting to a wall or ceiling. 1. Look on the underside for the mounting hook. 2. Mark an upper hole in a flat su…

Text truncated - open the document above for the full version.

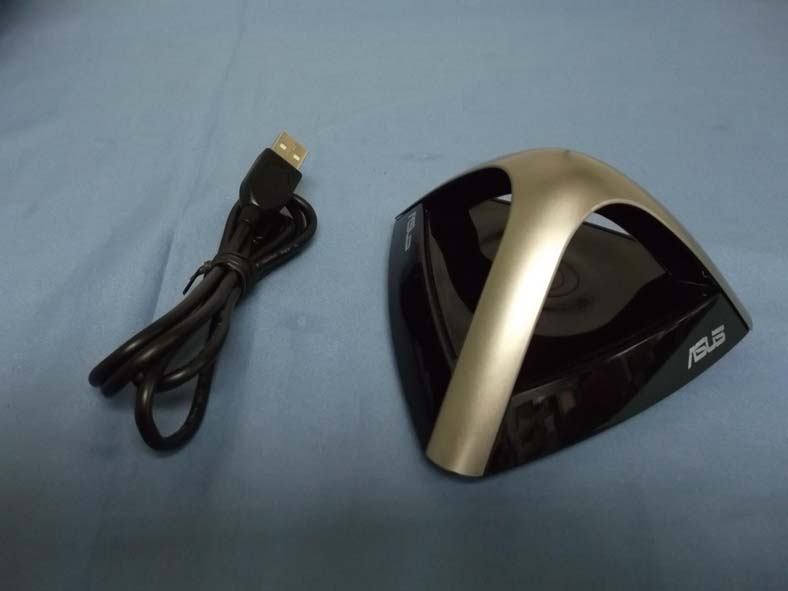

Report No： 122109R-RFUSP42V01 Page: 316 of 322 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

ASUSTeK COMPUTER INC. No.15, Li-Te Rd., Peitou, Taipei , Taiwan. FCC ID.: MSQ-USBN66 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Dual-band Wireless-N Adapter Model No.: USB-N66 F F C C C C I I D D : : MSQ-USBN66 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: ASUS Model number.: USB-N66

ASUSTeK COMPUTER INC. No.15, Li-Te Rd., Peitou, Taipei , Taiwan. FCC ID.: MSQ-USBN66 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Dual-band Wireless-N Adapter Model No.: USB-N66 F F C C C C I I D D : : MSQ-USBN66 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: ASUS Model number.: USB-N66

Report No： 122109R-RFUSP42V01 Page: 317 of 322 (3) EUT Photo (4) EUT Photo Report No： 122109R-RFUSP42V01 Page: 318 of 322 (5) EUT Photo (6) EUT Photo Report No： 122109R-RFUSP42V01 Page: 319 of 322 (7) EUT Photo (8) EUT Photo_ANT Report No： 122109R-RFUSP42V01 Page: 320 of 322 (9) EUT Photo (10) EUT Photo Report No： 122109R-RFUSP42V01 Page: 321 of 322 (11) EUT Photo (12) EUT Photo Report No： 122109R-RFUSP42V01 Page: 322 of 322 (13) EUT Photo_MB

Report No. 122108R-RF-US-Exp Page: 1 of 7 RF Exposure Evaluation declaration Product Name ： Dual-band Wireless-N Adapter Model No. ： USB-N66 FCC ID. ： MSQ-USBN66 Applicant : ASUSTeK COMPUTER INC. Address : No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. Date of Receipt : 2012/02/04 Date of Declaration : 2012/03/16 Report No. : 122108R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 122108R-RF-US-Exp Page: 2 of 7 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 122108R-RF-US-Exp Page: 3 of 7 1.3. Test Result of RF Exposure Evaluation Product Dual-band Wireless-N Adapter Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (W) Power Density at R = 20 cm (W/m 2 ) 1 2412 0.101 0.03194 6 2437 0.094 0.02974 11 2462 0.085 0.02688 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (W) Power Density at R = 20 cm (W/m 2 ) 1 2412 0.15885 0.04993 6 2437 0.09484 0.02981 11 2462 0.11092 0.03486 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 10 W/m 2 . Report No. 122108R-RF-US-Exp Page: 4 of 7 Product Dual-band Wireless-N Adapter Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (W) Power Density at R = 20 cm (W/m 2 ) 1 2412 0.25763 0.08098 6 2437 0.13490 0.04240 11 2462 0.25119 0.07896 IEEE 802.11n (40MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (W) Power Density at R = 20 cm (W/m 2 ) 3 2422 0.43351 0.13627 6 2437 0.51761 0.16270 9 2452 0.47315 0.14873 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 10 W/m 2 . Report No. 122108R-RF-US-Exp Page: 5 of 7 Product Dual-band Wireless-N Adapter Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4dBi or 2.512 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (W) Power Density at R = 20 cm (W/m 2 ) 36 5180 0.03141 0.01568 40 5220 0.03133 0.01565 44 5240 0.03097 0.01547 IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (W) Power Density at R = 20 cm (W/m 2 ) 149 5745 0.08318 0.04153 153 5785 0.07980 0.03985 165 5825 0.07396 0.03693 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 10 W/m 2 . Report No. 122108R-RF-US-Exp Page: 6 of 7 Product Dual-band Wireless-N Adapter Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4dBi or 2.512 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (W) Power Density at R = 20 cm (W/m 2 ) 36 5180 0.03228 0.01612 40 5220 0.03148 0.01572 44 5240 0.03155 0.01575 IEEE 802.11 n(20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (W) Power Density at R = 20 cm (W/m 2 ) 149 5745 0.17061 0.0852 153 5785 0.17061 0.0852 165 5825 0.19364 0.0967 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 10 W/m 2 . Report No. 122108R-RF-US-Exp Page: 7 of 7 Product Dual-band Wireless-N Adapter Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4dBi or 2.512 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(40MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (W) Power Density at R = 20 cm (W/m 2 ) 38 5190 0.04808 0.02401 46 5230 0.04920 0.02457 IEEE 802.11 n(40MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (W) Power Density at R = 20 cm (W/m 2 ) 151 5755 0.19320 0.09647 159 5795 …

Text truncated - open the document above for the full version.

Report No： 122109R-RFUSP42V01 Page: 1 of 322 Test Report Product Name ： Dual-band Wireless-N Adapter Model No. ： USB-N66 FCC ID. ： MSQ-USBN66 Applicant ： ASUSTeK COMPUTER INC. Address ： No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. Date of Receipt：2012/02/04 Issued Date ：2012/03/16 Report No. ：122109R-RFUSP42V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 122109R-RFUSP42V01 Page: 2 of 322 Test Report Certification Issued Date : 2012/03/16 Report No. : 122109R-RFUSP42V01 Product Name ： Dual-band Wireless-N Adapter Applicant ： ASUSTeK COMPUTER INC. Address ： No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. Manufacturer ： ASUSTeK COMPUTER INC. Model No. ： USB-N66 FCC ID. ： MSQ-USBN66 EUT Voltage : DC 5V (Power by PC) Trade Name ： ASUS Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247:2010 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Adm. Specialist) Reviewed By : ( Chris Liu / Engineer ) Approved By : ( Roy Wang / Manager ) Report No： 122109R-RFUSP42V01 Page: 3 of 322 TABLE OF CONTENTS Description Page 1. General Information.............................................................................................................. 5 1.1. EUT Description ............................................................................................................. 5 1.2. Operational Description ................................................................................................ 10 1.3. Test Mode ..................................................................................................................... 11 1.4. Tested System Details .................................................................................................. 12 1.5. Configuration of tested System .................................................................................... 13 1.6. EUT Exercise Software ................................................................................................ 14 1.7. Test Facility...................................................................................................................15 2. Conducted Emission .......................................................................................................... 17 2.1. Test Equipment............................................................................................................. 17 2.2. Test Setup .................................................................................................................... 17 2.3. Limits ............................................................................................................................ 18 2.4. Test Procedure ............................................................................................................. 18 2.5. Test Specification.......................................................................................................... 18 2.6. Uncertainty ................................................................................................................... 18 2.7. Test Result....................................................................................................................19 2.8. Test Photo .................................................................................................................... 23 3. Peak Power Output ............................................................................................................ 24 3.1. Test Equipment............................................................................................................. 24 3.2. Test Setup .................................................................................................................... 24 3.3. Test procedures ............................................................................................................ 24 3.4. Limits ............................................................................................................................ 24 3.5. Test Specification.......................................................................................................... 24 3.6. Uncertainty ................................................................................................................... 24 3.7. Test Result....................................................................................................................25 4. Radiated Emission ............................................................................................................. 71 4.1. Test Equipment............................................................................................................. 71 4.2. Test Setup .................................................................................................................... 71 4.3. Limits ............................................................................................................................ 72 4.4. Test Procedure ............................................................................................................. 72 4.5. Test Specification.......................................................................................................... 72 4.6. Uncertainty ................................................................................................................... 72 4.7. Test Result....................................................................................................................73 4.8. Test Photo .................................................................................................................. 128 Report No： 122109R-RFUSP42V01 Page: 4 of 322 5. RF antenna condu…

Text truncated - open the document above for the full version.

Report No： 122109R-RFUSP42V01 Page: 148 of 322 Product Dual-band Wireless-N Adapter Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2012/03/09 Test Site SR7 2412MHz (30MHz-25GHz)-802.11b Report No： 122109R-RFUSP42V01 Page: 149 of 322 2462MHz (30MHz-25GHz) -802.11b Report No： 122109R-RFUSP42V01 Page: 150 of 322 2412MHz (30MHz-25GHz)-802.11g Report No： 122109R-RFUSP42V01 Page: 151 of 322 2462MHz (30MHz-25GHz) -802.11g Report No： 122109R-RFUSP42V01 Page: 152 of 322 2412MHz (30MHz-25GHz)-802.11n(20M)-ANT 0 Report No： 122109R-RFUSP42V01 Page: 153 of 322 2462MHz (30MHz-25GHz) -802.11n(20M)-ANT 0 Report No： 122109R-RFUSP42V01 Page: 154 of 322 2412MHz (30MHz-25GHz)-802.11n(20M)-ANT 1 Report No： 122109R-RFUSP42V01 Page: 155 of 322 2462MHz (30MHz-25GHz) -802.11n(20M)-ANT 1 Report No： 122109R-RFUSP42V01 Page: 156 of 322 2412MHz (30MHz-25GHz)-802.11n(20M)-ANT 2 Report No： 122109R-RFUSP42V01 Page: 157 of 322 2462MHz (30MHz-25GHz) -802.11n(20M)-ANT 2 Report No： 122109R-RFUSP42V01 Page: 158 of 322 2422MHz (30MHz-25GHz)-802.11n(40M)-ANT 0 Report No： 122109R-RFUSP42V01 Page: 159 of 322 2452MHz (30MHz-25GHz) -802.11n(40M)-ANT 0 Report No： 122109R-RFUSP42V01 Page: 160 of 322 2422MHz (30MHz-25GHz)-802.11n(40M)-ANT 1 Report No： 122109R-RFUSP42V01 Page: 161 of 322 2452MHz (30MHz-25GHz) -802.11n(40M)-ANT 1 Report No： 122109R-RFUSP42V01 Page: 162 of 322 2422MHz (30MHz-25GHz)-802.11n(40M)-ANT 2 Report No： 122109R-RFUSP42V01 Page: 163 of 322 2452MHz (30MHz-25GHz) -802.11n(40M)-ANT 2 Report No： 122109R-RFUSP42V01 Page: 164 of 322 Product Dual-band Wireless-N Adapter Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2012/03/09 Test Site SR7 IEEE 802.11a, Antenna Gain: 4dBi Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 149 5745 39.445 ≥20 Pass 165 5825 48.386 ≥20 Pass Channel 149 (5745MHz) Report No： 122109R-RFUSP42V01 Page: 165 of 322 Channel 165 (5825MHz) Report No： 122109R-RFUSP42V01 Page: 166 of 322 Product Dual-band Wireless-N Adapter Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2012/03/09 Test Site SR7 IEEE 802.11n (20MHz), (ANT 0) Antenna Gain: 4dBi Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 149 5745 40.096 ≧20 Pass 165 5825 46.608 ≧20 Pass Channel 149 (5745MHz) Report No： 122109R-RFUSP42V01 Page: 167 of 322 Channel 165 (5825MHz) Report No： 122109R-RFUSP42V01 Page: 168 of 322 Product Dual-band Wireless-N Adapter Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2012/03/09 Test Site SR7 IEEE 802.11n (20MHz), (ANT 1) Antenna Gain: 4dBi Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 149 5745 40.925 ≧20 Pass 165 5825 49.448 ≧20 Pass Channel 149 (5745MHz) Report No： 122109R-RFUSP42V01 Page: 169 of 322 Channel 165 (5825MHz) Report No： 122109R-RFUSP42V01 Page: 170 of 322 Product Dual-band Wireless-N Adapter Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2012/03/09 Test Site SR7 IEEE 802.11n (20MHz), (ANT 2) Antenna Gain: 4dBi Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 149 5745 40.818 ≧20 Pass 165 5825 47.393 ≧20 Pass Channel 149 (5745MHz) Report No： 122109R-RFUSP42V01 Page: 171 of 322 Channel 165 (5825MHz) Report No： 122109R-RFUSP42V01 Page: 172 of 322 Product Dual-band Wireless-N Adapter Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2012/03/09 Test Site SR7 IEEE 802.11n (40MHz), (ANT 0) Antenna Gain: 4dBi Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 151 5755 37.542 ≧20 Pass 159 5795 43.444 ≧20 Pass Channel 151 (5755MHz) Report No： 122109R-RFUSP42V01 Page: 173 of 322 Channel 159 (5795MHz) Report No： 122109R-RFUSP42V01 Page: 174 of 322 Product Dual-band Wireless-N Adapter Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2012/03/09 Test Site SR7 IEEE 802.11n (40MHz), (ANT 1) Antenna Gain: 4dBi Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 151 5755 38.015 ≧20 Pass 159 5795 46.369 ≧20 Pass Channel 151 (5755MHz) Report No： 122109R-RFUSP42V01 Page: 175 of 322 Channel 159 (5795MHz) Report No： 122109R-RFUSP42V01 Page: 176 of 322 Product Dual-band Wireless-N Adapter Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2012/03/09 Test Site SR7 IEEE 802.11n (40MHz), (ANT 2) Antenna Gain: 4dBi Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 151 5755 37.519 ≧20 Pass 159 5795 44.250 ≧20 Pass Channel 151 (5755MHz) Report No： 122109R-RFUSP42V01 Page: 177 of 322 Channel 159 (5795MHz) Report No： 122109R-RFUSP42V01 Page: 178 of 322 Product Dual-band Wireless-N Adapter Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2012/03/09 Test Site SR7 5745MHz (30MHz~25GHz)-802.11a Report No： 122109R-RFUSP42V01 Page: 179 of 322 5825MHz (30MHz~25GHz)-802.11a Report No： 122109R-RFUSP42V01 Page: 180 of 322 5745MHz (30MHz~25GHz)-802.11n(20M)-ANT 0 Report No： 122109R-RFUSP42V01 Page: 181 of 322 5825MHz (30MHz~25GHz) -802.11n(20M)-ANT 0 Report No： 122109R-RFUSP42V01 Page: 182 of 322 5745MHz (30MHz~25GHz)-802.11n(20M)-ANT 1 Report No： 122109R-RFUSP42V01 Page: 183 of 322 5825MHz (30MHz~25GHz) -802.11n(20M)-ANT 1 Report No： 122109R-RFUSP42V01 Page: 184 of 322 5745MHz (30MHz~25GHz)-802.11n(20M)-ANT 2 Report No： 122109R-RFUSP42V01 Page: 185 of 322 5825MHz (30MHz~25GHz) -802.11n(20M)-ANT 2

Report No： 122109R-RFUSP42V01 Page: 186 of 322 5755MHz (30MHz~25GHz)-802.11n(40M)-ANT 0 Report No： 122109R-RFUSP42V01 Page: 187 of 322 5795MHz (30MHz~25GHz) -802.11n(40M)-ANT 0 Report No： 122109R-RFUSP42V01 Page: 188 of 322 5755MHz (30MHz~25GHz)-802.11n(40M)-ANT 1 Report No： 122109R-RFUSP42V01 Page: 189 of 322 5795MHz (30MHz~25GHz) -802.11n(40M)-ANT 1 Report No： 122109R-RFUSP42V01 Page: 190 of 322 5755MHz (30MHz~25GHz)-802.11n(40M)-ANT 2 Report No： 122109R-RFUSP42V01 Page: 191 of 322 5795MHz (30MHz~25GHz) -802.11n(40M)-ANT 2 Report No： 122109R-RFUSP42V01 Page: 192 of 322 6. Radiated Emission Band Edge 6.1. Test Equipment The following test equipments are used during the test: Band Edge / CB1 Instrument Manufacturer Model No. Serial No Next Cal. Date Double Ridged Guide Horn Antenna Schwarzback BBHA 9120D 743 2013/02/02 Spectrum Analyzer Agilent E4440A MY46187335 2013/02/07 Coaxial Cable Huber+Suhner AG Sucoflex 102 25623/2 2013/03/04 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 6.2. Test Setup Report No： 122109R-RFUSP42V01 Page: 193 of 322 6.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. 6.4. Test Procedure The EUT was setup according to ANSI C63.4: 2009 and tested according to DTS test procedure of Jan. 2012 KDB558074 for compliance to FCC 47CFR 15.247 requirements. The EUT and its simulators are placed on a turn table which is 0.8 meter above ground. The turn table can rotate 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna can move up and down between 1 meter and 4 meters to find out the maximum emission level. Both horizontal and vertical polarization of the antenna are set on measurement. In order to find the maximum emission, all of the interface cables must be manipulated according to ANSI C63.4: 2009 on radiated measurement. 6.5. Test Specification According to FCC Part 15 Subpart C Paragraph 15.247: 2010 6.6. Uncertainty The measurement uncertainty ± 3.9 dB above 1GHz Report No： 122109R-RFUSP42V01 Page: 194 of 322 6.7. Test Result Radiated is defined as Site : CB1 Time : 2012/02/24 - 17:33 Limit : FCC_SpartC_15.209_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : AC 120V/60Hz EUT : Dual-band Wireless-N Adapter Note : 802.11b_2412MHz_ Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 29.779 25.06254.841-19.159 74.000 PEAK 2 2387.705 30.555 28.84759.402-14.598 74.000 PEAK 3 * 2390.000 30.578 30.11660.694-13.306 74.000 PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 122109R-RFUSP42V01 Page: 195 of 322 Site : CB1 Time : 2012/02/24 - 17:34 Limit : FCC_SpartC_15.209_03M_AV Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : AC 120V/60Hz EUT : Dual-band Wireless-N Adapter Note : 802.11b_2412MHz_ Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 29.779 14.02643.805-10.195 54.000 AVERAGE 2 2386.926 30.548 19.08549.632-4.368 54.000 AVERAGE 3 * 2390.000 30.578 19.15749.735-4.265 54.000 AVERAGE Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 122109R-RFUSP42V01 Page: 196 of 322 Site : CB1 Time : 2012/02/24 - 17:35 Limit : FCC_SpartC_15.209_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - VERTICAL Power : AC 120V/60Hz EUT : Dual-band Wireless-N Adapter Note : 802.11b_2412MHz_ Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 29.779 25.03254.811-19.189 74.000 PEAK 2 2359.421 30.273 2…

Text truncated - open the document above for the full version.
