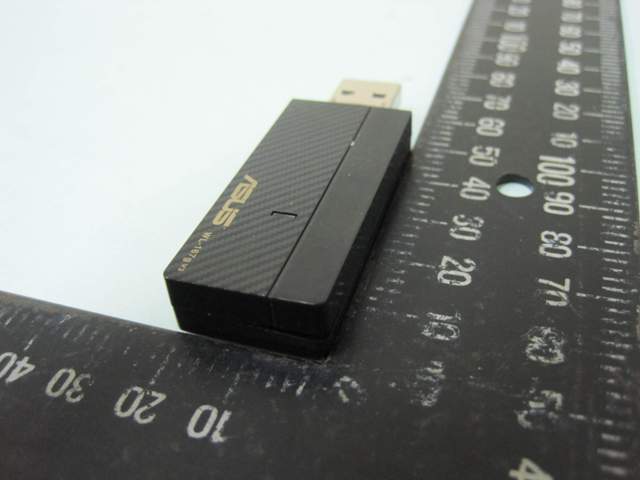

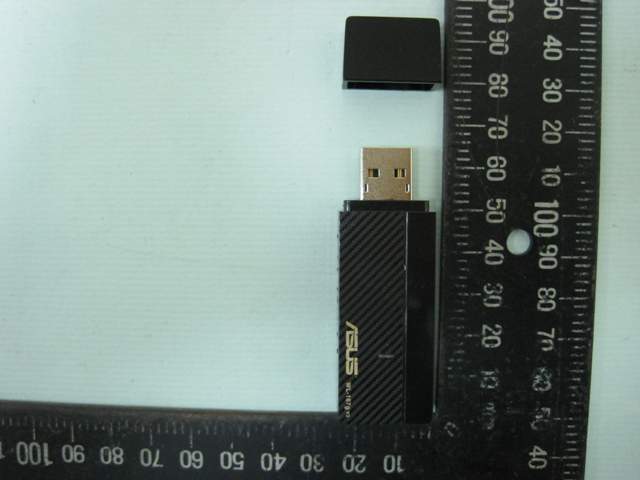

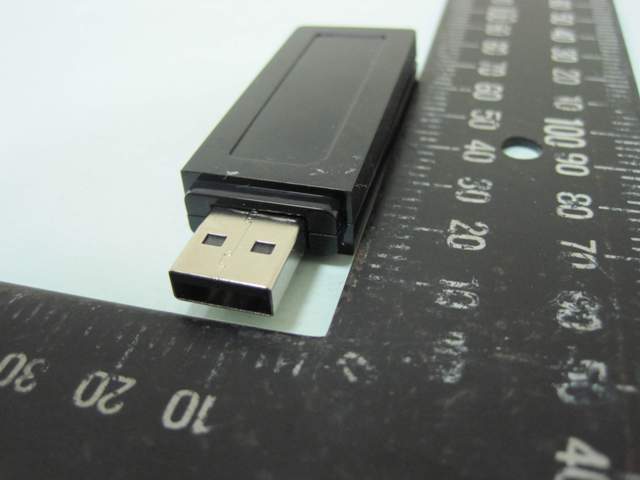

MSQ-WL167GV3802.11b/g/n USB2.0 Adapter

User Manual W L-167G V3 1 User Manual WL-167G V3 1-LF-ASU IEEE 802.11n USB2.0 Adapter v 01.draft User Manual WL-167G V3 WL-167G V3 2 Table of Contents Chapter 1 Introduction ________________________________________________________ 4 1. Introduction ________________________________________________________ 4 1.1 Product Features ____________________________________________________ 4 1.2 Applications _______________________________________________________ 4 Chapter 2 Hardware _______________________________________________________ 5 2.1 General Overview __________________________________________________ 5 2.2 Hardware Architecture _______________________________________________ 5 2.3 Main Chipset Information ____________________________________________ 5 Chapter 3 Software _______________________________________________________ 5 3.1 Operating System Supported __________________________________________ 6 3.2 Wireless Mode Supported ____________________________________________ 6 3.3 Security ___________________________________________________________ 6 3.4 Configuration ______________________________________________________ 6 Chapter 4 Appearance _____________________________________________________ 7 Chapter 5 Specifications ___________________________________________________ 8 Table 1: Modulation Scheme and Nominal Transmit Power _________________________ 10 User Manual W L-167G V3 3 Revision History Edition # Reason for revision Issue date Written by V 01  Initial Document Feb 12 2010 Troy Chen  User Manual W L-167G V3 4 Chapter 1 Introduction 1. Introduction WL-167G V3 is an industrial wireless 802.11n USB Adapter which enables wireless networking systems to attain data communication speeds up to 150 megabits-per-second (Mbps), while remaining backward compatible to the existing installed base of Wi-Fi systems worldwide. It supports operation to the IEEE 802.11b and IEEE 802.11g ,and draft IEEE 802.11n standards. WL-167G V3 will enable a next generation of high-data-rate platforms for operation in the 2.4 GHz band that deliver a five-fold speed increase. The cost and performance advantages will make it an ideal solution for high bandwidth enterprise applications, such as wireless video conferencing and large file transfers. It is compatible with 802.11g standard's mandatory modulation schemes—Complementary Code Keying (CCK), which is used in 802.11b, and Orthogonal Frequency Division Multiplexing (OFDM), used in 802.11g and draft 802.11n. Using CCK ensures backward-compatibility with the installed Wi-Fi 802.11b base, while OFDM provides the speed required for today's high-bandwidth applications. 1.1 Product Features  High speed for wireless LAN connection, RX up at 150 Mbps data rate.  Backward compatible to the existing IEEE 802.11b/g WLAN infrastructure.  An user-friendly utility to configure SSID, security setup and site survey.  Wireless data encryption with 64, 128 encryption for security.  Internal antenna  Support USB v2.0  Key type housing  WPS support (Pin code) 1.2 Applications  Home networking for device sharing.  Wireless multimedia.  Wireless office for extension Ethernet range.  Mobile networking for notebook PC, Desktop PC, Monitor, PDA with USB port ready device. User Manual W L-167G V3 5 Chapter 2 Hardware 2.1 General Overview  USB 2.0 Interface and 802.11n chipset-on-board design.  Antenna: 2 Internal Antenna (MIFA antenna on USB connector ).  1 LED 2.2 Hardware Architecture Realtek 8188SU 2.3 Main Chipset Information RTL8188SU: a highly integrated Wireless LAN (WLAN) USB 2.0 network interface controller compatible with the IEEE802.11n Draft specification 2.0. It combines a MAC, 1T1R capable baseband and RF in a single chip. 2.4 PCB dimension 19mm x 44mm (TBD) 2.5 Antenna MIFA antenna design on USB connector User Manual W L-167G V3 6 Chapter 3 Software 3.1 Operating System Supported  Windows 2000 , Windows XP, Windows Vista, Win7, Linux, Mac 3.2 Wireless Mode Supported  AP (Infrastructure) Client mode  Ad-hoc mode 3.3 Security  AP (Infrastructure) mode supports  Static WEP that support both 64 and 128 bit keys.  WPA (TKIP) with PSK  Ad-hoc mode supports  None (plaintext)  Static WEP that supports both 64 and 128 bit keys. 3.4 Configuration  User should be able to select  Mode of operations: AP or ad-hoc mode  Different security modes: none (plaintext), static WEP, WPA/WPA2(TKIP)/PSK as supported by the respective operating mode.  Channel to operate on  User should be able to perform key management on WPA/PSK and static WEP as supported by the respective operating mode  A Utility to set SSID, WEP key, site survey, profile manager and dynamically view configuration and receiving signal quality.  Support for transmitting power configurable.  Support for extended range.  WPS support(Pin code) User Manual W L-167G V3 7 Chapter 4 Appearance LED One Power/Link/WPS (Green) OFF All others states ON Radio On and Associated WPS Associating when WPS button pressed Blink Radio On and Scanning Flash Radio On and Associated and TX/RX Data User Manual W L-167G V3 8 Chapter 5 Specifications  Frequency Band: Draft 802.11n Radio: 2.4 GHz 802.11g Radio: 2.4 GHz 802.11b Radio: 2.4 GHz USA – FCC 2412~2462MHz (Ch1~Ch11) Canada – IC 2412~2462MHz (Ch1~Ch11) Europe – ETSI 2412~2472MHz (Ch1~Ch13) Japan – STD-T66/STD-33 2412~2484MHz (Ch1~Ch14)  Operating Channels: IEEE 802.11b/g/n compliant: 11 channels (US, Canada) 13 channels (ETSI) 14 channels (Japan)  Transmit Power and Sensitivity: TX Output Power:(Typical) 11b 17 +/- 1 dBm 11g 15 +/- 1 dBm@54Mbps 11n 13 +/- 1 dBm Rx Sensitivity:(Typical) -84 dBm @11 Mbps -70 dBm @54 Mbps -67 dBm @64-QAM, 20MHz channel spacing -64 dBm @64-QAM, 40MHz channel spacing  Modulation DBPSK @1Mbps DQPSK@2Mbp [email protected]/11Mbps BPSK@6/9 Mbps QPSK@12/18Mbps 16-QAM@24Mbps 64-QAM@48/54Mpb and above, RX up to 300Mbps User Manual W L-167G V3 9  Current consumption(5V DC): TX: 227mA Max (TBD) RX: 185mA Max (TBD)  Operating Temperature: 0…
