MSQ-WL330NULAll-in-One Wireless-N pocket router

® Quick Start Guide WL-330NUL All-in-One Wireless-N Pocket Router (For 802.11g/b/n Wireless Networks) 2 E7564 / First Edition / December 2012 English ............................................................................................................. 3 ....................................................................................................... 12 ........................................................................................................ 21 Bahasa I ndonesia ......................................................................................... 30 Bahasa Malaysia ........................................................................................... 39 ไทย .................................................................................................................. 48 Türkçe .............................................................................................................. 57 3 • Use WL-330NUL as a portable router English In circumstances of weak wireless signal or Ethernet network alone, such as in a hotel, conference room or office, follow the steps below to access the Internet through WL-330NUL. Supervisor code: xxxxxxxx 1. Connect the Ethernet cable to WL-330NUL and plug it into a power outlet. 2. When the LED indicator stops blinking and turns into a solid light in about 30 seconds, it indicates that WL-330NUL has finished booting up. 3. Select WL-330NUL’s private network name. The default network name is WL-330NUL-private- xxxx (xxxx is the last four numbers of WL-330NUL’s MAC address). 4. Enter the private network password, which you can find on your WL-330NUL labeled as supervisor code. Internet Supervisor code: xxxxxxxx Supervisor code: xxxxxxxx 5. Launch your web browse. MAC address 4 English 1. Insert WL-330NUL into the device’s USB port. A. Utility installation • For Windows® users If your device is running on Windows® operating system, ensure that you have installed the WL-330NUL Utility before connecting to the Internet. 2. Click Start > Computer or click the computer icon on the desktop. 3. Click the WL-330NUL icon in Device with Removable Storage. 4. Double-click Setup.exe to install the WL-330NUL utility. 5 English B. Internet connection Mode 1 Connect an Ethernet cable to WL- 330NUL and plug to a power source Mode 2 Connect WL-330NUL to a computer via an Ethernet cable Internet Internet Select one of the following ways to access the Internet: 1. Connect to the WL-330NUL private network name. 2. Enter the private network password. 3. Launch your web browser and start surfing the Internet. 1. Launch your browser and start surfing the Internet. To configure the router settings, please launch the WL-330NUL utility. Mode 3 Plug WL-330NUL to a power source Mode 4 Connect WL-330NUL to a computer Internet 1. Connect to the WL-330NUL private network name. 2. Enter the private network password. 3. Use the WL-330NUL utility to select a Wi-Fi network (SSID) and connect to the Internet. 1. Select a Wi-Fi network (SSID) through the Utility and connect to the Internet. Internet 6 C. One-click sharing To share Internet access: 1. Let the guest client connect to Wi-Fi network (SSID): WL- 330NUL-Guest-xxxx (xxxx is the last four numbers of WL-330NUL’s MAC address). 2. Launch the web browser. 3. Follow the onscreen instructions. Ensure to launch the utility before using the Guest Access function. Send a request Approve English Internet To access the Internet wirelessly: 1. Connect to the WL-330NUL private network name. 2. Enter your private network password. 3. Go to http://www.asusnetwork.net. 4. Enter the supervisor code shown on the sur- face of WL-330NUL. 5. Open the Wireless Setting page. 6. Select a Wi-Fi network (SSID) and connect to the Internet. 7. Launch the web browser and start surfing the Internet. • For tablet PC and smartphone users To access the Internet via an Ethernet cable : 1. Connect to the WL-330NUL private network name. 2. Enter the private network password. 3. Launch the web browser and start surfing the Internet. Internet 7 Mode 2 Connect WL-330NUL to a computer via an Ethernet cable Internet 1. Launch your browser and start surfing the Internet. Mode 3 Plug WL-330NUL to a power source Mode 4 Connect WL-330NUL to a computer Internet Internet Follow the steps in To access the Internet wirelessly in section For tablet PC and smartphone users. 1. Go to http://www.asusnetwork.net. 2. Enter the supervisor code shown on the surface of WL-330NUL. 3. Open the Wireless Setting page. 4. Select a Wi-Fi network (SSID) and connect to the Internet. • For MAC OS X users Select one of the ways to access the Internet: Mode 1 Connect an Ethernet cable to WL- 330NUL and plug to a power source Internet Follow the steps in To access the Internet via Ethernet in section For tablet PC and smartphone users. English 8 English Warning : Any changes or modifications not expressly approved by the party responsible for compliance could void the userʼs authority to operate the equipment.Prohibition of Co-locationThis device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter . Prohibition of Co-location This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC exposure compliance requirement, please follow operation instruction as documented in this manual. Declaration of Conformity for R&TTE directive 1999/5/EC Essential requirements – Article 3 Protection requirements for health and safety – Article 3.1a Te sting for electric safety according to EN 60950-1 has been conducted. These are considered relevant and sufficient. Protection requirements for el…

Text truncated - open the document above for the full version.

Report No： 12C018R-RFUSP42V01 Page: 165 of 171 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

Report No：12C018R-HPUSP09V01 Page: 5 of 11 EUT Photographs Report No：12C018R-HPUSP09V01 Page: 6 of 11

11.6mm 25.5mm Pantone : cool gray 4c : cool gray 11c All-in-One Wireless-N pocket router All-in-One Wireless-N pocket router

Report No： 12C018R-RFUSP42V01 Page: 166 of 171 (3) EUT Photo (4) EUT Photo Report No： 12C018R-RFUSP42V01 Page: 167 of 171 (5) EUT Photo (6) EUT Photo Report No： 12C018R-RFUSP42V01 Page: 168 of 171 (7) EUT Photo (8) EUT Photo Report No： 12C018R-RFUSP42V01 Page: 169 of 171 (9) EUT Photo (10) EUT Photo Report No： 12C018R-RFUSP42V01 Page: 170 of 171 (11) EUT Photo (MB) Report No： 12C018R-RFUSP42V01 Page: 171 of 171 (12) EUT Photo (ANT)

Report No：12C018R-HPUSP09V01 Page: 7 of 11 Report No：12C018R-HPUSP09V01 Page: 8 of 11 Report No：12C018R-HPUSP09V01 Page: 9 of 11 Report No：12C018R-HPUSP09V01 Page: 10 of 11 LYNwave Antenna P/N: ALA120-052027 Report No：12C018R-HPUSP09V01 Page: 11 of 11

Report No： 12C018R-RFUSP42V01 Page: 1 of 171 Test Report Product Name ： All-in-One Wireless-N pocket router Model No. ： WL-330NUL FCC ID. ： MSQ-WL330NUL Applicant： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt：2012/11/27 Issued Date ：2013/03/06 Report No. ：12C018R-RFUSP42V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 12C018R-RFUSP42V01 Page: 2 of 171 Test Report Certification Issued Date : 2013/03/06 Report No. : 12C018R-RFUSP42V01 Product Name ： All-in-One Wireless-N pocket router Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Manufacturer ： ASUSTeK COMPUTER INC. Model No. ： WL-330NUL FCC ID. ： MSQ-WL330NUL EUT Test Voltage : AC 100-240V, 50-60Hz Trade Name ： ASUS Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2011 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : (Demi Chang / Engineering Adm. Specialist) Reviewed By : ( Ben Huang / Engineer ) Approved By : ( Roy Wang / Manager ) Report No： 12C018R-RFUSP42V01 Page: 3 of 171 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 1313 NCC, Certificate No : NCC-RCB-07 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No： 12C018R-RFUSP42V01 Page: 4 of 171 TABLE OF CONTENTS Description Page 1. General Information.............................................................................................................. 6 1.1. EUT Description ............................................................................................................. 6 1.2. Operational Description ................................................................................................ 10 1.3. Test Mode ..................................................................................................................... 11 1.4. Tested System Details .................................................................................................. 12 1.5. Configuration of tested System .................................................................................... 13 1.6. EUT Exercise Software ................................................................................................ 14 1.7. Test Facility...................................................................................................................15 2. Conducted Emission .......................................................................................................... 16 2.1. Test Equipment............................................................................................................. 16 2.2. Test Setup .................................................................................................................... 16 2.3. Limits ............................................................................................................................ 17 2.4. Test Procedure ............................................................................................................. 17 2.5. Test Specification.......................................................................................................... 17 2.6. Uncertainty ................................................................................................................... 17 2.7. Test Result....................................................................................................................18 2.8. Test Photo .................................................................................................................... 22 3. Peak Power Output ............................................................................................................ 24 3.1. Test Equipment............................................................................................................. 24 3.2. Test Setup .................................................................................................................... 24 3.3. Test procedures ............................................................................................................ 24 3.4. Limits ............................................................................................................................ 24 3.5. Test Specification.......................................................................................................... 24 3.6. Uncertainty ................................................................................................................... 24 3.7. Test Result.................................................................................…

Text truncated - open the document above for the full version.

Report No： 12C018R-RFUSP42V01 Page: 105 of 171 6. Radiated Emission Band Edge 6.1. Test Equipment The following test equipments are used during the test: Radiated Emission Band Edge / CB1 Instrument Manufacturer Model No. Serial No Next Cal. Date Double Ridged Guide Horn Antenna Schwarzback BBHA 9120D 743 2013/02/02 Spectrum Analyzer Agilent E4440A MY46187335 2013/02/07 Coaxial Cable Huber+Suhner AG Sucoflex 102 25623/2 2013/03/04 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 6.2. Test Setup Report No： 12C018R-RFUSP42V01 Page: 106 of 171 6.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. 6.4. Test Procedure The EUT was setup according to ANSI C63.4: 2009 and tested according to DTS test procedure of Jan. 2012 KDB558074 for compliance to FCC 47CFR 15.247 requirements. The EUT and its simulators are placed on a turn table which is 0.8 meter above ground. The turn table can rotate 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna can move up and down between 1 meter and 4 meters to find out the maximum emission level. Both horizontal and vertical polarization of the antenna are set on measurement. In order to find the maximum emission, all of the interface cables must be manipulated according to ANSI C63.4: 2009 on radiated measurement. 6.5. Test Specification According to FCC Part 15 Subpart C Paragraph 15.247: 2011 6.6. Uncertainty The measurement uncertainty ± 3.9 dB above 1GHz Report No： 12C018R-RFUSP42V01 Page: 107 of 171 6.7. Test Result Radiated is defined as Site : CB1 Time : 2013/01/30 - 10:21 Limit : FCC_SpartC_15.209_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : USB EUT : All-in-One Wireless-N pocket router Note : Mode 1: Transmit (Adapter)-2412MHz_802.11b Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 29.779 25.25755.036-18.964 74.000 PEAK 2 * 2389.808 30.576 29.84160.417-13.583 74.000 PEAK 3 2390.000 30.578 28.59659.174-14.826 74.000 PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 12C018R-RFUSP42V01 Page: 108 of 171 Site : CB1 Time : 2013/01/30 - 10:25 Limit : FCC_SpartC_15.209_03M_AV Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : USB EUT : All-in-One Wireless-N pocket router Note : Mode 1: Transmit (Adapter)-2412MHz_802.11b Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 29.779 14.52444.303-9.697 54.000 AVERAGE 2 * 2389.780 30.576 18.27848.854-5.146 54.000 AVERAGE 3 2390.000 30.578 18.20148.779-5.221 54.000 AVERAGE Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 12C018R-RFUSP42V01 Page: 109 of 171 Site : CB1 Time : 2013/01/30 - 10:31 Limit : FCC_SpartC_15.209_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - VERTICAL Power : USB EUT : All-in-One Wireless-N pocket router Note : Mode 1: Transmit (Adapter)-2412MHz_802.11b Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 29.779 26.23756.016-17.984 74.000 PEAK 2 * 2384.920 30.527 27.62558.152-15.848 74.000 PEAK 3 2390.000 30.578 27.41057.988-16.012 74.000 PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 12C018R-RFUSP42V01 Page: 110 of 171 Site : CB1 Time : 2013/01/30 - 10:36 Limit : FCC_SpartC_15.209_03M_AV Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - VERTICAL Power : USB EUT : All-in-One Wireless-N pocket router Note : Mode 1: Transmit (Adapter)-2412MHz_802.11b Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 29.779 14.41044.189-9.811 54.000 AVERAGE 2 2387.080 30.549 15.98946.538-7.462 54.000 AVERAGE 3 * 2390.000 30.578 16.41946.997-7.003 54.000 AVERAGE Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 12C018R-RFUSP42V01 Page: 111 of 171 Site : CB1 Time : 2012/11/27 - 19:59 Limit : FCC_SpartC_15.209_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : USB EUT : All-in-One …

Text truncated - open the document above for the full version.

Report No：12C018R-HPUSP09V01 Page: 1 of 22 SAR Test Report Product Name ： All-in-One Wireless-N pocket router Model No. ： WL-330NUL Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt ：2012/11/27 Issued Date ：2013/01/07 Report No. ：12C018R-HPUSP09V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Report No：12C018R-HPUSP09V01 Page: 2 of 22 Test Report Certification Issued Date: 2013/01/07 Report No.: 12C018R-HPUSP09V01 Product Name ： All-in-One Wireless-N pocket router Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Manufacturer ： ASUSTeK COMPUTER INC. Model No. ： WL-330NUL Trade Name ： ASUS FCC ID ： MSQ-WL330NUL Applicable Standard： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Measurement procedures ： KDB 447498 , KDB 248227, KDB 616217,KDB 865664 Test Result ： Max. SAR Measurement (1g) 0.789 W/kg Application Type ： Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Documented By ： (Adm. Assistant / April Chen) Tested By ： (Engineer / Wen Lee) Approved By ： (Manager / Vincent Lin) Report No：12C018R-HPUSP09V01 Page: 3 of 22 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Antenna List ................................................................................................................... 5 1.3 Maximum output power and tolerance allowed for production units ............................ 5 1.4 Test Environment ...........................................................................................................6 2. SAR Measurement System .................................................................. 7 2.1 DASY5 System Description .......................................................................................... 7 2.1.1 Applications ................................................................................................................ 8 2.1.2 Area Scans................................................................................................................... 8 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 8 2.2 DASY5 E-Field Probe ................................................................................................... 9 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 10 2.5 Robot ............................................................................................................................ 11 2.6 Light Beam Unit........................................................................................................... 11 2.7 Device Holder ..............................................................................................................12 2.8 SAM Twin Phantom .................................................................................................... 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure ........................................................... 15 4.1 SAR System Check ...................................................................................................... 15 4.1.1 Dipoles ...................................................................................................................... 15 4.1.2 System Check Result ................................................................................................ 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits ......................................................................... 17 6. Test Equipment List............................................................................ 18 7. Measurement Uncertainty .................................................................. 19 8. Conducted Power Measurement ....................................................... 20 9. Test Results......................................................................................... 21 9.1 SAR Test Results Summary ......................................................................................... 21 Appendix ............................................................................................................................ 22 Report No：12C018R-HPUSP09V01 Page: 4 of 22 Appendix A. SAR System Check Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data Appendix E. Dipole Calibration Data Report No：12C018R-HPUSP09V01 Page: 5 of 22 1. General Information 1.1 EUT Description Product Name All-in-One Wireless-N pocket router Trade Name ASUS Model No. WL-330NUL FCC ID MSQ-WL330NUL TX Frequency 2412MHz~2462MHz Type of Mod…

Text truncated - open the document above for the full version.

Report No： 12C018R-RFUSP42V01 Page: 22 of 171 2.8. Test Photo Test Mode ： Mode 1: Transmit (Adapter) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit (Adapter) Description： Back View of Conducted Emission Test Setup Report No： 12C018R-RFUSP42V01 Page: 23 of 171 Test Mode ： Mode 2: Transmit (Power by Notebook) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 2: Transmit (Power by Notebook) Description： Back View of Conducted Emission Test Setup Report No： 12C018R-RFUSP42V01 Page: 88 of 171 4.8. Test Photo Test Mode ： Mode 1: Transmit (Adapter) Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit (Adapter) Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 12C018R-RFUSP42V01 Page: 89 of 171 Test Mode ： Mode 2: Transmit (Power by Notebook) Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 2: Transmit (Power by Notebook) Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 12C018R-RFUSP42V01 Page: 90 of 171 Test Mode ： Mode 1: Transmit (Adapter) Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit (Adapter) Description： Back View of Radiated Emission Test Setup (Horn)

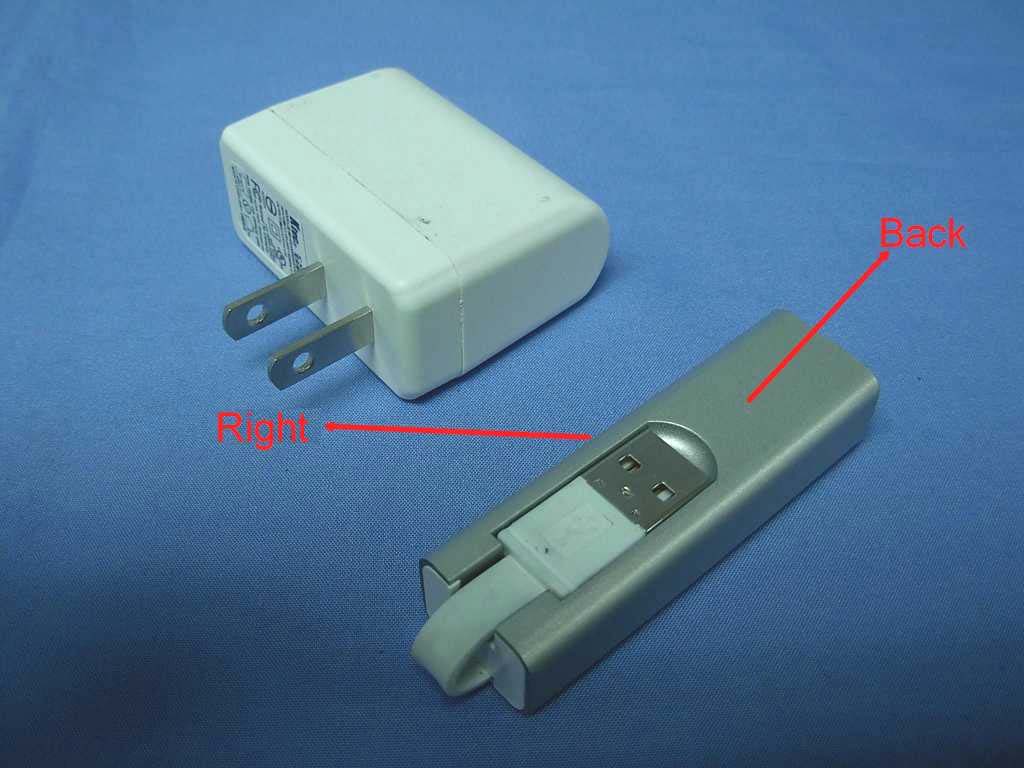

Report No：12C018R-HPUSP09V01 Page: 1 of 11 Appendix C. Test Setup Photographs & EUT Photographs Test Setup Photographs EUT Right-Side EUT Back Distance 0.5cm Distance 0.5cm Report No：12C018R-HPUSP09V01 Page: 2 of 11 EUT Front EUT Left-Side Distance 0.5cm Distance 0.5cm Report No：12C018R-HPUSP09V01 Page: 3 of 11 EUT Right-Side (NB Mode) EUT Back (NB Mode) Distance 0.5cm Distance 0.5cm Report No：12C018R-HPUSP09V01 Page: 4 of 11 Depth of the liquid in the phantom-Zoom In The USB cable used for testing other orientations Note: The positions used in the measurements were according to IEEE 1528-2003.
