MSQ-WN4509L802.11A/B/G/N/AC 1T1R WLAN USB Dongle

Page 1 8/26/2014 802.11A/B/G/N/AC 1T1R WLAN USB Dongle/ 802.11A/B/G/N/AC 1T1R 無線網路模組 WN4509L (Realtek RTL8811AU) ASUS User’s Manual Page 2 8/26/2014 REGULATORY STATEMENTS FCC WARING STATEMENT FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Page 3 8/26/2014 End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: "Contains FCC ID: MSQ-WN4509L ” Information for the OEMs and Integrators The following statement must be included with all versions of this document supplied to an OEM or integrator, but should not be distributed to the end user. 1) This device is intended for OEM integrators only. 2) Please see the full Grant of Equipment document for other restrictions. This device is operation in 5.15 – 5.25GHz frequency range, then restricted in indoor use only, Outdoor operations in the 5150~5250MHz is prohibit. This device is slave equipment, the device is not radar detection and not ad-hoc operation in the DFS band. Canada, Industry Canada (IC) Notices This device complies with Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Canada, avis d'Industry Canada (IC) Cet appareil est conforme avec Industrie Canada exemptes de licence RSS standard(s). Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement. Radio Frequency (RF) Exposure Information The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has also been evaluated and shown compliant with the IC RF Exposure limits under mobile exposure conditions. (antennas are greater than 20cm from a person's body). Informations concernant l'exposition aux fréquences radio (RF) La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil de façon à minimiser les contacts humains lors du fonctionnement normal. Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux Page 4 8/26/2014 RF d'IC dans des conditions d'exposition à des appareils mobiles (antennes sont supérieures à 20 cm à partir du corps d'une personne). This radio transmitter IC: 3568A-WN4509L has been approved by Industry Canada to operate withthe antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Cet émetteur radio IC: 3568A-WN4509L a été approuvé par Industrie Canada pour fonctionner avec les types d'antennes énumérés ci‐dessous avec le gain maximal admissible et impédance d'antenne requise pour chaque type d'antenne indiqué. Types d'antennes n'est pas inclus dans cette liste, ayant un gain supérieur au gain maximal indiqué pour ce type, sont strictement interdits pour une utilisation avec cet appareil. NCC: 低功率電波輻射性電機管理辦法 (1)在5.25-5.35 GHz頻帶內操作之無線資訊傳輸設備，限於室內使用。 (2)本模組於取得認證後將依規定於模組本體標示審驗合格標籤，並要求最終產品平台廠 商(OEM Integrator)於最終產品平台(End Product)上標示” 本產品內含射頻模組，其NCC 型式認證號碼為:CCXXxxYYyyyZzW (3)經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更 頻率、加大功率或變更原設計之特性及功能。 (4)低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應 立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或 工業、科學及醫療用電波輻射性電機設備之干擾。 警語標示的方式依…

Text truncated - open the document above for the full version.

ASUSTeK COMPUTER INC. FCC ID.: MSQ-WN4509L 4F, No. 150, Li-Te Rd., Peitou, Taipei, TaiwanTel : +886-2-28943447 ASUSTeK COMPUTER INC.Aug. 19, 2014 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Tel : +886-2-28943447 Fax: +886-2-28987364 Gentlemen: Regarding to the FCC 15.212, ThinkEco Inc.would like to request modular approval for the submission FCC ID: MSQ-WN4509L. ASUSTeK COMPUTER INC., confirms that the product complies with numbered requirements identified below: 1.The modular transmitter have its own RF shielding. (Please review external photos). 2.The modular transmitter have buffered modulation(/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. (the EUT has buffered data inputs, integrated in chip RTL8811AU) 3.The modular transmitter have its own power supply regulation. (the part number is U1: IT7831) 4.The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). (Please review external photos or test report). 5.The modular transmitter is tested in a stand-alone configuration. (Please review test setup photos ). 6.The modular transmitter is labeled with its own FCC ID number. (Please review Users Manual) 7.The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. (The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual). 8.The modular transmitter complies with any applicable RF exposure requirements. (The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition). Sincerely, ------------------------------------------------ Jackson Yen / Associate Vice President ASUSTeK COMPUTER INC. ------------------------------------------------------------- nnnnn nn/ AAsAAAAsociate ViVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVce PPresident COCCCCOCOOOOCCCCCCCCCCCCCCCCCCCCMPUTER INCNCNCNCCNCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC.

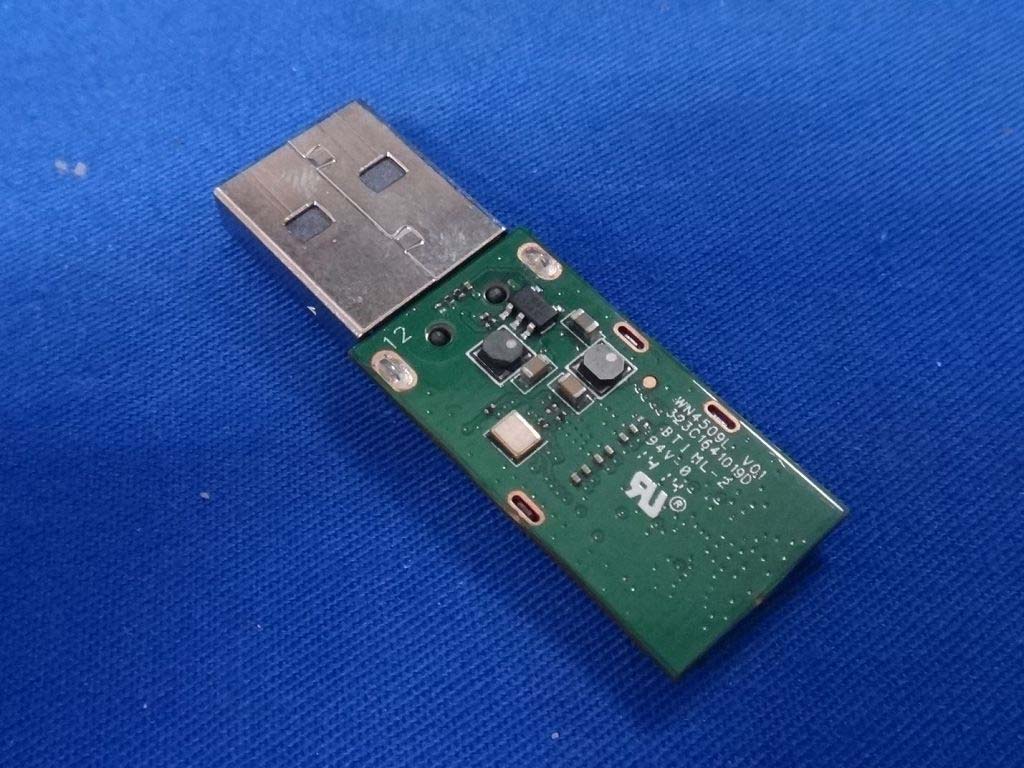

Report No.: 1470161R-RFUSP25V00 Page : 1 of 4 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

ASUSTeK COMPUTER INC. FCC ID.: MSQ-WN4509L 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan.Tel : +886-2-28943447 FCC ID Label

ASUSTeK COMPUTER INC. FCC ID.: MSQ-WN4509L 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan.Tel : +886-2-28943447 The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 1470161R-RFUSP25V00 Page : 2 of 5 (3) EUT Photo (4) EUT Photo Report No.: 1470161R-RFUSP25V00 Page : 3 of 5 (5) EUT Photo (6) EUT Photo Report No.: 1470161R-RFUSP25V00 Page : 4 of 5 (7) EUT Photo (8) EUT Photo Manufacturer: INPAQ Part No.: N/A (Main) N/A (Aux) Manufacturer: MAG. LAYERS Part No.: MSA-3409-25GC1-A1(WLAN MAIN) MSA-3310-25GC1-A2(WLAN AUX) Report No.: 1470161R-RFUSP25V00 Page : 5 of 5 (9) EUT Photo Manufacturer: MAG. LAYERS Part No.: MSA-3409-25GC1-A1(WLAN MAIN) MSA-3310-25GC1-A2(WLAN AUX)

Report No. 1470161R-RFUSP06V00 Page: 1 of 3 RF Exposure Evaluation declaration Product Name 802.11A/B/G/N/AC 1T1R WLAN USB Dongle Model No. WN4509L FCC ID MSQ-WN4509L Applicant ASUSTeK COMPUTER INC. Address 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt Jul. 04, 2014 Date of Declaration Aug. 19, 2014 Report No. 1470161R-RFUSP06V00 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No. 1470161R-RFUSP06V00 Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 1470161R-RFUSP06V00 Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : 802.11A/B/G/N/AC 1T1R WLAN USB Dongle Test Item : RF Exposure Evaluation Test Site : No.3 OATS Operation Frequency 2412-2462MHz, 2422-2452MHz 5180-5240MHz, 5260-5320MHz, 5500-5700MHz, 5745-5825MHz 5190-5230MHz, 5270-5310MHz, 5510-5670MHz, 5755-5795MHz 5720MHz, 5710MHz 5210-5290MHz, 5530-5690MHz Maximum Conducted output power 24.42dBm Antenna gain 5.55dBi Output Power Into Antenna & RF Exposure Evaluation Distance: Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 276.6942 0.026126 Power density in column 4 is much lower than the limit (1 mW/cm 2 ).

Report No. 1470161R-RFUSP06V00 Page: 1 of 191 FCC Test Report Product Name 802.11A/B/G/N/AC 1T1R WLAN USB Dongle Model No WN4509L FCC ID MSQ-WN4509L Applicant ASUSTeK COMPUTER INC. Address 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt Jul. 04, 2014 Issued Date Aug. 19, 2014 Report No. 1470161R-RFUSP06V00 Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the gove rnment. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No. 1470161R-RFUSP06V00 Page: 2 of 191 Test Report Issued Date: Aug. 19, 2014 Report No.: 1470161R-RFUSP06V00 Product Name 802.11A/B/G/N/AC 1T1R WLAN USB Dongle Applicant ASUSTeK COMPUTER INC. Address 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Manufacturer LITEON Technology(Chang Zhou) CO.,LTD(NA BU) Model No. WN4509L FCC ID. MSQ-WN4509L EUT Rated Voltage DC 5V (Power by USB) EUT Test Voltage DC 5V (Power by USB) Trade Name ASUS Applicable Standard FCC CFR Title 47 Part 15 Subpart E: 2013 ANSI C63.10: 2009, FCC KDB-789033 Test Result Complied Documented By : ( Senior Adm. Specialist / Jinn Chen ) Tested By : ( Engineer / Jerry Tsai ) Approved By : ( Director/ Vincent Lin ) Report No. 1470161R-RFUSP06V00 Page: 3 of 191 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ..................................................................................................... 5 1.1. EUT Description ............................................................................................................................ 5 1.2. Operational Description ................................................................................................................ 8 1.3. Tested System Datails.................................................................................................................... 9 1.4. Configuration of tested System ..................................................................................................... 9 1.5. EUT Exercise Software ................................................................................................................. 9 1.6. Test Facility ................................................................................................................................. 10 2. Conducted Emission .................................................................................................................. 11 2.1. Test Equipment ............................................................................................................................ 11 2.2. Test Setup .................................................................................................................................... 11 2.3. Limits .......................................................................................................................................... 12 2.4. Test Procedure ............................................................................................................................. 12 2.5. Uncertainty .................................................................................................................................. 12 2.6. Test Result of Conducted Emission ............................................................................................. 13 3. Maximun conducted output power .......................................................................................... 19 3.1. Test Equipment ............................................................................................................................ 19 3.2. Test Setup .................................................................................................................................... 19 3.3. Limits .......................................................................................................................................... 20 3.4. Test Procedure ............................................................................................................................. 20 3.5. Uncertainty .................................................................................................................................. 21 3.6. Test Result of Maximum conducted output power ...................................................................... 22 4. Peak Power Spectral Density .................................................................................................... 51 4.1. Test Equipment ............................................................................................................................ 51 4.2. Test Setup .................................................................................................................................... 51 4.3. Limits .......................................................................................................................................... 51 4.4. Test Procedure ............................................................................................................................. 52 4.5. Uncertainty .................................................................................................................................. 52 4.6. Test Result of Peak Power Spectral Density ............................................................................... 53 5. Peak Excursion .......................................................................................................................... 74 5.1. Test Equipment ............................................................................................................................ 74 5.2. Test Setup .............................................................................................…

Text truncated - open the document above for the full version.

Report No. 1470161R-RFUSP06V00 Page: 47 of 191 Channel 106 Channel 138 Report No. 1470161R-RFUSP06V00 Page: 48 of 191 Maximum conducted output power: Channel 42 Maximum conducted output power: Channel 58 Report No. 1470161R-RFUSP06V00 Page: 49 of 191 Maximum conducted output power: Channel 106 Maximum conducted output power: Channel 138 (Band3) Report No. 1470161R-RFUSP06V00 Page: 50 of 191 Maximum conducted output power: Channel 138 (Band4) Report No. 1470161R-RFUSP06V00 Page: 51 of 191 4. Peak Power Spectral Density 4.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2014 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2014 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr, 2014 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 4.2. Test Setup 4.3. Limits (4) For the band 5.15-5.25 GHz, the peak power spectral density shall not exceed 4 dBm in any 1-MHz band. If transmitting antenna of directional gain greater than 6 dBi are used, the peak power spectral density shall be reduced by the amount in dB that directional gain of the antenna exceeds 6 dBi. (5) For the band 5.25-5.35 GHz, the peak power spectral density shall not exceed 11 dBm in any 1-MHz band. If transmitting antenna of directional gain greater than 6 dBi are used, the peak power spectral density shall be reduced by the amount in dB that directional gain of the antenna exceeds 6 dBi. (6) For the band 5.725-5.825 GHz, the peak power spectral density shall not exceed 17 dBm in any 1-MHz band. If transmitting antenna of directional gain greater than 6 dBi are used, the peak power spectral density shall be reduced by the amount in dB that directional gain of the antenna exceeds 6 dBi. SMA Connector EUT Spectrum Analyzer RF Cable Report No. 1470161R-RFUSP06V00 Page: 52 of 191 4.4. Test Procedure The EUT was setup to ANSI C63.10, 2009; tested to DTS test procedure of FCC KDB-789033 for compliance to FCC 47CFR Subpart E requirements. The Peak Power Spectral Density using KDB 789033 section F) procedure, Create an average power spectrum for the EUT operating mode being tested by following the instructions in section E)2) for measuring maximum conducted output power using a spectrum analyzer. SA-1 method is selected to run the test. 4.5. Uncertainty ± 1.27 dB Report No. 1470161R-RFUSP06V00 Page: 53 of 191 4.6. Test Result of Peak Power Spectral Density Product : 802.11A/B/G/N/AC 1T1R WLAN USB Dongle Test Item : Peak Power Spectral Density Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11a-6Mbps) Channel Number Frequency (MHz) Measurement Level (dBm) Required Limit (dBm) Result 36 5180 3.244 <4 Pass 44 5220 0.540 <4 Pass 48 5240 2.480 <4 Pass 52 5260 2.170 <11 Pass 60 5300 0.790 <11 Pass 64 5320 1.050 <11 Pass 100 5500 0.880 <11 Pass 116 5580 1.250 <11 Pass 140 5700 2.000 <11 Pass Channel 36: Report No. 1470161R-RFUSP06V00 Page: 54 of 191 Channel 44: Channel 48: Report No. 1470161R-RFUSP06V00 Page: 55 of 191 Channel 52: Channel 60: Report No. 1470161R-RFUSP06V00 Page: 56 of 191 Channel 64: Channel 100: Report No. 1470161R-RFUSP06V00 Page: 57 of 191 Channel 116: Channel 140: Report No. 1470161R-RFUSP06V00 Page: 58 of 191 Product : 802.11A/B/G/N/AC 1T1R WLAN USB Dongle Test Item : Peak Power Spectral Density Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11n-20BW 7.2Mbps) Channel Number Frequency (MHz) Measurement Level (dBm) Required Limit (dBm) Result 36 5180 1.410 <4 Pass 44 5220 0.870 <4 Pass 48 5240 1.470 <4 Pass 52 5260 1.380 <11 Pass 60 5300 1.240 <11 Pass 64 5320 3.777 <11 Pass 100 5500 0.810 <11 Pass 116 5580 1.310 <11 Pass 140 5700 2.220 <11 Pass Report No. 1470161R-RFUSP06V00 Page: 59 of 191 Channel 36 Channel 44 Report No. 1470161R-RFUSP06V00 Page: 60 of 191 Channel 48 Channel 52 Report No. 1470161R-RFUSP06V00 Page: 61 of 191 Channel 60 Channel 64 Report No. 1470161R-RFUSP06V00 Page: 62 of 191 Channel 100 Channel 116 Report No. 1470161R-RFUSP06V00 Page: 63 of 191 Channel 140 Report No. 1470161R-RFUSP06V00 Page: 64 of 191 Product : 802.11A/B/G/N/AC 1T1R WLAN USB Dongle Test Item : Peak Power Spectral Density Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n-40BW 15Mbps) Channel Number Frequency (MHz) Measurement Level (dBm) Required Limit (dBm) Result 38 5190 -3.350 <4 Pass 46 5230 -0.475 <4 Pass 54 5270 -3.920 <11 Pass 62 5310 -4.220 <11 Pass 102 5510 -1.286 <11 Pass 110 5550 -0.510 <11 Pass 134 5670 -4.750 <11 Pass Report No. 1470161R-RFUSP06V00 Page: 65 of 191 Channel 38 Channel 46 Report No. 1470161R-RFUSP06V00 Page: 66 of 191 Channel 54 Channel 62 Report No. 1470161R-RFUSP06V00 Page: 67 of 191 Channel 102 Channel 110 Report No. 1470161R-RFUSP06V00 Page: 68 of 191 Channel 134 Report No. 1470161R-RFUSP06V00 Page: 69 of 191 Product : 802.11A/B/G/N/AC 1T1R WLAN USB Dongle Test Item : Peak Power Spectral Density Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11ac-20BW-7.2Mbps) Channel Number Frequency (MHz) PPSD/MHz (dBm) Total PPSD/MHz (dBm) 1 Required Limit (dBm) Result 144 5720(Band3) 3.460 3.460 <11 Pass 5720(Band4) 3.240 3.240 <17 Pass Channel 144 Report No. 1470161R-RFUSP06V00 Page: 70 of 191 Product : 802.11A/B/G/N/AC 1T1R WLAN USB Dongle Test Item : Peak Power Spectral Density Test Site : No.3 OATS Test Mode : Mode 5: Transmit (802.11ac-40BW-15Mbps) Channel Number Frequency (MHz) PPSD/MHz (dBm) Total PPSD/MHz (dBm) 1 Required Limit (dBm) Result 142 5710(Band3) 1.180 1.180 <11 Pass 5710(Band4) -2.130 -2.130 <17 Pass Channel 142 Report No. 1470161R-RFUSP06V00 Page: 71 of 191 Product : 802.11A/B/G/N/AC 1T1R WLAN USB Dongle Test Item : Peak Power Spectral Density Test Site : No.3 OATS Test Mode : Mode 5: Transmit (802.11ac-40BW-15Mbps) Channel 42 Channel Number Frequency (MHz) PPSD/MHz (dBm) Total PPSD/MHz (dBm) 1 Required Limit (dBm) Result 42 …

Text truncated - open the document above for the full version.

Report No. 1470161R-RFUSP06V00 Page: 78 of 191 Report No. 1470161R-RFUSP06V00 Page: 79 of 191 Product : 802.11A/B/G/N/AC 1T1R WLAN USB Dongle Test Item : Peak Excursion Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11n-20BW 7.2Mbps) Channel 100: Channel No. Frequency (MHz) Data Rate (Mbps) Measurement Level (dB) Required Limit (dB) Result 100 5500 MCS (0) 7.480 <13 Pass MCS (2) 7.810 <13 Pass MCS (4) 8.460 <13 Pass MCS (7) 8.370 <13 Pass Report No. 1470161R-RFUSP06V00 Page: 80 of 191 Report No. 1470161R-RFUSP06V00 Page: 81 of 191 Report No. 1470161R-RFUSP06V00 Page: 82 of 191 Product : 802.11A/B/G/N/AC 1T1R WLAN USB Dongle Test Item : Peak Excursion Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n-40BW 15Mbps) Channel 102: Channel No. Frequency (MHz) Data Rate (Mbps) Measurement Level (dB) Required Limit (dB) Result 102 5510 MCS (0) 7.786 <13 Pass MCS (2) 9.969 <13 Pass MCS (4) 9.659 <13 Pass MCS (7) 9.287 <13 Pass Report No. 1470161R-RFUSP06V00 Page: 83 of 191 Report No. 1470161R-RFUSP06V00 Page: 84 of 191 Report No. 1470161R-RFUSP06V00 Page: 85 of 191 Product : 802.11A/B/G/N/AC 1T1R WLAN USB Dongle Test Item : Peak Excursion Test Site : No.3 OATS Test Mode : Mode 6: Transmit (802.11ac-80BW-32.5Mbps) Channel 106: Channel No. Frequency (MHz) Data Rate (Mbps) Measurement Level (dB) Required Limit (dB) Result 106 5530 (VTH0) 7.730 <13 Pass (VTH2) 8.750 <13 Pass (VTH4) 7.930 <13 Pass (VTH7) 7.790 <13 Pass (VTH9) 8.330 <13 Pass Report No. 1470161R-RFUSP06V00 Page: 86 of 191 Report No. 1470161R-RFUSP06V00 Page: 87 of 191 Report No. 1470161R-RFUSP06V00 Page: 88 of 191 6. Radiated Emission 6.1. Test Equipment The following test equipments are used during the radiated emission test: Test Site Equipment Manufacturer Model No./Serial No. Last Cal. Site # 3 X Loop Antenna Teseq HLA6120 / 26739 Jul., 2014 X Bilog Antenna Schaffner Chase CBL6112B/2673 Sep., 2013 X Horn Antenna Schwarzbeck BBHA9120D/D305 Sep., 2013 X Horn Antenna Schwarzbeck BBHA9170/208 Jul., 2014 X Pre-Amplifier QTK QTK-AMP-03 / 0003 May, 2014 X Pre-Amplifier QTK AP-180C / CHM_0906076 Sep., 2013 X Pre-Amplifier MITEQ AMF-4D-180400-45-6P/ 925975 Mar, 2014 X Spectrum Analyzer Agilent E4407B / US39440758 May, 2014 X Test Receiver R & S ESCS 30/ 825442/018 Sep., 2013 X Coaxial Cable QuieTek QTK-CABLE/ CAB5 Feb., 2014 X Controller QuieTek QTK-CONTROLLER/ CTRL3 N/A X Coaxial Switch Anritsu MP59B/6200265729 N/A Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 6.2. Test Setup Radiated Emission Below 1GHz EUT FRP Dome Test Receiver The height of broad band antenna was scanned from 1m to 4m. The distance between antenna and turn table was 3m.. To Controller To Receiver Fully soldered Metal Ground Non-Conducted Table 3m 1m to 4m 80cm Report No. 1470161R-RFUSP06V00 Page: 89 of 191 Radiated Emission Above 1GHz 6.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. FCC Part 15 Subpart C Paragraph 15.209(a) Limits Frequency MHz Field strength (microvolts/meter) Measurement distance (meter) 0.009-0.490 2400/F(kHz) 300 0.490-1.705 24000/F(kHz) 30 1.705-30 30 30 30-88 100 40 88-216 150 43.5 216-960 200 46 Above 960 500 54 Remarks: E field strength (dBμV/m) = 20 log E field strength (uV/m) EUT FRP Dome The height of broad band or Dipole Antenna was scanned from 1M to 4M. The distance between antenna and turn table was 3M regards to the standard ado pted. 3m 80cm To Receiver Pre- Am plifier Report No. 1470161R-RFUSP06V00 Page: 90 of 191 6.4. Test Procedure The EUT was setup according to ANSI C63.10, 2009 and tested according to FCC KDB-789033 test procedure for compliance to FCC 47CFR 15. 407 requirements. The EUT is placed on a turn table which is 0.8 meter above ground. The turn table is rotated 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna is scanned from 1 meter to 4 meters to find out the maximum emission level. This is repeated for both horizontal and vertical polarization of the antenna. In order to find the maximum emission, all of the interface cables were manipulated according to ANSI C63.10:2009 on radiated measurement. The resolution bandwidth below 30MHz setting on the field strength meter is 9kHz and 30MHz~1GHz is 120kHz and above 1GHz is 1MHz. Radiated emission measurements below 30MHz are made using Loop Antenna and 30MHz~1GHz are made using broadband Bilog antenna and above 1GHz are made using Horn Antennas. The measurement is divided into the Preliminary Measurement and the Final Measurement. The suspected frequencies are searched for in Preliminary Measurement with the measurement antenna kept pointed at the source of the emission both in azimuth and elevation, with the polarization of the antenna oriented for maximum response. The antenna is pointed at an angle towards the source of the emission, and the EUT is rotated in both height and polarization to maximize the measured emission. The emission is kept within the illumination area of the 3 dB bandwidth of the antenna. The worst radiated emission is measured in the Open Area Test Site on the Final Measurement. The measurement frequency range form 30MHz - 10th Harmonic of fundamental was investigated. 6.5. Uncertainty ± 3.8 dB below 1GHz ± 3.9 dB above 1GHz Report No. 1470161R-RFUSP06V00 Page: 91 of 191 6.6. Test Result of Radiated Emission Product : 802.11A/B/G/N/AC 1T1R WLAN USB Dongle Test Item : Harmonic Radiated Emission Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11a-6Mbps) (5180MHz) Frequency Correct Reading Measurement Margin Limit Facto…

Text truncated - open the document above for the full version.

Report No. 1470161R-RFUSP06V00-A Page…
