MSQ-WR6B00Gigabit PoE+ VPN Wired Router

Gigabit PoE+ VPN Wired Router Router con cable Gigabit PoE+ VPN EBG19P 1 Power LED 1 LED de encendido 2 PoE Alert LED 2 LED de alerta PoE 3 Reset button 3 Botón de reinicio 4 USB 3.2 Gen 1 port 4 Puerto USB 3.2 Gen 1 5 WAN (Internet) port 5 Puerto WAN (Internet) 6 WAN/LAN ports (with PoE+) 6 Puertos WAN/LAN (con PoE+) 7 LAN ports (with PoE+) 7 Puertos LAN (con PoE+) 8 Power (DCIN) port 8 Puerto de alimentación (DCIN) * For detailed information, please refer to https://asus.click/ ExpertWiFiEBG19P Descripción general del enrutador 7 8 DC Power adapter Adaptador de Energía DC DC Output: +54V with max 2.778A current Salida de +54V con corriente max 2,778A Operating Temperature Temperatura de Operación 0~40 o C Storage Almacenamiento -20~70 o C Operating Humidity Humedad de Operación 10~95% Storage Almacenamiento 5~95% PoE Type / Tipo PoE802.3at, Type 2, PoE+ Specifications/Especificaciones: LED Indicators / Indicadores LED Link/Act LED (Left) LED de enlace/actuación (Izquierda) PoE LED (Right) LED PoE (Derecha) 1G Green Verde ON Encendido Green Verde 100M/10M Amber Ámbar OFF Apagado N/A N/A Sending or Receiving data Enviando o recibiendo datos Blinking Parpadeando Standard / Estándar 802.af (802.3at Type1) PoE 802.3at Type2 PoE+ 802.3bt Type3 4PPoE or PoE++ 802.3bt Type4 4PPoE or PoE++ Max. power reserved by the device Potencia máxima reservada por el dispositivo 12.95w25.50w51w71.3w Max. power delivered to the device Potencia máx. suministrada al dispositivo 15.4w30w60w100w PoE Consideration The PoE and PoE+ power supplied by the switch is prioritized in ascending port order, with a total PoE and PoE+ power budget of 123W across port 2 to port 9. 1 2 345 6 Consideración de PoE La alimentación PoE y PoE+ suministrada por el conmutador se prioriza en orden ascendente de puertos, con un límite total de alimentación PoE y PoE+ de 123 W en los puertos 2 a 9. SAR information on this device is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid. Prohibition of Co-location This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with greater than 20cm between the radiator & your body. Déclaration d’exposition aux radiations: Cet équipement est conforme aux limites d’exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé à plus de 20cm entre le radiateur et votre corps. WARNING! This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Compliance Statement of Innovation, Science and Economic Development Canada (ISED) This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. CAN ICES-003(B)/NMB-003(B) Déclaration de conformité de Innovation, Sciences et Développement économique Canada (ISED) Le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. CAN ICES-003(B)/NMB-003(B) Safety Notices • Use this product in environments with ambient temperatures between 0°C(32°F) and 40°C(104°F). • Refer to the rating label on the bottom of your product and ensure your power adapter complies with this rating. • DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been damaged. • DO NOT place or drop objects on top and do not shove any foreign objects into the product. • DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during electrical storms. • DO NOT cover the vents on the product to prevent the system from getting overheated. • DO NOT use damaged power cords, accessories, or other peripherals. • If the Adapter is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer. • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. • DO NOT mount this equipment higher than 2 meters. Consignes de sécurité • Utilisez ce produit dans un environnement dont la température ambiante est comprise entre 0 ̊C (32°F) et 40 ̊C (104°F). • Référez-vous à l’étiquette située au dessous du produit pour vérifier que l’adaptateur secteur répond aux exigences de tension. • NE PAS placer sur une surface irrégulière ou instable. Contactez le service après-vente si le châssis a été endommagé. • NE PAS placer, faire tomber ou insérer d’objets sur/dans le produit. • NE PAS exposer l’appareil à la pluie ou à l’humidité, tenez-le à distance des liquides. NE PAS utiliser le modem lors d’un orage. • NE PAS bloquer les ouvertures destinées à la ventilation du système pour éviter que celui-ci ne surchauffe. • NE PAS utiliser de cordons d’alimentation, d’accessoires ou autres périphériques endommagés. • Si l’adaptateur est endommagé, n’essayez pas de le réparer vous-même. Contactez un technicien électrique qualifié ou votre revendeur. • Pour éviter tout risque de choc électrique, débranchez le câble d’alimentation de la prise électrique avan…

Text truncated - open the document above for the full version.

ASUSTeK Computer Inc. 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112, Taiwan Covered Equipment Certification Attestation Letter Date: 2024-01-08 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA FCC ID: MSQ-WR6B00 Statement for 47 CFR section 2.911(d)(5)(i) ASUSTeK Computer Inc. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Statement for 47 CFR section 2.911(d)(5)(ii) ASUSTeK Computer Inc. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Company name: ASUSTeK Computer Inc. Position in the Company: Associate Vice President Printed name: Jackson Yen Email: [email protected] TEL: +886-2-28943447 FAX: +886-2-28987364 ___________________________ Signatory

Date: 2024-01-08 FCC ID: MSQ-WR6B00 To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------------------- Jackson Yen /Associate Vice President ASUSTeK COMPUTER INC. Tel: 02-2894-3447 E-mail: [email protected]

Date: 2024-01-08 FCC ID: MSQ-WR6B00 A U T H O R I Z A T I O N L E T T E R To Whom It May Concern: ASUSTeK Computer Inc. hereby authorizes Tilly Pan / Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Tilly Pan / Specialist of BV CPS Taoyuan on ASUSTeK Computer Inc’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------------------- Jackson Yen /Associate Vice President ASUSTeK COMPUTER INC. Tel: 02-2894-3447 E-mail: [email protected]

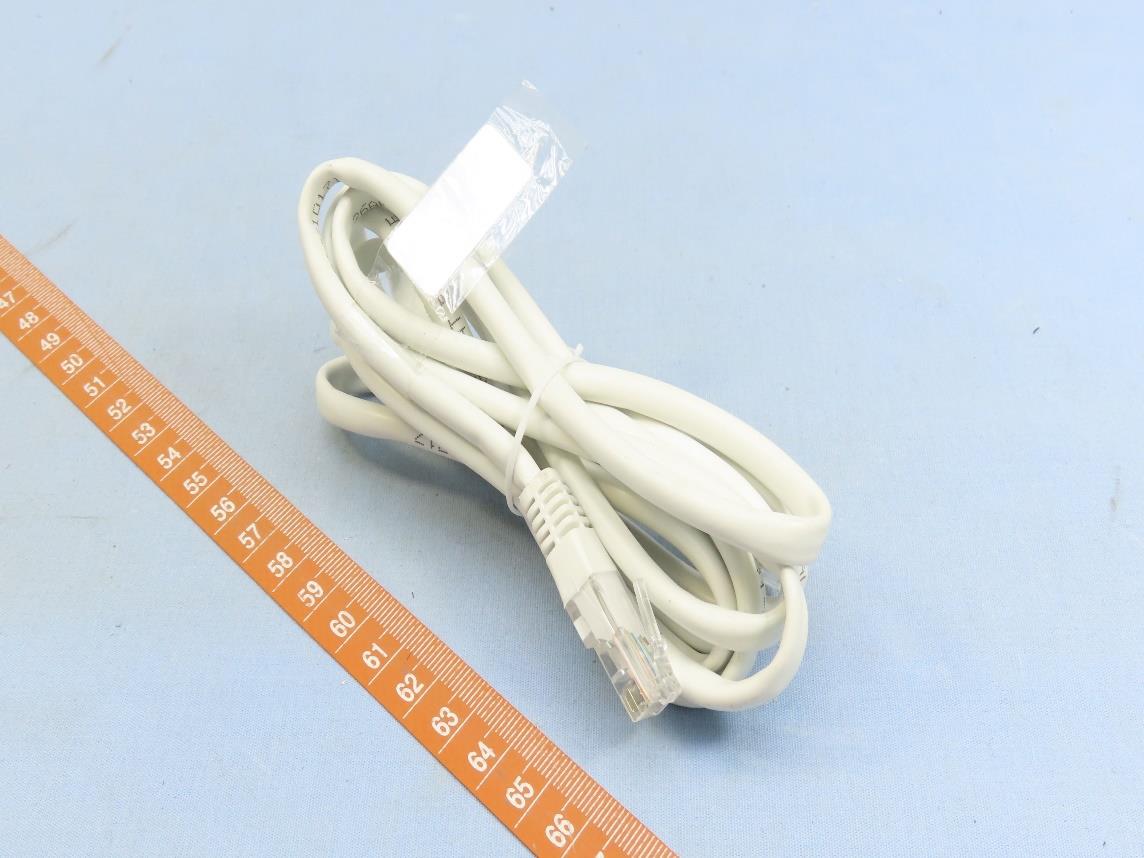

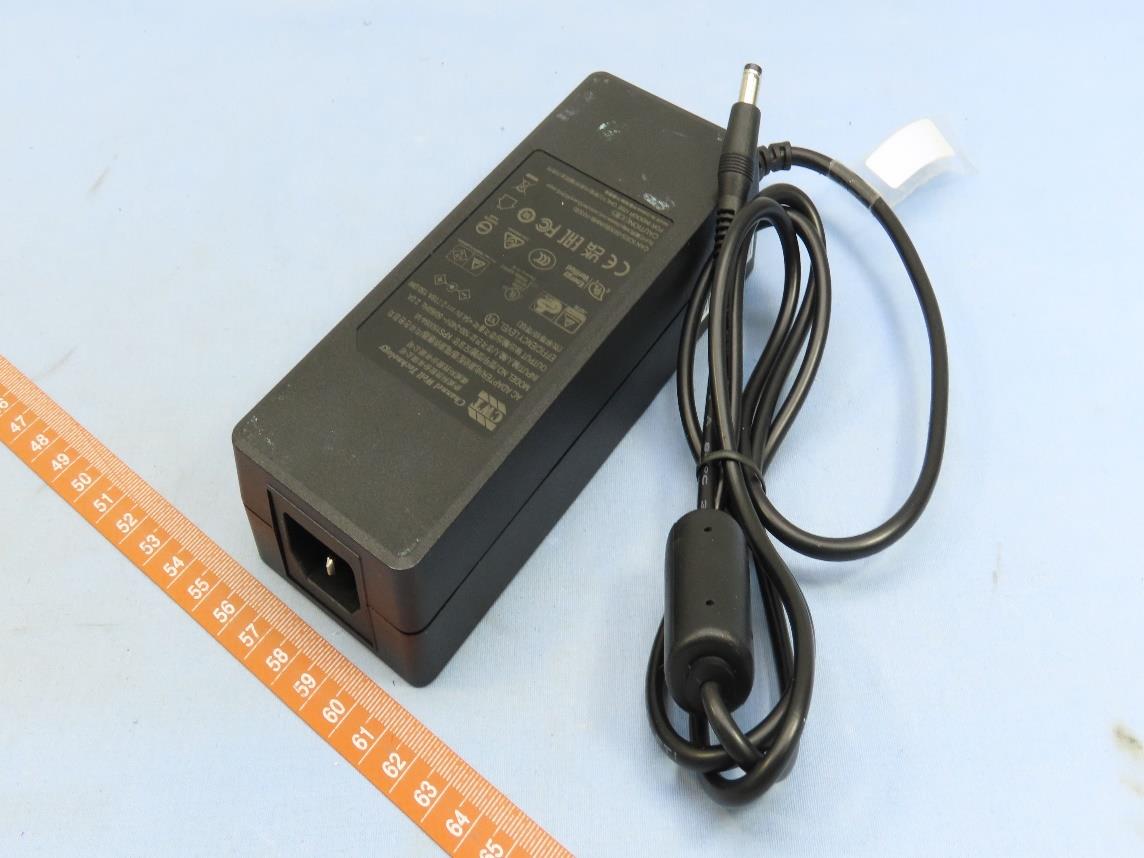

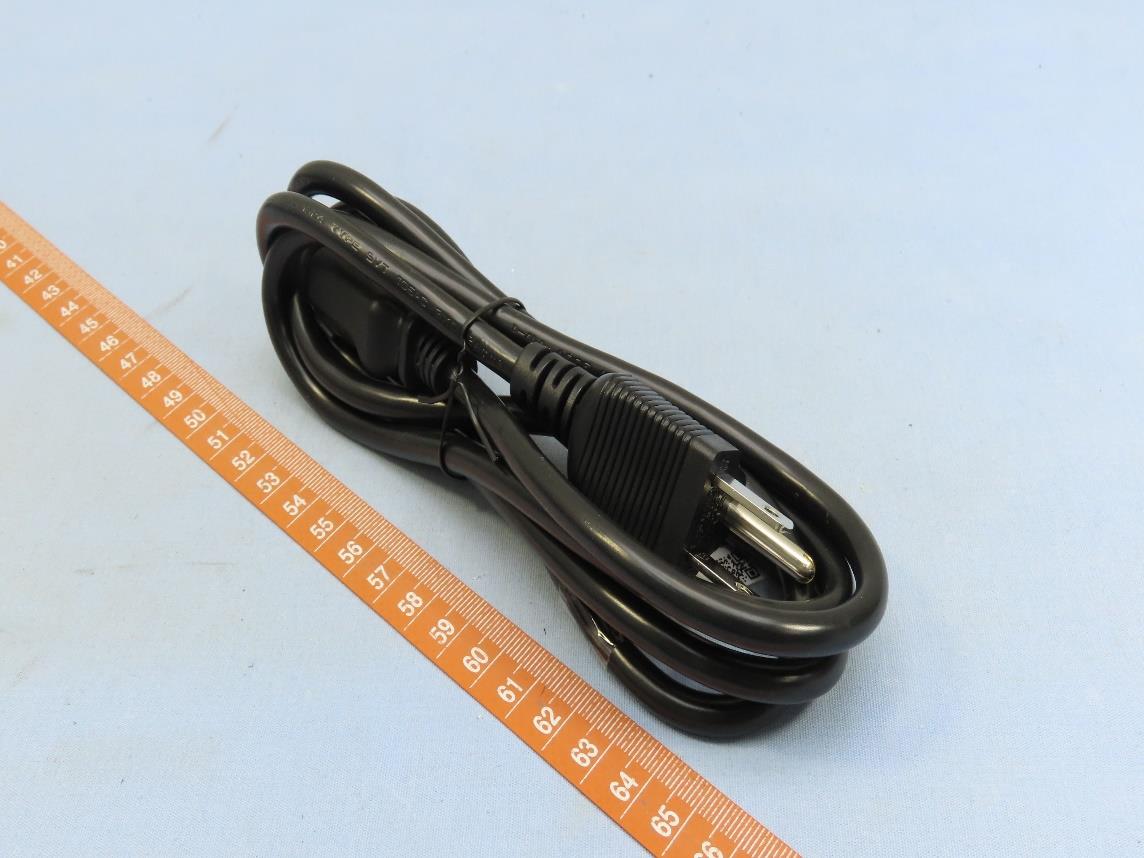

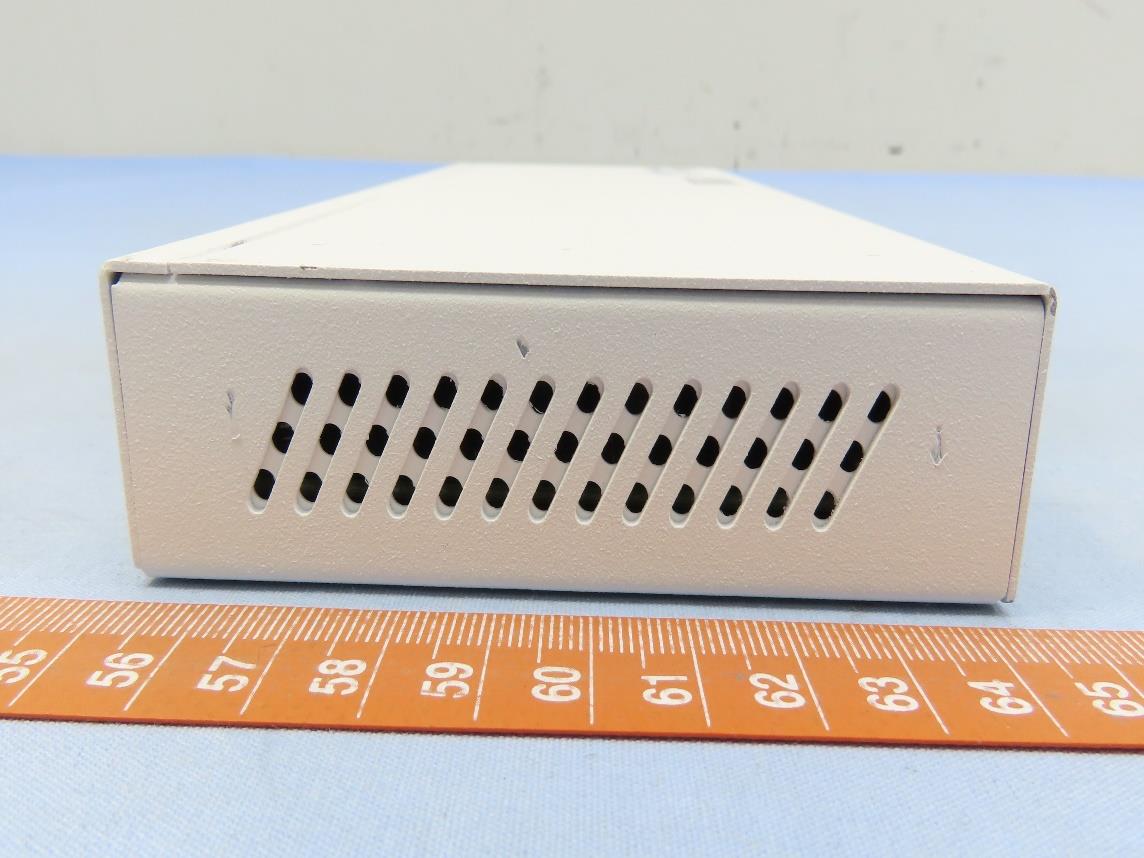

Reference No.:BFLF-WTW-P23030355_ExtPho Page 1/9 CONSTRUCTION PHOTOS OF EUT Reference No.:BFLF-WTW-P23030355_ExtPho Page 2/9 Reference No.:BFLF-WTW-P23030355_ExtPho Page 3/9 Reference No.:BFLF-WTW-P23030355_ExtPho Page 4/9 Reference No.:BFLF-WTW-P23030355_ExtPho Page 5/9 Reference No.:BFLF-WTW-P23030355_ExtPho Page 6/9 Reference No.:BFLF-WTW-P23030355_ExtPho Page 7/9 Reference No.:BFLF-WTW-P23030355_ExtPho Page 8/9 Reference No.:BFLF-WTW-P23030355_ExtPho Page 9/9

Back EBG19P Label Location

ASUS Computer GmbH Harkort Str. 21-23, 40880 Ratingen, Germany ASUSTEK (UK) Ltd. 1st Floor, Sackville House, 143-149 Fenchurch Street, London, EC3M 6BL, England, United Kingdom ASUSTek Computer Inc. 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112 Model: EBG19P Gigabit PoE+ VPN Wired Router Input: 54V 2.778A PoE Output: 54Vdc, 0.6A max for each PoE port / total 123W max Frequency: 2.4GHz (Bluetooth) Router IP address: http://expertwi.net FCC ID: MSQ-WR6B00 IC: 3568A-WR6B00 CAN ICES-003(B)/NMB-003(B) D33005

Reference No.:BFLF-WTW-P23030355_IntPho Page 1/8 CONSTRUCTION PHOTOS OF EUT Reference No.:BFLF-WTW-P23030355_IntPho Page 2/8 Reference No.:BFLF-WTW-P23030355_IntPho Page 3/8 Reference No.:BFLF-WTW-P23030355_IntPho Page 4/8 Reference No.:BFLF-WTW-P23030355_IntPho Page 5/8 Reference No.:BFLF-WTW-P23030355_IntPho Page 6/8 Reference No.:BFLF-WTW-P23030355_IntPho Page 7/8 Reference No.:BFLF-WTW-P23030355_IntPho Page 8/8 Antenna

Report No.: MFBFLF-WTW-P23030355 Page No. 1 / 8 Report Format Version: 7.1.0 Reference No.: BFLF-WTW-P23030355 RF EXPOSURE REPORT CERTIFICATE OF CONFORMITY FCC Rule Part: FCC Part 2 (Section 2.1091) Report No.: MFBFLF-WTW-P23030355 FCC ID: MSQ-WR6B00 Product: Gigabit PoE+ VPN Wired Router Brand: ASUS Model No.: EBG19P Received Date: 2023/11/1 Test Date: 2023/12/12 Issued Date: 2024/1/12 Applicant: ASUSTeK COMPUTER INC. Address: 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112, Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan FCC Registration / Designation Number: 198487 / TW2021 Approved by: , Date: 2024/1/12 Jeremy Lin / Project Engineer This test report consists of 8 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Prepared by : Annie Chang / Senior Specialist This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: MFBFLF-WTW-P23030355 Page No. 2 / 8 Report Format Version: 7.1.0 Reference No.: BFLF-WTW-P23030355 Table of Contents Release Control Record ....................................................................................................................................................... 3 1 Certificate .................................................................................................................................................................... 4 2 Applicable RF Exposure Limit .................................................................................................................................. 5 3 Test Results ................................................................................................................................................................ 7 4 Conclusion .................................................................................................................................................................. 7 5 Information of the Testing Laboratories .................................................................................................................. 8 Report No.: MFBFLF-WTW-P23030355 Page No. 3 / 8 Report Format Version: 7.1.0 Reference No.: BFLF-WTW-P23030355 Release Control Record Issue No. Description Date Issued MFBFLF-WTW-P23030355 Original release. 2024/1/12 Report No.: MFBFLF-WTW-P23030355 Page No. 4 / 8 Report Format Version: 7.1.0 Reference No.: BFLF-WTW-P23030355 1 Certificate Product: Gigabit PoE+ VPN Wired Router Brand: ASUS Test Model: EBG19P Sample Status: Engineering sample Applicant: ASUSTeK COMPUTER INC. Test Date: 2023/12/12 FCC Rule Part: FCC Part 2 (Section 2.1091) Standard: KDB 447498 D04 Interim General RF Exposure Guidance v01 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Report No.: MFBFLF-WTW-P23030355 Page No. 5 / 8 Report Format Version: 7.1.0 Reference No.: BFLF-WTW-P23030355 2 Applicable RF Exposure Limit § 1.1310 Radiofrequency radiation exposure limits. (a) Specific absorption rate (SAR) shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in § 1.1307(b) of this part within the frequency range of 100 kHz to 6 GHz (inclusive). (b) The SAR limits for occupational/controlled exposure are 0.4 W/kg, as averaged over the whole body, and a peak spatial-average SAR of 8 W/kg, averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the parts of the human body treated as extremities, such as hands, wrists, feet, ankles, and pinnae, where the peak spatial-average SAR limit for occupational/controlled exposure is 20 W/kg, averaged over any 10 grams of ti…

Text truncated - open the document above for the full version.

Item Page 1.1 2.2 3. .................. 測試報告 ............... 3~12 ................................. 成品圖 Contents Description ................................. 規格表 Specification 1. Electrical Properties : With housing/With Cable Loss(BT) 1.1Frequency Range.............. 1.2 Impedance .................... 1.3 VSWR...................1.92：1 Max. 1.4Return Loss...................10 dB Min. 1.5Radiation .....................Omni-directional 1.6 Peak Gain...........................2.4 ~ 2.5 GHz <2.3 dBi 1.7Cable Loss.....................0.15 dB Max. 1.8 Polarization........................Linear 1.9 Cable...........................Φ1.13mm Coaxial Cable; Gray 1.10 Connector.....................I-PEX MHF Connector 2. Physical Properties : 2.1Operating Temp. .............-10°C ~ +60°C 2.2Storage Temp. ................-10°C ~ +70°C RF Antenna Assembly 2.4~2.5 GHz 50Ω Nominal FILE : 6 5 4 3 2 .XX±0.2 ±0.5 ±1.0 ±3.0 ±5.0 .X X. XX. DRAWING CHECKED APPROVED SHEET : 1/1 UNIT REV mm X2 CUSTOMER: PART NO : W.Y P/NO : PART NAME: 1 A BCDE 5 6 2 3 4 1 FG CUSTOMER'S SIGNATURE 訊舟 DESCRIPTION NO Q'TY 2 1 1 REMARK 1 PCB Cable Φ1.13mm Coaxial Cable;Gray[灰色] REV DATE DESCRIPTION X1 New Issue 02/21-2023 CG- 0.80±0.1 3 1 Connector EVA+3M 9448A ; Black[黑色] 泡棉雙面背膠 FR4 , 31mil ,1/2 Oz 41 WITHOUT THE WRITTEN CONSENT OF WHA YU. BE COPIED, REPRODUCED, OR GIVEN TO THIRD PARTIES ARE THE PROPERTY OF WHA YU AND AS SUCH MAY NOT THIS DRAWING, AND IT'S INHERANT DESIGN CONCEPTS, Wha Yu Group 熱封留氣孔 T=2mm I-PEX MHF Connector RF Antenna Assembly [37.70±0.3] [22.00±0.3] 離型紙 1 (25 pcs/珍珠棉袋) Packing : 50 pcs/bag ..... XXX. EVA+3M 9448A ; Black[黑色] 泡棉雙面背膠 5 1T=2mm [ 3 3 ± 3 ] 3 2 5 4 離型紙 C059-510484-A Label 成品淨重:XXX± 5%mg GP GP標籤貼於紙箱側麥左上角(共2PCS) 外箱標籤貼於紙箱側麥右上角(共1PCS) 7.00 7.00 L=50mm [ 5 0 ± 3 ] 1680-00000737-50Z X2 Whayu Industrial Co.,LTD 100-40083336-BZ X2 Modify PCB 11/02-2023 SRF20231255 NE1-23001for 9P VPNRouter Version: V2.11 Released Date:2023/09/15 Prepared By: Neal Reviewed By: Tim Cheng 1 Contents Revised History Conclusion & Comments Specification Antenna Placement & Solution Test Setup for Radiation Pattern Measurement 2D Radiation Pattern Results Results Summary 2 3 Revision History Released Date Version Record 2022/09/051.00Antennas first testing report. 2022/10/051.01Antennas first testing report. 2022/10/181.02 優化效率 >=50% 2023/01/122.03The antenna is designed in housing of 9P. 2023/01/182.04The antenna is designed in housing of 5P. 2023/02/032.05The antenna is designed in housing of 9P. 2023/02/032.06The antenna is designed in housing of 5P. 2023/02/072.07Increases the antenna size of the PCB in housing of 9P. 2023/02/072.08Increases the antenna size of the PCB in housing of 5P. 2023/02/202.09Increases the antenna size of the PCB in housing of 9P. 2023/02/202.10Increases the antenna size of the PCB in housing of 5P. 2023/09/152.11The motherboard updates of 9P 4 Specification RF FunctionNumber of ANT Frequency BandRemark BT12400-2500 MHz Requirements of Antenna Design Requirements of Measurement Test ItemSpecificationRemark Return loss> 10 dB Efficiency> 30% Peak gain < 3 dBi Radiation pattern Scale: +10 ~ -40dBi, Angle step size: 5 degree Antenna Placement & Solution Antenna ANT Type Size (L * W * H)Cable Length (mm) Cable Type BT PCB ANT37.7mm*22.8mm*0.8mm 50mmΦ=1.13 cable and 2mm EVA BT 5 6 BT Return Loss Results 7 Test Setup for Radiation Pattern Measurement Chamber Information AUT X Y Z •SATIMO SG-24L Multi-Probe Antenna Measurement System •Angle between probes: 15 ° •Frequency range: 400 MHz – 8.5 GHz •Chamber Room Size: 5m L x 5m W x 5m H Y Z X Left Front Down Right(+X) Up(+Z) Back(+Y) 8 2D Radiation Pattern Results BT X Z Y Z Y X X Z Y Z Y X 9 3D Total Peak gain & Efficiency –BT Results Summary BT Frequency (MHz)Peak Gain (dBi)Efficiency (%) 2400 2.943.8 2450 2.544.5 2500 1.642.9 10 2D Peak gain–BT Results Summary BTXZ-PlaneYZ-PlaneXY-Plane Frequency (MHz)2D Peak Gain (dBi)2D Peak Gain (dBi)2D Peak Gain (dBi) 2400 0.3-0.6-1.3 2450 0.40.4-1.2 2500 0.00.7-1.7

Report No.: RFBFLF-WTW-P23030355 Page No. 1 / 37 Report Format Version: 7.1.0 Reference No.: BFLF-WTW-P23030355 TEST REPORT CERTIFICATE OF CONFORMITY Standard: 47 CFR FCC Part 15, Subpart C (Section 15.247) Report No.: RFBFLF-WTW-P23030355 FCC ID: MSQ-WR6B00 Product: Gigabit PoE+ VPN Wired Router Brand: ASUS Model No.: EBG19P Received Date: 2023/11/1 Test Date: 2023/12/8 ~ 2023/12/18 Issued Date: 2024/1/12 Applicant: ASUSTeK COMPUTER INC. Address: 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112, Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan FCC Registration / Designation Number: 198487 / TW2021 Approved by: , Date: 2024/1/12 Jeremy Lin / Project Engineer This test report consists of 37 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Prepared by : Annie Chang / Senior Specialist This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: RFBFLF-WTW-P23030355 Page No. 2 / 37 Report Format Version: 7.1.0 Reference No.: BFLF-WTW-P23030355 Table of Contents Release Control Record ....................................................................................................................................................... 4 1 Certificate .................................................................................................................................................................... 5 2 Summary of Test Results .......................................................................................................................................... 6 2.1 Measurement Uncertainty ........................................................................................................................................ 6 2.2 Supplementary Information ...................................................................................................................................... 6 3 General Information ................................................................................................................................................... 7 3.1 General Description .................................................................................................................................................. 7 3.2 Antenna Description of EUT ..................................................................................................................................... 7 3.3 Channel List .............................................................................................................................................................. 8 3.4 Test Mode Applicability and Tested Channel Detail .................................................................................................. 9 3.5 Duty Cycle of Test Signal .......................................................................................................................................... 9 3.6 Test Program Used and Operation Descriptions .................................................................................................... 10 3.7 Connection Diagram of EUT and Peripheral Devices ............................................................................................ 10 3.8 Configuration of Peripheral Devices and Cable Connections ................................................................................ 10 4 Test Instruments ...................................................................................................................................................... 11 4.1 RF Output Power .................................................................................................................................................... 11 4.2 Power Spectral Density .......................................................................................................................................... 11 4.3 6 dB Bandwidth ............................................................................…

Text truncated - open the document above for the full version.

Reference No.:RFBFLF-WTW-P23030355-TSup Page 1/3 PHOTOGRAPHS OF THE TEST CONFIGURATION AC Power Conducted Emissions Reference No.:RFBFLF-WTW-P23030355-TSup Page 2/3 Unwanted Emissions below 1 GHz Reference No.:RFBFLF-WTW-P23030355-TSup Page 3/3 Unwanted Emissions above 1 GHz
