MSQ-X101HNE785HEee PC

Eee PC User Manual Eee PC X101H 15G06QXXXXXX E6663 Notes for This Manual A few notes and warnings are used throughout this guide, allowing you to complete certain tasks safely and effectively. These notes have different degrees of importance as follows: WARNING! Important information that must be followed for safe operation. IMPORTANT! Vital information that must be followed to prevent damage to data, components, or persons. TIP: Tips for completing tasks. NOTE: Information for special situations. ASUS is devoted to creating environment-friendly products/ packagings to safeguard consumers’ health while minimizing the impact on the environment. In order to reduce the use of substances harmful to the environment, the Eee PC™ product package does not come with the Eee PC™ support DVD. The reduction of the number of the manual pages complies with the reduction of carbon emission. For system recovery, refer to the section Using Recovery Partition for the instruction on the F9 recovery. For the detailed user manual and related information, refer to the user manual from the Window® desktop or visit the ASUS Support Site at http://support.asus.com/ ASUS Eee PC  Transportation Precautions To prepare your Eee PC for transport, you should turn it OFF and disconnect all external peripherals to prevent damage to the connectors. The hard disk drive’s head retracts when the power is turned OFF to prevent scratching of the hard disk surface during transport. Therefore, you should not transport your Eee PC while the power is still ON. Close the display panel to protect the keyboard and display panel. The Eee PC’s surface is easily dulled if not properly cared for. Be careful not to rub or scrape surfaces when transporting your Eee PC. You can put your Eee PC in a carrying case for protection from dirt, water, shock, and scratches. There are three main types of airport security devices: X-ray machines (used on items placed on conveyor belts), magnetic detectors (used on people walking through security checks), and magnetic wands (hand- held devices used on people or individual items). You can send your Eee PC and diskettes through airport X-ray machines. However, it is recommended that you do not send your Eee PC or diskettes through airport magnetic detectors or expose them to magnetic wands. Airplane Precautions Contact your airline if you want to use the Eee PC on the airplane. Most airlines have restrictions for using electronic devices. Most airlines allow electronic use only between and not during takeoffs and landings. Charging Your Batteries If you intend to use battery power, be sure to fully charge your battery pack before going on long trips. Remember that the power adapter charges the battery pack as long as it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge the battery pack when the Eee PC is in use. Remember to fully charge the battery (8 hours or more) before first use and whenever it is depleted to prolong battery life. The battery reaches its maximum capacity after a few full charging and discharging cycles. Sound Pressure warning Excessive sound pressure from earphones or headphones can cause hearing damage or loss. Adjustment of the volume control as well as the equalizer to settings other than the center position may increase the earphones or headphones output voltage and the sound pressure level. ASUS Eee PC 3 Top Side The top side may vary in appearance depending on models. Pause SysRq NumLK ScrLK Delete Backspace Break 4 7 5 8 2 3 1 6 ASUS Eee PC  7 1 2 3 4 5 6 8 Built-in Camera LED Microphone (Built-in) Built-in Camera Display Panel Power Switch The power switch allows powering ON and OFF the Eee PC and recovering from standby mode. Press the switch once to turn ON and hold it to turn OFF the Eee PC. The power switch only works when the display panel is opened. Power Indicator The power indicator lights when the Eee PC is turned ON and blinks slowly when the Eee PC is in the Suspend-to-RAM (Sleep) mode. This indicator is OFF when the Eee PC is turned OFF. Keyboard The keyboard differs for each territory. Touchpad and Buttons Status Indicators Battery Charge Indicator The battery charge indicator (LED) shows the battery charging status as follows: Powered ON With Adapter Without Adapter High battery power (95%–100%) Green ONOff Medium battery power (11%–94%) Orange ONOff Low battery power (0%–10%) Orange BlinkingOrange Blinking Powered OFF / Standby mode With Adapter Without Adapter High battery power (95%–100%) Green ONOff Medium battery power (11%–94%) Orange ONOff Low battery power (0%–10%) Orange Blinking Off ASUS Eee PC 5 Hard Disk Drive (HDD) Indicator The hard disk drive indicator blinks when data is written to or read from the disk drive. Power Indicator The power indicator lights when the Eee PC is turned ON and blinks slowly when the Eee PC is in the Suspend-to-RAM (Sleep) mode. This indicator is OFF when the Eee PC is turned OFF. Wireless/Bluetooth Indicator This is only applicable on models with built-in wireless LAN/ Bluetooth (on selected models). When the built-in wireless LAN/ Bluetooth is enabled, this indicator lights. Capital Lock Indicator Indicates that capital lock [Caps Lock] is activated when lighted. Capital lock allows some of the keyboard letters to type using capitalized letters (e.g. A, B, C). When the capital lock light is OFF, the typed letters will be in the lower case form (e.g. a,b,c). ASUS Eee PC 6 Bottom Side The bottom side may vary in appearance depending on model. The bottom of the Eee PC can get very hot. Be careful when handling the Eee PC while it is in operation or recently been in operation. High temperatures are normal during charging or operation. DO NOT USE ON SOFT SURFACES SUCH AS SOFAS OR BEDS, WHICH MAY BLOCK THE VENTS. DO NOT PUT THE Eee PC ON YOUR LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE HEAT. 4 123 1 2 Battery Pack Battery time varies by usage and by the specificat…

Text truncated - open the document above for the full version.

July 11, 2011 Declaration Letter We, the undersigned ASUSTek COMPUTER INC. hereby declare. The device Model : Eee PC X101H, FCC ID: MSQ-X101HNE785H, IC: 3568A-X101HNE785H complete below list. The device supports two models of antenna and antenna gain list in below. The worst SAR test value is in highest antenna gain and show in test report. Bsse on KDB 178919 D01 Permissive Change Policy v05r01, only highest gain of antenna shall be tested when SAR testing value is small than 0.8 W/kg. No. Manufacturer Part No. Peak Gain 1 INPAQ WA-P-LA-02-040 2.3 2.3 dBi in 2.4 GHz (Main) 2 YAGEO CAN43131WLAS05611 1.98 dBi in 2.4 GHz (Main) Sincerely, Jackson Yen / Associate Vice President ASUSTeK COMPUTER INC.

ASUSTeK COMPUTER INC. No. 15, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. TEL No: 886-2-2894-3447 FAX No.: 886-2-2898-7364 Attestation for FCC Declaration of Conformity FCC ID: MSQ-X101HNE785H Data: June 29, 2011 Please be notified that we, the undersigned, ASUSTeK COMPUTER INC. .declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is DOCTR0001. (116118R-ITUSP02V02) Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Jackson Yen / Associate Vice President ASUSTeK COMPUTER INC. Tel: 886-2-2894-3447 Fax: 886-2-2898-7364 Email: [email protected]

ASUSTeK COMPUTER INC. FCC ID.: MSQ-X101HNE785H No. 15, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel : 886-2-2894-3447 Federal Communications Commission June 29 , 2011 Authorization and Evaluation Division ATTESTATION FCC ID: MSQ-X101HNE785H Product: Eee PC Model: Eee PC X101H We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, Jackson Yen / Associate Vice President ASUSTeK COMPUTER INC.

ASUSTeK COMPUTER INC. FCC ID.: MSQ-X101HNE785H No. 15, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel : 886-2-2894-3447 ASUSTeK COMPUTER INC. No. 15, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel : 886-2-2894-3447 Fax: 886-2-2898-7364 Federal Communications Commission June 29 , 2011 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics : (Eee PC X101H) Schem Block Diagram: (Eee PC X101H) BlkDia Operational Description: (Eee PC X101H) OPDes The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Jackson Yen / Associate Vice President ASUSTeK COMPUTER INC.

RF_160, Issue 02 ASUSTeK COMPUTER INC. Declaration of Authorization We Name: ASUSTeK COMPUTER INC. Address: No. 15, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C.. City: TAIPEI ............................................................... . Country: TAIWAN ..................................................................... . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Eee PC Type designation: Eee PC X101H Trademark: ASUS on our behalf. Date: ...... 2011/06/29 ...... .. City: ...... TAIPEI ............... .. Name: ...... Jackson Yen ...... .. (2) Function: Associate Vice Presidentr Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

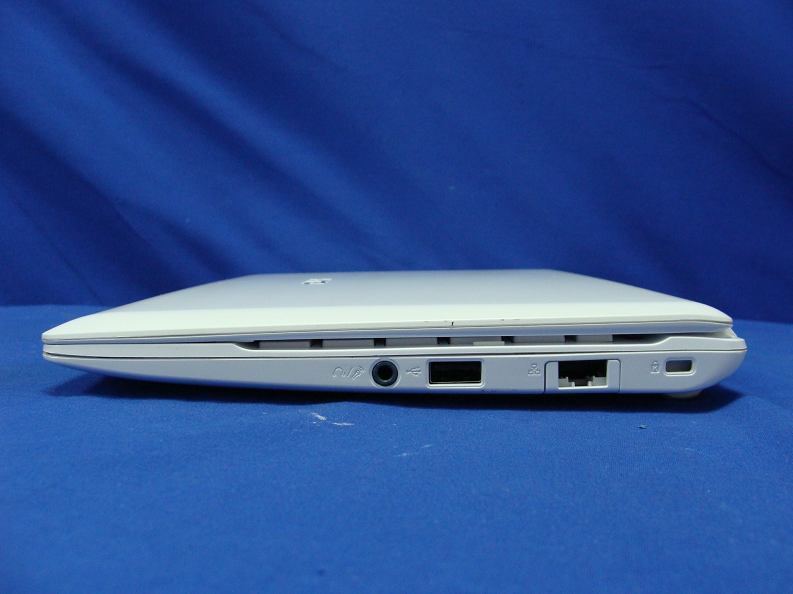

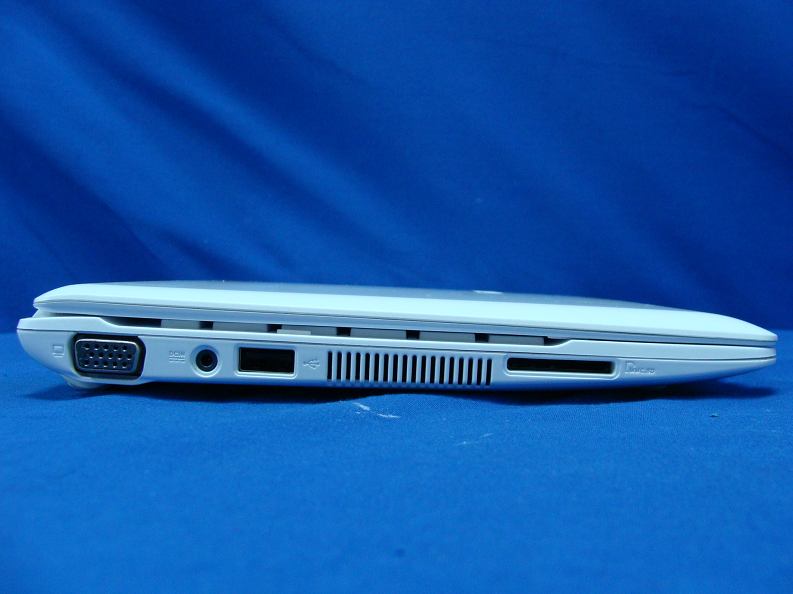

Report No.: 116119R-RFUSP42V01 Page : 1 of 12 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 116119R-RFUSP42V01 Page : 2 of 12 (3) EUT Photo (4) EUT Photo Report No.: 116119R-RFUSP42V01 Page : 3 of 12 (5) EUT Photo (6) EUT Photo

ASUSTeK COMPUTER INC. FCC ID.: MSQ-X101HNE785H No. 15, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel : 886-2-2894-3447 FCC ID Label ASUSTeK COMPUTER INC. FCC ID.: MSQ-X101HNE785H No. 15, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel : 886-2-2894-3447 The FCC ID and Doc Label will be placed on the equipment as shown in the photograph below.

ASUSTeK COMPUTER INC. FCC ID.: MSQ-X101HNE785H No. 15, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel : 886-2-2894-3447 FCC ID Label ASUSTeK COMPUTER INC. FCC ID.: MSQ-X101HNE785H No. 15, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel : 886-2-2894-3447 The FCC ID and Doc Label will be placed on the equipment as shown in the photograph below.

Report No.: 116119R-RFUSP42V01 Page : 4 of 12 (7) EUT Photo (8) EUT Photo Report No.: 116119R-RFUSP42V01 Page : 5 of 12 (9) EUT Photo (10) EUT Photo INPAQ Main Ant YAGEO Main Ant Report No.: 116119R-RFUSP42V01 Page : 6 of 12 (11) EUT Photo (12) EUT Photo Report No.: 116119R-RFUSP42V01 Page : 7 of 12 (13) EUT Photo (14) EUT Photo Report No.: 116119R-RFUSP42V01 Page : 8 of 12 (15) EUT Photo (16) EUT Photo Report No.: 116119R-RFUSP42V01 Page : 9 of 12 (17) EUT Photo (18) EUT Photo Report No.: 116119R-RFUSP42V01 Page : 10 of 12 (19) EUT Photo (20) EUT Photo Report No.: 116119R-RFUSP42V01 Page : 11 of 12 (21) EUT Photo (22) EUT Photo Report No.: 116119R-RFUSP42V01 Page : 12 of 12 (23) EUT Photo

Report No：116119R-HPUSP09V01 Page: 1 of 24 SAR Test Report Product Name ：Eee PC Model No. ：Eee PC X101H Applicant ：ASUSTeK COMPUTER INC. Address ：No. 15, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt ：2011/06/02 Issued Date ：2011/06/22 Report No. ：116119R-HPUSP09V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：116119R-HPUSP09V01 Page: 2 of 24 Test Report Certification Issued Date: 2011/06/22 Report No.:116119R-HPUSP09V01 Product Name ： Eee PC Applicant ： ASUSTeK COMPUTER INC. Address ： No. 15, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer ： 1. PEGATRON CORPORATION Taoyuan Mfg 2. Protek (Shanghai) Limited 3. Tech-Com(Shanghai) Computer Co.Ltd. Model No. ： Eee PC X101H Trade Name ： ASUS FCC ID ： MSQ-X101HNE785H Applicable Standard ： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Measurement procedures ： KDB 447498 , KDB 612617, KDB 248227 Test Result ： Max. SAR Measurement (1g) 0.026 W/kg Application Type ： Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By ： (Adm. Assistant / April Chen ) Tested By ： (Engineer / Eric Kao) Approved By ： (Manager / Vincent Lin) Report No：116119R-HPUSP09V01 Page: 3 of 24 TABLE OF CONTENTS Description Page 1. General Information.......................................................................................5 1.1 EUT Description ............................................................................................................5 1.2 Antenna List ................................................................................................................... 5 1.3 Test Environment ...........................................................................................................6 2. SAR Measurement System..........................................................................7 2.1 DASY5 System Description .......................................................................................... 7 2.1.1 Applications ................................................................................................................ 8 2.1.2 Area Scans................................................................................................................... 8 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 8 2.2 DASY5 E-Field Probe ................................................................................................... 9 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 10 2.5 Robot ............................................................................................................................ 11 2.6 Light Beam Unit........................................................................................................... 11 2.7 Device Holder ..............................................................................................................12 2.8 SAM Twin Phantom .................................................................................................... 12 3. Tissue Simulating Liquid...........................................................................13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure..................................................................15 4.1 SAR System Validation................................................................................................ 15 4.1.1 Validation Dipoles..................................................................................................... 15 4.1.2 Validation Result ....................................................................................................... 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits..................................................................................17 6. Test Equipment List.....................................................................................18 7. Measurement Uncertainty..........................................................................21 8. Average Conducted Power Measurement............................................22 9. Test Results....................................................................................................23 9.1 SAR Test Results Summary ......................................................................................... 23 Report No：116119R-HPUSP09V01 Page: 4 of 24 Appendix ............................................................................................................................ 24 Appendix A. SAR System Validation Data........................................................................ 24 Appendix B. SAR measurement Data................................................................................ 24 Appendix C. Test Setup Photographs & EUT Photographs............................................... 24 Appendix D. Probe Calibration Data ................................................................................. …

Text truncated - open the document above for the full version.

Report No. 116119R-RFUSP42V01 Page : 1 of 113 Test Report Product Name Eee PC Model No Eee PC X101H FCC ID. MSQ-X101HNE785H Applicant ASUSTeK COMPUTER INC. Address No. 15, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt June 02, 2011 Issue Date June 29, 2011 Report No. 116119R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 116119R-RFUSP42V01 Page : 2 of 113 Test Report Certification Issue Date: June 29, 2011 Report No.: 116119R-RFUSP42V01 Product Name Eee PC Applicant ASUSTeK COMPUTER INC. Address No. 15, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer 1. PEGATRON CORPORATION Taoyuan Mfg 2. Protek (Shanghai) Limited. 3. Tech-Com(Shanghai) Computer Co. Ltd. Model No. Eee PC X101H FCC ID. MSQ-X101HNE785H EUT Rated Voltage AC 100-240V, 50-60Hz EUT Test Voltage AC 120V/60Hz Trade Name ASUS Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2009 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Rita Huang ) Tested By : ( Engineer / Henk Huang ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 116119R-RFUSP42V01 Page : 3 of 113 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................9 1.6. Test Facility .................................................................................................................................10 2. Conducted Emission.................................................................................................................. 11 2.1. Test Equipment............................................................................................................................11 2.2. Test Setup ....................................................................................................................................11 2.3. Limits ..........................................................................................................................................12 2.4. Test Procedure .............................................................................................................................12 2.5. Uncertainty ..................................................................................................................................12 2.6. Test Result of Conducted Emission.............................................................................................13 3. Peak Power Output ...................................................................................................................15 3.1. Test Equipment............................................................................................................................15 3.2. Test Setup ....................................................................................................................................15 3.3. Limits ..........................................................................................................................................15 3.4. Test Procedure .............................................................................................................................15 3.5. Uncertainty ..................................................................................................................................15 3.6. Test Result of Peak Power Output...............................................................................................16 4. Radiated Emission .....................................................................................................................20 4.1. Test Equipment............................................................................................................................20 4.2. Test Setup ....................................................................................................................................21 4.3. Limits ..........................................................................................................................................22 4.4. Test Procedure .............................................................................................................................23 4.5. Uncertainty ..................................................................................................................................23 4.6. Test Result of Radiated Emission................................................................................................24 5. RF antenna conducted test........................................................................................................40 5.1. Test Equipment...........................................................................................…

Text truncated - open the document above for the full version.

Report No. 116119R-RFUSP42V01 Page: 85 of 113 7. Occupied Bandwidth 7.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2011 8-WAY Power Divider JFW 50PD-647 / 526770 0916 Apr., 2011 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 3. The power combiner is used for measure 11n mode. 7.2. Test Setup 7.3. Limits The minimum bandwidth shall be at least 500 kHz. 7.4. Test Procedure The EUT was setup according to ANSI C63.4, 2009; tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. Set RBW = 100 kHz, Span greater than RBW. 7.5. Uncertainty ± 150Hz SMA EUT Spectrum Analyzer RF Cable Report No. 116119R-RFUSP42V01 Page: 86 of 113 7.6. Test Result of Occupied Bandwidth Product : Eee PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412 12090 >500 Pass Figure Channel 1: Report No. 116119R-RFUSP42V01 Page: 87 of 113 Product : Eee PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437 12090 >500 Pass Figure Channel 6: Report No. 116119R-RFUSP42V01 Page: 88 of 113 Product : Eee PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462 12070 >500 Pass Figure Channel 11: Report No. 116119R-RFUSP42V01 Page: 89 of 113 Product : Eee PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412 16430 >500 Pass Figure Channel 1: Report No. 116119R-RFUSP42V01 Page: 90 of 113 Product : Eee PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437 16430 >500 Pass Figure Channel 6: Report No. 116119R-RFUSP42V01 Page: 91 of 113 Product : Eee PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462 16420 >500 Pass Figure Channel 11: Report No. 116119R-RFUSP42V01 Page: 92 of 113 Product : Eee PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412 17650 >500 Pass Figure Channel 1: Report No. 116119R-RFUSP42V01 Page: 93 of 113 Product : Eee PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437 17640 >500 Pass Figure Channel 6: Report No. 116119R-RFUSP42V01 Page: 94 of 113 Product : Eee PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462 17610 >500 Pass Figure Channel 11: Report No. 116119R-RFUSP42V01 Page: 95 of 113 Product : Eee PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2422MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2422 36360 >500 Pass Figure Channel 1: Report No. 116119R-RFUSP42V01 Page: 96 of 113 Product : Eee PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 4 2437 36360 >500 Pass Figure Channel 4: Report No. 116119R-RFUSP42V01 Page: 97 of 113 Product : Eee PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2452MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 7 2452 36340 >500 Pass Figure Channel 7: Report No. 116119R-RFUSP42V01 Page: 98 of 113 8. Power Density 8.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2011 8-WAY Power Divider JFW 50PD-647 / 526770 0916 Apr., 2011 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 3. The power combiner is used for measure 11n mode. 8.2. Test Setup 8.3. Limits The transmitted power density averaged over any 1 second interval shall not be greater +8dBm in any 3kHz bandwidth. 8.4. Test Procedure The EUT was setup according to ANSI C63.4, 2009; tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. Set RBW= 3 kHz, VBW=10KHz, Sweep time=(SPAN/3KHz), detector=Peak detector 8.5. Uncertainty ± 1.27 dB SMA EUT Spectrum Analyzer RF Cable Report No. 116119R-RFUSP42V01 Page: 99 of 113 8.6. Test Result of Power Density Product : Eee PC Test Item : Power Density Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2412MHz) Channel No.…

Text truncated - open the document above for the full version.

Report No.: 116119R-RFUSP42V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 116119R-RFUSP42V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated…
