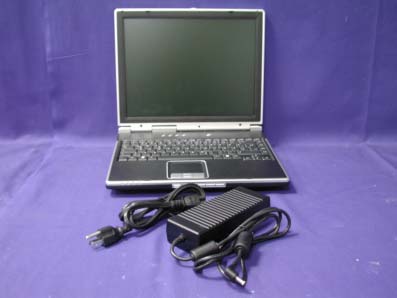

Report No.: 043L086FI Page : 1 of 5 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

ASUSTek COMPUTER INC. FCC ID.: MSQA2DWM3B2200 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel: +886 2 2894-3447 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Notebook P.C. ATIO Model No.: A2400D, A2500D, A2800D, A2400, A2500, A2800, TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Notebook P.C. Model No.: A2400D, A2500D, A2800D, A2400, A2500, A2800, F F C C C C I I D D : : M M S S Q Q A A 2 2 D D W W M M 3 3 B B 2 2 2 2 0 0 0 0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

ASUSTek COMPUTER INC. FCC ID.: MSQA2DWM3B2200 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel: +886 2 2894-3447 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Notebook P.C. ATIO Model No.: A2400D, A2500D, A2800D, A2400, A2500, A2800, TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Notebook P.C. Model No.: A2400D, A2500D, A2800D, A2400, A2500, A2800, F F C C C C I I D D : : M M S S Q Q A A 2 2 D D W W M M 3 3 B B 2 2 2 2 0 0 0 0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No.: 043L086FI Page : 2 of 5 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 043L086FI Page : 3 of 5 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 043L086FI Page : 4 of 5 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 043L086FI Page : 5 of 5 Version:1.0 (9) EUT Photo (10) EUT Photo

Report No. 043L086FI Page: 5 of 64 Version:1.0 1.2. Operational Description EUT is a Notebook P.C with 11 channels. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps. The device of RF carrier is DQPSK, DB PSK and CCK (IEEE 802.11b) or eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps. The device of RF carrier is OFDM (IEEE 802.11g). The device adapts direct sequence spread spectrum modulation. The antenna was Connector provides diversity function to improve the receiving function. This Notebook P.C, compliant with IEEE 802.11b and IEEE 802.11g, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the Notebook P.C Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g network. Test Mode: Mode 1: Transmitter 802.11b Mode 1: Transmitter 802.11g

Report No. 043L086FI Page: 1 of 3 Version: 1.0 RF Exposure Evaluation declaration Product Name : Notebook P.C Model No. : A2400D, A2500D, A2800D, A2400, A2500, A2800 FCC ID MSQA2DWM3B2200 Applicant : ASUSTeK COMPUTER INC. Address : 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt : Mar. 12, 2004 Date of Declaration: Mar. 22, 2004 Report No. : 043L086FI The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 043L086FI Page: 2 of 3 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18and 78 RH. Report No. 043L086FI Page: 3 of 3 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Notebook P.C Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.54dBi in linear scale. 802.11b Output Power Into Antenna & RF Exposure Evaluation Distance (1.54dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 2.5 cm (mW/cm2) 1 2412.80 61.6595 0.7327 6 2437.80 61.8016 0.7344 11 2461.30 61.5177 0.7310 802.11g Output Power Into Antenna & RF Exposure Evaluation Distance (1.54dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 2.5 cm (mW/cm2) 1 2410.10 29.2415 0.3475 6 2433.10 26.0615 0.3097 11 2460.50 27.1644 0.3228 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 2.5 cm separation requirement.
