MSQA2HWM3B2100Notebook P.C.

Product Name:Notebook PC Hardware Manual Revision:1 E1309 Release Date:April 2003 Notebook PC Hardware User’s Manual FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. 2 Safety Statements Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, there is no guarantee that inter- ference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal Register, National Archives and Records Administration, U.S. Government Printing Office. Power Safety Requirement Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm 2 or H05VV-F, 2G, 0.75mm 2 . Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003. (Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.) For use with AC Adaptor Model (Pour Utiliser Avec Modele): ADP-65DB (65W) WARNING! The use of a shielded-type power cord is required in order to meet FCC emission limits and to prevent interference to the nearby radio and television recep- tion. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. 3 Safety Statements Nordic Cautions (for Notebook PC with Lithium-Ion Battery) (Japanese) Macrovision Corporation Product Notice This product incorporates copyright protection technology that is protected by method claims of certain U.S.A. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. CDRH Regulations The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration implemented regulations for laser products on August 2, 1976. These regulations apply to laser products manufactured from August 1, 1976. Compliance is mandatory for products marketed in the United States. ATTENZIONE! Rischio di esplosione della batteria se sostituita in modo errato. Sostituire la batteria con un una di tipo uguale o equivalente consigliata dalla fabbrica. Non disperdere le batterie nell’ambiente. (Italian) VORSICHT! Explosionsgetahr bei unsachgemäßen Austausch der Batterie. Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers. (German) ADVARSELI! Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren. (Danish) VARNING! Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion. (Swedish) VAROITUS! Paristo voi räjähtää, jos se on virheellisesti asenne…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA SIS 962 +5V P.22 P.27 P.7, 8, 9 P.31, 32 FAN I CRT & TV AC97 VCC_CORE = 1.5V/1.525V VCC_VID = 1.2V P4 Northwood DTP Processor P.21 P.18 VCORE +1.8V +2.5V +1.25V USB X 3 +3V MIC. AMP. LCD P.18 VBX2 CD/DVD P.4, 5 SM BUS +3V P.12 EAR P.18 +3V +5V +VCORE +1.8V +3V +1.8VAUX +3VAUX +2.5V +1.25V LINE IN TIP/RING +3V +5V SIS 962 SIO ITE IT8705 HOST BUS 400 MT/S +5V +5VAUDIO MDC +5V +3V FLASH SIS M650 AUDIO DJ LPC 16.6 MB/S ATA 66/100 SYSTEM POWER 16 Bit HYPERZIP Interface 533 MB/S P.9, 10 P.17 +3VA AC LINK CLOCK DDR266 SODIMM X 2 KBC ENE KB3886 Power Sequence 1) Power On Button 2) System Power On 3) System Power OK 4) CPU VID & VCORE On 5) CPU Power Good +5V+3V +5V CLOCK GEN. P.26P.26 +3V P.12 CARDBUS PCI1410 +3V +5V +12V P.13 +3VAUX, +3V P.14, 15 P.30 P.12 P.28 FAN II +5VAUDIO AUDIO AMP P.12 MINIPCI SIS 302 LV CONNECTOR CARDBUS SLOT X 1 P.6 HDD CPU CORE V.R. P.22 +3V AC_BAT_SYS P.12 VCCA VPPA P.18 P.24 P.12 MEMORY BUS 1.6 GB/S P.16 LAN PHY RealTek 8201BL MIC. 1394 X 1 P.24 P.21 +3V POWER SW. TPS2211A INSTANT KEY P.12 P.20 PCI BUS 133MB/S +3V USB KEYBOARD TOUCHPAD P.11 +3V P.19 1394 PHY SIR LPT P.25 P.25 AUDIO BOARD VCH BOARD Custom 234Friday, April 25, 2003 ASUSTek COMPUTER INC. BLOCK DIAGRAM 2.0 A2400H A2H SizeProject Name Rev Date:Sheet of Title : Engineer:

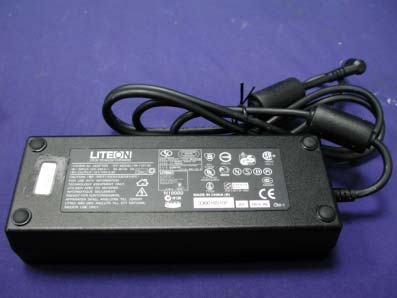

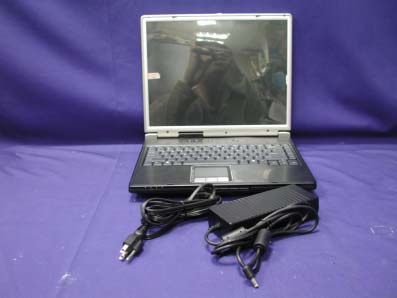

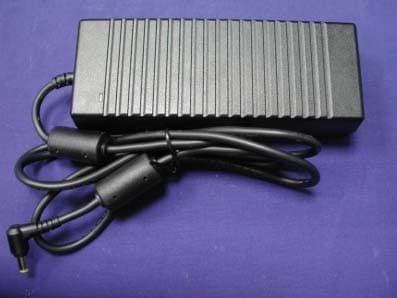

Report No.: 043L084FI Page : 1 of 9 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 043L084FI Page : 2 of 9 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 043L084FI Page : 3 of 9 Version:1.0 (5) EUT Photo (6) EUT Photo

ASUSTek COMPUTER INC. FCC ID.: MSQA2HWM3B2100 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel: +886 2 2894-3447 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Notebook P.C. ATIO Model No.: A2400H, A2400L, A2500H, A2500L, A2800H, A2800L, A2400, A2500, A2800 TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Notebook P.C. Model No.: A2400H, A2400L, A2500H, A2500L, A2800H, A2800L, A2400, A2500, A2800 F F C C C C I I D D : : M M S S Q Q A A 2 2 H H W W M M 3 3 B B 2 2 1 1 0 0 0 0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

ASUSTek COMPUTER INC. FCC ID.: MSQA2HWM3B2100 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel: +886 2 2894-3447 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Notebook P.C. ATIO Model No.: A2400H, A2400L, A2500H, A2500L, A2800H, A2800L, A2400, A2500, A2800 TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Notebook P.C. Model No.: A2400H, A2400L, A2500H, A2500L, A2800H, A2800L, A2400, A2500, A2800 F F C C C C I I D D : : M M S S Q Q A A 2 2 H H W W M M 3 3 B B 2 2 1 1 0 0 0 0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

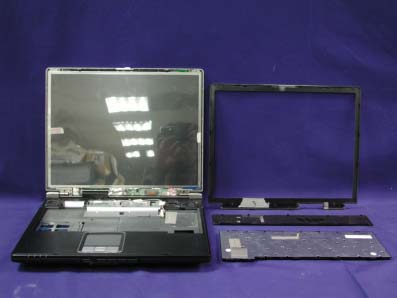

Report No.: 043L084FI Page : 4 of 9 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 043L084FI Page : 5 of 9 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 043L084FI Page : 6 of 9 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 043L084FI Page : 7 of 9 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 043L084FI Page : 8 of 9 Version:1.0 (15) EUT Photo (16) EUT Photo Report No.: 043L084FI Page : 9 of 9 Version:1.0 (17) EUT Photo (18) EUT Photo

Report No. 043L084FI Page: 5 of 46 Version:1.0 1.2. Operational Description EUT is a Notebook P.C. with wireless LAN adapter. This device provided 11 channels and four kind of transmitting speed 1,2,5.5 and 11Mbps. The device of RF carrier is DQPSK, DB PSK and CCK. The device adapts direct sequence spread spectrum modulation. The Connector antenna was provides diversity function to improve the receiving function. This Notebook P.C. is an IEEE 802.11b Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the Notebook P.C. transfers data at speeds up to 64/128-bit Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b network.

Report No. : ES/2004/30002 Page : 1 of 48 TEST REPORT Equipment Under Test : Notebook P.C. Model No. : A2400H, A2400L, A2500H, A2500L, A2800H, A2800L, A2400, A2500, A2800 FCC ID : MSQA2HWM3B2100 Applicant : ASUSTeK COMPUTER INC. Address of Applicant : 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt : 2004.04.22 Date of Test(s) : 2004.03.19-2004.03.22 Date of Issue : 2004.04.22 Standards: FCC OET Bulletin 65 supplement C, ANSI/IEEE C95.1 , C95.3 In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Taiwan E&E Services or testing done by SGS Taiwan E&E Services in connection with distribution or use of the product described in this report must be approved by SGS Taiwan E&E Services in writing. Tested by : Dikin Yang Date : 2004/04/22 Approved by : Robert Chang Date : 2004/04/22 Report No. : ES/2004/30002 Page : 2 of 48 Contents 1. General Information 1.1 Testing Laboratory 4 1.2 Details of Applicant 4 1.3 Description of EUT(s) 4 1.4 Test Environment 5 1.5 Operation description 5 1.6 Evaluation procedures 6 1.7 The SAR Measurement System 7 1.8 System Components 9 1.9 SAR System Verification 10 1.10 Tissue Simulant Fluid for the Frequency Band 2.4 to 2.5 GHz 11 1.11 Test Standards and Limits 12 2. Instruments List 14 3. Summary of Results 15 4. Measurements 17 Configuration 1 4.1 Top of the LCD panel position, lowest channel 17 4.2 Top of the LCD panel position, middle channel 18 4.3 Top of the LCD panel position, highest channel 19 Configuration 2 4.4 Back of the LCD panel position, lowest channel 20 4.5 Back of the LCD panel position, middle channel 21 4.6 Back of the LCD panel position, highest channel 22 Configuration 3 4.7 LCD panel position, lowest channel 23 4.8 LCD panel position, middle channel 24 4.9 LCD panel position, highest channel 25 Configuration 4 4.10 Rear Side position, lowest channel 26 4.11 Rear Side position, middle channel 27 4.12 Rear Side position, highest channel 28 Configuration 5 4.13 Bottom face position, lowest channel 29 4.14 Bottom face position, middle channel 30 4.15 Bottom face position, highest channel 31 Configuration 6 4.16 LCD panel position, lowest channel 32 4.17 LCD panel position, middle channel 33 4.18 LCD panel position, highest channel 34 4.19 System Performance Validation 35 Report No. : ES/2004/30002 Page : 3 of 48 APPENDIX 1. Photographs of Test Setup 36 2. Photographs of EUT 40 3. Probe Calibration certificate 42 4. Uncertainty Analysis 46 5. Phantom description 47 6. System Validation from Original equipment supplier 48 Report No. : ES/2004/30002 Page : 4 of 48 1. General Information 1.1 Testing Laboratory SGS Taiwan Ltd. 1F, No. 134, Wukung Road, Wuku industrial zone Taipei county , Taiwan , R.O.C. Telephone : +886-2-2299-3279 Fax : +886-2-2298-0488 Internet : http://www.sgs.com.tw 1.2 Details of Applicant Name : ASUSTeK COMPUTER INC. Address : 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. 1.3 Description of EUT(s) Equipment Type Notebook P.C. Test Procedure FCC OET Bulletin 65, Supplement C TX Frequency range 2412-2462 MHz FCC ID MSQA2HWM3B2100 Model No. A2400H, A2400L, A2500H, A2500L, A2800H, A2800L,A2400, A2500, A2800 Number Of Channel 11 Modulation Direct Sequence Spread Spectrum (DSSS) Transfer Rate 1, 2, 5.5, 11 Mbps Max. SAR Measured 1.22 W/kg Main Antenna Auxiliary Antenna Antenna Gain Cable Loss(dBi) 2450MHz -0.3 (Peak) -1.8 (Peak) Antenna Type PIFA I/O Port Mini PCI Report No. : ES/2004/30002 Page : 5 of 48 Power Supply 19Vdc from AC adapter NOTE: 1. The mini PCI card, which brand is Intel and the model name is WM3B2100,is specified to this EUT. 2. The EUT is powered by the following adapter: Brand DELTA Model ADP-120GB Input 100-240 Vac 1.8A 50-60Hz Output 19Vdc 6.3A 3. For more detailed features description, please refer to the manufacturer's specifications or User's Manual. 1.4 Test Environment Ambient temperature : 21.9° C Tissue Simulating Liquid : 20.7° C Relative Humidity : 63 % 1.5 Operation Configuration Channel Frequency Under Test And Its Conducted Output Power (Peak) 19.77 dBm (2412MHz) 20.04 dBm (2437MHz) 19.15 dBm (2462MHz) Antenna Configuration Internal Antenna Antenna Position The Antennas are located at both sides of the LCD; the right Antenna is the main antenna, and the left one is the auxiliary. EUT Power Source From The Host Equipment HOST Power Source Fully Charged Battery The following test configurations have been applied in this test report: Main Antenna Report No. : ES/2004/30002 Page : 6 of 48 Configuration 1: Top of the LCD panel of EUT contact to the flat phantom. The transmitting antenna of the EUT located under the reference point of the flat phantom.(Fig.2) Configuration 2: The back of the LCD Panel of EUT contact to the flat phantom. The transmitting antenna of the EUT located under the reference point of the flat phantom. (Fig.3) Configuration 3: The LCD panel of EUT contact to the flat phantom. The transmitting antenna of the EUT located under the reference point of the flat phantom. (Fig.4) Auxiliary Antenna Configuration 4: Rear Side of the EUT is paralleled with flat phantom, Spacing between EUT and phantom - In contact (0 cm). (Fig.5) Configuration 5: Bottom face of the EUT is paralleled with flat phantom. Spacing between EUT and phantom - In contact (0 cm) . (Fig.6) Configuration 6: The LCD panel of EUT contact to the flat phantom. The transmitting antenna of the EU…

Text truncated - open the document above for the full version.

Report No. 043L084FI Page: 1 of 46 Version:1.0 Test Report Product Name : Notebook P.C. Model No. : A2400H, A2400L, A2500H, A2500L, A2800H, A2800L, A2400, A2500, A2800 FCC ID. : MSQA2HWM3B2100 Applicant : ASUSTeK COMPUTER INC. Address : 4FL., No, 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt : Mar. 12, 2004 Date of Test : Mar. 22, 2004 Report No. : 043L084FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 043L084FI Page: 2 of 46 Version:1.0 Test Report Certification Test Date: Mar. 22, 2004 Report No. : 043L084FI Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : Notebook P.C. Applicant : ASUSTeK COMPUTER INC. Address : 4FL., No, 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer : ASUSTeK COMPUTER INC. Model No. : A2400H, A2400L, A2500H, A2500L, A2800H, A2800L, A2400, A2500, A2800 FCC ID. : MSQA2HWM3B2100 Rated Voltage : DC 3.3V Trade Name : ASUS Measurement Standard : FCC CFR Title 47 Part 15 Subpart C: 2003 Measurement Procedure : ANSI C63.4: 2001 Test Result : Complied Documented By : ( Anita Chou ) Tested By : ( Tom Hsieh ) Approved By : ( Gene Chang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 043L084FI Page: 3 of 46 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................4 1.1. EUT Description............................................................................................................................4 1.2. Operational Description ................................................................................................................5 1.3. Tested System Datails....................................................................................................................6 1.4. Configuration of tested System .....................................................................................................7 1.5. EUT Exercise Software .................................................................................................................7 1.6. Test Facility ...................................................................................................................................8 2. Conducted Emission....................................................................................................................9 2.1. Test Equipment..............................................................................................................................9 2.2. Test Setup ......................................................................................................................................9 2.3. Limits ............................................................................................................................................9 2.4. Test Procedure .............................................................................................................................10 2.5. Test Result of Conducted Emission.............................................................................................11 3. Peak Power Output ...................................................................................................................17 3.1. Test Equipment............................................................................................................................17 3.2. Test Setup ....................................................................................................................................17 3.3. Limits ..........................................................................................................................................17 3.4. Test Result of Peak Power Output...............................................................................................18 4. Radiated Emission .....................................................................................................................19 4.1. Test Equipment............................................................................................................................19 4.2. Test Setup ....................................................................................................................................19 4.3. Limits ..........................................................................................................................................20 4.4. Test Procedure .............................................................................................................................21 4.5. Test Result of Radiated Emission................................................................................................22 5. Band Edge ..................................................................................................................................28 5.1. Test Equipment............................................................................................................................28 5.2. Test Setup ....................................................................................................................................28 5.3. Limits ..........................................................................................................................................29 5.4. Test Procedure .............................................................................................................................29 5.5. Test Result of Band Edge ..................................................................................…

Text truncated - open the document above for the full version.

Report No.: 043L084FI Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 043L084FI Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 043L084FI Page : 3 of 3 Version:1.0 Front View of High Frequency
