MSQA626ASUS MYPAL A626 POCKET PC WITH WLAN & BLUETOOTH

User Manual MyPal A626/A686/A696 ii Copyright © 2006 ASUSTeK COMPUTER INC. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). 3URGXFWZDUUDQW\RUVHUYLFHZLOOQRWEHH[WHQGHGLI  WKHSURGXFWLVUHSDLUHGPRGLÀHGRUDOWHUHG XQOHVVVXFKUHSDLUPRGLÀFDWLRQRIDOWHUDWLRQLVDXWKRUL]HGLQZULWLQJE\$686RU  WKHVHULDO number of the product is defaced or missing. ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Microsoft, Activesync, Outlook, Pocket Outlook, Windows, and the Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or in other countries. Microsoft products are licensed to OEMs by Microsoft Licensing, Inc., a wholly owned subsidiary of Microsoft Corporation. E2775 First Edition September 2006 iii Table of Contents Chapter 1 Getting Started .................................................. 1 Introducing MyPal ..................................................................................1 Installing and removing the battery ........................................................5 Connecting to a power source ...............................................................5 Setting up GPS ......................................................................................6 Additional storage ..................................................................................7 Activating MyPal ....................................................................................8 Basic screens on MyPal ........................................................................9 Chapter 2 Basics .............................................................. 11 Viewing system information ................................................................11 Entering information.............................................................................11 )LQGLQJDQGRUJDQL]LQJLQIRUPDWLRQ......................................................18 Using the File Explorer .......................................................................18 &XVWRPL]LQJ\RXUGHYLFH......................................................................19 Using simple applications .................................................................... Chapter 3 Synchronize and Enhance ............................. 31 Microsoft ® ActiveSync ® .........................................................................31 6\QFKURQL]LQJ\RXUGHYLFH...................................................................33 Chapter 4 Microsoft ® Pocket Outlook............................. 39 Calendar ..............................................................................................39 Contacts .............................................................................................. Tasks ...................................................................................................45 Notes ..................................................................................................46 Messaging ...........................................................................................48 Chapter 5 Companion Programs .................................... 53 Word Mobile ........................................................................................53 Excel Mobile .......................................................................................56 iv PowerPoint Mobile ..............................................................................58 Pocket MSN ........................................................................................60 Windows Media Player for Pocket PC .................................................64 Chapter 6 Internet Explorer Mobile................................. 65 Using Internet Explorer Mobile ............................................................65 Mobile Favorites folder ........................................................................66 Chapter 7 Get Connected ................................................ 70 Connecting to the Internet ...................................................................70 Connecting to Work .............................................................................71 Setting up connections ........................................................................71 Ending a connection ...........................................................................73 Setting up a WAP gateway ..................................................................74 Using dialing rules ...............................................................................74 Using Terminal Services Client ............................................................75 Infrared (IR) connection ......................................................…

Text truncated - open the document above for the full version.

ASUSTeK COMPUTER INC. Tel : +886-2-28943447 Fax : +886-2-28950114 www.asus.com Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding application for certification of FCC ID: MSQA626 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: z Schematics - A626 Schem.pdf z Part List - A626 ParLst.pdf z Block diagram - A626 BlkDia.pdf z Operational description - A626 OpDes.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Lawrence Yu / Manager ASUSTek Computer Inc. ASUSTeK COMPUTER INC. Tel : +886-2-28943447 Fax : +886-2-28950114 www.asus.com Request for Temporary Confidentiality Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding application for certification of FCC ID: MSQA626 Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we hereby request temporary confidential treatment of information accompanying this application as outlined below: l External Photos - A626 ExtPho.pdf l Internal Photos - A626 IntPho.pdf l Test Setup Photos - A626 TSup.pdf l User’s Manual - A626 UserMan.pdf Sincerely, Lawrence Yu / Manager ASUSTek Computer Inc.

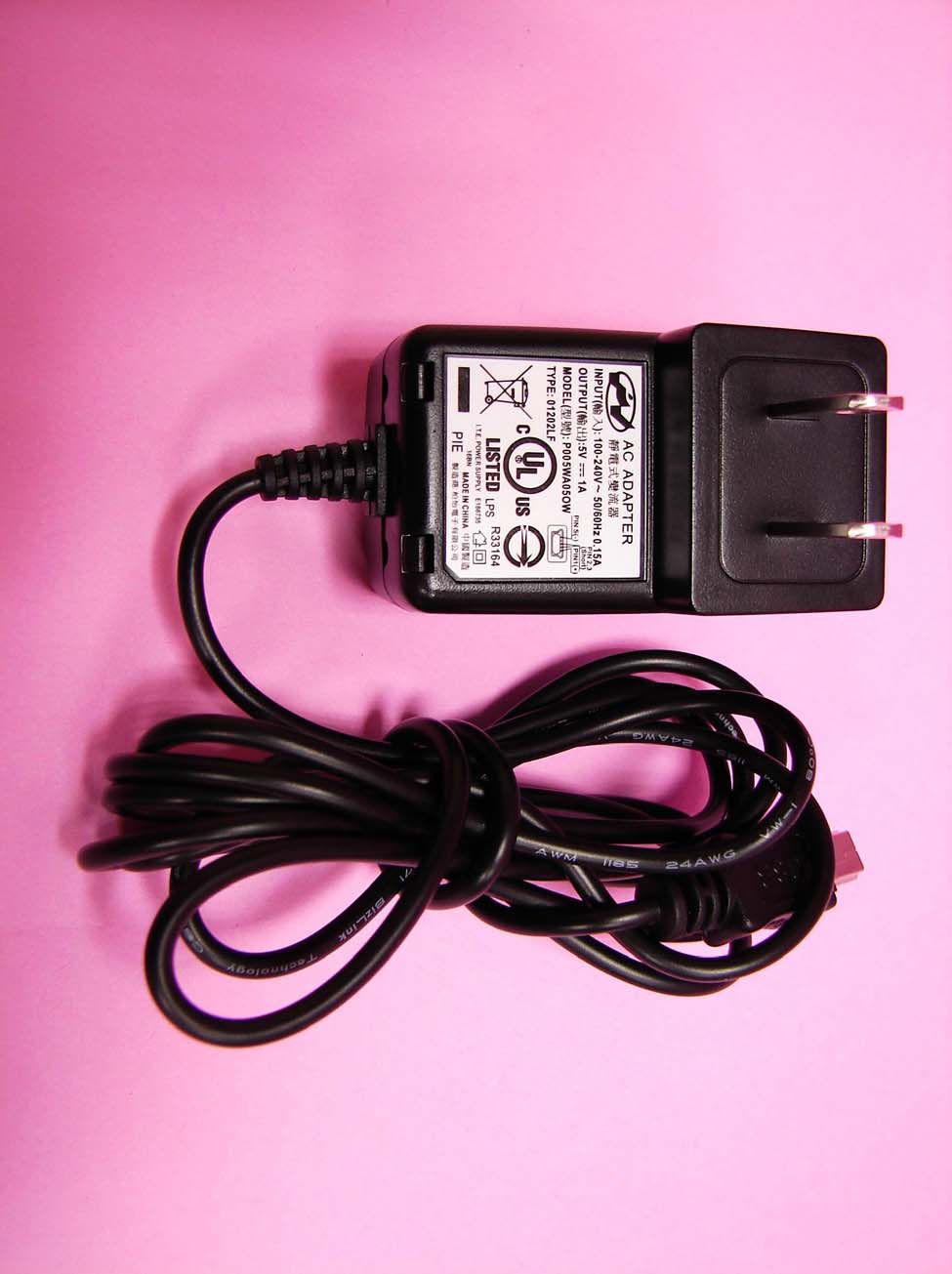

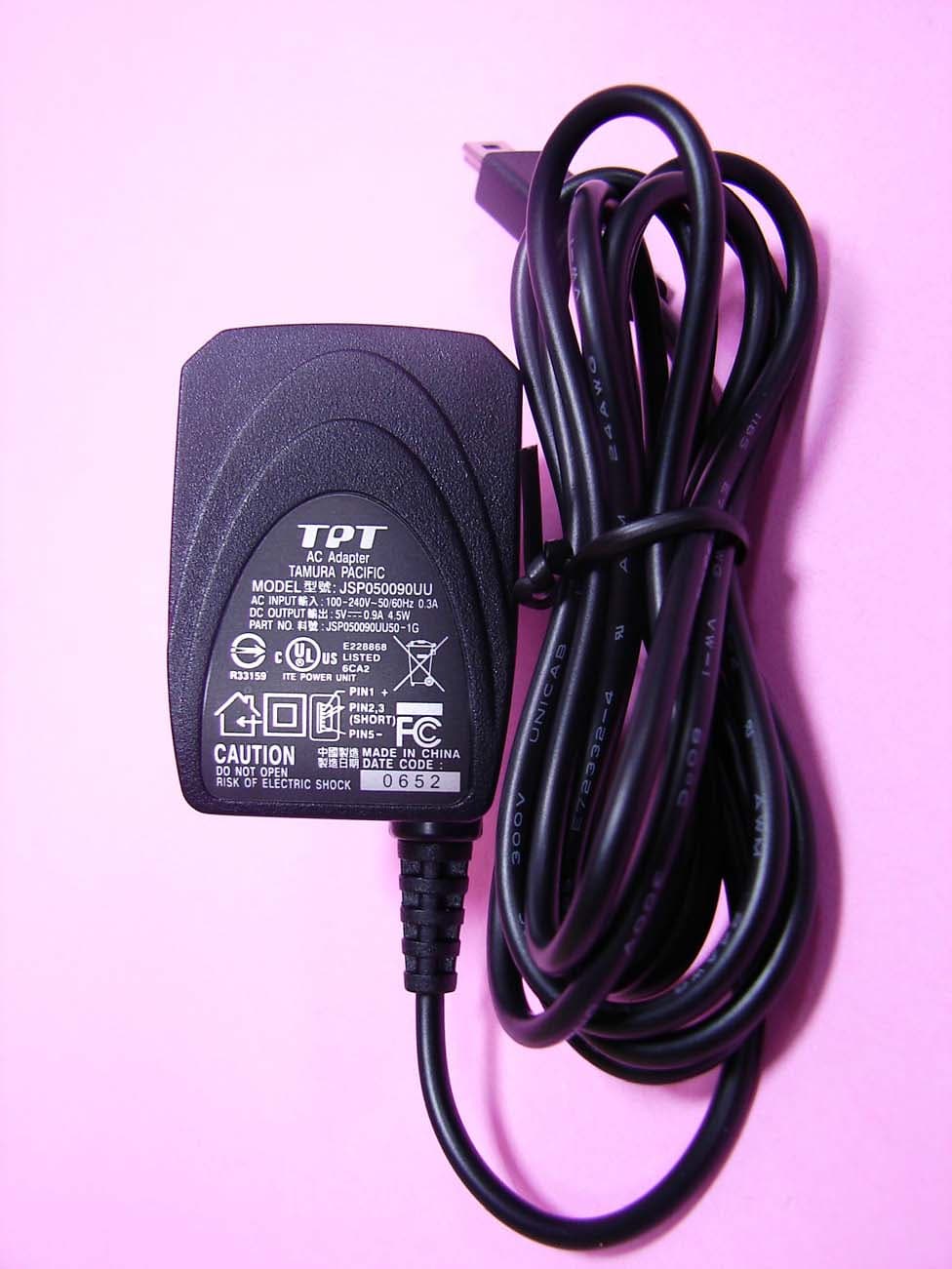

External Photos of EUT －－－－－－－－－－－－－－－－－－－－－－－ 1/6 FCC ID: MSQA626 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT －－－－－－－－－－－－－－－－－－－－－－ 2/6 FCC ID: MSQA626 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT －－－－－－－－－－－－－－－－－－－－－－ 3/6 FCC ID: MSQA626 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Adaptor －－－－－－－－－－－－－－－－－－－－－ 4/6 FCC ID: MSQA626 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Adaptor －－－－－－－－－－－－－－－－－－－－－ 5/6 FCC ID: MSQA626 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Adaptor －－－－－－－－－－－－－－－－－－－－－ 6/6 FCC ID: MSQA626 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Sample and Location information ------------------------------------------------- 1/1 Applicant: ASUSTeK Computer Inc. FCC ID: MSQA626 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 LABEL Position: LABEL Size: 38 x 15 mm FCC ID: MSQA626 ASUS A626 This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, includin g interference that may cause undesired operation

Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－－ 1/13 FCC ID: MSQA626 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－－ 2/13 FCC ID: MSQA626 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－－ 3/13 FCC ID: MSQA626 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－－ 4/13 FCC ID: MSQA626 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－－ 5/13 FCC ID: MSQA626 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－－ 6/13 FCC ID: MSQA626 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－－ 7/13 FCC ID: MSQA626 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－－ 8/13 FCC ID: MSQA626 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－－ 9/13 FCC ID: MSQA626 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 WLAN Antenna Bluetooth Antenna Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－－ 10/13 FCC ID: MSQA626 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－－ 11/13 FCC ID: MSQA626 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos EUT －－－－－－－－－－－－－－－－－－－－－－－ 12/13 FCC ID: MSQA626 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos EUT －－－－－－－－－－－－－－－－－－－－－－－ 13/13 FCC ID: MSQA626 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Appendix A of Report Number: ISL-07LR015SAR-F International Standards Laboratory Appendix A SAR System Validation Data of Product Name ASUS MyPal Pocket PC (Built In WLAN & Bluetooth) Model A626 Appendix A of Report Number: ISL-07LR015SAR-F International Standards Laboratory 1 2450MHz System Validation Data Report Date : 19-Oct-2006 Measurement Date : 19-Oct-2006 Product Data Device Name : Dipole-2450 Serial No. : Validation Type : Dipole Model : Standard Frequency : 2450.00 MHz Max. Transmit Pwr : 1 W Drift Time : 0 min(s) Length : 51.5 mm Width : 3.6 mm Depth : 30.4 mm Antenna Type : Internal Power Drift-Start : 66.835 W/kg Power Drift-Finish: 67.216 W/kg Power Drift (%) : 0.570 Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Location : Center Tissue Data Type : HEAD Serial No. : 2450HEAD Frequency : 2450.00 MHz Last Calib. Date : 19-Oct-2006 Temperature : 23.20 °C Ambient Temp. : 23.50 °C Humidity : 52.00 RH% Epsilon : 40.55 F/m Sigma : 1.81 S/m Density : 1000.00 kg/cu. m Probe Data Name : E-field Probe Model : ALS-E-020 Type : E-Field Triangle Serial No. : 266 Last Calib. Date : 22-Jun-2006 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 4.9 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Appendix A of Report Number: ISL-07LR015SAR-F International Standards Laboratory Measurement Data Crest Factor : 1 Tissue Temp. : 23.20 °C Ambient Temp. : 23.50 °C Area Scan : 5x9x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Channel : Mid - 2450MHz 1 gram SAR value : 52.200 W/kg 10 gram SAR value : 24.051 W/kg Area Scan Peak SAR : 67.573 W/kg Zoom Scan Peak SAR : 119.104 W/kg Appendix A of Report Number: ISL-07LR015SAR-F International Standards Laboratory

Appendix B of Report Number: ISL-07LR015SAR-F International Standards Laboratory Appendix B SAR Measurement Data of Product Name ASUS MyPal Pocket PC (Built In WLAN & Bluetooth) Model A626 Appendix B of Report Number: ISL-07LR015SAR-F International Standards Laboratory 1 802.11b+BT SAR measurement Data SAR Test Report Report Date : 19-Oct-2006 Measurement Date : 19-Oct-2006 Product Data Device Name : ASUS PDA Serial No. : 11.b-Side Type : PDA Frequency : 2412.00 MHz Max. Transmit Pwr : 0.04 W Drift Time : 0 min(s) Length : 117 mm Width : 17 mm Depth : 71 mm Antenna Type : Internal Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Location : Center Tissue Data Type : BODY Serial No. : 2450BODY Frequency : 2450.00 MHz Last Calib. Date : 19-Oct-2006 Temperature : 23.20 °C Ambient Temp. : 23.50 °C Humidity : 52.00 RH% Epsilon : 51.55 F/m Sigma : 1.96 S/m Density : 1000.00 kg/cu. m Probe Data Name : E-field Probe Model : ALS-E-020 Type : E-Field Triangle Serial No. : 266 Last Calib. Date : 22-Jun-2006 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 5.02 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Appendix B of Report Number: ISL-07LR015SAR-F International Standards Laboratory 1.1 2450 MHz, EUT Position: Side Measurement Data Crest Factor : 1 Area Scan : 5x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm DUT Position : Touch Channel : Low - 2412MHz Power Drift-Start : 1.053 W/kg Power Drift-Finish: 1.068 W/kg Power Drift (%) : 1.417 1 gram SAR value : 0.861 W/kg 10 gram SAR value : 0.340 W/kg Area Scan Peak SAR : 1.063 W/kg Zoom Scan Peak SAR : 2.171 W/kg Appendix B of Report Number: ISL-07LR015SAR-F International Standards Laboratory 1.2 2450 MHz, EUT Position: Side Measurement Data Crest Factor : 1 Area Scan : 5x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm DUT Position : Touch Channel : Mid - 2437MHz Power Drift-Start : 0.816 W/kg Power Drift-Finish: 0.848 W/kg Power Drift (%) : 4.036 1 gram SAR value : 0.644 W/kg 10 gram SAR value : 0.254 W/kg Area Scan Peak SAR : 0.861 W/kg Zoom Scan Peak SAR : 1.641 W/kg Appendix B of Report Number: ISL-07LR015SAR-F International Standards Laboratory 1.3 2450 MHz, EUT Position: Side Measurement Data Crest Factor : 1 Area Scan : 5x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm DUT Position : Touch Channel : High - 2462MHz Power Drift-Start : 0.513 W/kg Power Drift-Finish: 0.529 W/kg Power Drift (%) : 3.137 1 gram SAR value : 0.402 W/kg 10 gram SAR value : 0.159 W/kg Area Scan Peak SAR : 0.510 W/kg Zoom Scan Peak SAR : 1.050 W/kg Appendix B of Report Number: ISL-07LR015SAR-F International Standards Laboratory 1.4 2450 MHz, EUT Position: Top Measurement Data Crest Factor : 1 Area Scan : 5x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm DUT Position : Touch Channel : Mid - 2437MHz Power Drift-Start : 0.371 W/kg Power Drift-Finish: 0.380 W/kg Power Drift (%) : 2.461 1 gram SAR value : 0.346 W/kg 10 gram SAR value : 0.144 W/kg Area Scan Peak SAR : 0.362 W/kg Zoom Scan Peak SAR : 0.850 W/kg Appendix B of Report Number: ISL-07LR015SAR-F International Standards Laboratory 1.5 2450 MHz, EUT Position: Back Measurement Data Crest Factor : 1 Area Scan : 6x6x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm DUT Position : Touch Channel : Mid - 2437MHz Power Drift-Start : 0.397 W/kg Power Drift-Finish: 0.404 W/kg Power Drift (%) : 1.615 1 gram SAR value : 0.359 W/kg 10 gram SAR value : 0.159 W/kg Area Scan Peak SAR : 0.441 W/kg Zoom Scan Peak SAR : 0.860 W/kg Appendix B of Report Number: ISL-07LR015SAR-F International Standards Laboratory 1.6 Z-Axis plot Frequency: 802.11b 2450MHz, EUT Side Appendix B of Report Number: ISL-07LR015SAR-F International Standards Laboratory 2 802.11g+BT SAR measurement Data SAR Test Report Report Date : 19-Oct-2006 Measurement Date : 19-Oct-2006 Product Data Device Name : ASUS PDA Serial No. : 11.g-Side Type : PDA Frequency : 2412.00 MHz Max. Transmit Pwr : 0.09 W Drift Time : 0 min(s) Length : 117 mm Width : 17 mm Depth : 71 mm Antenna Type : Internal Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Location : Center Tissue Data Type : BODY Serial No. : 2450BODY Frequency : 2450.00 MHz Last Calib. Date : 19-Oct-2006 Temperature : 23.20 °C Ambient Temp. : 23.50 °C Humidity : 52.00 RH% Epsilon : 51.55 F/m Sigma : 1.96 S/m Density : 1000.00 kg/cu. m Probe Data Name : E-field Probe Model : ALS-E-020 Type : E-Field Triangle Serial No. : 266 Last Calib. Date : 22-Jun-2006 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 5.02 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Appendix B of Report Number: ISL-07LR015SAR-F International Standards Laboratory 2.1 2450 MHz, EUT Position: Side Measurement Data Crest Factor : 1 Area Scan : 5x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm DUT Position : Touch Channel : Low - 2412MHz Power Drift-Start : 0.623 W/kg Power Drift-Finish: 0.615 W/kg Power Drift (%) : -1.316 1 gram SAR value : 0.501 W/kg 10 gram SAR value : 0.197 W/kg Area Scan Peak SAR : 0.610 W/kg Zoom Scan Peak SAR : 1.281 W/kg Appendix B of Report Number: ISL-07LR015SAR-F International Standards Laboratory 2.2 2450 MHz, EUT Position: Side Measurement Data Crest Factor : 1 Area Scan : 5x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm DUT Position : Touch Channel : Mid - 2437MHz Power Drift-Start : 0.399 W/kg Power Drift-Finish: 0.387 W/kg Power Drift (%) : -3.007 1 gram SAR value : 0.304 W/kg 10 gram SAR value : 0.130 W/kg Area Scan Peak SAR : 0.365 W/kg Zoom Scan Peak SAR : 0.730 W/kg Appendix B of Report Number: ISL-07LR015SAR-F International Standards Laboratory 2.3 24…

Text truncated - open the document above for the full version.

Appendix C of Report Number: ISL-07LR015SAR-F International Standards Laboratory Appendix C Photographs of Test Setup of Product Name ASUS MyPal Pocket PC Model A626 Appendix C of Report Number: ISL-07LR015SAR-F International Standards Laboratory -1- Setup-1. TOP Setup-2. SIDE Appendix C of Report Number: ISL-07LR015SAR-F International Standards Laboratory -2- Setup-3. BACK

Appendix D of Report Number: ISL-07LR015SAR-F International Standards Laboratory Appendix D Photographs of EUT of Product Name ASUS MyPal Pocket PC Model A626 Appendix D of Report Number: ISL-07LR015SAR-F International Standards Laboratory -1- EUT-1. EUT-2. Appendix D of Report Number: ISL-07LR015SAR-F International Standards Laboratory -2- EUT-3. EUT-4. Appendix D of Report Number: ISL-07LR015SAR-F International Standards Laboratory -3- EUT-5. EUT-6. Appendix D of Report Number: ISL-07LR015SAR-F International Standards Laboratory -4- EUT-7. EUT-8. Appendix D of Report Number: ISL-07LR015SAR-F International Standards Laboratory -5- EUT-9. EUT-10. Appendix D of Report Number: ISL-07LR015SAR-F International Standards Laboratory -6- EUT-11. EUT-12. Appendix D of Report Number: ISL-07LR015SAR-F International Standards Laboratory -7- EUT-13. EUT-14. Appendix D of Report Number: ISL-07LR015SAR-F International Standards Laboratory -8- EUT-15.

Report Number: 07LR015SAR-F Issue Date: 2007/03/26 HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;CNLA:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;CNLA:0997; IC:IC4164-1 SAR Test Report of Product Name ASUS MyPal Pocket PC (Built in WLAN & Bluetooth) Model A626 Applied by: ASUSTek Computer Inc. 4Fl., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R. O. C. Test Performed by: International Standards Laboratory No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325 Taiwan, R.O.C. Tel:(03)407-1718 Fax:(03)407-1738 International Standards Laboratory Report Number: ISL-07LR015SAR-F HC LAB:NVLAP:200234-0;VCCI: R-341,C-354;NEMKO:ELA 113a,113c;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;CNLA:1178 LT LAB:NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113b,113d;BSMI:SL2-IN-E-0013;CNLA:0997 -1- Contents of Report 1. General......................................................................................................1 1.1 Certification of Accuracy of Test Data..........................................................................1 2. Description of Equipment Under Test (EUT)..............................................2 2.1 Test Environment..........................................................................................................2 3. SAR Measurement System.........................................................................3 3.1 ALSAS-10U System Description..................................................................................3 3.1.1 Applications...........................................................................................................................................3 3.1.2 Area Scans.............................................................................................................................................3 3.1.3 Zoom Scan (Cube Scan Averaging).....................................................................................................4 3.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty................................................................4 3.2 Isotropic E-Field Probe................................................................................................5 3.2.1 Isotropic E-Field Probe Specification................................................................................................6 3.3 Boundary Detection Unit and Probe Mounting Device..................................................6 3.4 Daq-Paq (Analog to Digital Electronics)......................................................................7 3.5 1.5 Axis Articulated Robot...........................................................................................7 3.6 ALSAS Universal Workstation.....................................................................................8 3.7 Universal Device Positioner.........................................................................................8 3.8 Phantom Types..............................................................................................................8 3.8.1 APREL Laboratories Universal Phantom...........................................................................................9 4. Tissue Simulating Liquid.........................................................................10 4.1 The composition of the tissue simulating liquid..........................................................10 4.2 Tissue Calibration Result............................................................................................10 4.3 Tissue Dielectric Parameters for Head and Body Phantoms.......................................11 5. SAR Measurement Procedure..................................................................12 5.1 SAR System Validation...............................................................................................12 5.1.1 Validation Dipoles..............................................................................................................................12 5.1.2 Validation Result.................................................................................................................................12 5.2 SAR Measurement Procedure.....................................................................................13 6. SAR Exposure Limits...............................................................................14 7. Test Equipment List.................................................................................15 8. Measurement Uncertainty.........................................................................16 9. Test Result Summary...............................................................................17 9.1 802.11b Test Result...................................................................................................17 9.2 802.11g Test Result....................................................................................................18 10. Appendix A: SAR System Validation Data...............................................19 11. Appendix B: SAR measurement Data.......................................................19 12. Appendix C: Photographs of Test Setup..................................................19 13. Appendix D: Photographs of EUT............................................................19 14. Appendix E: Probe calibration data..........................................................19 15. Appendix F: Dipole calibration data.........................................................19 International Standards Laboratory Report Number: ISL-07LR015SAR-F HC LAB:NVLAP:200234-0;VCCI: R-341,C-354;NEMKO:ELA 113a,113c;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;CNLA:1178 LT LAB:NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113b,113d;BSMI:SL2-IN-E-0013;CNLA:0997 -1- 1. General 1.1 Certification of Accuracy of Test Data Standards: FCC OET65 Supplement C June 2001 Equipment Tested: ASUS MyPal P…

Text truncated - open the document above for the full version.

Test Report ---------------------------------------------------------------------------------- 1/122 Report No.: A5415060996, FCC Part 15 for DTS Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of ASUS MyPal A626 Pocket PC Applicant : ASUSTek Computer Inc. EUT : ASUS MyPal A626 Pocket PC Model No. : A626 FCC ID : MSQA626 Report No. : A5415060996 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report ---------------------------------------------------------------------------------- 2/122 Report No.: A5415060996, FCC Part 15 for DTS Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (1992) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart B (Declaration of Conformity) and C Section 15.247. Applicant : ASUSTek Computer Inc. Applicant address : 4Fl., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Product Name : ASUS MyPal A626 Pocket PC Model Name : A626 FCC ID : MSQA626 Report No. : A5415060996 Test Date : November 22, 2006 Prepared by: Approved by: Jack Tsai Frank Tsai Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. (3) This test report, measurements made by TRC are traceable to the NIST only Conducted and Radiated Method. Test Report ---------------------------------------------------------------------------------- 3/122 Report No.: A5415060996, FCC Part 15 for DTS Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Federal Communications Commission Declaration of Conformity (DoC) For the Following Equipment: Product name : ASUS MyPal A626 Pocket PC Model name : A626 Trade name : ASUS Is herewith confirmed and found to comply with the requirements of CFR 47 part15 Subpart B - Unintentional Radiators regulation. The results of electromagnetic mission evaluation are shown in the report number : A5415060996 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Manufacturer USA local representative Company name: ASUSTeK Computer Inc. To be determined Computer address: 4/F, 150, Li-Te Rd., Peitou, Taipei, Taiwan ZIP / Postal code: 112 Contact person: Lawrence Yu Title: Manager Internet e-mail address: [email protected] Tel / Fax: 886-2-28943447 / 886-2-28950113 Test Report ---------------------------------------------------------------------------------- 4/122 Report No.: A5415060996, FCC Part 15 for DTS Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I. GENERAL ..................................................................................................................... 6 1.1 Introduction .............................................................................................................. 6 1.2 Description of EUT .................................................................................................. 6 1.3 Test method ..............…
