MSQAAM6KVIPD14-PORT WI-FI ETHERNET ROUTER

ASUSTeK Computer Inc
4-PORT WI-FI ETHERNET ROUTER - FCC ID MSQAAM6KVIPD1 - ASUSTeK Computer Inc
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jul 18, 2007
Application Purpose
Original Equipment
Date of Application
Jul 12, 2007
Equipment Note
4-PORT WI-FI ETHERNET ROUTER
Frequency Range
2412.00000000 - 2462.00000000
Company
ASUSTeK Computer Inc
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗
↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Zhone 6218-i3 4-Port Wi-Fi Ethernet Router User Manual Version 1.0 Version Date: June 20, 2007 Document #: BD-ZU0011-10 Zhone 4-Port Wireless Ethernet Router User Manual 1 Version 1.0 Document #: BD-ZU0011-10 Table of Contents GENERAL INFORMATION.......................................................................... 3 Package Contents ........................................................................ 3 Important Safety Instructions.......................................................... 3 Front Panel View ......................................................................... 4 Back Panel View .......................................................................... 5 I NSTALLING THE ROUTER......................................................................... 6 Connect the ADSL Line and Telephone ........................................ 6 Connect the PC to the Router................................................... 6 Connect the Power Adapter ..................................................... 6 I NSTALLATIONDIAGRAM.......................................................................... 7 M OUNTING THE ROUTER......................................................................... 8 C ONFIGURING YOUR COMPUTER................................................................. 9 Windows 2000............................................................................. 9 Windows XP ..............................................................................10 L OG IN TO THE ROUTER.........................................................................11 D EVICE INFO....................................................................................12 Summary..................................................................................12 WAN .......................................................................................13 Statistics..................................................................................13 LAN Statistics .....................................................................13 WAN Statistics ....................................................................14 ATM Statistics.....................................................................14 ADSL Statistics ....................................................................15 ADSL BER Test ....................................................................16 Route......................................................................................18 ARP ........................................................................................18 DHCP ......................................................................................19 Q UICK SETUP...................................................................................20 ATM PVC Configuration ................................................................20 A DVANCED SETUP...............................................................................25 WAN .......................................................................................25 Connection Type .................................................................26 LAN Local Area Network (LAN) Setup................................................29 NAT ........................................................................................30 Virtual Servers ....................................................................30 Port Triggering ...................................................................32 DMZ Host ..........................................................................34 ALG ........................................................................................34 Firewall ...................................................................................35 IP Filtering—Outgoing ...........................................................35 IP Filtering—Incoming ...........................................................36 MAC Filtering .....................................................................37 Parental Control .....................................................................38 Quality of Service .......................................................................40 Routing ...................................................................................41 Default Gateway .................................................................41 Static Route .......................................................................42 RIP ..................................................................................43 DNS ........................................................................................44 DNS Server ........................................................................44 Dynamic DNS ......................................................................45 ADSL .......................................................................................46 DSL Advanced Settings ..........................................................47 Zhone 4-Port Wireless Ethernet Router User Manual 2 Version 1.0 Document #: BD-ZU0011-10 Tone Settings .....................................................................47 Port Mapping.............................................................................48 IPSec.......................................................................................49 Certificate ...............................................................................50 Local ...............................................................................50 Trusted CA ........................................................................53 W IRELESS.......................................................................................54 Basic.......................................................................................54 Security ...................................................................................54 MAC Filter ...................................................…

Text truncated - open the document above for the full version.

Users Manual

Quality of Service You can configure the Quality of Service to apply different priorities to traffic on the router. Click on Addto view the Add Network Traffic Class Rulescreen. This screen allows you to add a network traffic class rule. Procedures for this setup are as follows— 1. Give a name to this traffic class. 2. Assign a priority level—low, medium, and high—to this traffic class. 3. Select an IP precedence from the 0-7 range. 4. Enter an IP Type of Service from the following selections— xNormal Service xMinimize Cost xMaximize Reliability xMaximize Throughput xMinimize Delay 5. Last, enter the traffic conditions for the class such as the protocol (TCP / UDP, TCP, UDP, or ICMP) to be used. Click Save / Apply to save the settings. Zhone 4-Port Wireless Ethernet Router User Manual 40 Version 1.0 Document #: BD-ZU0011-10 Routing Default Gateway You can enable automatic assigned default gateway on the Routing – Default Gateway screen. As default, the box is checked for automatic assigned default gateway to be enabled. Click the Save / Apply button to enable or disable this feature. Zhone 4-Port Wireless Ethernet Router User Manual 41 Version 1.0 Document #: BD-ZU0011-10 If you do not want to enable Automatic Assigned Default Gateway, then uncheck the box as seen below. You will be given the choice to use the default gateway IP address. If you decide to change the automatic assigned default gateway address, you must reboot the router to be assigned a new default gateway IP address. Also, select the WAN interface that you will be using. Click on Save / Apply to save the settings. Static Route The Static Route page can be used to add a routing table (a maximum of 32 entries can be configured). Click on Next to add. Zhone 4-Port Wireless Ethernet Router User Manual 42 Version 1.0 Document #: BD-ZU0011-10 Enter the route information and then save and apply your configurations. RIP If RIP (Routing Information Protocol) is enabled, the router operation can be configured as active or passive. Zhone 4-Port Wireless Ethernet Router User Manual 43 Version 1.0 Document #: BD-ZU0011-10 DNS DNS Server Use the DNS Server Configuration screen to request automatic assignment of a DNS or to specify a primary and secondary DNS. If you uncheck the Enable Automatic Assigned DNS checkbox, then there will be two additional fields—primary and secondary DNS server—to enter as seen below. Zhone 4-Port Wireless Ethernet Router User Manual 44 Version 1.0 Document #: BD-ZU0011-10 Dynamic DNS Dynamic DNS is a service for allowing an Internet domain name to be assigned to a varying IP address. This makes it possible for other sites on the Internet to establish connections to your router without needing to track the IP address themselves. Click on Add to set up a dynamic DNS configuration. This screen allows you to add a dynamic DNS address from DynDNS.org or TZO. Enter the hostname and the interface that you are using. Also enter the username and password assigned by the DNS service. Click on Save / Apply to save these configurations. Zhone 4-Port Wireless Ethernet Router User Manual 45 Version 1.0 Document #: BD-ZU0011-10 ADSL The DSL settings page contains three sections—modulation and capability—that should be specified by your ISP. Consult with your ISP to select the correct settings for each. Then click on Save / Apply if you are finished or click on Advanced Settings if you want to configure more advanced settings. Zhone 4-Port Wireless Ethernet Router User Manual 46 Version 1.0 Document #: BD-ZU0011-10 DSL Advanced Settings The test mode can be selected from the DSL Advanced Settings page. Test modes include—normal, reverb, medley, no retrain, and L3. After you make your selections of the test mode, click on Applyto save these settings first before you go to Tone Selection. Tone Settings The frequency band of ADSL is split up into 256 separate tones, each spaced 4.3125 kHz apart. With each tone carrying separate data, the technique operates as if 256 separate modems were running in parallel. The tone range is from 0 to 31 for upstream and from 32 to 255 for downstream. Do not change these settings unless directed by your ISP. Zhone 4-Port Wireless Ethernet Router User Manual 47 Version 1.0 Document #: BD-ZU0011-10 Port Mapping Port mapping is a feature that allows you to open ports to allow certain Internet applications on the WAN side to pass through the firewall and enter your LAN. To use this feature, mapping groups should be created. Click on the Add button as displayed below. If you need to edit an entry, then click on the Edit button. After clicking the Addbutton, the below configuration screen appears, allowing you enter the groups and the interfaces they are associated with. Zhone 4-Port Wireless Ethernet Router User Manual 48 Version 1.0 Document #: BD-ZU0011-10 IPSec Internet Protocol Security (IPSec) allows you to set up secure tunnel access between two IP addresses. Encryption and key exchange make this a secure way to access remote networks. Contact your ISP for the necessary information to correctly configure this connection. Click on Add New Connection to access the IPSec Settings screen to enter your configurations. Notice the Show Advanced Settings button at the bottom of the screen for additional encryption settings. Zhone 4-Port Wireless Ethernet Router User Manual 49 Version 1.0 Document #: BD-ZU0011-10 The following portion of the IPSec Settings screen can be seen when you click on the the Show Advanced Settings button. Certificate Local A local certificate identifies yourself over the network. To apply for a certificate, click on Create Certificate Request and if you have an existing certificate, click on Import Certificate to retrieve it. Zhone 4-Port Wireless Ethernet Router User Manual 50 Version 1.0 Document #: BD-ZU0011-10 The below screen allows you to request a new certificate request. Enter the required information and click Applyto submit the request. Additionally, if you h…

Text truncated - open the document above for the full version.

Cover Letter(s)

ASUSTeK COMPUTER INC. Tel : +886-2-28943447 Fax : +886-2-28950114 www.asus.com Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Subject: : Confidentiality Request regarding application for certification of FCC ID: MSQAAM6KVIPD1 Dear Madam or Sir: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: z Schematics - AAM6XXXVI-PD1 Schem.pdf z Part List - AAM6XXXVI-PD1 ParLst.pdf z Block diagram - AAM6XXXVI-PD1 BlkDia.pdf z Operational description - AAM6XXXVI-PD1 OpDes.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: z External Photos - AAM6XXXVI-PD1 ExtPho.pdf z Internal Photos - AAM6XXXVI-PD1 IntPho.pdf z Test Setup Photos - AAM6XXXVI-PD1 Tsup.pdf z User’s Manual - AAM6XXXVI-PD1 UserMan.pdf Sincerely, Lawrence Yu / Manager, ASUSTek Computer Inc.

External Photos

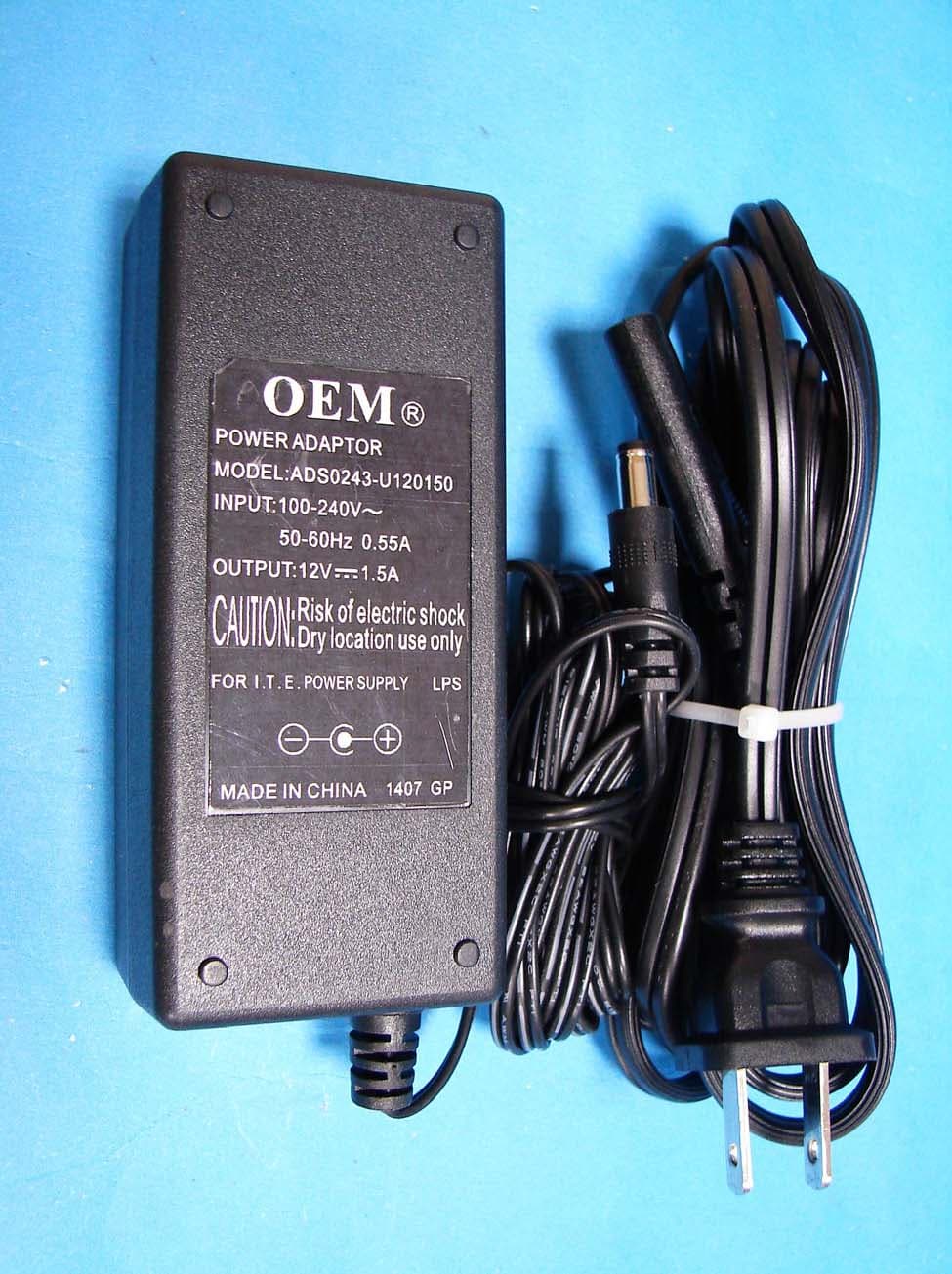

External Photos of ETU --------------------------------------------------------------- 1/10 Applicant: ASUSTeK Computer Inc. FCC ID: MSQAAM6KVIPD1 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of ETU --------------------------------------------------------------- 2/10 Applicant: ASUSTeK Computer Inc. FCC ID: MSQAAM6KVIPD1 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of ETU --------------------------------------------------------------- 3/10 Applicant: ASUSTeK Computer Inc. FCC ID: MSQAAM6KVIPD1 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Power Adapter of EUT ---------------------------------------------------------------- 4/10 Applicant: ASUSTeK Computer Inc. FCC ID: MSQAAM6KVIPD1 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

ID Label/Location Info

LABEL Sample and Location information ------------------------------------------------- 1/1 Applicant: ASUSTeK Computer Inc. FCC ID: MSQAAM6KVIPD1 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 LABEL Position: LABEL Size: 60 x 30 mm FCC ID: MSQAAM6KVIPD1 Model: AAM6XXXVI-PD1, AAM6XXXVI-XXX, 6218-I3-XXX (X= 0~9, A~Z) This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, includin g interference that may cause undesired operation LABEL

Internal Photos

Internal Photos of EUT ---------------------------------------------------------------- 5/10 Applicant: ASUSTeK Computer Inc. FCC ID: MSQAAM6KVIPD1 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 6/10 Applicant: ASUSTeK Computer Inc. FCC ID: MSQAAM6KVIPD1 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 7/10 Applicant: ASUSTeK Computer Inc. FCC ID: MSQAAM6KVIPD1 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 8/10 Applicant: ASUSTeK Computer Inc. FCC ID: MSQAAM6KVIPD1 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 9/10 Applicant: ASUSTeK Computer Inc. FCC ID: MSQAAM6KVIPD1 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 10/10 Applicant: ASUSTeK Computer Inc. FCC ID: MSQAAM6KVIPD1 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

RF Exposure Info

Measurement of Maximum Permissible Exposure ---------------------------------------- 1/3 Applicant: ASUSTeK Computer Inc. FCC ID: MSQAAM6KVIPD1 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Measurement of Maximum Permissible Exposure 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT FCC ID : MSQAAM6KVIPD1 Product Name : 4-Port Wi-Fi Ethernet Router Model Name : AAM6XXXVI-PD1, AAM6XXXVI-XXX, 6218-I3-XXX (X= 0~9, A~Z) Frequency Range : 2.412GHz ~ 2.462GHz Channel Spacing : 5MHz Support Channel : 11 Channels Modulation Skill : DBPSK, DQPSK, CCK, OFDM Power Type : Powered by the switching adapter, Manufacture: OEM Model: ADS0243-U120150 I/P: 100-240VAC 50-60Hz 0.55A. O/P: 12VDC 1.5A. Primary: 185cm length, non-shielded, no ferrite core Secondary: 190cm length, non-shielded, no ferrite core Measurement of Maximum Permissible Exposure ---------------------------------------- 2/3 Applicant: ASUSTeK Computer Inc. FCC ID: MSQAAM6KVIPD1 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, Equation for Predicting RF Fields: Friis Transmission Formula: 2 22 /145.0 )20(4 344.2311.89 4 cmmW R PG S= × == ππ Estimated safe separation: cm PG R627.7 4 344.2311.89 4 = × == ππ Note: "The safe estimated separation that the user must maintain from the antenna is at least 6.5cm" Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 ( dB antenna gain / 10 ) G = Log -1 (3.70 / 10) = 2.344 Measurement of Maximum Permissible Exposure ---------------------------------------- 3/3 Applicant: ASUSTeK Computer Inc. FCC ID: MSQAAM6KVIPD1 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Appendix Antenna Specification 產品規格承認書 Specification For Approval 日 期: 2007 / 06 / 07 Date 編 號: 070607010 File No. 版 本: 1.0 Revision 承認廠商:華 碩 電 腦 Customer 製造廠商:英碩科技股份有限公司 Manufacturer 型號品名: 2.4 GHz External Antenna Part Number Description INVAX P/N:AN2400-37A2BX 廠商審核: Approved By Invax 英碩科技股份有限公司 台北市忠孝東路五段815號4樓 Te l : 886-2-2788-5218 Fax:886-2-2783-1658 COR / F-G-15a Cortec 東莞康捷電子有限公司 廣東省東莞市長安鎮振安路 沙頭段咸西工業區 Te l : 86-769-85388261 Fax: 86-769-85397133 Product Number: AN2400-37A2BX Product Name: 2.4 GHz External Antenna Page 1 Version: 1.0 Issue Date: 2007-06-07 Index: 1. Reliability Testing 2. Specification 3. S Parameter Test Data 4. Antenna Radiation Pattern 5. Mechanical Drawing 6. MSDS & SGS Report ================================================== 1. Reliability Testing Test Item Procedure Requirement 1. Visual inspection and Dimension Check Applicable methods using x5 magnification follow specification 2. Rapid Changing of Temperature -40 ̊C (30minutes) to 90 ̊C (30minutes); 24 cycles After 2 hours recovery: 1. no visible damage 2. Freq. Tol.: < ±5% 3. Damp Heat 24 hours at 60 ̊C; 90 ~ 95% RH After 2 hours recovery: 1. no visible damage 2. Freq. Tol. : < ±5% 4. Endurance 24 hours at 90 ̊C After 2 hours recovery: 1. no visible damage 2. Freq Tol.: < ±5% Product Number: AN2400-37A2BX Product Name: 2.4 GHz External Antenna Page 2 Version: 1.0 Issue Date: 2007-06-07 2. Specification A. Electrical Characteristics S.W.R. <= 2.0 @ 2400 ~ 2500 MHz Antenna Gain 3.0 ± 0.7 dBi (*Depends on Product Mechanical Environment*) Impedance 50 Ohm B. Material Material of Radiator Cu (Plated) Material of Coaxial Cable O.D.1.13 / 90 mm C. Environmental Operation Temperature - 30 ̊C ~ + 85 ̊C Storage Temperature - 30 ̊C ~ + 85 ̊C 3. S Parameter Test data Product Number: AN2400-37A2BX Product Name: 2.4 GHz External Antenna Page 3 Version: 1.0 Issue Date: 2007-06-07 4. Antenna Radiation Pattern Testing Equipment Specification: Antenna Anechoic Chamber Dimension: 8 x 4 x 4 m Quite Zone: 600mm @1 GHz Isolation: >100dB @ 1 MHz ~ 10 GHz Testing Equipment: Agilent 5071B Received Antenna: 0.7 ~ 6.0 GHz for Gain Calibration Double Ridged Horn Antenna 5. Mechanical Drawing 6. MSDS & SGS Report 3.接頭接口朝下 AN2400-37A2BX MHF I-Pex R-CB-TEE113-01 AN2400-37A2BX.dwg Purple Gray Purple GrayPurple Gray Connector Body1 Tube Hinge Pin Body3 Body2 Cable Black Zn Plated Grant2007/06/06 劉奎2007/06/06 82.3±1.0 備註1.未標註公差參照標准公差.2.標 的尺寸為重點控制尺寸. Antenna-2.4GHz Antenna-2.4GHz Q'ty Finish Material Description Part Number No. 9 Ø1.13 mm L=169.0mm(Black) TPE 1 1 3 1 2 4 5 R-AN57-03P R-AN57-05P R-AN3701-02PR-AN01-1213Z 1 12 R-AN4424517S 1 6 7 R-CB-113B Ø4.40*24.5mm 8 111 Hstube PC+ABS B C D SCALE: 1/1 UNITS: mmREVISION: A Cortec Technology …

Text truncated - open the document above for the full version.

Test Report

Test Report ---------------------------------------------------------------------------------- 1/50 Report No.: A5415061141, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of 4-Port Wi-Fi Ethernet Router Applicant : ASUSTek Computer Inc. EUT : 4-Port Wi-Fi Ethernet Router Model No. : AAM6XXXVI-PD1, AAM6XXXVI-XXX, 6218-I3-XXX (X= 0~9, A~Z) FCC ID : MSQAAM6KVIPD1 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report ---------------------------------------------------------------------------------- 2/50 Report No.: A5415061141, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (2003) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart C Section 15.247. Applicant : ASUSTek Computer Inc. Applicant Address : 4F1., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Product Name : 4-Port Wi-Fi Ethernet Router Model : AAM6XXXVI-PD1, AAM6XXXVI-XXX, 6218-I3-XXX (X= 0~9, A~Z) Report No. : A5415061141 Test Date : June 22, 2007 Prepared by: Approved by: Jack Tsai Frank Tsai Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. (3) This test report, measurements made by TRC are traceable to the NIST only Conducted and Radiated Method. Test Report ---------------------------------------------------------------------------------- 3/50 Report No.: A5415061141, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I. GENERAL ................................................................................................................... 5 1.1 Introduction ......................................................................................................... 5 1.2 Description of EUT ............................................................................................. 5 1.3 Test method ......................................................................................................... 6 1.4 Description of Support Equipment ...................................................................... 7 1.5 Configuration of System Under Test .................................................................. 10 1.6 Verify the Frequency and Channel ..................................................................... 11 1.7 Test Procedure .................................................................................................... 12 1.8 Location of the Test Site .................................................................................... 12 1.9 General Test Condition ...................................................................................... 12 II. Section 15.203 : Antenna Requirement..................................................................... 13 III. Section 15.207 : Power Line Conducted Emissions for AC Powered Units ......... 14 3.1 Test Condition & Setup ...................................................................................... 14 3.2 List of Test Instruments ...................................................................................... 15 3.3 Test Result of Conducted Emissions .................................................................. 16 IEEE 802.11b TX mode ................................................................................................. 16 IEEE 802.11g TX mode ................................................................................................. 18 IV. Section 15.247(a) : Technical Description of the EUT.............................................. 20 V. Section 15.247(a)(2) : Bandwidth for Direct Sequence System ............................. 21 5.1 Test Condition & Setup ...................................................................................... 21 5.2 Test Instruments Configuration .......................................................................... 21 5.3 List of Test Instruments ...................................................................................... 21 5.4 Test Result of Bandwidth ................................................................................... 21 Channel 01 ...................................................................................................................... 22 Channel 06 ...................................................................................................................... 23 Channel 11 ...................................................................................................................... 24 Test Report ---------------------------------------------------------------------------------- 4/50 Report No.: A5415061141, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 VI. Section 15.247(b) : Power Output ............................................................................ 25 6.1 Test Condition & Setup ...................................................................................... 25 6.2 List of Test Instruments ...................................................................................... 25 6.3 Test Result .....................…

Text truncated - open the document above for the full version.

Test Setup Photos

Test Setup Photos ------------------------------------------------------------------------ 1/2 Applicant: ASUSTeK Computer Inc. FCC ID: MSQAAM6KVIPD1 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: Front View of the Test Configuration Side View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------ 2/2 Applicant: ASUSTeK Computer Inc. FCC ID: MSQAAM6KVIPD1 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: Front View of the Test Configuration Rear View of the Test Configuration

Contact Information

Applicant

Jackson Yen(Associate Vice President)
[email protected]+886-2-28943447Fax: +886-2-28987364

Test Firm

Training Research Co., Ltd.Jack Tsai
[email protected]886-2-26935155Fax: 886-2-26934440

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz312.00 mW
Confidentiality
Long Term
Grant Notes
POWER LISTED IS CONDUCTED. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
