ASUS Internet Radio User Manual 1 2 3 4 5 H O ME V olu m e S ta nd by/O n AIR ii ASUS Internet Radio Contents Notices....................................................................iv Welcome.................................................................vi Package contents ...............................................................................vi Overview .............................................................................................vii Specifications ....................................................................................vii Getting.started.......................................................1 Front view ..............................................................................................1 Rear view ................................................................................................2 Using the remote control .................................................................3 Turning on the device .......................................................................4 Language selection ............................................................................5 Text entry ...............................................................................................6 Connecting the device to the network .......................................6 Establishing a wired connection .............................................6 Establishing a wireless connection ........................................7 Listening.to.the.radio.............................................9 Searching for a radio station ...........................................................9 Searching by genre ......................................................................9 Searching by country/location ................................................9 Searching by station name .....................................................10 Connecting to a station .................................................................11 Adding a station to My Favorite ..................................................11 Adding a currently played radio station ............................11 Adding a radio station from the list ....................................12 Adding a manually entered station .....................................12 Managing My Favorite ....................................................................13 Other.settings.......................................................14 Configuration ....................................................................................14 Network .........................................................................................14 ASUS Internet Radio iii Contents Clock ...............................................................................................14 Alarm ..............................................................................................14 Language ......................................................................................15 Backlight .......................................................................................15 Sleep Timer ...................................................................................15 Buffer ..............................................................................................15 Version Update ...........................................................................16 Reset ...............................................................................................16 Troubleshooting...................................................17 iv ASUS Internet Radio Notices Federal.Communications.Commission.Interference. Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guar- antee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. ASUS Internet Radio  IMPORTANT NOTE: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled enironment. This equipment should�eThis equipment should �e installed and operated with a minimum distance of 20cm �etween the radiator and your �ody. This transmitter must not �e co-located or operated in conjunction with any other antenna or transmitter. IEEE 802.11� or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. Industry Canada Statement Operation is su�ject to the following two conditions: • This deice may not cause interference andThis deice may not cause interference and • This deice must accept any interference��includingThis deice must accept any interference�� including interference that may caus…

Text truncated - open the document above for the full version.

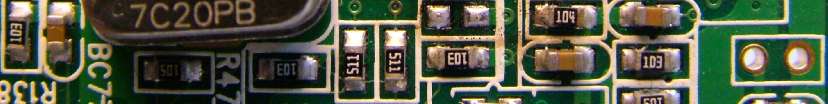

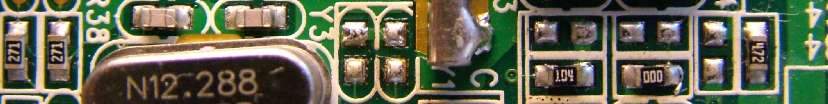

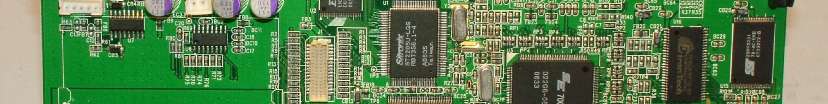

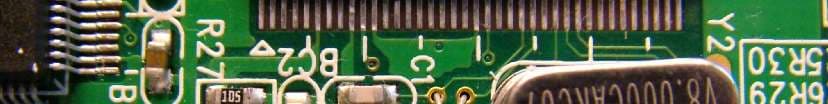

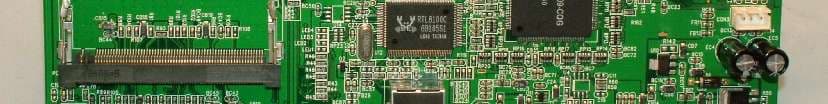

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID: MSQAIR FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14

FCC ID: MSQAIR Report No.: RF960531A06 Operational Description This device is an Asus Internet Radio which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is dipole antenna with R-SMA connector. The other instruction, please have a look at the users manual.

Report No: SA960531A06 1 RF EXPOSURE REPORT REPORT NO.: SA960531A06 MODEL NO.: AIR ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : ASUSTeK COMPUTER INC. ADDRESS : NO. 15, LI-TE RD., PEITOU, TAIPEI, TAIWAN, R.O.C. ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14 th Ling, Chia Pau Tsuen, Linko Hsiang 244, Taipei Hsien, Taiwan, R.O.C. FCC ID: MSQAIR Report No: SA960531A06 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: MSQAIR Report No: SA960531A06 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distancer. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in user’s manual. So, this device is classified as Mobile Device. FCC ID: MSQAIR Report No: SA960531A06 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.28dBi (= 1.69 numeric). 6.2 Output Power Into Antenna & RF Exposure at Distance 20cm: For 802.11b DSSS MODULATION Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 7.379 0.002 1.0 6 2437 7.413 0.002 1.0 11 2462 7.112 0.002 1.0 For 802.11g OFDM MODULATION Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 4.875 0.002 1.0 6 2437 5.984 0.002 1.0 11 2462 4.634 0.002 1.0

Report No.: RF960531A06 1 Report Format Version 2.0.6 FCC TEST REPORT REPORT NO.: RF960531A06 MODEL NO.: AIR RECEIVED: May 31, 2007 TESTED: Aug. 8 ~ 24, 2007 ISSUED: Aug. 28, 2007 APPLICANT : ASUSTeK COMPUTER INC. ADDRESS : NO. 15, LI-TE RD., PEITOU, TAIPEI, TAIWAN, R.O.C. ISSUED BY : Advance Data Technology Corporation LAB LOCATION: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien, Taiwan, R.O.C. This test report consists of 58 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF960531A06 2 Report Format Version 2.0.6 Table of Contents 1 CERTIFICATION...........................................................................................4 2 SUMMARY OF TEST RESULTS...................................................................5 2.1 MEASUREMENT UNCERTAINTY................................................................5 3 GENERAL INFORMATION............................................................................6 3.1 GENERAL DESCRIPTION OF EUT..............................................................6 3.2 DESCRIPTION OF TEST MODES................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST...........................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL................8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................10 3.4 DESCRIPTION OF SUPPORT UNITS........................................................10 4 TEST TYPES AND RESULTS.....................................................................11 4.1 CONDUCTED EMISSION MEASUREMENT..............................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................11 4.1.2 TEST INSTRUMENTS................................................................................11 4.1.3 TEST PROCEDURES.................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD.......................................................12 4.1.5 TEST SETUP..............................................................................................13 4.1.6 EUT OPERATING CONDITIONS................................................................13 4.1.7 TEST RESULTS..........................................................................................14 4.2 RADIATED EMISSION MEASUREMENT...................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................20 4.2.2 TEST INSTRUMENTS................................................................................21 4.2.3 TEST PROCEDURES.................................................................................22 4.2.4 DEVIATION FROM TEST STANDARD.......................................................22 4.2.5 TEST SETUP..............................................................................................23 4.2.6 EUT OPERATING CONDITIONS................................................................23 4.2.7 TEST RESULTS..........................................................................................24 4.3 6dB BANDWIDTH MEASUREMENT..........................................................32 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................32 4.3.2 TEST INSTRUMENTS................................................................................32 4.3.3 TEST PROCEDURE...................................................................................32 4.3.4 DEVIATION FROM TEST STANDARD.......................................................32 4.3.5 TEST SETUP..............................................................................................33 4.3.6 EUT OPERATING CONDITIONS................................................................33 4.3.7 TEST RESULTS..........................................................................................34 4.4 MAXIMUM PEAK OUTPUT POWER..........................................................38 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........38 4.4.2 TEST INSTRUMENTS................................................................................38 4.4.3 TEST PROCEDURES.................................................................................39 4.4.4 DEVIATION FROM TEST STANDARD.......................................................39 4.4.5 TEST SETUP..............................................................................................39 4.4.6 EUT OPERATING CONDITIONS................................................................39 4.4.7 TEST RESULTS..........................................................................................40 4.5 POWER SPECTRAL DENSITY MEASUREMENT......................................41 Report No.: RF960531A06 3 Report Format Version 2.0.6 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...................41 4.5.2 TEST INSTRUMENTS................................................................................41 4.5.3 TEST PROCEDURE...................................................................................41 4.5.4 DEVIATION FROM TEST STANDARD.......................................................41 4.5.5 TEST SETUP..............................................................................................41 4.5.6 EUT OPERATING CONDITIONS................................................................41 4.5.7 TEST RESULTS..........................................................................................42 4.6 BAND EDGES MEASUREMENT................................................................46 4.6.1 LIMITS OF BAND EDGES MEASUREMENT..........…
