MSQB2915ABGLaptop with WLAN

E2106 / May 2005 Notebook PC Hardware User’s Manual 2 Contents 1. Introducing the Notebook PC ..................................................................5 About This User’s Manual .......................................................................................... 6 Notes For This Manual .......................................................................................... 6 Preparing your Notebook PC ..................................................................................... 9 2. Knowing the Parts ................................................................................... 11 Top Side................................................................................................................... 12 Bottom Side............................................................................................................. 14 Left Side................................................................................................................... 16 Right Side................................................................................................................ 17 Rear Side................................................................................................................. 18 3. Getting Started ....................................................................................... 19 Power System.......................................................................................................... 20 Using AC Power.................................................................................................. 20 Using Battery Power............................................................................................ 20 Charging the Battery Pack .................................................................................. 20 Powering ON the Notebook PC .......................................................................... 22 The Power-On Self Test (POST)......................................................................... 22 Battery Care........................................................................................................ 22 Checking Battery Power...................................................................................... 23 Restarting or Rebooting...................................................................................... 24 Powering OFF..................................................................................................... 24 Special Keyboard Functions.................................................................................... 25 Colored Hot Keys................................................................................................ 25 Keyboard as Cursors........................................................................................... 26 Microsoft Windows™ Keys................................................................................. 26 Keyboard as a Numeric Keypad .........................................................................27 Instant Launch Keys and Status Indicators............................................................. 27 Instant Launch Keys............................................................................................ 27 Status Indicators (left)......................................................................................... 28 Status Indicators (right)....................................................................................... 29 3 Contents 4. Using the Notebook PC ......................................................................... 31 Operating System.................................................................................................... 32 Support Software................................................................................................. 32 Pointing Device........................................................................................................ 32 Using the Touchpad ............................................................................................. 33 Touchpad Usage Illustrations.............................................................................. 34 Caring for the Touchpad ...................................................................................... 35 Removing a PC Card (PCMCIA)......................................................................... 36 Inserting a PC Card (PCMCIA)........................................................................... 36 Storage Devices....................................................................................................... 37 PC Card (PCMCIA) Socket ................................................................................. 37 Optical Drive........................................................................................................ 38 Flash Memory Card Reader ................................................................................ 40 Modem Connection............................................................................................. 40 Hard Disk Drive................................................................................................... 41 Network Connection............................................................................................ 42 Power Savings.................................................................................................... 43 Power Management Modes..................................................................................... 43 Full Power Mode & Maximum Performance........................................................ 43 ACPI .................................................................................................................... 43 Suspend Mode.................................................................................................... 43 Power State Summary............................................................................…

Text truncated - open the document above for the full version.

To: Tim Sung,QuieTek Corporation [email protected] From: Stan Lyles [email protected] FCC Equipment Authorization Branch Applicant:ASUSTeK Computer Inc FCC ID: MSQB2915ABG Correspondence Reference Number:29335 731 Confirmation Number:EA497726 Date of Original E-Mail:8/5/2005 Subject:FCC Equipment Authorization System 1) User manual mentions Bluetooth - please explain certification status for this: a) Please submit Bluetooth FCC ID label and placement on device if Bluetooth has separate modular approval, or b) Line item and test data showing compliance of Bluetooth to all DTS reqmts, or c) Additional separate application for DSS The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee pursuant to Section 1.1108 DO NOT Reply to this email by using the Reply button. In order for your response to be processed expeditiously, you must upload your response via the Internet at www.fcc.gov, E-Filing, OET Equipment Authorization Electronic Filing, Submit Correspondence, Select Correspondence pertaining to EAS (Equipment Authorization System). Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

The information below is in response to the following FCC RT. Response can be seen in Blue over the next 3 pages: To: [email protected] Sent: Fri, 5 Aug 2005 08:51:21 -0400 (EDT) Subject: FCC Equipment Authorization System To: Tim Sung, QuieTek Corporation From: Stan Lyles [email protected] FCC Application Processing Branch Re: FCC ID MSQB2915ABG Applicant: ASUSTeK Computer Inc Correspondence Reference Number: 29335 731 Confirmation Number: EA497726 1) User manual mentions Bluetooth - please explain certification status for this: a) Please submit Bluetooth FCC ID label and placement on device if Bluetooth has separate modular approval, or b) Line item and test data showing compliance of Bluetooth to all DTS reqmts, or c) Additional separate application for DSS The Bluetooth portion is optional as given in a) above and has been Certified already under FCC ID: MSQBT183. This label will be placed onto the EUT in a separate location. See the following: You will notice that the label location for this label is in a different location than the original. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal pursuant to Section 2.917 (c) and forfeiture of the filing fee pursuant to section 1.1108. DO NOT reply to this e-mail by using the Reply button. In order for your response to be processed expeditiously, you must upload your response via the Internet at www.fcc.gov , Electronic Filing, OET Equipment Authorization Electronic Filing. If the response is submitted through Add Attachments, in order to expedite processing, a message which informs the processing staff that a new exhibit has been submitted must also be submitted via Submit correspondence. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

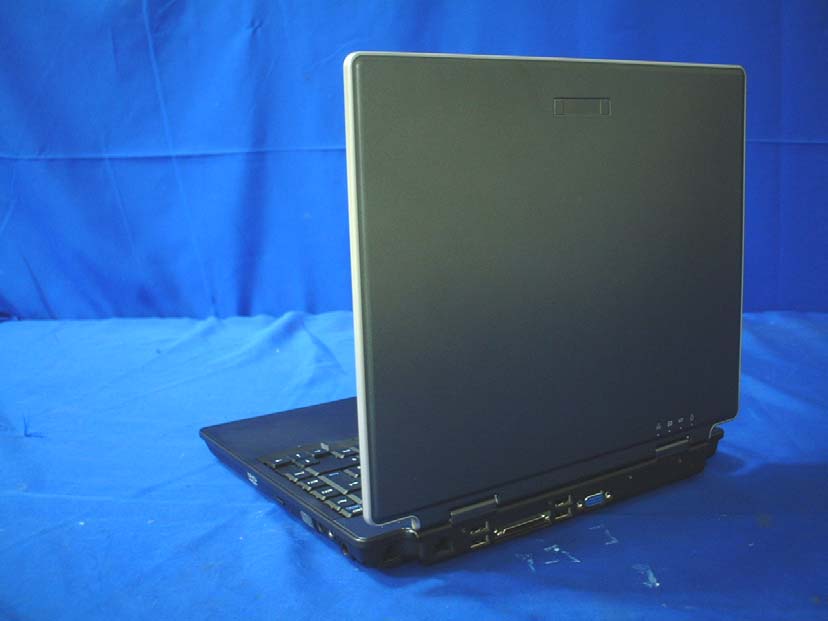

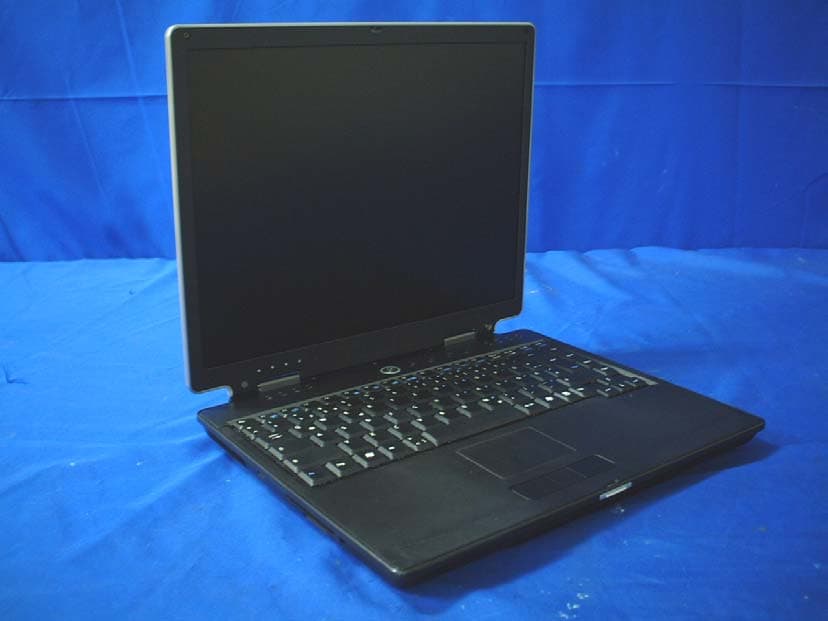

Report No.: 055L127FI Page : 1 of 12 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

ASUSTek COMPUTER INC. FCC ID.: MSQB2915ABG 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel: +886 2 2894-3447 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Notebook P.C. Model No.: Z61A,Z61Ae Notebook P.C. Model No.: Z61A,Z61Ae F F C C C C I I D D : : M M S S Q Q B B 2 2 9 9 1 1 5 5 A A B B G G This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

ASUSTek COMPUTER INC. FCC ID.: MSQB2915ABG 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel: +886 2 2894-3447 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Notebook P.C. Model No.: Z61A,Z61Ae Notebook P.C. Model No.: Z61A,Z61Ae F F C C C C I I D D : : M M S S Q Q B B 2 2 9 9 1 1 5 5 A A B B G G This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No.: 055L127FI Page : 2 of 12 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 055L127FI Page : 3 of 12 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 055L127FI Page : 4 of 12 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 055L127FI Page : 5 of 12 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 055L127FI Page : 6 of 12 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 055L127FI Page : 7 of 12 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 055L127FI Page : 8 of 12 Version:1.0 (15) EUT Photo (16) EUT Photo Report No.: 055L127FI Page : 9 of 12 Version:1.0 (17) EUT Photo (18) EUT Photo Report No.: 055L127FI Page : 10 of 12 Version:1.0 (19) EUT Photo (20) EUT Photo Report No.: 055L127FI Page : 11 of 12 Version:1.0 (21) EUT Photo (22) EUT Photo Report No.: 055L127FI Page : 12 of 12 Version:1.0 (23) EUT Photo

Report No. 055L127FI Page: 6 of 70 Version:1.0 1.2. Operational Description EUT is a Notebook P.C. with 12 channels. This device provided eight kind of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mps for normal mode. The device adapts direct sequence spread spectrum modulation. The Connector antenna was provides diversity function to improve the receiving function. This Notebook P.C. is an IEEE 802.11a Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. In addition, its standard compliance ensures that it can communicate with any 802.11a network. Test Mode: Mode 1: Transmitter 802.11a

Report No： 056L028SF Page: 1 of 26 Version:1.0 SAR Test Report Product Name ： Notebook P.C. Model No. ： Z61A, Z61Ae Applicant ： ASUSTeK COMPUTER INC. Address ： 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt：2005/06/01 Issued Date ：2005/06/27 Report No. ：056L028SF The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 056L028SF Page: 2 of 26 Version:1.0 Test Report Certification Issued Date: 2005/06/27 Report No.:055L140SF Product Name ： Notebook P.C. Applicant ： ASUSTeK COMPUTER INC. Address ： 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer ： ASUSTeK COMPUTER INC. Model No. ： Z61A, Z61Ae Applicable Standard ： FCC Oet65 Supplement C June 2001 Test Result ： Max. SAR Measurement (1g) 802.11b: 0.432 W/kg 802.11g: 0.310 W/kg 802.11a: 0.405 W/kg Application Type Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By ： (Rita Haung ) Tested By ： (Hsiu Ho) Approved By ： (Gene Chang) Report No： 056L028SF Page: 3 of 26 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................5 2. SAR Measurement System .................................................................. 6 2.1 ALSAS-10U System Description .................................................................................. 6 2.1.1 Applications ................................................................................................................ 6 2.1.2 Area Scans................................................................................................................... 6 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 7 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty......................................... 7 2.2 Isotropic E-Field Probe .................................................................................................. 7 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ................................................. 9 2.4 Daq-Paq (Analog to Digital Electronics) ..................................................................... 10 2.5 Axis Articulated Robot ................................................................................................ 10 2.6 ALSAS Universal Workstation.................................................................................... 11 2.7 Universal Device Positioner......................................................................................... 11 2.8 Phantom Types............................................................................................................. 11 2.8.1 APREL SAM Phantoms ........................................................................................... 12 2.8.2 APREL Laboratories Universal Phantom ................................................................. 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 15 4. SAR Measurement Procedure ........................................................... 16 4.1 SAR System Validation................................................................................................ 16 4.1.1 Validation Dipoles..................................................................................................... 16 4.1.2 Validation Result ....................................................................................................... 16 4.2 SAR Measurement Procedure ...................................................................................... 18 5. SAR Exposure Limits ......................................................................... 19 6. Test Equipment List............................................................................ 20 7. Measurement Uncertainty .................................................................. 21 8. Test Results ......................................................................................... 22 8.1 SAR Test Results Summary ......................................................................................... 22 Appendix A. SAR System Validation Data........................................................................ 26 Appendix B. SAR measurement Data................................................................................ 26 Report No： 056L028SF Page: 4 of 26 Version:1.0 Appendix C. Test Setup Photographs & EUT Photographs............................................... 26 Appendix D. Probe Calibration Data ................................................................................. 26 Appendix E. Dipole Calibration Data ................................................................................ 26 Appendix F. Tissue Measurement values........................................................................... 26 Report No： 056L028SF Page: 5 of 26 Version:1.0 1. General Information 1.1 EUT Description Product Name Notebook P.C. Model No. Z61A, Z61Ae FCC ID MSQB2915ABG TX …

Text truncated - open the document above for the full version.

Report No： 056L028SF Measurement Data Tissue Temp. : 22.5°C Ambient Temp. : 23.4°C Area Scan : 7x6x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Power Drift-Start : 0.113 W/kg Power Drift-Finish: 0.114 W/kg Power Drift (%) : 0.884 Crest Factor : 1 DUT Position : Touch EUT Right Side(Aux. Antenna) Frequency : 802.11b 2412MHz 1 gram SAR value : 0.206 W/kg 10 gram SAR value : 0.067 W/kg Area Scan Peak SAR : 0.277 W/kg Zoom Scan Peak SAR : 0.510 W/kg Page: 11 of 29 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 22.5°C Ambient Temp. : 23.4°C Area Scan : 7x6x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Power Drift-Start : 0.123 W/kg Power Drift-Finish: 0.123 W/kg Power Drift (%) : 0.000 Crest Factor : 1 DUT Position : Touch EUT Right Side(Aux. Antenna) Frequency : 802.11b 2437MHz 1 gram SAR value : 0.294 W/kg 10 gram SAR value : 0.096 W/kg Area Scan Peak SAR : 0.399 W/kg Zoom Scan Peak SAR : 0.700 W/kg Page: 12 of 29 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 22.5°C Ambient Temp. : 23.4°C Area Scan : 7x6x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Power Drift-Start : 0.102 W/kg Power Drift-Finish: 0.103 W/kg Power Drift (%) : 0.981 Crest Factor : 1 DUT Position : Touch EUT Right Side(Aux. Antenna) Frequency : 802.11b 2462MHz 1 gram SAR value : 0.216 W/kg 10 gram SAR value : 0.054 W/kg Area Scan Peak SAR : 0.309 W/kg Zoom Scan Peak SAR : 0.650 W/kg Page: 13 of 29 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 22.5°C Ambient Temp. : 23.4°C Area Scan : 6x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Power Drift-Start : 0.010 W/kg Power Drift-Finish: 0.010 W/kg Power Drift (%) : 0.000 Crest Factor : 1 DUT Position : Touch EUT Back(Main Antenna) Frequency : 802.11b 2437MHz 1 gram SAR value : 0.042 W/kg 10 gram SAR value : 0.008 W/kg Area Scan Peak SAR : 0.096 W/kg Zoom Scan Peak SAR : 0.200 W/kg Page: 14 of 29 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 22.5°C Ambient Temp. : 23.4°C Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Power Drift-Start : 0.010 W/kg Power Drift-Finish: 0.010 W/kg Power Drift (%) : 0.000 Crest Factor : 1 DUT Position : Touch EUT Left Front(Main Antenna) Frequency : 802.11g 2412MHz 1 gram SAR value : 0.297 W/kg 10 gram SAR value : 0.097 W/kg Area Scan Peak SAR : 0.419 W/kg Zoom Scan Peak SAR : 0.720 W/kg Page: 15 of 29 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 22.5°C Ambient Temp. : 23.4°C Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Power Drift-Start : 0.010 W/kg Power Drift-Finish: 0.010 W/kg Power Drift (%) : 0.000 Crest Factor : 1 DUT Position : Touch EUT Left Front(Main Antenna) Frequency : 802.11g 2437MHz 1 gram SAR value : 0.305 W/kg 10 gram SAR value : 0.095 W/kg Area Scan Peak SAR : 0.403 W/kg Zoom Scan Peak SAR : 0.850 W/kg Page: 16 of 29 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 22.5°C Ambient Temp. : 23.4°C Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Power Drift-Start : 0.010 W/kg Power Drift-Finish: 0.010 W/kg Power Drift (%) : 0.000 Crest Factor : 1 DUT Position : Touch EUT Left Front(Main Antenna) Frequency : 802.11g 2462MHz 1 gram SAR value : 0.310 W/kg 10 gram SAR value : 0.090 W/kg Area Scan Peak SAR : 0.349 W/kg Zoom Scan Peak SAR : 0.960 W/kg Page: 17 of 29 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 22.5°C Ambient Temp. : 23.4°C Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Power Drift-Start : 0.010 W/kg Power Drift-Finish: 0.010 W/kg Power Drift (%) : 0.000 Crest Factor : 1 DUT Position : Touch EUT Right Front(Aux. Antenna) Frequency : 802.11g 2412MHz 1 gram SAR value : 0.183 W/kg 10 gram SAR value : 0.092 W/kg Area Scan Peak SAR : 0.107 W/kg Zoom Scan Peak SAR : 0.350 W/kg Page: 18 of 29 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 22.5°C Ambient Temp. : 23.4°C Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Power Drift-Start : 0.010 W/kg Power Drift-Finish: 0.010 W/kg Power Drift (%) : 0.000 Crest Factor : 1 DUT Position : Touch EUT Right Front(Aux. Antenna) Frequency : 802.11g 2437MHz 1 gram SAR value : 0.177 W/kg 10 gram SAR value : 0.065 W/kg Area Scan Peak SAR : 0.171 W/kg Zoom Scan Peak SAR : 0.440 W/kg Page: 19 of 29 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 22.5°C Ambient Temp. : 23.4°C Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Power Drift-Start : 0.010 W/kg Power Drift-Finish: 0.010 W/kg Power Drift (%) : 0.000 Crest Factor : 1 DUT Position : Touch EUT Right Front(Aux. Antenna) Frequency : 802.11g 2462MHz 1 gram SAR value : 0.119 W/kg 10 gram SAR value : 0.034 W/kg Area Scan Peak SAR : 0.155 W/kg Zoom Scan Peak SAR : 0.370 W/kg Page: 20 of 29 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 22.5°C Ambient Temp. : 23.4°C Area Scan : 7x6x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Power Drift-Start : 0.138 W/kg Power Drift-Finish: 0.136 W/kg Power Drift (%) : -1.449 Crest Factor : 1 DUT Position : Touch EUT Left Side(Main Antenna) Frequency : 802.11g 2412MHz 1 gram SAR value : 0.203 W/kg 10 gram SAR value : 0.071 W/kg Area Scan Peak SAR : 0.240 W/kg Zoom Scan Peak SAR : 0.500 W/kg Page: 21 of 29 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 22.5°C Ambient Temp. : 23.4°C Area Scan : 7x6x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Power Drift-Start : 0.123 W/kg Power Drift-Finish: 0.120 W/kg Power Drif…

Text truncated - open the document above for the full version.

Report No： 056L028SF Measurement Data Tissue Temp. : 20.6°C Ambient Temp. : 21.2°C Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.010 W/kg Power Drift-Finish: 0.010 W/kg Power Drift (%) : 0.000 Crest Factor : 1 DUT Position : Touch EUT Left Front(Main Antenna) Frequency : 802.11a 5180MHz 1 gram SAR value : 0.121 W/kg 10 gram SAR value : 0.032 W/kg Area Scan Peak SAR : 0.109 W/kg Zoom Scan Peak SAR : 0.432 W/kg Page: 2 of 23 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 20.6°C Ambient Temp. : 21.2°C Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.010 W/kg Power Drift-Finish: 0.010 W/kg Power Drift (%) : 0.000 Crest Factor : 1 DUT Position : Touch EUT Left Front(Main Antenna) Frequency : 802.11a 5240MHz 1 gram SAR value : 0.124 W/kg 10 gram SAR value : 0.033 W/kg Area Scan Peak SAR : 0.118 W/kg Zoom Scan Peak SAR : 0.451 W/kg Page: 3 of 23 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 20.6°C Ambient Temp. : 21.2°C Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.010 W/kg Power Drift-Finish: 0.010 W/kg Power Drift (%) : 1.000 Crest Factor : 1 DUT Position : Touch EUT Left Front(Main Antenna) Frequency : 802.11a 5260MHz 1 gram SAR value : 0.240 W/kg 10 gram SAR value : 0.044 W/kg Area Scan Peak SAR : 0.238 W/kg Zoom Scan Peak SAR : 1.240 W/kg Page: 4 of 23 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 20.6°C Ambient Temp. : 21.2°C Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.010 W/kg Power Drift-Finish: 0.010 W/kg Power Drift (%) : 0.000 Crest Factor : 1 DUT Position : Touch EUT Left Front(Main Antenna) Frequency : 802.11a 5320MHz 1 gram SAR value : 0.183 W/kg 10 gram SAR value : 0.040 W/kg Area Scan Peak SAR : 0.198 W/kg Zoom Scan Peak SAR : 0.921 W/kg Page: 5 of 23 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 20.6°C Ambient Temp. : 21.2°C Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.010 W/kg Power Drift-Finish: 0.010 W/kg Power Drift (%) : 0.000 Crest Factor : 1 DUT Position : Touch EUT Right Front(Aux. Antenna) Frequency : 802.11a 5260MHz 1 gram SAR value : 0.176 W/kg 10 gram SAR value : 0.039 W/kg Area Scan Peak SAR : 0.147 W/kg Zoom Scan Peak SAR : 0.750 W/kg Page: 6 of 23 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 20.6°C Ambient Temp. : 21.2°C Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.010 W/kg Power Drift-Finish: 0.010 W/kg Power Drift (%) : 0.000 Crest Factor : 1 DUT Position : Touch EUT Left Side(Main Antenna) Frequency : 802.11a 5180MHz 1 gram SAR value : 0.082 W/kg 10 gram SAR value : 0.025 W/kg Area Scan Peak SAR : 0.090 W/kg Zoom Scan Peak SAR : 0.352 W/kg Page: 7 of 23 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 20.6°C Ambient Temp. : 21.2°C Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.010 W/kg Power Drift-Finish: 0.010 W/kg Power Drift (%) : 0.000 Crest Factor : 1 DUT Position : Touch EUT Left Side(Main Antenna) Frequency : 802.11a 5240MHz 1 gram SAR value : 0.088 W/kg 10 gram SAR value : 0.020 W/kg Area Scan Peak SAR : 0.096 W/kg Zoom Scan Peak SAR : 0.361 W/kg Page: 8 of 23 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 20.6°C Ambient Temp. : 21.2°C Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.087 W/kg Power Drift-Finish: 0.085 W/kg Power Drift (%) : -2.299 Crest Factor : 1 DUT Position : Touch EUT Left Side(Main Antenna) Frequency : 802.11a 5260MHz 1 gram SAR value : 0.159 W/kg 10 gram SAR value : 0.042 W/kg Area Scan Peak SAR : 0.782 W/kg Zoom Scan Peak SAR : 0.153 W/kg Page: 9 of 23 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 20.6°C Ambient Temp. : 21.2°C Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.095 W/kg Power Drift-Finish: 0.094 W/kg Power Drift (%) : -1.052 Crest Factor : 1 DUT Position : Touch EUT Left Side(Main Antenna) Frequency : 802.11a 5320MHz 1 gram SAR value : 0.156 W/kg 10 gram SAR value : 0.037 W/kg Area Scan Peak SAR : 0.146 W/kg Zoom Scan Peak SAR : 0.782 W/kg Page: 10 of 23 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 20.6°C Ambient Temp. : 21.2°C Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.088 W/kg Power Drift-Finish: 0.085 W/kg Power Drift (%) : -3.409 Crest Factor : 1 DUT Position : Touch EUT Right Side(Aux. Antenna) Frequency : 802.11a 5260MHz 1 gram SAR value : 0.149 W/kg 10 gram SAR value : 0.038 W/kg Area Scan Peak SAR : 0.142 W/kg Zoom Scan Peak SAR : 0.742 W/kg Page: 11 of 23 Version:1.0 Report No： 056L028SF Measurement Data Tissue Temp. : 20.6°C Ambient Temp. : 21.2°C Area Scan : 7x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm…

Text truncated - open the document above for the full version.
