MSQC300MANotebooK PC

Notebook PC E-Manual for Chromebook First Edition April 2014 E8991 2 Notebook PC E-Manual COPYRIGHT INFORMATION No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 2014 ASUSTeK COMPUTER INC. All Rights Reserved. LIMITATION OF LIABILITY Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product. ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement. This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible. UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY. SERVICE AND SUPPORT Visit our multi-language web site at http://support.asus.com Notebook PC E-Manual 3 Table of Contents About this manual .....................................................................................................6 Conventions used in this manual .............................................................................7 Typography .......................................................................................................................7 Safety precautions .....................................................................................................8 Using your Notebook PC ..............................................................................................8 Caring for your Notebook PC .....................................................................................9 Proper disposal ................................................................................................................10 Chapter 1: Hardware Setup Getting to know your Notebook PC ...................................................................12 Top View .............................................................................................................................12 Bottom ................................................................................................................................15 Right Side ..........................................................................................................................16 Left Side .............................................................................................................................17 Chapter 2: Using your Notebook PC Getting started ...........................................................................................................22 Charge your Notebook PC. ..........................................................................................22 Lift to open the display panel. ...................................................................................24 Press the power button. ...............................................................................................24 Gestures for the touchpad .....................................................................................25 Moving the pointer ........................................................................................................25 One-finger gestures .......................................................................................................26 Two-finger gestures .......................................................................................................27 Three-finger gesture ......................................................................................................28 Using the keyboard ...................................................................................................29 Chapter 3: Working with Chrome™ OS Starting for the first time ..............................................…

Text truncated - open the document above for the full version.

ASUSTeK COMPUTER INC. FCC ID.: MSQC300MA 4F, No. 150, Li-Te Rd., Peitou, Taipei, TaiwanTel : +886-2-28943447 ASUSTeK COMPUTER INC. 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Tel : +886-2-28943447 Fax: +886-2-28987364 Federal Communications Commission Nov. 01, 2014 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (C300MA) Schem.pdf Block Diagram: (C300MA) BlkDia.pdf Operational Description : (C300MA) OPDes.pdf Tune-up procedure : (C300MA) Tune-up procedure pdf BOM : (C300MA) BOM pdf The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, -------------------------------------------------- Jackson Yen / Associate Vice President ASUSTeK COMPUTER INC.

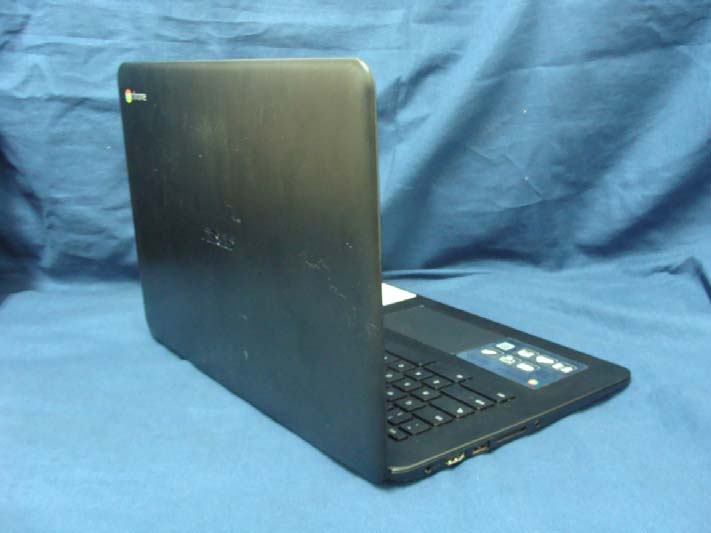

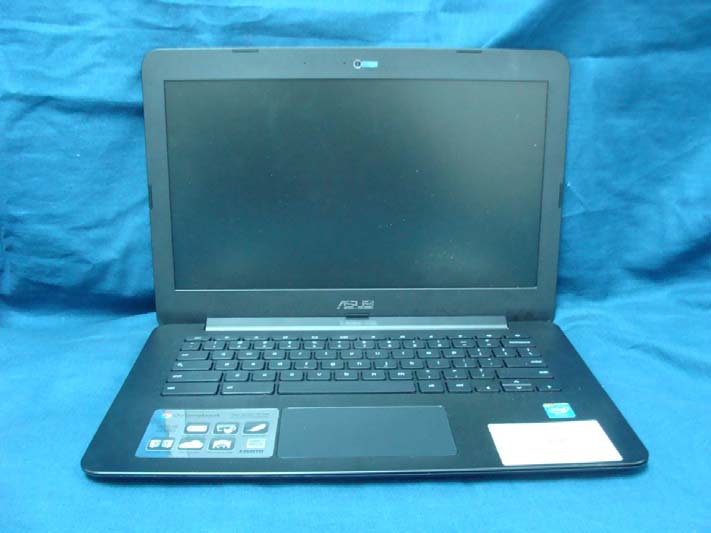

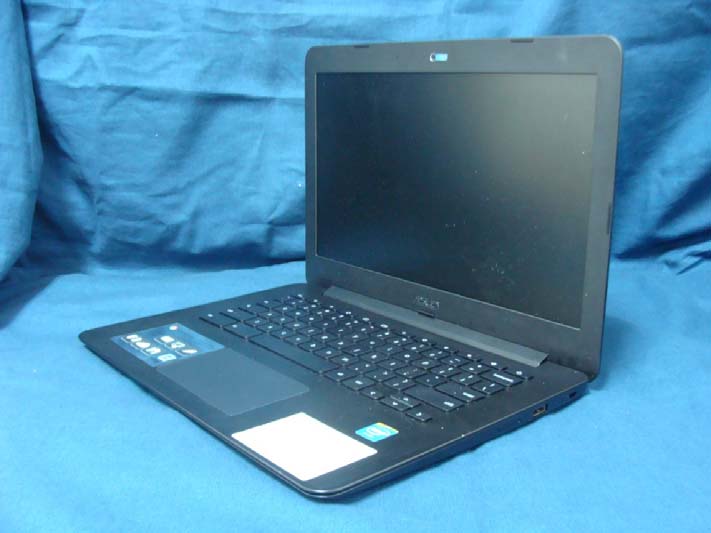

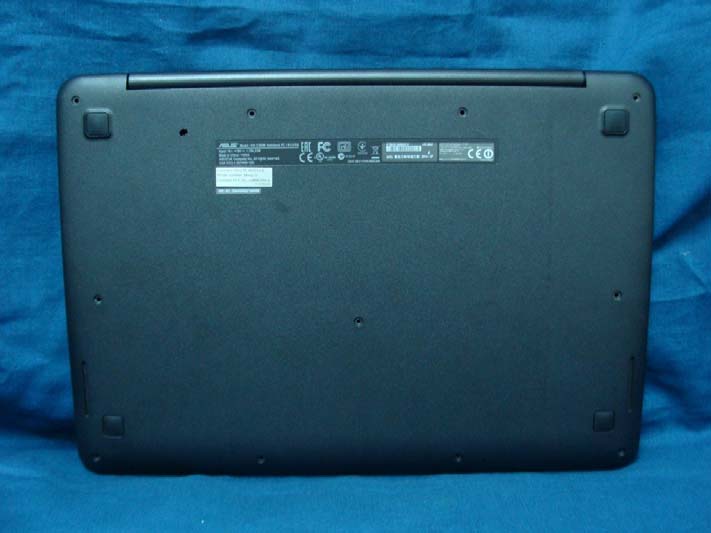

Report No.: 1490338R-HPUSP44V00 Page : 1 of 9 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 1490338R-HPUSP44V00 Page : 2 of 9 (3) EUT Photo (4) EUT Photo Report No.: 1490338R-HPUSP44V00 Page : 3 of 9 (5) EUT Photo (6) EUT Photo

ASUSTeK COMPUTER INC. FCC ID.: MSQC300MA 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Tel : +886-2-28943447 FCC ID Label

ASUSTeK COMPUTER INC. FCC ID.: MSQC300MA 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Tel : +886-2-28943447 The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

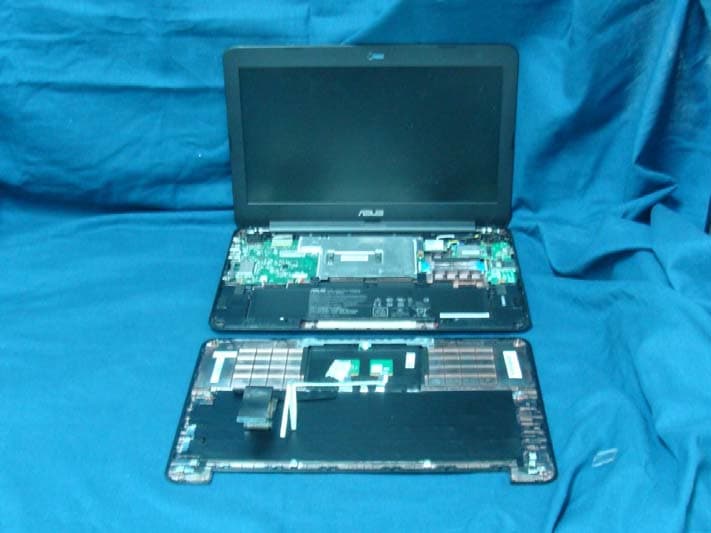

Report No.: 1490338R-HPUSP44V00 Page : 3 of 9 (5) EUT Photo (6) EUT Photo Report No.: 1490338R-HPUSP44V00 Page : 4 of 9 (7) EUT Photo (8) EUT Photo Report No.: 1490338R-HPUSP44V00 Page : 5 of 9 (9) EUT Photo (10) EUT Photo Report No.: 1490338R-HPUSP44V00 Page : 6 of 9 (11) EUT Photo (12) EUT Photo Report No.: 1490338R-HPUSP44V00 Page : 7 of 9 (13) EUT Photo (14) EUT Photo INPAQ Antenna P/N: WA-P-LTE8LTE8-04-001 Report No.: 1490338R-HPUSP44V00 Page : 8 of 9 (15) EUT Photo (16) EUT Photo INPAQ Antenna P/N: WA-P-LTE8LTE8-04-001 Report No.: 1490338R-HPUSP44V00 Page : 9 of 9 (17) EUT Photo

Report No. 1490338R-RF-US-RFEXP Page: 1 of 3 RF Exposure Evaluation declaration Product Name : Notebook PC Model No. : C300MA FCC ID : MSQC300MA Applicant : ASUSTeK COMPUTER INC. Address : 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt : Sep. 12, 2014 Date of Declaration : Oct. 03, 2014 Report No. : 1490338R-RF-US-RFEXP The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No. 1490338R-RF-US-RFEXP Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 30 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*Pi*R 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 21°Cand 60％ RH. Report No. 1490338R-RF-US-RFEXP Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : Notebook PC Test Item : RF Exposure Evaluation Test Site : N/A LTE Band IV -Peak Gain:1.70dBi Frequency (MHz) Conducted Peak Power (dBm) Duty Cycle Conducted Average Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) Pass/Fail 1732.5 23.5 1 23.5 223.9 0.0659 1 Pass LTE Band XIII -Peak Gain: -4.49dBi Frequency (MHz) Conducted Peak Power (dBm) Duty Cycle Conducted Average Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) Pass/Fail 782 23.5 1 23.5 223.9 0.0158 0.52 Pass Note: The conducted output power is refer to report No.: 1490338R-HPUSP44V00 from the QuieTek.

Report No.:1490338R-HPUSP44V00 Page: 1 of 133 FCC Test Report (Part 27) Product Name : Notebook PC Model No : C300MA FCC ID : MSQC300MA Applicant : ASUSTeK COMPUTER INC. Address : 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt：2014/09/12 Issued Date ：2014/10/03 Report No. ：1490338R-HPUSP44V00 Report Version：V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No.:1490338R-HPUSP44V00 Page: 2 of 133 Test Report Issued Date : 2014/10/03 Report No.: 1490338R-HPUSP44V00 Product Name : Notebook PC Applicant : ASUSTeK COMPUTER INC. Address : 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Manufacturer : Tech-Front (Chongqing) Computer Co., Ltd Trade Name : ASUS Model No. : C300MA EUT Rated Voltage : AC 120V~240V EUT Test Voltage : AC 120V Measurement Standard : FCC CFR Title 47 Part 27(L) Measurement Reference : TIA/EIA 603-C Test Result : Complied Documented By : (Adm. Specialist / Anny Chou) Tested By : (Senior Engineer / Vorana Chen) Approved By : (Director /Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No.:1490338R-HPUSP44V00 Page: 3 of 133 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................. 4 1.1. EUT Description ............................................................................................................. 4 1.2. Antenna List ...................................................................................................................4 1.3. Operational Description.................................................................................................. 5 1.4. Configuration of tested System ...................................................................................... 6 1.5. EUT Setup Procedures .................................................................................................. 6 1.6. Test Facility..................................................................................................................... 7 1.7. Type of Emission ............................................................................................................ 8 1.8. Voltages and DC currents............................................................................................... 8 2. Peak Power Output......................................................................................................... 9 2.1. Test Equipment............................................................................................................... 9 2.2. Test Setup .....................................................................................................................10 2.3. Limits............................................................................................................................. 10 2.4. Test Procedure.............................................................................................................. 11 2.5. Test Specification .......................................................................................................... 11 2.6. Test Result of Peak Power Output ................................................................................ 12 3. Occupied Bandwidth ..................................................................................................... 24 3.1. Test Equipment .............................................................................................................24 3.2. Test Setup ..................................................................................................................... 24 3.3. Test Procedure.............................................................................................................. 24 3.4. Test Specification .......................................................................................................... 24 3.5. Test Result of Occupied Bandwidth .............................................................................. 25 4. Spurious Emission At Antenna Terminals (+/-1MHz) .................................................... 43 4.1. Test Equipment .............................................................................................................43 4.2. Setup ............................................................................................................................ 43 4.3. Limits............................................................................................................................. 44 4.4. Test Procedure.............................................................................................................. 44 4.5. Test Specification .......................................................................................................... 44 4.6. Test Result of Spurious Emission At Antenna Terminals (+/-1MHz).............................. 45 5. Spurious Emission ........................................................................................................ 69 5.1. Test Equipment .............................................................................................................69 5.2. Test Setup ..................................................................................................................... 70 5.3. Limits............................................................................................................................. 70 5.4. Test Procedure.............................................................................................................. 71 5.5. Test Specification ...........................…

Text truncated - open the document above for the full version.

Report No.:1490338R-HPUSP44V00 Page: 76 of 133 Report No.:1490338R-HPUSP44V00 Page: 77 of 133 Report No.:1490338R-HPUSP44V00 Page: 78 of 133 Product Notebook PC Test Mode Spurious Emission (Conducted) Date of Test 2014/09/19 Test Site CTR Test Condition LTE-Band IV (10M) Test Range 30MHz~20GHz LTE- Band IV (10M) QPSK(50,0) CH20175 Frequency (MHz) Reading Level (dBm) Path Loss (dB) Emission Level (dBm) Limit (dBm) 3464 -40.880 1.1 -39.780 -13 5195 -56.510 1.23 -55.280 -13 6930 -34.540 1.59 -32.950 -13 8660 -56.320 1.89 -54.430 -13 10395 -59.820 2.07 -57.750 -13 12130 -53.040 2.26 -50.780 -13 13860 -63.490 2.64 -60.850 -13 15593 -62.151 3.5 -58.651 -13 17325 -62.862 3.7 -59.162 -13 Report No.:1490338R-HPUSP44V00 Page: 79 of 133 Report No.:1490338R-HPUSP44V00 Page: 80 of 133 Report No.:1490338R-HPUSP44V00 Page: 81 of 133 Product Notebook PC Test Mode Spurious Emission (Conducted) Date of Test 2014/09/19 Test Site CTR Test Condition LTE-Band IV (10M) Test Range 30MHz~20GHz LTE- Band IV 10M 16QAM(50,0) CH20175 Frequency (MHz) Reading Level (dBm) Path Loss (dB) Emission Level (dBm) Limit (dBm) 3464 -39.110 1.1 -38.010 -13 5205 -57.850 1.23 -56.620 -13 6930 -35.860 1.59 -34.270 -13 8660 -56.580 1.89 -54.690 -13 10395 -58.530 2.07 -56.460 -13 12125 -52.100 2.26 -49.840 -13 13850 -62.230 2.64 -59.590 -13 15593 -62.191 3.5 -58.691 -13 17330 -62.797 3.7 -59.097 -13 Report No.:1490338R-HPUSP44V00 Page: 82 of 133 Report No.:1490338R-HPUSP44V00 Page: 83 of 133 Report No.:1490338R-HPUSP44V00 Page: 84 of 133 Product Notebook PC Test Mode Spurious Emission (Conducted) Date of Test 2014/09/19 Test Site CTR Test Condition LTE-Band IV 15M Test Range 30MHz~20GHz LTE-Band IV 15M QPSK(36,0) CH20175 Frequency (MHz) Reading Level (dBm) Path Loss (dB) Emission Level (dBm) Limit (dBm) 3460 -39.153 1.1 -38.053 -13 5190 -56.630 1.23 -55.400 -13 6910 -33.380 1.59 -31.790 -13 8645 -54.690 1.89 -52.800 -13 10375 -58.170 2.07 -56.100 -13 12105 -52.940 2.26 -50.680 -13 13875 -61.870 2.64 -59.230 -13 15593 -62.482 3.5 -58.982 -13 17325 -63.691 3.7 -59.991 -13 Report No.:1490338R-HPUSP44V00 Page: 85 of 133 Report No.:1490338R-HPUSP44V00 Page: 86 of 133 Report No.:1490338R-HPUSP44V00 Page: 87 of 133 Product Notebook PC Test Mode Spurious Emission (Conducted) Date of Test 2014/09/19 Test Site CTR Test Condition LTE-Band IV (15M) Test Range 30MHz~20GHz LTE-Band IV (15M) 16QAM(75,0) CH20175 Frequency (MHz) Reading Level (dBm) Path Loss (dB) Emission Level (dBm) Limit (dBm) 3460 -40.370 1.1 -39.270 -13 5205 -58.070 1.23 -56.840 -13 6930 -37.040 1.59 -35.450 -13 8660 -56.710 1.89 -54.820 -13 10390 -60.320 2.07 -58.250 -13 12130 -55.020 2.26 -52.760 -13 13860 -62.860 2.64 -60.220 -13 15593 -61.990 3.5 -58.490 -13 17325 -62.988 3.7 -59.288 -13 Report No.:1490338R-HPUSP44V00 Page: 88 of 133 Report No.:1490338R-HPUSP44V00 Page: 89 of 133 Report No.:1490338R-HPUSP44V00 Page: 90 of 133 Product Notebook PC Test Mode Spurious Emission (Conducted) Date of Test 2014/09/19 Test Site CTR Test Condition LTE-Band IV (20M) Test Range 30MHz~20GHz LTE-Band IV (20M) QPSK(50,0) CH20175 Frequency (MHz) Reading Level (dBm) Path Loss (dB) Emission Level (dBm) Limit (dBm) 3456 -40.560 1.1 -39.460 -13 5180 -57.000 1.23 -55.770 -13 6910 -33.610 1.59 -32.020 -13 8650 -56.270 1.89 -54.380 -13 10370 -59.180 2.07 -57.110 -13 12110 -53.090 2.26 -50.830 -13 13860 -63.620 2.64 -60.980 -13 15593 -62.869 3.5 -59.369 -13 17325 -63.950 3.7 -60.250 -13 Report No.:1490338R-HPUSP44V00 Page: 91 of 133 Report No.:1490338R-HPUSP44V00 Page: 92 of 133 Report No.:1490338R-HPUSP44V00 Page: 93 of 133 Product Notebook PC Test Mode Spurious Emission (Conducted) Date of Test 2014/09/19 Test Site CTR Test Condition LTE-Band IV (20M) Test Range 30MHz~20GHz LTE-Band IV (20M) 16QAM(50,0) CH20175 Frequency (MHz) Reading Level (dBm) Path Loss (dB) Emission Level (dBm) Limit (dBm) 3460 -37.360 1.1 -36.260 -13 5180 -59.750 1.23 -58.520 -13 6910 -34.620 1.59 -33.030 -13 8640 -56.050 1.89 -54.160 -13 10375 -58.040 2.07 -55.970 -13 12095 -52.040 2.26 -49.780 -13 13875 -61.800 2.64 -59.160 -13 15593 -62.114 3.5 -58.614 -13 17325 -63.590 3.7 -59.890 -13 Report No.:1490338R-HPUSP44V00 Page: 94 of 133 Report No.:1490338R-HPUSP44V00 Page: 95 of 133 Report No.:1490338R-HPUSP44V00 Page: 96 of 133 Product Notebook PC Test Mode Spurious Emission (Conducted) Date of Test 2014/09/19 Test Site CTR Test Condition LTE-Band XIII (5M) Test Range 30MHz~10GHz LTE-Band XIII (5M) QPSK(12,6) CH23230 Frequency (MHz) Reading Level (dBm) Path Loss (dB) Emission Level (dBm) Limit (dBm) 1564 -58.840 0.58 -58.260 -13 2346 -62.520 0.7 -61.820 -13 3128 -67.350 1.01 -66.340 -13 3910 -59.650 1.18 -58.470 -13 4687 -63.950 1.23 -62.720 -13 5474 -67.080 1.45 -65.630 -13 6256 -66.409 1.56 -64.849 -13 7038 -68.610 1.59 -67.020 -13 7820 -67.940 1.82 -66.120 -13 Report No.:1490338R-HPUSP44V00 Page: 97 of 133 Report No.:1490338R-HPUSP44V00 Page: 98 of 133 Report No.:1490338R-HPUSP44V00 Page: 99 of 133 Product Notebook PC Test Mode Spurious Emission (Conducted) Date of Test 2014/09/19 Test Site CTR Test Condition LTE-Band XIII (5M) Test Range 30MHz~10GHz LTE-and XIII (5M) 16QAM(12,0) CH23230 Frequency (MHz) Reading Level (dBm) Path Loss (dB) Emission Level (dBm) Limit (dBm) 1564 -56.260 0.58 -55.680 -13 2344 -60.260 0.7 -59.560 -13 3128 -66.360 1.01 -65.350 -13 3904 -56.790 1.18 -55.610 -13 4684 -61.867 1.23 -60.637 -13 5474 -67.625 1.45 -66.175 -13 6256 -67.385 1.56 -65.825 -13 7038 -68.681 1.59 -67.091 -13 7820 -68.620 1.82 -66.800 -13 Report No.:1490338R-HPUSP44V00 Page: 100 of 133 Report No.:1490338R-HPUSP44V00 Page: 101 of 133 Report No.:1490338R-HPUSP44V00 Page: 102 of 133 Product Notebook PC Test Mode Spurious Emission (Conducted) Date of Test 2014/09/19 Test Site CTR Test Condition LTE-Band XIII (10M) Test Range 30MHz~10GHz LTE-Band XIII (10M) QPSK(25,0) CH23230 Frequency (MHz) Reading Level (dBm) Path Loss (dB) Emission Level (dBm) Limit (dBm) 1558 -61.440 0.58 -60.860 -13 2347 -63.260 0.7 -62.560 -13 3128 -67.590 1.01…

Text truncated - open the document above for the full version.

Report No.: 1490338R-HPUSP44V00 Page : 1 of 2 Attachment 1: EUT Test Setup Photographs Front View of Radiated Test Back View of Radiated Te s t Report No.: 1490338R-HPUSP44V00 Page : 2 of 2 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
