MSQCFTA1Mobile Clinical Assistant C5

Motion™ C5 User’s Guide Windows XP Tablet PC Edition 2005 DRAFT © 2007 Motion Computing, Inc. All rights reserved. This document contains information protected by copyright. No part of this document may be reproduced in any form without written consent from Motion. The information in this document is provided “as is” and is subject to change without notice. Motion is not liable for errors or omissions in this document. Motion, Motion Computing, Speak Anywhere, and View Anywhere are trademarks or registered trademarks of Motion Computing, Inc. in the U.S.A. and other countries. Acrobat is a registered trademark of Adobe Systems Incorporated. Atheros. the Atheros logo, Super G, Super A/G, Wake- on-Wireless, and Wake-on-Theft are registered trademarks of Atheros Communications, Inc. AuthenTec is a registered trademark of AuthenTec, Inc. Bluetooth is a registered trademark owned by the Bluetooth SIG, Inc., U.S.A. and licensed to Motion Computing, Inc. Intel, Intel Inside, the Intel Inside logo, Pentium, Centrino, and PROSet are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Knowles and IntelliSonic are trademarks or registered trademarks of Knowles Acoustics, Inc. Microsoft Windows, Windows XP, Windows XP Tablet PC Edition, and Windows Journal are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. OmniPass is a trademark of Softex, Inc. Realtek is a trademark of Realtek Semiconductor Corporation. SigmaTel is a registered trademark and Universal Jacks is a trademark of SigmaTel Corporation. Wi-Fi is a registered trademark of the Wi-Fi Alliance. End users may not loan, rent, lease, lend, or otherwise transfer the CDs or DVDs provided for recovery purposes to another user, except as permitted in the End User License Agreement for such product. This product incorporates copy protection technology that is protected by U.S. and foreign patents, including patent numbers 5,315,448 and 6,836,549, and other intellectual property rights. The use of Macrovision's copy protection technology in the product must be authorized by Macrovision. Reverse engineering or disassembly is prohibited. Motion Computing, Inc. has made every effort to identify trademarked properties and owners on this page. All brands and product names used in this document are for identification purposes only and may be trademarks or registered trademarks of their respective companies. The warranties for Motion products are set forth in the express limited warranty statements accompanying such products. Nothing in this document constitutes an additional warranty. The Motion Computing products and services may be covered by one or more patent-protected inventions. Additional patents may also be pending. For more information, see www.motioncomputing.com/info/patents.asp. PN 000-00-0000 Revision X00 April 2007 iii Contents Chapter 1Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Finding information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Setting up the Motion C5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Chapter 2Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Front panel buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Status lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Fingerprint reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Windows Security button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 RFID reader (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Bar code scanner (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Microphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Docking port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Wi-Fi (802.11a/b/g wireless). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Bluetooth wireless. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Power adapter . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

RF_160, Issue 01 Declaration of Authorization We Name: ASUSTeK COMPUTER INC. Address: 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. City: .................................................................. . Country: ........................................................................... . Declare that: Name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan R.O.C. is authorized to apply for Certification of the following product(s): Product description: Mobile Clinical Assistant C5 ..................... . Type designation: CFT-001 ........................ . Trademark: Motion Computing Incorporated on our behalf. Date: ...... 2007/05/14 ............... .. City: ...... ... Taipei ............... .. Name: ...... Peter Weng ......... Signature: ......... ......

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 June 8, 2007 RE: ASUSTeK Computer Inc. FCC ID: MSQCFTA1 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) The contact window listed at the FCC website is Henry Yeh. But all relevant documents are signed by Peter Weng. Under what authority does Peter Weng speak on behalf of ASUSTeK? 2.) This computing device contains three transmitters under one FCC ID. Please provide individual and unique schematics and block diagrams for the 802.11a/b/g card, the Bluetooth device, and the RFID. This device will create four unique Grants of Equipment Authorization under the following FCC equipment codes: DTS, DSS, NII, and DXX. 3.) Please provide Test Setup photographs. 4.) The SAR report indicates this device operates on channels where DFS testing is required. Please review. 5.) Why does SAR report indicate it’s use is for Canada? Why Canada maple leaf? William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

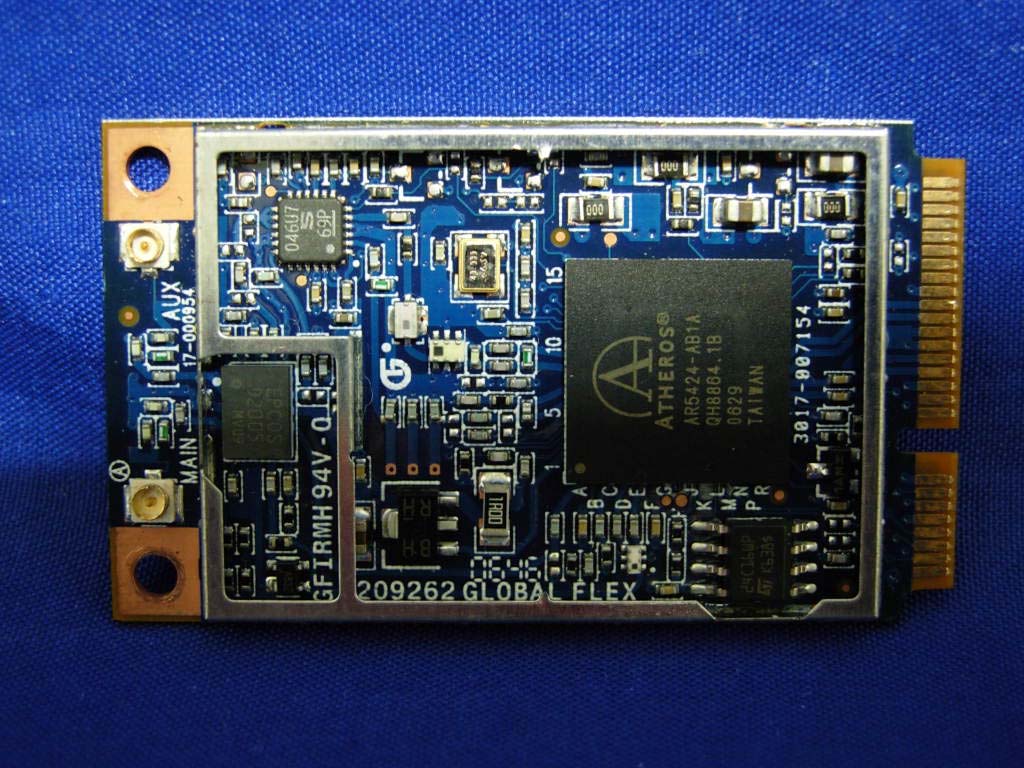

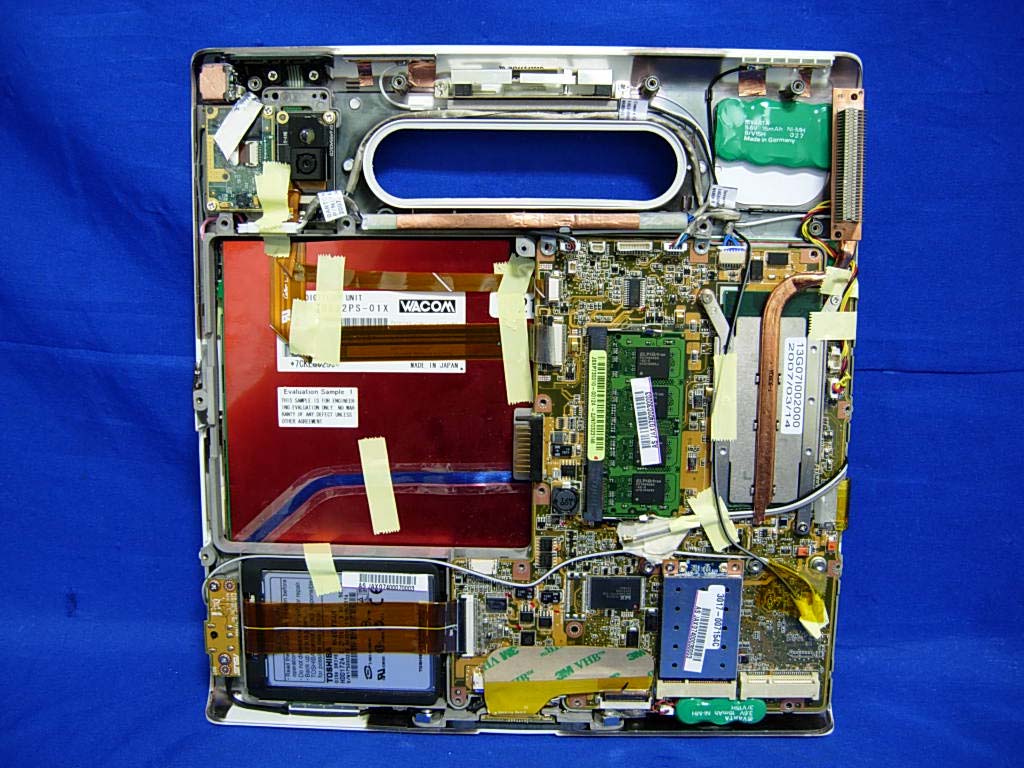

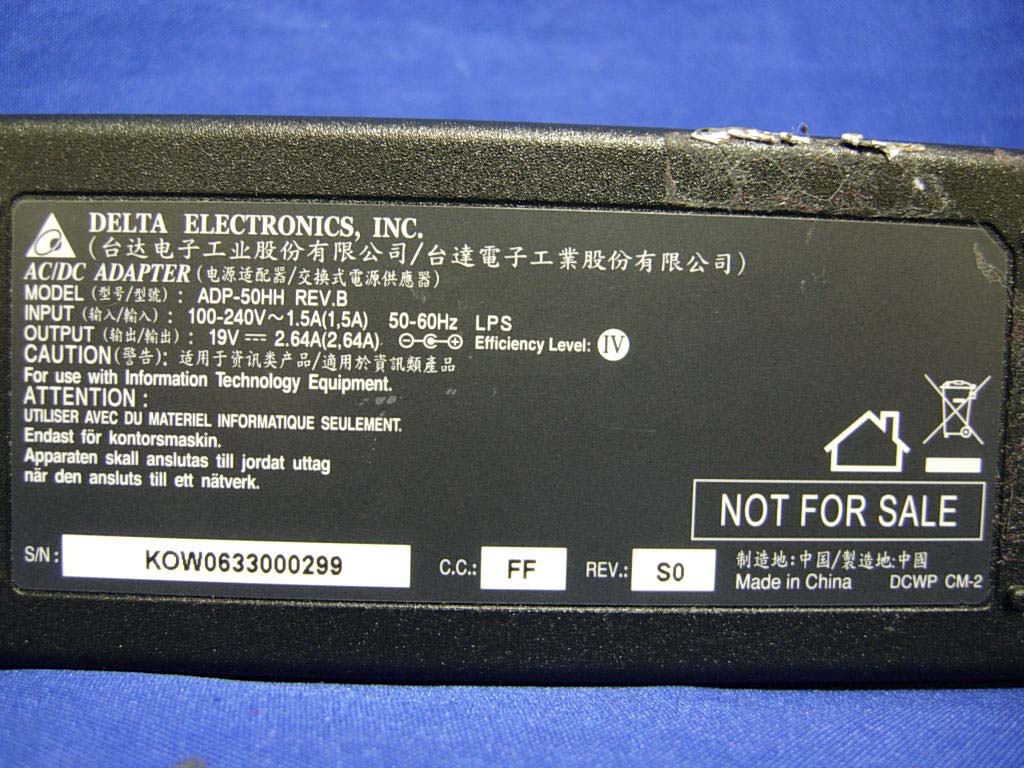

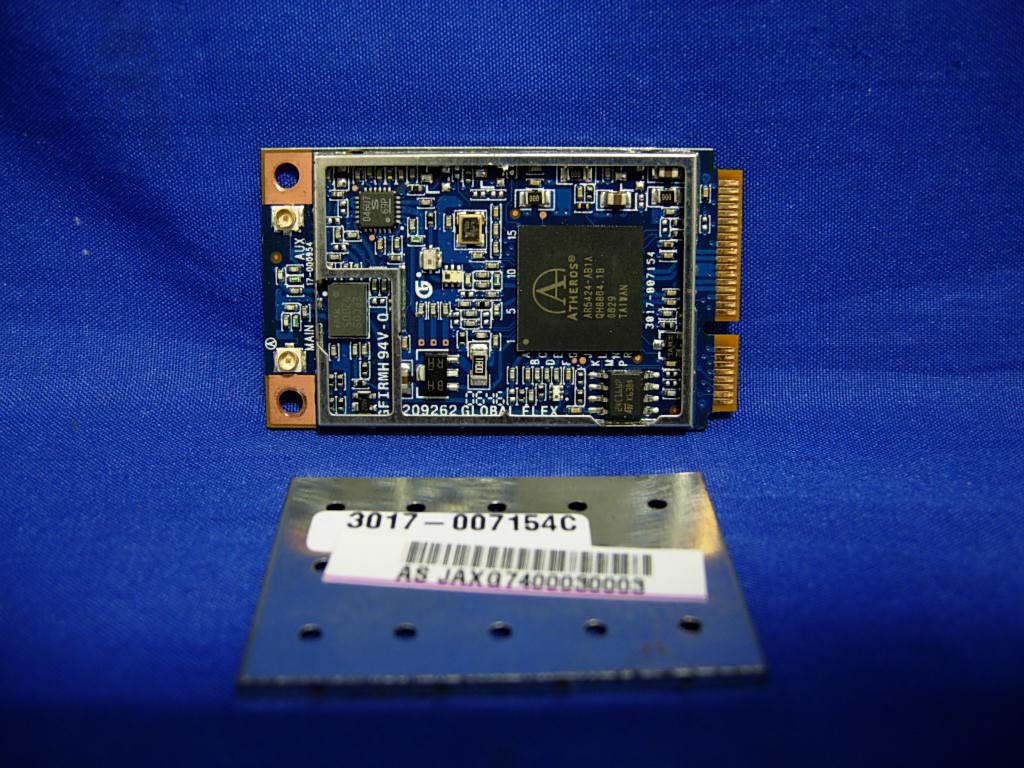

Report No.: 074L159-RFUSP09V01 Page : 2 of 13 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 074L159-RFUSP09V01 Page : 3 of 13 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 074L159-RFUSP09V01 Page : 4 of 13 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 074L159-RFUSP09V01 Page : 5 of 13 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 074L159-RFUSP09V01 Page : 6 of 13 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 074L159-RFUSP09V01 Page : 7 of 13 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 074L159-RFUSP09V01 Page : 8 of 13 Version:1.0 (15) EUT Photo (16) EUT Photo Report No.: 074L159-RFUSP09V01 Page : 9 of 13 Version:1.0 (17) EUT Photo (18) EUT Photo Report No.: 074L159-RFUSP09V01 Page : 10 of 13 Version:1.0 (19) EUT Photo (20) EUT Photo Report No.: 074L159-RFUSP09V01 Page : 11 of 13 Version:1.0 (21) EUT Photo (22) EUT Photo Report No.: 074L159-RFUSP09V01 Page : 12 of 13 Version:1.0 (23) EUT Photo (24) EUT Photo Report No.: 074L159-RFUSP09V01 Page : 13 of 13 Version:1.0 (25) EUT Photo

ASUSTeK COMPUTER INC. FCC ID.: MSQCFTA1 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C.. Tel : 886-2-2894-3447 # 5162 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

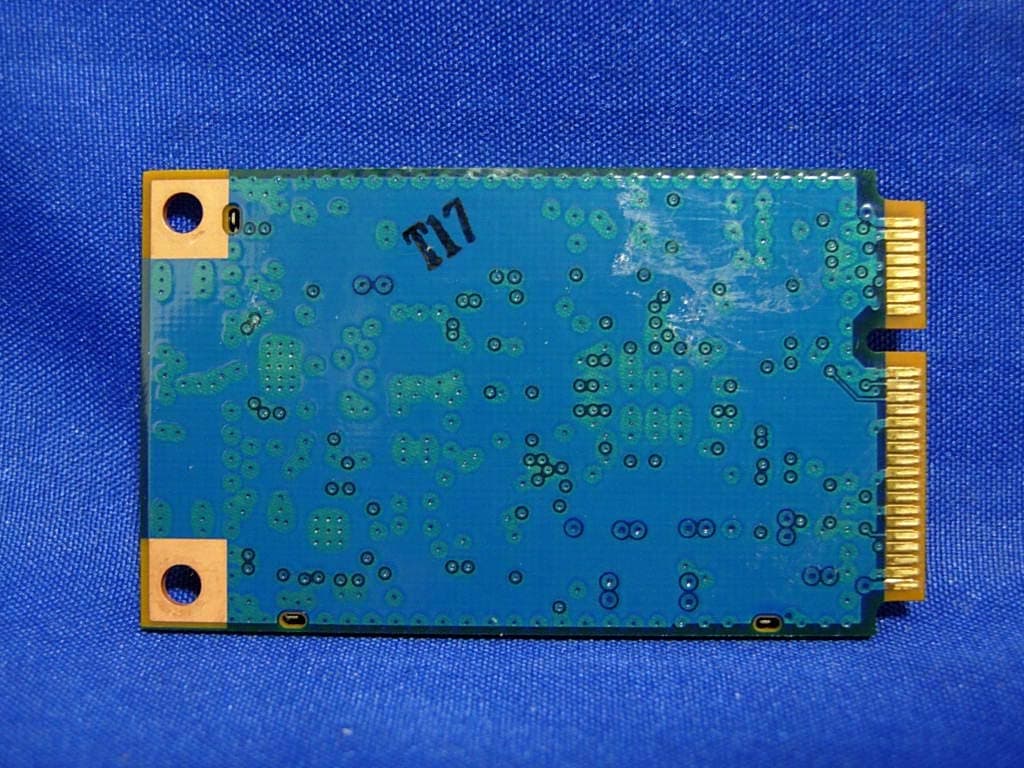

Report No.: 074L159-RFUSP09V01 Page : 1 of 13 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Report No. 074L159-RFUSP09V01 Page: 7 of 53 Version:1.0 1.2. Operational Description EUT is a Mobile Clinical Assistant C5 with a built-in 2.4GHz and 5GHz transceiver. There are 8 channels in 5150 – 5250MHz. The channels are separated by 20MHz. This device supports the data rates of 1, 2, 5.5, 11Mbps in 802.11b mode and 6, 9, 12, 18, 24, 36, 48, 54Mbps in 802.11a/g mode. The signals are modulated by DSSS in 802.11b mode and OFDM in 802.11a/g mode. The antennas are Connector and use diversity to improve the receiving sensitivity. This Mobile Clinical Assistant C5, complied with IEEE 802.11b, IEEE 802.11g, and IEEE 802.11a, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without network wires. Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b, IEEE 802.11g, and IEEE 802.11a network. Test Mode Mode 1: Transmitter 802.11a-ASKEY:WLL4080

Report No：074L159-HPUSP09V01 Page:1 of 26 Version:1.0 SAR Test Report Product Name ：Mobile Clinical Assistant C5 Model No. ：CFT-001 Applicant ： ASUSTeK COMPUTER INC. Address ： 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt ：2007/04/25 Issued Date ：2007/05/25 Report No. ：074L159-HPUSP09V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：074L159-HPUSP09V01 Page:2 of 26 Version:1.0 Test Report Certification Issued Date: 2007/05/25 Report No.:074L159-HPUSP09V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Product Name ： Mobile Clinical Assistant C5 Applicant ： ASUSTeK COMPUTER INC. Address ： 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer ： ASUSTeK COMPUTER INC. Model No. ： CFT-001 Trade Name ： Motion Computing Incorporated Applicable Standard ： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Test Result ： Max. SAR Measurement (1g) 802.11b: 0.193 W/kg 802.11g: 0.181 W/kg 802.11a (5.2GHz): 1.081 W/kg 802.11a (5.8GHz): 1.253 W/kg Application Type ： Certification Documented By ： (Engineering Adm. Assistant/ Eva Huang) Tested By ： (Senior Engineer / Shine Hsu) Approved By ： (President /Gene Chang) Report No：074L159-HPUSP09V01 Page:3 of 26 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................5 2. SAR Measurement System .................................................................. 6 2.1 ALSAS-10U System Description .................................................................................. 6 2.1.1 Applications ................................................................................................................ 6 2.1.2 Area Scans................................................................................................................... 6 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 7 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty......................................... 7 2.2 Isotropic E-Field Probe .................................................................................................. 7 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ................................................. 9 2.4 Daq-Paq (Analog to Digital Electronics) ..................................................................... 10 2.5 Axis Articulated Robot ................................................................................................ 10 2.6 ALSAS Universal Workstation.................................................................................... 11 2.7 Universal Device Positioner......................................................................................... 11 2.8 Phantom Types............................................................................................................. 11 2.8.1 APREL SAM Phantoms ........................................................................................... 12 2.8.2 APREL Laboratories Universal Phantom ................................................................. 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 16 4. SAR Measurement Procedure ........................................................... 17 4.1 SAR System Validation................................................................................................ 17 4.1.1 Validation Dipoles..................................................................................................... 17 4.1.2 Validation Result ....................................................................................................... 17 4.2 SAR Measurement Procedure ...................................................................................... 19 4.3.1 SAR Measurement Procedure ................................................................................... 19 5. SAR Exposure Limits ......................................................................... 20 6. Test Equipment List............................................................................ 21 7. Measurement Uncertainty .................................................................. 22 Report No：074L159-HPUSP09V01 Page:4 of 26 Version:1.0 8. Test Results ......................................................................................... 23 8.1 SAR Test Results Summary ......................................................................................... 23 Appendix A. SAR System Validation Data........................................................................ 26 Appendix B. SAR measurement Data................................................................................ 26 Appendix C. Test Setup Photographs & EUT Photographs............................................... 26 Report No：074L159-HPUSP09V01 Page:5 of 26 Version:1.0 1. General Information 1.1 EUT Description Product Name Mobile Clinical Assistant C5 Transmitter Modul…

Text truncated - open the document above for the full version.

Report No：074L159-HPUSP09V01 Page:1 of 26 Version:1.0 SAR Test Report Product Name ：Mobile Clinical Assistant C5 Model No. ：CFT-001 Applicant ： ASUSTeK COMPUTER INC. Address ： 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt ：2007/04/25 Issued Date ：2007/05/25 Report No. ：074L159-HPUSP09V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：074L159-HPUSP09V01 Page:2 of 26 Version:1.0 Test Report Certification Issued Date: 2007/05/25 Report No.:074L159-HPUSP09V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Product Name ： Mobile Clinical Assistant C5 Applicant ： ASUSTeK COMPUTER INC. Address ： 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer ： ASUSTeK COMPUTER INC. Model No. ： CFT-001 Trade Name ： Motion Computing Incorporated Applicable Standard ： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Test Result ： Max. SAR Measurement (1g) 802.11b: 0.193 W/kg 802.11g: 0.181 W/kg 802.11a (5.2G): 1.081 W/kg 802.11a (5.8G): 1.253 W/kg Application Type ： Certification Documented By ： (Engineering Adm. Assistant/ Eva Huang) Tested By ： (Senior Engineer / Shine Hsu) Approved By ： (President /Gene Chang) Report No：074L159-HPUSP09V01 Page:3 of 26 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................5 2. SAR Measurement System .................................................................. 6 2.1 ALSAS-10U System Description .................................................................................. 6 2.1.1 Applications ................................................................................................................ 6 2.1.2 Area Scans................................................................................................................... 6 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 7 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty......................................... 7 2.2 Isotropic E-Field Probe .................................................................................................. 7 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ................................................. 9 2.4 Daq-Paq (Analog to Digital Electronics) ..................................................................... 10 2.5 Axis Articulated Robot ................................................................................................ 10 2.6 ALSAS Universal Workstation.................................................................................... 11 2.7 Universal Device Positioner......................................................................................... 11 2.8 Phantom Types............................................................................................................. 11 2.8.1 APREL SAM Phantoms ........................................................................................... 12 2.8.2 APREL Laboratories Universal Phantom ................................................................. 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 16 4. SAR Measurement Procedure ........................................................... 17 4.1 SAR System Validation................................................................................................ 17 4.1.1 Validation Dipoles..................................................................................................... 17 4.1.2 Validation Result ....................................................................................................... 17 4.2 SAR Measurement Procedure ...................................................................................... 19 4.3.1 SAR Measurement Procedure ................................................................................... 19 5. SAR Exposure Limits ......................................................................... 20 6. Test Equipment List............................................................................ 21 7. Measurement Uncertainty .................................................................. 22 Report No：074L159-HPUSP09V01 Page:4 of 26 Version:1.0 8. Test Results ......................................................................................... 22 8.1 SAR Test Results Summary ......................................................................................... 23 Appendix A. SAR System Validation Data........................................................................ 26 Appendix B. SAR measurement Data................................................................................ 26 Appendix C. Test Setup Photographs & EUT Photographs............................................... 26 Report No：074L159-HPUSP09V01 Page:5 of 26 Version:1.0 1. General Information 1.1 EUT Description Product Name Mobile Clinical Assistant C5 Transmitter Module AS…

Text truncated - open the document above for the full version.

Report No. 074L159-RFUSP09V01 Page: 1 of 57 Version:1.0 Test Report Product Name Mobile Clinical Assistant C5 Model No CFT-001 FCC ID MSQCFTA1 Transmitter Module. ASKEY / WLL4080 Applicant ASUSTeK COMPUTER INC. Address 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt Apr. 25, 2007 Issued Date May 21, 2007 Report No. 074L159-RFUSP09V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 074L159-RFUSP09V01 Page: 2 of 57 Version:1.0 Test Report Certification Issued Date: May 21, 2007 Rport No.: 074L159-RFUSP09V01 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name Mobile Clinical Assistant C5 Applicant ASUSTeK COMPUTER INC. Address 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer ASUSTeK COMPUTER INC. Model No. CFT-001 FCC ID. MSQCFTA1 Rated Voltage AC 120V/60Hz Working Voltage AC 120V/60Hz Trade Name Motion Computing Incorporated Applicable Standard FCC CFR Title 47 Part 15 Subpart E: 2005 ANSI C63.4: 2003 Test Result Complied Documented By : ( Engineering Adm. Specialist / Rita Huang ) Tested By : (Engineer /Tim Sung) Approved By : ( President / Gene Chang ) 0914 Report No. 074L159-RFUSP09V01 Page: 3 of 57 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of tested System .....................................................................................................7 1.5. EUT Exercise Software .................................................................................................................7 1.6. Test Facility ...................................................................................................................................8 2. Conducted Emission....................................................................................................................9 2.1. Test Equipment..............................................................................................................................9 2.2. Test Setup ......................................................................................................................................9 2.3. Limits ............................................................................................................................................9 2.4. Test Procedure .............................................................................................................................10 2.5. Uncertainty ..................................................................................................................................10 2.6. Test Result of Conducted Emission.............................................................................................11 3. Peak Transmit Power ................................................................................................................15 3.1. Test Equipment............................................................................................................................15 3.2. Test Setup ....................................................................................................................................15 3.3. Limits ..........................................................................................................................................15 3.4. Limits ..........................................................................................................................................15 3.5. Uncertainty ..................................................................................................................................15 3.6. Test Result of Peak Transmit Power............................................................................................16 4. Peak Power Spectral Density....................................................................................................24 4.1. Test Equipment............................................................................................................................24 4.2. Test Setup ....................................................................................................................................24 4.3. Limits ..........................................................................................................................................24 4.4. Uncertainty ..................................................................................................................................24 4.5. Test Result of Peak Power Spectral Density ...............................................................................25 5. Peak Excursion ..........................................................................................................................28 5.1. Test Equipment............................................................................................................................28 5.2. Test Setup ....................................................................................................................................28…

Text truncated - open the document above for the full version.

Report No.: 074L159-RFUSP09V01 Page : 1 of 4 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 074L159-RFUSP09V01 Page : 2 of 4 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 074L159-RFUSP09V01 Page : 3 of 4 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn) Report No.: 074L159-RFUSP09V01 Page : 4 of 4 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
