MSQDCW625Wireless Cable Gateway

010011110101110110111000 101010101011100110111011 10110110101100101111110 11010110110110011100111 011101001110111101101101 10101010101101101110010 0101101011101010011010 10111010110111100110100 0100101101001111010111 101010101011100110111011 10110110101100101111110 11010110110110011100111 011101001110111101101101 10101010101101101110010 0101101011101010011010 10111010110111100110100 010011110101110110111000 101010101011100110111011 10110110101100101111110 11010110110110011100111 011101001110111101101101 10101010101101101110010 Wireless Cable Gateway 16096620 DCW615/25. 00 Cover6/26/03, 10:45 AM1 CAUTION: Disconnect power before servicing. CAUTION: To ensure reliable operation and to prevent overheating, provide adequate ventilation for this modem and keep it away from heat sources. Do not locate near heat registers or other heat-producing equipment. Provide for free air flow around the cable modem and its power supply. CABLE INSTALLER: This reminder is provided to call your attention to Article 820-40 of the National Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical. DOCSIS compliant This product was designed according to Data Over Cable Service Interface Specifications. It will operate on any DOCSIS-compliant Hybrid Fiber Coax (HFC) cable system and offers DOCSIS Baseline Privacy to promote secure Internet transactions. Power cord Requirement This product must be operated with the supplied line cord or with a line cord meeting IEC227 H03 VV-F or IEC227 H03 VVH2-F having conductors with a cross-sectional area not less than .75mm 2 . Operating Information Operating Temperature: 0 ̊ - 40 ̊ C (32 ̊ - 104 ̊ F) Storage Temperature: -30 ̊ to 65 ̊ C Power Pack The power pack is intended to serve as mains disconnect device and so allows to turn off the cable modem. This pack shall be easily accessible in an emergency If you purchased this product at a retail outlet, please read the following: Product Registration Please fill out the product registration card that came with this product and return it immediately. Returning the card allows us to contact you if needed. Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial and model numbers in case you need them. The numbers are located on the back of the product. Model No. ____________________________________ Serial No _____________________________________________ Safety Information 16096620 DCW615/25. 00 Cover6/26/03, 10:45 AM2 Table of Contents 1 Chapter 1: Overview and Setup Introduction ................................................................................... 4 Wireless Cable Gateway Features .......................................................................... 4 What’s on the CD-ROM ............................................................................................ 5 Computer Requirements ........................................................................................... 6 Wireless Cable Gateway Overview ............................................... 6 Contact Your Local Cable Company ...................................................................... 7 System Overview ........................................................................... 8 Your PC: Installing a PC Network Card ................................................................ 8 Your PC: Installing a TCP/IP Stack ......................................................................... 9 Your PC: Configuring DHCP on a TCP/IP Stack on a PC ................................. 10 Configuring Windows Me PCs .............................................................................. 11 Configuring Windows 2000 PCs ......................................................................... 12 Configuring Windows XP PCs .............................................................................. 12 Chapter 2: Connections and Setup Connecting Your Devices ............................................................ 13 Ethernet Connection ............................................................................................... 13 USB Connecton ........................................................................................................ 13 Connecting the Cable Modem Using Windows Me for USB Connection 14 Activating the Wireless Cable Gateway .................................... 15 Initialization .............................................................................................................. 15 Buttons ....................................................................................................................... 16 Reset Switch ............................................................................................................. 17 Software Download Indicator .............................................................................. 17 Mandatory User Configuration .................................................. 18 TOC to be updated 16096620 DCW615/25. 00 TOC6/26/03, 10:45 AM1 Table of Contents 2 Chapter 3: Networking and Advanced Settings Advanced User Configuration .................................................... 10 Three Networking Modes ...................................................................................... 20 Status Web Page Group .............................................................. 21 Software Web Page .................................................................................................. 21 Connection Web Page ............................................................................................. 21 Security Web Page .................................................................................................. 22 Diagnostics Web Page ...............…

Text truncated - open the document above for the full version.

Prohibition of co-location This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. Safety Information CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use on the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations.

Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Sub.: Confidentiality Request regarding application for certification of FCC ID: MSQDCW625 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: l Schematics l Part List l Block diagram l Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

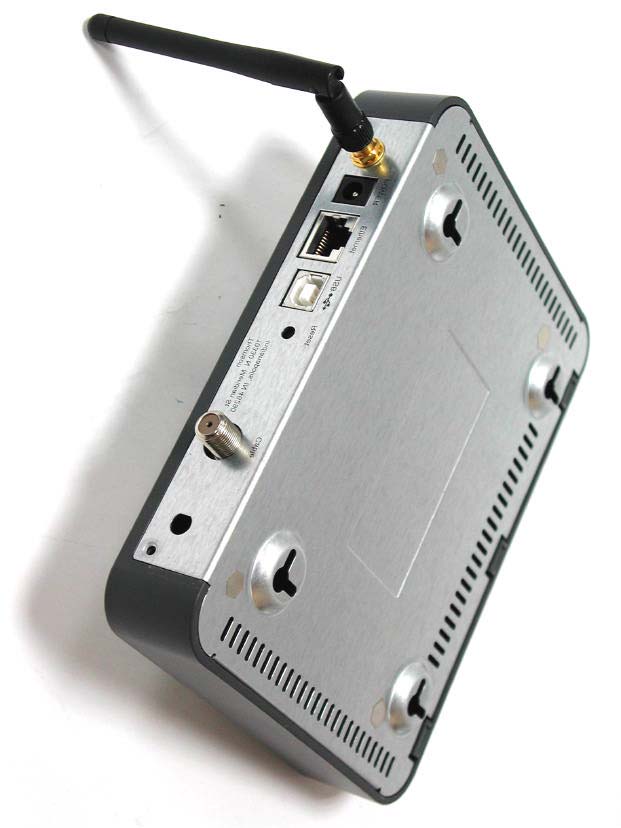

External Photos of Wireless Cable Gateway 1/4 FCC ID: MSQDCW625 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Wireless Cable Gateway 2/4 FCC ID: MSQDCW625 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Wireless Cable Gateway 3/4 FCC ID: MSQDCW625 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Wireless Cable Gateway 4/4 FCC ID: MSQDCW625 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Position:

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation

Internal Photos of Wireless Cable Gateway 1/8 FCC ID: MSQDCW625 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless Cable Gateway 2/8 FCC ID: MSQDCW625 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless Cable Gateway 3/8 FCC ID: MSQDCW625 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless Cable Gateway 4/8 FCC ID: MSQDCW625 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless Cable Gateway 5/8 FCC ID: MSQDCW625 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless Cable Gateway 6/8 FCC ID: MSQDCW625 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless Cable Gateway －－－－－－－－－－－－－－－ 7/8 FCC ID: MSQDCW625 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless Cable Gateway －－－－－－－－－－－－－－－ 8/8 FCC ID: MSQDCW625 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Training Research Co., Ltd. No. 255, Nan-yang Street, Shijr City, Taipei Hsien 221, Taiwan Tel: 886-2-26935155Fax: 886-2-26934440 e-mail: [email protected] 1 of 2 TRCSince1985 ® Measurement of MPE 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. TheGain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formulaand the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT Granted FCC ID:MSQDCW625 Product name:Wireless Router Model name:DCW625; DCW625R Classification:Mobile Device (i) Under normal use condition, the antenna is at least 20cm away from the user; (ii) Warning statement for keeping 20cm separation distance and the prohibition of operating next to the person has been printed in the user’ s manual Frequency Range:2.412 GHz ~ 2.462GHz Supported Channel :11 Channel Modulation Skill:DBPSK, DQPSK, CCK, OFDM Power Type:Switching power supply Mfg.: DVEΙ M/N: DSA-0151A-12 S I/P: 100-120VAC, 50/60Hz,40VAΙ O/P: +12VDC,1.25A Power Cable:185cm long, non-shielded,incorporates a ferrite core Training Research Co., Ltd. No. 255, Nan- yang Street, Shijr City, Taipei Hsien 221, Taiwan Tel: 886-2-26935155 Fax: 886-2-26934440 e-mail: [email protected] 2 of 2 TRCSince1985 ® 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, Equation for Predicting RF Fields: Friis Transmission Formula: 22 22 /904.1 )20(4 552.166.61 4 cmmWe R PG S − = × == ππ Estimated safe separation: cm PG R759.2 4 552.166.61 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 2.759 cm." Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 ( dBi antenna gain / 10 ) G = Log -1 (1.91 / 10) = 1.552 DESCRIPTION ： ：： ： Omni - directional antenna which is useful for 802.11b/g （ ISM band ） , Ex ： Wireless LAN . SPECIFICATION ： Part Number ： ADA06-1K10000 Appearance & Dimensions ： 108(L) × 10.5(R) mm Weight ： ≤ 20 g Operation Frequency ： 2.4~2.4835 GHz Impedance ： 50 Ohms Polarization ： Vertical Antenna Gain ： 1.91 dBi (Max.) Antenna SWR ： ≤ 2 ： 1 Connector Type ： SMA Male RP SMA-90 ° -180 ° Duan 91-01-22Duan 91-01-22Duan 91-01-22 1 1 1 : 1 方鴻明 91-01-22 ADA06-1K10000 0 ° 10 ° 20 ° 30 ° 40 ° 50 ° 60 ° 80 ° 90 ° 70 ° 100 ° 110 ° 120 ° 130 ° 140 ° 150 ° 160 ° 170 ° 180 ° 190 ° 200 ° 210 ° 220 ° 230 ° 240 ° 250 ° 260 ° 270 ° 280 ° 290 ° 300 ° 310 ° 320 ° 330 ° 340 ° 350 ° -10dBi 0dBi MEASUREMENT SOFTWARE DESIGNER: ACON 10dBi 連展科技股份有限公司 Pattern Type : H - PlaneFrequency : 2450 MHzGain : 1 .75 dBi( 244 ° ) Operator : TOMDate : 2002/4/30Time : AM 11 :04:48 Note : SMA-90- 1 80 male-fem al 0 ° 10 ° 20 ° 30 ° 40 ° 50 ° 60 ° 80 ° 90 ° 70 ° 100 ° 110 ° 120 ° 130 ° 140 ° 150 ° 160 ° 170 ° 180 ° 190 ° 200 ° 210 ° 220 ° 230 ° 240 ° 250 ° 260 ° 270 ° 280 ° 290 ° 300 ° 310 ° 320 ° 330 ° 340 ° 350 ° -10dBi 0dBi MEASUREMENT SOFTWARE DESIGNER: ACON 10dBi 連展科技股份有限公司 Pattern Type : E - Pl an Frequency : 2450 MHzGain : . 1 dBi( 1 67 ° ) Operator : TOMDate : 2002/4/ Time : PM 05: 1 9: 1 5 Note : SMA 90- 1 80

Test Report -------------------------------------------------------------------------------1/49 Report No.: A5415708, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of Wireless Cable Gateway Applicant:ASUSTek Computer Inc. EUT:Wireless Cable Gateway Model No.:DCW625; DCW625R FCC ID:MSQDCW625 Report No.:A5415708 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report -------------------------------------------------------------------------------2/49 Report No.: A5415708, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (1992) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart B (Declaration of Conformity) and C Section 15.247. Applicant:ASUSTek Computer Inc. Applicant address:4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Product Name:WirelessCable Gateway Model Name:DCW625; DCW625R FCC ID:MSQDCW625 Report No.:A5415708 Test Date:July31, 2003 Prepared by:Approved by: Jack TsaiFrank Tsai Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. NVLAP LAB CODE: 200174-0 Test Report -------------------------------------------------------------------------------3/49 Report No.: A5415708, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Federal Communications Commission Declaration of Conformity (DoC) For the Following Equipment: Product name : WirelessCable Gateway Model name: DCW625; DCW625R Trade name: ASUS Is herewith confirmed and found to comply with the requirements of CFR 47 part15 Subpart B - Unintentional Radiators regulation. The results of electromagnetic mission evaluation are shown in the report number : A5415708 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation ManufacturerUSA local representative Company name: ASUSTeK Computer Inc.To be determined Computer address: 4/F, 150, Li-Te Rd., Peitou, Taipei, Taiwan ZIP / Postal code 112 Contact person: Lawrence Yu Title: R & D Engineer Internet e-mail address: [email protected] Tel / Fax: 886-2-28943447 / 886-2-28950113 Test Report -------------------------------------------------------------------------------4/49 Report No.: A5415708, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I.GENERAL......................................................................................................................... 6 1.1 Introduction.................................................................................................................. 6 1.2 Description of EUT ....................................................................................................... 6 1.3 Description of Support Equipment ................................................................................. 6 1.4 Test method .................................................................................................................. 7 1.5 Configuration of System Under Test ............................................................................. 10 1.6 Verify the Frequency and Channel ................................................................................ 14 1.7 Test Procedure............................................................................................................ 13 1.8 Location of the Test Site ............................................................................................... 13 1.9 General Test Condition ................................................................................................. 13 II. Section 15.101(a) : Equipment Authorization of Unintentional Radiators....................... 14 III. Section 15.203 : Antenna Requirement............................................................................. 15 IV. Section 15.207 : Power Line Conducted Emissions for AC Powered Units................... 16 4.1 Test Condition & Setup................................................................................................ 16 4.2 List of Test Instruments ................................................................................................ 16 4.3 Test Result of Conducted Emissions ............................................................................. 17 802.11b ....................................................................................................................... 17 802.11g....................................................................................................................... 19 V.Section 15.247(a) : Technical Description of the EUT..................................................... 21 VI. Section 15.247(a)(2) : Bandwidth for Direct Sequence System..................................... 22 6.1 Test Condition & Setup ................................................................................................ 22 6.2 Test Instruments Configuration ...............…

Text truncated - open the document above for the full version.

Test Report ------------------------------------------------------------------------------ 42/49 Report No.: A5415708, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Channel 11, 802.11b This is the hard copy of our bandedge measurement generated by our bandedge testing program. The plot shown above is the bandedge of channel 11. 1. The lobe right by the fundamental side is already 20dB below the highest emission level. 2. The emissions recorded in the restricted band is do comply with the Part 15.209(a) – as below Radiated Emission FCC Class B ( 3m ) Corrected Amplitude (dBμV/m) Limit (dBμV/m) Frequency (MHz) Ant. P. Ant. H. (m) Table ( ) Factors (dB) Peak Average Peak Ave. Margin (dB) 2480.21 Hor 1.00 77 3.43 44.65 --- 74.00 53.96 -9.31 2480.02 Ver 1.00 164 3.43 53.68 47.99 74.00 53.96 - 5.97 2483.50 Ver 1.00 55 3.45 41.76 --- 74.00 53.96 - 12.20 * 2496.52 Ver 1.00 29 3.49 42.60 --- 74.00 53.96 -11.36 2500.37 Ver 1.00 306 3.50 42.99 --- 74.00 53.96 -10.97 2524.10 Ver 1.00 52 3.53 42.82 --- 74.00 53.96 -11.14 2538.73 Ver 1.00 241 3.55 43.70 --- 74.00 53.96 -10.26 Test Report ------------------------------------------------------------------------------ 44/49 Report No.: A5415708, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Channel 11, 802.11g This is the hard copy of our bandedge measurement generated by our bandedge testing program. The plot shown above is the bandedge of channel 11. 1. The lobe right by the fundamental side is already 20dB below the highest emission level. 2. The emissions recorded in the restricted band is do comply with the Part 15.209(a) – as below Radiated Emission FCC Class B ( 3m ) Corrected Amplitude (dBμV/m) Limit (dBμV/m) Frequency (MHz) Ant. P. Ant. H. (m) Table ( ) Factors (dB) Peak Average Peak Ave. Margin (dB) *2483.76 Hor 1.00 109 3.45 47.45 --- 74.00 53.96 -6.51 *2487.99 Hor 1.00 34 3.46 43.46 --- 74.00 53.96 -10.50 *2483.65 Ver 1.00 128 3.45 49.61 --- 74.00 53.96 -4.35 *2499.51 Ver 1.00 152 3.50 47.00 --- 74.00 53.96 -6.96

Test Setup Photos ------------------------------------------------------------------------1/3 FCC ID: MSQDCW625 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: Front View of the Test Configuration Side View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------2/3 FCC ID: MSQDCW625 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Unintentional) Front View of the Test Configuration of Unintentional Rear View of the Test Configuration of Unintentional Test Setup Photos ------------------------------------------------------------------------3/3 FCC ID: MSQDCW625 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Intentional) Front View of the Test Configuration of Intentional Rear View of the Test Configuration of Intentional
