MSQE09NE762Eee PC

Eee PC User Manual Eee PC 900AX 15G06Q252000 E5465 Notes for This Manual A few notes and warnings are used throughout this guide, allowing you to complete certain tasks safely and effectively. These notes have different degrees of importance as follows: WARNING! Important information that must be followed for safe operation. IMPORTANT! Vital information that must be followed to prevent damage to data, components, or persons. TIP: Tips for completing tasks. NOTE: Information for special situations. ASUS is devoted to creating environment- friendly products/packagings to safeguard comsumers’ health while minimizing the impact on the environment. In order to reduce the use of substances harmful to the environment, the Eee PC™ product package does not come with the Eee PC™ support DVD. The reduction of the number of the manual pages complies with the reduction of carbon emission. For system recovery, refer to the section Using Recovery Partition for the instruction on the F9 recovery. For the detailed user manual and related information, visit the ASUS Support Site at http://support.asus.com/ ASUS Eee PC 2 Transportation Precautions To prepare your Eee PC for transport, you should turn it OFF and disconnect all external peripherals to prevent damage to the connectors. The hard disk drive’s head retracts when the power is turned OFF to prevent scratching of the hard disk surface during transport. Therefore, you should not transport your Eee PC while the power is still ON. Close the display panel to protect the keyboard and display panel. The Eee PC’s surface is easily dulled if not properly cared for. Be careful not to rub or scrape surfaces when transporting your Eee PC. You can put your Eee PC in a carrying case for protection from dirt, water, shock, and scratches. There are three main types of airport security devices: X-ray machines (used on items placed on conveyor belts), magnetic detectors (used on people walking through security checks), and magnetic wands (hand-held devices used on people or individual items). You can send your Eee PC and diskettes through airport X-ray machines. However, it is recommended that you do not send your Eee PC or diskettes through airport magnetic detectors or expose them to magnetic wands. Airplane Precautions Contact your airline if you want to use the Eee PC on the airplane. Most airlines have restrictions for using electronic devices. Most airlines allow electronic use only between and not during takeoffs and landings. Charging Your Batteries If you intend to use battery power, be sure to fully charge your battery pack before going on long trips. Remember that the power adapter charges the battery pack as long as it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge the battery pack when the Eee PC is in use. Remember to fully charge the battery (8 hours or more) before first use and whenever it is depleted to prolong battery life. The battery reaches its maximmum capacity after a few full charging and discharging cycles. ASUS Eee PC  Top Side Refer to the diagram below to identify the components on this side of the Eee PC. The top side may vary in appearance depending on models. The keyboard differs for each territory. 3 4 2 1 6 7 5 ASUS Eee PC 4 Microphone (Built-in) Built-in Camera (on selected models) Display Panel Power Switch The power switch allows powering ON and OFF the Eee PC and recovering from STR. Press the switch once to turn ON and hold it to turn OFF the Eee PC. The power switch only works when the display panel is opened. Keyboard The keyboard provides keys with comfortable travel (depth at which the keys can be depressed) and palm rest for both hands. Touchpad and Buttons The touchpad and its buttons comprises a pointing device that provides the same functions as a desktop mouse. Status Indicators Power Indicator The power indicator lights when the Eee PC is turned ON and blinks slowly when the Eee PC is in the Save- to-RAM (Suspend) mode. This indicator is OFF when the Eee PC is turned OFF. Battery Charge Indicator The battery charge indicator (LED) shows the battery charging status as follows: 1 2 3 4 5 6 7 ASUS Eee PC 5 Powered ON With Adapter Without Adapter High battery power (95%–100%) Green ONOff Medium battery power (11%–94%) Orange ONOff Low battery power (0%–10%) Orange BlinkingOrange Blinking Powered OFF / Standby mode With Adapter Without Adapter High battery power (95%–100%) Green ONOff Medium battery power (11%–94%) Orange ONOff Low battery power (0%–10%) Orange Blinking Off Hard Disk Drive (HDD) Indicator The hard disk drive indicator blinks when data is written to or read from the disk drive. Wireless/Bluetooth Indicator This is only applicable on models with built-in wireless LAN/Bluetooth (on selected models). When the built-in wireless LAN/Bluetooth is enabled, this indicator lights. ASUS Eee PC 6 Bottom Side Refer to the diagram below to identify the components on this side of the Eee PC. The bottom side may vary in appearance depending on model. 21 3 4 5 The bottom of the Eee PC can get very hot. Be careful when handling the Eee PC while it is in operation or recently been in operation. High temperatures are normal during charging or operation. DO NOT USE ON SOFT SURFACES SUCH AS SOFAS OR BEDS, WHICH MAY BLOCK THE VENTS. DO NOT PUT THE Eee PC ON YOUR LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE HEAT. Battery Lock - Spring The spring battery lock keeps the battery pack secure. When the battery pack is inserted, it will automatically lock. When removing the battery pack, this spring lock must be retained in the unlocked position. 1 ASUS Eee PC  3 Battery Pack Battery time varies by usage and by the specifications for this Eee PC. The battery pack cannot be disassembled and must be purchased as a single unit. Battery Lock - Manual The manual battery lock is used to keep the battery pack secured. Move the manual lock to the unlocked position to insert or re…

Text truncated - open the document above for the full version.

ASUSTeK Computer Inc. Date: April, 01, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID: MSQE09NE762 ATTESTATION FCC ID: MSQE09NE762 Product: Eee PC Model: Eee PC 900AX We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA.

ASUSTeK COMPUTER INC. FCC ID: MSQE09NE762 4FL., No.150, Li-te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel : 886-2-2894-3447 Federal Communications Commission Authorization and Evaluation Division April. 01 , 2010 Confidential Statement We have understood that the following request for confidential documents has been and viewable since the date of grant, since it has been granted. Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics : (Eee PC 900AX) Schem Block Diagram: (Eee PC 900AX) BlkDia Operational Description: (Eee PC 900AX) OPDes Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 DFR § 2.803 and the importation rules in 47 CFR § 2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices . . We are requesting the commission to grant forty-five days short-term confidentiality request on the following attachments: External Photos: (Eee PC 900AX) Expho Internal Photos: (Eee PC 900AX) Inpho Test Setup Photos: (Eee PC 900AX) Tsup User Manual: (Eee PC 900AX) UserMan It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued.

ASUSTeK Computer Inc. No.150, Li-te Rd Peitou, Taipei Ta i wa n Attestation for FCC Declaration of Conformity FCC ID: MSQE09NE762 Date: 2010/04/01 Please be notified that we, the undersigned, ASUSTEK COMPUTER INC. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DOC. The test report number supporting the DOC is 103S073E-IT-US-P01V02. Testing in regards to this report was done by QuieTek Corp., located at No.5-22, Rueishu Keng, Rueiping Tsuen, Linkou Shiang, Taipei County 244, Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827.

RF_160, Issue 02 ASUSTeK Computer Inc. We Name: ASUSTeK Computer Inc. Address: No.150, Li-te Rd City: ......... Peitou, Taipei ............................................................... . Country: ......... Taiwan ........................................................................... . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: ...... Eee PC ............ ..................... . Type designation: ...... Eee PC 900AX ............ ..................... Trademark: ... ASUS ....................................... . ............ on our behalf. Date: ...... 2010/04/01 ............ .. City: ...... Peitou, Taipei ........................ .. Name: ...... Jackson Yen ...... ........................ .. (2) Function: .......Associate Vice President /EMC & Safety Department............ Signature: Tel: . ...... +886-2-28943447 Extension:3106 ......... . Fax: ...... +886-2-28987364 Email: ...... [email protected] Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

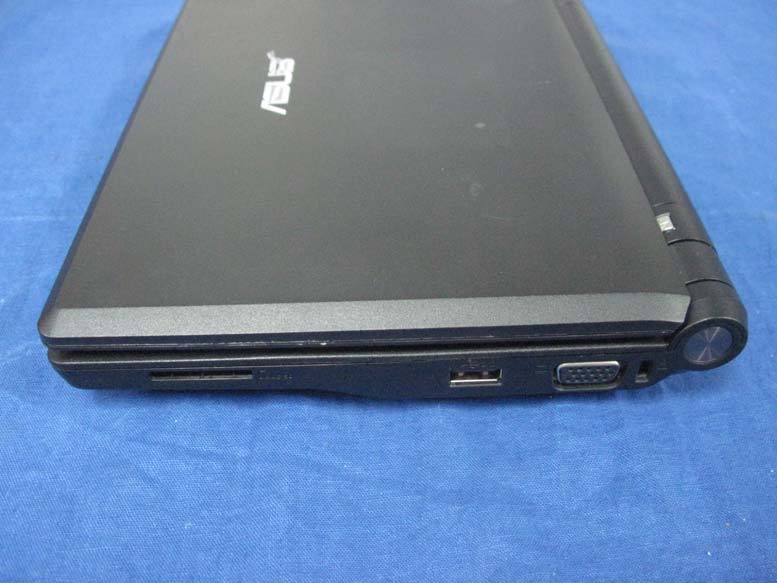

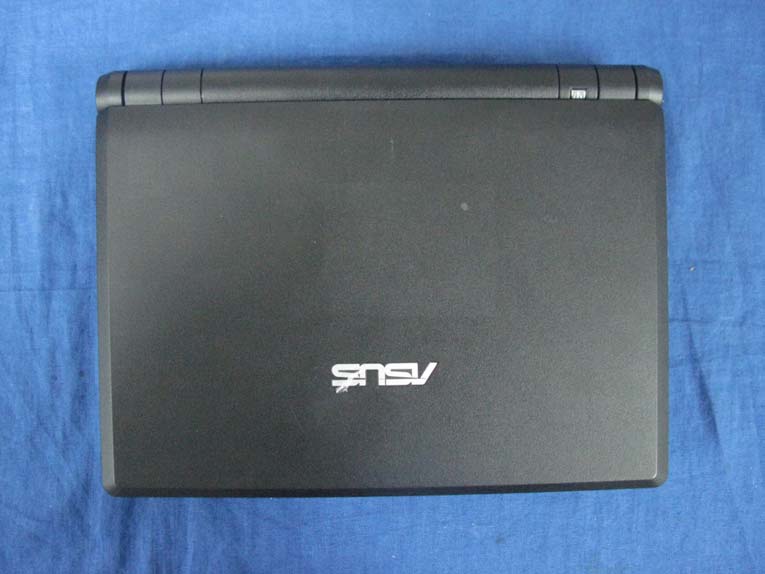

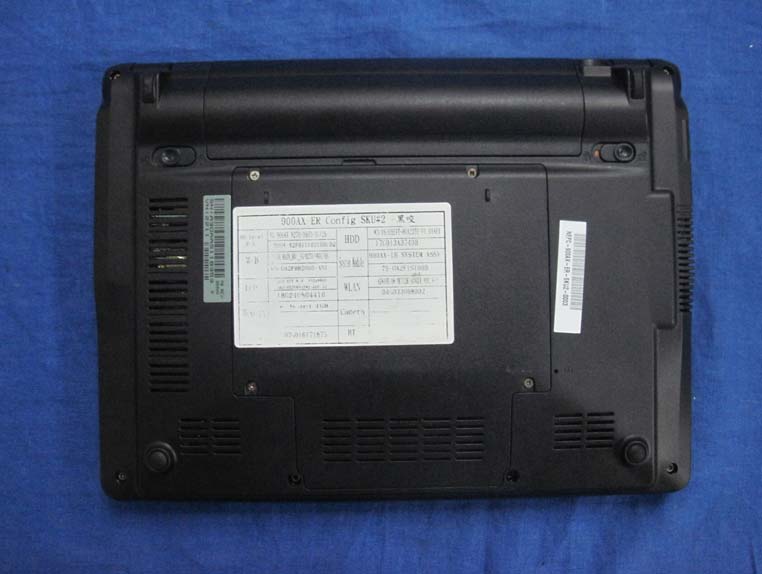

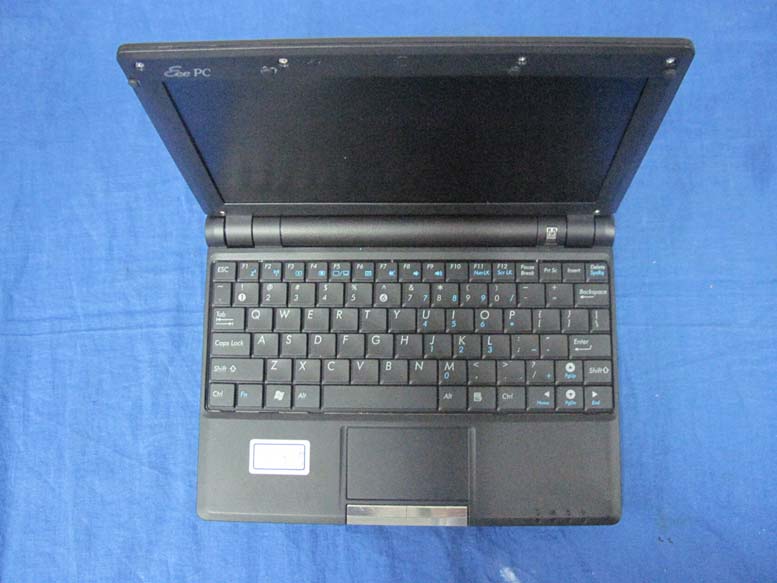

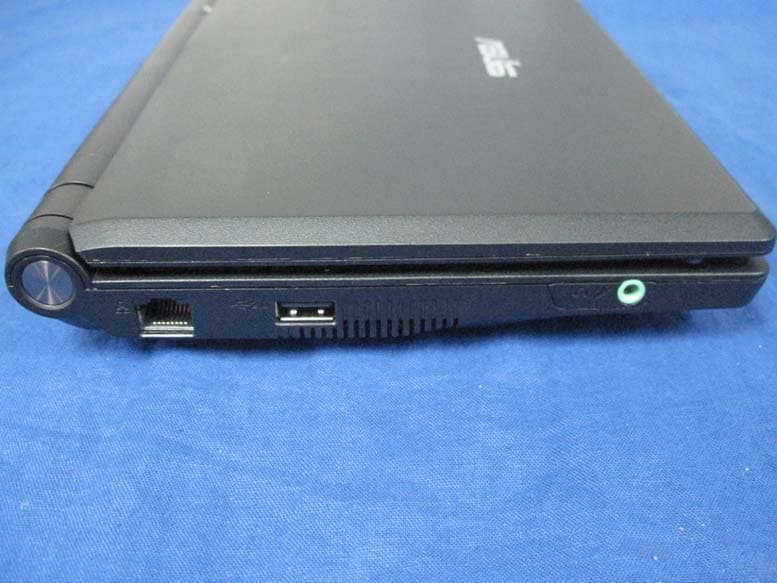

Eee PC (M/N: Eee PC 900AX) EUT Photograph-External Photographs (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo

Eee PC/ 15G1023085G0 F4 Eee PC 900AX 9.5 2.5 24 0512-66366558 0512-66368556 021-38113768 021-58136669 PC+3M467 31x19mm(+-/0.2mm) 15G102303000 白底灰字 15G1023085J0 Eee PC 900AX FCC ID: MSQE09NE762 19mm 31mm

Eee PC (M/N: Eee PC 900AX) EUT Photograph-Internal photograph (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo (12) EUT Photo (13) EUT Photo (14) EUT Photo (15) EUT Photo

Report No：104131R-HPUSP09V01 Page: 1 of 22 SAR Test Report Product Name ：Eee PC Model No. ：Eee PC 900AX Applicant ： ASUSTEK COMPUTER INC. Address ： 4FL.,No.150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C Date of Receipt ：2010/04/02 Issued Date ：2010/04/08 Report No. ：104131R-HPUSP09V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：104131R-HPUSP09V01 Page: 2 of 22 Test Report Certification Issued Date: 2010/04/08 Report No.:104131R-HPUSP09V01 Product Name ： Eee PC Applicant ： ASUSTEK COMPUTER INC. Address ： 4FL.,No.150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C Manufacturer ： PROTEK(Shang hai)Limited Model No. ： Eee PC 900AX Trade Name ： ASUS FCC ID ： MSQE09NE762 Applicable Standard ： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Test Result ： Max. SAR Measurement (1g) 0.036 W/kg Application Type ： Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By ： (Adm. Assistant / Anny Chou ) Tested By ： (Engineer / Jung Chang) Approved By ： (Manager / Vincent Lin) Report No：104131R-HPUSP09V01 Page: 3 of 22 TABLE OF CONTENTS Description Page 1. General Information.......................................................................................5 1.1 EUT Description ............................................................................................................5 1.2 Antenna List ................................................................................................................... 5 1.3 Test Environment ...........................................................................................................6 2. SAR Measurement System..........................................................................7 2.1 DASY5 System Description .......................................................................................... 7 2.1.1 Applications ................................................................................................................ 8 2.1.2 Area Scans................................................................................................................... 8 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 8 2.2 DASY5 E-Field Probe ................................................................................................... 9 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 10 2.5 Robot ............................................................................................................................ 11 2.6 Light Beam Unit........................................................................................................... 11 2.7 Device Holder ..............................................................................................................12 2.8 SAM Twin Phantom .................................................................................................... 12 3. Tissue Simulating Liquid...........................................................................13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure..................................................................15 4.1 SAR System Validation................................................................................................ 15 4.1.1 Validation Dipoles..................................................................................................... 15 4.1.2 Validation Result ....................................................................................................... 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits..................................................................................17 6. Test Equipment List.....................................................................................18 7. Measurement Uncertainty..........................................................................19 8. Peak Conducted Power Measurement....................................................20 9. Test Results..............................................................................................................21 9.1 SAR Test Results Summary ......................................................................................... 21 Report No：104131R-HPUSP09V01 Page: 4 of 22 Appendix ............................................................................................................................ 22 Appendix A. SAR System Validation Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data Appendix E. Dipole Calibration Data Report No：104131R-HPUSP09V01 Page: 5 of 22 1. General Information 1.1 EUT Description Product Name Eee PC Trade Name ASUS Model No. Eee PC 900AX FCC ID MSQE09NE762 TX Frequency 2412MHz ~ 2462MHz WLAN Module MFR : AzureWave , M/N: AW-NE762H Antenna Type PIFA Number of Channel 11 Type of Modulation DSSS/OFDM Device Category Portable RF Exposure Environment Uncontrolled Ma…

Text truncated - open the document above for the full version.

FCC Part15 Subpart C Test Report Product Name : Eee PC Model No. : Eee PC 900AX FCC ID : MSQE09NE762 Applicant : ASUSTEK COMPUTER INC. Address : NO.150, Li-Te Rd., Peitou, Taipei, Taiwan, R. O. C Date of Receipt : Mar. 23, 2010 Test Date : Mar. 23, 2010 ~ Mar. 29, 2010 Issued Date : Mar. 29, 2010 Report No. : 103S075R-RF-US-P05V01 Report Version : V1.0 The test results relate onl y to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, NVLAP or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 103S075R-RF-US-P05V01 Page: 2 of 2 Test Report Certification Issued Date : Mar. 29, 2010 Report No. : 103S075R-RF-US-P05V01 Product Name : Eee PC Applicant : ASUSTEK COMPUTER INC. Address : NO.150, Li-Te Rd., Peitou, Taipei, Taiwan, R. O. C Manufacturer : PROTEK (Shanghai) Limited Address : NO.3768 Xiu Yan Rd.Kang Qiao Town, PuDong Dist, Shang Hai Model No. : Eee PC 900AX FCC ID : MSQE09NE762 EUT Voltage : 9.5Vdc Trade Name : ASUS Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2008 ANSI C63.4: 2003 Test Result : Complied Performed Location : SuZhou EMC laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392, IC Lab Code: 4075B Documented By : ( Engineering ADM: Alice Ni ) Reviewed By : ( Engineering Supervisor: Marlin Chen ) Approved By : ( Engineering Manager: Dream Cao ) Report No： 103S075R-RF-US-P05V01 Page: 3 of 3 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/emc/accreditations/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI Report No： 103S075R-RF-US-P05V01 Page: 4 of 4 TABLE OF CONTENTS Description Page 1. General Information..................................................................................................................................6 1.1. EUT Description ........................................................................................................................................6 1.2. Mode of Operation ....................................................................................................................................8 1.3. Tested System Details ..............................................................................................................................9 1.4. Configuration of Tested System............................................................................................................10 1.5. EUT Exercise Software...........................................................................................................................11 2. Technical Test .........................................................................................................................................12 2.1. Summary of Test Result.........................................................................................................................12 2.2. Test Environment....................................................................................................................................13 3. Conducted Emission ..............................................................................................................................14 3.1. Test Equipment .......................................................................................................................................14 3.2. Test Setup................................................................................................................................................14 3.3. Limit .........................................................................................................................................................15 3.4. Test Procedure ........................................................................................................................................15 3.5. Uncertainty ..............................................................................................................................................15 3.6. Test Result...............................................................................................................................................16 4. Radiated Emission..................................................................................................................................18 4.1. Test Equipment .............…

Text truncated - open the document above for the full version.

Eee PC (M/N: Eee PC 900AX) Test Photograph of CE&RE Test Mode: Transmitting Description: Front View of Conducted Emission Test Setup Test Mode: Transmitting Description: Back View of Conducted Emission Test Setup Test Mode : Transmitting Description : Front View of Radiated Emission Test Setup for Below 1GHz Test Mode : Transmitting Description : Front View of Radiated Emission Test Setup for 1~18GHz Test Mode : Transmitting Description : Front View of Radiated Emission Test Setup for Above 18GHz SAR Test setup Report No：104131R-HPUSP09V01 Page: 1 of 4 Appendix C. Test Setup Photographs & EUT Photographs Test Setup Photographs EUT Bottom Note: The positions used in the measurements were according to IEEE 1528-2003. Touch, 0cm
