MSQF9FNotebook P.C.

Notebook PC Hardware User’s Manual ASUS WI D E S CREEN NO TEBO OK O F FON E2896 / Oct 2006 2 Contents Table of Contents 1. Introducing the Notebook PC About This User’s Manual .......................................................................................... 6 Notes For This Manual........................................................................................... 6 Preparing your Notebook PC...................................................................................... 9 2. Knowing the Parts Top Side.................................................................................................................... 12 Bottom Side .............................................................................................................. 14 Left Side ................................................................................................................... 16 Right Side ................................................................................................................. 18 Rear Side.................................................................................................................. 20 Front Side ................................................................................................................. 21 3. Getting Started Power System .......................................................................................................... 24 Using AC Power................................................................................................... 24 Using Battery Power ............................................................................................ 25 Battery Care......................................................................................................... 25 Powering ON the Notebook PC ........................................................................... 26 The Power-On Self Test (POST).......................................................................... 26 Checking Battery Power ...................................................................................... 27 Charging the Battery Pack ................................................................................... 27 Restarting or Rebooting ....................................................................................... 28 Powering OFF...................................................................................................... 28 Special Keyboard Functions..................................................................................... 29 Colored Hot Keys................................................................................................. 29 Microsoft Windows Keys...................................................................................... 31 Keyboard as a Numeric Keypad ......................................................................... 31 Keyboard as Cursors ........................................................................................... 31 Switches and Status Indicators ................................................................................ 32 Switches............................................................................................................... 32 Status Indicators .................................................................................................. 33 Table of Contents 3 Contents 4. Using the Notebook PC Operating System..................................................................................................... 36 Support Software ................................................................................................. 36 Automatic Touchpad Disabling (on selected models) ......................................... 36 Pointing Device......................................................................................................... 37 Using the Touchpad ............................................................................................. 37 Touchpad Usage Illustrations............................................................................... 38 Caring for the Touchpad....................................................................................... 39 Storage Devices ....................................................................................................... 40 Expansion Card ................................................................................................... 40 Optical Drive ........................................................................................................ 41 Flash Memory Card Reader ................................................................................ 43 Hard Disk Drive.................................................................................................... 43 Connections.............................................................................................................. 44 Modem Connection.............................................................................................. 44 Network Connection ............................................................................................ 45 Wireless LAN Connection (on selected models) ................................................. 46 Bluetooth Wireless Connection (on selected models) ......................................... 47 Power Management Modes...................................................................................... 48 Full Power Mode & Maximum Performance ........................................................ 48 ACPI..................................................................................................................... 48 Suspend Mode..................................................................................................... 48 Power Savings ..................................................................................................... 48 Power State Summary .......................................…

Text truncated - open the document above for the full version.

RE: ASUSTeK Computer Inc. FCC ID: MSQF9 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) It is very difficult to understand or judge the location of the antennas. Please provide a clear photo or drawing indicating the location. It would also be very helpful in this case to also provide a ruler or scale viewable in the photo. ANS: We’re waiting the sample from customer to take photo. I will upload later 2.) This filing seems very confused as to the frequency that it operates. The Form 731 lists one basic set of DTS frequencies in both 2.4 and 5.7GHz bands. But none of the other critical documents match. Please review the Test Report, SAR Report, Form 731, Manual (especially page 62), Operational Description, etc. Please take special care in determining which 5GHz bands this device will operate. ANS: The 731 form and test report have modified and upload to the website. 3.) FYI: If operations within the lower 5GHz bands are desired, please be aware that DFS testing, TPC, and “indoor use only” restrictions may apply. Operations under 15.407 will also require filing a Composite FCC application, which will incur additional filing costs. Please be careful! ANS: I have informed our engineer to pay attention to this issue. 4.) Please provide an RF block diagram ANS: I have upload to the website. 5.) Please provide an RF schematic. If somehow this has been missed, please indicate where on what page these Schematics can be found. ANS: I have upload to the website. 6.) The signer of Form 731 is Andrew Lin. The FCC contact window is Henry Yeh. Under what authority does Andrew Lin speak for ASUSTeK? 7.) ANS: We have added Henry Yen on the 731form. And put ASUS company stamp on the signed document to be an authorization. 7.) FYI: Please make note that because of the “frequency confusion” within this filing, a complete and through review is not possible. There are too many questions which are dependent on both the frequency and the applicable FCC rules section to be review efficiently. Depending on the finalized form of this complete Application, there may be additional questions. ANS: We will careful for this issue.

ASUSTeK COMPUTER INC. FCC ID.: MSQF9F 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. . Tel : 886-2-2894-3447 #2606 Federal Communications Commission Mar. 22 , 2007 Authorization and Evaluation Division ATTESTATION FCC ID: MSQF9F Product: Notebook P.C. Model: T13Fg We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ----------------------------------------------- Andrew1 Lin/ Engineer ASUSTeK COMPUTER INC.

ASUSTeK COMPUTER INC. FCC ID.: MSQF9F 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. . Tel : 886-2-2894-3447 #2606 ASUSTeK COMPUTER INC. 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel : 886-2-2894-3447 #2606 Fax: 886-2-2898-7364 Federal Communications Commission Mar. 22 , 2007 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics, Block Diagram, Circuit description The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ----------------------------------------------- Andrew1 Lin/ Engineer ASUSTeK COMPUTER INC.

RF_160, Issue 01 Declaration of Authorization We Name: ASUSTeK COMPUTER INC. Address: 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. City: Taipei ............................................................... . Country: Taiwan ... R.O.C. ........................................................................ . Declare that: Name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan R.O.C. is authorized to apply for Certification of the following product(s): Product description: Notebook P.C. ..................... . Type designation: T13Fg ........................ . Trademark: ASUS ..................... . on our behalf. Date: ...... 2007/03/22 ............... .. City: ...... ........................ .. Name: ...... Andrew Lin ............... Signature: ... ...

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 30, 2007 RE: ASUSTeK Computer Inc. FCC ID: MSQF9 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) It is very difficult to understand or judge the location of the antennas. Please provide a clear photo or drawing indicating the location. It would also be very helpful in this case to also provide a ruler or scale viewable in the photo. 2.) This filing seems very confused as to the frequency that it operates. The Form 731 lists one basic set of DTS frequencies in both 2.4 and 5.7GHz bands. But none of the other critical documents match. Please review the Test Report, SAR Report, Form 731, Manual (especially page 62), Operational Description, etc. Please take special care in determining which 5GHz bands this device will operate. 3.) FYI: If operations within the lower 5GHz bands are desired, please be aware that DFS testing, TPC, and “indoor use only” restrictions may apply. Operations under 15.407 will also require filing a Composite FCC application, which will incur additional filing costs. Please be careful! 4.) Please provide an RF block diagram 5.) Please provide an RF schematic. If somehow this has been missed, please indicate where on what page these Schematics can be found. 6.) The signer of Form 731 is Andrew Lin. The FCC contact window is Henry Yeh. Under what authority does Andrew Lin speak for ASUSTeK? 7.) FYI: Please make note that because of the “frequency confusion” within this filing, a complete and through review is not possible. There are too many questions which are dependent on both the frequency and the applicable FCC rules section to be review efficiently. Depending on the finalized form of this complete Application, there may be additional questions. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 June 6, 2007 RE: ASUSTeK Computer Inc. FCC ID: MSQF9 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) The measured RF power shown in the EMC report is much, much higher than that shown in the SAR report and on the Form 731. This is, quite simply, not allowed. What is the power which should be shown on the Grant? 2.) The 15.407 UNII report appears to support use of channels within the 5250-5350 MHz range. Please review the entire test report beginning with page 5. 3.) Please provide a more complete block diagram of the radio module, specifically the radio transceiver GQ82534RDE. 4.) The contact window for ASUSTeK listed with FCC website is Henry Yeh. The signer of the Confidentiality Request and Agent Authorization is Andrew Lin. It is not sufficient to simply show both gentlemen on the application form – the FCC database must be correct. Under what authority does Andrew Lin speak for ASUSTeK? 5.) The radiated band edge in 802.11b/g on channel 11 seems a bit low. I would expect, assuming a 0dBi antenna, that radiated field strength would be close to 110-115dBuV. Your peak values (pages 41 – 48) are not even 100dBuV. This makes me suspect that the device was not maximized for radiated emissions before the radiated restricted band edge data was taken. Please review your band edge data. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 June 21, 2007 RE: ASUSTeK Computer Inc. FCC ID: MSQF9 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) Please refer to your May 29 Test Report. I am unable to determine compliance with the provisions of 15.215(c) requirements that out-of-band emissions must be down 20dBc. Please provide band edge plots at 5150 and 5250 MHz using a RBW no smaller than 1% of the emission bandwidth, and centered directly on the 5150 and 5250 MHz band edge. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

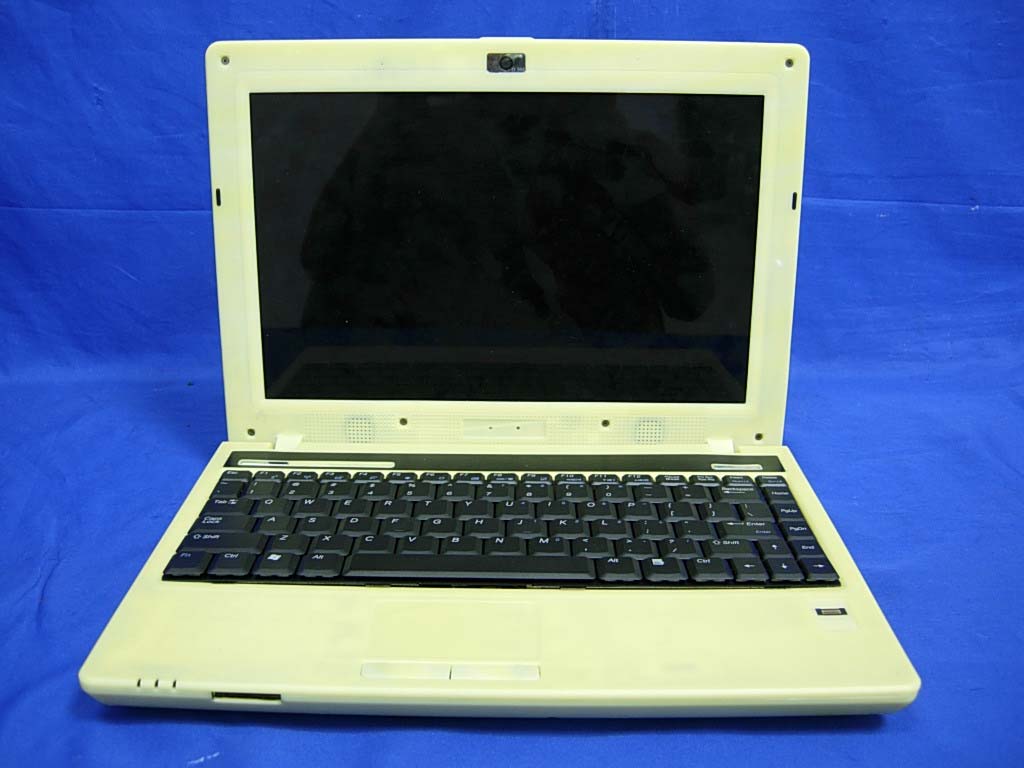

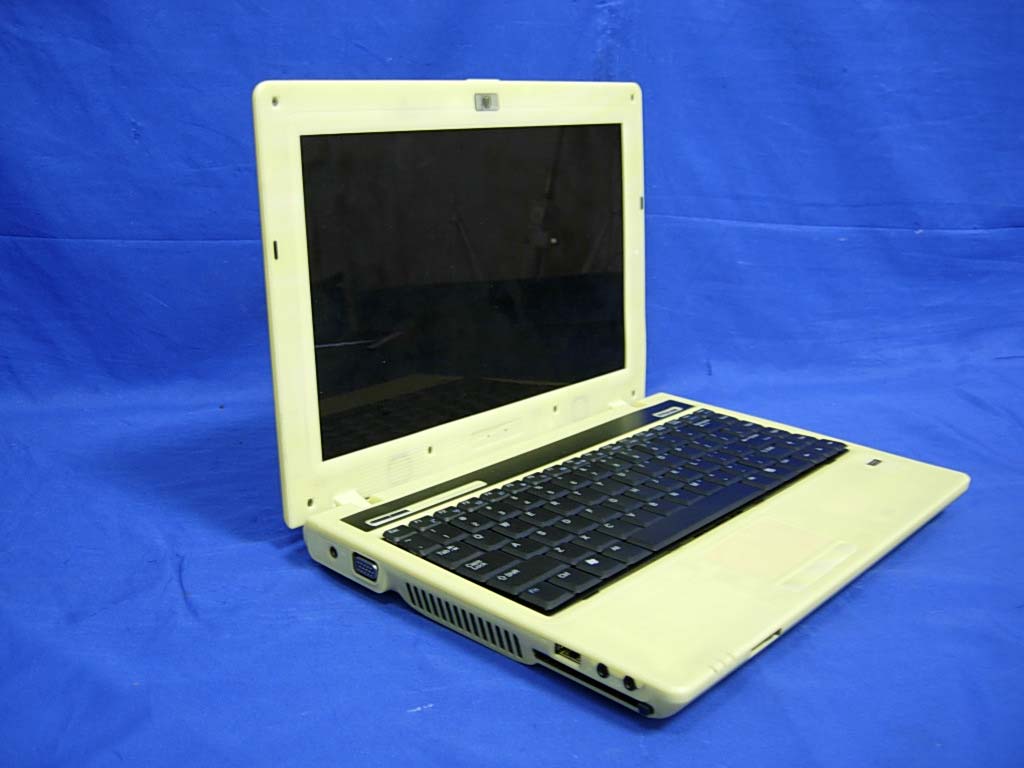

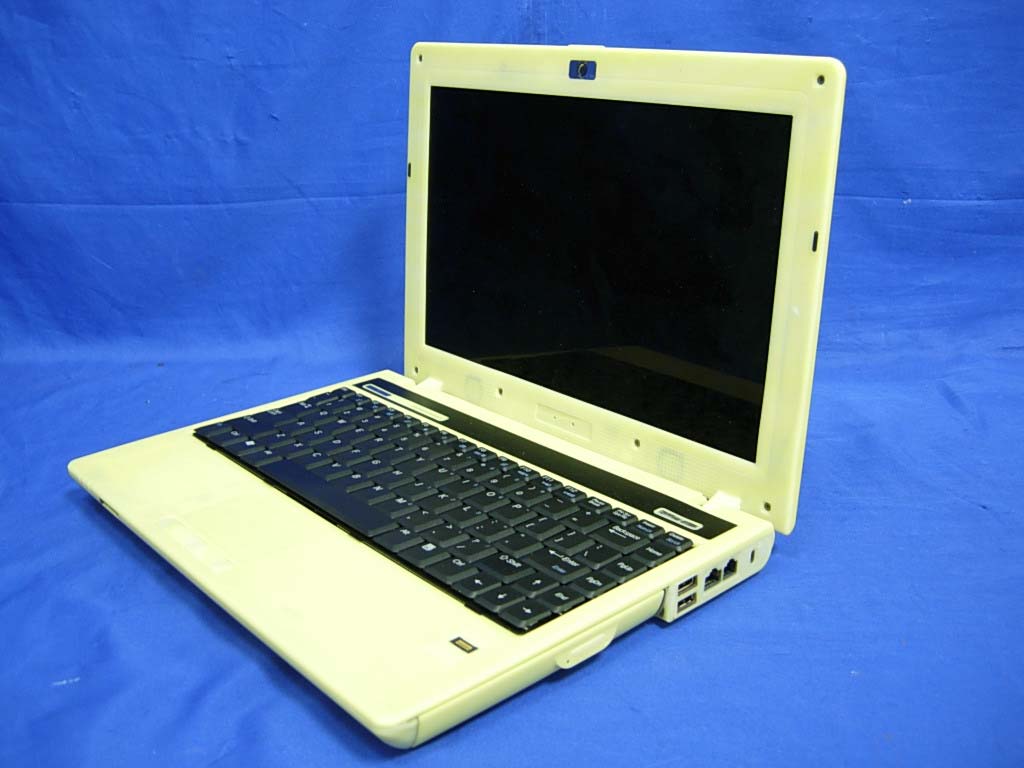

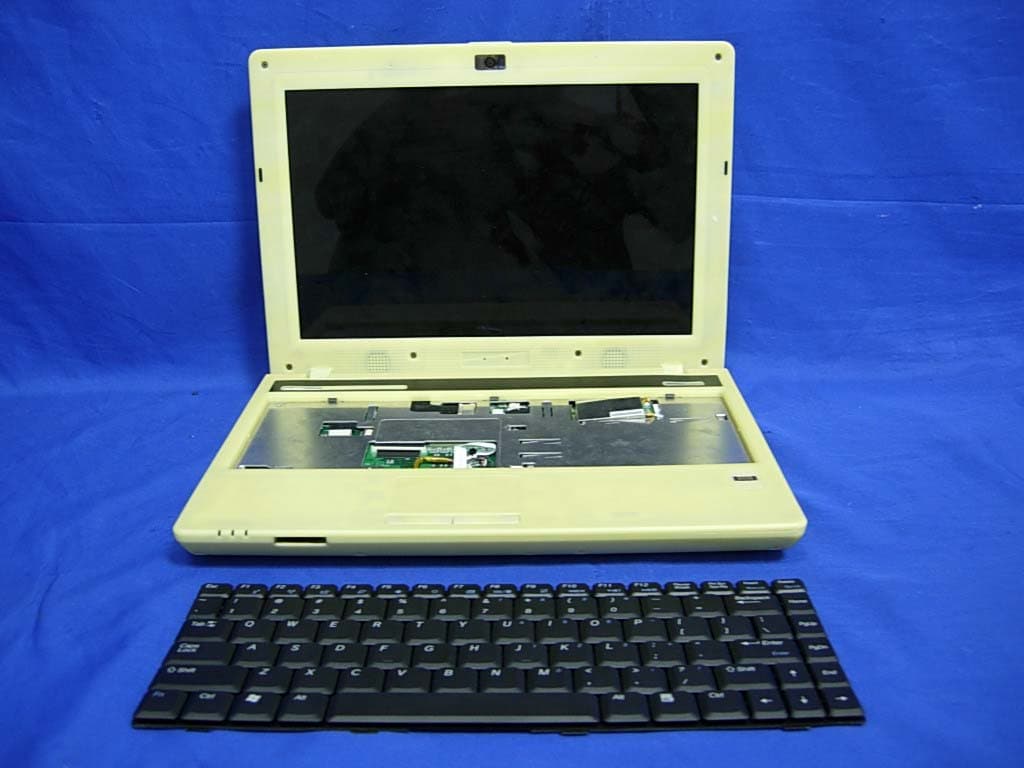

Report No.: 069L065-RF-US-P05V01 Page : 1 of 14 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 069L065-RF-US-P05V01 Page : 2 of 14 Version:1.0 (3) EUT Photo (4) EUT Photo

ASUSTeK COMPUTER INC. FCC ID.: MSQF9F 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. . Tel : 886-2-2894-3447 #2606 FCC ID and Doc Label The FCC ID and Doc Label will be placed on the equipment as shown in the photograph below.

Report No. 069L065-RF-US-P05V01 Page: 7 of 79 Version:1.0 1.2. Operational Description EUT is a Notebook P.C. with a built-in 2.4GHz and 5GHz transceiver. There are 11 channels in 2412 – 2462MHz and 5 channels in 5745 – 5825MHz. The channels are separated by 5MHz in 2.4GHz band and 20MHz in 5GHz band. This device supports the data rates of 1, 2, 5.5, 11Mbps in 802.11b mode and 6, 9, 12, 18, 24, 36, 48, 54Mbps in 802.11a/g mode. The signals are modulated by DSSS in 802.11b mode and OFDM in 802.11a/g mode. The antennas are Connector and use diversity to improve the receiving sensitivity. This Notebook P.C., complied with IEEE 802.11b, IEEE 802.11g, and IEEE 802.11a, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without network wires. Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b, IEEE 802.11g, and IEEE 802.11a network.

Doc.No.:3.8.05 Rev – 6.2 Regulatory WLAN Antenna Information Example 34/37 Section 5. Antenna Host Platform Location Information Include a dimensioned photos or dimensioned drawings of main and auxiliary antenna placements. Main(side right) antenna Aux(side Left) antenna 308mm 225mm 45mm Main Antenna Wireless module AUX Antenna Doc.No.:3.8.05 Rev – 6.2 Regulatory WLAN Antenna Information Example 35/37 Section 6. Antenna dimensional information for SAR evaluation Include a dimensioned photos or dimensioned drawings showing the distance (mm) between the transmit (main) antenna and the user (excluding hands, wrist, feet, and ankle) 330mm 245mm 245mm Doc.No.:3.8.05 Rev – 6.2 Regulatory WLAN Antenna Information Example 36/37 Section 7. Diagram Example of Co-Location Antenna Separation Include a dimensioned photos or dimensioned drawings showing the distance (mm) between the transmit (main) antenna and the user (excluding hands, wrist, feet, and ankle) 308mm 225mm 45mm Main Antenna Wireless module Aux Antenna MIMO Antenna

Report No： 069L065-HP-US-P09V01 Page: 1 of 27 Version:1.0 SAR Test Report Product Name：Notebook P.C. Model No. ：T13Fg Applicant ： ASUSTeK COMPUTER INC. Address ： 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt ：2006/09/07 Issued Date ：2006/10/03 Report No. ：069L065-HP-US-P09V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 069L065-HP-US-P09V01 Page: 2 of 27 Version:1.0 Test Report Certification Issued Date: 2006/08/21 Report No.:069L065-HP-US-P09V01 Product Name ： Notebook P.C. Applicant ： ASUSTeK COMPUTER INC. Address ： 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer ： ASUSTeK COMPUTER INC. Model No. ： T13Fg Trade Name ： AUSU Applicable Standard ： FCC Oet65 Supplement C June 2001 Test Result ： Max. SAR Measurement (1g) 802.11b: 0.342 W/kg 802.11g: 0.224 W/kg 802.11a (5200MHz): 0.287 W/kg 802.11a (5800MHz): 0.236 W/kg Application Type Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By ： (Eva Huang) Tested By ： (Shine Hsu) Approved By ： (Gene Chang) Report No： 069L065-HP-US-P09V01 Page: 3 of 27 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................5 2. SAR Measurement System .................................................................. 6 2.1 ALSAS-10U System Description .................................................................................. 6 2.1.1 Applications ................................................................................................................ 6 2.1.2 Area Scans................................................................................................................... 6 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 7 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty......................................... 7 2.2 Isotropic E-Field Probe .................................................................................................. 7 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ................................................. 9 2.4 Daq-Paq (Analog to Digital Electronics) ..................................................................... 10 2.5 Axis Articulated Robot ................................................................................................ 10 2.6 ALSAS Universal Workstation.................................................................................... 11 2.7 Universal Device Positioner......................................................................................... 11 2.8 Phantom Types............................................................................................................. 11 2.8.1 APREL SAM Phantoms ........................................................................................... 12 2.8.2 APREL Laboratories Universal Phantom ................................................................. 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 16 4. SAR Measurement Procedure ........................................................... 17 4.1 SAR System Validation................................................................................................ 17 4.1.1 Validation Dipoles..................................................................................................... 17 4.1.2 Validation Result ....................................................................................................... 17 4.2 SAR Measurement Procedure ...................................................................................... 19 5. SAR Exposure Limits ......................................................................... 20 6. Test Equipment List............................................................................ 21 7. Measurement Uncertainty .................................................................. 22 8. Test Results ......................................................................................... 23 8.1 SAR Test Results Summary ......................................................................................... 23 Appendix A. SAR System Validation Data........................................................................ 27 Appendix B. SAR measurement Data................................................................................ 27 Report No： 069L065-HP-US-P09V01 Page: 4 of 27 Version:1.0 Appendix C. Test Setup Photographs & EUT Photographs............................................... 27 Appendix D. Probe Calibration Data ................................................................................. 27 Appendix E. Dipole Calibration Data ................................................................................ 27 Report No： 069L065-HP-US-P09V01 Page: 5 of 27 Version:1.0 1. General Information 1.1 EUT Description Product Name Notebook P.C. Trade Name ASUS Model No. T13Fg FCC ID …

Text truncated - open the document above for the full version.

Report No：069L065-HP-US-P09V01 Page: 1 of 5 Version:1.0 Test Setup Photographs EUT Back EUT Rear Note: The positions used in the measurements were according to IEEE 1528-2003. Report No：069L065-HP-US-P09V01 Page: 2 of 5 Version:1.0 EUT Photographs Report No：069L065-HP-US-P09V01 Page: 3 of 5 Version:1.0 Report No：069L065-HP-US-P09V01 Page: 4 of 5 Version:1.0 Report No：069L065-HP-US-P09V01 Page: 5 of 5 Version:1.0 Appendix - Probe Calibration Miniature Isotropic RF Probe M/N: ALS-E-020 S/N: 264 2450MHz Head Calibration 2450MHz Body Calibration Appendix - Probe Calibration Miniature Isotropic RF Probe M/N: ALS-E-020 S/N: 264 5200MHz Head Calibration 5200MHz Body Calibration Appendix - Probe Calibration Miniature Isotropic RF Probe M/N: ALS-E-020 S/N: 264 5800MHz Head Calibration 5800MHz Body Calibration

Appendix - Dipole Calibration Validation Dipole 2450MHz P/N: ALS-D-2450-S-2 S/N: QTK-319 Page: 1 of 19 Appendix - Dipole Calibration Validation Dipole 5200MHz P/N: ALS-D-5200-S-2 S/N: QTK-320

Report No. 069L065-RF-US-P05V01 Page: 1 of 79 Version:1.0 Test Report Product Name : Notebook P.C. Model No. : T13Fg FCC ID : MSQF9F Applicant : ASUSTeK COMPUTER INC. Address : 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt : Sep. 07, 2006 Issued Date : Sep. 20, 2006 Report No. : 069L065-RF-US-P05V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 069L065-RF-US-P05V01 Page: 2 of 79 Version:1.0 Test Report Certification Issued Date: Sep. 20, 2006 Report No.: 069L065-RF-US-P05V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : Notebook P.C. Applicant : ASUSTeK COMPUTER INC. Address : 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer : ASUSTeK COMPUTER INC. Model No. : T13Fg FCC ID. : MSQF9F Rated Voltage : AC 120V/60Hz Working Voltage : AC 120V/60Hz Trade Name : ASUS Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2005 CISPR 22: 2005,ANSI C63.4: 2003 Test Result : Complied Documented By : ( Leven Huang ) Tested By : ( Dino Chen ) Approved By : (Gene Chang ) 0914 Report No. 069L065-RF-US-P05V01 Page: 3 of 79 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Datails....................................................................................................................8 1.4. Configuration of tested System .....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................…
