USER MANUAL E8648 ASUS Tablet USER MANUAL Charging your batteries Ensure to fully charge your battery pack before using your ASUS Tablet in battery mode for extended periods. Remember that the power adapter charges the battery pack as long as it is plugged into an AC power source. Be aware that it takes much longer to charge the battery pack when the ASUS Tablet is in use. IMPORTANT! Do not leave the ASUS Tablet connected to the power supply once it is fully charged. ASUS Tablet is not designed to be left connected to the power supply for extended periods of time. Airplane precautions Contact your airline provider to learn about related inflight services that can be used and restrictions that must be followed when using your ASUS Tablet in-flight. IMPORTANT! You can send your ASUS Tablet through x-ray machines (used on items placed on conveyor belts), but do not expose them from magnetic detectors and wands. Safety precautions This ASUS Tablet should only be used in enviroments with ambient temperatures between 0°C (32°F) and 35°C (95°F). Long time exposure to extremely high or low temperature may quickly deplete and shorten the battery life. To ensure the battery’s optimal performance, ensure that it is exposed within the recommended environment temperature. ASUS Tablet  Package contents NOTES: • If any of the items is damaged or missing, contact your retailer. • The bundled power adapter varies with country or region. Micro USB cable ASUS TabletPower adapter ASUS Tablet Technical documentations and warranty card OTG (On-the-Go) USB cable ASUS Tablet  Your ASUS Tablet Front view Rear view Front camera Touch screen panel Micro USB 2.0 port Volume button Audio speaker MicroSD card slot* Speaker/ Headset port Audio speaker Rear camera Power button * The microSD card slot supports microSD, microSDHC, and microSDXC card formats. Microphone ASUS Tablet  Charging your ASUS Tablet To charge your ASUS Tablet: Connect the micro USB cable to the power adapter. Plug the micro USB connector into your ASUS Tablet. Plug the power adapter into a grounded power outlet. Charge your ASUS Tablet for eight (8) hours before using it in battery mode for the first time. ASUS Tablet  IMPORTANT! • Use only the bundled power adapter and micro USB cable to charge your ASUS Tablet. Using a different power adapter may damage your ASUS Tablet. • Peel the protective film off from the power adapter and micro USB cable before charging the ASUS Tablet to prevent risk or injury. • Ensure that you plug the power adapter to the correct power outlet with the correct input rating. The output voltage of this adapter is DC 5.2V, 1.35A. • When using your ASUS Tablet while plugged-in to a power outlet, the grounded power outlet must be near the unit and easily accessible. NOTES: • Your ASUS Tablet can be charged via the USB port on a computer only when it is in sleep mode (screen off ) or turned off. • Charging through a USB port of a computer may take longer time to complete. • If your computer does not provide enough power for charging your ASUS Tablet, charge your ASUS Tablet via the grounded power outlet instead. ASUS Tablet  Appendices Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment causes harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by doing one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ASUS Tablet  • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. RF Exposure Information (SAR) This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the EUT transmitting at the specified power level in different channels. The highest SAR value for the device as reported to the FCC is 1.001 W/kg when placed next to the body. The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this device is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: MSQK00F. ASUS Tablet  Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003, RSS-210, and CAN ICES-3(B)/NMB-3(B). Operation is subject to the following two conditions: (1) this device may not cause in…

Text truncated - open the document above for the full version.

Report No.: 137501R-RFUSP42V01 Page : 1 of 14 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 137501R-RFUSP42V01 Page : 2 of 3 (3) EUT Photo (4) EUT Photo Report No.: 137501R-RFUSP42V01 Page : 3 of 3 (5) EUT Photo

ASUSTeK COMPUTER INC. FCC ID.: MSQK00F 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN Tel : +886-2-28943447 FCC ID Label

ASUSTeK COMPUTER INC. FCC ID.: MSQK00F 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN Tel : +886-2-28943447 The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 137501R-RFUSP42V01 Page : 1 of 11 Attachment 2 : EUT Detailed Photographs (6) EUT Photo (7) EUT Photo GPS ChipBluetooth + WLAN Chip Report No.: 137501R-RFUSP42V01 Page : 2 of 11 (8) EUT Photo (9) EUT Photo Report No.: 137501R-RFUSP42V01 Page : 3 of 11 (10) EUT Photo (11) EUT Photo Report No.: 137501R-RFUSP42V01 Page : 4 of 11 (12) EUT Photo (13) EUT Photo Report No.: 137501R-RFUSP42V01 Page : 5 of 11 (14) EUT Photo (15) EUT Photo Report No.: 137501R-RFUSP42V01 Page : 6 of 11 (16) EUT Photo (17) EUT Photo Report No.: 137501R-RFUSP42V01 Page : 7 of 11 (18) EUT Photo (Bluetooth + WLAN Chip) (19) EUT Photo Bluetooth + WLAN AntennaGPS Antenna Report No.: 137501R-RFUSP42V01 Page : 8 of 11 (20) EUT Photo (Bluetooth + WLAN Antenna) (21) EUT Photo (GPS Antenna) Report No.: 137501R-RFUSP42V01 Page : 9 of 11 (22) EUT Photo (23) EUT Photo Report No.: 137501R-RFUSP42V01 Page : 10 of 11 (24) EUT Photo (25) EUT Photo Report No.: 137501R-RFUSP42V01 Page : 11 of 11 (26) EUT Photo (27) EUT Photo

Report No：137501R-HPUSP09V01 Page: 1 of 24 FCC SAR Test Report Product Name：ASUS Tablet Model No. ： K00F Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN Date of Receipt ：2013/07/25 Issued Date ：2013/08/16 Report No. ：137501R-HPUSP09V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Report No：137501R-HPUSP09V01 Page: 2 of 24 Test Report Certification Issued Date: 2013/08/16 Report No.: 137501R-HPUSP09V01 Product Name ： ASUS Tablet Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN Manufacturer ： Wistron InfoComm(Kunshan) Co., Ltd. Model No. ： K00F Trade Name ： ASUS FCC ID ： MSQK00F Applicable Standard ： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Measurement procedures ： KDB 447498 , KDB 248227, KDB 616217,KDB 865664 Test Result ： Max. SAR Measurement (1g) 1.001 W/kg Application Type ： Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Documented By ： (Adm. Specialist / April Chen) Tested By ： (Engineer / Wen Lee) Approved By ： (Manager / Vincent Lin) Report No：137501R-HPUSP09V01 Page: 3 of 24 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Antenna List ................................................................................................................... 5 1.3 Maximum output power and tolerance allowed for production units ............................ 5 1.4 Test Environment ...........................................................................................................6 2. SAR Measurement System .................................................................. 7 2.1 DASY5 System Description .......................................................................................... 7 2.1.1 Applications ................................................................................................................ 8 2.1.2 Area Scans................................................................................................................... 8 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 8 2.2 DASY5 E-Field Probe ................................................................................................... 9 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 10 2.5 Robot ............................................................................................................................ 11 2.6 Light Beam Unit........................................................................................................... 11 2.7 Device Holder ..............................................................................................................12 2.8 SAM Twin Phantom .................................................................................................... 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure ........................................................... 15 4.1 SAR System Check ...................................................................................................... 15 4.1.1 Dipoles ...................................................................................................................... 15 4.1.2 System Check Result ................................................................................................ 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits ......................................................................... 17 6. Test Equipment List............................................................................ 18 7. Measurement Uncertainty .................................................................. 19 8. Conducted Power Measurement ....................................................... 20 9. Test Results......................................................................................... 21 9.1 SAR Test Results Summary ......................................................................................... 21 Appendix ............................................................................................................................ 22 Report No：137501R-HPUSP09V01 Page: 4 of 24 Appendix A. SAR System Check Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data Appendix E. Dipole Calibration Data Report No：137501R-HPUSP09V01 Page: 5 of 24 1. General Information 1.1 EUT Description Product Name ASUS Tablet Trade Name ASUS Model No. K00F FCC ID MSQK00F TX Frequency 2412MHz~2462MHz Type of Modulation DSSS/OFDM/BPSK/QPSK/16QAM/64QAM Antenna Type PIFA Device Catego…

Text truncated - open the document above for the full version.

Report No. 137501R-RFUSP42V01 Page : 1 of 134 FCC Test Report Product Name ASUS Tablet Model No K00F FCC ID. MSQK00F Applicant ASUSTeK COMPUTER INC. Address 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN Date of Receipt Jul. 25, 2013 Issue Date Aug. 16, 2013 Report No. 137501R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF or any agency of the U.S. Government Report No. 137501R-RFUSP42V01 Page : 2 of 134 Test Report Certification Issue Date: Aug. 16, 2013 Report No.: 137501R-RFUSP42V01 Product Name ASUS Tablet Applicant ASUSTeK COMPUTER INC. Address 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN Manufacturer Wistron InfoComm(Kunshan) Co., Ltd. Model No. K00F FCC ID. MSQK00F EUT Rated Voltage AC 100-240V, 50/60Hz EUT Test Voltage AC 120V/60Hz Trade Name ASUS Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.4: 2003, ANSI C63.10: 2009, KDB 558074 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF or any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Joanne Lin ) Tested By : ( Assistant Engineer / Nowal Kuo ) Approved By : (Manager / Vincent Lin ) Report No. 137501R-RFUSP42V01 Page : 3 of 134 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Test Procedure .............................................................................................................................14 3.5. Uncertainty ..................................................................................................................................14 3.6. Test Result of Peak Power Output...............................................................................................15 4. Radiated Emission .....................................................................................................................19 4.1. Test Equipment............................................................................................................................19 4.2. Test Setup ....................................................................................................................................19 4.3. Limits ..........................................................................................................................................20 4.4. Test Procedure .............................................................................................................................21 4.5. Uncertainty ..................................................................................................................................21 4.6. Test Result of Radiated Emission................................................................................................22 5. RF antenna conducted test........................................................................................................38 5.1. Test Equipment............................................................................................................................38 5.2. Test Setup .............................................…

Text truncated - open the document above for the full version.

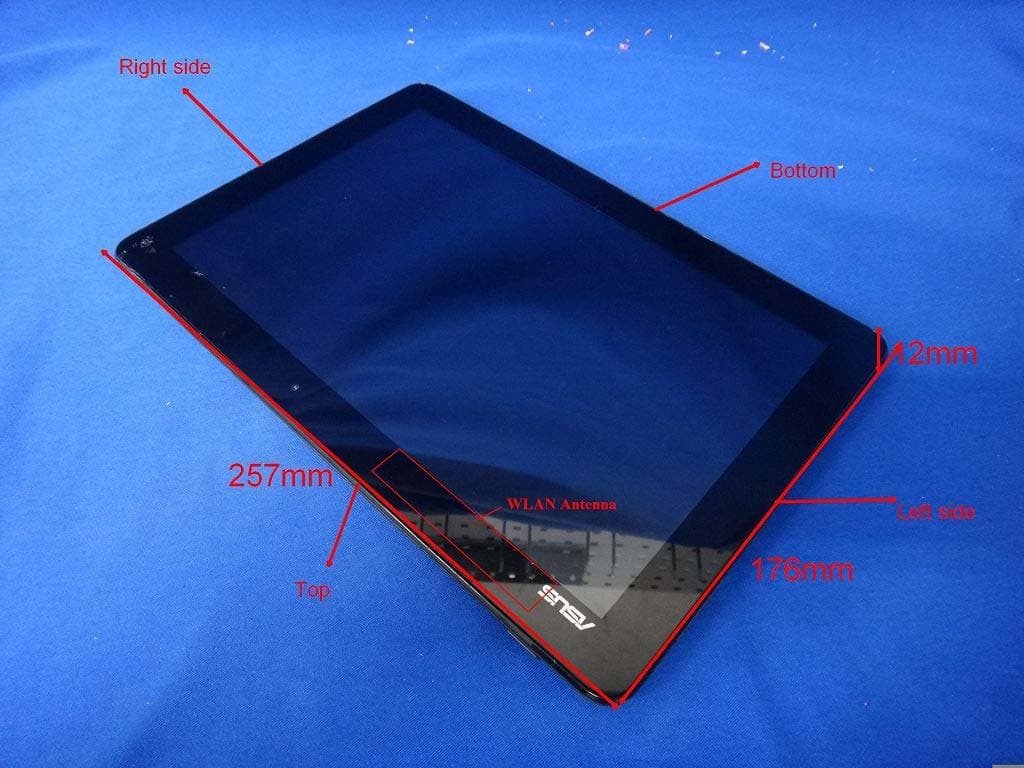

Report No：137501R-HPUSP09V01 Page: 1 of 13 Appendix C. Test Setup Photographs & EUT Photographs Test Setup Photographs EUT Back EUT Top Touch Touch Report No：137501R-HPUSP09V01 Page: 2 of 13 EUT L-Side Depth of the liquid in the phantom-Zoom In Note: The positions used in the measurements were according to IEEE 1528-2003. Touch

Report No.: 137501R-RFUSP42V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 137501R-RFUSP42V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 137501R-RFUSP42V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
