MSQK00LASUS TABLET

USER MANUAL E8491 ASUS Tablet USER MANUAL Charging your device Ensure to fully charge your ASUS Tablet before using it in battery mode for extended periods. Remember that the power adapter charges your ASUS Tablet as long as it is plugged into an AC power source. Be aware that it takes much longer to charge the ASUS Tablet when it is in use. IMPORTANT! Do not leave the ASUS Tablet connected to the power supply once it is fully charged. ASUS Tablet is not designed to be left connected to the power supply for extended periods of time. Airplane precautions Contact your airline provider to learn about related inflight services that can be used and restrictions that must be followed when using your ASUS Tablet in-flight. IMPORTANT! You can send your ASUS Tablet through x-ray machines (used on items placed on conveyor belts), but do not expose them from magnetic detectors and wands. Safety precautions This ASUS Tablet should only be used in enviroments with ambient temperatures between 0°C (32°F) and 35°C (95°F). Long time exposure to extremely high or low temperature may quickly deplete and shorten the battery life. To ensure the battery’s optimal performance, ensure that it is exposed within the recommended environment temperature. ASUS Tablet  Package contents NOTES: • If any of the items is damaged or missing, contact your retailer. • The bundled power adapter varies with country or region. ASUS TabletPower adapter ASUS Tablet Micro USB cableTechnical documentations and warranty card ASUS Tablet  Your ASUS Tablet Rear view * The microSD card slot supports microSD, microSDHC, and microSDXC card formats. Front camera Touch screen panel Micro USB 2.0 port MicroSD card slot* Speaker/ Headset port Microphone Audio speaker Rear camera Power button Volume button Front view ASUS Tablet  Charging your ASUS Tablet To charge your ASUS Tablet: Connect the micro USB cable to the power adapter. Plug the micro USB connector into your ASUS Tablet. Plug the power adapter into a grounded power outlet. Charge your ASUS Tablet for eight (8) hours before using it in battery mode for the first time. ASUS Tablet  IMPORTANT! • Use only the bundled power adapter and micro USB cable to charge your ASUS Tablet. Using a different power adapter may damage your ASUS Tablet. • Peel the protective film off from the power adapter and micro USB cable before charging the ASUS Tablet to prevent risk or injury. • Ensure that you plug the power adapter to the correct power outlet with the correct input rating. The output voltage of this adapter is DC 5.2V, 1.35A. • When using your ASUS Tablet while plugged-in to a power outlet, the grounded power outlet must be near the unit and easily accessible. • Do not place objects on top of your ASUS Tablet. NOTES: • Your ASUS Tablet can be charged via the USB port on the computer only when it is in sleep mode (screen off ) or turned off. • Charging through the USB port of a computer may take longer time to complete. • If your computer does not provide enough power for charging your ASUS Tablet, charge your ASUS Tablet via the grounded power outlet instead. ASUS Tablet  Appendices Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment causes harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by doing one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ASUS Tablet  • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. The antenna(s) used for this transmitter must not be co- located or operating in conjunction with any other antenna or transmitter. RF Exposure Information (SAR) This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the EUT transmitting at the specified power level in different channels. The highest SAR value for the device as reported to the FCC is 1.09 W/kg when placed next to the body. The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this device is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: MSQK00L. ASUS Tablet  Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003 and RSS-210…

Text truncated - open the document above for the full version.

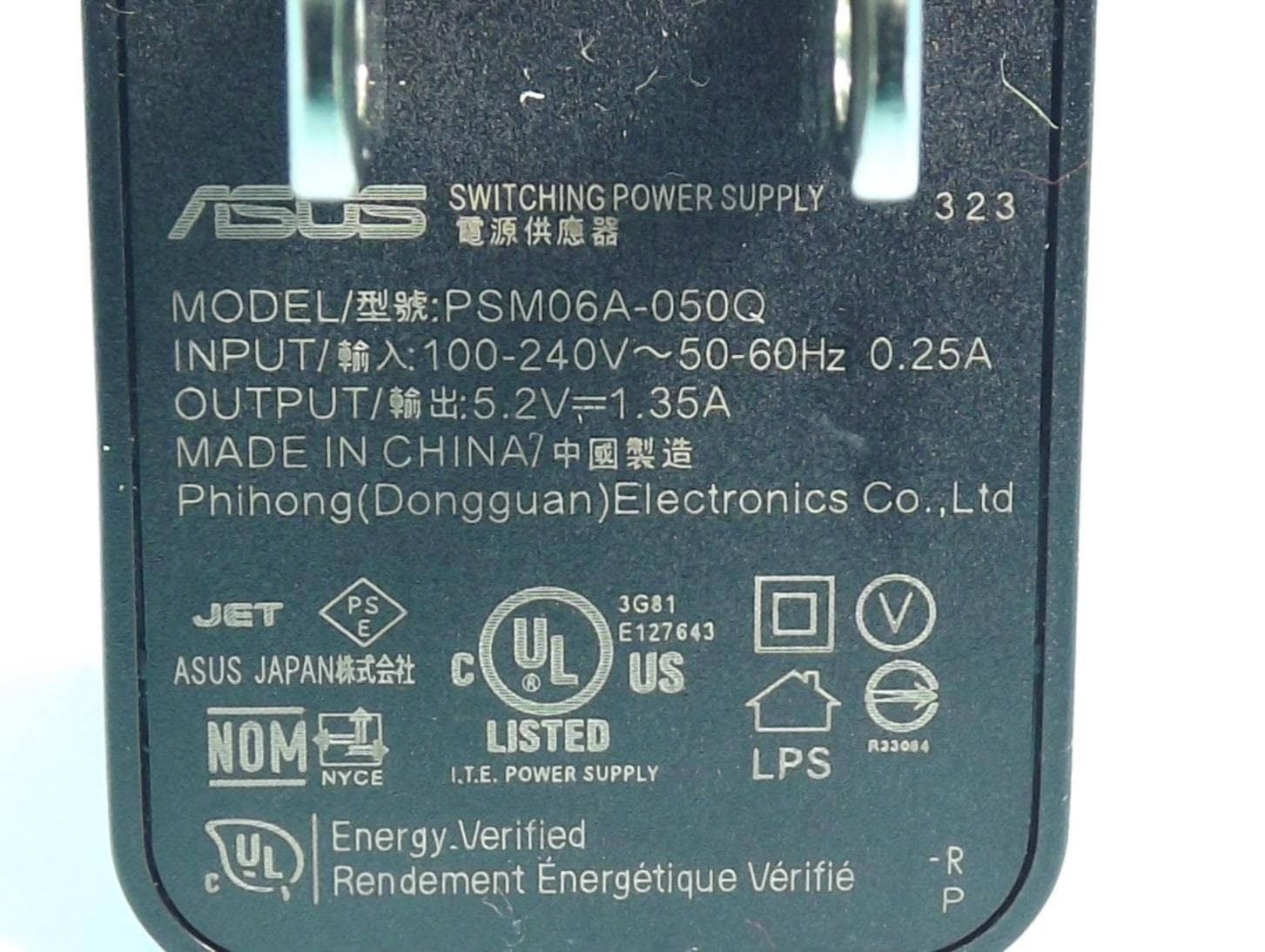

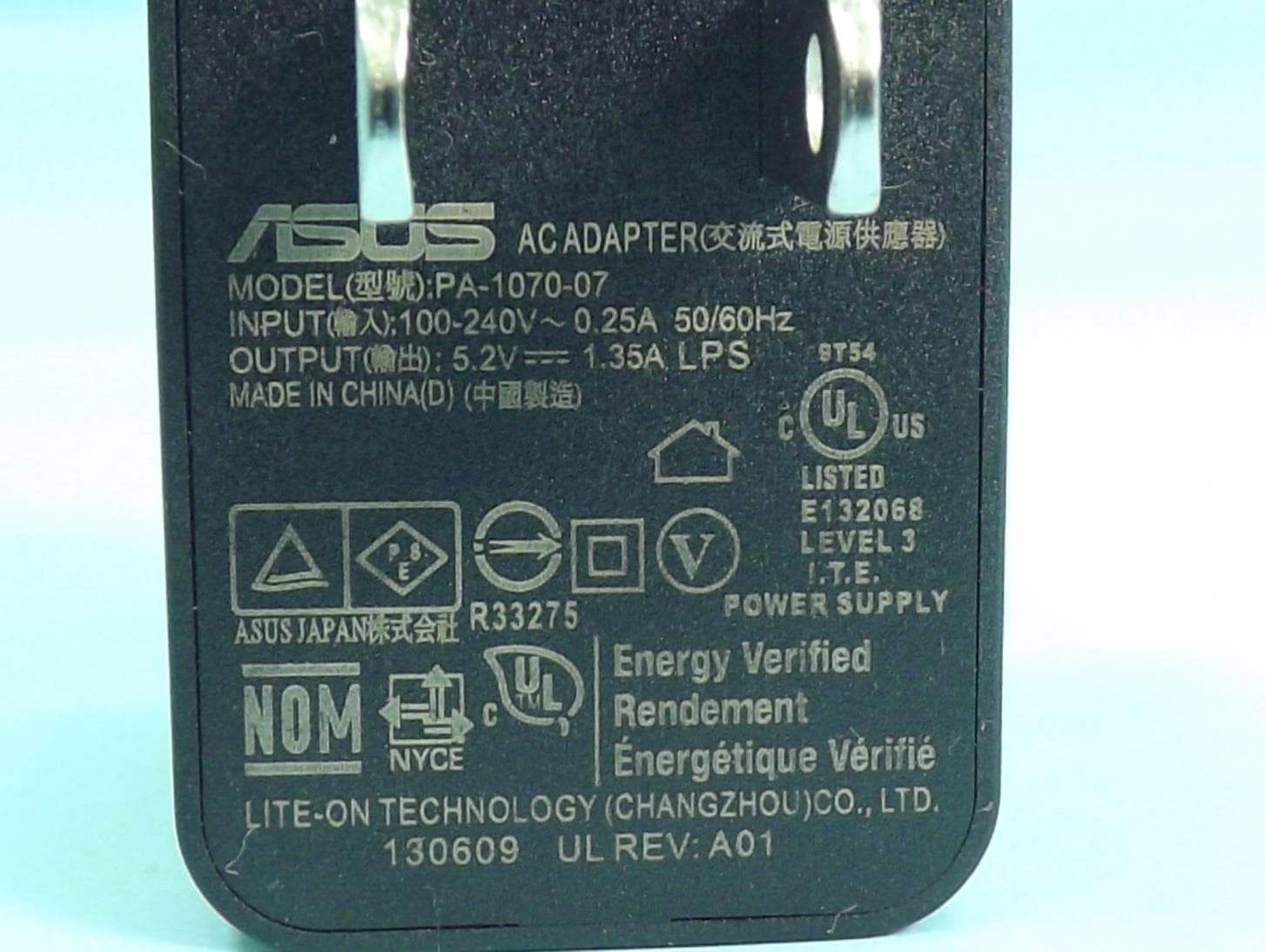

Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 1 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L 1. External Photograph of EUT Sample 1, 2, 4, and 5 Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 2 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 3 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 4 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Sample 3 Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 5 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 6 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 7 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Specification of Accessory AC Adapter 1 Brand Name ASUS Vendor PHIHONG Model Name PSM06A-050Q AC Adapter 2 Brand Name ASUS Vendor LITE-ON Model Name PA-1070-07 Battery 1 Brand Name ASUS Vendor AMPEREX TECHNOLOGY LTD Model Name C11P1304 Battery 2 Brand Name ASUS Vendor SIMPLO TECHNOLOGY CO LTD Model Name C11P1304 Battery 3 Brand Name ASUS Vendor CELXPERT ENERGY CORP Model Name C11P1304 USB Cable Brand Name DAEC Model Name N/A GPS Module Brand Name BROADCOM Model Name BCM47511 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 8 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L 720510 Sample 1, 2, 4, and 5 Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 9 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Sample 3 Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 10 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Adapter 1 Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 11 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Adapter 2 Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 12 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Battery 1 Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 13 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Battery 2 Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 14 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Battery 3

Back of the Device Label Location

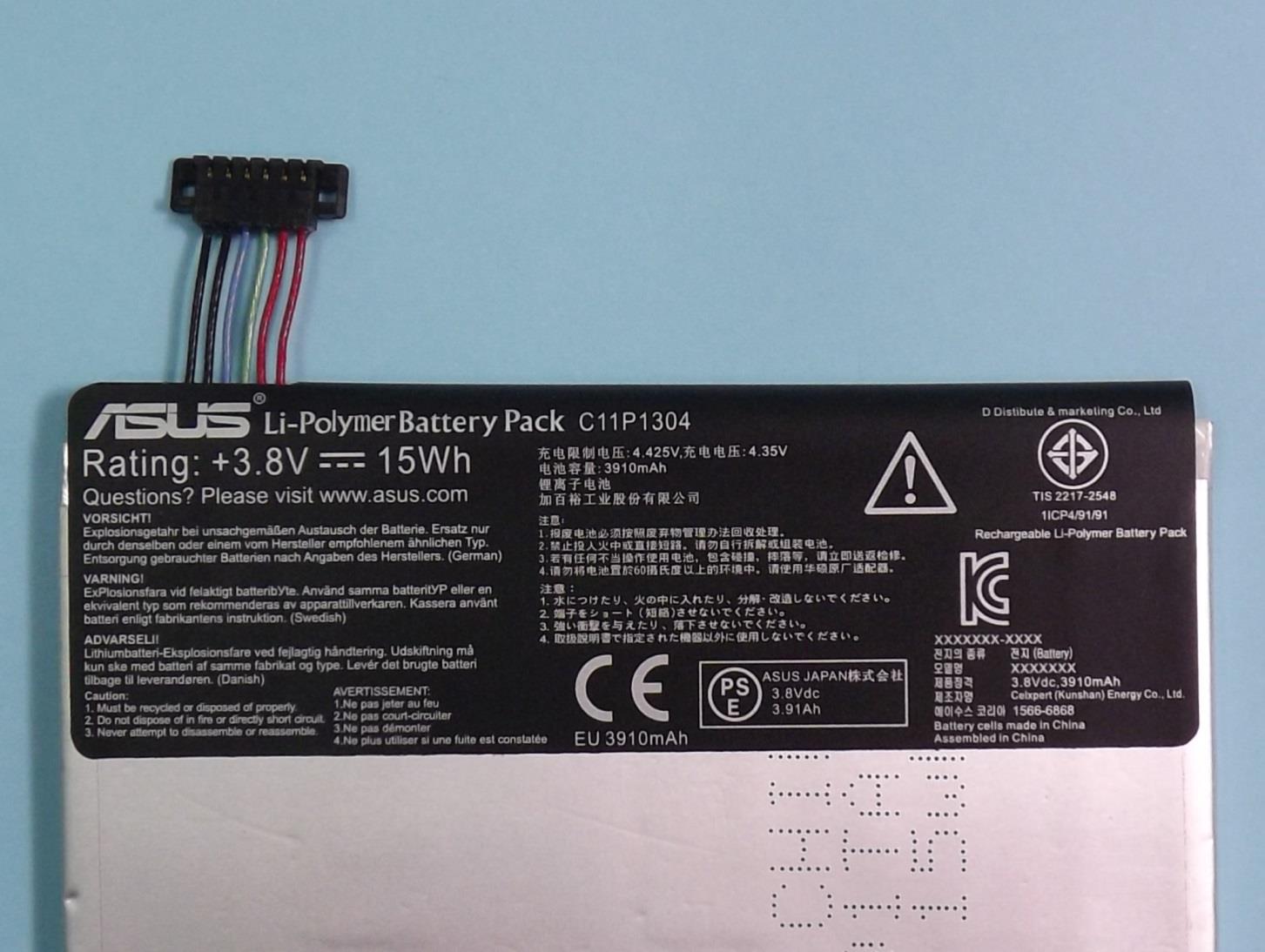

Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 15 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 16 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Sample 1 Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 17 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 18 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 19 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 20 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 21 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 22 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 23 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 24 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 25 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 26 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 27 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Sample 2 Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 28 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 29 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 30 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 31 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 32 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 33 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 34 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 35 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 36 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC: 3568A-K00L Photographs of EUT Report No.: EP371143 Brand Name: ASUS / Model Name: K00L SPORTON INTERNATIONAL INC. Page Number : 37 of 76 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: MSQK00L IC:…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 32 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK00L FCC SAR Test Report Report No. : FA371143 FCC SAR Test Report APPLICANT : ASUSTeK COMPUTER INC. EQUIPMENT : ASUS Tablet BRAND NAME : ASUS MODEL NAME : K00L FCC ID : MSQK00L STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 The product was completely tested on Aug. 14, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 32 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK00L FCC SAR Test Report Report No. : FA371143 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 4 2.1 Testing Laboratory .................................................................................................................................................. 4 2.2 Applicant ................................................................................................................................................................ 4 2.3 Manufacturer .......................................................................................................................................................... 4 2.4 Application Details .................................................................................................................................................. 4 3. General Information ...................................................................................................................................................... 5 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 5 3.2 Maximum RF output power among production units .............................................................................................. 5 3.3 Applied Standard .................................................................................................................................................... 6 3.4 Device Category and SAR Limits ........................................................................................................................... 6 3.5 Test Conditions ....................................................................................................................................................... 6 4. Specific Absorption Rate (SAR) ................................................................................................................................... 7 4.1 Introduction ............................................................................................................................................................ 7 4.2 SAR Definition ........................................................................................................................................................ 7 5. SAR Measurement System ........................................................................................................................................... 8 5.1 E-Field Probe ......................................................................................................................................................... 9 5.2 Data Acquisition Electronics (DAE) ........................................................................................................................ 9 5.3 Robot ....................................................................................................................................................................10 5.4 Measurement Server .............................................................................................................................................10 5.5 Phantom ................................................................................................................................................................ 11 5.6 Device Holder........................................................................................................................................................12 5.7 Data Storage and Evaluation ................................................................................................................................13 5.8 Test Equipment List ...............................................................................................................................................15 6. Tissue Simulating Liquids ...........................................................................................................................................16 7. System Verification Procedures .................................................................................................................................18 7.1 Purpose of System Performance check ................................................................................................................18 7.2 System Setup ....................................................................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/8/14 System Check_Body_2450MHz_130814 DUT: D2450V2-SN:869 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130814 Medium parameters used: f = 2450 MHz; σ = 2.02 S/m; ε r = 53.886; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(7.44, 7.44, 7.44); Calibrated: 2013/6/12; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2013/5/8 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1127 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 21.7 W/kg Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 104.2 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 29.2 W/kg SAR(1 g) = 13.7 W/kg; SAR(10 g) = 6.44 W/kg Maximum value of SAR (measured) = 21.5 W/kg 0 dB = 21.5 W/kg = 13.32 dBW/kg

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/8/14 #01_WLAN2.4GHz_802.11b 1Mbps_Bottom Face_0cm_Ch11 DUT: 371143 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130814 Medium parameters used: f = 2462 MHz; σ = 2.038 S/m; ε r = 53.877; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(7.44, 7.44, 7.44); Calibrated: 2013/6/12; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2013/5/8 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1127 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch11/Area Scan (101x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.29 W/kg Configuration/Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 25.681 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 2.24 W/kg SAR(1 g) = 0.813 W/kg; SAR(10 g) = 0.355 W/kg Maximum value of SAR (measured) = 1.41 W/kg 0 dB = 1.41 W/kg = 1.49 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/8/14 #07_WLAN2.4GHz_802.11b 1Mbps_Bottom Face_0cm_Ch11_Repeat DUT: 371143 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130814 Medium parameters used: f = 2462 MHz; σ = 2.038 S/m; ε r = 53.877; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(7.44, 7.44, 7.44); Calibrated: 2013/6/12; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2013/5/8 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1127 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch11/Area Scan (121x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.23 W/kg Configuration/Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 26.105 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 2.19 W/kg SAR(1 g) = 0.804 W/kg; SAR(10 g) = 0.349 W/kg Maximum value of SAR (measured) = 1.35 W/kg 0 dB = 1.35 W/kg = 1.30 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/8/14 #05_WLAN2.4GHz_802.11b 1Mbps_Bottom Face_0cm_Ch1 DUT: 371143 Communication System: 802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130814 Medium parameters used: f = 2412 MHz; σ = 1.964 S/m; ε r = 53.978; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(7.44, 7.44, 7.44); Calibrated: 2013/6/12; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2013/5/8 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1127 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch1/Area Scan (101x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.15 W/kg Configuration/Ch1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 24.852 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 2.04 W/kg SAR(1 g) = 0.750 W/kg; SAR(10 g) = 0.329 W/kg Maximum value of SAR (measured) = 1.30 W/kg 0 dB = 1.30 W/kg = 1.14 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/8/14 #06_WLAN2.4GHz_802.11b 1Mbps_Bottom Face_0cm_Ch6 DUT: 371143 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130814 Medium parameters used: f = 2437 MHz; σ = 2.001 S/m; ε r = 53.912; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(7.44, 7.44, 7.44); Calibrated: 2013/6/12; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2013/5/8 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1127 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch6/Area Scan (101x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.26 W/kg Configuration/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 25.510 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 2.16 W/kg SAR(1 g) = 0.788 W/kg; SAR(10 g) = 0.344 W/kg Maximum value of SAR (measured) = 1.36 W/kg 0 dB = 1.36 W/kg = 1.34 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/8/14 #02_WLAN2.4GHz_802.11b 1Mbps_Edge1_0cm_Ch11 DUT: 371143 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130814 Medium parameters used: f = 2462 MHz; σ = 2.038 S/m; ε r = 53.877; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(7.44, 7.44, 7.44); Calibrated: 2013/6/12; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2013/5/8 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1127 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch11/Area Scan (51x121x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.391 W/kg Configuration/Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 13.776 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.525 W/kg SAR(1 g) = 0.251 W/kg; SAR(10 g) = 0.110 W/kg Maximum value of SAR (measured) = 0.379 W/kg 0 dB = 0.379 W/kg = -4.21 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/8/14 #03_WLAN2.4GHz_802.11b 1Mbps_Edge2_0cm_Ch11 DUT: 371143 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130814 Medium parameters used: f = 2462 MHz; σ = 2.038 S/m; ε r = 53.877; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(7.44, 7.44, 7.44); Calibrated: 2013/6/12; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2013/5/8 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1127 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Confi…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 66 TEL : 886-3-327-3456 Report Issued Date : Aug. 28, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK00L FCC RF Test Report Report No. : FR371143B FCC RF Test Report APPLICANT : ASUSTeK COMPUTER INC. EQUIPMENT : ASUS Tablet BRAND NAME : ASUS MODEL NAME : K00L FCC ID : MSQK00L STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DTS) Digital Transmission System The product was received on Jul. 11, 2013 and completely tested on Aug. 14, 2013. We, SPORTON INTERNATIONAL INC., wo…

Text truncated - open the document above for the full version.
