MSQK0101ASUS Tablet

User Guide E9969 ASUS Tablet Revised Edition V3 / November 2014 Charging your device Ensure to fully charge your ASUS Tablet before using it in battery mode for extended periods. Remember that the power adapter charges your ASUS Tablet as long as it is plugged into an AC power source. Be aware that it takes much longer to charge the ASUS Tablet when it is in use. IMPORTANT! Do not leave the ASUS Tablet connected to the power supply once it is fully charged. ASUS Tablet is not designed to be left connected to the power supply for extended periods of time. Airplane precautions Contact your airline provider to learn about related inflight services that can be used and restrictions that must be followed when using your ASUS Tablet in-flight. IMPORTANT! You can send your ASUS Tablet through x-ray machines (used on items placed on conveyor belts), but do not expose them from magnetic detectors and wands. Safety precautions This ASUS Tablet should only be used in enviroments with ambient temperatures between 0°C to 35°C (32°F to 95°F). Long time exposure to extremely high or low temperature may quickly deplete and shorten the battery life. To ensure the battery’s optimal performance, ensure that it is exposed within the recommended environment temperature. ASUS Tablet 3 Package contents NOTES: • If any of the items is damaged or missing, contact your retailer. • The bundled power adapter varies with country or region. Micro USB cable ASUS TabletPower adapter ASUS Tablet USER GUIDE User guideWarranty card ASUS Tablet 4 Your ASUS Tablet Front view Front camera Touch screen panel ASUS Tablet 5 Rear view Microphone Audio speaker Rear camera Power button Volume button MicroSD card slot* Micro USB 2.0 port Speaker/ Headset port Dock port Hinge hole Hinge hole * The microSD card slot supports microSD, microSDHC, and microSDXC card formats. ** The model with NFC tag may vary by country or region. Audio speaker NFC tag** ASUS Tablet 6 Charging your ASUS Tablet To charge your ASUS Tablet: Charge your ASUS Tablet for eight (8) hours before using it in battery mode for the first time. Connect the micro USB cable to the power adapter. Plug the micro USB connector into your ASUS Tablet. Plug the power adapter into a grounded power outlet. ASUS Tablet 7 IMPORTANT! • Use only the bundled power adapter and the micro USB cable to charge your ASUS Tablet. Using a different power adapter may damage your ASUS Tablet. • Peel the protective film off from the power adapter and micro USB cable before charging the ASUS Tablet to prevent risk or injury. • Ensure that you plug the power adapter to the correct power outlet with the correct input rating. The output voltage of this adapter is DC 5.2 V, 1.35 A. • When using your ASUS Tablet while plugged-in to a power outlet, the grounded power outlet must be near the unit and easily accessible. • Do not place objects on top of your ASUS Tablet. NOTES: • Your ASUS Tablet can be charged via the USB port on a computer only when it is in sleep mode (screen off ) or turned off. • Charging through a USB port of a computer may take longer time to complete. • If your computer does not provide enough power for charging your ASUS Tablet, charge your ASUS Tablet via the grounded power outlet instead. ASUS Tablet 8 Appendices Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment causes harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by doing one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ASUS Tablet 9 • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. The antenna(s) used for this transmitter must not be co- located or operating in conjunction with any other antenna or transmitter. Operation on the 5.15-5.25 GHz frequency band is restricted for indoor use only. The FCC requires indoor use for the 5.15- 5.25 GHz band to reduce the potential for harmful interference to co-channel Mobile Satellite Systems. It will only transmit on 5.25-5.35 GHz, 5.47-5.725 GHz and 5.725-5.850 GHz bands when associated with an access point (AP). RF Exposure Information (SAR) This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the EUT transmitting at the specified power level in different channels. The highest SAR value for the device as reported to the FC…

Text truncated - open the document above for the full version.

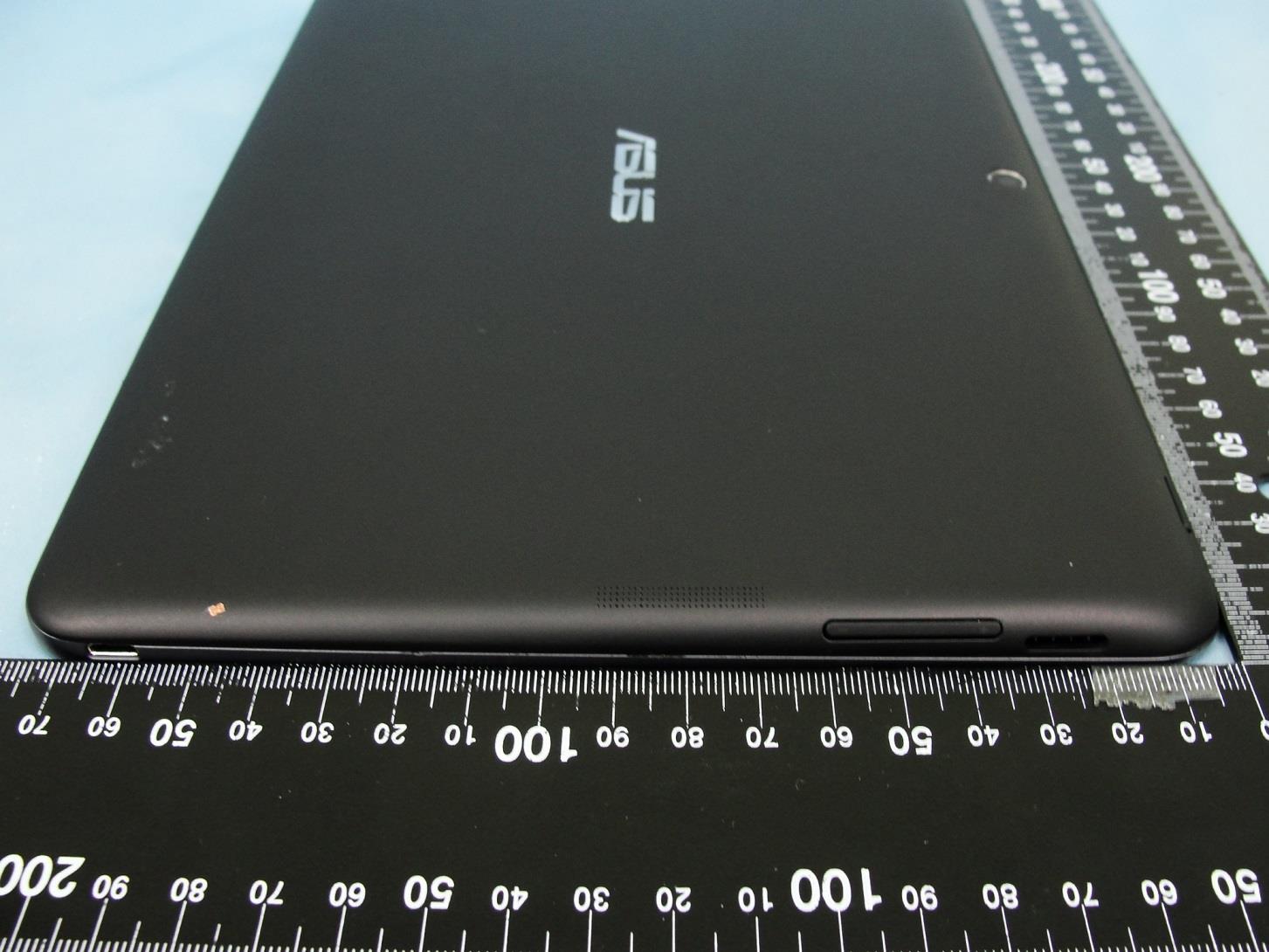

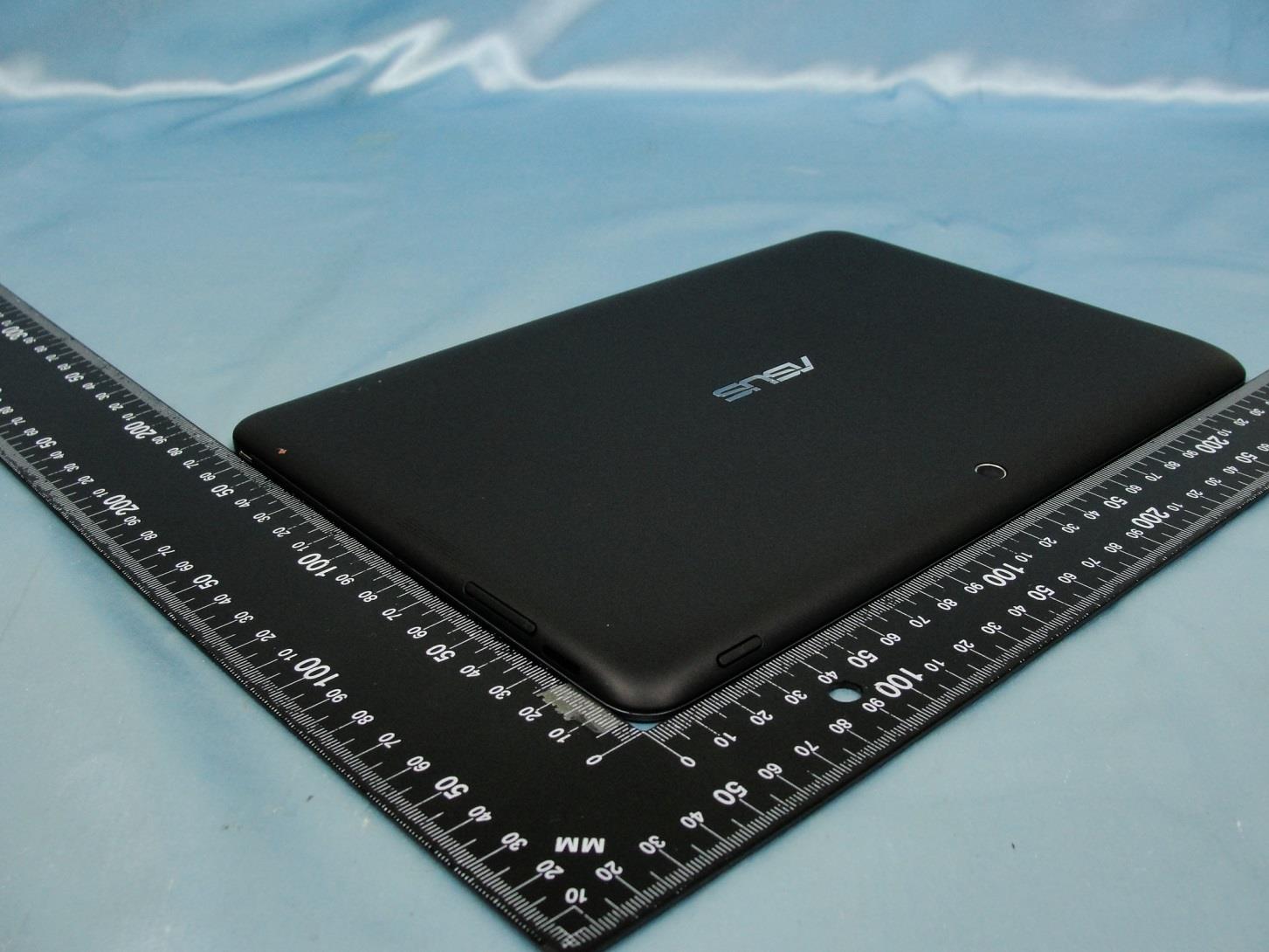

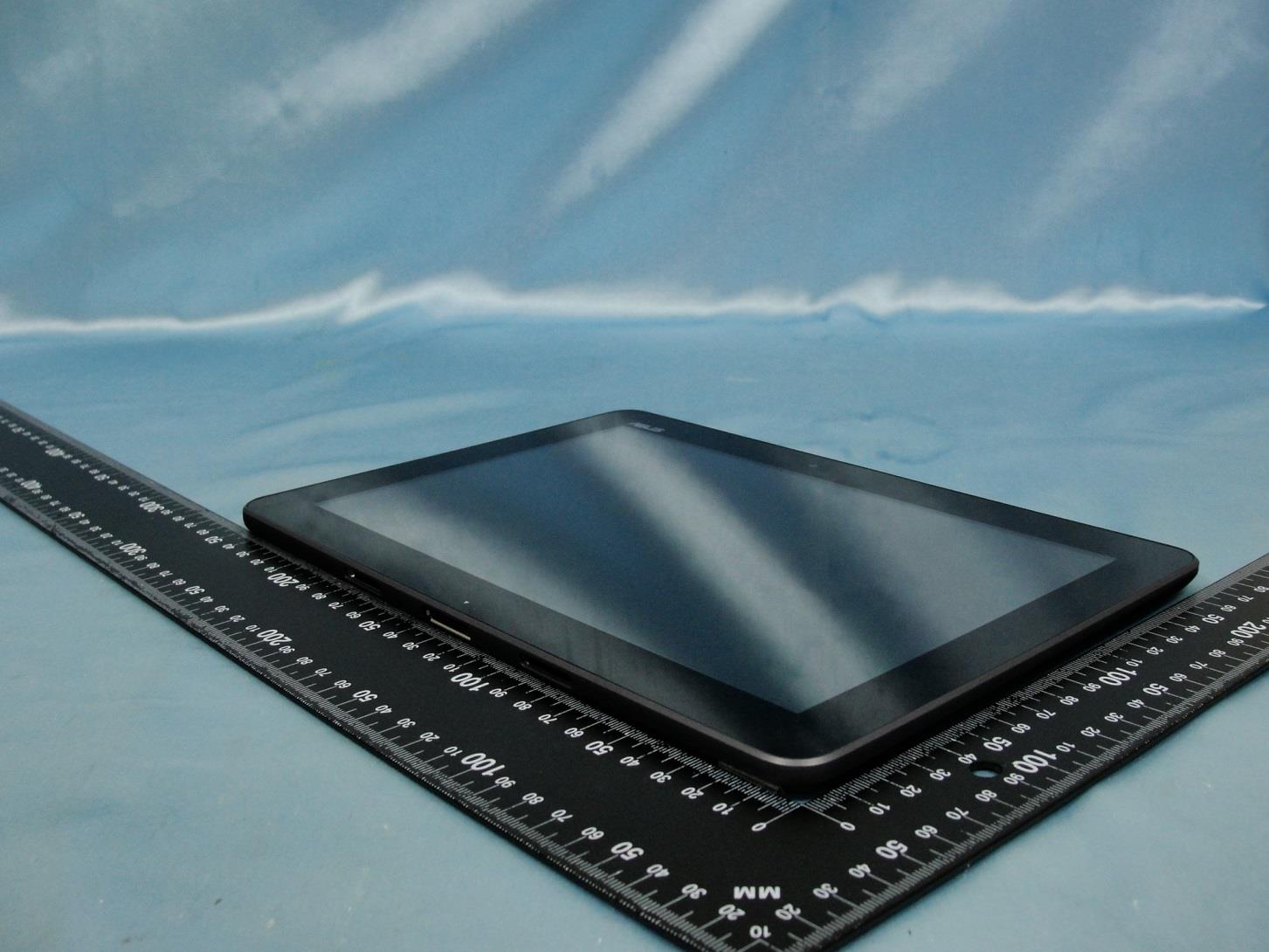

Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 1 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510 1. External Photograph of EUT White Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 2 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510 Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 3 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510 Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 4 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 5 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510 Black Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 6 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510 Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 7 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510 Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 8 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510 Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 9 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 Specification of Accessory AC Adapter 1 Brand Name ASUS Model Name PSM06A-050Q AC Adapter 2 Brand Name ASUS Model Name PA-1070-07 Battery Brand Name ASUS Model Name C11P1328 Power Rating 3.75Vdc or 3.7Vdc, 19Wh USB Cable Brand Name ASUS Model Name N/A Camera (Rear) 1 Brand Name ABICO Model Name SS2BF219(S1) Camera (Rear) 2 Brand Name Azurewave Model Name AM-2F032 Camera (Front) Brand Name Chicony Model Name CCFE01020003870LH LCD Panel Brand Name AUO Model Name B101EAN01.6 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 10 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510 White Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 11 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 Black Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 12 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510 AC Adapter 1 Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 13 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510 AC Adapter 2 Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 14 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510 Battery Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 15 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510 Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 16 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510

Back of the Device Label Location

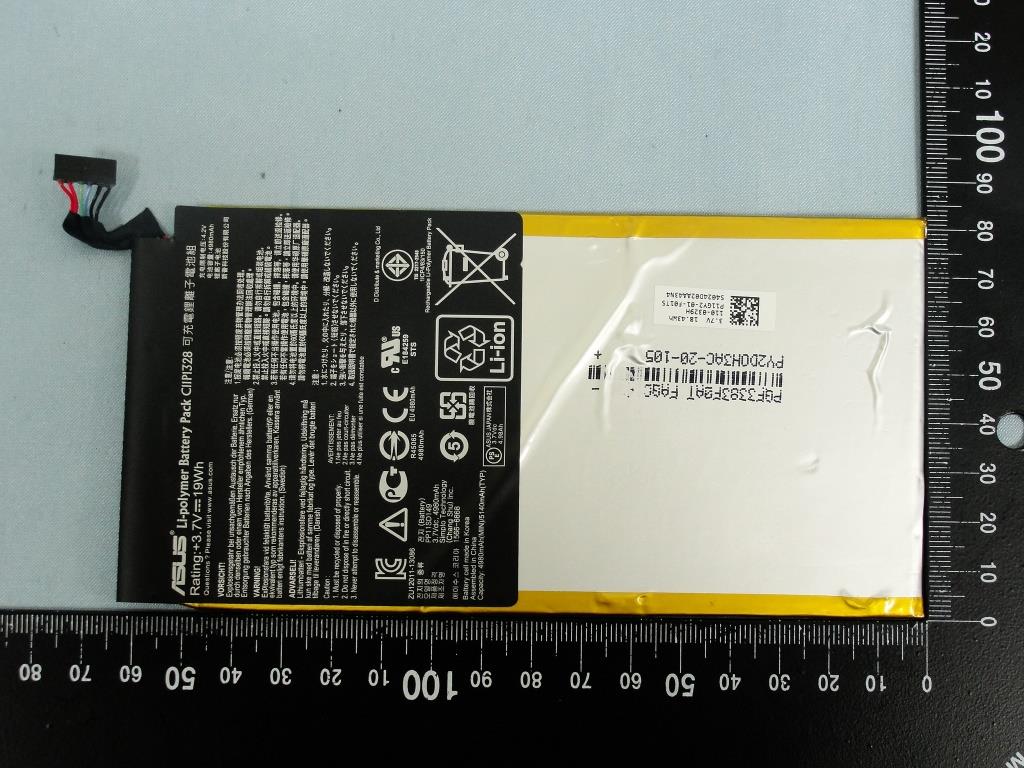

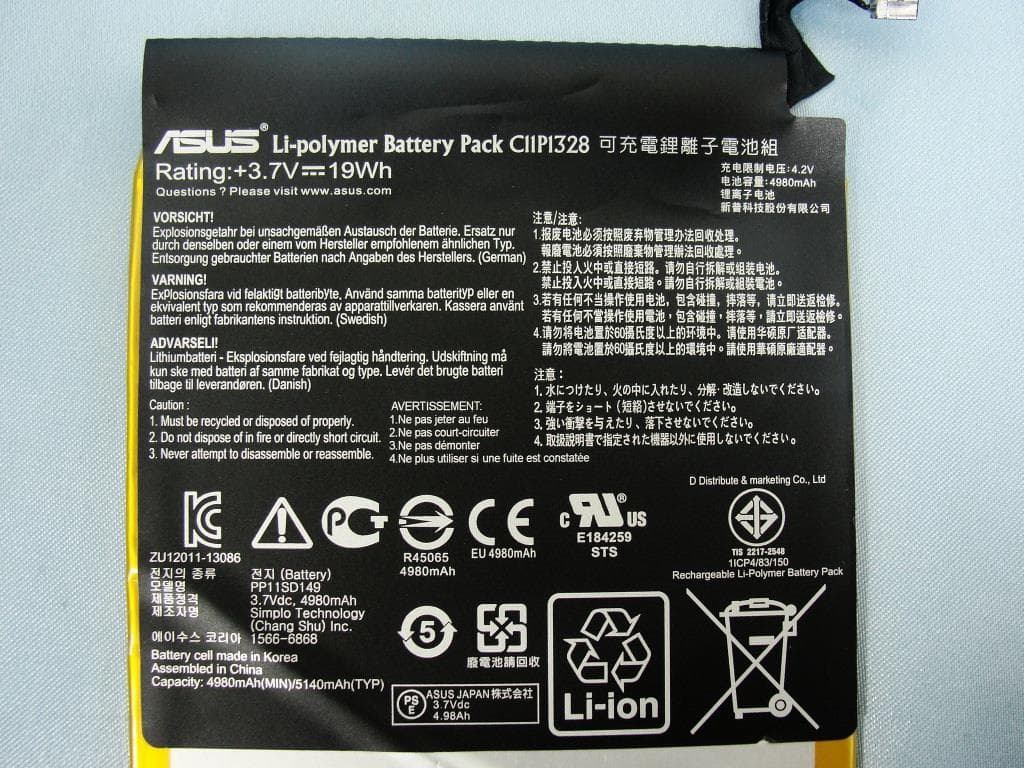

Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 17 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 18 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510 Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 19 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510 Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 20 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510 Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 21 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510 Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 22 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510 Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 23 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510 Bluetooth and WLAN Antenna Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 24 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510 GPS Antenna Photographs of EUT Report No.: EP430802-03 Brand Name: ASUS / Model Name: K010 / Marketing Name: ASUS Transformer Pad SPORTON INTERNATIONAL INC. Page Number : 25 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 17, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0101 720510

SPORTON INTERNATIONAL INC. Page 1 of 26 Issued Date : Nov. 17, 2014 TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Form version. : FAA140305 FCC ID : MSQK0101 FCC SAR Test Report Report No. : FA430802-03 FCC SAR Test Report APPLICANT : ASUSTeK COMPUTER INC. EQUIPMENT : ASUS Tablet BRAND NAME : ASUS MODEL NAME : K010 MARKETING NAME : ASUS Transformer Pad FCC ID : MSQK0101 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page 2 of 26 Issued Date : Nov. 17, 2014 TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Form version. : FAA140305 FCC ID : MSQK0101 FCC SAR Test Report Report No. : FA430802-03 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 3. Guidance Standard ....................................................................................................................................................... 5 4. Equipment Under Test (EUT) ....................................................................................................................................... 6 4.1 General Information ............................................................................................................................................... 6 4.2 Maximum Tune-up Limit ......................................................................................................................................... 6 5. RF Exposure Limits....................................................................................................................................................... 7 5.1 Uncontrolled Environment ...................................................................................................................................... 7 5.2 Controlled Environment .......................................................................................................................................... 7 6. Specific Absorption Rate (SAR) ................................................................................................................................... 8 6.1 Introduction ............................................................................................................................................................ 8 6.2 SAR Definition ........................................................................................................................................................ 8 7. System Description and Setup .................................................................................................................................... 9 8. Measurement Procedures ...........................................................................................................................................10 8.1 Spatial Peak SAR Evaluation ................................................................................................................................10 8.2 Power Reference Measurement............................................................................................................................ 11 8.3 Area Scan ............................................................................................................................................................. 11 8.4 Zoom Scan ............................................................................................................................................................12 8.5 Volume Scan Procedures ......................................................................................................................................12 8.6 Power Drift Monitoring ...........................................................................................................................................12 9. Test Equipment List .....................................................................................................................................................13 10. System Verification ....................................................................................................................................................14 10.1 Tissue Verification ...............................................................................................................................................14 10.2 System Performance Check Results ...................................................................................................................15 11. RF Exposure Positions ..............................................................................................................................................15 11.1 SAR Testing for Tablet .........................................................................................................................................15 12. Conducted RF Output Power (Unit: dBm) ................................................................................................................16 13. Bluetooth Exclusions Applied ..................................................................................................................................19 14. Antenna Locati…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/3/11 System Check_Body_2450MHz_140311 DUT: D2450V2-924 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_140311 Medium parameters used: f = 2450 MHz; σ = 1.966 S/m; ε r = 52.714; ρ = 1000 kg/m 3 23.1 22.1 DASY5 Configuration: - Probe: EX3DV4 - SN3935; ConvF(7.32, 7.32, 7.32); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2013/11/5 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1127 - Measurement SW: DASY52, Version 52.8 (6);SEMCAD X Version 14.6.9 (7117) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 19.3 W/kg Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 97.050 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 25.9 W/kg SAR(1 g) = 12.7 W/kg; SAR(10 g) = 5.9 W/kg Maximum value of SAR (measured) = 19.2 W/kg 0 dB = 19.1 W/kg = 12.81 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/3/12 System Check_Body_5200MHz_140312 DUT: D5GHzV2-1128 Communication System: CW ; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: MSL_5G_140312 Medium parameters used: f = 5200 MHz; σ = 5.114 S/m; ε r = 47.437; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(4.41, 4.41, 4.41); Calibrated: 2013/6/12; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2013/5/8 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1227 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 19.2 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 54.604 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 31.6 W/kg SAR(1 g) = 7.42 W/kg; SAR(10 g) = 1.99 W/kg Maximum value of SAR (measured) = 18.8 W/kg 0 dB = 18.8 W/kg = 12.74 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/3/12 System Check_Body_5300MHz_140312 DUT: D5GHzV2-1128 Communication System: CW; Frequency: 5300 MHz;Duty Cycle: 1:1 Medium: MSL_5G_140312 Medium parameters used: f = 5300 MHz; σ = 5.244 S/m; ε r = 47.199; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(4.26, 4.26, 4.26); Calibrated: 2013/6/12; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2013/5/8 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1227 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 19.4 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 69.167 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 34.6 W/kg SAR(1 g) = 7.95 W/kg; SAR(10 g) = 2.15 W/kg Maximum value of SAR (measured) = 19.8 W/kg 0 dB = 19.8 W/kg = 12.97 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/3/12 System Check_Body_5600MHz_140312 DUT: D5GHzV2-1128 Communication System: CW ; Frequency: 5600 MHz;Duty Cycle: 1:1 Medium: MSL_5G_140312 Medium parameters used: f = 5600 MHz; σ = 5.623 S/m; ε r = 46.749; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(3.78, 3.78, 3.78); Calibrated: 2013/6/12; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2013/5/8 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1227 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 21.3 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 56.254 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 34.3 W/kg SAR(1 g) = 7.96 W/kg; SAR(10 g) = 2.13 W/kg Maximum value of SAR (measured) = 20.6 W/kg 0 dB = 20.6 W/kg = 13.14 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/3/12 System Check_Body_5800MHz_140312 DUT: D5GHzV2-SN:1128 Communication System: CW; Frequency: 5800 MHz;Duty Cycle: 1:1 Medium: MSL_5G_140312 Medium parameters used: f = 5800 MHz; σ = 5.956 S/m; ε r = 46.473; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(4, 4, 4); Calibrated: 2013/6/12; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2013/5/8 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1227 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 19.5 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 51.491 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 33.9 W/kg SAR(1 g) = 7.27 W/kg; SAR(10 g) = 1.94 W/kg Maximum value of SAR (measured) = 19.2 W/kg 0 dB = 19.2 W/kg = 12.83 dBW/kg

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/3/11 #01_WLAN2.4GHz_802.11b 1Mbps_Edge 4_0cm_Ch6 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1.009 Medium: MSL_2450_140311 Medium parameters used: f = 2437 MHz; σ = 1.948 S/m; ε r = 52.756; ρ = 1000 kg/m 3 23.1 22.1 DASY5 Configuration: - Probe: EX3DV4 - SN3935; ConvF(7.32, 7.32, 7.32); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2013/11/5 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1127 - Measurement SW: DASY52, Version 52.8 (6);SEMCAD X Version 14.6.9 (7117) Configuration/Ch6/Area Scan (41x91x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.32 W/kg Configuration/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.315 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 1.86 W/kg SAR(1 g) = 0.789 W/kg; SAR(10 g) = 0.315 W/kg Maximum value of SAR (measured) = 1.31 W/kg 0 dB = 1.31 W/kg = 1.17 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/3/12 #02_WLAN5GHz_802.11a 6Mbps_Bottom Face_0cm_Ch149 Communication System: 802.11a ; Frequency: 5745 MHz;Duty Cycle: 1:1 Medium: MSL_5G_140312 Medium parameters used : f = 5745 MHz; σ = 5.901 S/m; ε r = 46.679; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(4, 4, 4); Calibrated: 2013/6/12; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2013/5/8 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1227 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Ch149/Area Scan (101x61x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.804 W/kg Configuration/Ch149/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 14.452 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 1.55 W/kg SAR(1 g) = 0.288 W/kg; SAR(10 g) = 0.076 W/kg Maximum value of SAR (measured) = 0.900 W/kg 0 dB = 0.900 W/kg = -0.46 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/3/12 #03_WLAN5GHz_802.11a 6Mbps_Bottom Face_0cm_Ch36 Communication System: 802.11a ; Frequency: 5180 MHz;Duty Cycle: 1:1.067 Medium: MSL_5G_140312 Medium parameters used : f = 5180 MHz; σ = 5.079 S/m; ε r = 47.436; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(4.41, 4.41, 4.41); Calibrated: 2013/6/12; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2013/5/8 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1227 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Ch36/Area Scan (101x61x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.26 W/kg Configuration/Ch36/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 15.440 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 2.67 W/kg SAR(1 g) = 0.553 W/kg; SAR(10 g) = 0.148 W/kg Maximum value of SAR (measured) = 1.52 W/kg 0 dB = 1.52 W/kg = 1.82 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/3/12 #04_WLAN5GHz_802.11a 6Mbps_Bottom Face_0cm_Ch52 Communication System: 802.11a ; Frequency: 5260 MHz;Duty Cycle: 1:1.016 Medium: MSL_5G_140312 Medium parameters used : f = 5260 MHz; σ = 5.167 S/m; ε r = 47.277; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(4.26, 4.26, 4.26); Calibrated: 2013/6/12; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2013/5/8 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1227 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Ch52/Area Scan (101x61x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.947 W/kg Configuration/Ch52/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 13.533 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 2.30 W/kg SAR(1 g) = 0.597 W/kg; SAR(10 g) = 0.182 W/kg Maximum value of SAR (measured) = 1.58 W/kg 0 dB = 1.58 W/kg = 1.99 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/3/12 #05_WLAN5GHz_802.11a 6Mbps_Bottom Face_0cm_Ch116 Communication System: 802.11a; Frequency: 5580 MHz;Duty Cycle: 1:1.067 Medium: MSL_5G_140312…
