MeMO Pad User Manual E7631 ASUS is devoted to creating environment-friendly products and packaging to safeguard consumers’ health while minimizing the impact on the environment. The reduction of the number of the manual pages complies with the reduction of carbon emission. For the detailed user manual and related information, refer to the user manual included in the MeMO Pad or visit the ASUS Support Site at http://support.asus.com/. E7631_ME172V_User_Manual.indd 111/22/12 6:01:17 PM Charging Your Batteries Ensure to fully charge your battery pack before using your MeMO Pad in battery mode for extended periods. Remember that the power adapter charges the battery pack as long as it is plugged into an AC power source. Be aware that it takes much longer to charge the battery pack when the MeMO Pad is in use. IMPORTANT! Do not leave the MeMO Pad connected to the power supply once it is fully charged. MeMO Pad is not designed to be left connected to the power supply for extended periods of time. Airplane Precautions Contact your airline provider to learn about related inflight services that can be used and restrictions that must be followed when using your MeMO Pad in-flight. IMPORTANT! You can send your MeMO Pad through x-ray machines (used on items placed on conveyor belts), but do not expose them from magnetic detectors and wands. Safety Precautions This MeMO Pad should only be used in enviroments with ambient temperatures between 0°C (32°F) and 35°C (95°F). Long time exposure to extremely high or low temperature may quickly deplete and shorten the battery life. To ensure the battery’s optimal performance, ensure that it is exposed within the recommended environment temperature. E7631_ME172V_User_Manual.indd 211/22/12 6:01:18 PM ASUS MeMO Pad  MeMO PadMicro USB cable Power adapterWarranty card User manualOTG (On-the-Go) USB cable (optional) Package contents NOTES: • If any of the items is damaged or missing, contact your retailer. • The bundled power adapter varies with country or region. E7631_ME172V_User_Manual.indd 311/22/12 6:01:19 PM ASUS MeMO Pad  Your MeMO Pad Touch screen panel The touch screen panel allows you to operate your MeMO Pad using touch gestures or a stylus pen. Front camera This built-in 1-megapixel camera allows you to take pictures or record videos using your MeMO Pad. E7631_ME172V_User_Manual.indd 411/22/12 6:01:21 PM ASUS MeMO Pad  Micro USB 2.0 port Use the micro USB (Universal Serial Bus) 2.0 to charge the battery pack or supply power to your MeMO Pad. This port also allows you to transfer data from your computer to your MeMO Pad and vice versa. NOTE: When you connect your MeMO Pad to the USB port on your computer, your MeMO Pad will be charged only when it is in sleep mode (screen off ) or powered off. Headphone output/microphone input combo jack port This port allows you to connect the MeMO Pad’s audio-out signal to amplified speakers or headphones. You can also use this port to connect your MeMO Pad to an external microphone. IMPORTANT! For microphone input function, the jack only supports headset microphone. Microphone The built-in mono microphone can be used for video conferencing, voice narrations or simple audio recordings. E7631_ME172V_User_Manual.indd 511/22/12 6:01:22 PM ASUS MeMO Pad  Manual reset hole If the system becomes unresponsive, insert a straightened paper clip into the hole to force-restart your MeMO Pad. IMPORTANT! Forcing the system to restart may result to data loss. We strongly recommend that you back up your data regularly. Audio speaker Your MeMO Pad is equipped with a built-in high quality speaker. Audio features are software controlled. MicroSD card slot The MeMO Pad comes with a built-in memory card reader slot that supports microSD, microSDHC and microSDXC card formats. Volume button Press this button to increase or decrease the volume. E7631_ME172V_User_Manual.indd 611/22/12 6:01:22 PM ASUS MeMO Pad  Power button The power button allows you to do the following: • Press the power button for about two (2) seconds to turn your MeMO Pad on. • Press the power button to put your MeMO Pad to sleep or hibernate and wake it up from sleep or hibernate mode. • Press and hold the power button for about six (6) seconds to force shut down your MeMO Pad when it becomes unresponsive. • Press the power button for about two (2) seconds and when prompted, tap OK to shut down your MeMO Pad. IMPORTANT! Forcing the system to restart may result to data loss. We strongly recommend that you back up your data regularly. E7631_ME172V_User_Manual.indd 711/22/12 6:01:23 PM ASUS MeMO Pad  Charging your MeMO Pad Connect the micro USB cable to the power adapter. Plug the micro USB connector into your MeMO Pad. Plug the power adapter into a grounded socket outlet. To charge your MeMO Pad: E7631_ME172V_User_Manual.indd 811/22/12 6:01:24 PM ASUS MeMO Pad  IMPORTANT! • Use only the bundled power adapter and micro USB cable to charge your MeMO Pad. Using a different power adapter may damage your MeMO Pad. • Peel the protective film off from the power adapter and micro USB cable before charging the MeMO Pad to prevent risk or injury. • Ensure that you plug the power adapter to the correct socket outlet with the correct input rating. The output voltage of this adapter is DC5V, 2A. • Do not leave the MeMO Pad connected to the power supply once it is fully charged. MeMO Pad is not designed to be left connected to the power supply for extended periods of time. • When using your MeMO Pad on power adapter mode, the grounded socket outlet must be near to the unit and easily accessible. • Charge your MeMO Pad for eight (8) hours before using it in battery mode for the first time. NOTES: • Your MeMO Pad can be charged via the USB port on the computer only when it is in sleep mode (screen off ) or powered off. • Charging through the USB port may take longer time to complete. • If your computer does not provide enough power for charging your MeMO Pad, charge your MeMO Pad v…

Text truncated - open the document above for the full version.

ASUSTeK Computer Inc 4F, No. 150, Li-Te Rd., Peitou, Taipei 112, Taiwan Tel: +886-2-28943447 ; Fax: +886-2-28987364 Date: December 5, 2012 Power of Attorney To whom it may concern, Please be notified that I, Jackson Yen, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: MSQK0W If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Jackson Yen Company: ASUSTeK Computer Inc TEL: +886-2-28943447 FAX: +886-2-28987364 E-mail: [email protected]

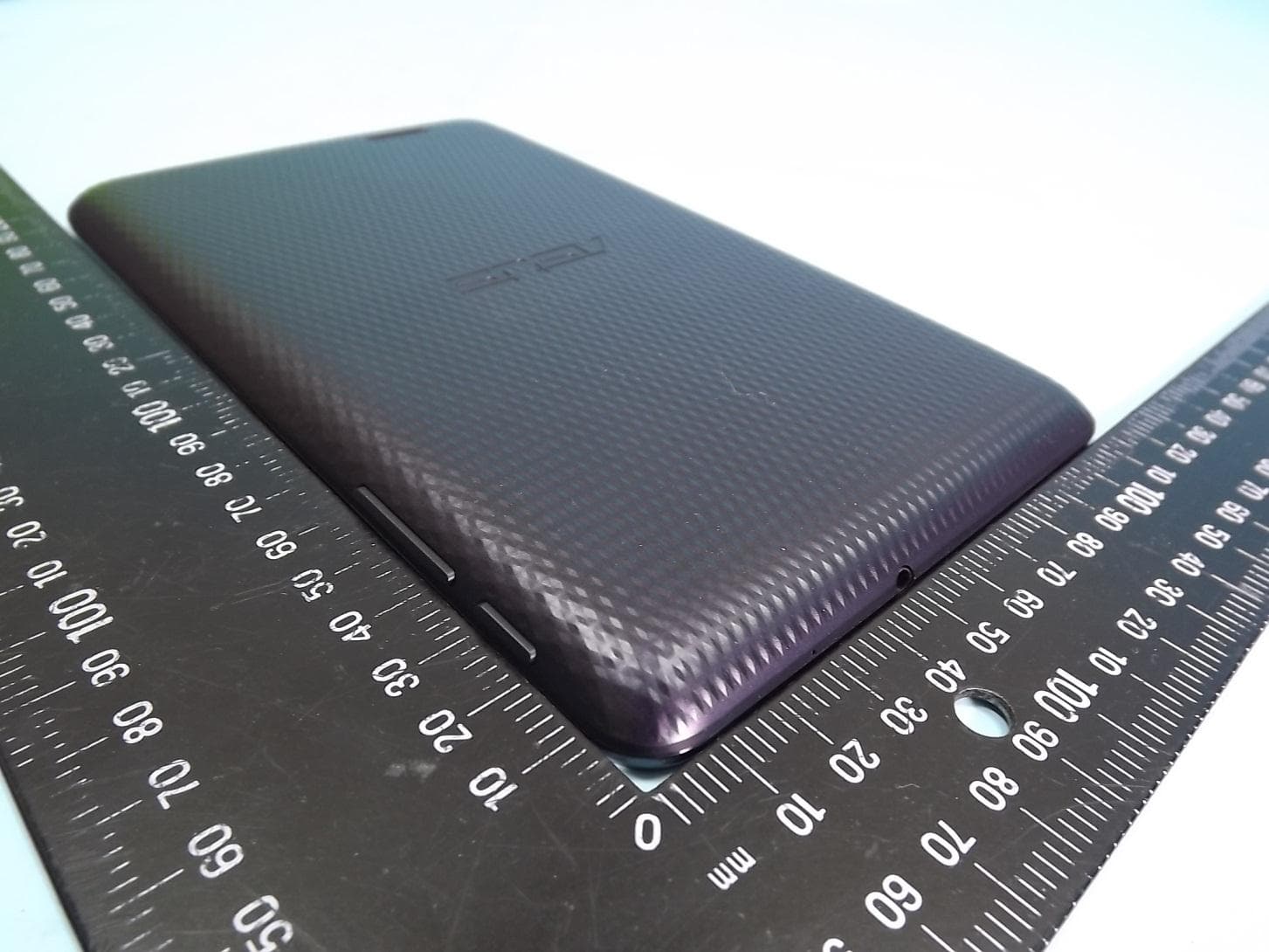

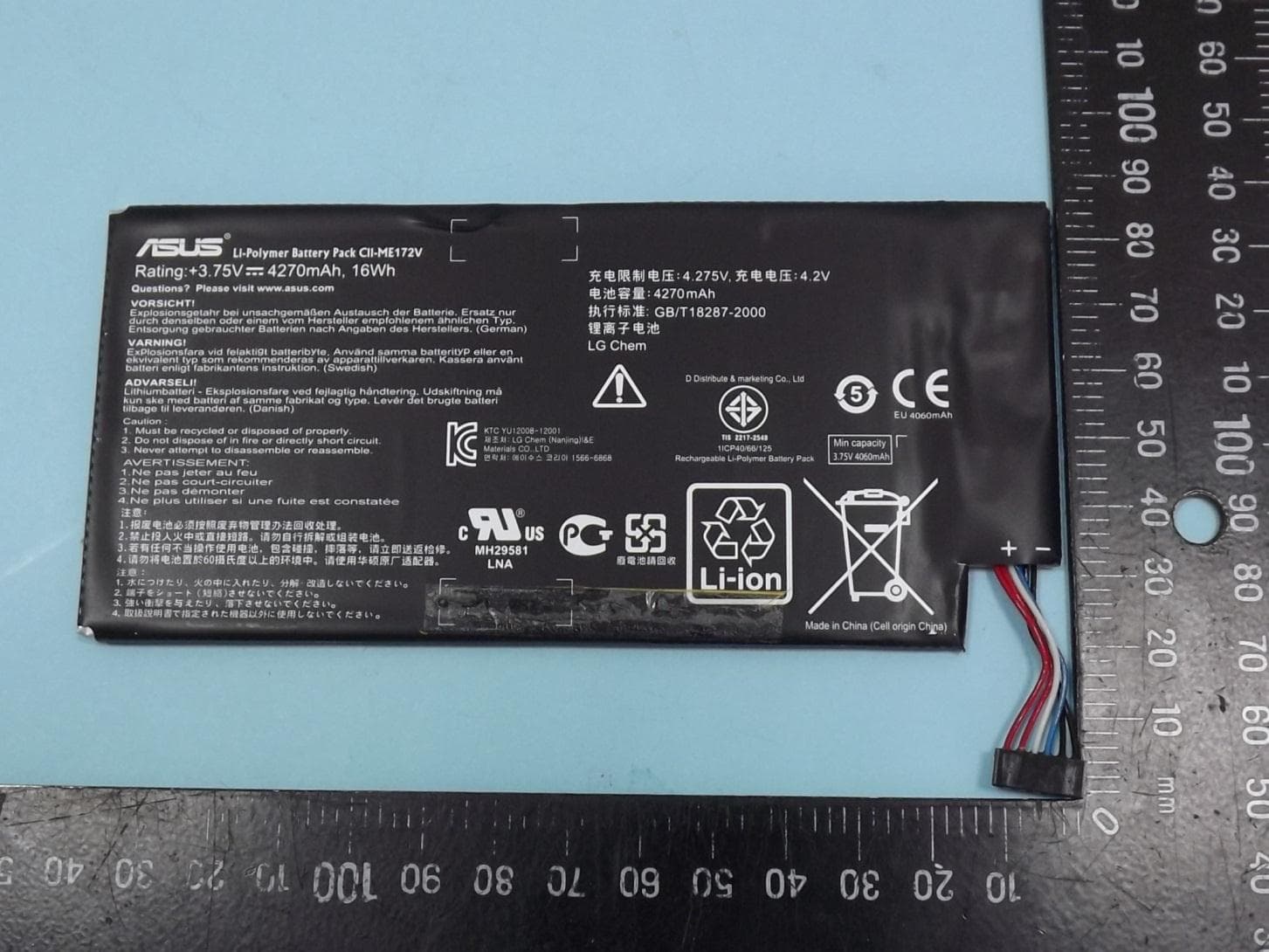

Photographs of EUT Report No.: EP2O2431 Brand Name: ASUS / Model Name: K0W SPORTON INTERNATIONAL INC. Page Number : 1 of 12 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0W IC: 3568A-K0W 1. External Photograph of EUT Photographs of EUT Report No.: EP2O2431 Brand Name: ASUS / Model Name: K0W SPORTON INTERNATIONAL INC. Page Number : 2 of 12 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0W IC: 3568A-K0W 720510 Photographs of EUT Report No.: EP2O2431 Brand Name: ASUS / Model Name: K0W SPORTON INTERNATIONAL INC. Page Number : 3 of 12 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0W IC: 3568A-K0W List of Accessory: Specification of Accessory AC Adapter 1 Brand Name ASUS Model Name AD876320 AC Adapter 2 Brand Name ASUS Model Name PSA10A-050Q Battery Brand Name ASUS Model Name C11-ME172V USB Cable Brand Name DAEC Model Name AA704700 900MM LCD Panel Brand Name BOE Model Name BA070WS1-200 Camera Brand Name AZUREWAVE Model Name AM-1H079 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP2O2431 Brand Name: ASUS / Model Name: K0W SPORTON INTERNATIONAL INC. Page Number : 4 of 12 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0W IC: 3568A-K0W Photographs of EUT Report No.: EP2O2431 Brand Name: ASUS / Model Name: K0W SPORTON INTERNATIONAL INC. Page Number : 5 of 12 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0W IC: 3568A-K0W Adapter 1 Photographs of EUT Report No.: EP2O2431 Brand Name: ASUS / Model Name: K0W SPORTON INTERNATIONAL INC. Page Number : 6 of 12 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0W IC: 3568A-K0W Adapter 2 Photographs of EUT Report No.: EP2O2431 Brand Name: ASUS / Model Name: K0W SPORTON INTERNATIONAL INC. Page Number : 7 of 12 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0W IC: 3568A-K0W 720510

Label Location Back of EUUT

France (法國) US/CAN (美加) RU (俄羅斯)

Photographs of EUT Report No.: EP2O2431 Brand Name: ASUS / Model Name: K0W SPORTON INTERNATIONAL INC. Page Number : 8 of 12 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0W IC: 3568A-K0W 3. Internal Photograph of EUT Photographs of EUT Report No.: EP2O2431 Brand Name: ASUS / Model Name: K0W SPORTON INTERNATIONAL INC. Page Number : 9 of 12 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0W IC: 3568A-K0W Photographs of EUT Report No.: EP2O2431 Brand Name: ASUS / Model Name: K0W SPORTON INTERNATIONAL INC. Page Number : 10 of 12 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0W IC: 3568A-K0W Photographs of EUT Report No.: EP2O2431 Brand Name: ASUS / Model Name: K0W SPORTON INTERNATIONAL INC. Page Number : 11 of 12 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0W IC: 3568A-K0W Photographs of EUT Report No.: EP2O2431 Brand Name: ASUS / Model Name: K0W SPORTON INTERNATIONAL INC. Page Number : 12 of 12 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0W IC: 3568A-K0W 720510 WLAN Antenna <Tx / Rx>

Photographs of EUT Report No.: 2O2431 Brand Name: ASUS / Model Name: K0W SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0W IC: 3568A-K0W EUT Length: 19.6 cm EUT Width: 11.9 cm Antenna Length Width WLAN Antenna <Tx / Rx> 4.0 cm 1.0 cm WLAN Antenna <Tx / Rx> 18.3 cm 6.4 cm 1.5 cm

SPORTON INTERNATIONAL INC. Page Number : 1 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0W FCC SAR Test Report Report No. : FA2O2431 FCC SAR Test Report APPLICANT : ASUSTeK COMPUTER INC. EQUIPMENT : ASUS MeMO Pad BRAND NAME : ASUS MODEL NAME : K0W FCC ID : MSQK0W STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Nov. 13, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 30 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0W FCC SAR Test Report Report No. : FA2O2431 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 6 3.2 Product Photos....................................................................................................................................................... 7 3.3 Applied Standard .................................................................................................................................................... 7 3.4 Device Category and SAR Limits ........................................................................................................................... 7 3.5 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 8 4.1 Introduction ............................................................................................................................................................ 8 4.2 SAR Definition ........................................................................................................................................................ 8 5. SAR Measurement System ........................................................................................................................................... 9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server ............................................................................................................................................. 11 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder........................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................14 5.8 Test Equipment List ...............................................................................................................................................16 6. Tissue Simulating Liquids ...........................................................................................................................................17 7. SAR Measurement Evaluation ....................................................................................................................................18 7.1 Purpose of System Performance check ................................................................................................................18 7.2 System Setup .......................................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/13 System Check_Body_2450MHz_121113 DUT: D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_121113 Medium parameters used: f = 2450 MHz; σ = 2.02 mho/m; ε r = 53.886; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.17, 4.17, 4.17); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.7 (6848) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 14.8 W/kg Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 81.824 V/m; Power Drift = 0.023 dB Peak SAR (extrapolated) = 28.7 W/kg SAR(1 g) = 13.1 W/kg; SAR(10 g) = 5.9 W/kg Maximum value of SAR (measured) = 15.0 W/kg 0 dB = 15.0 W/kg = 11.76 dBW/kg

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/13 #01_WLAN2.4G_802.11b_Bottom Face_0cm_Ch1 DUT: 2O2431 Communication System: 802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_121113 Medium parameters used: f = 2412 MHz; σ = 1.964 mho/m; ε r = 53.978; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.17, 4.17, 4.17); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.7 (6848) Configuration/Ch1/Area Scan (121x181x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.35 W/kg Configuration/Ch1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.762 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 1.93 W/kg SAR(1 g) = 0.769 W/kg; SAR(10 g) = 0.341 W/kg Maximum value of SAR (measured) = 1.26 W/kg 0 dB = 1.26 W/kg = 1.00 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/13 #02_WLAN2.4G_802.11b_Edge 1_0cm_Ch1 DUT: 2O2431 Communication System: 802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_121113 Medium parameters used: f = 2412 MHz; σ = 1.964 mho/m; ε r = 53.978; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.17, 4.17, 4.17); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.7 (6848) Configuration/Ch1/Area Scan (61x131x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.975 W/kg Configuration/Ch1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.398 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 2.05 W/kg SAR(1 g) = 0.561 W/kg; SAR(10 g) = 0.226 W/kg Maximum value of SAR (measured) = 1.03 W/kg 0 dB = 1.03 W/kg = 0.13 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/13 #03_WLAN2.4G_802.11b_Edge 2_0cm_Ch1 DUT: 2O2431 Communication System: 802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_121113 Medium parameters used: f = 2412 MHz; σ = 1.964 mho/m; ε r = 53.978; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.17, 4.17, 4.17); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.7 (6848) Configuration/Ch1/Area Scan (41x181x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.216 W/kg Configuration/Ch1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.314 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.368 W/kg SAR(1 g) = 0.142 W/kg; SAR(10 g) = 0.068 W/kg Maximum value of SAR (measured) = 0.227 W/kg Configuration/Ch1/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.314 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.313 W/kg SAR(1 g) = 0.134 W/kg; SAR(10 g) = 0.066 W/kg Maximum value of SAR (measured) = 0.203 W/kg 0 dB = 0.203 W/kg = -6.93 dBW/kg

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D2450V2, serial no. 736 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification Procedure of Extended Dipole Calibration> 1. Setup a Network Analyzer (Agilent N5230A) and set the start frequency and stop frequency to Network Analyzer according to the dipole frequency, at least +/- 200MHz around the calibration point. 2. Using calibration kit to perform Network Analyzer Open, Short and Load calibration. 3. Connect the dipole with the calibrated Network Analyzer. 4. Place the dipole underneath the phantom which is filled with head-simulating or body-simulating liquid. 5. Set the Network Analyzer frequency by the dipole calibration frequency. Monitor the return-loss and impedance results with Log Magnitude format and Smith Chart, respectively. 6. Record the result and compare with the prior calibration. Please check the Appendix C for detail records. <Justification of the extended calibration> D2450V2 – serial no. 736 2450 Head 2450 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 7.25.2011 -27.042 54.398 1.4805 -30.696 50.812 2.8262 7.25.2012 -27.950 -3.365 52.541 1.857 0.77343 0.707 -31.781 -3.535 50.572 0.24 1.5953 1.2309 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D2450 V2, serial no. 736 (Date of Measurement : 7.25.2012) 2450 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 2450 MHz – Body

SPORTON INTERNATIONAL INC. Page Number : 1 of 76 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0W FCC RF Test Report Report No. : FR2O2431 FCC RF Test Report APPLICANT : ASUSTeK COMPUTER INC. EQUIPMENT : ASUS MeMO Pad BRAND NAME : ASUS MODEL NAME : K0W FCC ID : MSQK0W STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DTS) Digital Transmission System The product was received on Oct. 24, 2012 and completely tested on Nov. 15, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 76 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0W FCC RF Test Report Report No. : FR2O2431 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Testing Site ........................................................................................................................................ 6 1.5 Applied Standards ............................................................................................................................. 6 1.6 Ancillary Equipment List .................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 Carrier Frequency Channel ............................................................................................................... 7 2.2 Pre-Scanned RF Power ..................................................................................................................... 8 2.3 Test Mode .......................................................................................................................................... 9 2.4 Connection Diagram of Test System ............................................................................................... 10 2.5 RF Utility .......................................................................................................................................... 11 3 TEST RESULT ........................................................................................................................................... 12 3.1 6dB and 99% Bandwidth Measurement .......................................................................................... 12 3.2 Output Power Measurement ............................................................................................................ 25 3.3 Power Spectral Density Measurement ............................................................................................ 28 3.4 Conducted Band Edges and Spurious Emission Measurement ..................................................... 40 3.5 Radiated Emission Measurement .................................................................................................... 53 3.6 AC Conducted Emission Measurement........................................................................................... 70 3.7 Antenna Requirements .................................................................................................................... 74 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 75 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 76 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 76 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0W FCC RF Test Report Report No. : FR2O2431 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR2O2431 Rev. 01 Initial issue of report Nov. 23, 2012 SPORTON INTERNATIONAL INC. Page Number : 4 of 76 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0W FCC RF Test Report Report No. : FR2O2431 SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 15.247(a)(2) A8.2(a) 6dB Bandwidth ≥ 0.5MHz Pass - 3.1 - Gen 4.6.1 99% Bandwidth - Pass - 3.2 15.247(b) A8.4 Power Output Measurement ≤ 30dBm Pass - 3.3 15.247(e) A8.2(b) Power Spectral Density ≤ 8dBm/3kHz P…
