MSQK0YASUS VIVOTAB

VivoTab User Manual E7824 ASUS is devoted to creating environment-friendly products and packaging to safeguard consumers’ health while minimizing the impact on the environment. The reduction of the number of the manual pages complies with the reduction of carbon emission. For the detailed user manual and related information, refer to the user manual included in the VivoTab or visit the ASUS Support Site at http://support.asus.com/. E7824_ME400CL_User_Manual.indd 112/5/12 2:41:06 PM Charging Your Batteries Ensure to fully charge your battery pack before using your VivoTab in battery mode for extended periods. Remember that the power adapter charges the battery pack as long as it is plugged into an AC power source. Be aware that it takes much longer to charge the battery pack when the VivoTab is in use. IMPORTANT! Do not leave the VivoTab connected to the power supply once it is fully charged. VivoTab is not designed to be left connected to the power supply for extended periods of time. Airplane Precautions Contact your airline provider to learn about related inflight services that can be used and restrictions that must be followed when using your VivoTab in-flight. IMPORTANT! You can send your VivoTab through x-ray machines (used on items placed on conveyor belts), but do not expose them from magnetic detectors and wands. Safety Precautions This VivoTab should only be used in enviroments with ambient temperatures between 0°C (32°F) and 35°C (95°F). Long time exposure to extremely high or low temperature may quickly deplete and shorten the battery life. To ensure the battery’s optimal performance, ensure that it is exposed within the recommended environment temperature. E7824_ME400CL_User_Manual.indd 212/5/12 2:41:06 PM ASUS VivoTab  Package contents NOTES: • If any of the items is damaged or missing, contact your retailer. • The bundled power adapter varies with country or region. VivoTabPower adapter Micro USB cableTechnical documentations and warranty card Cleaning clothMicro SIM card tray eject pin E7824_ME400CL_User_Manual.indd 312/5/12 2:41:07 PM ASUS VivoTab  Your VivoTab Front view Front camera This built-in 2-megapixel camera allows you to take pictures or record videos using your VivoTab. Camera indicator The camera indicator lights up when either of the built-in cameras is in use. Ambient light sensor The ambient light sensor detects the amount of light in your environment. It allows the system to automatically adjust the brightness of the display depending on the ambient light condition. E7824_ME400CL_User_Manual.indd 412/5/12 2:41:08 PM ASUS VivoTab  Touch screen panel The touch screen panel allows you to operate your VivoTab using touch gestures or a stylus pen. Windows® 8 touch button Touch this button to go back to the Start screen. If you are already in the Start screen, touch this button to go back to the last app you opened. E7824_ME400CL_User_Manual.indd 512/5/12 2:41:08 PM ASUS VivoTab  Rear view Headphone output/microphone input combo jack port This port allows you to connect the VivoTab’s audio- out signal to amplified speakers or headphones. You can also use this port to connect your VivoTab to an external microphone. IMPORTANT! For microphone input function, the jack only supports headset microphone. Volume button Press this button to increase or decrease the volume. E7824_ME400CL_User_Manual.indd 612/5/12 2:41:11 PM ASUS VivoTab  Manual reset hole If the system becomes unresponsive, insert a straightened paper clip into the hole to force-restart your VivoTab. IMPORTANT! Forcing the system to restart may result to data loss. We strongly recommend that you back up your data regularly. Microphone The built-in mono microphone can be used for video conferencing, voice narrations or simple audio recordings. Camera LED flash Use the LED flash when taking pictures or recording videos in a low-light environment. You can set the LED flash to any of these settings: SettingDescription AUTOThe system automatically uses the LED flash when taking pictures depeding on the lighting condition. ONThe system uses the LED flash constantly when taking pictures in any lighting condition. TORCHThe system uses the LED flash as a constant lighting fixture or torch when taking photos or recording videos. OFFThe system disables the LED flash. E7824_ME400CL_User_Manual.indd 712/5/12 2:41:12 PM ASUS VivoTab 8 Rear camera This built-in 8-megapixel camera allows you to take high-definition pictures or record high-definition videos using your VivoTab. Power button Press the power button to turn your VivoTab on, put it to sleep or hibernate and wake it up from sleep or hibernate mode. Press and hold the power button for about five (5) seconds to force shut down your VivoTab when it becomes unresponsive. IMPORTANT! Forcing the system to restart may result to data loss. We strongly recommend that you back up your data regularly. Battery charge indicator This two-color LED provides a visual indication of the battery’s charge status. Refer to the table below for details: ColorStatus WhiteFully charged. OrangeCharging mode. DimThe AC adapter is not plugged to the VivoTab. E7824_ME400CL_User_Manual.indd 812/5/12 2:41:12 PM ASUS VivoTab  Micro HDMI port This port is for a micro HDMI (High-Definition Multimedia Interface) connector and is HDCP compliant for HD DVD, Blu-ray and other protected content playback. MicroSD card slot The VivoTab comes with a built-in memory card reader slot that supports microSD, microSDHC and microSDXC card formats. Micro SIM card slot The VivoTab comes with a built-in micro SIM (Subscriber Identity Module) card slot that supports GSM, WCDMA, and LTE network bands. NOTE: Refer to section Installing a micro SIM card for more details. Micro SIM card tray eject hole Insert the bundled micro SIM card tray eject pin into this hole to eject the micro SIM card tray. Built-in NFC (Near Field Communication) tag The built-in NFC tag allows you to conveniently share contacts, pictu…

Text truncated - open the document above for the full version.

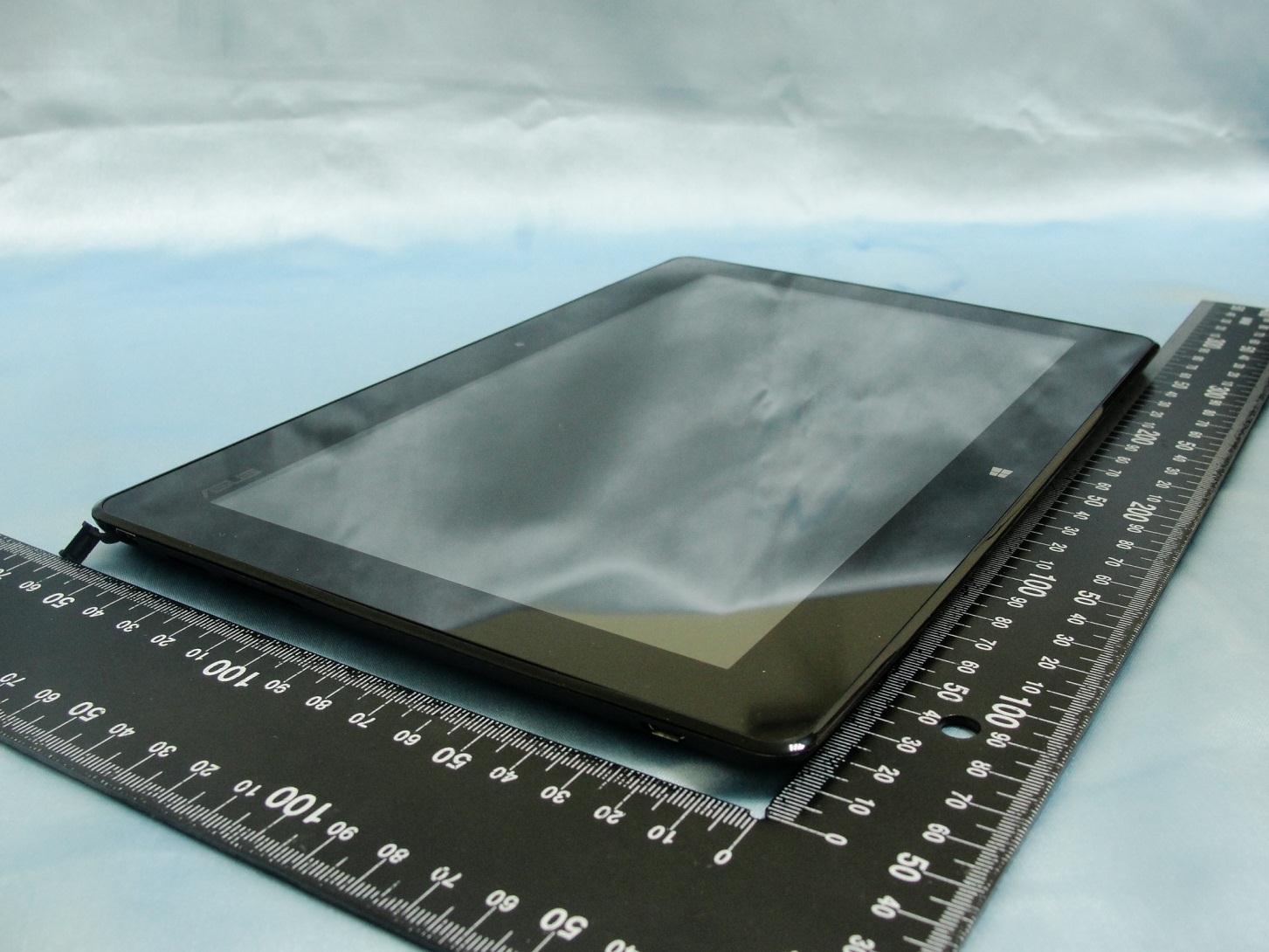

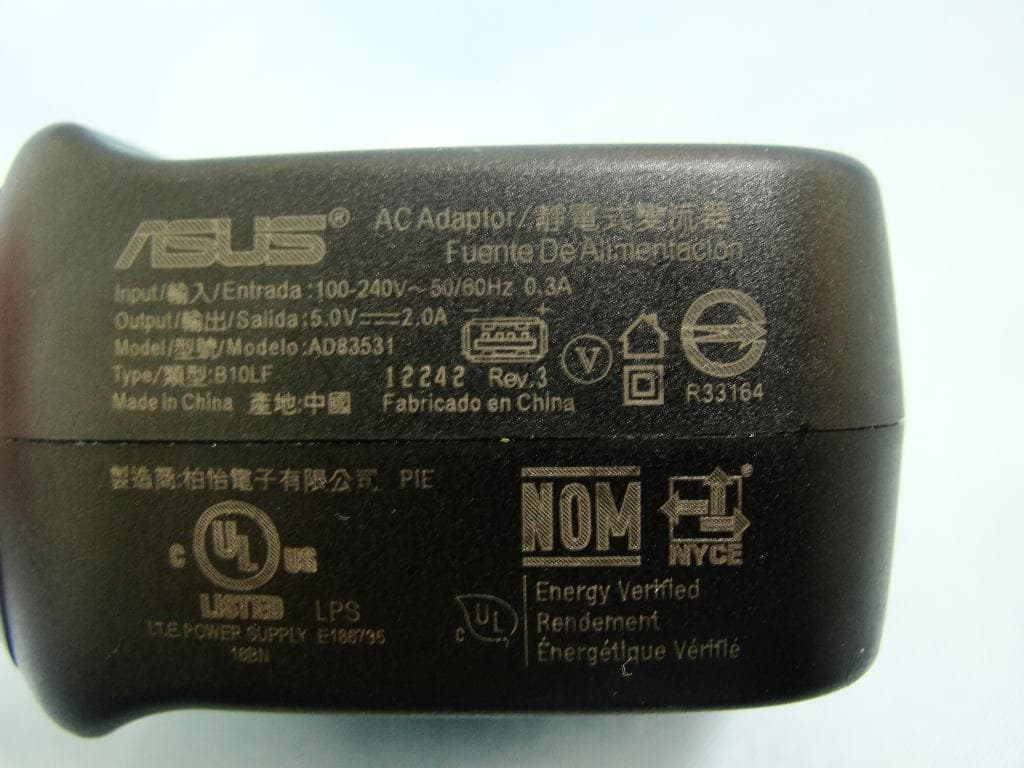

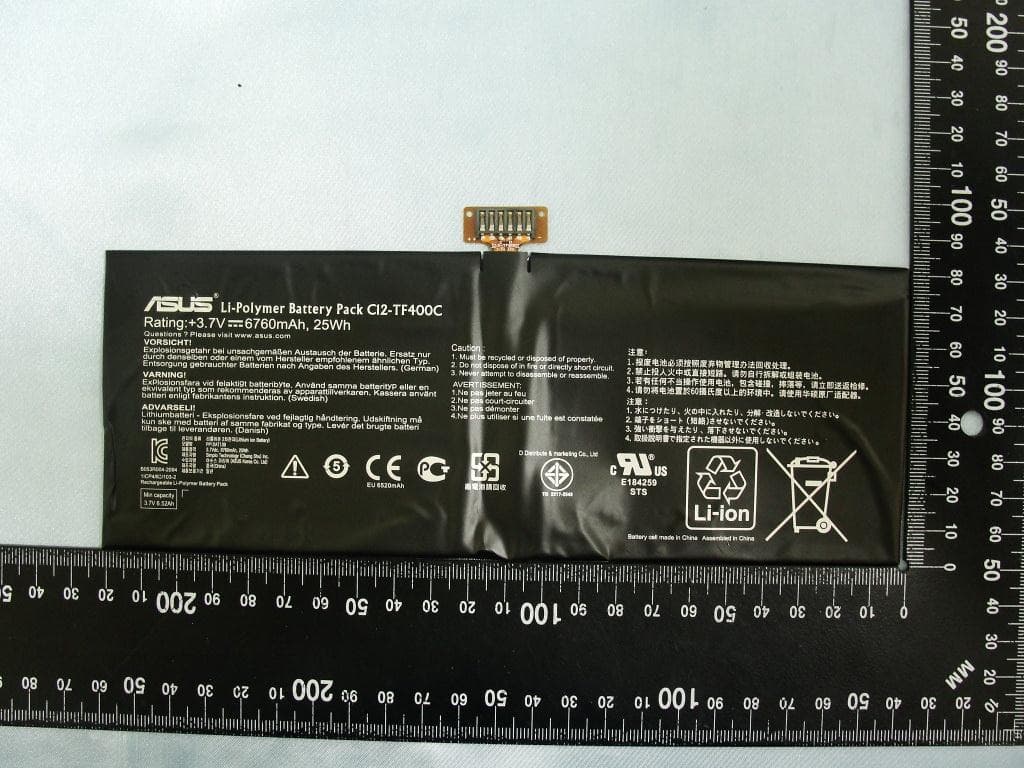

Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 1 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y 1. External Photograph of EUT Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 2 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y 720510 Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 3 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y List of Accessory: Specification of Accessory AC Adapter Brand Name ASUS Model Name AD83531 Battery Brand Name ASUS Model Name C12-TF400C USB Cable Brand Name N/A Model Name N/A Signal Line 0.9 meter non-shielded cable without ferrite core Front Camera Brand Name Ability Model Name SS26F249 Back Camera Brand Name Liteon Model Name 11P2BA845B LCD Panel Brand Name Hydis Model Name HV101HD1-1E2 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 4 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 5 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 6 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y 720510

Back of EUT Label Location

ME400CL RU (俄羅斯) CHN (中國) HEB (以色列) JP (日本) ASUS VivoTab Made in China Model: K0Y Input: + 5V 2A, 10W 000000000000 xxx-xxxxxx xxxxxxxxxx xxx-xxxxxx xxxxxxxxxx US/CAN (美加) Other Australia、Singapore (澳洲、新加坡) E187242 CS20 Taiwan、Hong Kong (台灣、香港) EU (歐洲) GERMAN (德國) XXXXXXXXXXXXXXR31018 Korea (韓國) France (法國) KCC-CMM-MSQ-K0Y 4.5 mm 7 mm 4 mm 4 mm 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm 4 mm 7 mm 4 mm 7 mm 4 mm 5 mm 5 mm 5 mm 4 mm 5 mm 5 mm 7 mm 4 mm ASUS Label Define - Pad & Transbook - Laser Icons Layout Define 雷雕版型使用說明 1 (資訊內容) ‧ 首先請設計師與各機種PM取得Label內容，比對個國家別是否有新增或減少ICON項目 ‧ 黑色為通用資訊，不會調整 ‧ 橘色字的資訊會因不同機種修改 ‧ 雷雕顏色對比須達5U以上(淺色底-->深灰字，深色底-->淺灰字) ‧ 雷雕表面效果觸摸無觸感，不可過深 雷雕版型構成 ‧ ICON線寬均為0.06mm ‧ 設計師不可做調整請直接使用 ‧ 文字字級 3.1pt ‧ 英文與數字字體為Arial Regular ‧ 中文字體為微軟正黑體 ‧ 行距 4.5pt ‧ 每隔資訊區間間隔3個字元 ‧ 須注意特殊符號是否未置中 ‧ ICON與文字視覺上置中對齊 1.2mm ICON區塊 文字區塊 E187242 CS20 ASUS VivoTab Made in China Model: K0Y Input: + 5V 2A, 10W FCC ID: MSQK0Y IC: 3568A-K0Y 000000000000 ‧ 有垃圾筒的ICON間距請抓1mm 1mm ASUS Tablet Made in China 000: K0Y : + 5V 2A, 10W 000000000000 N13219 5 mm 5 mm

Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 7 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y 3. Internal Photograph of EUT Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 8 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 9 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 10 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 11 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 12 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 13 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 14 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 15 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y WWAN Main Antenna <Tx / Rx> Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 16 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y 720510 WWAN Diversity Antenna<Rx> Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 17 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y Bluetooth & WLAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 18 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y GPS Antenna <Rx> Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 19 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y NFC Antenna <Rx> Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 20 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y Proximity Sensing Pad 1 Antenna <Rx> Photographs of EUT Report No.: EP2O2430 Brand Name: ASUS / Model Name: K0Y SPORTON INTERNATIONAL INC. Page Number : 21 of 21 TEL : 886-3-327-3456 Report Issued Date : Nov. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQK0Y IC : 3568A-K0Y Proximity Sensing Pad 2 Antenna <Rx>

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/24 System Check_Body_750MHz_121124 DUT: D750V3-SN:1012 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: MSL_750_121124 Medium parameters used: f = 750 MHz; σ = 0.962 mho/m; ε r = 53.914; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.2, 6.2, 6.2); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1127 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 2.51 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 52.884 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.28 W/kg SAR(1 g) = 2.33 W/kg; SAR(10 g) = 1.57 W/kg Maximum value of SAR (measured) = 2.50 W/kg 0 dB = 2.50 W/kg = 3.98 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/21 System Check_Head_835MHz_121121 DUT: D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_121121 Medium parameters used: f = 835 MHz; σ = 0.968 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 Ambient Temperature：22.8 °C; Liquid Temperature：21.8 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.08, 6.08, 6.08); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1127 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 2.75 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 55.537 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.58 W/kg SAR(1 g) = 2.55 W/kg; SAR(10 g) = 1.69 W/kg Maximum value of SAR (measured) = 2.75 W/kg 0 dB = 2.75 W/kg = 4.39 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/20 System Check_Body_1750MHz_121120 DUT: D1750V2-SN:1068 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: MSL_1750_121120 Medium parameters used: f = 1750 MHz; σ = 1.515 mho/m; ε r = 52.41; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.98, 4.98, 4.98); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 13.2 mW/g Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 100.3 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 16.476 mW/g SAR(1 g) = 9.41 mW/g; SAR(10 g) = 5.17 mW/g Maximum value of SAR (measured) = 13.2 mW/g 0 dB = 13.2 mW/g = 22.41 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/24 System Check_Body_1750MHz_121124 DUT: D1750V2-SN:1023 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: MSL_1750_121124 Medium parameters used: f = 1750 MHz; σ = 1.508 mho/m; ε r = 52.41; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.81, 4.81, 4.81); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v5.0 Left; Type: QDOVA002AA; Serial: TP:1131 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 10.3 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 86.867 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 13.1 W/kg SAR(1 g) = 8.92 W/kg; SAR(10 g) = 5.05 W/kg Maximum value of SAR (measured) = 9.94 W/kg 0 dB = 9.94 W/kg = 9.97 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/23 System Check_Body_1900MHz_121123 DUT: D1900V2-SN:5d041 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_121123 Medium parameters used: f = 1900 MHz; σ = 1.54 mho/m; ε r = 54.458; ρ = 1000 kg/m 3 Ambient Temperature：22.2 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.58, 4.58, 4.58); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v5.0 Left; Type: QDOVA002AA; Serial: TP:1131 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 10.6 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 89.257 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 14.7 W/kg SAR(1 g) = 9.39 W/kg; SAR(10 g) = 5.11 W/kg Maximum value of SAR (measured) = 10.6 W/kg 0 dB = 10.6 W/kg = 10.25 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/24 System Check_Body_2450MHz_121124 DUT: D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_121124 Medium parameters used: f = 2450 MHz; σ = 2.018 mho/m; ε r = 52.307; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; Co…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/21 #12_GSM850_GPRS (2 Tx slots)_Bottom Face_1.4cm_Ch251 DUT: 2O2430 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:4 Medium: MSL_850_121121 Medium parameters used: f = 849 MHz; σ = 0.982 mho/m; ε r = 54.483; ρ = 1000 kg/m 3 Ambient Temperature：22.8 °C; Liquid Temperature：21.8 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.08, 6.08, 6.08); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1127 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Configuration/Ch251/Area Scan (131x191x1): Measurement grid: dx=15 mm, dy=15 mm Reference Value = 15.02 V/m; Power Drift = -0.03 dB Fast SAR: SAR(1 g) = 0.188 W/kg; SAR(10 g) = 0.125 W/kg Maximum value of SAR (interpolated) = 0.207 W/kg 0 dB = 0.207 W/kg = -6.84 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/21 #13_GSM850_GPRS (2 Tx slots)_Edge1_1.1cm_Ch251 DUT: 2O2430 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:4 Medium: MSL_850_121121 Medium parameters used: f = 849 MHz; σ = 0.982 mho/m; ε r = 54.483; ρ = 1000 kg/m 3 Ambient Temperature：22.8 °C; Liquid Temperature：21.8 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.08, 6.08, 6.08); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1127 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Configuration/Ch251/Area Scan (41x191x1): Measurement grid: dx=15 mm, dy=15 mm Reference Value = 13.3 V/m; Power Drift = -0.02 dB Fast SAR: SAR(1 g) = 0.149 W/kg; SAR(10 g) = 0.094 W/kg Maximum value of SAR (interpolated) = 0.163 W/kg 0 dB = 0.163 W/kg = -7.88 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/21 #14_GSM850_GPRS (2 Tx slots)_Edge2_0cm_Ch251 DUT: 2O2430 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:4 Medium: MSL_850_121121 Medium parameters used: f = 849 MHz; σ = 0.982 mho/m; ε r = 54.483; ρ = 1000 kg/m 3 Ambient Temperature：22.8 °C; Liquid Temperature：21.8 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.08, 6.08, 6.08); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1127 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Configuration/Ch251/Area Scan (41x151x1): Measurement grid: dx=15 mm, dy=15 mm Reference Value = 8.639 V/m; Power Drift = -0.00 dB Fast SAR: SAR(1 g) = 0.064 W/kg; SAR(10 g) = 0.042 W/kg Maximum value of SAR (interpolated) = 0.0685 W/kg 0 dB = 0.0685 W/kg = -11.64 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/21 #126_GSM850_GPRS (2 Tx slots)_Bottom Face_0cm_Ch251 DUT: 2O2430 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:4 Medium: MSL_850_121121 Medium parameters used: f = 849 MHz; σ = 0.982 mho/m; ε r = 54.483; ρ = 1000 kg/m 3 Ambient Temperature：22.8 °C; Liquid Temperature：21.8 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.08, 6.08, 6.08); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1127 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Configuration/Ch251/Area Scan (61x191x1): Measurement grid: dx=15 mm, dy=15 mm Reference Value = 32.72 V/m; Power Drift = 0.01 dB Fast SAR: SAR(1 g) = 0.830 W/kg; SAR(10 g) = 0.522 W/kg Maximum value of SAR (interpolated) = 0.922 W/kg 0 dB = 0.922 W/kg = -0.35 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/21 #127_GSM850_GPRS (2 Tx slots)_Bottom Face_0cm_Ch128 DUT: 2O2430 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium: MSL_850_121121 Medium parameters used: f = 824.2 MHz; σ = 0.958 mho/m; ε r = 54.706; ρ = 1000 kg/m 3 Ambient Temperature：22.8 °C; Liquid Temperature：21.8 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.08, 6.08, 6.08); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1127 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Configuration/Ch128/Area Scan (61x191x1): Measurement grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 0.992 W/kg Configuration/Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 34.377 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 1.61 W/kg SAR(1 g) = 0.961 W/kg; SAR(10 g) = 0.545 W/kg Maximum value of SAR (measured) = 1.05 W/kg 0 dB = 1.05 W/kg = 0.21 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/21 #165_GSM850_GPRS (2 Tx slots)_Bottom Face_0cm_Ch128_Repeat DUT: 2O2430 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium: MSL_850_121121 Medium parameters used: f = 824.2 MHz; σ = 0.958 mho/m; ε r = 54.706; ρ = 1000 kg/m 3 Ambient Temperature：22.8 °C; Liquid Temperature：21.8 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.08, 6.08, 6.08); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1127 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Configuration/Ch128/Area Scan (61x191x1): Measurement grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 1.01 W/kg Configuration/Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 35.133 V/m; Power Drift = -0.01 dB Peak SAR (extrapo…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D750V2, serial no. 1012 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D750V2 – serial no. 1012 750 Head 750 Body Date of Measurement Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 6.11.2010 -29.87 53.311 0.0547 -33.584 49.801 -2.0898 6.11.2011 -29.747 0.411 53.047 0.264 -1.395 1.45 -33.442 0.423 50.046 -0.245 -2.131 0.0412 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D750 V2, serial no. 1012 (Date of Measurement : 6.11.2011) 750 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 750 MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D750V2, serial no. 1012 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D750V2 – serial no. 1012 750 Head 750 Body Date of Measurement Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 6.11.2010 -29.87 53.311 0.0547 -33.584 49.801 -2.0898 6.11.2011 -29.747 0.411 53.047 0.264 -1.395 1.45 -33.442 0.423 50.046 -0.245 -2.131 0.0412 6.11.2012 -29.902 -0.107% 50.811 2.5 -0.47838 0.533 -32.916 1.99% 50.328 -0.527 -2.6363 0.547 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D750 V2, serial no. 1012 (Date of Measurement : 6.11.2012) 750 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 750 MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D835V2, serial no. 499 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D835V2 – serial no. 499 835 Head 835 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 3.22.2010 -28.352 52.17 -3.2461 -24.664 50.066 -5.8652 3.22.2011 -28.323 0.102 51.095 1.075 -3.5773 0.331 -24.665 -0.004 50.685 -0.619 -1.477 -4.388 Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D835 V2, serial no. 499 (Date of Measurement : 3.22.2011) 835 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 835 MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D835V2, serial no. 499 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D835V2 – serial no. 499 835 Head 835 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 3.22.2010 -28.352 52.17 -3.2461 -24.664 50.066 -5.8652 3.22.2011 -28.323 0.102 51.095 1.075 -3.5773 0.331 -24.665 -0.004 50.685 -0.619 -1.477 -4.388 3.22.2012 -28.265 0.307 50.685 1.485 -3.2627 0.0166 -23.821 3.42 50.977 -0.911 -3.2487 -2.6165 Therefore the verification result should support extended calibratio…

Text truncated - open the document above for the full version.
