LNA Matching Network + 44MHz Crystal Oscillator 1/R LoopFilter 1/N R and N counter are controlled by three wire data REG #20 - + 1/R LoopFilter 1/N R and N counter are controlled by three wire data RF Down-conversion Mixer Combiner or Spliter SAW filter Combiner or Spliter RX AGC 90 90 degree phase shifter Vcont Vcont Internal PA Regisiter sum TX Q TX I RX I RX Q IF VCO IF - BB down-conversion Mixer BB LPF BB LPF IF synthesizer RF synthesizer Power detector diode VGA #REG 24 RF up-conversion Mixer LO BB - IF up-conversion Mixer Pre-driver Amplifier REG # 26 External BPF 3-wire control R/W the register Control R & N counter Control R & N counter PA Antenna T/R switch AGC [0:3] AGC[0:2] AGC 3 Control LNA ON/OFF T/R switch 3 wire SCLK,SD&CSn Pin 4,5,6,7 PA_OUT_P/N IF RF Pin 10 LNA_IN Pin 55 AGC 3 Pin 19 LNA_OUT Pin 21 RX_RFMX_IN - + REG #0E Pin 23&24 RFMX_VGA_N/P Pin 28&29 IFMX_AGC_N/P Pin 26 TX_RFMX_OUT Pin 31 PEAK_DET Pin 51,53&54 AGC[0:2] Pin 44 PRE_IN Pin 37&38 TXQ_P/N Pin 39&40 TXI_P/N Pin 35&36 RXI_P/N Pin 33&34 RXQ_P/N Pin 50 PRE_OUT PE1PE2 88W8310 MAC/PHY 88W8000G RF Transciver PCI bus EEPROM

ASUSTek COMPUTER INC. FCC ID.: MSQMWOM4L 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel : +886 2 2894 3447*3185 ASUSTek COMPUTER INC. 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel : +886 2 2894 3447*3185 Fax: +886 2 2895 0113 Federal Communications Commission Jun. 04, 2004 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Kuoan Liao / Product Manager ASUSTek COMPUTER INC.

Report No.: 045L137FI Page : 1 of 5 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

ASUSTeK COMPUTER INC. FCC ID.: MSQMWOM4L 4FL., No.150, LI-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel: +886 2 2894 3447 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Motherboard ASUS Model No.: P5GD2 Premium, P5GD2 Deluxe TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Motherboard Model No.: P5GD2 Premium, P5GD2 Deluxe F F C C C C I I D D : : M M S S Q Q M M W W O O M M 4 4 L L This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

ASUSTeK COMPUTER INC. FCC ID.: MSQMWOM4L 4FL., No.150, LI-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel: +886 2 2894 3447 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Motherboard ASUS Model No.: P5GD2 Premium, P5GD2 Deluxe TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Motherboard Model No.: P5GD2 Premium, P5GD2 Deluxe F F C C C C I I D D : : M M S S Q Q M M W W O O M M 4 4 L L This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No.: 045L137FI Page : 2 of 5 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 045L137FI Page : 3 of 5 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 045L137FI Page : 4 of 5 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 045L137FI Page : 5 of 5 Version:1.0 (9) EUT Photo

Report No. 045L137FI Page: 5 of 92 Version:1.0 1.2. Operational Description EUT is a Motherboard with 11 channels. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps. The device of RF carrier is DQPSK, DB PSK and CCK (IEEE 802.11b) or eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps. The device of RF carrier is OFDM (IEEE 802.11g). The device adapts direct sequence spread spectrum modulation. The antenna was Connector provides diversity function to improve the receiving function. This Motherboard, compliant with IEEE 802.11b and IEEE 802.11g, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the Motherboard Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g network. Test Mode: Mode 1: Transmitter 11Mbps ANTENNA 1 Mode 1: Transmitter 54Mbps ANTENNA 1 Mode 2: Transmitter 11Mbps ANTENNA 2 Mode 2: Transmitter 54Mbps ANTENNA 2 Mode 1: ANTENNA 1 Manufacturer is Golden Bridge Electech Inc. Mode 2: ANTENNA 2 Manufacturer is INPAQ Technology

Report No. 045L137FI Page: 1 of 4 Version: 1.0 RF Exposure Evaluation declaration Product Name : Motherboard Model No. : P5GD2 Premium, P5GD2 Deluxe FCC ID MSQMWOM4L Applicant : ASUSTeK COMPUTER INC. Address : 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt : May 25, 2004 Date of Declaration: May 29, 2004 Report No. : 045L137FI The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 045L137FI Page: 2 of 4 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 045L137FI Page: 3 of 4 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Motherboard Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.94dBi in linear scale. 802.11b Output Power Into Antenna & RF Exposure Evaluation Distance (Golden: 2.94dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 17.9061 0.0070 6 2437.00 39.1742 0.0153 11 2462.00 53.8270 0.0211 802.11g Output Power Into Antenna & RF Exposure Evaluation Distance (Golden: 2.94 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 8.0353 0.0031 6 2437.00 16.1065 0.0063 11 2462.00 24.1546 0.0095 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement. Report No. 045L137FI Page: 4 of 4 Version: 1.0 Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.45dBi in linear scale. 802.11b Output Power Into Antenna & RF Exposure Evaluation Distance (INPAQ: 2.45dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 17.9061 0.0063 6 2437.00 39.1742 0.0137 11 2462.00 53.8270 0.0188 802.11g Output Power Into Antenna & RF Exposure Evaluation Distance (INPAQ: 2.45dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 8.0353 0.0028 6 2437.00 16.1065 0.0056 11 2462.00 24.1546 0.0084 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 045L137FI Page: 1 of 92 Version:1.0 Test Report Product Name : Motherboard Model No. : P5GD2 Premium, P5GD2 Deluxe FCC ID : MSQMWOM4L Applicant : ASUSTeK COMPUTER INC. Address : 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt : May 25, 2004 Date of Test : May 29, 2004 Report No. : 045L137FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 045L137FI Page: 2 of 92 Version:1.0 Test Report Certification Test Date : May 29, 2004 Report No. : 045L137FI Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : Motherboard Applicant : ASUSTeK COMPUTER INC. Address : 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer : ASUSTeK COMPUTER INC. Model No. : P5GD2 Premium, P5GD2 Deluxe Rated Voltage : AC 120V/60Hz Trade Name : ASUS Measurement Standard : FCC CFR Title 47 Part 15 Subpart C: 2003 Measurement Procedure : ANSI C63.4: 2001 Test Result : Complied Documented By : ( Grace Lin ) Tested By : ( Tom Hsieh ) Approved By : ( Gene Chang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 045L137FI Page: 3 of 92 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................4 1.1. EUT Description............................................................................................................................4 1.2. Operational Description ................................................................................................................5 1.3. Tested System Datails....................................................................................................................6 1.4. Configuration of tested System .....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................36 3.1. Test Equipment............................................................................................................................36 3.2. Test Setup ....................................................................................................................................36 3.3. Limits ..........................................................................................................................................36 3.4. Uncertainty ..................................................................................................................................36 3.5. Test Result of Peak Power Output...............................................................................................37 4. Radiated Emission .....................................................................................................................39 4.1. Test Equipment............................................................................................................................39 4.2. Test Setup ....................................................................................................................................39 4.3. Limits ..........................................................................................................................................40 4.4. Test Procedure .............................................................................................................................41 4.5. Uncertainty ..................................................................................................................................41 4.6. Test Result of Radiated Emission................................................................................................42 5. Band Edge ..................................................................................................................................66 5.1. Test Equipment............................................................................................................................66 5.2. Test Setup ....................................................................................................................................66 5.3. Limits ....................................................................…

Text truncated - open the document above for the full version.

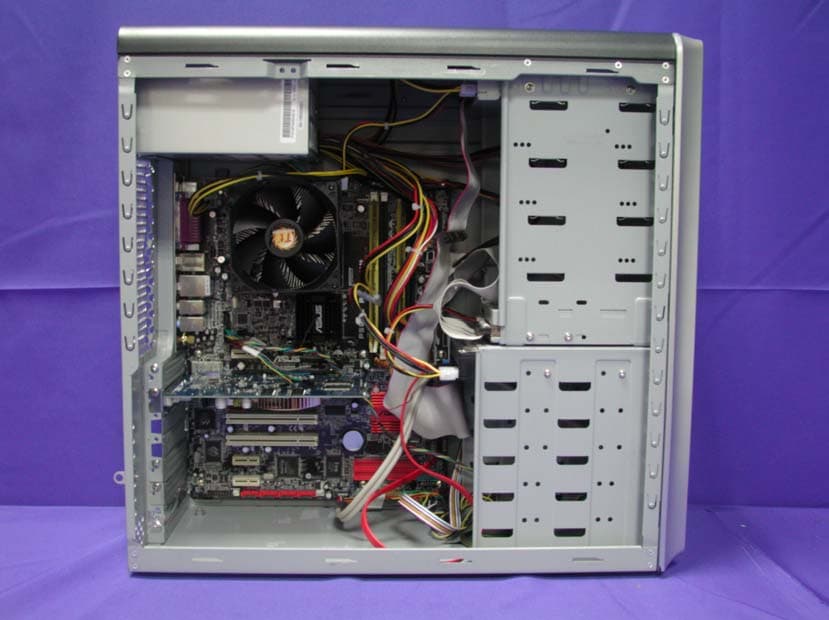

Report No.: 045L137FI Page : 1 of 5 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test (Mode 1) Back View of Conducted Test (Mode 1) Report No.: 045L137FI Page : 2 of 5 Version:1.0 Front View of Conducted Test (Mode 2) Back View of Conducted Test (Mode 2) Report No.: 045L137FI Page : 3 of 5 Version:1.0 Front View of Radiated Test (Mode 1) Back View of Radiated Test (Mode 1) Report No.: 045L137FI Page : 4 of 5 Version:1.0 Front View of Radiated Test (Mode 2) Back View of Radiated Test (Mode 2) Report No.: 045L137FI Page : 5 of 5 Version:1.0 Front View of Radiated Test (Horn) (Mode 1) Front View of Radiated Test (Horn) (Mode 2)
