MSQR2EUltra Mobile PC (UMPC)

UltraMobilePC (UMPC) Hardware User’s Manual E3357 / Jul 2007 1.3M PIXELS 1.3M PIXELS 2 UltraMobilePC Table of Contents 1. Introducing the UltraMobilePC About This User’s Manual .......................................................................... 6 Notes For This Manual........................................................................... 6 Safety Precautions ..................................................................................... 7 Transportation Precautions .................................................................. 8 Preparing your UltraMobilePC.................................................................... 9 2. Knowing the Parts Front Side ................................................................................................. 12 Right Side ................................................................................................. 14 Top Side.................................................................................................... 16 Left Side ................................................................................................... 18 Bottom Side .............................................................................................. 19 Back Side ................................................................................................. 20 3. Getting Started Power System .......................................................................................... 24 Using AC Power .................................................................................. 24 Using Battery Power ............................................................................ 25 Battery Care......................................................................................... 25 Powering ON the UltraMobilePC ......................................................... 26 The Power-On Self Test (POST).......................................................... 26 Checking Battery Power ...................................................................... 27 Charging the Battery Pack ................................................................... 28 Power Options ..................................................................................... 28 Power Management Modes ................................................................. 29 Sleep and Hibernate ............................................................................ 29 Thermal Power Control ........................................................................ 29 Status Indicators....................................................................................... 30 Table of Contents UltraMobilePC 3 4. Using the UltraMobilePC Display Calibration ................................................................................... 32 MS Windows Vista ............................................................................... 32 MS Windows XP .................................................................................. 33 Connections.............................................................................................. 34 Network Connection ............................................................................ 34 Wireless LAN Connection (on selected models) ................................. 35 Windows Wireless Network Connection .............................................. 36 ASUS Wireless LAN (on selected models) ......................................... 38 Bluetooth Wireless Connection (on selected models) ......................... 40 Operating System and Software............................................................... 41 Fingerprint Registration (on selected models) ..................................... 42 GPS Software (USA & Europe only) ............................................ 44 3G Watcher Software (on selected models) ........................................ 45 Appendix Optional Accessories ................................................................................ 50 More Optional Accessories....................................................................... 53 Optional Connections ............................................................................... 54 Glossary ................................................................................................... 57 &HUWLÀFDWLRQs 4 UltraMobilePC UltraMobilePC 5 1. Introducing the UltraMobilePC About This User’s Manual Notes For This Manual Safety Precautions Preparing your UltraMobilePC NOTE: Photos and icons in this manual are used for artistic purposes only and do not show what is actually used in the product itself. 6 UltraMobilePC About This User’s Manual You are reading the UltraMobilePC User’s Manual. This User’s Manual pro- vides information on the various components in the UltraMobilePC and how to use them. The following are major sections of this User’s Manuals: 1. Introducing the UltraMobilePC Introduces you to the UltraMobilePC and this User’s Manual. 2. Knowing the Parts Gives you information on the UltraMobilePC’s components. 3. Getting Started Gives you information on getting started with the UltraMobilePC. 4. Using the UltraMobilePC Gives you information on using the UltraMobilePC’s components. 5. Appendix Introduces you to optional accessories and gives additional information. Notes For This Manual A few notes and warnings in bold are used throughout this guide that you should be aware of in order to complete certain tasks safely and completely. These notes have different degrees of importance as described below: NOTE: Tips and information for special situations. WARNING! Important information that must be followed for safe operation. IMPORTANT! Vital information that must be followed to prevent damage to data, components, or persons. TIP: Tips and useful information for completing tasks. UltraMobilePC 7 Safety Precautions The following safety precautions will increase the life of the UltraMobilePC. Follow all pre- FDXWLRQVDQ…

Text truncated - open the document above for the full version.

36 UltraMobilePC 1. Press [WIRELESS] switch repeatedly until Wireless LAN ON or WLAN & Bluetooth ON is shown. Windows Wireless Network Connection Connecting to a network (Vista) 3. Right click on the WLAN icon and select Connect to a network. 2. You should see the “Not Connected” network icon. 4. Select “Show Wireless” if you have many networks in your area. 5. Select the wireless network you want to connect to. 6. When connecting, you may have to enter a password. 7. After connection has been established, “Connected” will be shown. 1b. Or double click the Wireless Console icon on the taskbar and select either the 1st icon to activate both Wireless & Bluetooth, or select the 2nd icon for Wireless activation only. UltraMobilePC 37 Windows Wireless Network Connection Connecting to a network (XP) Using Windows XP wireless settings require that you select this option in the ASUS WLAN Control Center. 1. Press [WIRELESS] switch repeatedly until Wireless LAN ON or WLAN & Bluetooth ON is shown. 2. Double click the WLAN icon on the task- bar. 3. Select Refresh network list from the left side menu and a list of available network within your area and its signal strength will show. Select your network and click on Connect. 4. When connecting, you may have to enter a password. 5. After connection has been established, “Connected” will be shown on the right side above the signal strength indicator. 1b. Or double click the Wireless Console icon on the taskbar and click on the 1st icon to activate both Wireless & Bluetooth, or select the 2nd icon for Wireless activation only. 38 UltraMobilePC ASUS Wireless LAN (on selected models) Connecting to a network Using ASUS wireless settings require that you select this option in the ASUS WLAN Control Center. 2. Double click the icon on the desktop or click Start | Programs | ASUS Utility | WLAN Card | ASUS WLAN Control Center. 3. On the left hand side menu, click Survey to start scanning for available networks in your area 4. The list will show all available networks within your area. Select the network you want and click Connect. 5. If the selected Network has security settings, you may be required to enter a password. 1. Press [WIRELESS] switch repeatedly until Wireless LAN ON or WLAN & Bluetooth ON is shown. 1b. Or double click the Wireless Console icon on the taskbar and click on the 1st icon to activate both Wireless & Bluetooth, or select the 2nd icon for Wireless activation only. UltraMobilePC 39 ASUS Wireless LAN (on selected models) Connecting to a network (cont.) 6. Click the EncryptionWDEWRFRQÀJXUHWKH Network Authentication mode and Pass- word. 7. The Status tab will show connection status and details. Note: Click “Save Configuration” and “Save” to remember settings for this network. 40 UltraMobilePC 2. SelectAdd a Bluetooth Deviceon the taskbar men. 2b. Or LaunchBluetooth Devicesfrom the Windows Control Panel. Turning ON and Launching Bluetooth Utility (Vista) This process can be used to add most Bluetooth devices. See Appendix for complete process. Bluetooth Wireless Connection (on selected models) UltraMobilePCs with Bluetooth technology eliminates the need for cables for con- necting Bluetooth-enabled devices. Examples of Bluetooth-enabled devices may be Notebook PCs, Desktop PCs, mobile phones, and PDAs. Note: If your UltraMobilePC did not come with built-in Bluetooth, you need to connect a USB or ExpressCard Bluetooth module in order to use Bluetooth. Bluetooth-enabled mobile phones You can wireless connect to your mobile phone. Depending on your mobile phone’s FDSDELOLWLHV\RXFDQWUDQVIHUSKRQHERRNGDWDSKRWRVVRXQGÀOHVHWFRUXVHLWDVD modem to connect to the Internet. You may also use it for SMS messaging. Bluetooth-enabled computers or PDAs <RXFDQZLUHOHVVFRQQHFWWRDQRWKHUFRPSXWHURU3'$DQGH[FKDQJHÀOHVVKDUHSHULSKHU- als, or share Internet or network connections. You may also make use of Bluetooth-enabled wireless keyboard or mouse. 1. Press [WIRELESS] switch repeatedly until Bluetooth ONorWLAN & Bluetooth ON is shown. 1b. Or double click the Wireless Console icon on the taskbar and select either the 1st icon to activate both Wireless & Bluetooth, or select the 3rd icon for Bluetooth activation only. UltraMobilePC 41 Support Software This UltraMobilePC comes with a support disc that provides BIOS, drivers and applications to enable hardware features, extend functionality, help manage your UltraMobilePC, or add functionality not provided by the native operating system. If updates or replacement of the support disc is necessary, contact your dealer for web sites to download individual software drivers and utilities. The support disc contains all drivers, utilities and software for all popular operating systems including those that have been pre-installed. The support disc does not include the operating system LWVHOI7KHVXSSRUWGLVFLVQHFHVVDU\HYHQLI\RXU8OWUD0RELOH3&FDPHSUHFRQÀJXUHGLQRUGHUWR provide additional software not included as part of the factory pre-install. A recovery disc is optional and includes an image of the original operating system installed on the hard drive at the factory. The recovery disc provides a comprehensive recovery solution that quickly restores the UltraMobilePC’s operating system to its original working state provided that your hard disk drive is in good working order. Contact your retailer if you require such a solution. Note: Some of the UltraMobilePC’s components and features may not work until the device drivers and utilities are installed. Operating System and Software This UltraMobilePC may offer (depending on territory) its customers the choice of a pre-installed Microsoft Windowsoperating system. The choices and languages will depend on the territory. The levels of hardware and software support may vary depending on the installed operating system. The stability and compatibility of other operating systems cannot be guaranteed. 42 UltraMobilePC Fingerprint Registration…

Text truncated - open the document above for the full version.

RF_160, Issue 01 Declaration of Authorization We Name: ASUSTeK COMPUTER INC. Address: 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. City: Taipei ............................................................... . Country: Taiwan ... R.O.C. ........................................................................ . Declare that: Name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan R.O.C. is authorized to apply for Certification of the following product(s): Product description: Ultra Mobile PC (UMPC) ..................... . Type designation: R2E ........................ . Trademark: ASUS ..................... . on our behalf. Date: ...... 2007/10/22 ............... .. City: ...... ........................ .. Name: ...... Ron_Lin / Engineer ............... Signature: ........................ .........

ASUSTeK COMPUTER INC. FCC ID.: MSQR2E 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel : 886-2-2894-3447 # 3188 Federal Communications Commission Oct. 22 , 2007 Authorization and Evaluation Division ATTESTATION FCC ID: MSQR2E Product: Ultra Mobile PC (UMPC) Model: R2E We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ---------------------------------------------- Ron_Lin / Engineer ASUSTeK COMPUTER INC.

ASUSTeK COMPUTER INC. FCC ID.: MSQR2E 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel : 886-2-2894-3447 # 3188 ASUSTeK COMPUTER INC. 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel : 886-2-2894-3447 # 3188 Fax: 886-2-2898-7364 Federal Communications Commission Oct. 22 , 2007 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (R2E) Schem Block Diagram : (R2E) BlkDia The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------------------- Ron_Lin / Engineer ASUSTeK COMPUTER INC.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 January 11, 2008 TO: FCC FROM: American TCB RE: FCC ID: MSQR2E , Request for supercede of test report Please remove original test report uploaded on 12/07/07 and replace with rev test report uploaded 12/19/07. The reason for the request is that the original test report was a combination DSS/DTS report – which is no longer allowed. Separate reports were uploaded correctly. Thank you Marianne Bosley American TCB Inc. Direct – 717-676-3203

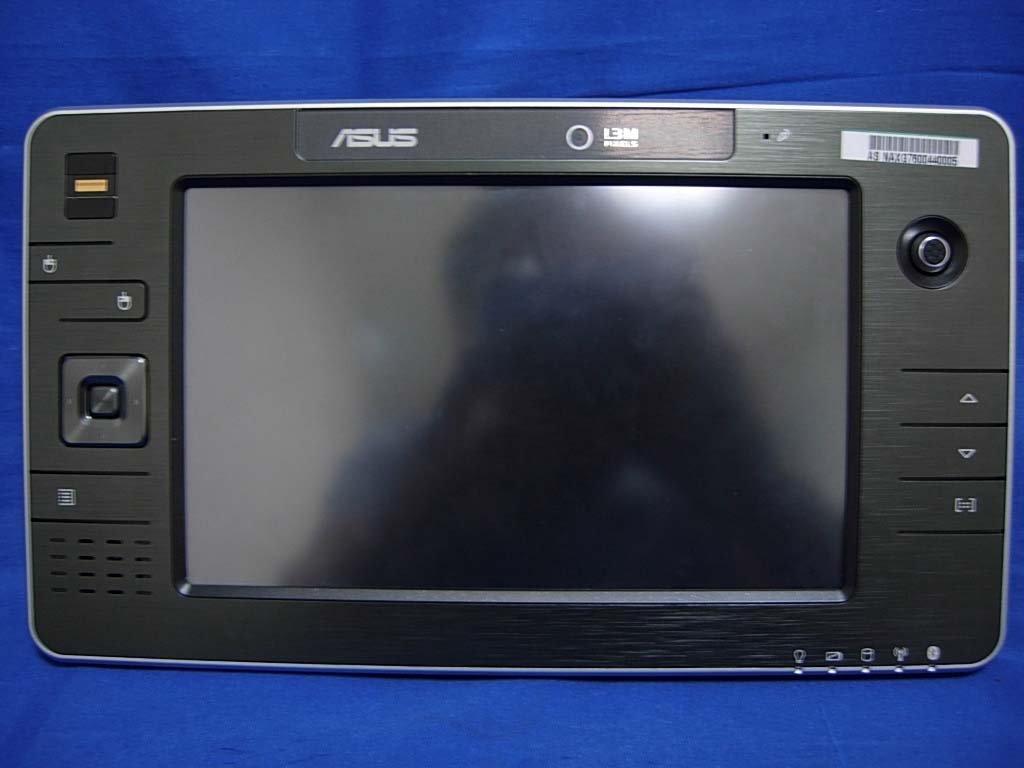

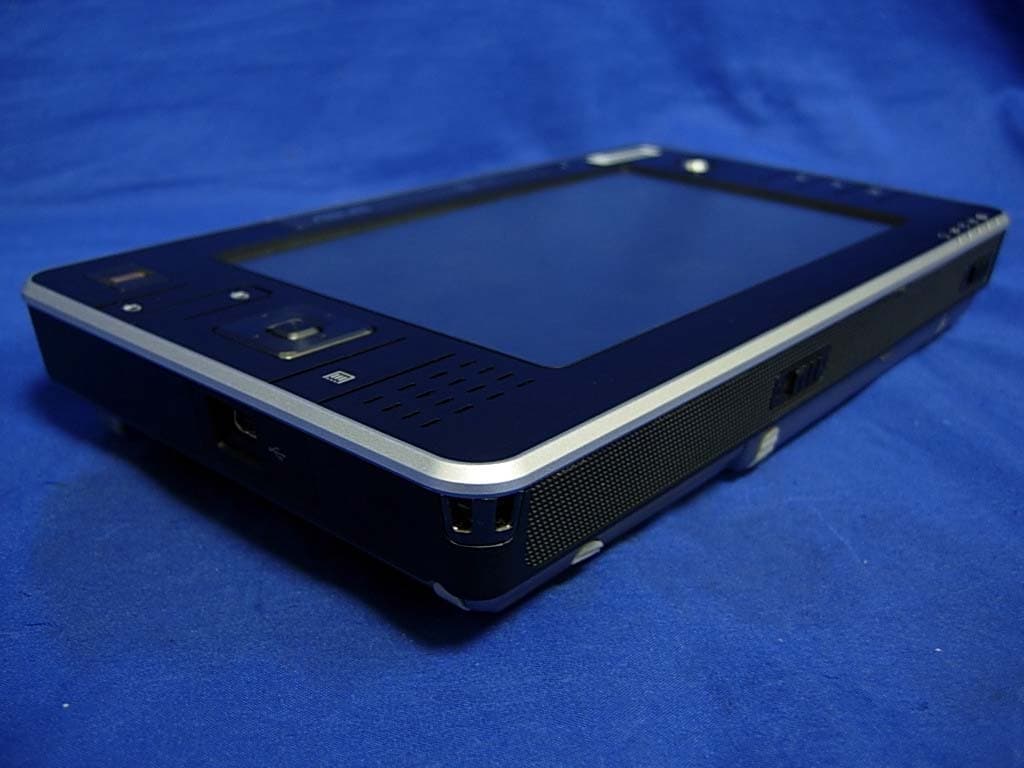

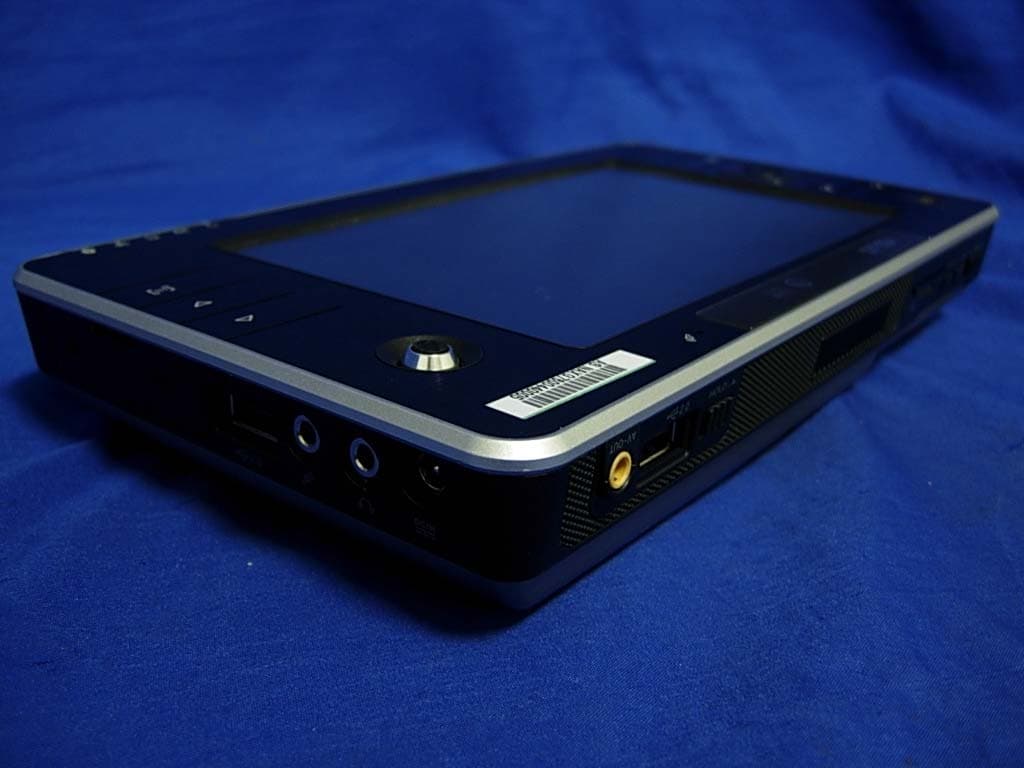

Report No.: 077261R-RFUSP05V01-A Page : 1 of 16 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 077261R-RFUSP05V01-A Page : 2 of 16 Version:1.0 (3) EUT Photo (4) EUT Photo

ASUSTeK COMPUTER INC. FCC ID.: MSQR2E 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel : 886-2-2894-3447 # 3188 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 077261R-RFUSP05V01-A Page : 3 of 16 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 077261R-RFUSP05V01-A Page : 4 of 16 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 077261R-RFUSP05V01-A Page : 5 of 16 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 077261R-RFUSP05V01-A Page : 6 of 16 Version:1.0 (11) EUT Photo (12) EUT Photo WLAN Module Report No.: 077261R-RFUSP05V01-A Page : 7 of 16 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 077261R-RFUSP05V01-A Page : 8 of 16 Version:1.0 (15) EUT Photo (16) EUT Photo Report No.: 077261R-RFUSP05V01-A Page : 9 of 16 Version:1.0 (17) EUT Photo (18) EUT Photo Report No.: 077261R-RFUSP05V01-A Page : 10 of 16 Version:1.0 (19) EUT Photo (20) EUT Photo Report No.: 077261R-RFUSP05V01-A Page : 11 of 16 Version:1.0 (21) EUT Photo (22) EUT Photo Report No.: 077261R-RFUSP05V01-A Page : 12 of 16 Version:1.0 (23) EUT Photo (24) EUT Photo Bluetooth Module Report No.: 077261R-RFUSP05V01-A Page : 13 of 16 Version:1.0 (25) EUT Photo (26) EUT Photo Report No.: 077261R-RFUSP05V01-A Page : 14 of 16 Version:1.0 (27) EUT Photo (28) EUT Photo Report No.: 077261R-RFUSP05V01-A Page : 15 of 16 Version:1.0 (29) EUT Photo (30) EUT Photo Report No.: 077261R-RFUSP05V01-A Page : 16 of 16 Version:1.0 (31) EUT Photo (32) EUT Photo

Report No. 077261R-RFUSP05V01-A Page: 6 of 60 Version:1.0 1.2. Operational Description The EUT is Ultra Mobile PC (UMPC) with a built-in 2.4GHz WLAN and Bluetooth transceiver. There are 11 channels in 2412 – 2462MHz. The channels are separated by 5MHz. This device supports the data rates of 1, 2, 5.5, 11Mbps in 802.11b mode and 6, 9, 12, 18, 24, 36, 48, 54Mbps in 802.11g mode. The signals are modulated by DSSS in 802.11b mode and OFDM in 802.11g mode. The antenna type is Chip.

Report No：077261R-HPUSP10V01 Page: 1 of 22 Version:1.0 SAR Test Report Product Name：Ultra Mobile PC (UMPC) Model No. ：R2E Applicant ： ASUSTeK COMPUTER INC. Address ： 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt ：2007/07/18 Issued Date ：2007/10/18 Report No. ：077261R-HPUSP10V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：077261R-HPUSP10V01 Page: 2 of 22 Version:1.0 Test Report Certification Issued Date: 2007/10/18 Report No.:077261R-HPUSP10V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Product Name ： Ultra Mobile PC (UMPC) Applicant ： ASUSTeK COMPUTER INC. Address ： 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer ： ASUSTeK COMPUTER INC. Model No. ： R2E FCC ID : MSQR2E Trade Name ： ASUS Applicable Standard ： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Test Result ： Max. SAR Measurement (1g) 802.11b: 0.592 W/kg 802.11g: 0.349 W/kg Application Type Certification Documented By ： (Engineering Adm. Assistant/ Nicole Huang) Tested By ： (Senior Engineer / Shine Hsu) Approved By ： (Deputy Manager /Vincent Lin) Report No：077261R-HPUSP10V01 Page: 3 of 22 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................5 2. SAR Measurement System .................................................................. 6 2.1 ALSAS-10U System Description .................................................................................. 6 2.1.1 Applications ................................................................................................................ 6 2.1.2 Area Scans................................................................................................................... 6 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 7 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty......................................... 7 2.2 Isotropic E-Field Probe .................................................................................................. 7 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ................................................. 9 2.4 Daq-Paq (Analog to Digital Electronics) ..................................................................... 10 Amplifier Range................................................................................................................. 10 2.5 Axis Articulated Robot ................................................................................................ 10 2.6 ALSAS Universal Workstation.................................................................................... 11 2.7 Universal Device Positioner......................................................................................... 11 2.8 Phantom Types............................................................................................................. 11 2.8.1 APREL SAM Phantoms ........................................................................................... 12 2.8.2 APREL Laboratories Universal Phantom ................................................................. 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure ........................................................... 15 4.1 SAR System Validation................................................................................................ 15 4.1.1 Validation Dipoles..................................................................................................... 15 4.1.2 Validation Result ....................................................................................................... 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits ......................................................................... 17 6. Test Equipment List............................................................................ 18 7. Measurement Uncertainty .................................................................. 19 8. Test Results......................................................................................... 20 8.1 SAR Test Results Summary ......................................................................................... 20 Report No：077261R-HPUSP10V01 Page: 4 of 22 Version:1.0 Appendix ............................................................................................................................ 22 Appendix A. SAR System Validation Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data Appendix E. Dipole Calibration Data Report No：077261R-HPUSP10V01 Page: 5 of 22 Version:1.0 1. General Information 1.1 EUT Description Product Name Ultra Mobile PC (UMPC) Trade Name ASUS Model No. R2E FCC ID MSQR2E TX Frequency 2412MHz~2462MHz Number of Chan…

Text truncated - open the document above for the full version.

Appendix - Probe Calibration Miniature Isotropic RF Probe M/N: ALS-E-020 S/N: 264 2450MHz Head Calibration 2450MHz Body Calibration

Appendix - Dipole Calibration Validation Dipole 2450MHz P/N: ALS-D-2450-S-2 S/N: QTK-319

Report No. 077261R-RFUSP05V01-A Page: 1 of 60 Version:1.0 Test Report Product Name Ultra Mobile PC (UMPC) Model No. R2E FCC ID MSQR2E Applicant ASUSTeK COMPUTER INC. Address 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt July. 18, 2007 Issued Date Oct. 12, 2007 Report No. 077261R-RFUSP05V01-A The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 077261R-RFUSP05V01-A Page: 2 of 60 Version:1.0 Test Report Certification Issued Date: Oct. 12, 2007 Report No.: 077261R-RFUSP05V01-A Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name Ultra Mobile PC (UMPC) Applicant ASUSTeK COMPUTER INC. Address 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer ASUSTeK COMPUTER INC. Model No. R2E Rated Voltage AC 120V/60Hz Working Voltage DC 5V Trade Name ASUS Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2006 ANSI C63.4: 2003 Test Result Complied Documented By : ( Engineering Adm. Assistant / Leven Huang) Tested By : (Assistant Engineer/Dino Chen) Approved By : ( Deputy Manager / Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 0914 Report No. 077261R-RFUSP05V01-A Page: 3 of 60 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of Test System ........................................................................................................7 1.5. EUT Exercise Software .................................................................................................................7 1.6. Test Facility ...................................................................................................................................8 2. Conducted Emission....................................................................................................................9 2.1. Test Equipment..............................................................................................................................9 2.2. Test Setup ......................................................................................................................................9 2.3. Limits ............................................................................................................................................9 2.4. Test Procedure .............................................................................................................................10 2.5. Uncertainty ..................................................................................................................................10 2.6. Test Result of Conducted Emission.............................................................................................11 3. Peak Power Output ...................................................................................................................15 3.1. Test Equipment............................................................................................................................15 3.2. Test Setup ....................................................................................................................................15 3.3. Limits ..........................................................................................................................................15 3.4. Test Procedure .............................................................................................................................15 3.5. Uncertainty ..................................................................................................................................15 3.6. Test Result of Peak Power Output...............................................................................................16 4. Radiated Emission .....................................................................................................................18 4.1. Test Equipment............................................................................................................................18 4.2. Test Setup ....................................................................................................................................19 4.3. Limits ..........................................................................................................................................20 4.4. Test Procedure .............................................................................................................................21 4.5. Uncertainty ..................................................................................................................................21 4.6. Test Result of Radiated Emission................................................................................................22 5. Band Edge ..................................................................................................................................30 5.1. Test Equipment............................................................................................................................30 5.2. Test Setup .…

Text truncated - open the document above for the full version.

Report No.: 077261R-RFUSP05V01-A Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 077261R-RFUSP05V01-A Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 077261R-RFUSP05V01-A Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
