MSQRTN10UWIRELESS-N ROUTER

User Manual RT-N10U 11n Wireless Router 11 n Wireless Router RT-N10U USB Power WAN WLAN LAN1 LAN2 LAN3 LAN4 WPS  Copyright © 2011 ASUSTeK Computer Inc. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. (“ASUS”). Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. Offer to Provide Source Code of Certain Software This product contains copyrighted software that is licensed under the General Public License (“GPL”), under the Lesser General Public License Version (“LGPL”) and/or other Free Open Source Software Licenses. Such software in this product is distributed without any warranty to the extent permitted by the applicable law. Copies of these licenses are included in this product. Where the applicable license entitles you to the source code of such software and/or other additional data, such data should have been shipped along with this product. You may also download it for free from http://support.asus.com/download. The source code is distributed WITHOUT ANY WARRANTY and licensed under the same license as the corresponding binary/object code. ASUSTeK is eager to duly provide complete source code as required under various Free Open Source Software licenses. If however you encounter any problems in obtaining the full corresponding source code we would be much obliged if you give us a notification to the email address [email protected], stating the product and describing the problem (please do NOT send large attachments such as source code archives etc to this email address). E6563 First Edition April 011 3 Table of contents About this guide ....................................................................................4 Chapter 1: Knowing your wireless router Package contents ..................................................................................7 System requirements ............................................................................7 Before you proceed ...............................................................................7 Hardware features .................................................................................8 Front panel ........................................................................................8 Rear panel .........................................................................................9 Bottom panel ...................................................................................10 Mounting options ..................................................................................11 Chapter 2: Getting started Setting up the wireless router ............................................................13 Using the Quick Internet Setup (QIS) .................................................13 Using QIS with auto-detection .........................................................13 Using QIS without auto-detection ....................................................15 Chapter 3: Configuring the network clients Accessing the wireless router ............................................................17 Setting an IP address for wired or wireless clients ..........................17 Chapter 4: Configuring via the web GUI Configuring via the web GUI ...............................................................21 Using the Network Map .......................................................................22 Creating multiple SSID profiles .......................................................3 Managing bandwidth with EzQoS ......................................................24 Setting up the operation mode ...........................................................25 Setting up the wireless router in Router mode ................................5 Setting up the wireless router in Repeater mode ............................6 Setting up the wireless router in AP mode ......................................7 Upgrading the firmware ......................................................................28 Restoring/Saving/Uploading settings ................................................29  Table of contents About this guide This user guide contains information that you need to install and configure the ASUS Wireless Router. How this guide is organized This guide contains the following parts: • Chapter 1: Knowing your wireless router This chap…

Text truncated - open the document above for the full version.

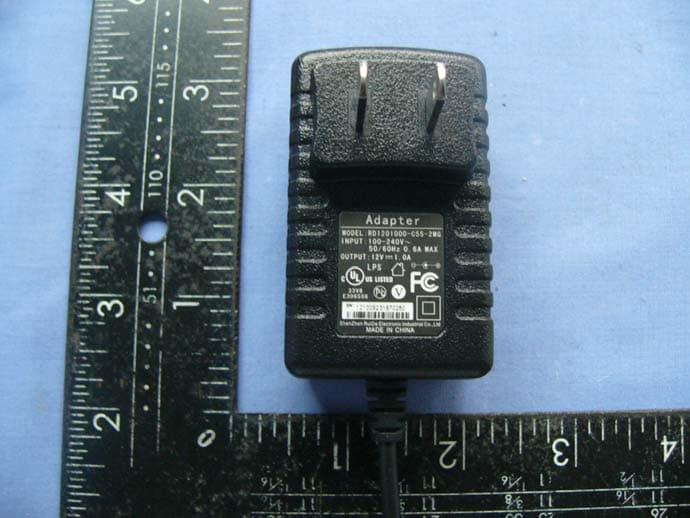

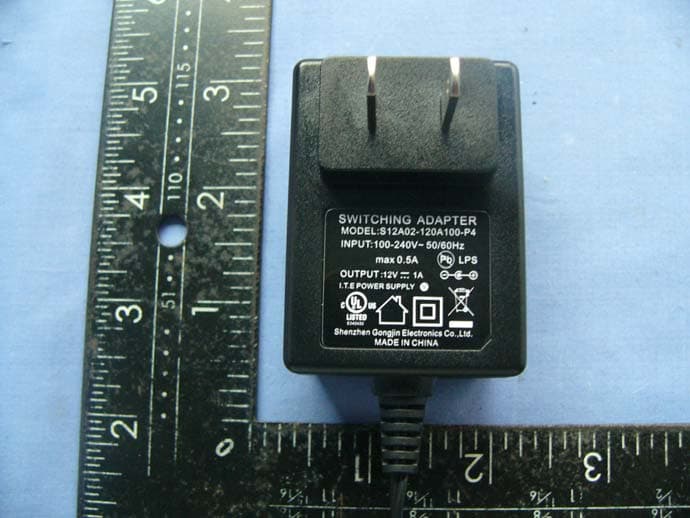

Report No: SZ110524B01-RP Page 1 / 5 Report No: SZ110524B01-RP Page 2 / 5 Report No: SZ110524B01-RP Page 3 / 5 Report No: SZ110524B01-RP Page 4 / 5 Report No: SZ110524B01-RP Page 5 / 5 Adapter 1: ShenZhen RuiDe Electronics Industrial Co.,Ltd / RD1201000-C55-2MG Adapter 2: ShenZhen Gongjin Electronics Co., Ltd / S12A02-120A100-P4

Product Name: Wireless-N Router MODEL: RT-N10U Brand: ASUS Label Location

1 2 3 4 A B C D 56 1 2 3 4 56 A B C D 60 ~90 /0.530 ~60 /0.3 0 ~30 /0.1 0.3 0.1 0.8 C2 0.5 1.3 1.5 0.2 0.1 0.3 0.25 0.5 0.7 C4 0.5 0.2 1.5 1.2 3 4 C3 0.15 0.4 0.9 1.2 1.8 2.5 C1 ANG.TOL+ RANGE 0~6 80~180 30~80 6~30 315~500 180~315 DIM TOL PART NO: TITLE: FINISH MAT'L UNIT'S SHENZHEN GONGJIN ELECTRONICS CO., LTD. VER: SHEET SCALE DRAW CHECK PDE RT-N10U 1 / 1 1:1 A0mm CUSTOMER: MODEL: DATE: 盒底标贴 华硕 1.80.9 5 3 500~800 608000007690 / / PIN Code H/W Ver.:B1 F/W Ver.:Vx.x.x.x XXXXXXXXXXXX XXXXXXXXXXXX MAC RT-N10+ RTN10B ASUSTek Computer lnc. 0.5 SN YMIED3XXXXXX 来料方式 3.0 mm 2 . 0 m m Y: 年份 2010 年第一码为 " A " , 依此类推 2011=> B, 2012=> C ...... 2029 => Z. ( 其中I,O,P,Q,U,V 不用) 再回到数字2030=> 0, ...., 2039=> 9 M ：月份 1代表月，月月月~91~9A:10, B:11, C:12 XXXXXX: 000001 - 999999 BARCODE: CODE 128 编号规则: YMIEDBXXXXXX MAC由客户提供 PIN Code由客户提供 1. 白底黑字，无边框, 2.材料: 50#PET,过UV油墨,背胶不上光膜 3. 材料,印刷原料,印刷工艺均能满足ROHS指令要求. NOTES(技术要求）: (Material:,UV coated,adhesive)50#PET (White background,black printing,no frame,) (All Materials and process technologies should be compliant with RoHS) 李骏 2011.4.8 张庆瑞 刘欢 F/W Ver.:由客户提供 Model Name: RT-N10U Input: DC12V 1A FCC ID:MSQRTN10U IC: 3568A-RTN10U Complies with IDA Standards DB 101867 : In 1 p 2 ut D C 1 VA Model Name: RT-N10U FCC ID:MSQRTN10U Complieswith IC: 3568A-RTN10U IDA Standards DB 101867 Factory Default Setting: IP Address:192.168.1.1 User Name:admin Password:admin H/W Ver.:B1 F/W Ver.:Vx.x.x.x XXXXXXXXXXXX XXXXXXXXXXXX RT-N10+ RTN10B ASUSTek Computer lnc. 0.5 SN YMIAD3XXXXXX 电源型号 IP 设定值:192.168.1.1 帐号: admin 密码: admin 原厂默认设定值： MAC PIN Code : In 1 p 2 ut D C 1 VA Model Name: RT-N10U FCC ID:MSQRTN10U Complieswith IC: 3568A-RTN10U IDA Standards DB 101867 Factory Default Setting: IP Address:192.168.1.1 User Name:admin Password:admin : In 1 p 2 ut D C 1 VA Model Name: RT-N10U FCC ID:MSQRTN10U Complieswith IC: 3568A-RTN10U IDA Standards DB 101867 Factory Default Setting: IP Address:192.168.1.1 User Name:admin Password:admin Model Name: RT-N10U Input: DC12V 1A FCC ID:MSQRTN10U IC: 3568A-RTN10U Complies with IDA Standards DB 101867 H/W Ver.:A XXXXXXXXXXXX XXXXXXXXXXXX SN YMIEDBXXXXXX MAC PIN Code IEDB:固定 工厂打印部分的数字及字母请使用Arial字体 注意英文字母及数字的区别， 例如字母”O”、”I”和数字”0”、”1” 区别等 F/W Ver.:Vx.x.x.x

Report No: SZ110524B01-RP Page 1 / 7 Internal Photos of EUT Report No: SZ110524B01-RP Page 2 / 7 Report No: SZ110524B01-RP Page 3 / 7 Report No: SZ110524B01-RP Page 4 / 7 Report No: SZ110524B01-RP Page 5 / 7 Report No: SZ110524B01-RP Page 6 / 7 Report No: SZ110524B01-RP Page 7 / 7

Dongguan City Xinsheng Electronics Co.,Ltd 样品承认书 客 户： 同维/共进 品 名： RF Antenna Assembly 规 格： 2.4GHz 5dBi 分体式Antenna 新盛料号： SSR-0909014 客户料号： 800000000040L 版 本： X1 制作 客户承认 制作人 核准 日期 判定： 审核 核准 承认 □ 退回 □ 公司章 公司章 地址：東莞市大嶺山鎮大塘朗管理區六村 Address：6Village，Datanglang District，Dalingshan，Dongguan，Guangdong，PRC TEL：886-769-85639708 85639728 FAX：886-769-85652960 東莞市新盛電子有限公司 Dongguan City Xinsheng Electronics Co.,Ltd Contents Item Description Page 1. ............... ....... Specification ......... ......... .... 1 2. ............... ....... Mechanical Deawing ......... ......... .... 2 3 ............... ....... Packing Deawing ......... ......... .... 3 4. ............... ....... S Parameter Test Date ......... ......... .... 4~6 5. ............... ....... Antenna Radiation Pattern ......... ......... .... 7~9 6. ............... ....... Reliability Testing ......... ......... .... 10 7. ............... ....... Material Properties ......... ......... .... 11~15 7 ............... ....... MSDS & SGS Report ......... ......... .... 16 東莞市新盛電子有限公司 Dongguan City Xinsheng Electronics Co.,Ltd RF Antenna Assembly Specification 1. Electrical Properties : 1.1 Frequency Range................................... 2.4GHz ~ 2.5GHz 1.2 Impedance ........................................... 50Ω Nominal 1.3 VSWR ................................................... 2.0 :1Max. 1.4 Return Loss.............................................. -9.6 dB Max. 1.5 Radiation ................................................. Omni-directional 1.6 Gain(peak).................................................... 5dBi 1.7 Polarization................................................ Linear; Vertical 1.8 Admitted Power........................................ 1W 1.9 Connector.................................. SMA Plug 2. Physical Properties : 2.1 Antenna Body................ .......................... TPE 2.2 Antenna Base................ ........................... PC 2.3 Antenna Base................ .............................. PBT 2.4 Operating Temp. ..................................... -10°C ~ +60°C 2.5 Storage Temp. .......................................... -10°C ~ +70°C 2.6 Color .............................. .................. White 東莞市新盛電子有限公司 Dongguan City Xinsheng Electronics Co.,Ltd S Parameter Test Date Sample Item 2.4Ghz 2.45Ghz 2.5Ghz VSWR 1.3670 1.3411 1.6628 Sample 1 R/L -16.190 -16.732 -12.079 VSWR 1.4354 1.3087 1.6596 Sample 2 R/L -14.954 -17.476 -12.111 VSWR 1.4304 1.3378 1.506 Sample 3 R/L -15.038 -16.803 -13.074 東莞市新盛電子有限公司 Dongguan City Xinsheng Electronics Co.,Ltd S Parameter Test Date RF Antenna Assembly Spec2.4~:2.5GHz 東莞市新盛電子有限公司 Dongguan City Xinsheng Electronics Co.,Ltd S Parameter Test Date RF Antenna Assembly Spec2.4~:2.5GHz 東莞市新盛電子有限公司 The antenna efficiency and radiation pattern were measured usi ng a NST-800F 3D anechoic chamber. The configuration of the chamb er are shown below, The chamber coordinate system definition can be found. The placement of the tested fixture is shown below. Configuration of NSI-800F 3D-chamber 東莞市新盛電子有限公司 天線增益測試報告 客戶：同維 / 共進 產品名稱： 2.4G 5dBi RG-178 Cable H-Plane/vertical polaztion Freq.(MHz) 2390 2400 2410 2420 2430 2440 2450 2460 2470 2480 2490 2500 2510 Peak gain(dBi) 4.9 5 5.4 6 5. 2 8 5. 6 2 4 . 23 5 .2 0 4.9 7 5 .1 7 4 .98 4.75 4 .80 4 .95 4 .77 Peak degree 250 263 60 283 270 277 2 3 8 288 90 2 5 1 252 90 273 Avg gain(dBi) 3.90 4.34 4. 6 6 4.40 3.57 4.27 3.99 4.22 4.09 3.99 3 8 8 4.11 3.92 2390 2400 2410 2 420 2430 2 440 2 450 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20 -10 0 dB Far-field amplitude of 5DBI v.NSI 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20 -10 0 dB Far-field amplitude of 5DBI v.NSI 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20 -10 0 dB Far-field amplitude of 5DBI v.NSI 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20 -10 0 dB Far-field amplitude of 5DBI v.NSI 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20 -10 0 dB Far-field amplitude of 5DBI v.NSI 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20 -10 0 dB Far-field amplitude of 5DBI v.NSI 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20 -10 0 dB Far-field amplitude of 5DBI v.NSI 2460 2 470 2480 2490 25 00 2510 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20 -10 0 dB Far-field amplitude of 5DBI v.NSI 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20 -10 0 dB Far-field amplitude of 5DBI v.NSI 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20 -10 0 dB Far-field amplitude of 5DBI v.NSI 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20 -10 0 dB Far-field amplitude of 5DBI v.NSI 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20 -10 0 dB Far-field amplitude of 5DBI v.NSI 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20 -10 0 dB Far-field amplitude of 5DBI v.NSI 東莞市新盛電子有限公司 天線增益測試報告 客戶：同維 / 共進 產品名稱： 2.4G 5dBi RG-178 Cable E-Plane/horizontal polaztion Freq.(MHz) 2390 2400 2410 2420 2430 2440 2450 2460 2470 2480 2490 2500 2510 Peak gain(dBi) 4.83 5.01 5.42 5.12 5.19 4.98 4.75 4. 9 0 4.81 4.73 4.7 6 4.7 6 4.89 Peak degree 90 89 260 272 85 92 80 83 272 85 91 90 95 Avg gain(dBi) -3.31 -2.98 -2.95 -3.06 -3.12 -3.26 -3.38 -3.43 -3.55 -3.82 -3.95 -3.99 -4.34 2390 2400 2410 2420 2430 2440 2450 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20 -10 0 dB Far-field amplitude of 5DBI h. NSI 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20 -10 0 dB Far-field amplitude of 5DBI h. NSI 0 345 330 315 3…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: SZ110524B01_MPE FCC ID: MSQRTN10U Date of Issue: June 18, 2011 1 RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(b)(4) and §1.1307(b)(1) of this chapter. EUT Specification EUT Wireless-N Router Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 18.99dBm (79.25mW) Antenna gain (Max) 5.00 dBi (Numeric gain:3.16) Evaluation applied MPE Evaluation SAR Evaluation Note: 1. The maximum output power is 18.99 dBm (79.25mW) at 2437MHz (with 3.16 numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULT No non-compliance noted. Compliance Certification Services Inc. Report No: SZ110524B01_MPE FCC ID: MSQRTN10U Date of Issue: June 18, 2011 2 Calculation Given d GP E ×× = 30 & 3770 2 E S= Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Equation 1 Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm 2 Maximum Permissible Exposure EUT Output Power=79.25mW Numeric antenna gain=3.16 Substituting the MPE safe distance using d=20 cm into Equation 1 : Yields The power density S = 30 × 79.25 × 3.16/ (3770 × 400) cm 2 = 4.982 X 10 -3 mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW / cm 2 even if the calculation indicates that the power density would be larger.)

Report No.: SZ110524B01-RP FCC ID: MSQRTN10U Page 1 /90 FCC TEST REPORT for Wireless-N Router MODEL:RT-N10U Brand: ASUS Test Report Number: SZ110524B01-RP Issued Date: June 18, 2011 Issued for ASUSTeK COMPUTER INC. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan Issued by: Compliance Certification Services Inc. Linkuo Lab. No. 81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841, Taiwan( R.O.C.) TEL: 886-3-324-0332 FAX: 886-3-324-5235 E-Mail: [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test results in the report only apply to the tested sample. Report No.: SZ110524B01-RP FCC ID : MSQRTN10U Page 2 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 SZ110524B01-RP Initial Issue ALL Ethan Huang Report No.: SZ110524B01-RP FCC ID : MSQRTN10U Page 3 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION.................................................................................................. 4 2 TEST RESULT SUMMARY............................................................................................ 5 3 EUT DESCRIPTION ....................................................................................................... 6 4 TEST METHODOLOGY ................................................................................................. 7 4.1. DESCRIPTION OF TEST MODES ...................................................................................... 7 5 SETUP OF EQUIPMENT UNDER TEST........................................................................ 8 5.1. DESCRIPTION OF SUPPORT UNITS................................................................................. 8 5.2. CONFIGURATION OF SYSTEM UNDER TEST ................................................................. 8 6 FACILITIES AND ACCREDITATIONS .......................................................................... 9 6.1. FACILITIES .......................................................................................................................... 9 6.2. ACCREDITATIONS ............................................................................................................. 9 6.3. MEASUREMENT UNCERTAINTY....................................................................................... 9 7 FCC PART 15.247 REQUIREMENTS.......................................................................... 10 7.1. POWER LINE CONDUCTED EMISSIONS MEASUREMENT........................................... 10 7.2. SPURIOUS EMISSIONS MEASUREMENT....................................................................... 15 7.3. 6dB BANDWIDTH MEASUREMENT ................................................................................. 45 7.4. PEAK OUTPUT POWER ................................................................................................... 53 7.5. BAND EDGES MEASUREMENT:...................................................................................... 61 7.6. PEAK POWER SPECTRAL DENSITY MEASUREMENT.................................................. 83 Report No.: SZ110524B01-RP FCC ID : MSQRTN10U Page 4 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product Wireless-N Router Model RT-N10U Brand ASUS Tested May24~June 6, 2011 Applicant ASUSTeK COMPUTER INC. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan Manufacturer Shenzhen Gongjin Electronics Co., Ltd No 2&3 Buildings, Mingwei Factory Area, Songgang Road West, Songgang SUB-District, Shenzhen, Guangdong, China APPLICABLE STANDARDS Standard Test Type Standard Test Type 15.207(a) Power Line Conducted Emissions 15.247(d) 15.209(a) z Spurious Emissions z Conducted Measurement z Radiated Emissions 15.247(a)(2) 6dB Bandwidth Measurement 15.247(b)(3) 15.247(b)(4) Peak Power Measurement 15.247(d) Band Edges Measurement 15.247(e) Peak Power Spectral Density We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Ethan Huang Section Manager Compliance Certification Service Inc. Aven Zhou Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: SZ110524B01-RP FCC ID : MSQRTN10U Page 5 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 TEST RESULT SUMMARY APPLICABLE STANDARDS Standard Test Type Result Remark 15.247(a)(2) 6dB Bandwidth Measurement Pass Meet the requirement of limit. 15.247(b)(3) 15.247(b)(4) Peak Power Measurement Pass Meet the requirement of limit. 15.247(d) Band Edges Measurement Pass Meet the requirement of limit. 15.247(e) Peak Power Spectral Density Pass Meet the requirement of limit. 15.247(d) 15.209(a) z Spurious Emissions z Conducted Measurement z Radiated Emissions Pass Meet the requirement of limit. 15.207(a) Power line Conducted Emissions Pass Meet the requirement of limit. Note: 1. The statements of test result on the above are decided by the request of test standard only; …

Text truncated - open the document above for the full version.

Report No.: SZ110524B01-RP Page 1 / 2 FCC ID:MSQRTN10U PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: SZ110524B01-RP FCC ID:MSQRTN10U Page 2 . RADIATED EMISSION TEST Below 1GHz Above 1GHz
