RT-N10U_BLACK Block Diagram

Date: 2011-06-17 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: MSQRTN10UB To Whom It May Concern: This letter is to ascertain that ASUSTek COMPUTER INC, ASUS RT-N10U_BLACK has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely,

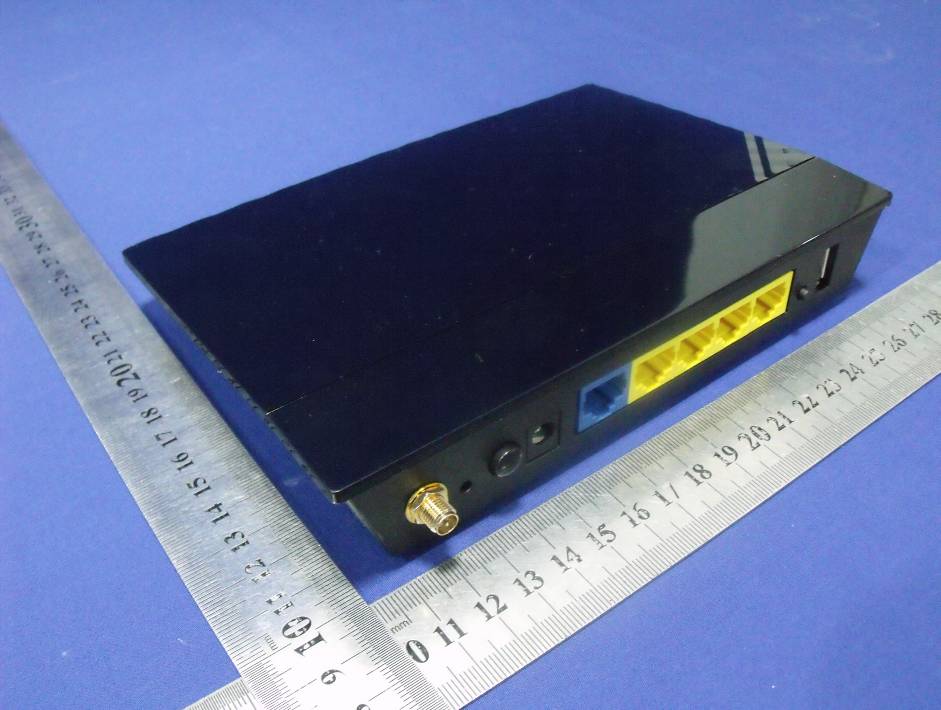

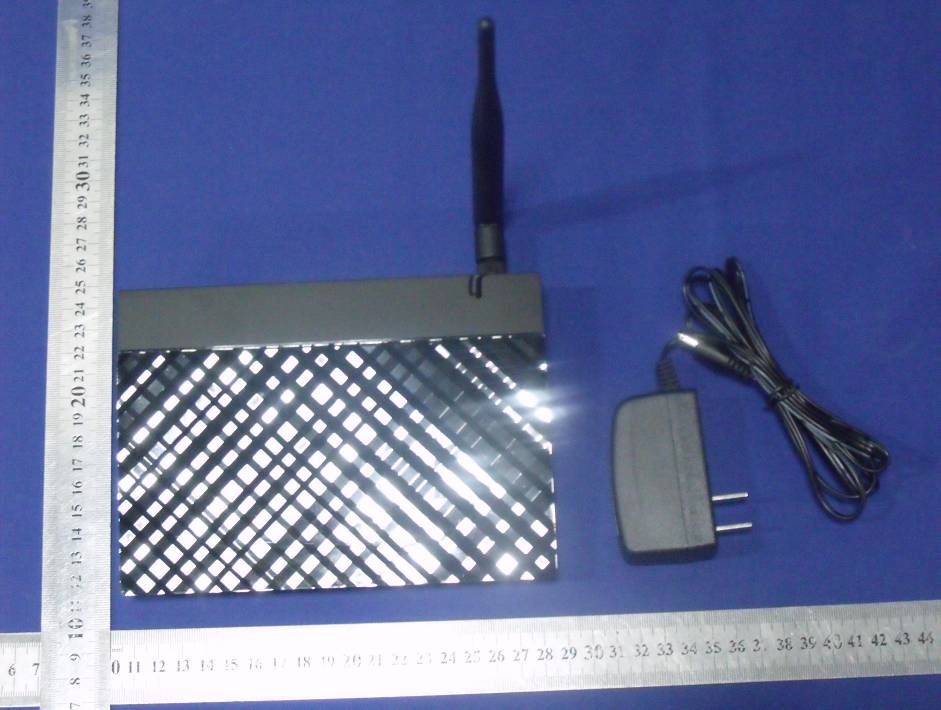

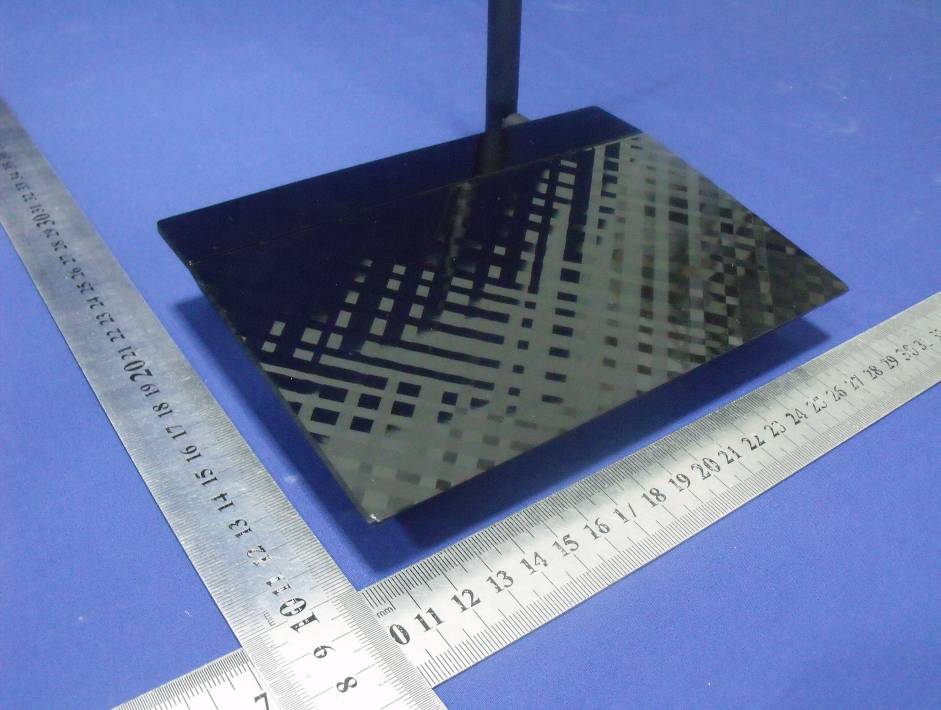

External of EUT

FCC ID Label FCC ID: MSQRTN10UB Model Number: RT-N10U_BLACK Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

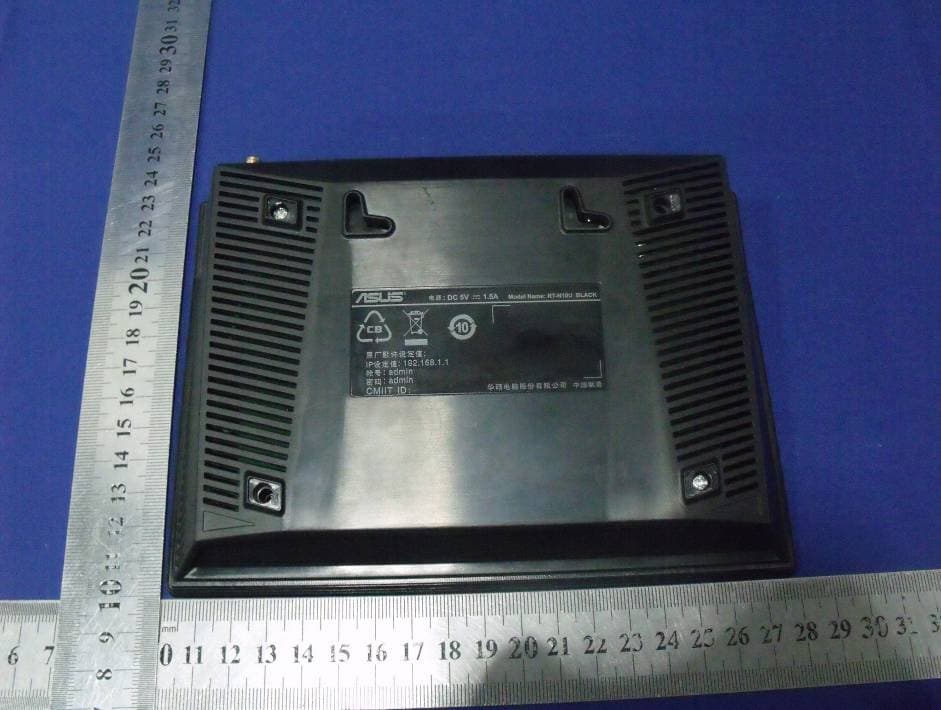

Label Location Proposed Label Location on EUT

Internal of EUT Antenna WiFi Module

Shenzhen Allwins Technology Corporation Add:9/F,Block A,Tsinghua Hi-tech Park,Nanshan,Shenzhen,China. Tel:+86-755-26030800 26030361 26030362 260630363 Fax:+86-755-33300672 Http://www.allwins.com.cn RT-N10U Specifications Name802.11b/g/n Wireless Router ModeRT-N10U Rev.V1.0 Shenzhen Allwins Technology Corporation Add:9/F,Block A,Tsinghua Hi-tech Park,Nanshan,Shenzhen,China. Tel:+86-755-26030800 26030361 26030362 260630363 Fax:+86-755-33300672 Http://www.allwins.com.cn 1. Product Specifications 1.1 Hardware Features Feature Additional Information Primary Processor  BROADCOM BCM5356U Wireless  BROADCOM BCM5356U DDR  32 MB FLASH  8 MB Operation Requirement  Operating Temp. 0ºC to 40 º C  Storage Temp. -30 º C to 70 º C  Operating Humidity 10% to 90% Non-Condensing  Storage Humidity 10% to 95% Non-Condensing WAN Interface  One RJ45 connector  MDI wiring for connection to WAN ADSL/Cable modem device  10/100 Mbps BASE-T LAN Interface  Four 10/100 RJ-45 Switched Ports  N-way, Automatic speed negotiation  Full duplex RJ-45 connector  Auto MDI / MDI-X Restore Factory Defaults/Reboot button  Reset to restart/reboot the system when holding the reset button longer 1 sec  Capable of restoring to the factory default settings (holding the reset button after 5 second) WPS (WiFi Protected Setup)  Button for WPS setting Wireless Antenna  One detachable dipole Diversity Antenna - Gain: 5dBi for 2.4GHz USB Port  Other Port/Interface  N/A Power Switch  Button for Power ON/OFF setting Power Supply Requirements Appropriate wall connector type based on the region  Input: 100 -- 240VAC, 50/60 Hz  Output: 5VDC /1.5A FLASH Download Capability  Capable of updating the FLASH program memory via Ethernet port. Dimension  N/A Weight  N/A Shenzhen Allwins Technology Corporation Add:9/F,Block A,Tsinghua Hi-tech Park,Nanshan,Shenzhen,China. Tel:+86-755-26030800 26030361 26030362 260630363 Fax:+86-755-33300672 Http://www.allwins.com.cn 1.2. RF Specification Chipset BROADCOM BCM5356U Frequency Band 2.4002.484 GHz Wireless LAN Standard IEEE802.11b/g, 802.11n compliance Data Rate 802.11b: 1, 2, 5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: 6, 6.5, 13, 13.5, 19.5, 26, 27, 39, 40.5, 53, 54, 58.5, 65, 78, 81, 104, 108, 117, 121.5, 130, 135, 150Mbps Modulation Technique 802.11n: OFDM 802.11g: QBPSK, QDBPS, CCK, OFDM 802.11b: QBPSK, QDBPS, CCK Operating Frequency 802.11b/g/n ISM band: 2.412~2.462 GHz: (FCC) North America (CH1~CH11) 2.412~2.472 GHz: (ETSI) Europe (CH1~CH13) 2.412~2.472 GHz: (TELEC) Japan (CH1~CH13) 802.11n 40MHz band: 2.422~2.452 GHz: (FCC) North America (CH3~CH9) 2.412~2.462 GHz: (ETSI) Europe (CH3~CH11) 2.412~2.462 GHz: (TELEC) Japan (CH3~CH11) RF Output Power (Tx) Tolerance: +1 / -1 dBm 11b18dBm 11g15dBm 11n 20MHz15dBm 11n 40MHz14dBm Receiver Sensitivity (Rx) 802.11n: - dBm typical with 20MHz -6 dBm typical with 40MHz 802.11g: - dBm typical @ 54Mbps 802.11b: - dBm typical @ 11Mbp Power Consumption Power Consumption: Watt max. 1.3. Front panel configuration & LED Status Function Printing LED/Button description Power Green Light On: Power on Light off: Power off LAN1, LAN2, LAN3, LAN4 Green Light On: Physical Link ok Light off: LAN not ready or failed Light Blinking: Transmitting WAN Green Light On: Physical Link ok Light Blinking: Transmitting Light Off: Ethernet not ready or failed Shenzhen Allwins Technology Corporation Add:9/F,Block A,Tsinghua Hi-tech Park,Nanshan,Shenzhen,China. Tel:+86-755-26030800 26030361 26030362 260630363 Fax:+86-755-33300672 Http://www.allwins.com.cn Wireless Green On: WLAN enabled Light Blinking: Transmitting Light Off: WLAN disabled or failed WPS Green On: WPS Status is “Configured” Blinking: WPS is in process. Light Off: WPS Status is “Not Configured” or WPS disabled The push button to setup the wireless configuration and encryption. Note: 1. Use the push button to setup the wireless configuration and encryption. 2. Capable of starting WPS (holding the button just 1 second) (User has to run WPS on the client side within 120 sec to make WPS success.) USB Green Light On: Physical Link ok Light Blinking: Transmitting Light off: USB not ready or failed

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd=(Pout*G)\(4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 11.2 Measurement Result Antenna gain: 5 dBi 802.11b Channel Channel Frequency (MHz) Output Peak power (dBm) Output Peak power (mW) Antenna Gain (dBi) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) 1 2412.00 16.8348.4150.0311 6 2437.00 16.8748.6450.0311 11 2462.00 16.7847.6450.0301 802.11g Channel Channel Frequency (MHz) Output Peak power (dBm) Output Peak power (mW) Antenna Gain (dBi) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) 1 2412.00 16.17 41.3950.026 1 6 2437.00 16.05 40.2750.025 1 11 2462.00 16.03 40.0850.025 1 802.11n HT20 Channel Channel Frequency (MHz) Output Peak power (dBm) Output Peak power (mW) Antenna Gain (dBi) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) 1 2412.00 15.9839.6250.0241 6 2437.00 16.0240.0050.0241 11 2462.00 15.9839.6350.0241 802.11n HT40 Channel Channel Frequency (MHz) Output Peak power (dBm) Output Peak power (mW) Antenna Gain (dBi) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) 3 2412.00 15.5736.0550.0221 6 2437.00 15.8938.8150.0231 9 2462.00 15.6336.5550.0221

55 44 33 22 11 D D C C B B A A VCNTL PDRV PDRV_R NDRV VREG3P3_VDD3P3 VDD1_2_SW NDRV_R VDD1_2 VDD3_3 VDD2_5 VDD3_3 VDD33_A VDD3_3 DC5V_IN VDD3_3 VCC5 VDD33_A VDD33_A TitleSize Document Number Rev Date: Sheet of RT-N10U A 3V3_1V2_POWER B 18 Monday, May 23, 2011 TitleSize Document Number Rev Date: Sheet of RT-N10U A 3V3_1V2_POWER B 18 Monday, May 23, 2011 TitleSize Document Number Rev Date: Sheet of RT-N10U A 3V3_1V2_POWER B 18 Monday, May 23, 2011 This trace shall be routed from C67to SWREG_SENSE&SWREG_VFB DEPOP DEPOP CRITICALCRITICAL CURRENT=3.5A Max Current 2A DC5V/2A Input The feedback reference voltage is 1.222V typically. DC5V to DC3V/2A DEPOP ALLWINS 3.6uH 1.35A L2SUMD-CR43 3.6uH 1.35A L2SUMD-CR43 1 2 C960.1uFC0402C960.1uFC0402 C149470pFC0402C149470pFC0402 C6810uF/6.3VC0805C6810uF/6.3VC0805 12 C98100pFC0402C98100pFC0402 12 C86 DNI-2.2uF C0603 C86 DNI-2.2uF C0603 12 FB3 745OHML_PT3D5MM_UP FB3 745OHML_PT3D5MM_UP SW3 POWER_BUTTON SW6_CK_22LENA03 SW3 POWER_BUTTON SW6_CK_22LENA03 7 8 123 456 C116DNI-0.1uFC0402C116DNI-0.1uFC0402 Q3B AO6604 SSOT-6 Q3B AO6604 SSOT-6 3 42 C67 22uF/6.3VC1206 C67 22uF/6.3VC1206 12 R79 0 R1206 R79 0 R1206 C55DNI-10uFC0805C55DNI-10uFC0805 12 C1060.1uFC0402C1060.1uFC0402 FB1 DNI-0RL1206 FB1 DNI-0RL1206 R74 0 R1206 R74 0 R1206 C799 0.1uF C0402 C799 0.1uF C0402 C95 0.1uF NC C0402C95 0.1uF NC C0402 1 2 C111DNI-0.1uFC0402C111DNI-0.1uFC0402 U5 FP6182 SSOP8_W220_PT50 U5 FP6182 SSOP8_W220_PT50 VIN 2 EN 7 GND 4 NC 8 COMP 6 FB 5 SW 3 BOOT 1 C100.1uF CAPC1005_IS0402Q C100.1uF CAPC1005_IS0402Q C97 0.1uF C0603 C97 0.1uF C0603 1 2 R690R1206R690R1206 C101DNI-10uFC0805C101DNI-10uFC0805 12 R1620.5K 1%R0402R1620.5K 1%R0402 C1030.1uFC0402C1030.1uFC0402 R80 0 R1206 R80 0 R1206 R68100RR0402R68100RR0402 U1A BCM5356U BGA65P22X22_366_1500X1500N U1A BCM5356U BGA65P22X22_366_1500X1500N SWREG_VDDO D18 REG_AVSS D16 REG_AVSS D17 VREG3P3_VDD3P3 D5 VSENSE2P5_2P5CONT A20 VCNTL_2P5CONT B20 SWREG_VFB_SEN A21 SWREG_NDRIVE A22 SWREG_PDRIVE B22 C8522uF/6.3VC1206C8522uF/6.3VC1206 12 Q3A AO6604 SSOT-6 Q3A AO6604 SSOT-6 1 56 C1020.1uFC0603C1020.1uFC0603 12 C270 10uF/6.3V C0805 C270 10uF/6.3V C0805 1 2 C114DNI-0.1uFC0402C114DNI-0.1uFC0402 C110DNI-0.1uFC0402C110DNI-0.1uFC0402 D26 NC/BAT54W SOT323_132 D26 NC/BAT54W SOT323_132 1 3 2 C610pF CAPC1005_IS0402Q C610pF CAPC1005_IS0402Q D30B230ADO-214ACD30B230ADO-214AC PN C112DNI-0.1uFC0402C112DNI-0.1uFC0402 R700R1206R700R1206 R18 DNI-100KR0402 R18 DNI-100KR0402 C1150.1uFC0402C1150.1uFC0402 C118 DNI-4.7uF/6.3V C0603 C118 DNI-4.7uF/6.3V C0603 R77 0 R1206 R77 0 R1206 C12310uFC0805C12310uFC0805 12 C107DNI-0.1uFC0402C107DNI-0.1uFC0402 R71 0 R1206 R71 0 R1206 L18 15uH 2A LL_PT6_13X5D5MM L18 15uH 2A LL_PT6_13X5D5MM R99 1K 1% RESC1005_IS0402Q R99 1K 1% RESC1005_IS0402Q R73 0 R1206 R73 0 R1206 J4 DC_JACK_1.5mm DC-JACK J4 DC_JACK_1.5mm DC-JACK 1 2 3 + C273470uF EC3D5-8 + C273470uF EC3D5-8 C94 0.01uF NC C0402 C94 0.01uF NC C0402 R14 DNI-100K R0402 R14 DNI-100K R0402 R7 1 RESC1005_IS0402Q R7 1 RESC1005_IS0402Q + C271470uFEC3D5-8 + C271470uFEC3D5-8 C113DNI-0.1uFC0402C113DNI-0.1uFC0402 C87 0.1uFC0603 C87 0.1uFC0603 12 Q22SB1188SOT89_123Q22SB1188SOT89_123 23 1 R15 15K R0402 R15 15K R0402 C571nF CAPC1005_IS0402Q C571nF CAPC1005_IS0402Q C931.5nFC0402C931.5nFC0402 R1 0 RESC1005_IS0402QR1 0 RESC1005_IS0402Q R1712K 1%R0402R1712K 1%R0402 C10010uFC0805C10010uFC0805 12 C117DNI-0.1uFC0402C117DNI-0.1uFC0402 R55 1 RESC1005_IS0402Q R55 1 RESC1005_IS0402Q C4 DNI-4.7uF/6.3VCAPC1608_IS0603Q C4 DNI-4.7uF/6.3VCAPC1608_IS0603Q 12 R72 0 R1206 R72 0 R1206 C119 0.1uF C0402 C119 0.1uF C0402 C880.1uFC0603C880.1uFC0603 12 55 44 33 22 11 D D C C B B A A XTAL_GND USB_ANA33 USB_AVDD25HSIC_VDDIO USB1_CTRLUSB_DPUSB_DM USB_DM USB_COMPHSIC USB_AVDD12 USB_DP USB_ENABLE GPIO_USBPWR_EN GPIO_USB_FLG USB_FLG USB_RREF VDD1_2 VDD3_3 VDD2_5 VDD2_5 VDD3_3 VDD1_2 VDD3_3 VDD2_5 VDD1_2 USB_5V USB_5V VCC5 VDD1_2 VDD33_A XTAL_GND GPIO_USBPWR_ENGPIO_USB_FLG TitleSize Document Number Rev Date: Sheet of RT-N10U A POWER_GND_USB C 11 Monday, May 23, 2011 TitleSize Document Number Rev Date: Sheet of RT-N10U A POWER_GND_USB C 11 Monday, May 23, 2011 TitleSize Document Number Rev Date: Sheet of RT-N10U A POWER_GND_USB C 11 Monday, May 23, 2011 USB2.0 (HOST)Series A Receptacle Diff Pair FOR USB APPLICATION,NEED 5V REGULATED DCIN CHANGE TO VRISTOR VR1 VR2 Add 100UF ECAP 20101022 C770.1uFC0402C770.1uFC0402 R25 4.02K 1% RESC1005_IS0402Q R25 4.02K 1% RESC1005_IS0402Q 12 C7100pF CAPC1005_IS0402Q C7100pF CAPC1005_IS0402Q C6390.1uFCAPC1005_IS0402QC6390.1uFCAPC1005_IS0402Q C431nFCAPC1005_IS0402QC431nFCAPC1005_IS0402Q C90.01uFCAPC1005_IS0402QC90.01uFCAPC1005_IS0402Q L5 1 RESC1005_IS0402Q L5 1 RESC1005_IS0402Q 1 2 RV10R/DNI R0402 RV10R/DNI R0402 C441nFCAPC1005_IS0402QC441nFCAPC1005_IS0402Q C1280.1uFCAPC1005_IS0402QC1280.1uFCAPC1005_IS0402Q R280RESC1005_IS0402QR280RESC1005_IS0402Q 12 C1200.1uFC0402C1200.1uFC0402 R43 0 R1206 R43 0 R1206 R27 0 RESC1005_IS0402Q R27 0 RESC1005_IS0402Q 1 2 C1220.1uFC0402C1220.1uFC0402 R528 0 R0402 R528 0 R0402 C6431nFCAPC1005_IS0402QC6431nFCAPC1005_IS0402Q C1320.1uFCAPC1005_IS0402QC1320.1uFCAPC1005_IS0402QC10.01uF CAPC1005_IS0402Q C10.01uF CAPC1005_IS0402Q C421nFCAPC1005_IS0402QC421nFCAPC1005_IS0402Q C20.01uFCAPC1005_IS0402QC20.01uFCAPC1005_IS0402Q C63 DNI-10uF/16V C1206C63 DNI-10uF/16V C1206 C64 DNI-10uF/16V C0805 C64 DNI-10uF/16V C0805 C20DNI-0.1uFC0402C20DNI-0.1uFC0402 C1270.1uFCAPC1005_IS0402QC1270.1uFCAPC1005_IS0402Q U6DNI-F4P-2012 MSOP8 F4P_2012_SMD U6DNI-F4P-2012 MSOP8 F4P_2012_SMD IN1 1 IN2 3 OUT2 4 OUT1 2 C210.1uFC0402C210.1uFC0402 C6400.1uFCAPC1005_IS0402QC6400.1uFCAPC1005_IS0402Q R529 0 R0402 R529 0 R0402 U2 DNI-NCP361SNT1G TSOP-5 SOT23_5WS U2 DNI-NCP361SNT1G TSOP-5 SOT23_5WS IN 1 EN# 3 FLAG# 4 OUT 5 GND 2 R506DNI-1MR0402R506DNI-1MR0402 C451nFCAPC1005_IS0402QC451nFCAPC1005_IS0402Q F1FUSE 1812L050-C f1210 F1FUSE 1812L050-C f1210 R530 DNI-0RR0402 R530 DNI-0RR0402 C501nFCAPC1005_IS0402QC501nFCAPC1005_IS0402Q C1330.1uFCAPC1005_IS0402QC1330.1uFCAPC1005_IS0402Q C76 DNI-0.1uF C0402 C76 DNI-0.1uF C0402 + C272…

Text truncated - open the document above for the full version.

SHENZHEN EMTEK CO., LTD. REPORT NO: ES110521096F FCC ID: MSQRTN10UB IC ID: 3568A-RTN10UB DATE: 06/16/2011 Page 1 of 78 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C AND CANADIAN RSS 210 ISSUE 8 REQUIREMENT OF ASUS RT-N10U_BLACK MODEL No.: RT-N10U_BLACK, RT-N10U FCC ID: MSQRTN10UB IC ID: 3568A-RTN10UB REPORT NO: ES110521096F ISSUE DATE: June 16, 2011 Prepared for ASUSTEK COMPUTER INC No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan Prepared by SHENZHEN EMTEK CO., LTD. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 SHENZHEN EMTEK CO., LTD. REPORT NO: ES110521096F FCC ID: MSQRTN10UB IC ID: 3568A-RTN10UB DATE: 06/16/2011 Page 2 of 78 VERIFICATION OF COMPLIANCE Applicant: ASUSTEK COMPUTER INC No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan Manufacturer: ASUSTEK COMPUTER INC No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan Trademark: ASUS Product Description: ASUS RT-N10U_BLACK Model Number: RT-N10U_BLACK, RT-N10U (Note: The two sample are the same, except model number are different. We prepare RT-N10U_BLACK for FCC test.) File Number: ES110521096F Date of Test: May 21, 2011 to June 15, 2011 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009), RSS GEN Issue 2 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 and RSS 210 Issue 8. The test results of this report relate only to the tested sample identified in this report. Date of Test : May 21, 2011 to June 15, 2011 Prepared by : (Engineer) Reviewer : (Quality Manager) Approve & Authorized Signer : (Manager) SHENZHEN EMTEK CO., LTD. REPORT NO: ES110521096F FCC ID: MSQRTN10UB IC ID: 3568A-RTN10UB DATE: 06/16/2011 Page 3 of 78 Ta b l e o f C o n t e n t s 1. General Information ................................................................................................................. 5 1.1 Product Description.............................................................................................................. 5 1.2 Related Submittal(s) / Grant(s) ............................................................................................5 1.3 Test Methodology................................................................................................................. 6 1.4 Special Accessories .............................................................................................................. 6 1.5 Equipment Modifications.....................................................................................................6 1.6 Test Facility .......................................................................................................................... 6 2. System Test Configuration .......................................................................................................7 2.1 EUT Configuration............................................................................................................... 7 2.2 EUT Exercise ....................................................................................................................... 7 2.3 Test Procedure ...................................................................................................................... 7 2.4 Configuration of Tested System ........................................................................................... 7 3. Description of Test Modes ........................................................................................................ 9 4. Summary of Test Results ........................................................................................................10 5. Conducted Emissions Test ...................................................................................................... 11 5.1 Measurement Procedure..................................................................................................... 11 5.2 Test SET-UP (Block Diagram of Configuration) ............................................................... 11 5.3 Measurement Equipment Used .......................................................................................... 11 5.4 Conducted Emission Limit................................................................................................. 11 5.5 Measurement Result........................................................................................................... 12 5.6 Conducted Measurement Photo ......................................................................................... 13 6. Radiated Emission Test........................................................................................................... 14 6.1 Measurement Procedure..................................................................................................... 14 6.2 Test SET-UP (Block Diagram of Configuration) ............................................................... 14 6.3 Measurement Equipment Used .......................................................................................... 15 6.4 Radiated Emission Limit....................................................................................................15 6.5 Measurement Result........................................................................................................... 16 6.6 Radiated Measurement Photos ........................................................................................... 37 7. Occupied Bandwidth Test....................................................................................................... 37 7.1 Measurement Procedure................................................................................................…

Text truncated - open the document above for the full version.

RADIATED EMISSION TEST CONDUCTED EMISSION TEST
