MSQT300CHIDOCKASUS Mobile Dock

ASUS Tablet and ASUS Mobile Dock E-Manual T300 Chi T300 Chi Mobile Dock First Edition December 2014 E9717 2 ASUS Tablet and ASUS Mobile Dock E-Manual DRAFT 9 12/19/2014 COPYRIGHT INFORMATION No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 2014 ASUSTeK COMPUTER INC. All Rights Reserved. LIMITATION OF LIABILITY Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product. ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement. This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible. UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY. SERVICE AND SUPPORT Visit our multi-language web site at http://support.asus.com ASUS Tablet and ASUS Mobile Dock E-Manual 3 DRAFT 9 12/19/2014 Table of Contents About this manual .....................................................................................................7 Conventions used in this manual .............................................................................8 Icons ....................................................................................................................................8 Typography .......................................................................................................................8 Safety precautions .....................................................................................................9 Using your ASUS Tablet and ASUS Mobile Dock .................................................9 Caring for your ASUS Tablet and ASUS Mobile Dock .........................................10 Proper disposal ................................................................................................................11 Chapter 1: Hardware Setup ASUS Tablet ..................................................................................................................14 Front View ..........................................................................................................................14 Top View .............................................................................................................................16 Bottom side ......................................................................................................................18 Left side ..............................................................................................................................19 Right side ...........................................................................................................................20 ASUS Mobile Dock .....................................................................................................21 Top View .............................................................................................................................21 Left side ..............................................................................................................................24 Chapter 2: Using your ASUS Tablet and ASUS Mobile Dock Getting started ...........................................................................................................26 ASUS Tablet .......................................................................................................................26 ASUS Mobile Dock ..........................................................................................................29 Using your ASUS Tablet with the ASUS Mobile Dock ........................................31 Gestures for the touch screen panel and touchpad ...............…

Text truncated - open the document above for the full version.

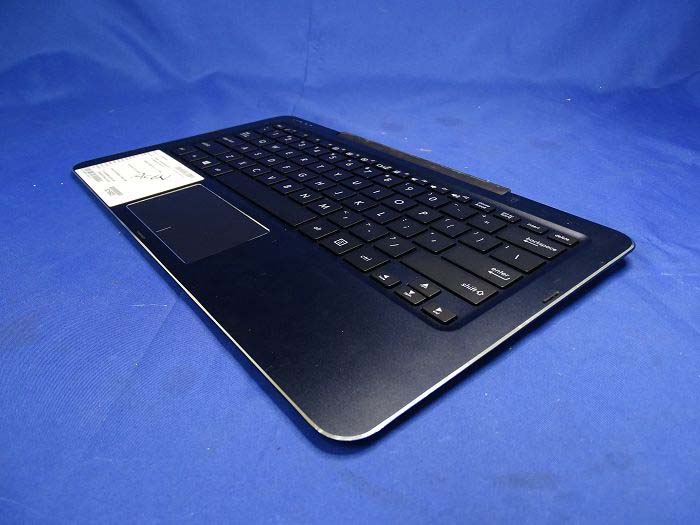

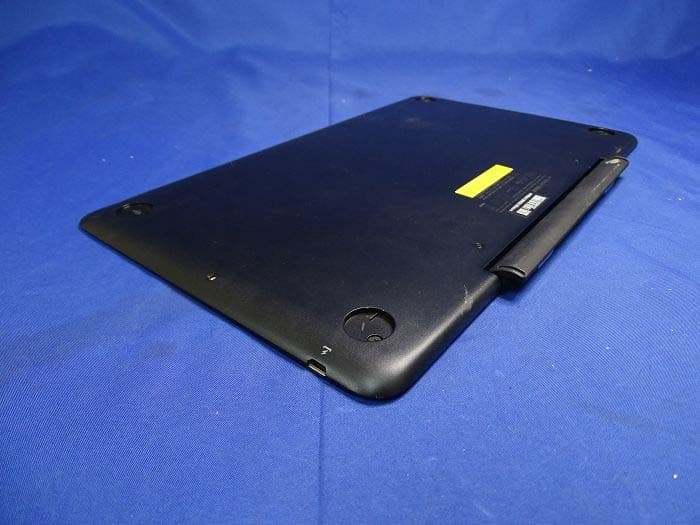

Report No.: 1510100R-RFUSP01V00 Page : 1 of 8 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 1510100R-RFUSP01V00 Page : 2 of 8 (3) EUT Photo (4) EUT Photo

ASUSTeK COMPUTER INC. FCC ID.: MSQT300CHIDOCK 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Tel : +886-2-28943447 FCC ID Label

ASUSTeK COMPUTER INC. FCC ID.: MSQT300CHIDOCK 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Tel : +886-2-28943447 The FCC ID Label will be placed on the equipment as shown in the photograph below.

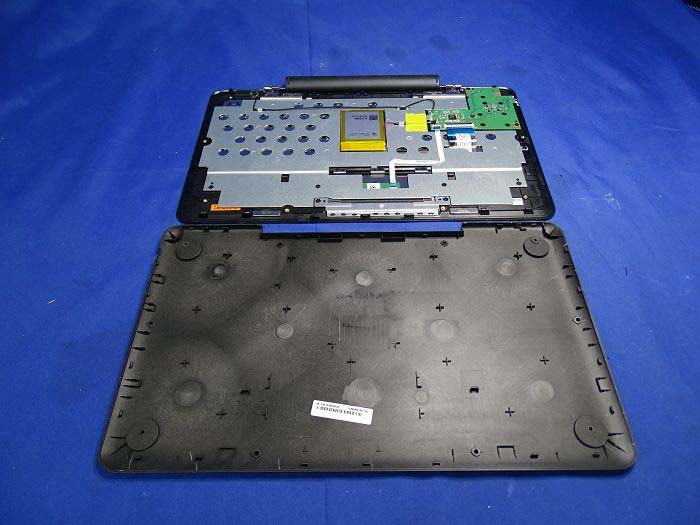

Report No.: 1510100R-RFUSP01V00 Page : 3 of 8 (5) EUT Photo (6) EUT Photo Report No.: 1510100R-RFUSP01V00 Page : 4 of 8 (7) EUT Photo (8) EUT Photo Report No.: 1510100R-RFUSP01V00 Page : 5 of 8 (9) EUT Photo (10) EUT Photo (INPAQ Antenna) Report No.: 1510100R-RFUSP01V00 Page : 6 of 8 (11) EUT Photo (ACON Antenna) (12) EUT Photo Report No.: 1510100R-RFUSP01V00 Page : 7 of 8 (13) EUT Photo (14) EUT Photo Report No.: 1510100R-RFUSP01V00 Page : 8 of 8 (15) EUT Photo (16) EUT Photo

RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. 2. Measurement Result: According to KDB 447498 D01 Mobile Portable RF Exposure v05, Operation frequency = 2450MHz and antenna separation distance = 5mm, SAR Test Exclusion Threshold = 10mW The Device max peak output power = -2.66dBm, Equivalent to 0.54mW and less than 10mW The SAR/MPE measurement is not necessary.

Report No. 1510100R-RFUSP01V00 Page: 1 of 51 FCC Test Report Product Name ASUS Mobile Dock Model No. T300 Chi Mobile Dock FCC ID. MSQT300CHIDOCK Applicant ASUSTeK COMPUTER INC. Address 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt Dec. 31, 2014 Issued Date Jan. 13, 2015 Report No. 1510100R-RFUSP01V00 Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No. 1510100R-RFUSP01V00 Page: 2 of 51 Test Report Issued Date: Jan. 13, 2015 Report No.: 1510100R-RFUSP01V00 Product Name ASUS Mobile Dock Applicant ASUSTeK COMPUTER INC. Address 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Manufacturer ASUSTeK COMPUTER INC. Model No. T300 Chi Mobile Dock FCC ID. MSQT300CHIDOCK EUT Rated Voltage AC 100-240V, 50/60Hz EUT Test Voltage DC 3.8V by battery or DC 5V by Power Adapter Trade Name ASUS Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2013 ANSI C63.4: 2009, ANSI C63.10: 2009 Test Result Complied Documented By : (Senior Adm. Specialist / Leven Huang ) Tested By : ( Engineer / Jack Hsu ) Approved By : ( Director / Vincent Lin ) Report No. 1510100R-RFUSP01V00 Page: 3 of 51 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................................... 5 1.1. EUT Description ...................................................................................................................................... 5 1.2. Operational Description ........................................................................................................................... 7 1.3. Tested System Details .............................................................................................................................. 8 1.4. Configuration of Tested System .............................................................................................................. 8 1.5. EUT Exercise Software ........................................................................................................................... 9 1.6. Test Facility ........................................................................................................................................... 10 2. CONDUCTED EMISSION ................................................................................................................ 11 2.1. Test Equipment ...................................................................................................................................... 11 2.2. Test Setup .............................................................................................................................................. 11 2.3. Limits ..................................................................................................................................................... 12 2.4. Test Procedure ....................................................................................................................................... 12 2.5. Uncertainty ............................................................................................................................................ 12 2.6. Test Result of Conducted Emission ....................................................................................................... 13 3. PEAK POWER OUTPUT .................................................................................................................. 17 3.1. Test Equipment ...................................................................................................................................... 17 3.2. Test Setup .............................................................................................................................................. 17 3.3. Limit ...................................................................................................................................................... 17 3.4. Test Procedure ....................................................................................................................................... 17 3.5. Uncertainty ............................................................................................................................................ 17 3.6. Test Result of Peak Power Output ......................................................................................................... 18 4. RADIATED EMISSION ..................................................................................................................... 19 4.1. Test Equipment ...................................................................................................................................... 19 4.2. Test Setup .............................................................................................................................................. 19 4.3. Limits ..................................................................................................................................................... 20 4.4. Test Procedure ....................................................................................................................................... 21 4.5. Uncertainty ............................................................................................................................................ 21 4.6. Test Result of Radiated Emission .......................................................................................................... 22 5. RF ANTENNA CONDUCTED TEST .....................................................................................…

Text truncated - open the document above for the full version.

Report No.: 1510100R-RFUSP01V00 Page : 1 of 5 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 1510100R-RFUSP01V00 Page : 2 of 5 Front View of Conducted Test - Charge Back View of Conducted Test - Charge Report No.: 1510100R-RFUSP01V00 Page : 3 of 5 Front View of Radiated Test Back View of Radiated Test Report No.: 1510100R-RFUSP01V00 Page : 4 of 5 Front View of Radiated Test - Charge Back View of Radiated Test - Charge Report No.: 1510100R-RFUSP01V00 Page : 5 of 5 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
