MSQTF700TASUS Transformer Pad

ASUSTeK COMPUTER INC. FCC ID.: MSQTF700T No. 15, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel : 886-2-2894-3447 FCC ID Label

ASUSTeK COMPUTER INC. FCC ID.: MSQTF700T No. 15, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel : 886-2-2894-3447 The FCC ID and Doc Label will be placed on the equipment as shown in the photograph below.

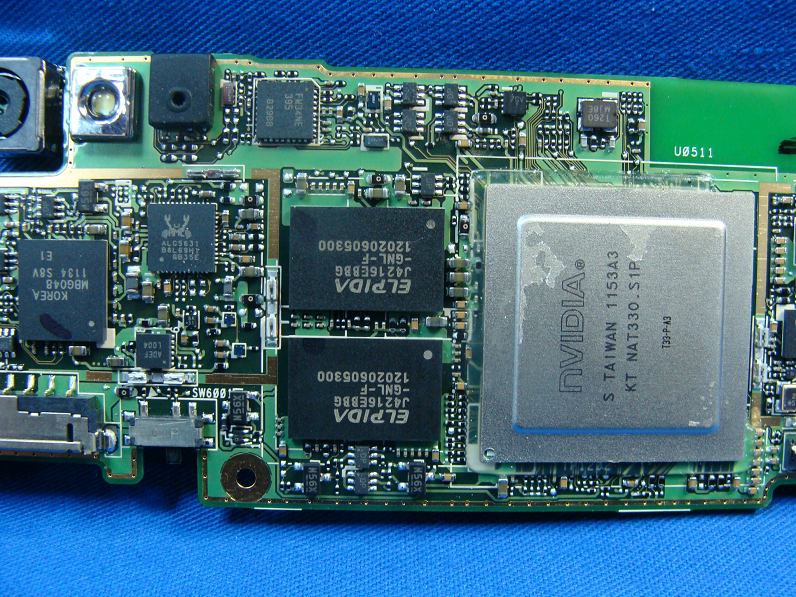

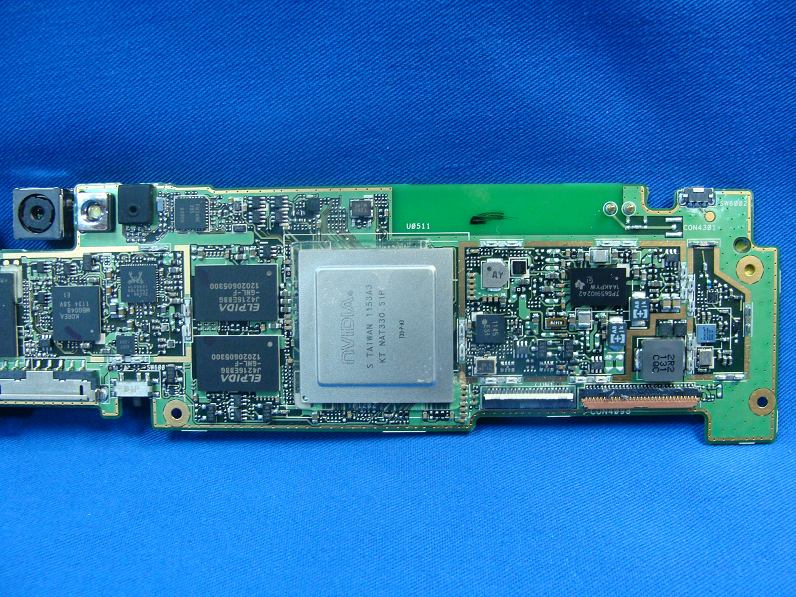

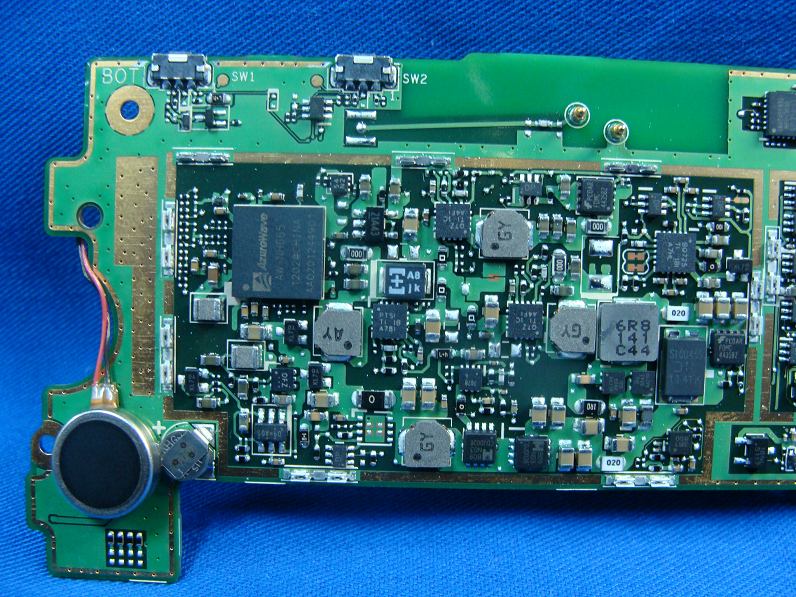

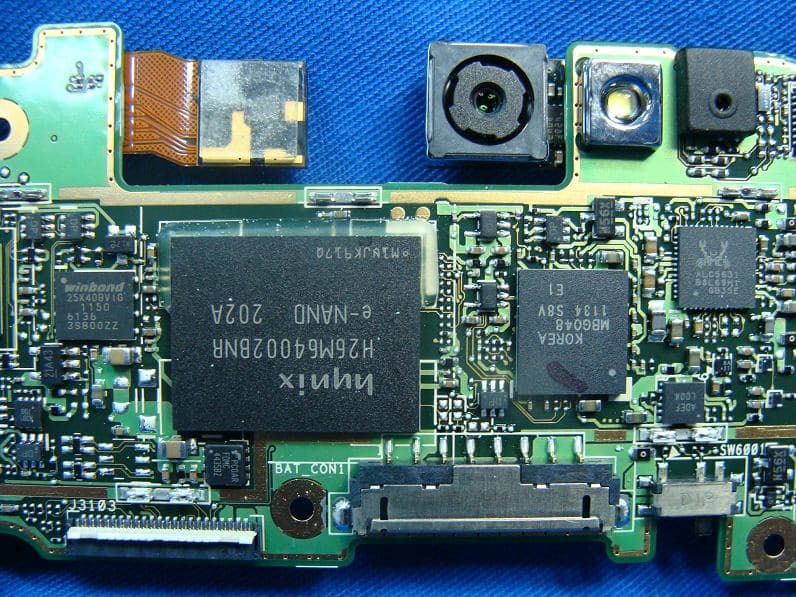

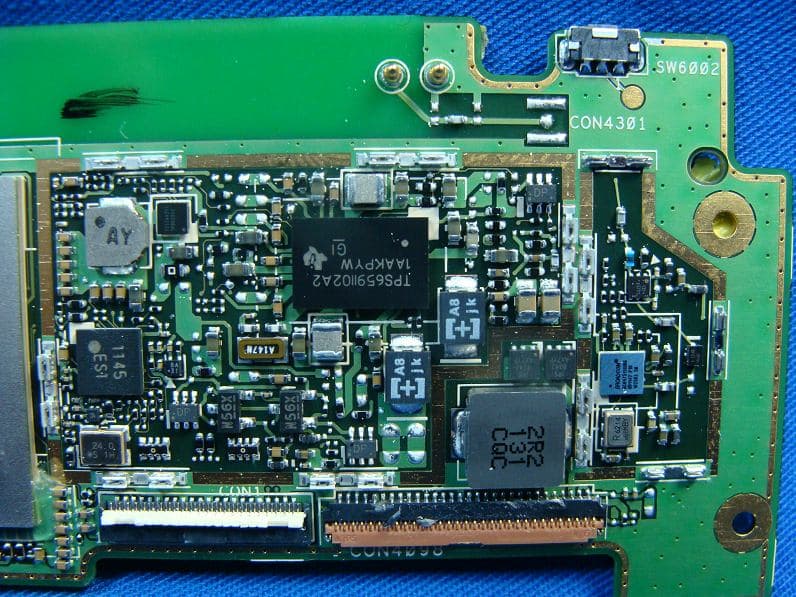

Report No.: 122365R-RFUSP42V01 Page : 4 of 19 (7) EUT Photo (8) EUT Photo Report No.: 122365R-RFUSP42V01 Page : 5 of 19 (9) EUT Photo (10) EUT Photo WLAN Antenna 165mm 170mm Report No.: 122365R-RFUSP42V01 Page : 6 of 19 (11) EUT Photo (12) EUT Photo Report No.: 122365R-RFUSP42V01 Page : 7 of 19 (13) EUT Photo (14) EUT Photo Report No.: 122365R-RFUSP42V01 Page : 8 of 19 (15) EUT Photo (16) EUT Photo Report No.: 122365R-RFUSP42V01 Page : 9 of 19 (17) EUT Photo (18) EUT Photo GPS Circuit Report No.: 122365R-RFUSP42V01 Page : 10 of 19 (19) EUT Photo (20) EUT Photo Report No.: 122365R-RFUSP42V01 Page : 11 of 19 (21) EUT Photo (22) EUT Photo Report No.: 122365R-RFUSP42V01 Page : 12 of 19 (23) EUT Photo (24) EUT Photo WLAN/BT Circuit Report No.: 122365R-RFUSP42V01 Page : 13 of 19 (25) EUT Photo (26) EUT Photo Report No.: 122365R-RFUSP42V01 Page : 14 of 19 (27) EUT Photo (28) EUT Photo Report No.: 122365R-RFUSP42V01 Page : 15 of 19 (29) EUT Photo (30) EUT Photo GPS Antenna WLAN/BT Antenna Report No.: 122365R-RFUSP42V01 Page : 16 of 19 (31) EUT Photo (32) EUT Photo GPS Antenna WLAN/BT Antenna Report No.: 122365R-RFUSP42V01 Page : 17 of 19 (33) EUT Photo (34) EUT Photo Report No.: 122365R-RFUSP42V01 Page : 18 of 19 (35) EUT Photo (36) EUT Photo Report No.: 122365R-RFUSP42V01 Page : 19 of 19 (37) EUT Photo

Report No：122365R-HPUSP09V01 Page: 1 of 22 SAR Test Report Product Name ：ASUS Transformer Pad Model No. ：TF700T, TF0070T Applicant ：ASUSTeK COMPUTER INC. Address ：No. 15, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt ：2012/02/20 Issued Date ：2012/03/21 Report No. ：122365R-HPUSP09V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Report No：122365R-HPUSP09V01 Page: 2 of 22 Test Report Certification Issued Date: 2012/02/20 Report No.:122365R-HPUSP09V01 Product Name ： ASUS Transformer Pad Applicant ： ASUSTeK COMPUTER INC. Address ： No. 15, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer ： 1.PEGATRON CORPORATION Taoyuan Mfg 2.Protek (Shanghai) Limited. 3.Tech-Com(Shanghai) Computer Co.Ltd. 4.Wistron InfoComm(Kunshan) Co., Ltd. Model No. ： TF700T, TF0070T Trade Name ： ASUS FCC ID ： MSQTF700T Applicable Standard： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Measurement procedures ： KDB 447498 , KDB 248227, KDB616217 Test Result ： Max. SAR Measurement (1g) 0.500 W/kg Application Type ： Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Documented By ： (Adm. Assistant / April Chen ) Tested By ： (Engineer / Wen Lee) Approved By ： (Manager / Vincent Lin) Report No：122365R-HPUSP09V01 Page: 3 of 22 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Antenna List ................................................................................................................... 5 1.3 Test Environment ...........................................................................................................6 2. SAR Measurement System .................................................................. 7 2.1 DASY5 System Description .......................................................................................... 7 2.1.1 Applications ................................................................................................................ 8 2.1.2 Area Scans................................................................................................................... 8 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 8 2.2 DASY5 E-Field Probe ................................................................................................... 9 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 10 2.5 Robot ............................................................................................................................ 11 2.6 Light Beam Unit........................................................................................................... 11 2.7 Device Holder ..............................................................................................................12 2.8 SAM Twin Phantom .................................................................................................... 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure ........................................................... 15 4.1 SAR System Check ...................................................................................................... 15 4.1.1 Dipoles ...................................................................................................................... 15 4.1.2 System Check Result ................................................................................................ 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits ......................................................................... 17 6. Test Equipment List............................................................................ 18 7. Measurement Uncertainty .................................................................. 19 8. Average Power Measurement............................................................ 20 9. Test Results......................................................................................... 21 9.1 SAR Test Results Summary ......................................................................................... 21 Appendix ............................................................................................................................ 22 Report No：122365R-HPUSP09V01 Page: 4 of 22 Appendix A. SAR System Check Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data Appendix E. Dipole Calibration Data Report No：122365R-HPUSP09V01 Page: 5 of 22 1. General Information 1.1 EUT Description Product Name ASUS Transformer Pad Trade Name ASUS Model No. TF700T, TF0070T FCC ID MSQTF700T TX Frequency 2412MHz~2462MHz Wlan Modular MFR: AzureWave, M/N:…

Text truncated - open the document above for the full version.

Report No. 122365R-RFUSP42V01 Page : 1 of 95 Test Report Product Name ASUS Transformer Pad Model No TF700T, TF0070T FCC ID. MSQTF700T Applicant ASUSTeK COMPUTER INC. Address No. 15, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt Feb. 20, 2012 Issue Date March 20, 2012 Report No. 122365R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 122365R-RFUSP42V01 Page : 2 of 95 Test Report Certification Issue Date: March 20, 2012 Report No.: 122365R-RFUSP42V01 Product Name ASUS Transformer Pad Applicant ASUSTeK COMPUTER INC. Address No. 15, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer 1. PEGATRON CORPORATION Taoyuan Mfg 2. Protek (Shanghai) Limited. 3. Tech-Com(Shanghai) Computer Co.Ltd. 4. Wistron InfoComm(Kunshan) Co., Ltd. Model No. TF700T, TF0070T FCC ID. MSQTF700T EUT Rated Voltage AC 100-240V, 50-60Hz EUT Test Voltage AC 120V/60Hz Trade Name ASUS Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Rita Huang ) Tested By : ( Engineer / Henk Huang ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 122365R-RFUSP42V01 Page : 3 of 95 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Test Procedure .............................................................................................................................15 3.5. Uncertainty ..................................................................................................................................15 3.6. Test Result of Peak Power Output...............................................................................................16 4. Radiated Emission .....................................................................................................................22 4.1. Test Equipment............................................................................................................................22 4.2. Test Setup ....................................................................................................................................23 4.3. Limits ..........................................................................................................................................24 4.4. Test Procedure .............................................................................................................................25 4.5. Uncertainty ..................................................................................................................................25 4.6. Test Result of Radiated Emission................................................................................................26 5. RF antenna conducted test........................................................................................................38 5.1. Test Equipment................................…

Text truncated - open the document above for the full version.

Report No. 122365R-RFUSP42V01 Page : 58 of 95 6. Band Edge 6.1. Test Equipment RF Conducted Measurement The following test equipments are used during the band edge tests: Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2011 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. RF Radiated Measurement: The following test equipments are used during the band edge tests: Test Site Equipment Manufacturer Model No./Serial No. Last Cal. Bilog Antenna Schaffner Chase CBL6112B/2673 Sep., 2011 X Horn Antenna Schwarzbeck BBHA9120D/D305 Sep., 2011 Horn Antenna Schwarzbeck BBHA9170/208 Jul., 2011 X Pre-Amplifier Agilent 8447D/2944A09549 Sep., 2011 X Spectrum Analyzer Agilent E4407B / US39440758 May, 2011 Test Receiver R & S ESCS 30/ 825442/018 Sep., 2011 X Coaxial Cable QuieTek QTK-CABLE/ CAB5 Feb., 2012 X Controller QuieTek QTK-CONTROLLER/ CTRL3 N/A Site # 3 X Coaxial Switch Anritsu MP59B/6200265729 N/A Note: 1. All instruments are calibrated every one year. 2. The test instruments marked by “X” are used to measure the final test results. Report No. 122365R-RFUSP42V01 Page : 59 of 95 6.2. Test Setup RF Conducted Measurement RF Radiated Measurement: 6.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. EUT FRP Dome The height of broad band or Dipole Antenna was scanned from 1M to 4M. The distance between antenna and turn table was 3M regards to the standard ado pted. 3m 80cm To Receiver Pre- Amplifier SMA EUT Spectrum Analyzer RF Cable Report No. 122365R-RFUSP42V01 Page : 60 of 95 6.4. Test Procedure The EUT was setup according to ANSI C63.4: 2003 and tested according to DTS test procedure of Jan. 2012 KDB558074 for compliance to FCC 47CFR 15.247 requirements. The EUT is placed on a turn table which is 0.8 meter above ground. The turn table is rotated 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna is scanned from 1 meter to 4 meters to find out the maximum emission level. This is repeated for both horizontal and vertical polarization of the antenna. In order to find the maximum emission, all of the interface cables were manipulated according to ANSI C63.4: 2003 on radiated measurement. 6.5. Uncertainty ± 3.9 dB above 1GHz ± 3.8 dB below 1GHz Report No. 122365R-RFUSP42V01 Page : 61 of 95 6.6. Test Result of Band Edge Product : ASUS Transformer Pad Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2412 31.639 73.47 105.108 Peak Horizontal 2412 31.639 55.29 86.928 Average Vertical 2412 30.95 67.42 98.369 Peak Vertical 2412 30.95 49.92 80.869 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) ∆ (dB) Band Edge Field Strength (dBuV/m) Limit (dBuV/m) Detector Horizontal 2389.9 105.108 48.23 56.878 74.000 Peak Horizontal 2390 86.928 56.06 30.868 54.000 Average Vertical 2389.9 98.369 48.23 50.139 74.000 Peak Vertical 2390 80.869 56.06 24.809 54.000 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - ∆ F = Fundamental field Strength (Peak or Average) ∆ = Conducted Band Edge Delta (Peak or Average) Report No. 122365R-RFUSP42V01 Page : 62 of 95 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 122365R-RFUSP42V01 Page : 63 of 95 Product : ASUS Transformer Pad Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2462 32.019 75.68 107.699 Peak Horizontal 2462 32.019 56.82 88.839 Average Vertical 2462 32.019 67.91 99.929 Peak Vertical 2462 32.019 50.7 82.719 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) ∆ (dB) Band Edge Field Strength (dBuV/m) Limit (dBuV/m) Detector Horizontal 2484.4 107.699 45.94 61.759 74.000 Peak Horizontal 2484.8 88.839 49.58 39.259 54.000 Average Vertical 2484.4 99.929 45.94 53.989 74.000 Peak Vertical 2484.8 82.719 49.58 33.139 54.000 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - ∆ F = Fundamental field Strength (Peak or Average) ∆ = Conducted Band Edge Delta (Peak or Average) Report No. 122365R-RFUSP42V01 Page : 64 of 95 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 122365R-RFUSP42V01 Page : 65 of 95 Product : ASUS Transformer Pad Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2412 31.639 71.88 103.518 Peak Horizontal 2412 31.639 53.55 85.188 Average Vertical 2412 30.95 63.75 94.699 Peak Vertical …

Text truncated - open the document above for the full version.

Report No.: 122365R-RFUSP42V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 122365R-RFUSP42V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 122365R-RFUSP42V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)

Report No：122365R-HPUSP09V01 Page: 1 of 9 Appendix C. Test Setup Photographs & EUT Photographs Test Setup Photographs EUT Back EUT Top Touch Touch Report No：122365R-HPUSP09V01 Page: 2 of 9 EUT Front EUT Right Side Touch Touch Report No：122365R-HPUSP09V01 Page: 3 of 9 Depth of the liquid in the phantom-Zoom In Note: The positions used in the measurements were according to IEEE 1528-2003.
