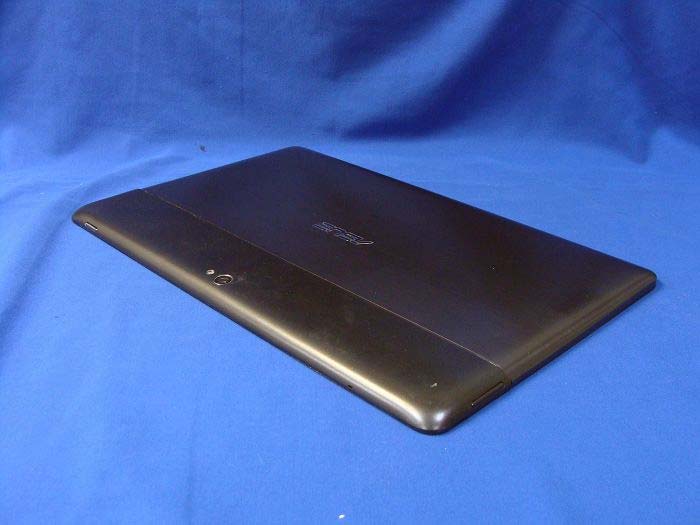

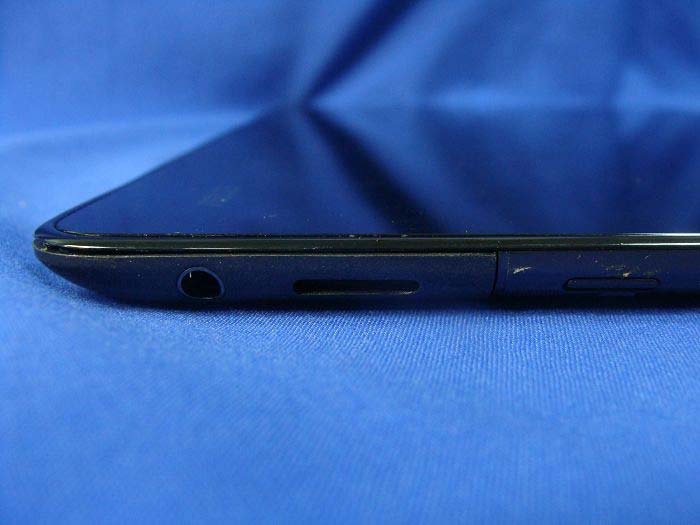

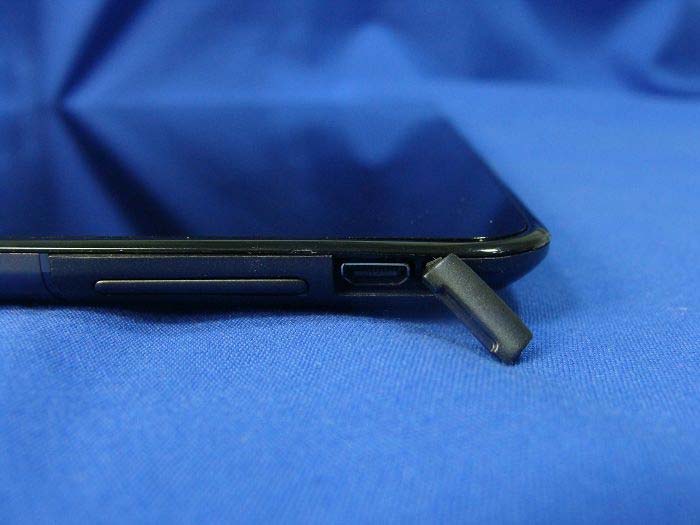

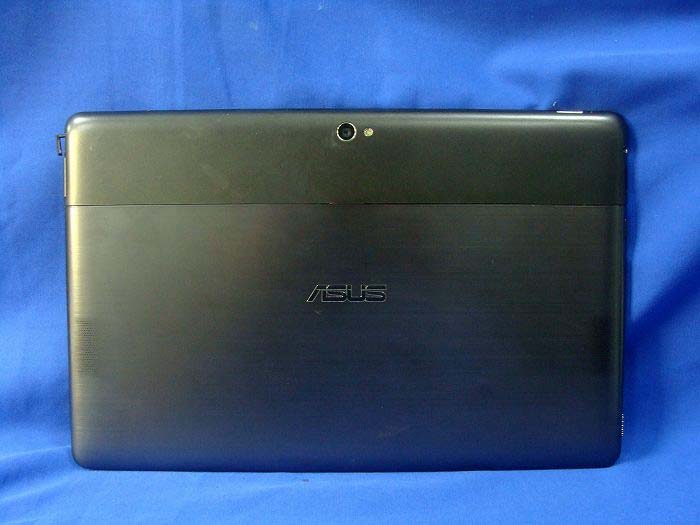

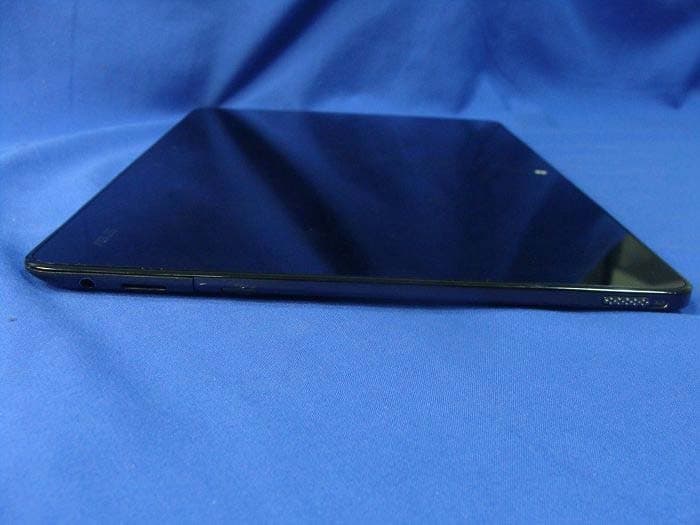

MSQTF810CASUS Tablet

ASUS Tablet User Manual TF810C E7492 ASUS is devoted to creating environment-friendly products/packagings to safeguard consumers’ health while minimizing the impact on the en- vironment. The reduction of the number of the manual pages complies with the reduction of carbon emission. For the detailed user manual and related information, refer to the user manual included in the device or visit the ASUS Support Site at http://support.asus.com/ Charging your battery pack If you wish to use the battery power, ensure to fully charge your battery pack before going on long trips. Remember that the power adapter charges the battery pack as long as it is plugged to an AC power source. It takes much longer to charge the battery pack when your device is in use. Airplane precautions Ask an airline personnel if you want to use your device onboard the aircraft. Most airlines have restrictions in using electronic devices, and allow its use only when the plane reaches its cruising altitude. There are three types of airport security devices: X-ray scanner (for luggages placed on conveyor belts), metal detectors (a walk-through security checking device), and magnetic wands (hand-held devices for checking on passengers). You can send your device through the X-ray scanner, but do not send your device through the metal detectors or checked by magnetic wands. ASUS Tablet Manual  Package Contents • If any of the items is damaged or missing, contact your retailer. • The bundled power plug varies with country or region. ASUS TabletUSB chargerUSB Dock cable User Manual User manualUSB DongleWarranty card User Guide Cleaning clothSleeveWindows 8® User guide ASUS Tablet Manual  Getting to know your ASUS Tablet 3 1 13 4 6 7 9 8 15 8 16 2 12 14 16 10 11 5 ASUS Tablet Manual  1 Reset hole If the system becomes unresponsive, insert a paper clip into the hole to force-restart your device. Forcing the system to restart may result to data loss. We strongly recommend that you back up your data regularly. 2 Power button Press and hold the Power button to turn on your device. When your device is on, press the Power button to put it in sleep mode or wake it up from sleep mode. Battery charge indicator (dual-color) Dim: The power charger is not plugged to the device. White: The battery is 100% charged. Orange: The device is in battery charging mode. 3 Built-in microphone The built-in mono microphone can be used for video conferencing, voice narrations, or simple audio recordings. 4 3.5mm Headphone output/Microphone input combo jack Connect an amplified speaker or headphones to this port. You can also connect a microphone for voice narrations or simple audio recording. 5 Micro SD card slot Insert Micro SD card into this slot. 6 Mobile dock latch Move the mobile dock latch to the left to release the tablet from the mobile dock. 7 Light sensor The light sensor detects the amount of light in your environment and automatically adjusts the brightness of your device’s touch screen panel. 8 Built-in camera (front and rear) Use the built-in camera to take pictures, record videos, video conferencing, and other interactive applications. ASUS Tablet Manual  9 Lighting indicator This indicator lights up when you are using your camera to take pictures and record videos. 10 Touch screen panel The touch screen panel allows you to operate your device using touch gestures. 11 Windows Iogo Tap this logo to go back to Metro UI screen. 12 Dock connector • Insert the power adapter into this connector to supply power to your device and charge the internal battery pack. • Connect the USB Dock cable to the device and another system (notebook or desktop PC) for data transmission. • Dock the device to the mobile dock for keyboard and USB connectivity. • Connect the bundled USB Dongle for USB extension function. 13 Micro HDMI port Insert a micro HDMI cable into this port to connect to an HDMI device. 14 Volume button Press this button to increase or decrease the volume. 15 Camera LED flash Use the flash to take photos when lighting conditions are poor. 16 Audio speaker system Your device is equipped with a built-in high quality stereo speakers. ASUS Tablet Manual  • Use only the power adapter and the USB Dock cable to charge your device. Using a different power adapter may damage your device. • Ensure that the 36-pin USB connector is fully inserted into your device. • The input voltage range between the wall outlet and the power adapter is AC 100V–240V, and the output voltage of the power adapter is DC 15V, 1.2A. Fully charge the battery up to eight hours for first-time use. Charging your device 1 2 3 ASUS Tablet Manual  Using the USB dongle The USB dongle allows you to connect a USB device to your tablet. You can access the contents of your flash drives or external HDDs, connect a speaker, use a mouse or a keyboard and other USB devices. To use the USB dongle: 1. Connect the bundled USB dongle’s connector to your tablet’s dock port. 2. Insert the USB device to the USB dongle’s USB port. Ensure that the 36-pin USB dongle is fully inserted to your device. Turning your device on To turn your device on: Press and hold the power button for one (1) second. ASUS Tablet Manual  Turning your device off Putting on sleep mode To put your device on sleep mode: Press the Power button once. Forcing your device to shut down To force shutdown your device: If your device is unresponsive, press and hold the power button for at least eight (8) seconds. Shutting down your device To shut down your device: 1. Launch the Charm bar and tap . 2. Tap > Shut down to turn off your device. • ASUS Tablet Manual  Declarations and Safety Statements Federal Communications Commission Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has b…
