Q-WL U1D61(RoHS)FCC-V10 Wireless Link USB Dongle 802.11b/g (54 Mbps) Quick Installation Guide Version 1.0 March 22, 2006 Quick Installation Guide ii Statement of RoHS We recognize the need to be a responsible corporate citizen. With respect to the current EU directive and the equivalent domestic legislation which implement Restriction of Hazardous Substances (RoHS), We are committed to producing products supplied into the EU that are fully compliant to the directive on or before its respective effective date. Note The wireless link USB dongle works based on the operating frequency ranging from 2412 MHz to 2462 MHz and the operating channels 1 to 11. Installing wireless link USB dongle driver 1 Installing wireless link USB dongle driver This Quick Installation Guide provides you with some basic instructions only. The following instructions will guide you through overall installation procedure. In OS-specific situations, you should follow the on-screen instructions to proceed. Follow these steps below to install the wireless dongle driver. Step 1: Close all Windows programs that are running. Step 2: Insert the dongle into a USB port of your computer, first. Then, a Welcome to the Found New Hardware Wizardwindow pops up. Step 3: Now, you may, for example, select Yes, this time only. Then, click Next. Quick Installation Guide 2 Step 4: On the window, select Install from a list or specific location (Advanced) to search and install the driver. Then, click Next. Step 5: Tick off Include this location in the search: and then click Browse to search the driver in a specified directory. Step 6: Select the folder that contains the driver for your hardware. Then, click OK. Installing wireless link USB dongle driver 3 Step 7: Click Next. Step 8: You may see a Hardware Installation window indicating that you are installing the driver for this hardware of Realtek RTL8187 Wireless 802.11g 54Mbps USB 2.0 Network Adapter. Then, click Continue Anyway. Quick Installation Guide 4 Step 9: You see a processing window indicating that the wizard installs the driver... Please wait a moment. Step 10: This hardware driver installation is completed. Click Finish to complete the installation process. Step 12: When you succeed in installing the driver, you will see the hardware name in the platform of Device Manager. Statements of FCC, CE, and DGT 5 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Specifications of the wireless link USB dongle Operating Frequency: 2412 MHz ~ 2462 MHz Operating Channels: Channels 1~11 Quick Installation Guide 6 European Union Notice: Radio products with the CE marking comply with the R&TTE Directive (1999/5/EC), the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms: ◆ EN 60950 Product Safety ◆ EN 300 328 Technical requirement for radio equipment ◆ EN 301 489-1/-17 General EMC requirements for radio equipment Statements of FCC, CE, and DGT 7 DGT 警語 根據交通部低功率管理辦法規定： 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻 率、加大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立 即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信規定作業之無線電信。低功率射頻電機須忍受合法通信或工業、 科學及醫療用電波輻射性電機設備之干擾。

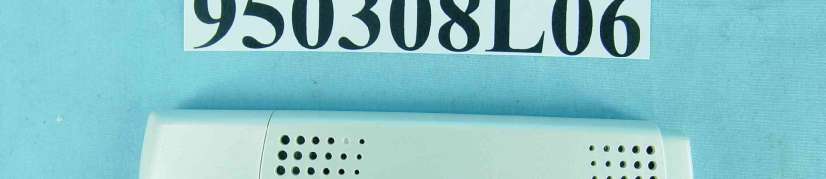

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID : MSQU1 Label Location

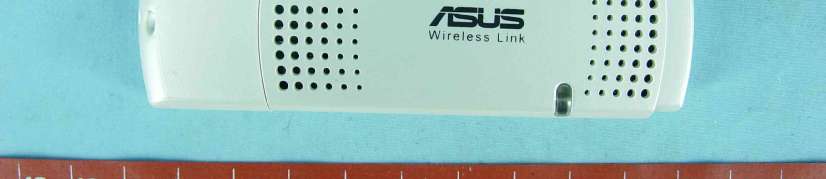

Model name: U1 Wireless Link USB Dongle Brand name: ASUS FCC ID: MSQU1

Page 3 Page 4 Page 5

FCC ID: MSQU1 Report No.: RF950308L06 Operational Description This device is a Wireless Link USB Dongle, which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna used in this EUT is Printed antenna without antenna connector. The other instruction, please have a look at the users manual.

Report no.: SA950308L061Report Format Version 2.0.3 SAR TEST REPORT REPORT NO.: SA950308L06 MODEL NO.: U1 RECEIVED: Mar. 09, 2006 TESTED: Mar. 17, 2006 ISSUED: Mar. 22, 2006 APPLICANT: ASUSTeK COMPUTER INC. ADDRESS: 4F. NO. 150, LI-TE RD., PEITOU, TAIPEI, TAIWAN, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 38 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report no.: SA950308L062Report Format Version 2.0.3 TABLE OF CONTENTS 1.CERTIFICATION.......................................................................................................3 2.GENERAL INFORMATION........................................................................................4 2.1GENERAL DESCRIPTION OF EUT.......................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS.........................................5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM................................................5 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION...............8 3.DESCRIPTION OF SUPPORT UNITS....................................................................12 4.DESCRIPTION OF TEST MODES AND CONFIGURATIONS.................................13 4.1.DESCRIPTION OF ANTENNA LOCATION...........................................................13 4.2.DESCRIPTION OF ASSESSMENT POSITION.....................................................14 4.3.DESCRIPTION OF TEST MODE..........................................................................15 4.4.SUMMARY OF TEST RESULTS...........................................................................15 5.TEST RESULTS......................................................................................................16 5.1TEST PROCEDURES..........................................................................................16 5.2MEASURED SAR RESULTS................................................................................18 5.3SAR LIMITS..........................................................................................................22 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS..................................................23 5.5TEST EQUIPMENT FOR TISSUE PROPERTY....................................................25 6.SYSTEM VALIDATION............................................................................................26 6.1TEST EQUIPMENT..............................................................................................26 6.2TEST PROCEDURE.............................................................................................27 6.3VALIDATION RESULTS........................................................................................29 6.4SYSTEM VALIDATION UNCERTAINTIES............................................................30 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES........................................31 7.1.PROBE CALIBRATION UNCERTAINTY...............................................................31 7.2.ISOTROPY UNCERTAINTY.................................................................................32 7.3.BOUNDARY EFFECT UNCERTAINTY.................................................................32 7.4.PROBE LINEARITY UNCERTAINTY....................................................................33 7.5.READOUT ELECTRONICS UNCERTAINTY........................................................33 7.6.RESPONSE TIME UNCERTAINTY......................................................................33 7.7.INTEGRATION TIME UNCERTAINTY..................................................................34 7.8.PROBE POSITIONER MECHANICAL TOLERANCE...........................................35 7.9.PROBE POSITIONING.........................................................................................35 7.10.PHANTOM UNCERTAINTY..................................................................................36 7.11.DASY4 UNCERTAINTY BUDGET........................................................................37 8.INFORMATION ON THE TESTING LABORATORIES.............................................38 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report no.: SA950308L063Report Format Version 2.0.3 1. CERTIFICATION PRODUCT: Wireless Link USB Dongle MODEL: U1 BRAND: ASUS APPLICANT: ASUSTeK COMPUTER INC. TESTED: Mar. 17, 2006 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Mar. 22, 2006 Rennie Wang TECHNICAL ACCEPTANCE :, DATE:Mar. 22, 2006 Responsible for RF Stanely Hsu APPROVED BY:, DATE:Mar. 22, 2006 Gary Chang / Supervisor Report no.: SA950308L064Report Format Version 2.0.3 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless Link USB Dongle MODEL NO. U1 FCC ID MSQU1 POWER SUPPLY 5Vdc from host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE CCK, DQPSK, DBPSK for DSSS, 64QAM, 16QAM, QPSK, BPSK for OFDM RADIO TECHNOLO…

Text truncated - open the document above for the full version.

A - 1 APPENDIX A: TEST DATA Liquid Level Photo MSL 2450MHz D=150mm A - 2 Date/Time: 2006/3/17 10:36:53 Test Laboratory: Advance Data Technology D600-11b-Ch1-Mode 1 DUT: Wireless Link USB Dongle ; Type: U1 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.9 mho/m; ε r = 50.4; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 21.4 degrees ; Liquid temp. : 20.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 160 Low Channel 1/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.44 mW/g Low Channel 1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.5 V/m Peak SAR (extrapolated) = 3.45 W/kg SAR(1 g) = 1.35 mW/g; SAR(10 g) = 0.704 mW/g Maximum value of SAR (measured) = 1.46 mW/g A - 3 A - 4 Date/Time: 2006/3/17 11:11:25 Test Laboratory: Advance Data Technology D600-11b-Ch6-Mode 1 DUT: Wireless Link USB Dongle ; Type: U1 ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.93 mho/m; ε r = 50.3; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 21.4 degrees ; Liquid temp. : 20.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 160 Mid Channel 6/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.15 mW/g Mid Channel 6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.9 V/m Peak SAR (extrapolated) = 2.84 W/kg SAR(1 g) = 1.09 mW/g; SAR(10 g) = 0.558 mW/g Maximum value of SAR (measured) = 1.17 mW/g A - 5 Date/Time: 2006/3/17 11:26:55 Test Laboratory: Advance Data Technology D600-11b-Ch11-Mode 1 DUT: Wireless Link USB Dongle ; Type: U1 ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 1.98 mho/m; ε r = 50.2; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 21.4 degrees ; Liquid temp. : 20.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 160 High Channel 11/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.18 mW/g High Channel 11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.7 V/m Peak SAR (extrapolated) = 3.02 W/kg SAR(1 g) = 1.1 mW/g; SAR(10 g) = 0.559 mW/g Maximum value of SAR (measured) = 1.16 mW/g A - 6 Date/Time: 2006/3/17 11:45:57 Test Laboratory: Advance Data Technology D600-11g-Ch1-Mode 2 DUT: Wireless Link USB Dongle ; Type: U1 ; Test Frequency: 2412 MHz Communication System: 802.11g ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.9 mho/m; ε r = 50.4; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 21.4 degrees ; Liquid temp. : 20.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 160 Low Channel 1/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.752 mW/g Low Channel 1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.3 V/m Peak SAR (extrapolated) = 1.81 W/kg SAR(1 g) = 0.708 mW/g; SAR(10 g) = 0.363 mW/g Maximum value of SAR (measured) = 0.766 mW/g A - 7 Date/Time: 2006/3/17 13:06:20 Test Laboratory: Advance Data Technology D600-11g-Ch6-Mode 2 DUT: Wireless Link USB Dongle ; Type: U1 ; Test Frequency: 2437 MHz Communication System: 802.11g ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.93 mho/m; ε r = 50.3; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 21.4 degrees ; Liquid temp. : 20.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 160 Mid C…

Text truncated - open the document above for the full version.

B - 1 APPENDIX B: ADT SAR MEASUREMENT SYSTEM C - 1 APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION D4：DAE3 (Cal Date：August 17.2005) APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

Report No.: RF950308L0660Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF950308L0661Report Format Version 2.0.4 RADIATED EMISSION TEST
