MSQUSBAC53Dual-band Wireless-AC1200 USB Adapter

Quick Start Guide USB-AC53 Dual-band Wireless-AC12OO USB Adapter ® Installation 1 23 E7804 / First Edition / Oct. 2012 ASUS Recycling/Takeback ServicesASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components, as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for the detailed recycling information in different regions. Introduction ASUS USB-AC53 Adapter x1 Warranty card x1 Extension USB Cradle x1 Quick Start Guide x1 ASUS Notebook NetClip x1 Support CD x1 Extension USB Cable x1 Package contents Utility Installation 4 5 Utility Installation 1 23 WPS Utility - WPS Button 1 2 WPS Utility - WPS Button 3 4 WPS Utility - WPS Button 5 USB Area Hotline Number Support Languages Availability Australia 1300-2787-88 English Mon. to Fri. 8:00-20:00 Austria 0043-820240513 German Mon. to Fri. 9:00-18:00 Belgium 0032-78150231 Dutch /French Mon. to Fri. 9:00-17:00 China 400-620-6655 Simplified Chinese Mon. to Sun. 9:00-18:00 Denmark 0045-3832-2943 Danish/English Mon. to Fri. 9:00-17:00 Finland 00358-9693-7969 Finnish/English/Swed- ish Mon. to Fri.10:00-18:00 France 0033-170949400 French Mon. to Fri. 9:00-17:45 Greece 00800-44-14-20-44 Mon. to Fri. 9:00-13:0014:00-18:00 Hong Kong 3582-4770 Cantonese/ Chinese/English Mon. to Fri.110:00-20:00Sat.10:00-17:00 Ireland 0035-31890719918 English Mon. to Fri. 9:00-17:00 Japan 0800-123-2787 Japanese Mon. to Fri. 9:00-18:00Sat. to Sun.9:00-17:00 Malaysia +603 2148 0827 (Check Repair Detail Status Only)/ +603-6279-5077 Bahasa Melayu/Eng-lish Mon. to Fri.10:00-19:00 Netherlands/ Luxembourg 0031-591-570290 Dutch / English Mon. to Fri. 9:00-17:00 New Zealand 0800-278-788/ 0800-278-778 English Mon. to Fri. 9:00-17:00 Norway 0047-2316-2682 Norwegian /English Mon. to Fri.9:00-17:00 Philippines +632-636 8504/ 180014410573 English Mon. to Fri. 9:00-18:00 Networks Global Hotline Information Area Hotline Number Support Languages Availability Poland 00225-718-033/ 00225-718-040 Polish Mon. to Fri. 9:00-17:008:30-17:30 Portugal 707-500-310 Portuguese Mon. to Fri. 9:00-17:00 Russia +8-800-100-ASUS/ +7-495-231-1999 Russian/English Mon. to Fri.9:00-18:00 Singapore +65-6720-3835(Check Repair Detail Sta-tus Only)/ +65-66221701 English Mon. to Fri. 11:00-19:00 Slovak 00421-232-162-621 Czech Mon. to Fri. 8:00-17:00 Spain 902-88-96-88 Spanish Mon. to Fri. 9:00-18:00 Sweden 0046-8587-6940 Swedish/ English Mon. to Fri.9:00-17:00 Switzerland 0041-848111010 German/French Mon. to Fri. 9:00-18:00 0041-848111014 French Mon. to Fri. 9:00-17:45 0041-848111012 Italian Mon. to Fri. 9:00-17:00 Taiwan 0800-093-456/ 02-81439000 Traditional Chinese Mon. to Fri. 9:00-12:0013:30-18:00 Thailand +662-679-8367 -70/ 001 800 852 5201 Thai/English Mon. to Fri. 9:00-18:00 Turkey +90-216-524-3000 Turkish Mon. to Fri. 09:00-18:00 United Kingdom 0044-870-1208340/ 0035-31890719918 English Mon. to Fri. 9:00-17:00 USA/Canada 1-812-282-2787 English Mon. to Fri. 8:30am-12:00am EST (5:30am-9:00pm PST)Sat .to Sun.9:00am-6:00pm EST (6:00am-3:00pm PST) Networks Global Hotline Information WPS Utility - PIN 1 2 WPS Utility - PIN 3 4 CE Mark WarningThis is a Class B product, in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.Operation Channels: Ch1~11 for N. America, Ch1~14 Japan, Ch1~13 Europe (ETSI)NCC Warning StatementArticle 12Without permission, any company, firm or user shall not alter the frequency, increase the power, or change the characteristic and functions of the original design of the certified lower power frequency electric machinery. Federal Communications Commission StatementThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference.• This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the userʼs authority to operate the equipment. Operate the device in 5150-5250MHz frequency band for indoor use only.Prohibition of Co-locationThis device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.    IC Warning StatementUnder Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equival…

Text truncated - open the document above for the full version.

ASUSTeK COMPUTER INC. 4F, No.150, Li-Te Rd., Peitou, Taipei , Taiwan Declaration of Authorization We Name: ASUSTeK COMPUTER INC. Address: 4F, No.150, Li-Te Rd., Peitou, City: Taipei , Country: Taiwan Declare that: Name Representative of agent: Gene Chang Agent Company name: QuieTek Corporation Address: 2F, No. 345, Xinhu 2nd Rd., Neihu District, City: Taipei City 114, Country Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: Dual-band Wireless-AC1200 USB Adapter Type designation: USB-AC53 Trademark: ASUS on our behalf. Date: 2013/02/05 City: Taipei Name: Jackson Yen Function: Associate Vice President Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

ASUSTeK COMPUTER INC. 4F, No.150, Li-Te Rd., Peitou, Taipei , Taiwan FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) Equipment: Dual-band Wireless-AC1200 USB Adapter Trademark(s) and Model(s): ASUS / USB-AC53 Manufacturer:ASUS FCC ID in case other parts of this equipment are subject to certification: MSQUSBAC53 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number:Issue date: 12A087R-RFUSP37V022013/1/02 The following manufacturer/importer/entity (located in the USA) is responsible for this declaration: Company name: ASUSTeK COMPUTER INC. Name/Title (legal representative): Jackson Yen Address: 4F, No.150, Li-Te Rd., Peitou, Taipei , Taiwan, R.O.C. Phone: 886-2-2894-3447 ext 3106 Fax: 886-2-2898-7364 E-mail: [email protected] Date: 2013/01/02 Signature: Technical Laboratory Quietek Corporation FCC Registration Number: 92195 Name Representative of agent: Gene Chang Agent Company name: QuieTek Corporation Address: 2F,No. 345, Xinhu 2 nd Rd., Neihu District, City: Taipei City 114, Country: Taiwan, R.O.C. FCC

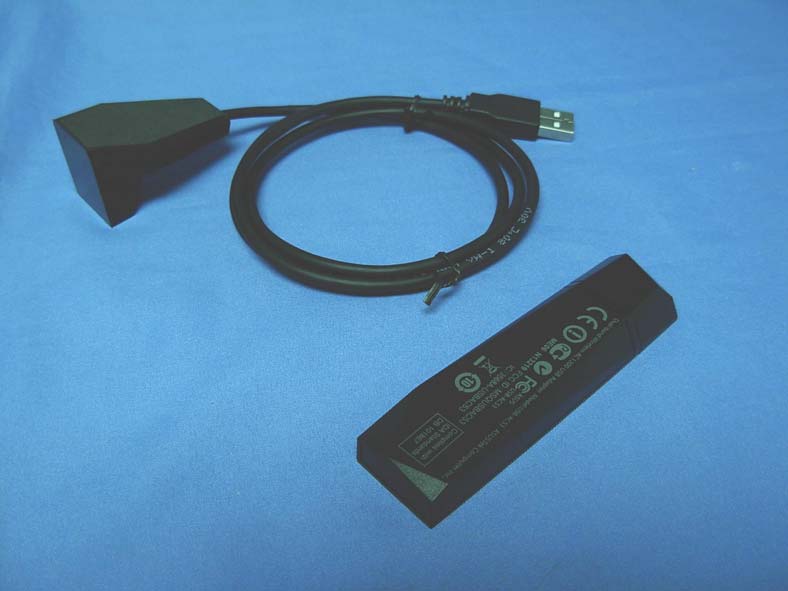

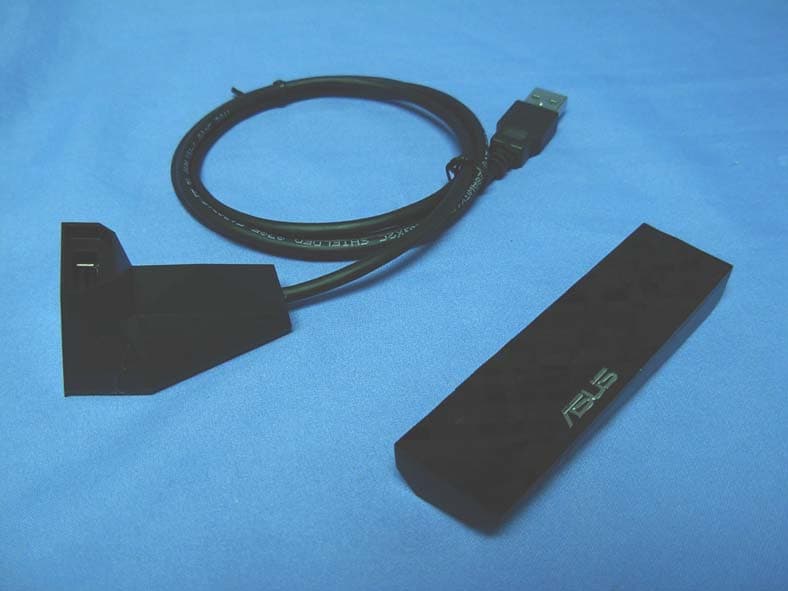

Report No： 12A087R-RFUSP42V01 Page: 326 of 331 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

ASUSTeK COMPUTER INC. No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. FCC ID.: MSQUSBAC53 FCC ID AND DoC Label

Report No： 12A087R-RFUSP42V01 Page: 327 of 331 (3) EUT Photo (4) EUT Photo Report No： 12A087R-RFUSP42V01 Page: 328 of 331 (5) EUT Photo (6) EUT Photo Report No： 12A087R-RFUSP42V01 Page: 329 of 331 (7) EUT Photo (8) EUT Photo Report No： 12A087R-RFUSP42V01 Page: 330 of 331 (9) EUT Photo (10) EUT Photo (ANT) Report No： 12A087R-RFUSP42V01 Page: 331 of 331 (11) EUT Photo (MB)

Report No：12A087R-HPUSP09V01 Page: 1 of 30 SAR Test Report Product Name ： Dual-band Wireless-AC1200 USB Adapter Model No. ： USB-AC53 Applicant ： ASUSTek Computer Inc. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt ：2012/10/03 Issued Date ：2013/01/24 Report No. ：12A087R-HPUSP09V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Report No：12A087R-HPUSP09V01 Page: 2 of 30 Test Report Certification Issued Date: 2013/01/24 Report No.: 12A087R-HPUSP09V01 Product Name ： Dual-band Wireless-AC1200 USB Adapter Applicant ： ASUSTek Computer Inc. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Manufacturer ： Arcadyan Technology Corporation Model No. ： USB-AC53 Trade Name ： ASUS FCC ID ： MSQUSBAC53 Applicable Standard： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Measurement procedures ： KDB 865664 ,KDB 447498 , KDB 248227, KDB616217 Test Result ： Max. SAR Measurement (1g) 802.11b/g(2.4GHz): 1.109 W/kg 802.11a(5 GHz): 1.15 W/kg Application Type ： Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Documented By ： (Adm. Assistant / April Chen) Tested By ： (Engineer / Wen Lee) Approved By ： (Manager / Vincent Lin) Report No：12A087R-HPUSP09V01 Page: 3 of 30 TABLE OF CONTENTS Description Page 1. General Information............................................................................... 5 1.1 EUT Description ............................................................................................................5 1.2 Antenna List ................................................................................................................... 5 1.3 Maximum output power and tolerance allowed for production units ............................ 6 1.4 Test Environment ...........................................................................................................7 2. SAR Measurement System ................................................................... 8 2.1 DASY5 System Description .......................................................................................... 8 2.1.1 Applications ................................................................................................................ 9 2.1.2 Area Scans................................................................................................................... 9 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 9 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 9 2.2 DASY5 E-Field Probe ................................................................................................. 10 2.2.1 Isotropic E-Field Probe Specification ....................................................................... 10 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 11 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 11 2.5 Robot .............................................................................................12 2.6 Light Beam Unit........................................................................................................... 12 2.7 Device Holder ..............................................................................................................13 2.8 SAM Twin Phantom .................................................................................................... 13 3. Tissue Simulating Liquid .................................................................... 14 3.1 The composition of the tissue simulating liquid .......................................................... 14 3.2 Tissue Calibration Result ............................................................................................. 14 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 16 4. SAR Measurement Procedure ............................................................ 17 4.1 SAR System Check ...................................................................................................... 17 4.1.1 Dipoles ...................................................................................................................... 17 4.1.2 System Check Result ................................................................................................ 17 4.2 SAR Measurement Procedure ...................................................................................... 19 5. SAR Exposure Limits .......................................................................... 20 6. Test Equipment List............................................................................. 21 7. Measurement Uncertainty ................................................................... 22 8. Conducted Power Measurement ........................................................ 24 9. Test Result............................................................................................ 26 9.1 SAR Test Results Summary......................................................................................... 26 10. SAR measurement variability ............................................................. 29 Report No：12A087R-HPUSP09V01 Page: 4 of 30 Appendix ..............................................................................................30 Appendix A. SAR System Check Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data Appendix E. Dipole Calibration Data Report No：12A087R-HPUSP09V01 Page: 5 of 30 1. General Information 1.1 EUT Description Product Name Dual-band Wireless-AC1200 USB Adapte…

Text truncated - open the document above for the full version.

Report No：12A087-RFUSP46V01 Page: 1 of 150 Test Report Product Name ： Dual-band Wireless-AC1200 USB Adapter Model No. ： USB-AC53 FCC ID. ： MSQUSBAC53 Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt：2012/10/03 Issued Date ：2013/02/08 Report No. ：12A087R-RFUSP46V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：12A087-RFUSP46V01 Page: 2 of 150 Test Report Certification Issued Date : 2013/02/08 Report No. : 12A087R-RFUSP46V01 Product Name ： Dual-band Wireless-AC1200 USB Adapter Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer ： Askey Technology (Jiang Su) LTD. Model No. ： USB-AC53 FCC ID. ： MSQUSBAC53 EUT Voltage : DC 5V (Power by PC) Trade Name ： ASUS Applicable Standard ： FCC CFR Title 47 Part 15 Subpart E Section 15.407: 2011 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : (Demi Chang / Engineering Adm. Specialist) Reviewed By : ( Ben Huang / Engineer) Approved By : ( Roy Wang / Manager ) Report No：12A087-RFUSP46V01 Page: 3 of 150 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 1313 NCC, Certificate No : NCC-RCB-07 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No：12A087-RFUSP46V01 Page: 4 of 150 TABLE OF CONTENTS Description Page 1. General Information...................................................................................................................... 6 1.1. EUT D ESCRIPTION........................................................................................................................ 6 1.2. O PERATIONAL DESCRIPTION........................................................................................................ 11 1.3. T EST MODE................................................................................................................................ 12 1.4. T ESTED SYSTEM DETAILS............................................................................................................ 13 1.5. C ONFIGURATION OF TESTED SYSTEM........................................................................................... 14 1.6. EUT E XERCISE SOFTWARE......................................................................................................... 14 1.7. T EST FACILITY............................................................................................................................ 15 2. Conducted Emission .................................................................................................................. 16 2.1. T EST EQUIPMENT........................................................................................................................ 16 2.2. T EST SETUP...............................................................................................................................16 2.3. L IMITS........................................................................................................................................ 17 2.4. T EST PROCEDURE...................................................................................................................... 17 2.5. T EST SPECIFICATION................................................................................................................... 17 2.6. U NCERTAINTY............................................................................................................................. 17 2.7. T EST RESULT.............................................................................................................................. 18 2.8. T EST PHOTO...............................................................................................................................20 3. 99% & 26dB Bandwidth .............................................................................................................. 21 3.1. T EST EQUIPMENT........................................................................................................................ 21 3.2. T EST SETUP...............................................................................................................................21 3.3. L IMITS........................................................................................................................................ 21 3.4. T EST PROCEDURE...................................................................................................................... 21 3.5. U NCERTAINTY..........................................................................................................................…

Text truncated - open the document above for the full version.

Report No：12A087-RFUSP46V01 Page: 70 of 150 6. Peak Excursion 6.1. Test Equipment The following test equipments are used during the radiated emission tests: Peak Excursion / SR7 Instrument Manufacturer Model No. Serial No Next Cal. Date Spectrum Analyzer R&S FSP 100561 2013/02/19 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 6.2. Test Setup 6.3. Limits The ratio of the peak excursion of the modulation envelope (measured suing a peak hold function) to the peak transmit power (measured as specified above) shall not exceed 13 dB across any 1 MHz bandwidth or the emission bandwidth whichever is less. 6.4. Test Procedure The EUT was setup to ANSI C63.4, 2009; tested to U-NII test procedure of March 2012 KDB 789033 for compliance to FCC 47CFR Subpart E requirements. 1 st Trace: Set RBW = 1MHz, VBW = 3MHz with peak detector and max-hold settings. 2 nd Trace: Set RBW = 1MHz, VBW = 3MHz with RMS detector and trace average 100 traces in power averaging mode. 6.5. Uncertainty The measurement uncertainty is defined as ± 1.27 dB Report No：12A087-RFUSP46V01 Page: 71 of 150 6.6. Test Result Product Dual-band Wireless-AC1200 USB Adapter Test Item Peak Excursion Test Mode Mode 1: Transmit Date of Test 2012/11/19 Test Site SR7 IEEE 802.11a Channel No. Frequency (MHz) Measure Level (dB) Required Limit (dB) Result 36 5180 7.59 ≦13 Pass 44 5220 8.35 ≦13 Pass 48 5240 8.42 ≦13 Pass Power Excursion – Channel 36 Report No：12A087-RFUSP46V01 Page: 72 of 150 Power Excursion – Channel 44 Power Excursion – Channel 48 Report No：12A087-RFUSP46V01 Page: 73 of 150 Product Dual-band Wireless-AC1200 USB Adapter Test Item Peak Excursion Test Mode Mode 1: Transmit Date of Test 2012/11/19 Test Site SR7 IEEE 802.11n_20M(ANT 0) Channel No. Frequency (MHz) Measure Level (dB) Required Limit (dB) Result 36 5180 7.81 ≦13 Pass 44 5220 7.68 ≦13 Pass 48 5240 7.50 ≦13 Pass Power Excursion – Channel 36 Report No：12A087-RFUSP46V01 Page: 74 of 150 Power Excursion – Channel 44 Power Excursion – Channel 48 Report No：12A087-RFUSP46V01 Page: 75 of 150 Product Dual-band Wireless-AC1200 USB Adapter Test Item Peak Excursion Test Mode Mode 1: Transmit Date of Test 2012/11/19 Test Site SR7 IEEE 802.11n_20M(ANT 1) Channel No. Frequency (MHz) Measure Level (dB) Required Limit (dB) Result 36 5180 8.18 ≦13 Pass 44 5220 9.17 ≦13 Pass 48 5240 8.12 ≦13 Pass Power Excursion – Channel 36 Report No：12A087-RFUSP46V01 Page: 76 of 150 Power Excursion – Channel 44 Power Excursion – Channel 48 Report No：12A087-RFUSP46V01 Page: 77 of 150 Product Dual-band Wireless-AC1200 USB Adapter Test Item Peak Excursion Test Mode Mode 1: Transmit Date of Test 2012/11/19 Test Site SR7 IEEE 802.11n_40M(ANT 0) Channel No. Frequency (MHz) Measure Level (dB) Required Limit (dB) Result 38 5190 8.43 ≦13 Pass 46 5230 8.61 ≦13 Pass Power Excursion – Channel 38 Report No：12A087-RFUSP46V01 Page: 78 of 150 Power Excursion – Channel 46 Report No：12A087-RFUSP46V01 Page: 79 of 150 Product Dual-band Wireless-AC1200 USB Adapter Test Item Peak Excursion Test Mode Mode 1: Transmit Date of Test 2012/11/19 Test Site SR7 IEEE 802.11n_40M(ANT 1) Channel No. Frequency (MHz) Measure Level (dB) Required Limit (dB) Result 38 5190 9.29 ≦13 Pass 46 5230 9.00 ≦13 Pass Power Excursion – Channel 38 Report No：12A087-RFUSP46V01 Page: 80 of 150 Power Excursion – Channel 46 Report No：12A087-RFUSP46V01 Page: 81 of 150 Product Dual-band Wireless-AC1200 USB Adapter Test Item Peak Excursion Test Mode Mode 1: Transmit Date of Test 2012/11/19 Test Site SR7 IEEE 802.11ac_80M(ANT 0) Channel No. Frequency (MHz) Measure Level (dB) Required Limit (dB) Result 42 5210 8.51 ≦13 Pass Power Excursion – Channel 42 Report No：12A087-RFUSP46V01 Page: 82 of 150 Product Dual-band Wireless-AC1200 USB Adapter Test Item Peak Excursion Test Mode Mode 1: Transmit Date of Test 2012/11/19 Test Site SR7 IEEE 802.11ac_80M(ANT 1) Channel No. Frequency (MHz) Measure Level (dB) Required Limit (dB) Result 42 5210 9.29 ≦13 Pass Power Excursion – Channel 42 Report No：12A087-RFUSP46V01 Page: 83 of 150 7. Radiated Emission 7.1. Test Equipment The following test equipments are used during the radiated emission test: Radiated Emission / CB1 Instrument Manufacturer Model No. Serial No Next Cal. Date Bilog Antenna SCHAFFNER CBL6112B 2895 2013/08/14 Double Ridged Guide Horn Antenna Schwarzback BBHA 9120 D743 2013/02/02 Pre-Amplifier MITEQ AMF-4D-005180-24-10P 888003 2013/12/02 Pre-Amplifier QuieTek AP-025C CHM-0706049 2013/03/01 Spectrum Analyzer Agilent E4440A MY46187335 2013/02/07 Coaxial Cable Huber+Suhner AG Sucoflex 102 25623/2 2013/03/04 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 7.2. Test Setup Under 1GHz Test Setup: Above 1GHz Test Setup: Report No：12A087-RFUSP46V01 Page: 84 of 150 7.3. Limits  General Radiated Emission Limits The provisions of Section 15.205 of this part apply to intentional radiators operating under this section. Radiated emissions which fall in the restricted bands, as defined in Section 15.205, must also comply with the radiated emission limits specified in Section 15.209: FCC Part 15 Subpart C Paragraph 15.209 Limits Frequency MHz uV/m @3m dBuV/m@3m 30-88 100 40 88-216 150 43.5 216-960 200 46 Above 960 500 54 Remark: 1. RF Voltage (dBuV) = 20 log RF Voltage (uV) 2. In the Above Table, the tighter limit applies at the band edges. 3. Distance refers to the distance in meters between the measuring instrument antenna and the closed point of any part of the device or system.  Unwanted Emission out of the restricted bands Limits Remark: 1. For frequencies more than 10 MHz above or below the band edges. 2. For frequency range from the band edges to 10 MHz above or below the band edges. 3. uV/m = 3 301000000EIRP , RF Voltage (dBuV/m) = 20 log RF Voltage (uV/m) FCC Part 15 Subpart C Paragraph 15.407(b) Limits Frequency (MHz) EIRP Limit (dBm) Equivalent Field Strength (dBuV/m@3m) 5150~5250 -27 68.3 5250~5350 -27 68.3 5470~5725 -27 68.3 -27 (Note1) 68…

Text truncated - open the document above for the full version.

Report No：12A087R-HPUSP09V01 Page: 5 of 10 EUT Photographs Report No：12A087R-HPUSP09V01 Page: 6 of 10

Report No：12A087R-HPUSP09V01 Page: 1 of 10 Appendix C. Test Setup Photographs & EUT Photographs Test Setup Photographs EUT Front EUT R-Side Distance 5mm Distance 5mm Report No：12A087R-HPUSP09V01 Page: 2 of 10 EUT L-Side EUT Back Distance 5mm Distance 5mm Report No：12A087R-HPUSP09V01 Page: 3 of 10 EUT R-Side (NB Mode) EUT Back (NB Mode) Distance 5mm Distance 5mm Report No：12A087R-HPUSP09V01 Page: 4 of 10 Depth of the liquid in the phantom-Zoom In The USB cable used for testing other orientations Note: The positions used in the measurements were according to IEEE 1528-2003.

Report No：12A087-RFUSP46V01 Page: 20 of 150 2.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit Description： Back View of Conducted Emission Test Setup Report No：12A087-RFUSP46V01 Page: 112 of 150 7.7. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No：12A087-RFUSP46V01 Page: 113 of 150 Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Horn)
