  1. Home/
  2. ASUSTeK Computer Inc/
  3. MSQW1V2915ABG

MSQW1V2915ABGNotebook P.C.

ASUSTeK Computer Inc

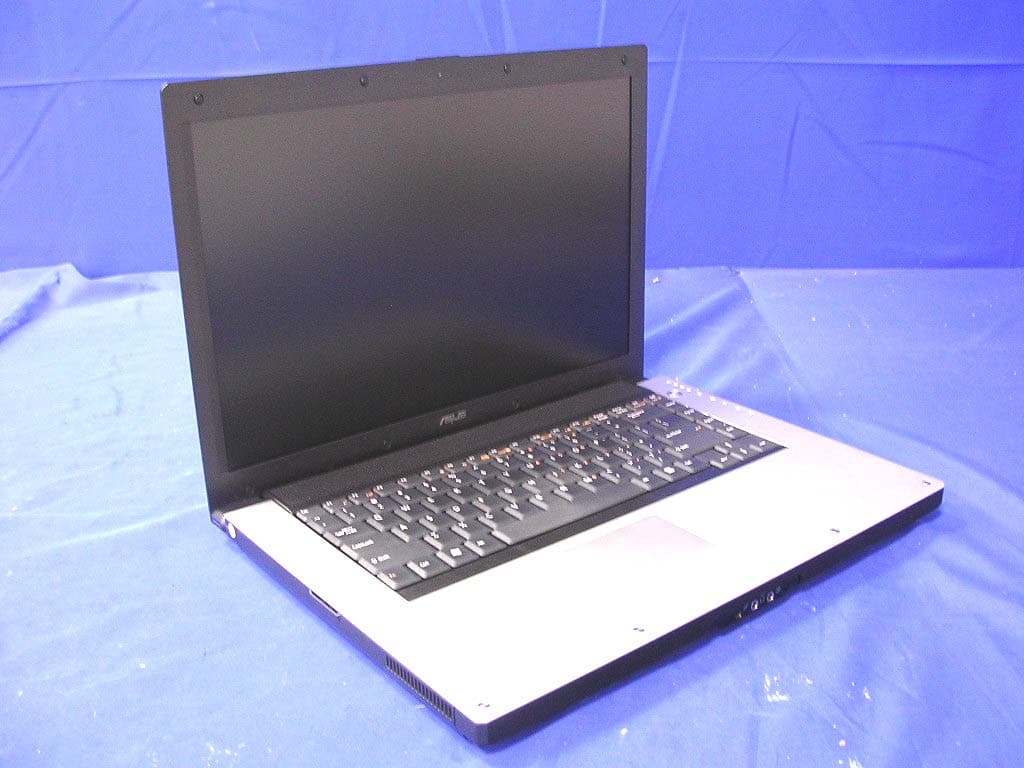

Notebook P.C. - FCC ID MSQW1V2915ABG - ASUSTeK Computer Inc
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Aug 30, 2005
Application Purpose
Original Equipment
Date of Application
Aug 30, 2005
Equipment Note
Notebook P.C.
Frequency Range
2412.00000000 - 2462.00000000
Company
ASUSTeK Computer Inc
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗
↗
↗

Internal Photos

↗
↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

E2083 / May 2005 Notebook PC Hardware User’s Manual D V 2 Contents 1. Introducing the Notebook PC ..................................................................5 About This User’s Manual .......................................................................................... 6 Notes For This Manual .......................................................................................... 6 Preparing your Notebook PC ..................................................................................... 9 2. Knowing the Parts ................................................................................... 11 Top Side................................................................................................................... 12 Bottom Side............................................................................................................. 14 Left Side................................................................................................................... 16 Right Side................................................................................................................ 18 Front Side................................................................................................................ 19 3. Getting Started ....................................................................................... 21 Power System.......................................................................................................... 22 Using AC Power.................................................................................................. 22 Using Battery Power............................................................................................ 22 Charging the Battery Pack .................................................................................. 22 Powering ON the Notebook PC .......................................................................... 24 The Power-On Self Test (POST)......................................................................... 24 Battery Care........................................................................................................ 24 Checking Battery Power...................................................................................... 25 Restarting or Rebooting...................................................................................... 26 Powering OFF..................................................................................................... 26 Special Keyboard Functions.................................................................................... 27 Colored Hot Keys................................................................................................ 27 Keyboard as Cursors........................................................................................... 28 Microsoft Windows™ Keys................................................................................. 28 Keyboard as a Numeric Keypad .........................................................................29 Instant Launch Keys and Status Indicators............................................................. 29 Instant Launch Keys............................................................................................ 29 Status Indicators (top–right)................................................................................ 30 Status Indicators (front)....................................................................................... 31 Audio/Video Remote Controller (on selected models)........................................ 32 3 Contents 4. Using the Notebook PC ......................................................................... 33 Operating System.................................................................................................... 34 Support Software................................................................................................. 34 Pointing Device........................................................................................................ 34 Using the Touchpad ............................................................................................. 35 Touchpad Usage Illustrations.............................................................................. 36 Caring for the Touchpad ...................................................................................... 37 Removing a PC Card (PCMCIA)......................................................................... 38 Inserting a PC Card (PCMCIA)........................................................................... 38 Storage Devices....................................................................................................... 39 PC Card (PCMCIA) Socket ................................................................................. 39 Optical Drive........................................................................................................ 40 Flash Memory Card Reader ................................................................................ 42 Modem Connection............................................................................................. 42 Hard Disk Drive................................................................................................... 43 Network Connection............................................................................................ 44 Power Management Modes..................................................................................... 45 Full Power Mode & Maximum Performance........................................................ 45 ACPI .................................................................................................................... 45 Suspend Mode.................................................................................................... 45 Power Savings.................................................................................................... 45 S…

Text truncated - open the document above for the full version.

Cover Letter(s)

ASUSTek COMPUTER INC. FCC ID.: MSQW1V29215ABG 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel: +886 2 2894-3447 ASUSTeK COMPUTER INC. 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel: +886 2 2894 3447 #3178 Fax:+886 2 2890 7965 Federal Communications Commission Jun. 08, 2005 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics, Block Diagram The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Warson Li / Product Manager ASUSTeK COMPUTER INC.

Cover Letter(s)

Letter of authorization RF_500_03 <Name of applicant and address> To: Telefication TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: letter of authorization Reference number: ###### Date: Jun 15 2005 We, <Company name> ASUSTeK COMPUTER INC. <Company address> 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. <Zip-code and place> 112 <Country> Taiwan R.O.C <Phone number> 886-2-3234-5599 <Fax Number> 886-2-3234-5488 declare that: <Quietek <Company address> 2F, No.345, Xinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. <Zip-code and place> 114 <Country> Taiwan, R.O.C <Phone number> 886-2-2894-3447#3178 <Fax Number> 886-2-2895-0113 is authorized to complete and sign all concerned documents needed for the application (name project) on our behalf. The approval and all originating responsibilities will remain with us. <Name and signature of applicant> Warson Li

External Photos

Report No.: 054L134FI Page : 1 of 10 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

ID Label/Location Info

ASUSTek COMPUTER INC. 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel: +886 2 2894-3447 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Contains TX FCC ID: MSQBT183

ID Label/Location Info

ASUSTek COMPUTER INC. FCC ID.: MSQW1V29215ABG 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel: +886 2 2894-3447 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Notebook P.C. Model No.: WIV Notebook P.C. Model No.: W1V F F C C C C I I D D : : M M S S Q Q W W 1 1 V V 2 2 9 9 2 2 1 1 5 5 A A B B G G This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

ID Label/Location Info

ASUSTek COMPUTER INC. FCC ID.: MSQW1V29215ABG 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel: +886 2 2894-3447 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Notebook P.C. Model No.: WIV Notebook P.C. Model No.: W1V F F C C C C I I D D : : M M S S Q Q W W 1 1 V V 2 2 9 9 2 2 1 1 5 5 A A B B G G This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Internal Photos

Report No.: 054L134FI Page : 2 of 10 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 054L134FI Page : 3 of 10 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 054L134FI Page : 4 of 10 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 054L134FI Page : 5 of 10 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 054L134FI Page : 6 of 10 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 054L134FI Page : 7 of 10 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 054L134FI Page : 8 of 10 Version:1.0 (15) EUT Photo (16) EUT Photo Report No.: 054L134FI Page : 9 of 10 Version:1.0 (17) EUT Photo (18) EUT Photo Report No.: 054L134FI Page : 10 of 10 Version:1.0 (19) EUT Photo (19) EUT Photo

Internal Photos

Antenna Antenna

Operational Description

Report No. 054L134FI Page: 6 of 60 Version:1.0 1.2. Operational Description EUT is a Notebook P.C. with 11 channels. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps. The device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b) or eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps. The device of RF carrier is OFDM (IEEE 802.11g). The device adapts direct sequence spread spectrum modulation. The antenna was Connector provides diversity function to improve the receiving function. This Notebook P.C., compliant with IEEE 802.11b and IEEE 802.11g, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the Notebook P.C. Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g network. Mode 1: Transmitter 802.11b Test Mode Mode 2: Transmitter 802.11g

RF Exposure Info

Report No. 054L134FI Page: 1 of 1 Version: 1.0 RF Exposure Evaluation declaration Product Name : Notebook P.C. Model No. : W1V FCC ID MSQW1V2915ABG Applicant : ASUSTeK COMPUTER INC. Address : 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt : Apr. 20, 2005 Date of Declaration: Jun. 08, 2005 Report No. : 054L134FI The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 054L134FI Page: 2 of 2 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78% RH. Report No. 054L134FI Page: 3 of 3 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Notebook P.C. Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is –2.50Bi in linear scale. 802.11b Output Power Into Antenna & RF Exposure Evaluation Distance (-2.50dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 33.4965 0.0037 6 2437.00 33.9625 0.0038 11 2462.00 38.0189 0.0043 802.11g Output Power Into Antenna & RF Exposure Evaluation Distance (-2.50dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 33.4195 0.0037 6 2437.00 35.8096 0.0040 11 2462.00 35.0752 0.0039 The distance r (4 th column) calculated from the Friies transmission formula is far shorter than 20 cm separation requirement. Report No. 054L134FI Page: 4 of 4 Version: 1.0 Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 0.97dBi in linear scale. 802.11a Output Power Into Antenna & RF Exposure Evaluation Distance (0.97dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 5150-5250MHz CH1 5180.00 29.2415 0.0073 5150-5250MHz CH3 5220.00 32.7341 0.0081 5150-5250MHz CH4 5240.00 28.2488 0.0070 5250-5350MHz CH1 5260.00 38.9045 0.0097 5250-5350MHz CH3 5300.00 40.3645 0.0100 5250-5350MHz CH4 5320.00 40.7380 0.0101 5725-5825MHz CH1 5745.00 35.3183 0.0088 5725-5825MHz CH3 5785.00 38.5478 0.0096 5725-5825MHz CH4 5805.00 34.4350 0.0086 The distance r (4 th column) calculated from the Friies transmission formula is far shorter than 20 cm separation requirement. Report No. 054L134FI Page: 5 of 5 Version: 1.0 Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi in linear scale. Bluetooth Module Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 2.5 cm (mW/cm2) 1 2402.00 0.7516 0.0152 6 2441.00 0.6456 0.0130 11 2480.00 0.5610 0.0113 The distance r (4 th column) calculated from the Friies transmission formula is far shorter than 20 cm separation requirement.

Test Report

Report No. 054L134FI Page: 1 of 60 Version:1.0 Test Report Product Name : Notebook P.C. Model No. : W1V FCC ID : MSQW1V2915ABG Applicant : ASUSTeK COMPUTER INC. Address : 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt : Apr. 20, 2005 Issued Date : June 08, 2005 Report No. : 054L134FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 054L134FI Page: 2 of 60 Version:1.0 Test Report Certification Issued Date : June 08, 2005 Report No. : 054L134FI Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : Notebook P.C. Applicant : ASUSTeK COMPUTER INC. Address : 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer : ASUSTeK COMPUTER INC. Model No. : W1V Rated Voltage : AC 120V/60Hz Working Voltage : AC 120V/60Hz Trade Name : ASUS Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2003 ANSI C63.4: 2003 Test Result : Complied Documented By : ( Rita Huang ) Tested By : ( Geddy Jeng ) Approved By : ( Gene Chang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 0914 Report No. 054L134FI Page: 3 of 60 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of tested System .....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................16 3.1. Test Equipment............................................................................................................................16 3.2. Test Setup ....................................................................................................................................16 3.3. Limits ..........................................................................................................................................16 3.4. Uncertainty ..................................................................................................................................16 3.5. Test Result of Peak Power Output...............................................................................................17 4. Radiated Emission .....................................................................................................................19 4.1. Test Equipment............................................................................................................................19 4.2. Test Setup ....................................................................................................................................19 4.3. Limits ..........................................................................................................................................20 4.4. Test Procedure .............................................................................................................................21 4.5. Uncertainty ..................................................................................................................................21 Report No. 054L134FI Page: 4 of 60 Version:1.0 4.6. Test Result of Radiated Emission................................................................................................22 5. Band Edge ..................................................................................................................................34 5.1. Test Equipment............................................................................................................................34 5.2. Test Setup ....................................................................................................................................34 5.3. Limits ............................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: 054L134FI Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 054L134FI Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 054L134FI Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)

Contact Information

Applicant

Jackson Yen(Associate Vice President)
[email protected]+886-2-28943447Fax: +886-2-28987364

Technical Contact

QuieTek CorporationGeorge Chen
[email protected]886-2-8601-3788

No. 5-22, Ruei-Shu Valley,Ruei-Ping Tsuen, · Taipei · Taiwan

Non-Technical Contact

QuieTek CorporationA-Joe Lin
[email protected]886-2-8792-6808

Test Firm

DEKRA Testing and Certification Co., Ltd.Sky Hsu
[email protected]886-2-86013788Fax: 886-2-86013789

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz38.00 mW
Confidentiality
Long Term
Grant Notes
Power output listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
