MSQWI501QASUS ZenWatch

WI501Q/WI502Q E-Manual 2 ASUS ZenWatch E-Manual COPYRIGHT AND WARRANTY INFORMATION No part of this user guide, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer INC. (“ASUS”). Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the is defaced or missing. ASUS PROVIDES THIS User guide “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS User guide OR PRODUCT. Products and corporate names appearing in this user guide may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS User guide ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS User guide, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 2015 ASUSTeK Computer INC. All Rights Reserved. LIMITATION OF LIABILITY Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product. ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement. This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible. UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD- PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY. SERVICE AND SUPPORT Visit our multi-language web site at http://support.asus.com E10346First Edition June 2015 3 ASUS ZenWatch E-Manual Table of Contents About this manual ............................................................................................. 6 Conventions used in this E-Manual ............................................................. 7 Typography .......................................................................................................... 7 Input mode ........................................................................................................... 7 Chapter 1: Parts and features ASUS ZenWatch ................................................................................................ 10 Parts .............................................................................................................10 Features .............................................................................................................11 Chapter 2: Using your ASUS ZenWatch Replacing the strap .......................................................................................... 14 Charging the ASUS ZenWatch ..................................................................... 16 Powering on ....................................................................................................... 18 Powering off ....................................................................................................... 18 Chapter 3: Working with Android Wear Installing Android Wear app on your phone .......................................... 20 Pairing for the first time ................................................................................. 21 Downloading ASUS ZenWatch Manager app on your phone ......... 23 Navigating your ASUS ZenWatch ............................................................... 24 Waking your ZenWatch ................................................................................24 Watch face .........................................................................................................25 Dimming the screen ......................................................................................26 Using voice actions ........................................................................................27 Start apps ............................................................................................................ 29 Inside Start .......................................................................................................30 4 ASUS ZenWatch E-Manual Chapter 4: Featured ASUS ZenWatch phone apps Where to get ASUS ZenWatch apps .......................................................... 32 ZenWatch Manager app ...................................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 June 29, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ASUSTeK Computer Inc, hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (ASUS ZenWatch, WI501Q) FCC ID: MSQWI501Q Sincerely, _____________________ Daniel Lee / Vice President Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Tel: +886 3 318 3232 #1857

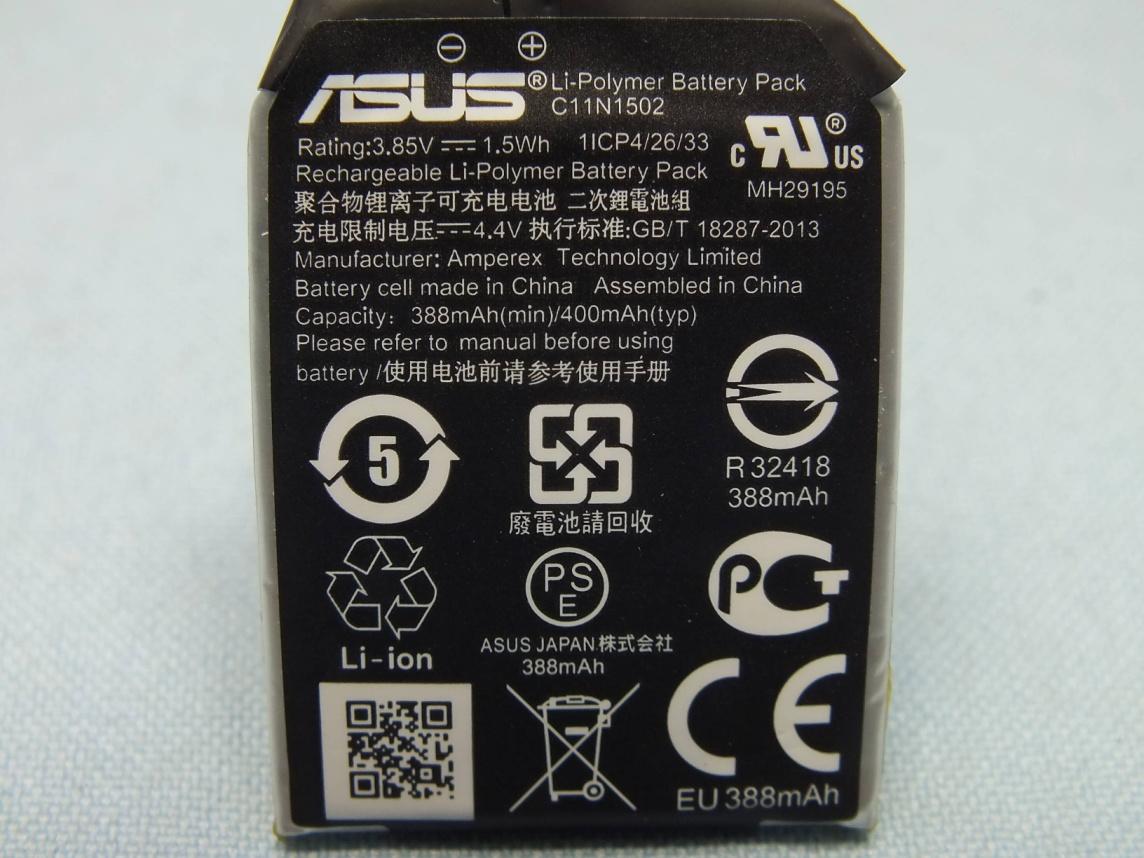

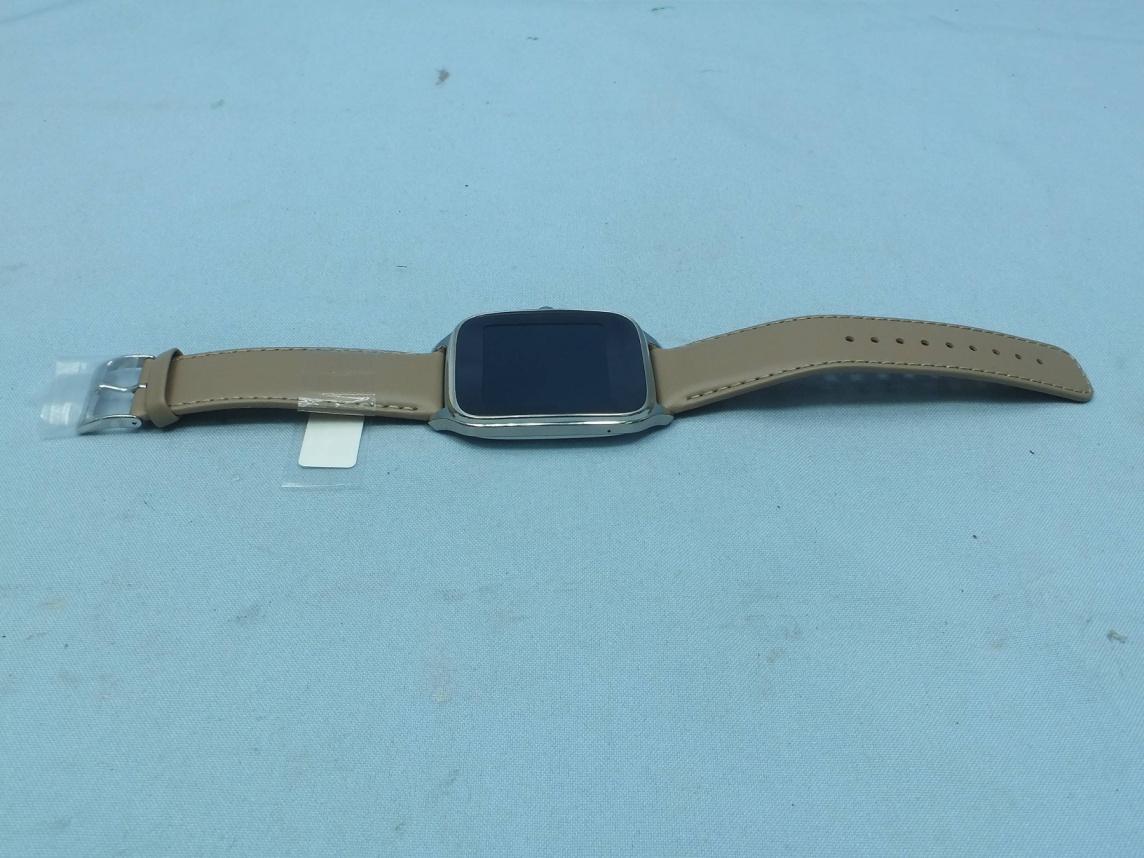

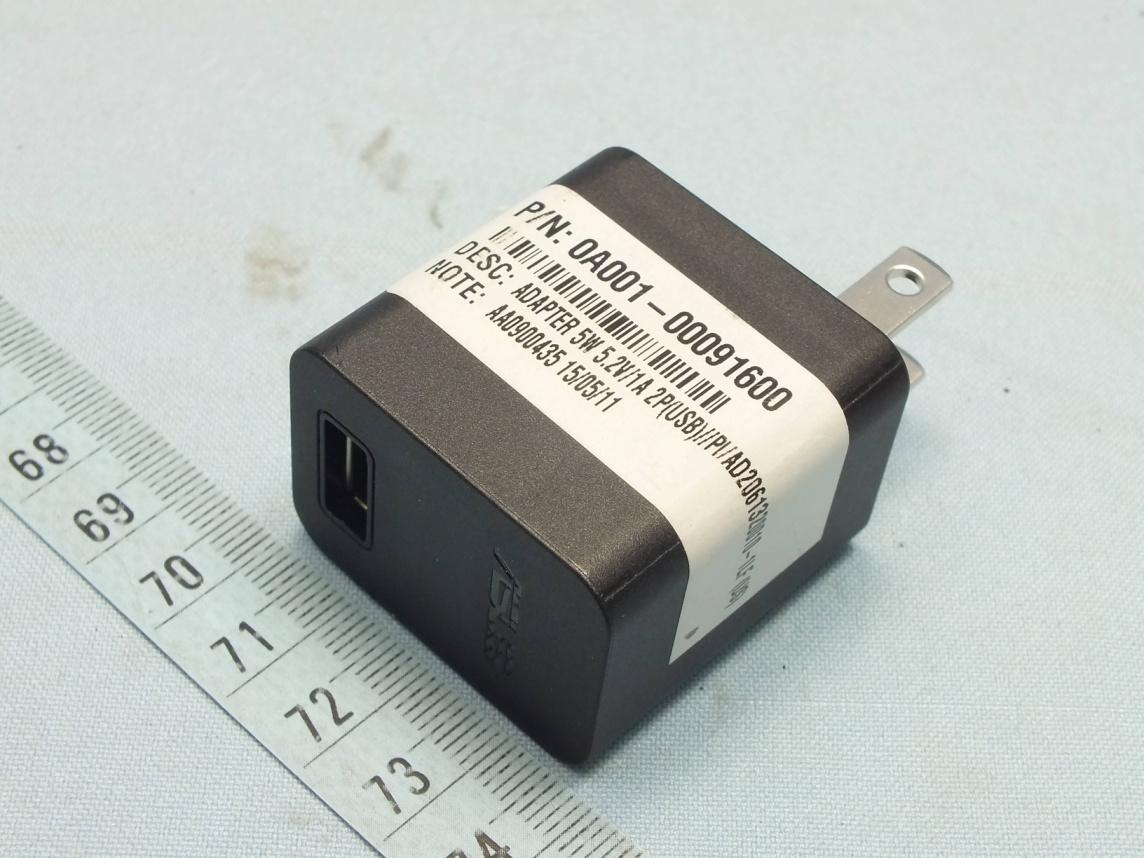

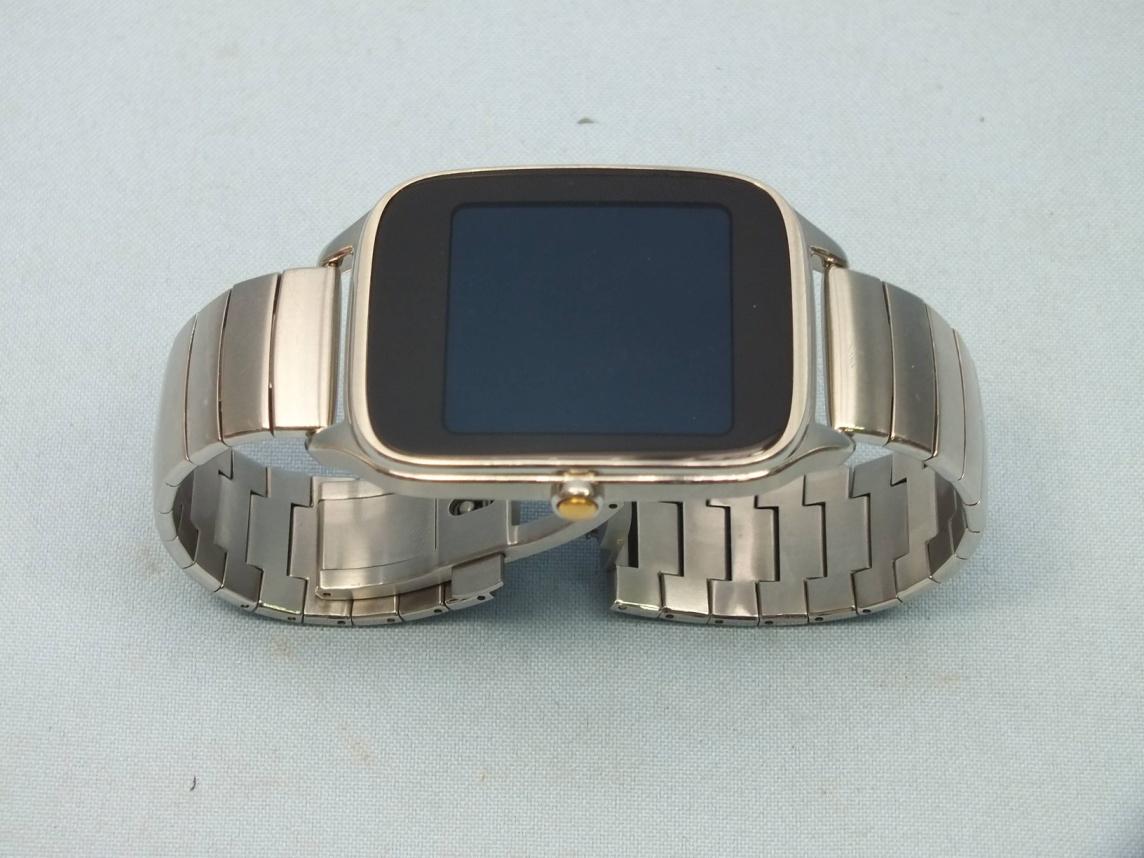

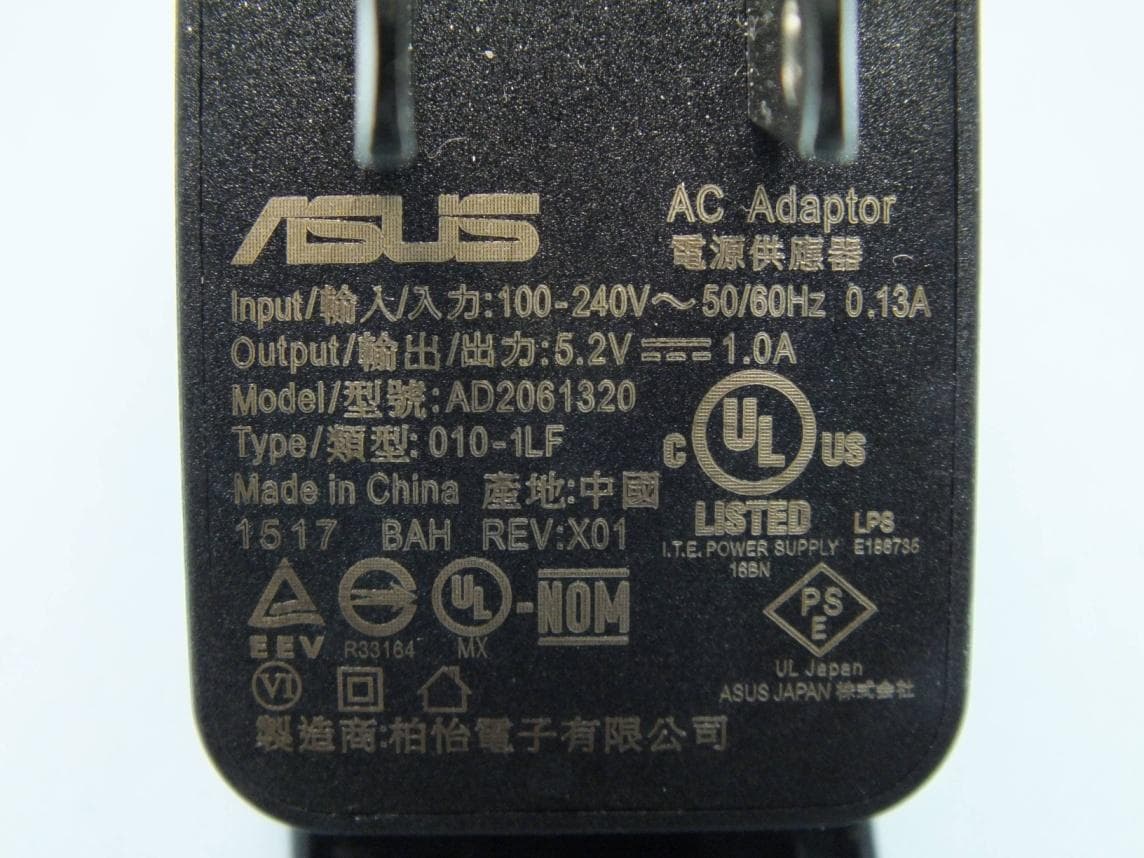

Page 1 CONSTRUCTION PHOTOS OF EUT <Sample A> <Sample B> Page 2 <Sample A> <Sample B> Page 3 Page 4

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 22 Report No. : SA150522C08C Issued Date : Jul. 21, 2015 Reference No.: 150713C21 FCC SAR Test Report Report No. : SA150522C08C Applicant : ASUSTek COMPUTER INC. Address : 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN Product : ASUS ZenWatch FCC ID : MSQWI501Q Brand : ASUS Model No. : WI501Q Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2003 IEEE 1528a-2005 / KDB 865664 D01 v01r03 / KDB 865664 D02 v01r01 KDB 248227 D01 v02r01 / KDB 447498 D01 v05r02 Sample Received Date : May 22, 2015 Date of Testing : Jun. 10, 2015 ~ Jul. 16, 2015 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Ivonne Wu / Supervisor Approved By : Gordon Lin / Assistant Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 22 Report No. : SA150522C08C Issued Date : Jul. 21, 2015 Reference No.: 150713C21 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 14 3.4 SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 Volume Scan Procedure................................................................................................................................... 15 3.4.3 Power Drift Monitoring ...................................................................................................................................... 16 3.4.4 Spatial Peak SAR Evaluation .........................................................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/07/16 System Check_B2450_150716 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 737 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: B19T27N2_0716 Medium parameters used: f = 2450 MHz; σ = 1.977 S/m; ε r = 51.09; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.9 °C DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(6.97, 6.97, 6.97); Calibrated: 2015/06/19; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1485; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 20.3 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 102.4 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 28.1 W/kg SAR(1 g) = 13.1 W/kg; SAR(10 g) = 5.98 W/kg Maximum value of SAR (measured) = 20.5 W/kg

Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/07/16 P01 2.4G WLAN_802.11b_Rear Face_0 cm_Ch6_Sample 2 DUT: 150522C08 Communication System: WLAN_2.4G; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: B19T27N2_0716 Medium parameters used: f = 2437 MHz; σ = 1.963 S/m; ε r = 51.135; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.9 °C DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(6.97, 6.97, 6.97); Calibrated: 2015/06/19; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1485; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) - Area Scan (71x91x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.52 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.43 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 2.65 W/kg SAR(1 g) = 1.04 W/kg; SAR(10 g) = 0.403 W/kg Maximum value of SAR (measured) = 1.53 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/07/16 P02 Bluetooth_Rear Face_0cm_Ch0_Sample2 DUT: 150522C08 Communication System: BT; Frequency: 2402 MHz;Duty Cycle: 1:3.35 Medium: B19T27N2_0716 Medium parameters used: f = 2402 MHz; σ = 1.928 S/m; ε r = 51.267; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.9 °C DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(6.97, 6.97, 6.97); Calibrated: 2015/06/19; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1485; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) - Area Scan (71x91x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.211 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.271 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 0.279 W/kg SAR(1 g) = 0.079 W/kg; SAR(10 g) = 0.028 W/kg Maximum value of SAR (measured) = 0.133 W/kg

Report No.: RF150522C08C-1 1 of 44 Report Format Version 5.1.0 Reference No.: 150713C21 FCC TEST REPORT REPORT NO.: RF150522C08C-1 MODEL NO.: WI501Q FCC ID: MSQWI501Q RECEIVED: May 22, 2015 TESTED: Jun. 04, 2015 ~ Jun. 08, 2015 ISSUED: Jul. 21, 2015 APPLICANT: ASUSTek COMPUTER INC. ADDRESS: 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 333, Taiwan This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150522C08C-1 2 of 44 Report Format Version 5.1.0 Reference No.: 150713C21 TABLE OF CONTENTS RELEASE CONTROL RECORD ..............................................................................................................4 1. CERTIFICATION ..................................................................................................................................5 2. SUMMARY OF TEST RESULTS .........................................................................................................6 2.1 MEASUREMENT UNCERTAINTY...............................................................................................6 3. GENERAL INFORMATION ..................................................................................................................7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................7 3.2 DESCRIPTION OF TEST MODES ..............................................................................................8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .................................9 3.3 DESCRIPTION OF SUPPORT UNITS ...................................................................................... 11 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST .......................................................... 11 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................... 12 4. TEST TYPES AND RESULTS (FOR BLUETOOTH EDR) ............................................................... 13 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................................. 13 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................... 13 4.1.2 TEST INSTRUMENTS ................................................................................................. 14 4.1.3 TEST PROCEDURES ................................................................................................. 15 4.1.4 DEVIATION FROM TEST STANDARD ....................................................................... 15 4.1.5 TEST SETUP ............................................................................................................... 16 4.1.6 EUT OPERATING CONDITIONS ................................................................................ 16 4.1.7 TEST RESULTS........................................................................................................... 17 4.2 CONDUCTED EMISSION MEASUREMENT ........................................................................... 21 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................... 21 4.2.2 TEST INSTRUMENTS ................................................................................................. 21 4.2.3 TEST PROCEDURES ................................................................................................. 22 4.2.4 DEVIATION FROM TEST STANDARD ....................................................................... 22 4.2.5 TEST SETUP ............................................................................................................... 23 4.2.6 EUT OPERATING CONDITIONS ................................................................................ 23 4.2.7 TEST RESULTS........................................................................................................... 24 4.3 NUMBER OF HOPPING FREQUENCY USED ........................................................................ 26 4.3.1 LIMIT OF HOPPING FREQUENCY USED ................................................................. 26 4.3.2 TEST SETUP ............................................................................................................... 26 4.3.3 TEST INSTRUMENTS ................................................................................................. 26 4.3.4 TEST PROCEDURE .............................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (Mode A) 2 CONDUCTED EMISSION TEST (Mode B) 3 RADIATED EMISSION TEST (For WLAN 2.4GHz) (Mode A) (Below 1GHz) 4 RADIATED EMISSION TEST (For WLAN 2.4GHz) (Mode A) (Above 1GHz) 5 RADIATED EMISSION TEST (For WLAN 2.4GHz) (Mode B) (Below 1GHz) 6 RADIATED EMISSION TEST (For WLAN 2.4GHz) (Mode B) (Above 1GHz) 7 RADIATED EMISSION TEST (For Bluetooth 3.0) (Below 1GHz) 8 RADIATED EMISSION TEST (For Bluetooth 3.0) (Above 1GHz) 9 RADIATED EMISSION TEST (For Bluetooth LE) (Below 1GHz) 10 RADIATED EMISSION TEST (For Bluetooth LE) (Above 1GHz)

FCC SAR Test Report Report Format Version 5.0.0 Report No. : SA150522C08C Reference No.: 150713C21 <Photographs of EUT> <Photographs of SAR Setup> Rear Face of EUT with 0 cm Gap Rear Face of EUT with 0 cm Gap EUT 1 EUT 2 EUT 2 EUT 1 FCC SAR Test Report Report Format Version 5.0.0 Report No. : SA150522C08C Reference No.: 150713C21 <Antenna Location> Antenna To Top Side (mm) To Bottom Side (mm) To Left Side (mm) To Right Side (mm) WLAN / BT 6 6 2.6 35.1 Bottom Side Top Side Left Side Right Side <EUT Rear View> WLAN / BT Antenna
