MSQWIFI-TVWireless LAN Adapter & TV/FM Radio Tuner Card

WiFi-TV IEEE 802.11a/b/g Wireless LAN Adapter and Digital/Analog TV/FM Radio Tuner PCI Card User guide iiii iiii ii E2042E2042 E2042E2042 E2042 First Edition V1First Edition V1 First Edition V1First Edition V1 First Edition V1 April 2005April 2005 April 2005April 2005 April 2005 Copyright © 2005 ASUSTeK COMPUTER INC. All Rights Reserved.Copyright © 2005 ASUSTeK COMPUTER INC. All Rights Reserved. Copyright © 2005 ASUSTeK COMPUTER INC. All Rights Reserved.Copyright © 2005 ASUSTeK COMPUTER INC. All Rights Reserved. Copyright © 2005 ASUSTeK COMPUTER INC. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. iiiiii iiiiii iii Contents Notices.................................................................................................v Safety information .............................................................................. vi About this guide ................................................................................ vii WiFi-TV specifications summary ......................................................... ix Chapter 1:Chapter 1: Chapter 1:Chapter 1: Chapter 1: Product introductionProduct introduction Product introductionProduct introduction Product introduction 1.1 Welcome!.............................................................................. 1-2 1.2 Package contents ................................................................. 1-2 1.3 Special features.................................................................... 1-3 1.3.1 Wireless LAN features ............................................ 1-3 1.3.2 TV features ............................................................ 1-4 1.4 Card layout ........................................................................... 1-5 1.5 LED indicator ........................................................................ 1-5 Chapter 2:Chapter 2: Chapter 2:Chapter 2: Chapter 2: InstallationInstallation InstallationInstallation Installation 2.1 Card installation.................................................................... 2-2 2.1.1 System requirements ............................................. 2-2 2.1.2 Installing the card ................................................... 2-2 2.2 Connecting devices and accessories .................................... 2-3 2.2.1 Digital cable TV and FM radio ................................. 2-3 2.2.2 Analog cable TV ..................................................... 2-3 2.2.2 Television, VCR, or camcorder................................ 2-3 2.2.3 Wi-Fi antenna.......................................................... 2-4 2.3 Driver installation ................................................................. 2-6 2.3.1 Running the support CD ......................................... 2-6 2.3.2 Drivers menu .......................................................... 2-6 2.3.3 Manual menu........................................................... 2-7 2.3.4 ASUS contact information ...................................... 2-7 2.3.5 Wi-Fi driver and utilities installation........................ 2-8 Chapter 3:Chapter 3: Chapter 3:Chapter 3: Chapter 3: Wi-Fi featuresWi-Fi features Wi-Fi featuresWi-Fi features Wi-Fi features 3.1 Recommended network setup.............................................. 3-2 3.1.1 Ad-hoc mode .......................................................... 3-2 3.1.2 Infrastructure mode................................................ 3-2 3.1.3 Software Access Point (Soft AP) ........................... 3-3 3.1.4 Wireless bridge (Wireless Distribution System) ..... 3-4 3.2 Using the One Touch wizard................................................. 3-5 3.2.1 Launching the setup wizard ................................... 3-5 3.2.2 Creating your own wireless LAN (One Touch)........ 3-5 3.2.3 Connecting to an access point ............................... 3-8 3.2.4 Connecting to another wireless device .................. 3-9 3.2.5 Customizing your setup........................................3-11 iviv iviv iv Contents 3.3 Other software support......................................................3-14 3.3.1 Control Center ......................................................3-14 3.3.2 Wireless Settings .......................…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A TDA8275AMultimediaSiliconTuner TDA10046HTDVB-T ChannelReceiver SAA7131EIF, Decoderand PCI FM RadioCircuit FiltersPASwitches 802.11a/b/gWireless 88W8030Intergrated RFTransceiver 88W8335IntergratedMAC/BasebandLow Power SoC WIFI SolutionTV Solution PCI BusPCI BusAnalog Audio S-Video/Audio TVDVB-T/FM Radio A3 218 Tuesday, March 29, 2005 ASUS COMPUTER INC. Block Diagram 1.01 PCI WIFI-TV Mizar Chang WIFI-TV 101/3V Size Project Name Rev Date: Sheet of Title : Engineer:

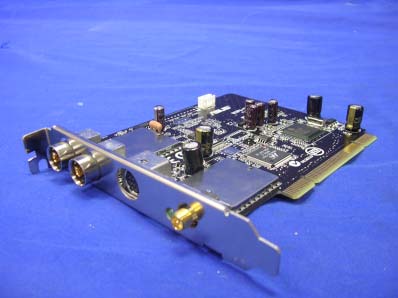

Report No.: 054L081FI Page : 1 of 4 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

ASUSTek COMPUTER INC. FCC ID.: MSQWIFI-TV 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel: +886 2 2894-3447 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wireless LAN Adaapter and Digital / Analog TV / FM Radio Tuner PCI Card ATIO Model No.: WIFI-TV Wireless LAN Adaapter and Digital / Analog TV / FM Radio Tuner PCI Card Model No.: WIFI-TV F F C C C C I I D D : : M M S S Q Q W W I I F F I I - - T T V V This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

ASUSTek COMPUTER INC. FCC ID.: MSQWIFI-TV 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel: +886 2 2894-3447 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wireless LAN Adaapter and Digital / Analog TV / FM Radio Tuner PCI Card ATIO Model No.: WIFI-TV Wireless LAN Adaapter and Digital / Analog TV / FM Radio Tuner PCI Card Model No.: WIFI-TV F F C C C C I I D D : : M M S S Q Q W W I I F F I I - - T T V V This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No.: 054L081FI Page : 3 of 4 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 054L081FI Page : 4 of 4 Version:1.0 (7) EUT Photo (8) EUT Photo

Report No. 054L081FI Page: 6 of 70 Version:1.0 1.2. Operational Description EUT is a Wireless LAN Adapter and Digital / Analog TV / FM Radio and Tuner PCI Card with 12 channels. This device provided eight kind of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mps for normal mode. The device adapts direct sequence spread spectrum modulation. The Connector antenna was provides diversity function to improve the receiving function. This Wireless LAN Adapter and Digital / Analog TV / FM Radio and Tuner PCI Card is an IEEE 802.11a Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. In addition, its standard compliance ensures that it can communicate with any 802.11a network. Test Mode: Mode 1: Transmitter 802.11a

Report No. 054L081FI Page: 1 of 4 Version: 1.0 RF Exposure Evaluation declaration Product Name : Wireless LAN Adaapter and Digital / Analog TV / FM Radio Tuner PCI Card Model No. : WIFI-TV FCC ID MSQWIFI-TV Applicant : ASUSTeK COMPUTER INC. Address : 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt : Apr. 11, 2005 Date of Declaration: Apr. 18, 2005 Report No. : 054L081FI The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 054L081FI Page: 2 of 4 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18and 78 RH. Report No. 054L081FI Page: 3 of 4 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Wireless LAN Adaapter and Digital / Analog TV / FM Radio Tuner PCI Card Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.3dBi in linear scale. 802.11b Output Power Into Antenna & RF Exposure Evaluation Distance (2.28dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 37.2392 0.0125 6 2437.00 24.6604 0.0083 11 2462.00 23.5505 0.0079 802.11g Output Power Into Antenna & RF Exposure Evaluation Distance (2.28dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 51.4044 0.0173 6 2437.00 53.7032 0.0181 11 2462.00 61.2350 0.0206 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement. Report No. 054L081FI Page: 4 of 4 Version: 1.0 Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.54dBi in linear scale. 802.11a Output Power Into Antenna & RF Exposure Evaluation Distance (2.37dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 5150-5250MHz CH1 5180.00 12.1339 0.0042 5150-5250MHz CH3 5220.00 14.2233 0.0049 5150-5250MHz CH4 5240.00 17.2187 0.0059 5250-5350MHz CH1 5260.00 17.2187 0.0059 5250-5350MHz CH3 5300.00 19.0985 0.0066 5250-5350MHz CH4 5320.00 19.6336 0.0067 5725-5825MHz CH1 5745.00 3.7325 0.0013 5725-5825MHz CH3 5785.00 3.4198 0.0012 5725-5825MHz CH4 5805.00 2.0512 0.0007 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 054L081FI Page: 1 of 70 Version:1.0 Test Report Product Name : Wireless LAN Adapter and Digital / Analog TV / FM Radio and Tuner PCI Card Model No : WIFI-TV FCC ID : MSQWIFI-TV Applicant : ASUSTeK COMPUTER INC. Address : 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt : Apr. 11, 2005 Issued Date : Apr. 18, 2005 Report No. : 054L081FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 054L081FI Page: 2 of 70 Version:1.0 Test Report Certification Issued Date: Apr. 18, 2005 Report No. : 054L081FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name :Wireless LAN Adapter and Digital / Analog TV / FM Radio and Tuner PCI Card Applicant :ASUSTeK COMPUTER INC. Address :4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer :ASUSTeK COMPUTER INC. Model No. :WIFI-TV FCC ID. :MSQWIFI-TV Rated Voltage :AC 120V/60Hz Working Voltage :DC 5V (Power by PC) Trade Name :ASUS Applicable Standard : FCC Part 15.407 Subpart E ANSI C63.4: 2001 Test Result :Complied Documented By : ( Anita Chou ) Tested By : ( Tim Sung ) Approved By : ( Gene Chang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200347-0 0914 Report No. 054L081FI Page: 3 of 70 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of tested System .....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Transmit Power ................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Limits ..........................................................................................................................................14 3.5. Uncertainty ..................................................................................................................................14 3.6. Test Result of Peak Transmit Power............................................................................................15 4. Peak Power Spectral Density....................................................................................................24 4.1. Test Equipment............................................................................................................................24 4.2. Test Setup ....................................................................................................................................24 4.3. Limits ..........................................................................................................................................24 4.4. Uncertainty.................................................................................................................................24 4.5. Test Result of Peak Power Spectral Density ...............................................................................25 5. Peak Excursion ..........................................................................................................................30 5.1. Test Equipment............................................................................................................................30 5.2. Test Setup ............................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 054L081FI Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 054L081FI Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 054L081FI Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
