MSQWIFIGWireless Fidelity Card

User Guide ® WiFi-g™ 54Mbps PCI AP/WLAN Adapter (WL-130g) ii Checklist Copyright © 2004 ASUSTeK COMPUTER INC. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. E1549 First Edition V1 April 2004 iii Features Contents Notices ............................................................................................ v Safety statements ........................................................................... vi About this guide ............................................................................ viii ASUS contact information .............................................................. ix WiFi-g™ specifications summary .................................................... x Chapter 1: Product introduction 1.1Welcome! ........................................................................... 1-2 1.2Package contents ............................................................... 1-2 1.3Features ............................................................................. 1-3 1.4Card layout ......................................................................... 1-4 1.5Recommended network setup ............................................ 1-5 1.5.1Ad-hoc mode ......................................................... 1-5 1.5.2Infrastructure mode ................................................ 1-5 1.5.3Soft Access Point (Soft AP) ................................... 1-6 1.5.4Wireless bridge (Wireless Distribution System) ..... 1-7 Chapter 2: Installation 2.1Card installation .................................................................. 2-2 2.1.1System requirements ............................................. 2-2 2.1.2Installing the card ................................................... 2-2 2.1.3Placing the antenna ............................................... 2-3 2.1.4Operating range ..................................................... 2-3 2.2Driver and utilities installation ............................................. 2-4 Chapter 3: Home and office setup 3.1Setting the card in your home ............................................ 3-2 3.2One Touch wizard ............................................................... 3-2 3.2.1Launching the One Touch wizard ........................... 3-2 3.2.2Creating your own wireless LAN ............................ 3-3 3.2.3Connecting to an access point ............................... 3-6 3.2.4Connecting to another wireless device .................. 3-8 3.3Setting the card in your office ........................................... 3-10 iv Safeguards Contents Chapter 4: Software support 4.1Support CD information ...................................................... 4-2 4.2Control Center .................................................................... 4-3 4.2.1Control Center icons .............................................. 4-3 4.2.2Right-click menu .................................................... 4-4 4.2.3Left-click menu ....................................................... 4-4 4.3Wireless Settings ................................................................ 4-4 4.4Mobile Manager .................................................................. 4-5 4.5Site Monitor ........................................................................ 4-6 4.6Other menu options ............................................................ 4-7 4.6.1Activate Configuration ............................................ 4-7 4.6.2Help Menu ............................................................. 4-7 4.6.3Preferences ........................................................... 4-7 4.6.4About Control Center ............................................. 4-7 Appendix Wireless LAN channels ............................................................... A-2 v Notices Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: •This device may not cause harmful interference, and •This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Fede…

Text truncated - open the document above for the full version.

RT2560 MAC/BB RT2525 Transceiver AP1091 PA SW Balun PCI Interface Ant Block Diagram of WL-130 g SAW EEP ROM 40M Hz OS C Reg. 3.3 to 2.9 Reg. 2.9 to 2.7 Reg. 3.3 to 1.8 BPF RX IQ RX TX TX IQ

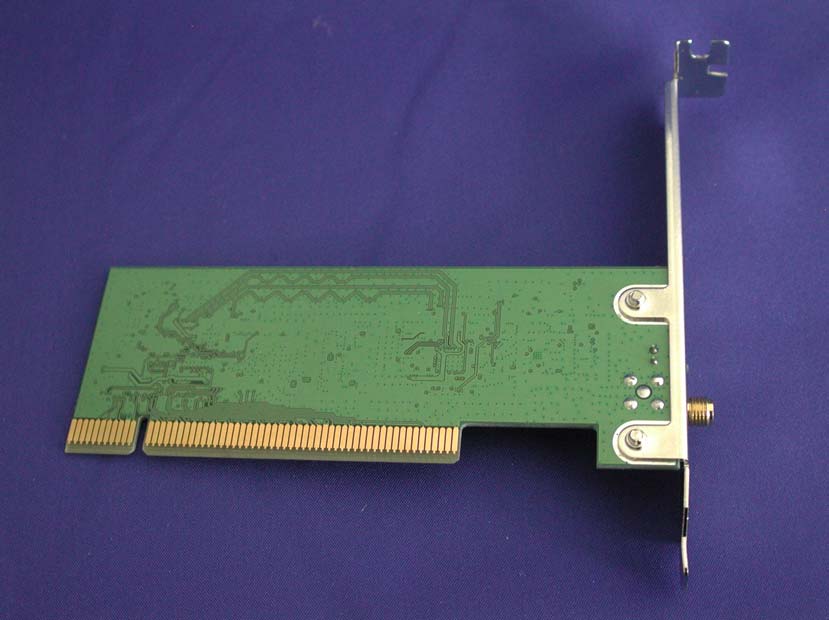

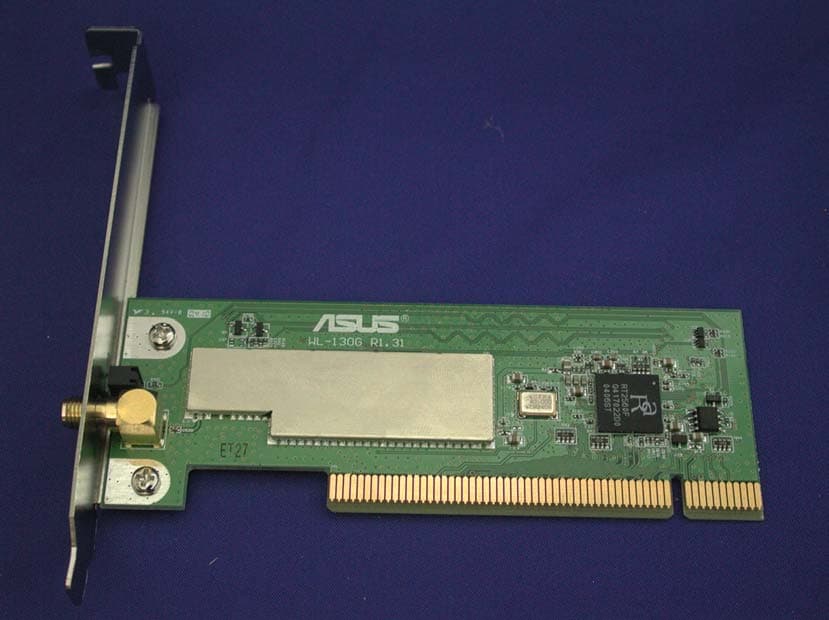

Report No.: 044L002FI Page : 1 of 7 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

ASUSTek COMPUTER INC. FCC ID.: MSQWIFIG 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel: +886 2 2894-3447 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wireless Fidelity Card ASUS Model No.: WL-130g, TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Wireless Fidelity Card Model No.: WL-130g, F F C C C C I I D D : : M M S S Q Q W W I I F F I I G G This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

ASUSTek COMPUTER INC. FCC ID.: MSQWIFIG 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel: +886 2 2894-3447 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wireless Fidelity Card ASUS Model No.: WL-130g, TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Wireless Fidelity Card Model No.: WL-130g, F F C C C C I I D D : : M M S S Q Q W W I I F F I I G G This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No.: 044L002FI Page : 2 of 7 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 044L002FI Page : 3 of 7 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 044L002FI Page : 4 of 7 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 044L002FI Page : 5 of 7 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 044L002FI Page : 6 of 7 Version:1.0 (11) EUT Photo (12) EUT Photo

Report No. 044L002FI Page: 6 of 64 Version:1.0 1.2. Operational Description EUT is a Wireless Fidelity Card with 11 channels. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps. The device of RF carrier is DQPSK, DB PSK and CCK (IEEE 802.11b) or eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps. The device of RF carrier is OFDM (IEEE 802.11g). The device adapts direct sequence spread spectrum modulation. The antenna was Connector provides diversity function to improve the receiving function. This Wireless Fidelity Card, compliant with IEEE 802.11b and IEEE 802.11g, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the Wireless Fidelity Card Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g network. Test Mode: Mode 1: Transmitter 11Mbps CABAN ANT Mode 1: Transmitter 54Mbps CABAN ANT Mode 2: Transmitter 11Mbps GINCHO ANT Mode 2: Transmitter 54Mbps GINCHO ANT Mode 1: CABNA ANT Manufacturer is INPAQ Technology Mode 2: GINCHO ANT Manufacturer is Golden Bridge Electech Inc.

Report No. 044L002FI Page: 1 of 4 Version: 1.0 RF Exposure Evaluation declaration Product Name : Wireless Fidelity Card Model No. : WL-130g FCC ID MSQWIFIG Applicant : ASUSTeK COMPUTER INC. Address : 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt : Mar. 26, 2004 Date of Declaration: Apr. 13, 2004 Report No. : 044L002FI The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 044L002FI Page: 2 of 4 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 044L002FI Page: 3 of 4 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Wireless Fidelity Card Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.45dBi in linear scale. 802.11b Output Power Into Antenna & RF Exposure Evaluation Distance (INPAQ: 2.45dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2409.10 79.4328 0.0278 6 2434.20 98.6279 0.0345 11 2459.20 101.6249 0.0355 802.11g Output Power Into Antenna & RF Exposure Evaluation Distance (INPAQ: 2.45dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2409.40 55.4626 0.0194 6 2434.50 71.9449 0.0252 11 2459.60 75.5092 0.0264 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement. Report No. 044L002FI Page: 4 of 4 Version: 1.0 Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.94dBi in linear scale. 802.11b Output Power Into Antenna & RF Exposure Evaluation Distance (Golden: 2.94dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2409.10 79.4328 0.0311 6 2434.20 98.6279 0.0386 11 2459.20 101.6249 0.0398 802.11g Output Power Into Antenna & RF Exposure Evaluation Distance (Golden: 2.94dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2409.40 55.4626 0.0217 6 2434.50 71.9449 0.0282 11 2459.60 75.5092 0.0296 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 044L002FI Page: 1 of 64 Version:1.0 Test Report Product Name : Wireless Fidelity Card Model No. : WL-130g FCC ID : MSQWIFIG Applicant : ASUSTeK COMPUTER INC. Address : 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt : Mar. 26, 2004 Date of Test : Apr. 13, 2004 Report No. : 044L002FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 044L002FI Page: 2 of 64 Version:1.0 Test Report Certification Test Date : Apr. 13, 2004 Report No. : 044L002FI Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : Wireless Fidelity Card Applicant : ASUSTeK COMPUTER INC. Address : 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer : ASUSTeK COMPUTER INC. Model No. : WL-130g Rated Voltage : AC 120V/60Hz Trade Name : ASUS Measurement Standard : FCC CFR Title 47 Part 15 Subpart C: 2003 Measurement Procedure : ANSI C63.4: 2001 Test Result : Complied Documented By : ( Demi Chang ) Tested By : ( Geddy Jeng ) Approved By : ( Gene Chang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 044L002FI Page: 3 of 64 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of tested System .....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................36 3.1. Test Equipment............................................................................................................................36 3.2. Test Setup ....................................................................................................................................36 3.3. Limits ..........................................................................................................................................36 3.4. Uncertainty ..................................................................................................................................36 3.5. Test Result of Peak Power Output...............................................................................................37 4. Radiated Emission .....................................................................................................................39 4.1. Test Equipment............................................................................................................................39 4.2. Test Setup ....................................................................................................................................39 4.3. Limits ..........................................................................................................................................40 4.4. Test Procedure .............................................................................................................................41 4.5. Uncertainty ..................................................................................................................................41 4.6. Test Result of Radiated Emission................................................................................................42 5. Band Edge ..................................................................................................................................66 5.1. Test Equipment............................................................................................................................66 5.2. Test Setup ....................................................................................................................................66 5.3. Limits ..................................................................................…

Text truncated - open the document above for the full version.

Report No.: 044L002FI Page : 1 of 6 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test (Mode 1) Back View of Conducted Test (Mode 1) Report No.: 044L002FI Page : 2 of 6 Version:1.0 Front View of Conducted Test (Mode 2) Back View of Conducted Test (Mode 2) Report No.: 044L002FI Page : 3 of 6 Version:1.0 Front View of Radiated Test (Mode 1) Back View of Radiated Test (Mode 1) Report No.: 044L002FI Page : 4 of 6 Version:1.0 Front View of Radiated Test (Mode 2) Back View of Radiated Test (Mode 2) Report No.: 044L002FI Page : 5 of 6 Version:1.0 Front View of Radiated Test (Horn) (Mode 1) Back View of Radiated Test (Horn) (Mode 1) Report No.: 044L002FI Page : 6 of 6 Version:1.0 Front View of Radiated Test (Horn) (Mode 1) Back View of Radiated Test (Horn) (Mode 1)
