MSQWL103BWIRELESS LAN PC CARD

Wireless Local Area Network Card WL-103b (For 802.11b Wireless Networks) ® User’s Manual 2ASUS WLAN Card No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 2003 ASUSTeK COMPUTER INC. All Rights Reserved. Copyright Information Product Name:ASUS WLAN Card (WL-103b) Manual Revision:1 Release Date:May 2003 ASUS WLAN Card3 Copyright Information ASUSTeK COMPUTER INC. (Asia-Pacific) Address:150 Li-Te Road, Peitou, Taipei, Taiwan 112 General Tel:+886-2-2894-3447 General Fax:+886-2-2894-3449 General Email: [email protected] Technical Support MB/Others (Tel): +886-2-2890-7121 (English) Notebook (Tel): +886-2-2890-7122 (English) Desktop/Server: +886-2-2890-7123 (English) Support Fax:+886-2-2890-7698 Support Email: [email protected] Web Site:www.asus.com.tw ASUS COMPUTER INTERNATIONAL (America) Address:44370 Nobel Drive, Fremont, CA 94538, USA General Fax:+1-510-608-4555 General Email: [email protected] Technical Support Support Fax:+1-510-608-4555 General Support:+1-510-739-3777 Web Site:www.asus.com Support Email: [email protected] ASUS COMPUTER GmbH (Germany & Austria) Address:Harkortstr. 25, 40880 Ratingen, BRD, Germany General Email: [email protected] (for marketing requests only) Marketing Fax: +49-2102-9599-31 Technical Support Support Hotline: Components: +49-2102-9599-0 Support Hotline: Notebook PC:+49-2102-9599-11 Support (Email): www.asuscom.de/kontakt (for online support) Web Site:www.asuscom.de Support Fax:+49-2102-9599-11 4ASUS WLAN Card Table of Contents 1. Introduction ............................................................................. 7 Overview .............................................................................................. 7 The ASUS Wireless LAN Family ..................................................... 8 System Requirements ........................................................................ 10 The Product Package ......................................................................... 10 Installation .......................................................................................... 11 ASUS WLAN Utility Quick Start .......................................................... 15 Reading the ASUS WLAN Status Indicators ................................. 16 3. Software Reference .............................................................. 17 Chapter Overview ............................................................................... 17 Windows XP Wireless Options ..................................................... 18 Control Center Utility .......................................................................... 19 Site Monitor Utility ......................................................................... 22 Wireless Settings Utility ...................................................................... 24 Status - Status Tab ....................................................................... 25 Status - Connection Tab ............................................................... 29 Status - IP Config Tab ................................................................... 30 Config - Basic Tab ......................................................................... 31 Config - Encryption Tab ................................................................ 33 Survey - Site Survey Tab .............................................................. 36 About - Version Info Tab ............................................................... 37 Link State ...................................................................................... 38 Exit Wireless Settings ................................................................... 38 Mobile Manager Utility ........................................................................ 39 New Configuration Wizard ............................................................ 43 Edit Configuration ......................................................................... 44 ASUS WLAN Card5 Table of Contents 5. Glossary ................................................................................. 48 4. Troubleshooting .................................................................... 58 6. Safety Information ..........................................................…

Text truncated - open the document above for the full version.

Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Sub.: Confidentiality Request regarding application for certification of FCC ID: MSQWL103B Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: l Schematics l Part List l Block diagram l Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

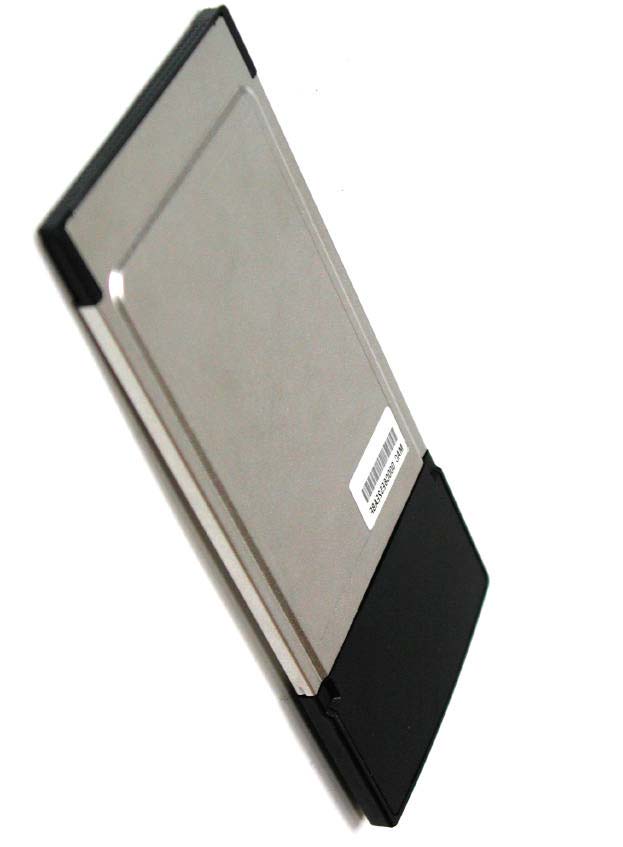

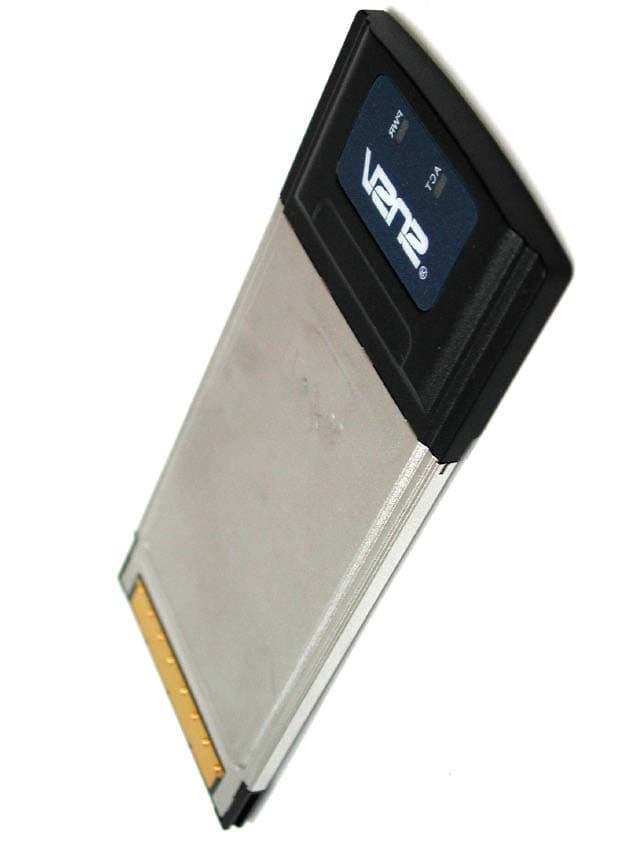

External Photos of Wireless LAN PC Card1/2 FCC ID: MSQWL103B Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Wireless LAN PC Card2/2 FCC ID: MSQWL103B Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Position:

Internal Photos of Wireless LAN PC Card1/4 FCC ID: MSQWL103B Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless LAN PC Card2/4 FCC ID: MSQWL103B Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless LAN PC Card3/4 FCC ID: MSQWL103B Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless LAN PC Card4/4 FCC ID: MSQWL103B Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Training Research Co., Ltd. No. 255, Nan-yang Street, Shijr City, Taipei Hsien 221, Taiwan Tel: 886-2-26935155 Fax: 886-2-26934440 e-mail: [email protected] 1 of 2 TRCSince1985 ® Measurement of MPE 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT Granted FCC ID : MSQWL103B Product name : Wireless LAN PC Card Model name : WL-103b Classification : Mobile Device (i) Under normal use condition, the antenna is at least 2.5cm away from the user; (ii) Warning statement for keeping 20cm separation distance and the prohibition of operating next to the person has been printed in the user’s manual Frequency Range : 2.412 GHz ~ 2.462GHz Supported Channel : 11 Channel Modulation Skill : DBPSK, DQPSK, CCK, OFDM Power Type : Powered by Computer Training Research Co., Ltd. No. 255, Nan- yang Street, Shijr City, Taipei Hsien 221, Taiwan Tel: 886-2-26935155 Fax: 886-2-26934440 e-mail: [email protected] 2 of 2 TRCSince1985 ® 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, Equation for Predicting RF Fields: Friis Transmission Formula: 2 22 /257.0 )5.2(4 675.1051.12 4 cmmW R PG S= × == ππ Estimated safe separation: cm PG R267.1 4 675.1051.12 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 1.267 cm." Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 ( dB antenna gain / 10 ) G = Log -1 (2.24 / 10) = 1.675

Test Report -------------------------------------------------------------------------------1/40 Report No.: A5415700, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of Wireless LAN PC Card Applicant:ASUSTek Computer Inc. EUT:Wireless LAN PC Card Model No.:WL-103b FCC ID:MSQWL103B Report No.:A5415700 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report -------------------------------------------------------------------------------2/40 Report No.: A5415700, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (1992) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart B (Declaration of Conformity) and C Section 15.247. Applicant:ASUSTek Computer Inc. Applicant address:4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Product Name:Wireless LAN PC Card Model Name:WL-103b FCC ID:MSQWL103B Report No.:A5415700 Test Date:May 13, 2003 Prepared by:Approved by: Jack TsaiFrank Tsai Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. NVLAP LAB CODE: 200174-0 Test Report -------------------------------------------------------------------------------3/40 Report No.: A5415700, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Federal Communications Commission Declaration of Conformity (DoC) For the Following Equipment: Product name:Wireless LAN PC Card Model name: WL-103b Trade name:ASUS Is herewith confirmed and found to comply with the requirements of CFR 47 part15 Subpart B - Unintentional Radiators regulation. The results of electromagnetic mission evaluation are shown in the report number : A5415700 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation ManufacturerUSA local representative Company name: ASUSTeK Computer Inc.To be determined Computer address: 4/F, 150, Li-Te Rd., Peitou, Taipei, Taiwan ZIP / Postal code 112 Contact person: Lawrence Yu Title: R & D Engineer Internet e-mail address: [email protected] Tel / Fax: 886-2-28943447 / 886-2-28950113 Test Report -------------------------------------------------------------------------------4/40 Report No.: A5415700, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I.GENERAL......................................................................................................................... 6 1.1 Introduction.................................................................................................................. 6 1.2 Description of EUT ....................................................................................................... 6 1.3 Test method .................................................................................................................. 6 1.4 Description of Support Equipment ................................................................................. 7 1.5 Configuration of System Under Test .............................................................................. 9 1.6 Verify the Frequency and Channel ................................................................................ 11 1.7 Test Procedure............................................................................................................ 12 1.8 Location of the Test Site ............................................................................................... 12 1.9 General Test Condition ................................................................................................. 12 II. Section 15.101(a) : Equipment Authorization of Unintentional Radiators....................... 13 III. Section 15.203 : Antenna Requirement............................................................................. 14 IV. Section 15.207 : Power Line Conducted Emissions for AC Powered Units................... 15 4.1 Test Condition & Setup................................................................................................ 15 4.2 List of Test Instruments ................................................................................................ 15 4.3 Test Result of Conducted Emissions ............................................................................. 16 Channel 01................................................................................................................... 16 Channel 06................................................................................................................... 17 Channel 11 ................................................................................................................... 18 Standby........................................................................................................................ 19 V.Section 15.247(a) : Technical Description of the EUT..................................................... 20 Test Report --------------------------------------------…

Text truncated - open the document above for the full version.

Test Setup Photos ------------------------------------------------------------------------ 1/3 FCC ID: MSQWL103B Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: Front View of the Test Configuration Side View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------ 2/3 FCC ID: MSQWL103B Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Unintentional) Front View of the Test Configuration of Unintentional Rear View of the Test Configuration of Unintentional Test Setup Photos ------------------------------------------------------------------------ 3/3 FCC ID: MSQWL103B Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Intentional) Front View of the Test Configuration of Intentional Rear View of the Test Configuration of Intentional
