MSQWL120GWIRELESS LAN MINI-PCI CARD

ASUSTeK Computer Inc

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Nov 23, 2003
Application Purpose: Original Equipment
Date of Application: Nov 23, 2003
Equipment Note: WIRELESS LAN MINI-PCI CARD
Frequency Range: 2412.00000000 - 2462.00000000
Company: ASUSTeK Computer Inc
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Wireless Local Area Network Card WL-120g (For 802.11g and 802.11b Wireless Networks) ® User’s Manual 2ASUS WLAN Card No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 2003 ASUSTeK COMPUTER INC. All Rights Reserved. Copyright Information Product Name:ASUS WLAN Card (WL-120g) Manual Revision:1 Release Date:October 2003 ASUS WLAN Card3 Copyright Information ASUSTeK COMPUTER INC. (Asia-Pacific) Address:150 Li-Te Road, Peitou, Taipei, Taiwan 112 General Tel:+886-2-2894-3447 General Fax:+886-2-2894-3449 Web Site:www.asus.com.tw Technical Support MB/Others (Tel):+886-2-2890-7121 (English) Notebook (Tel):+886-2-2890-7122 (English) Desktop/Server (Tel): +886-2-2890-7123 (English) Support Fax:+886-2-2890-7698 ASUS COMPUTER INTERNATIONAL (America) Address:44370 Nobel Drive, Fremont, CA 94538, USA General Fax:+1-502-933-8713 General Email:[email protected] Web Site:usa.asus.com Technical Support Support Fax:+1-502-933-8713 General Support:+1-502-995-0883 Notebook Support:+1-510-739-3777 x5110 Support Email:[email protected] ASUS COMPUTER GmbH (Germany and Austria) Address:Harkortstr. 25, 40880 Ratingen, BRD, Germany General Email:[email protected] (for marketing requests only) General Fax:+49-2102-9599-31 Web Site:www.asuscom.de Technical Support Components:+49-2102-9599-0 Notebook PC:+49-2102-9599-10 Support Fax:+49-2102-9599-11 Support Email:www.asuscom.de/support (for online support) ASUSTeK COMPUTER (Middle East and North Africa) Address:P.O. Box 64133, Dubai, U.A.E. General Tel:+9714-283-1774 General Fax:+9714-283-1775 Web Site:www.ASUSarabia.com 4ASUS WLAN Card Table of Contents 1. Introduction ............................................................................. 7 Overview .............................................................................................. 7 The ASUS Wireless LAN Family ..................................................... 8 The ASUS WLAN™ Family .................................................................. 8 System Requirements ........................................................................ 10 The Product Package ......................................................................... 10 2. Installation ............................................................................. 11 Installing the ASUS WLAN Card Driver .............................................. 11 Verifying Drivers ............................................................................ 12 Installing the ASUS WLAN Card Utilities ............................................ 13 ASUS WLAN Utility Quick Start .......................................................... 15 Reading the ASUS WLAN Status Indicators ................................. 17 Orientating the Antenna ................................................................ 18 3. Software Reference .............................................................. 19 Chapter Overview ............................................................................... 19 Windows XP Wireless Options ..................................................... 20 Control Center Utility .......................................................................... 21 Site Monitor Utility ......................................................................... 24 Wireless Settings Utility ...................................................................... 26 Status - Status Tab ....................................................................... 27 Status - Connection Tab ............................................................... 31 Status - IP Config Tab ................................................................... 32 Config - Basic Tab ......................................................................... 33 Config - Encryption Tab ................................................................ 35 Survey - Site Survey Tab .............................................................. 38 About - Version Info Tab ............................................................... 39 Link State ...................................................................................... 40 ASUS WLAN Card5 Table of Contents Exit Wireless Settings .......................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Sub.: Confidentiality Request regarding application for certification of FCC ID: MSQWL120G Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: l Schematics l Part List l Block diagram l Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

Cover Letter(s)

ASUSTeK COMPUTER INC. Tel : +886-2-28943447 Fax : +886-2-28950114 www.asus.com October 17, 2003 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Limited Modular Approval for FCC ID: MSQWL120G, As Per FCC Public Notice DA 00-1407 To whom it may concern, ASUSTek Computer Inc. 2.4G Wireless Mini-PCI Card, FCC ID: MSQWL120G, would like to have your authorization as a modular approval specific to the mobile device. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. The modular transmitter must have its own RF shielding The radio portion of this module has been shielded, please see exhibition (Photographs of EUT). 2. The modular transmitter must have buffered modulation/data inputs The EUT has buffered data inputs, it is integrated in chip BCM4306 3. The modular transmitter must have its own power supply regulation The chips if converter and RF/IF converter which will influence the frequency radiation, have to be 1.8VDC power. The mini-PCI interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is AEM8816CEHAADJ 4. The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c) The EUT meets the FCC antenna requirements, the spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. The modular transmitter must be tested in a stand-alone configuration The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see exhibition (Test Set–up Photos), the EUT was plugged in this extender. 6. The modular transmitter must be labeled with its own FCC ID number Please see exhibition (Label Sample), and also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements The EUT is compliant with all applicable FCC rules, detail instructions for maintaining compliance are given in the Users Manual 8. The modular transmitter must comply with any applicable RF exposure requirements The EUT is compliant with all applicable RF exposure requirements. RF exposure is addressed in the MPE exhibition. Best regards, Lawrence Yu, Manager ASUSTeK COMPUTER INC.

External Photos

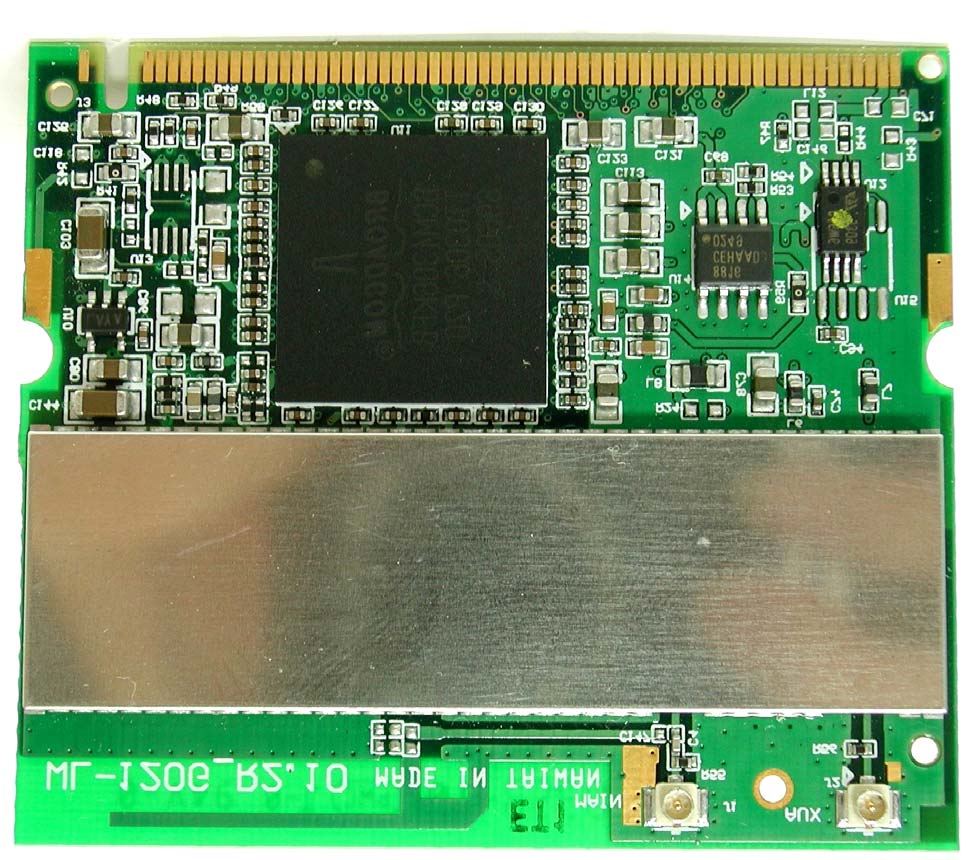

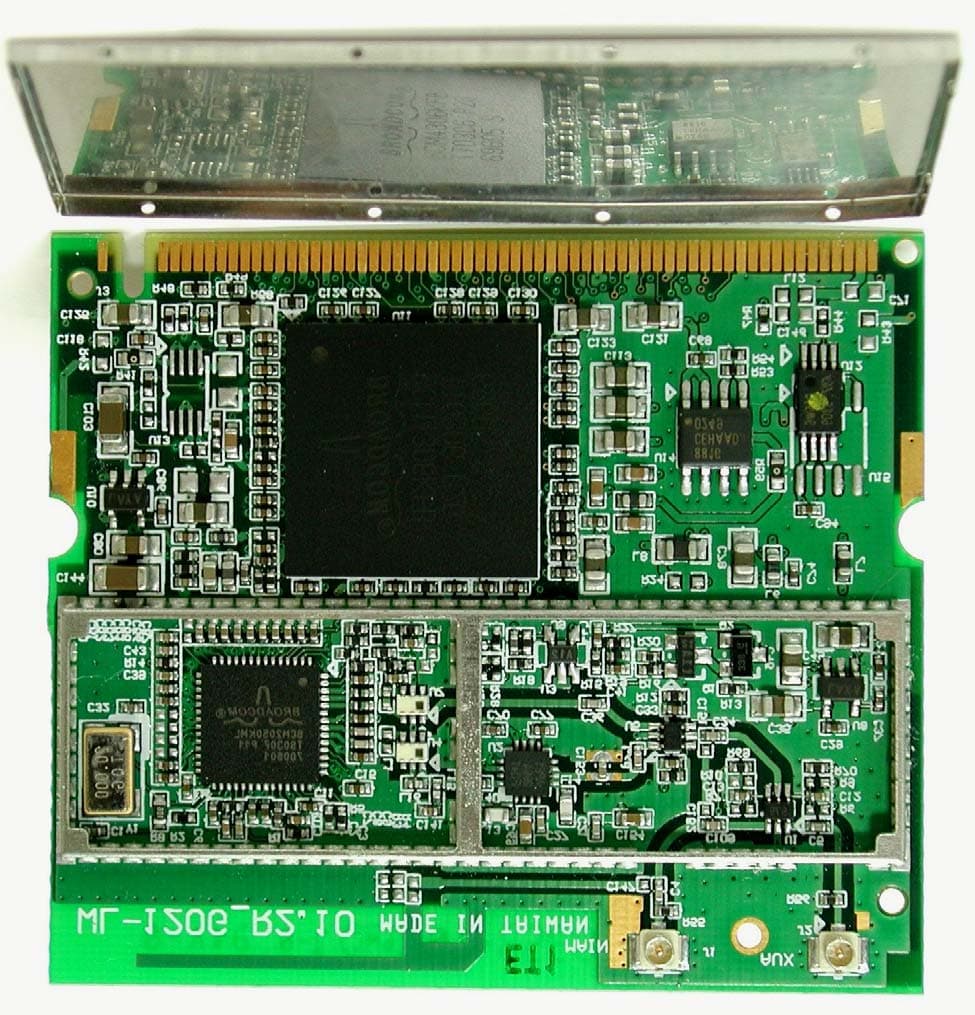

Front View of Wireless Local Area Network Mini PCI Card －－－－－－－ 1/7 FCC ID: MSQWL120G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Front View of Wireless Local Area Network Mini PCI Card －－－－－－－ 2/7 FCC ID: MSQWL120G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Rear View of Wireless Local Area Network Mini PCI Card －－－－－－－ 3/7 FCC ID: MSQWL120G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 L5C antenna of Wireless Local Area Network Mini PCI Card －－－－－－ 4/7 FCC ID: MSQWL120G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 M6N antenna of Wireless Local Area Network Mini PCI Card －－－－－－ 5/7 FCC ID: MSQWL120G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 A2H antenna of Wireless Local Area Network Mini PCI Card －－－－－－ 6/7 FCC ID: MSQWL120G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 S5 antenna of Wireless Local Area Network Mini PCI Card －－－－－－－ 7/7 FCC ID: MSQWL120G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

ID Label/Location Info

LABEL Position:

ID Label/Location Info

Label Drawing 1.) Label Material: #50 SILVER POLYESTER 2.) Glue Material: PET MAT POLYPROPYLENE 3.) Label Color: SILVER 4.) Font Color: BLACK 5.) Diameter of certification mark: 3mm X 3mm 35mm Mini-PCI 802.11b+g (14 Channel) Model: WL-120g FCC ID:MSQWL120G MADE IN TAIWAN 30mm

Internal Photos

RF Exposure Info

Measurement of Maximum Permissible Exposure 1/2 FCC ID: MSQWL120G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Measurement of Maximum Permissible Exposure 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. TheGain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formulaand the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT Granted FCC ID:MSQWL120G Product name:Wireless LANMini- P C I Card Model name:WL-120g Classification:Mobile Device (i) Under normal use condition, the antenna is at least 20cm away from the user; (ii) Warning statement for keeping 20cm separation distance and the prohibition of operating next to the person has been printed in the user’ s manual Frequency Range:2.412 GHz ~ 2.462GHz Supported Channel :11 Channel Modulation Skill:DBPSK, DQPSK, CCK, OFDM Power Type:Powered by Mini- PCI interface of client’ s device Measurement of Maximum Permissible Exposure 2/2 FCC ID: MSQWL120G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.06141.631006 3.0-301842/f4.89/f900/f 2 6 30-30061.40.1631.06 300-1500----f/3006 1500-100,000----56 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.346141.6310030 1.34-30824/f2.19/f180/f 2 30 30-30027.50.0730.230 300-1500----f/150030 1500-100,000----1.030 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999,Equation for Predicting RF Fields: Friis Transmission Formula: 2 22 /053.0 )20(4 995.1968.133 4 cmmW R PG S= × == ππ Estimated safe separation:cm PG R612.4 4 995.1968.133 4 = × == ππ Remarks:"The safe estimated separation that the user must maintain from the antenna is at least 4.612cm." Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) TheNumeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 (dBantenna gain / 10 ) G = Log -1 (3 / 10) = 1.995 XhyvUrpuyt8hv Qhtr s#G$8W Ey!" " Q876IU@II6 DTH76I9Trvr !#BC7hqXxvtArrp 8r6)SAQ86$"%% DA676 8r7)SAQ86$"%#$DA676! 8r )6TVTUrF8rDp HqyrIhr)IrixfG$8 6hyI) # $! % ! G$XG6I6IU@II6fG7G68F # $! % ! G$XG6I6IU@II6fSBS6` Dr9hr )Ey %!" 8r6hy) X6GTDIUrpuyt8 6uvrq7) XhyvUrpuyt8hv Qhtr!s#G$8W Ey!" S@WDTDPICDTUPS` S@W 9hr9rpvv8CF 6QW9 9hr %Ey XhyvQIpuhtrhppqvtphiyrqvrv EFrv %Ey XhyvUrpuyt8hv Qhtr"s#G$8W Ey!" @G@8USD86G8C6S68U@SDTUD8T DrTrpvsvphv Arrp Shtr !# !#'"$ BC Qrhx Bhv "q7v 6rhtr Bhv $ q7v WTXS !$ h Qyhvhv Gvrh Drqhpr $ X !#% &') +),./.123! & H6U@SD6GU67G@ 568:<=8>?@BCEB6>G:H8BJ8<LBMN6M@> PRSSTUVRWXYZ[\]]^_`YbbbcYbd eghi TWjT il jUWR URmnjmoURSSTUVRW p oqrsTWVjUmo PmtoT g jVmUujvwb_xyz{}~d]nbP zuT i jsT RSPuT l jUmo i PRW p x^^^ XSq i VWjmozuT i jsT m p T Ir)Cvhpuvphiyrvryhprhiyri6YPIChThuvyrCvhpuvvusy 8P9DIBSVG@ ¡¢£ ¤¥¦ § ̈© ¢£ ¤ « ¦¤¤¬ ̈ ® ̄° ') ±3, ±3² , ±³ ́% ́μ & ́& 2¶·¶ 1 ́2¶!!μ ®·¶!! ³ ́% + ́ & ́& ¹¶ 1 ́¹¶! º º± » ¼ ¼ ½ ½½3» ° °! ½ ½ , ³&¾¿¼Àº.½+ ² ¿.½Â¶¶Ã·Ä¶¶ + 1 ³&¾Ã2&³Ã2&Ä¿¼À Å+ ² ² Æ » .°3 ¶·ÇÂÂ !+ XhyvUrpuyt8hv Qhtr#s#G$8W Ey!" 9DH@ITDPIT 8r6 8r7 — x01 Aug 27, 03 — x02 Oct 24, 03 2.45/5GHz M6N Multi Band Antenna with Cable & Connector for IEEE802.11b, 11g, 11a, UNII M6N Antenna (14.1”&15”) Left Part NO: CAN4313 342 012501B Right Part NO: CAN4313 342 022501B — 3 BY / Cliff/Howard SUPER / TLL.SH/ 9 PAGE/ 1 SH nr. — 4 CHECK DATE / Oct. 24, 2003 — 5 ` 2.45/5GHz M6N Multi Band Antenna with Cable & Connector for IEEE802.11b, 11g, 11a & UNII Product specification: Version x02 Oct 24, 2003 — x01 Aug 27, 03 — x02 Oct 24, 03 2.45/5GHz M6N Multi Band Antenna with Cable & Connector for IEEE802.11b, 11g, 11a, UNII M6N Antenna (14.1”&15”) Left Part NO: CAN4313 342 012501B Right Part NO: CAN4313 342 022501B — 3 BY / Cliff/Howard SUPER / TLL.SH/ 9 PAGE/ 2 SH nr. — 4 CHECK DATE / Oct. 24, 2003 — 5 ` M6N Multi Band Antenna FO…

Text truncated - open the document above for the full version.

Test Report

Test Report -------------------------------------------------------------------------------1/78 Report No.: A5415482, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of Wireless LAN Mini-PCI Card Applicant:ASUSTek Computer Inc. EUT:Wireless LAN Mini-PCICard Model No.:WL-120g FCC ID:MSQWL120G Report No.:A5415482 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report -------------------------------------------------------------------------------2/78 Report No.: A5415482, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (1992) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart B (Declaration of Conformity) and C Section 15.247. Applicant:ASUSTek Computer Inc. Applicant address:4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Product Name:Wireless Local Area NetworkCard Model Name:WL-120G FCC ID:MSQWL120G Report No.:A5415482 Test Date:October 9, 2003 Prepared by:Approved by: Jack TsaiFrank Tsai Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. NVLAP LAB CODE: 200174-0 Test Report -------------------------------------------------------------------------------3/78 Report No.: A5415482, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I.GENERAL...................................................................................................................... 5 1.1Introduction.............................................................................................................. 5 1.2Description of EUT ................................................................................................... 5 1.3Test method ............................................................................................................. 5 1.4Description of Support Equipment ............................................................................. 6 1.5Configuration of System Under Test.......................................................................... 8 1.6Verify the Frequency and Channel ............................................................................ 10 1.7Test Procedure........................................................................................................ 11 1.8Location of the Test Site .......................................................................................... 11 1.9General Test Condition ............................................................................................ 11 II.Section 15.203 : Antenna Requirement.......................................................................... 12 III.Section 15.207 : Power Line Conducted Emissions for AC Powered Units................ 13 3.1Test Condition & Setup........................................................................................... 13 3.2List of Test Instruments ............................................................................................ 13 3.3Test Result of Conducted Emissions ......................................................................... 14 Antenna model L5C ................................................................................................. 14 Antenna model M6N ................................................................................................ 18 Antenna model S5 .................................................................................................... 21 IV.Section 15.247(a) : Technical Description of the EUT................................................... 25 V.Section 15.247(a)(2) : Bandwidth for Direct Sequence System................................... 26 6.1Test Condition & Setup ........................................................................................... 26 6.2Test Instruments Configuration ................................................................................. 26 6.3List of Test Instruments ............................................................................................ 26 6.4Test Result of Bandwidth ......................................................................................... 27 Channel 01 ................................................................................................................ 28 Channel 06 ................................................................................................................ 29 Channel 11................................................................................................................ 30 Test Report -------------------------------------------------------------------------------4/78 Report No.: A5415482, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 VI.Section 15.247(b) : Power Output .................................................................................. 31 6.1Test Condition & Setup........................................................................................... 31 6.2List of Test Instruments ............................................................................................ 31 6.3Test Result.…

Text truncated - open the document above for the full version.

Test Setup Photos

Test Setup Photos ------------------------------------------------------------------------ 1/6 FCC ID: MSQWL120G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: (L5C antenna) Front View of the Test Configuration Side View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------ 2/6 FCC ID: MSQWL120G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: (M6N antenna) Front View of the Test Configuration Side View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------ 3/6 FCC ID: MSQWL120G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: (S5 antenna) Front View of the Test Configuration Side View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------ 4/6 FCC ID: MSQWL120G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (L5C antenna) Front View of the Test Configuration of Intentional Rear View of the Test Configuration of Intentional Test Setup Photos ------------------------------------------------------------------------ 5/6 FCC ID: MSQWL120G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (M6N antenna) Front View of the Test Configuration of Intentional Rear View of the Test Configuration of Intentional Test Setup Photos ------------------------------------------------------------------------ 6/6 FCC ID: MSQWL120G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (S5 antenna) Front View of the Test Configuration of Intentional Rear View of the Test Configuration of Intentional
