MSQWL138GWIRELESS LAN PCI CARD

® User’s Manual Wireless Local Area Network Card WL-138g (For 802.11g and 802.11b Wireless Networks) 2ASUS WLAN Card No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 2003 ASUSTeK COMPUTER INC. All Rights Reserved. Copyright Information Product Name:ASUS WLAN Card (WL-138g) Manual Revision:1 E1498 Release Date:December 2003 ASUS WLAN Card3 Copyright Information ASUSTeK COMPUTER INC. (Asia-Pacific) Address150 Li-Te Road, Peitou, Taipei, Taiwan 112 Telephone+886-2-2894-3447 Web sitewww.asus.com.tw Technical Support Telephone (MB/Component) +886-2-2890-7121 (English) (Notebook)+886-2-2890-7122 (English) (Server/PC)+886-2-2890-7123 (English) (Networking)+886-2-2890-7902 (English) Support fax+886-2-2890-7698 ASUS COMPUTER INTERNATIONAL (America) Address44370 Nobel Drive, Fremont, CA 94538, USA Fax+1-510-608-4555 [email protected] Web siteusa.asus.com Technical Support Telephone (General)+1-502-995-0883 (Notebook)+1-510-739-3777 Support fax+1-502-933-8713 Support [email protected] ASUS COMPUTER GmbH (Germany and Austria) AddressHarkort Str. 25, D-40880 Ratingen, Germany Telephone+49-2102-95990 Fax+49-2102-959911 Online contactwww.asuscom.de/sales Technical Support Telephone+49-2102-95990 Fax+49-2102-959911 Online supportwww.asuscom.de/support Web sitewww.asuscom.de/news ASUS COMPUTER (Middle East and North Africa) AddressP.O. Box 64133, Dubai, U.A.E. Telephone+9714-283-1774 Fax+9714-283-1775 Web sitewww.ASUSarabia.com 4ASUS WLAN Card Table of Contents 1. Introduction ............................................................................. 7 Overview .............................................................................................. 7 The ASUS Wireless LAN Family ..................................................... 8 The ASUS WLAN™ Family .................................................................. 8 System Requirements ........................................................................ 10 The Product Package ......................................................................... 10 2. Installation ............................................................................. 11 Installing the ASUS WLAN Card Driver .............................................. 11 Verifying Drivers ............................................................................ 12 Installing the ASUS WLAN Card Utilities ............................................ 13 ASUS WLAN Utility Quick Start .......................................................... 15 Reading the ASUS WLAN Status Indicators ................................. 16 Orientating the Antenna ................................................................ 16 3. Software Reference .............................................................. 17 Chapter Overview ............................................................................... 17 Windows XP Wireless Options ..................................................... 18 Control Center Utility .......................................................................... 19 Site Monitor Utility ......................................................................... 22 Wireless Settings Utility ...................................................................... 24 Status - Status Tab ....................................................................... 25 Status - Connection Tab ............................................................... 29 Status - IP Config Tab ................................................................... 30 Config - Basic Tab ......................................................................... 31 Config - Encryption Tab ................................................................ 33 Survey - Site Survey Tab .............................................................. 36 About - Version Info Tab ............................................................... 37 Link State ...................................................................................... 38 Exit Wireless Settings ................................................................... 38 Mobile Manager Utility ........................................................................ 39 New Configuration Wizard ...........…

Text truncated - open the document above for the full version.

Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Sub.: Confidentiality Request regarding application for certification of FCC ID: MSQWL138G Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: l Schematics l Part List l Block diagram l Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

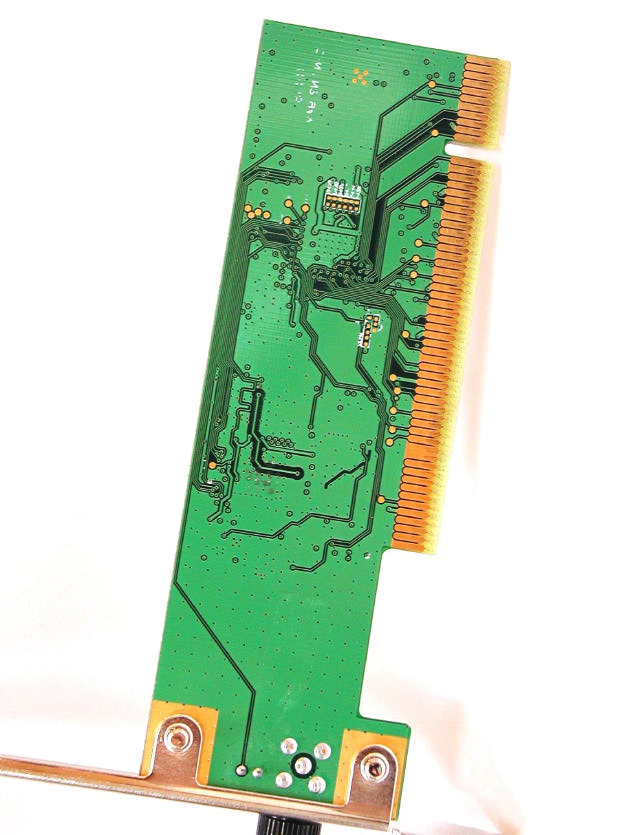

External Photos of Wireless LAN PCI Card 1/3 FCC ID: MSQWL138G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Wireless LAN PCI Card 2/3 FCC ID: MSQWL138G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Wireless LAN PCI Card 3/3 FCC ID: MSQWL138G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Position:

WL-138g PCI Card

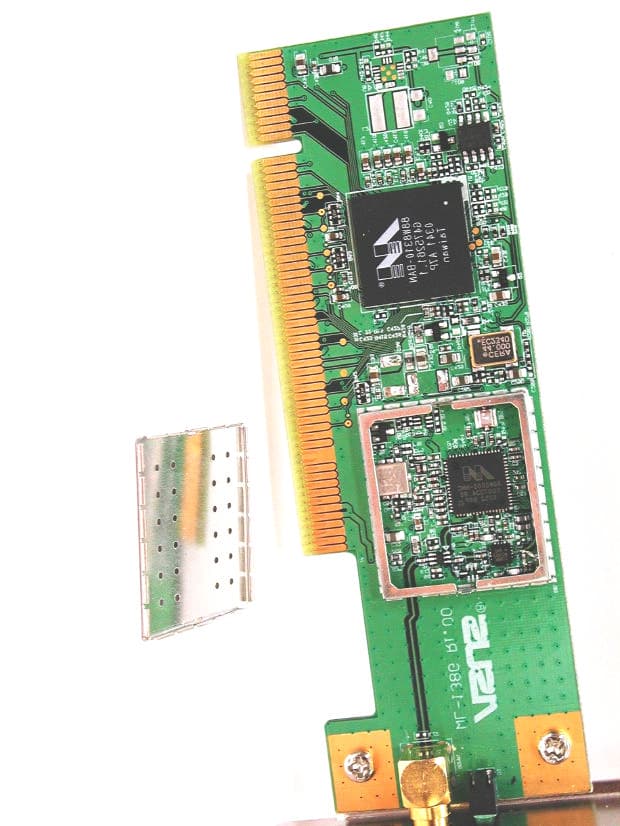

External Photos of Wireless LAN PCI Card 1/3 FCC ID: MSQWL138G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Wireless LAN PCI Card 2/3 FCC ID: MSQWL138G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Wireless LAN PCI Card 3/3 FCC ID: MSQWL138G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Measurement of Maximum Permissible Exposure 1/2 FCC ID: MSQWL138G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Measurement of Maximum Permissible Exposure 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT FCC ID : MSQWL138G Product name : Wireless LAN PCI Card Model name : WL-138G Classification : Mobile Device (i) Under normal use condition, the antenna is at least 20cm away from the user; (ii) Warning statement for keeping 20cm separation distance and the prohibition of operating next to the person has been printed in the user’s manual Frequency Range : 2.412 GHz ~ 2.462GHz Supported Channel : 11 Channels Modulation Skill : DBPSK, DQPSK, CCK, OFDM Power Type : Powered by PCI of client’s device Measurement of Maximum Permissible Exposure 2/2 FCC ID: MSQWL138G Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, Equation for Predicting RF Fields: Friis Transmission Formula: 2 22 /0115.0 )20(4 552.1239.37 4 cmmW R PG S= × == ππ Estimated safe separation: cm PG R145.2 4 552.1239.37 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 2.145 cm." Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 ( dB antenna gain / 10 ) G = Log -1 (1.91 / 10) = 1.552 ೨্ࣴޟוҴԍ॒ϝѐ ೨্ࣴޟוҴԍ॒ϝѐ೨্ࣴޟוҴԍ॒ϝѐ ೨্ࣴޟוҴԍ॒ϝѐ ADVANCED-CONNECTEK INC. ܄ ܄܄ ᇘ܄ ᇘᇘ ᇘਓ ਓਓ ਓ SPECIFICATION FOR APPROVAL ຝ ຝຝ ຝϝ ϝϝ ϝѐ ѐѐ ѐ CUSTOMER CUSTOMERCUSTOMER CUSTOMER ౙࠋӓᅷ ౙࠋӓᅷౙࠋӓᅷ ౙࠋӓᅷ DESCRIPTION DESCRIPTIONDESCRIPTION DESCRIPTION 2.4GHz Dipole Antenna SMA 90-180 Deg Male RP ࠳Ёਈဝ ࠳Ёਈဝ࠳Ёਈဝ ࠳Ёਈဝ CUSTOMER P/N CUSTOMER P/NCUSTOMER P/N CUSTOMER P/N ೨্ਈဝ ೨্ਈဝ೨্ਈဝ ೨্ਈဝ ACON P/N ACON P/NACON P/N ACON P/N ADA06 ADA06ADA06 ADA06- -- -2K20000 2K200002K20000 2K20000 ೴߇ያᇘ ೴߇ያᇘ೴߇ያᇘ ೴߇ያᇘ DESINGER DESINGERDESINGER DESINGER ηส ηสηส ηส ᐉᄣ ᐉᄣᐉᄣ ߜࠋ ᐉᄣ ߜࠋߜࠋ ߜࠋ ᔗଃЉන ᔗଃЉනᔗଃЉන ᔗଃЉන SENDIN SENDINSENDIN SENDING DATE G DATEG DATE G DATE ਘঈጊဝ ਘঈጊဝਘঈጊဝ ਘঈጊဝ APPROVAL NO. APPROVAL NO.APPROVAL NO. APPROVAL NO. DESCRIPTION Κ ΚΚ Κ Omni - directional antenna which is useful for 802.11b/g ΰ ISM band α , Ex Κ Wireless LAN . SPECIFICATION Κ Part Number Κ ADA06-1K10000 Appearance & Dimensions Κ 108(L) × 10.5(R) mm Weight Κ ” 20 g Operation Frequency Κ 2.4~2.4835 GHz Impedance Κ 50 Ohms Polarization Κ Vertical Antenna Gain Κ 1.91 dBi (Max.) Antenna SWR Κ ” 2 Κ 1 Connector Type Κ SMA Male RP SMA-90 ± -180 ± Duan 91-01-22Duan 91-01-22Duan 91-01-22 1 1 1 : 1 ពֱࣔ 91-01-22 ADA06-1K10000 0 ± 10 ± 20 ± 30 ± 40 ± 50 ± 60 ± 80 ± 90 ± 70 ± 100 ± 110 ± 120 ± 130 ± 140 ± 150 ± 160 ± 170 ± 180 ± 190 ± 200 ± 210 ± 220 ± 230 ± 240 ± 250 ± 260 ± 270 ± 280 ± 290 ± 300 ± 310 ± 320 ± 330 ± 340 ± 350 ± -10dBi 0dBi MEASUREMENT SOFTWARE DESIGNER: ACON 10dBi ˴ͧࡩϋФڶӬࠋ௿ࣤ Pattern Type : H - PlaneFrequency : 2450 MHzGain : 2 .75 dBi( 244 ± ) Operator : TOMDate : 2002/4/30Time : AM 22 :04:48 Note : SMA-90- 2 80 male-fem al 0 ± 10 ± 20 ± 30 ± 40 ± 50 ± 60 ± 80 ± 90 ± 70 ± 100 ± 110 ± 120 ± 130 ± 140 ± 150 ± 160 ± 170 ± 180 ± 190 ± 200 ± 210 ± 220 ± 230 ± 240 ± 250 ± 260 ± 270 ± 280 ± 290 ± 300 ± 310 ± 320 ± 330 ± 340 ± 350 ± -10dBi 0dBi MEASUREMENT SOFTWARE DESIGNER: ACON 10dBi ˴ͧࡩϋФڶӬࠋ௿ࣤ Pattern Type : E - Pl an Frequency : 2450 MHzGain : 2 . : 2 dBi( 2 67 ± ) Operator : TOMDate : 2002/4/ 41 Time : PM 05: 2 9: 2 5 Note : SMA 90- 2 80 !nbmf!SQ Material : ؀֏ፋׇ෮ᅪ-ԭԲ෮-૖Ԭ෮!)BCT*Ⴟᓄศढࢤნ᜔। TAIRILAC ABS resin consolidated property data sheet ؾႈ Property ۯ໢ Unit ᇢ᧭ֱऄ Test Method ᇢ᧭යٙ Test Condition AG˄5A˄ ݼ്ൎ৫ Tensile Strength kg/cm 2 ( MPa) ASTM D-638 ( ISO527) 23к 5˄0 (50) ᦛڴൎ৫ Flexural Strength kg/cm 2 ( MPa) ASTM D-790 ( ISO˄78) 23к 850 (84) ᦛڴᑓᑇ Flexural Modulus kg/cm 2 ( MPa) ASTM D-790 ( ISO˄78) 23к 27000 (2650) ੖ڤ࿏৫ Rockwell Hardness R-Scale ASTM D-785 ( ISO2039/2 ) 23кR-˄˄0 Izodᓢᚰൎ৫ Izod Impact Strength kg-cm/cm ( Jm ) ASTM D-256 ( ISO R˄80 ) 23к ˄/4'' দ 20 (˄96) ᓡּຌ֏រ Vicat Softening Temperature к ASTM D-˄525 (ISO 306) ˄Kg load˄04 ᑷ᧢ݮᄵ৫ Heat Deflection Temperature к ASTM D-648 (ISO 75/A) Unannealed ˄8.6kg/cm 2 (˄/2''দ ) 89 Annealed ( 85ͪ8Hr ) ˄0˄ ዹᘜਐᑇ Melt Flow Index g/˄0 min ASTM D-˄238 ( ISO˄˄33 ) 200кͪ5Kg ( 49N ) ˄.6 220кͪ˄0Kg ( 98N ) ˄7 ֺ ૹ Specific Gravity ASTM D-792 ( ISO˄˄83 ) 23к/23к˄.05 ࢤᗏᗈ Flammability UL-94 FILE NO. E˄62823 ˄/˄6" HB All Color General Purpose Grades of Delrin ® —ASTM Data ToughestMedium FlowHigh FlowUlra Flow Delrin ® Delrin ® Delrin ® Delrin ® Delrin ® Delrin ® Delrin ® Delrin ® Delrin ® Del…

Text truncated - open the document above for the full version.

Test Report -------------------------------------------------------------------------------1/50 Report No.: A5415477, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of Wireless LAN PCI Card Applicant:ASUSTek Computer Inc. EUT:Wireless LANPCI Card Model No.:WL-138G FCC ID:MSQWL138G Report No.:A5415477 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report -------------------------------------------------------------------------------2/50 Report No.: A5415477, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (1992) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart B (Declaration of Conformity) and C Section 15.247. Applicant:ASUSTek Computer Inc. Applicant address:4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Product Name:ASUS WLANCard Model Name:WL-138G FCC ID:MSQWL138G Report No.:A5415477 Test Date:December 25, 2003 Prepared by:Approved by: Jack TsaiFrank Tsai Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. (3) This test report, measurements made by TRC are traceable to the NIST only Conducted and Radiated Method. NVLAP LAB CODE: 200174-0 Test Report -------------------------------------------------------------------------------3/50 Report No.: A5415477, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Federal Communications Commission Declaration of Conformity (DoC) For the Following Equipment: Product name:ASUS WLAN Card Model name: WL-138G Trade name: ASUS Is herewith confirmed and found to comply with the requirements of CFR 47 part15 Subpart B - Unintentional Radiators regulation. The results of electromagnetic mission evaluation are shown in the report number : A5415477 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation ManufacturerUSA local representative Company name: ASUSTeK Computer Inc.To be determined Computer address: 4/F, 150, Li-Te Rd., Peitou, Taipei, Taiwan ZIP / Postal code 112 Contact person: Lawrence Yu Title: Manager Internet e-mail address: [email protected] Tel / Fax: 886-2-28943447 / 886-2-28950113 Test Report -------------------------------------------------------------------------------4/50 Report No.: A5415477, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I.GENERAL...................................................................................................................... 6 1.1Introduction.............................................................................................................. 6 1.2Description of EUT ................................................................................................... 6 1.3Test method ............................................................................................................. 6 1.4Description of Support Equipment ............................................................................. 7 1.5Configuration of System Under Test......................................................................... 10 1.6Verify the Frequency and Channel ............................................................................ 12 1.7Test Procedure........................................................................................................ 13 1.8Location of the Test Site .......................................................................................... 13 1.9General Test Condition ............................................................................................ 13 II.Section 15.101(a) : Equipment Authorization of Unintentional Radiators.................... 14 III.Section 15.203 : Antenna Requirement.......................................................................... 15 IV.Section 15.207 : Power Line Conducted Emissions for AC Powered Units................ 16 3.1Test Condition & Setup........................................................................................... 16 3.2List of Test Instruments ............................................................................................ 17 3.3Test Result of Conducted Emissions ......................................................................... 18 Standby mode .......................................................................................................... 18 IEEE 802.11b ........................................................................................................... 19 IEEE 802.11g ........................................................................................................... 20 V.Section 15.247(a) : Technical Description of the EUT................................................... 22 VI.Section 15.247(a)(2) : Bandwidth for Direct Sequence System................................... 23 6.1Test Condition & Setup ...............................................................…

Text truncated - open the document above for the full version.
